Docking Station |
SKU:
JU-DK0K11-S1

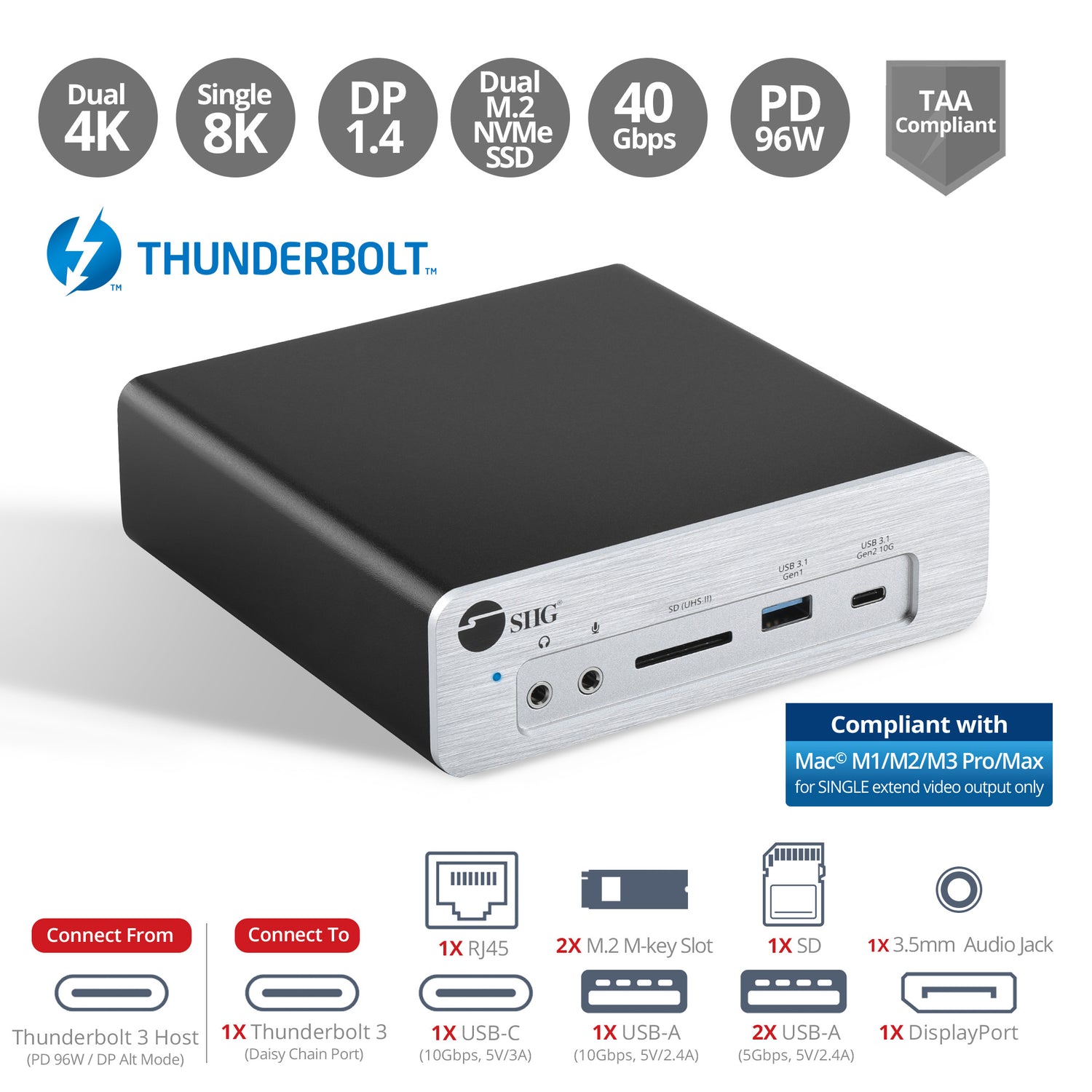

Thunderbolt 3 DP 1.4 8K Docking Station with Dual M.2 NVMe SSD & 96W Power Delivery, support 4K 144Hz resolution
Thunderbolt 3 Docking

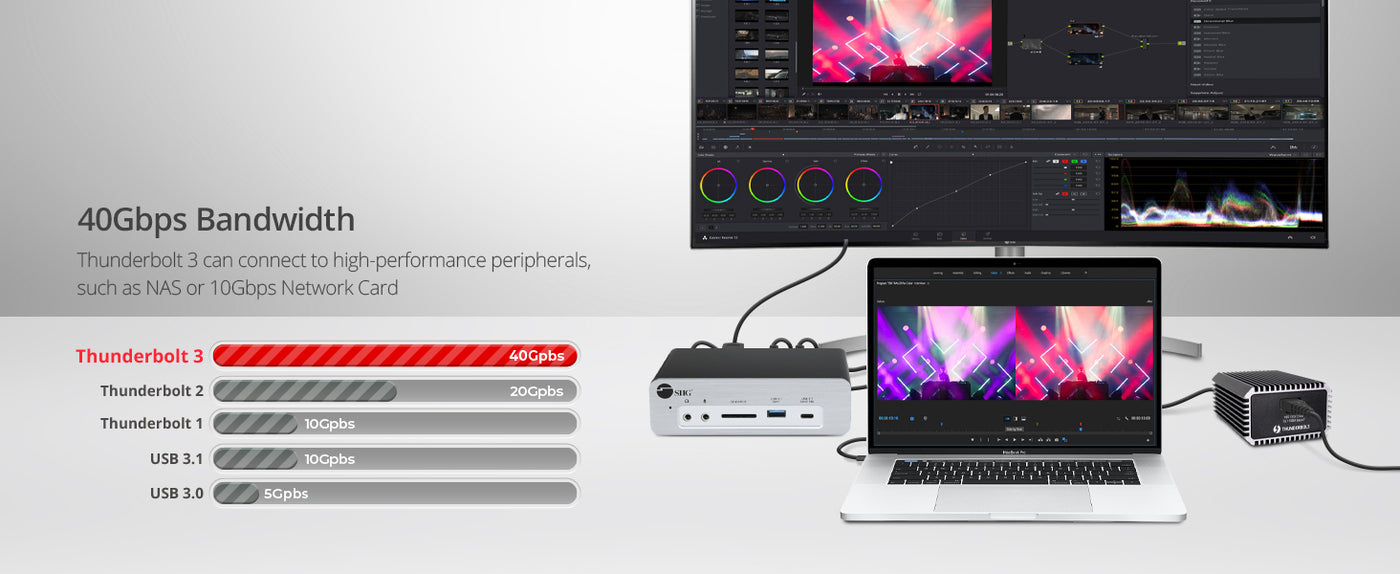

40Gbps
8K 30Hz / 96W
2x M.2 NVMe slot
TAA Compliant
Regular price
$399.99
Unit price
/
Unavailable
Shipping calculated at checkout.
Thunderbolt 3 DP 1.4 8K Docking Station with Dual M.2 NVMe SSD & 96W Power Delivery, support 4K 144Hz resolution is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
Advanced Docking Station
Advanced Docking Station
Experience High Resolution Video
Experience High Resolution Video

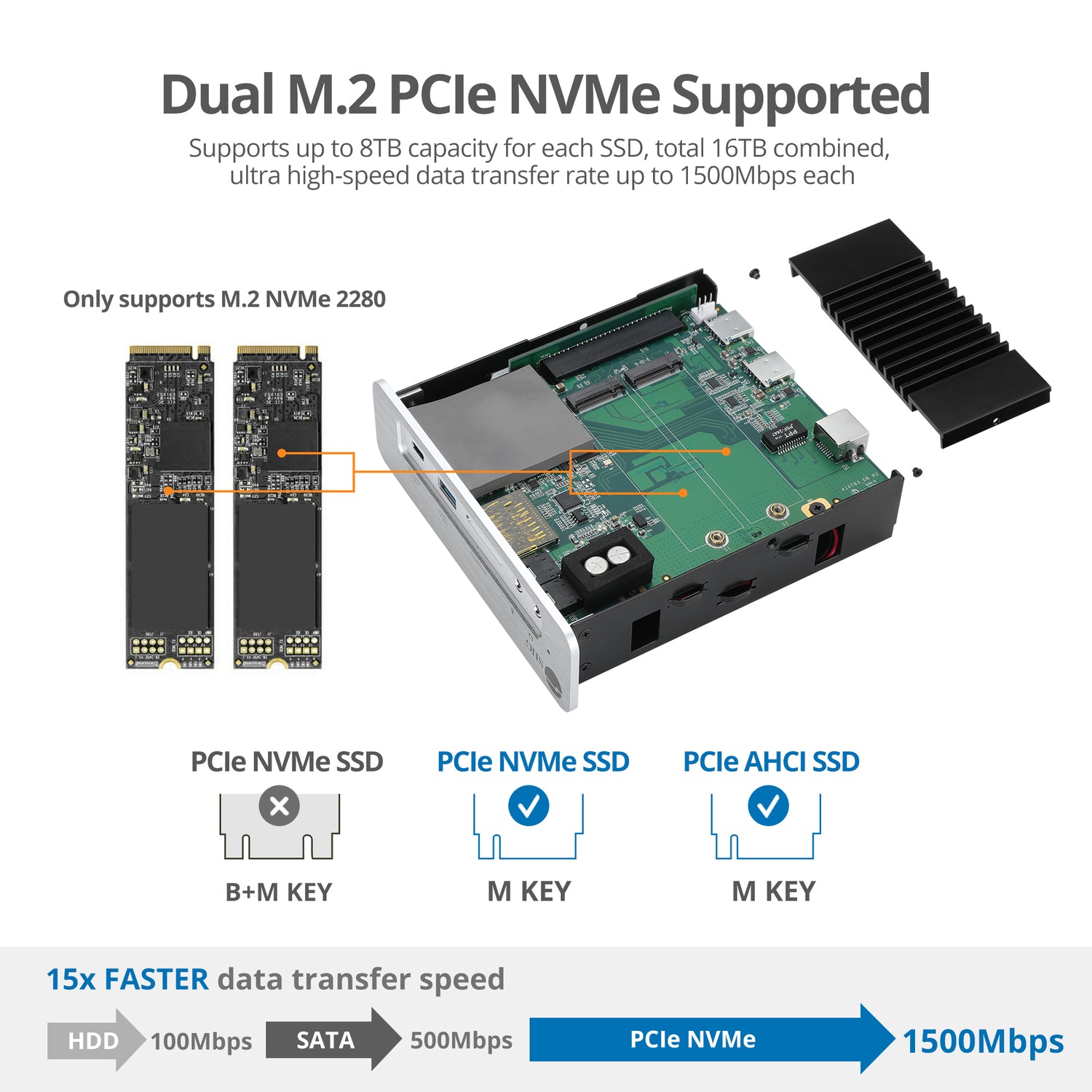

Dual PCIe Gen3 NVMe M.2
Dual PCIe Gen3 NVMe M.2
USB 3.1 10Gbps
USB 3.1 10Gbps

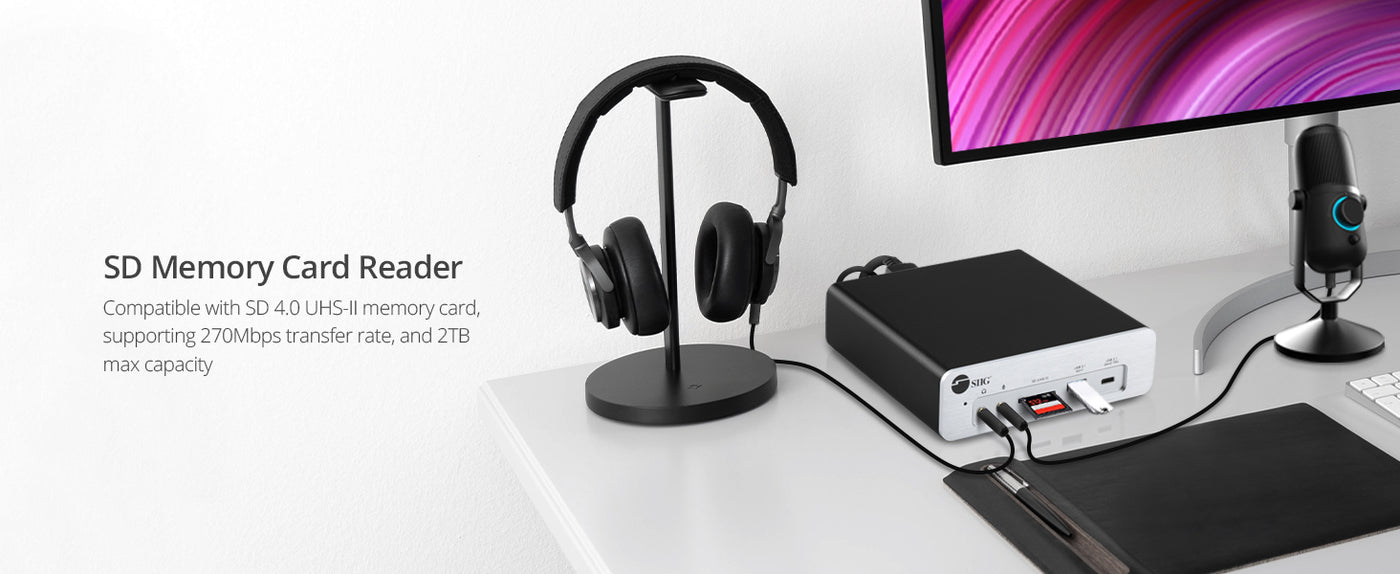

SD Memory Card Reader
SD Memory Card Reader
Thunderbolt 3 DP 1.4 8K Docking Station with Dual M.2 NVMe SSD &...
Estimated shipping by May 25, 2026
Regular price
$399.99
Unit price
/
Unavailable
-
45 Days Free Return
-
2 Years Warranty
-
Lifetime Technical Support
Single 8K or Dual 4K Video Resolution
-

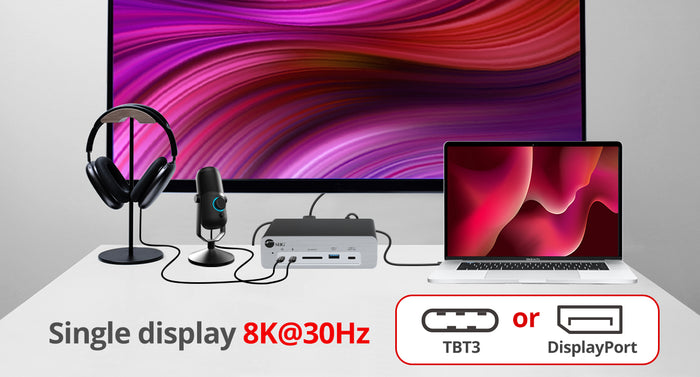

Single 8K Display
With 1x Thunderbolt 3 port or 1x DisplayPort 1.4 port, this docking station can display resolutions up to 8K 30Hz on a single external monitor.
*Note: Ensure your monitor supports DisplayPort 1.4 to reach 8K resolution. DP 1.2 could only get 4K 60Hz. -

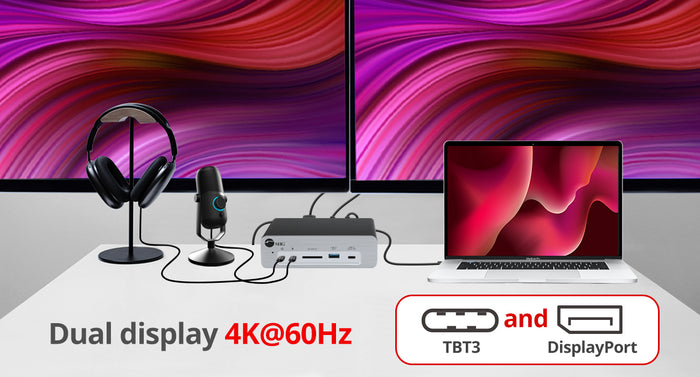

Dual 4K Displays
With the Thunderbolt 3 and DisplayPort 1.4 ports together, this docking station can display resolutions up to 4K 60Hz on 2x external monitors.
*Note: Only ONE external video display is supported on Mac M1 and M2 systems.
| Facet |
Thunderbolt 3 DP 1.4 8K Docking Station with Dual M.2 NVMe SSD & 96W Power Delivery, support 4K 144Hz resolution View details |

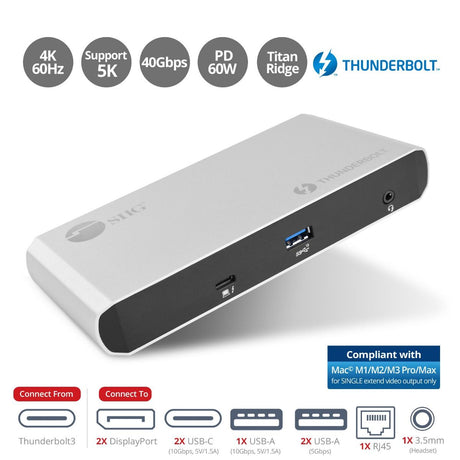

Thunderbolt 3 to 8K/Dual 4K Monitor Docking Station with PD- Titan Ridge and USB-C DisplayPort Alt compatible, support 4K 144Hz resolution View details |

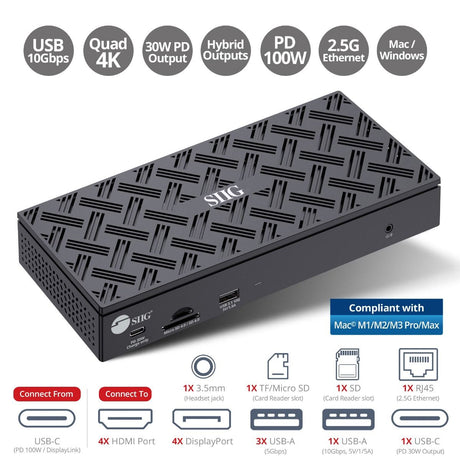

USB-C Quad Hybrid 4K Video Docking Station with PD- Windows & Mac M1/M2/M3 Pro/Max Compatible View details |
Triple Hybrid 4K Video Docking Station with PD Charging- Windows & Mac M1/M2/M3 Pro/Max Compatible View details | |
|---|---|---|---|---|---|
| SKU | |||||
| SKU | |||||
| Protocol | |||||
| Protocol | |||||
| Data Transfer (Max) | |||||
| Data Transfer (Max) | |||||
| Resolution | |||||
| Resolution | |||||
| Spec | |||||
| Spec | |||||
| Power Delivery | |||||
| Power Delivery | |||||
| Power Output (Max) | |||||
| Power Output (Max) | |||||
| Power Adapter | |||||
| Power Adapter | |||||
| Form Factor | |||||
| Frequency | |||||
| Additional function | |||||
| Additional function | |||||
| Chipset | Intel JHL7540 (Intel Thunderbolt 3 certified) |
| Video & Data Transfer | |
| TBT3 with DP 1.4 | Up to single 8K@30Hz / single 5K@60Hz / single 4K@144Hz / dual 4K@60Hz |
| TBT3 with DP 1.2 | Up to single 5K@30Hz / Dual 4K@30Hz |
| DisplayPort 1.4 | 1x 8K@30Hz display / 1x 5K@60Hz display / 1 x 4K 144Hz display / 2x 4K@60Hz displays, cable up to 2M |
| DisplayPort 1.2 | 1x 5K@30Hz display / 2x 4K@30Hz displays, cable up to 3M |
| USB-C | 1x Data transfer rate up to 10Gbps, with 5V/3A fast charging |
| USB-A | 1x Data transfer rate up to 10Gbps, with 5V/2.4A fast charging |
| USB-A | 2x Data transfer rate up to 5Gbps, with 5V/2.4A fast charging |
| Fast Charging Port | Yes |
| Audio Supported | 3.5mm 2 channel stereo audio jack & microphone Jack |
| Ethernet | |
| Data transfer rate | up to 1G (1000Mbps), backward compatible with 10/100Mbps |
| Features | Supports IEEE 802.3x Full Duplex flow operation, crossover detection, and auto-correction Compatible with IEEE 802.3, 802.3u |
| Enterprise features | Wake on LAN and PXE boot *Note: Mac address pass-through not supported |

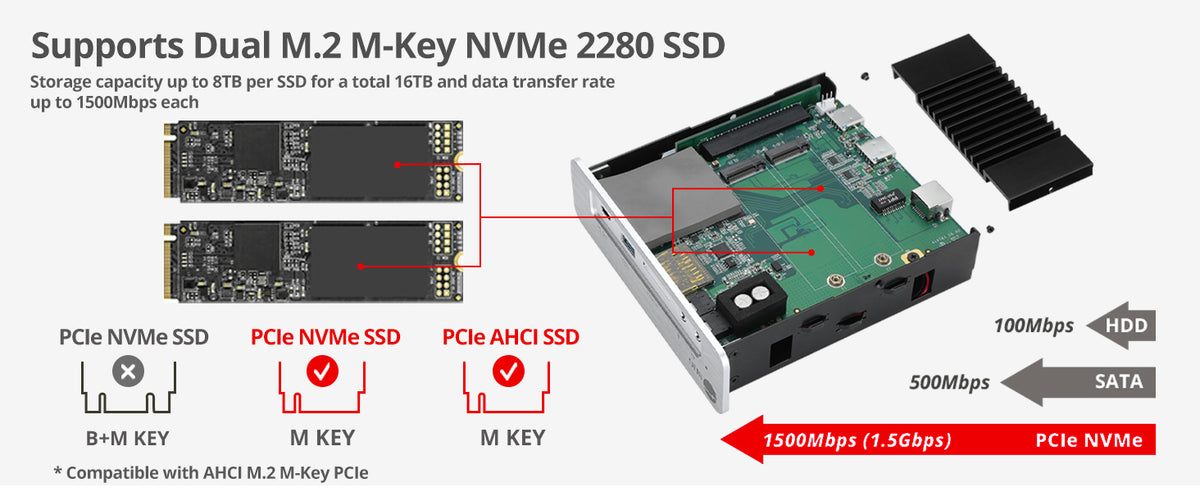

| Storage Drive | |

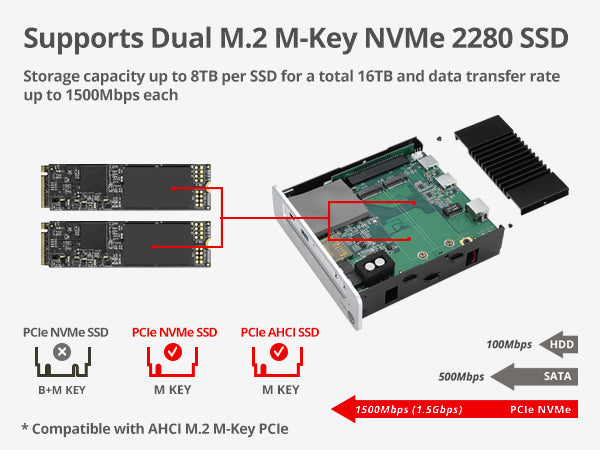

| Form factor | 2x M.2 M-Key 2280 NVMe SSD slots |
| Capacity | Up to 8TB for each SSD |
| Data transfer rate | up to 1.5Gbps (1500Mbps) |
| Compatible with | Single or dual SSD installation |
| Card Reader | |
| Class | 1x SD 4.0 (UHS-II) slot, compatible with the earlier versions |
| Data transfer rate | up to 270MB/s (UHS-II) |
| Capacity | 2TB (max) |

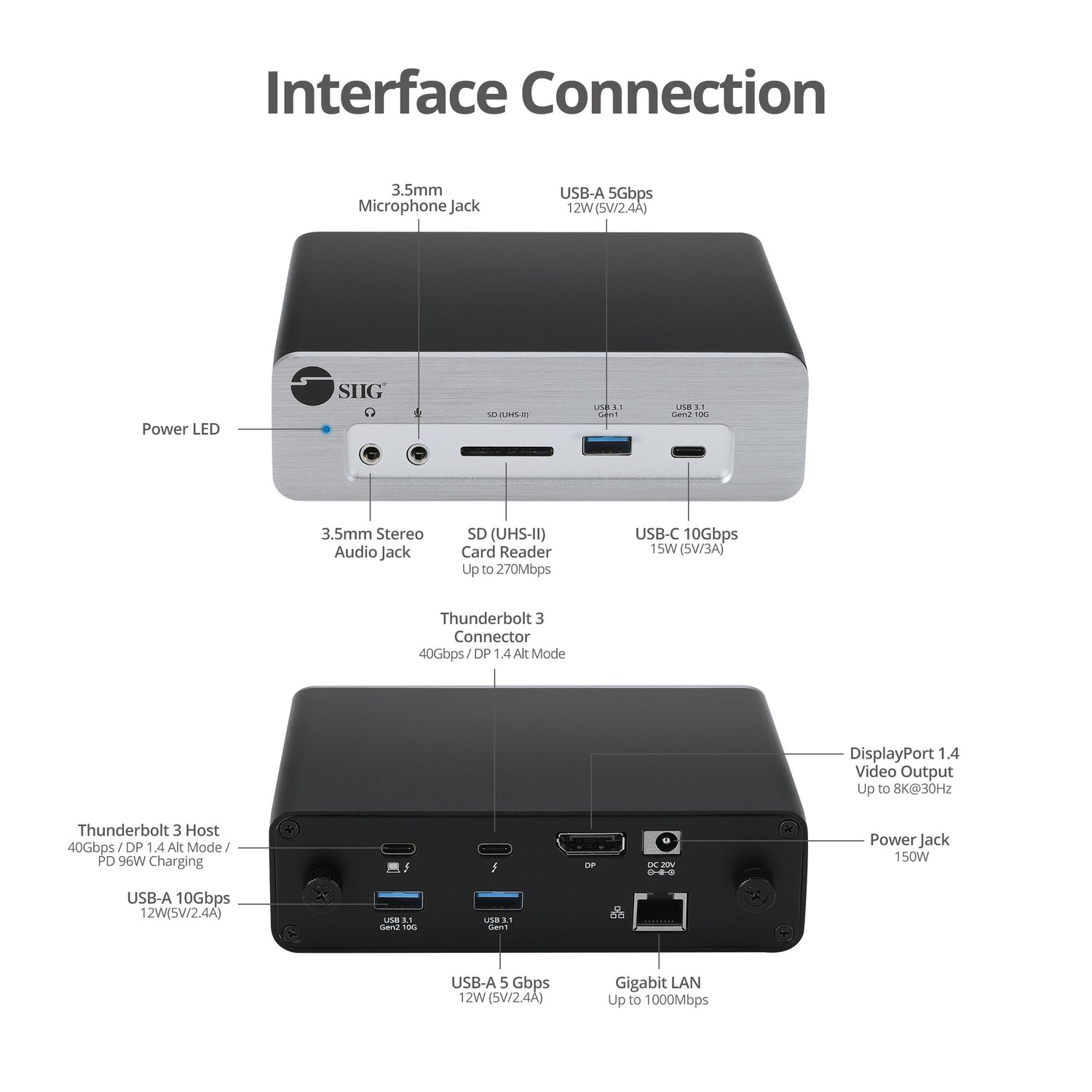

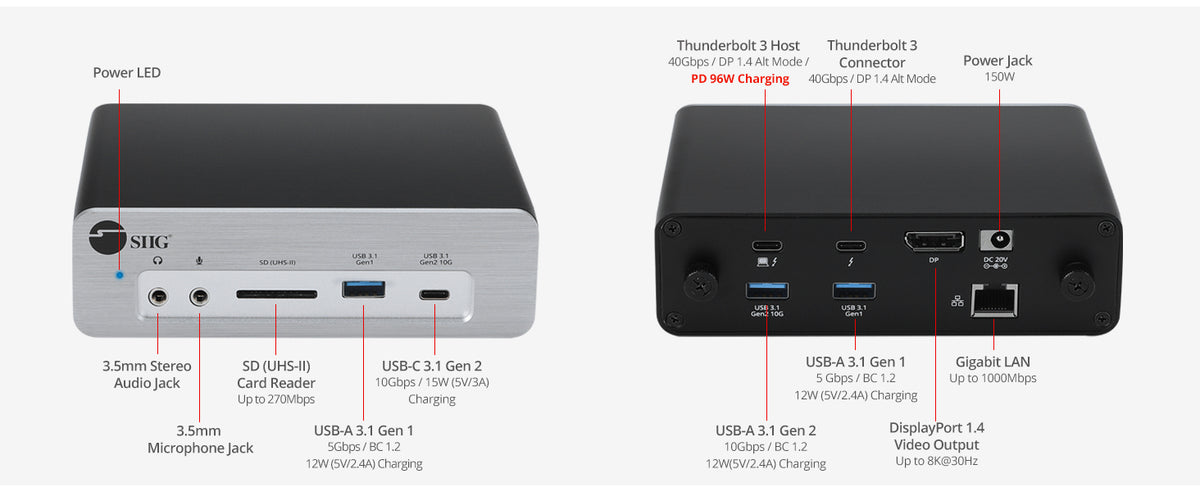

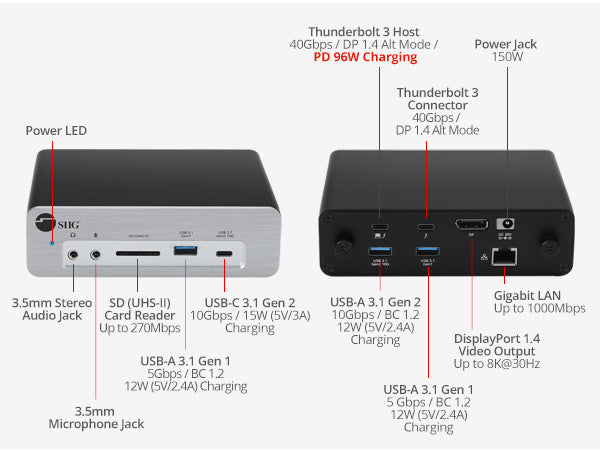

| Interface | |
| Input | 1x 24-pin, Thunderbolt 3, Female (PC Input) 1x DC power Jack (150W) 1x 3.5mm microphone jack |
| Output | 1x 24-pin, Thunderbolt 3, Female 1x 20-pin, DisplayPort 1.4, Female 1x 24-pin, USB C 10Gbps, Female 1x 9-pin, USB-A 10Gbps, Female 2x 9-pin, USB-A 5Gbps, Female 1x 8-pin, RJ45, Gigabit Ethernet, Female 2x 75-pin, M-Key, M.2 PCIe NVMe SSD slot 1x SD 4.0 (UHS-II) memory card slot 1x 3.5mm stereo audio jack |
| Product | |

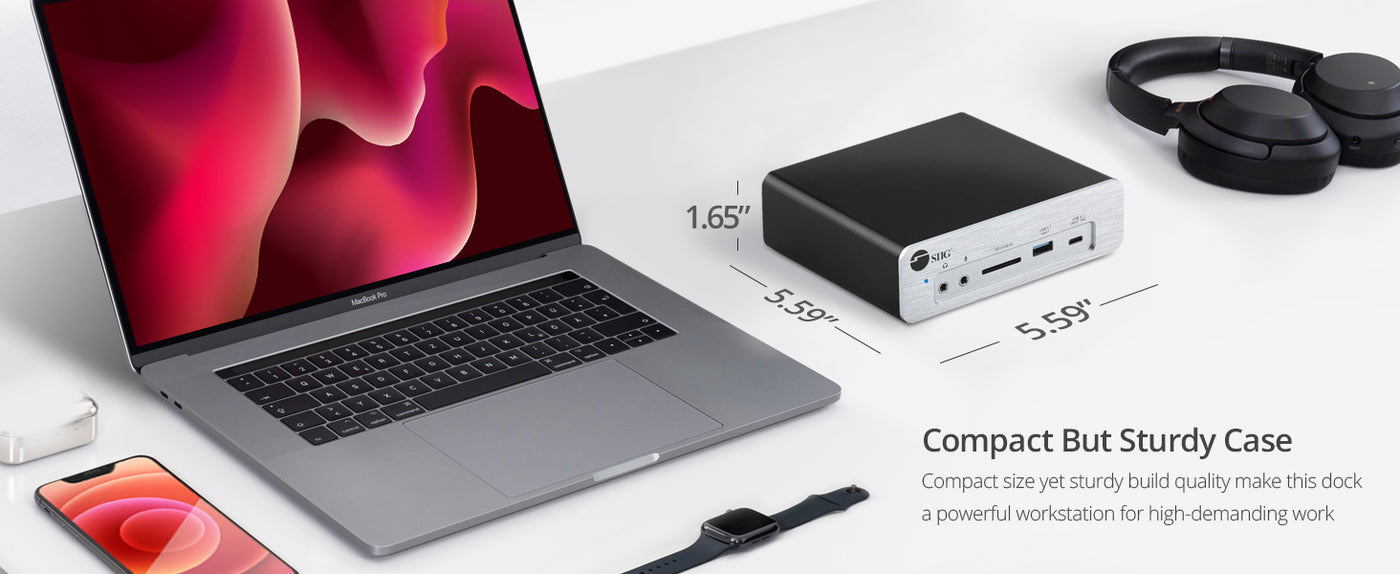

| Dimensions (L) x (H) x (W) | 5.55" x 1.67" x 5.86" 14.10 cm x 4.24 cm x 14.88 cm |
| Weight | 1.98 lbs (0.90 kg) |
| Color | Black |
| Housing material | Metal |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 9.21" x 3.74" x 7.09" 23.39 cm x 9.50 cm x 18.00 cm |
| Weight | 4.18 lbs (1.90 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 14.96" x 10.51" x 11.81" 38.00 cm x 26.70 cm x 30.00 cm |
| Weight | 26.89 lbs (12.20 kg) |
| Quantity | 6 pcs/ctn |

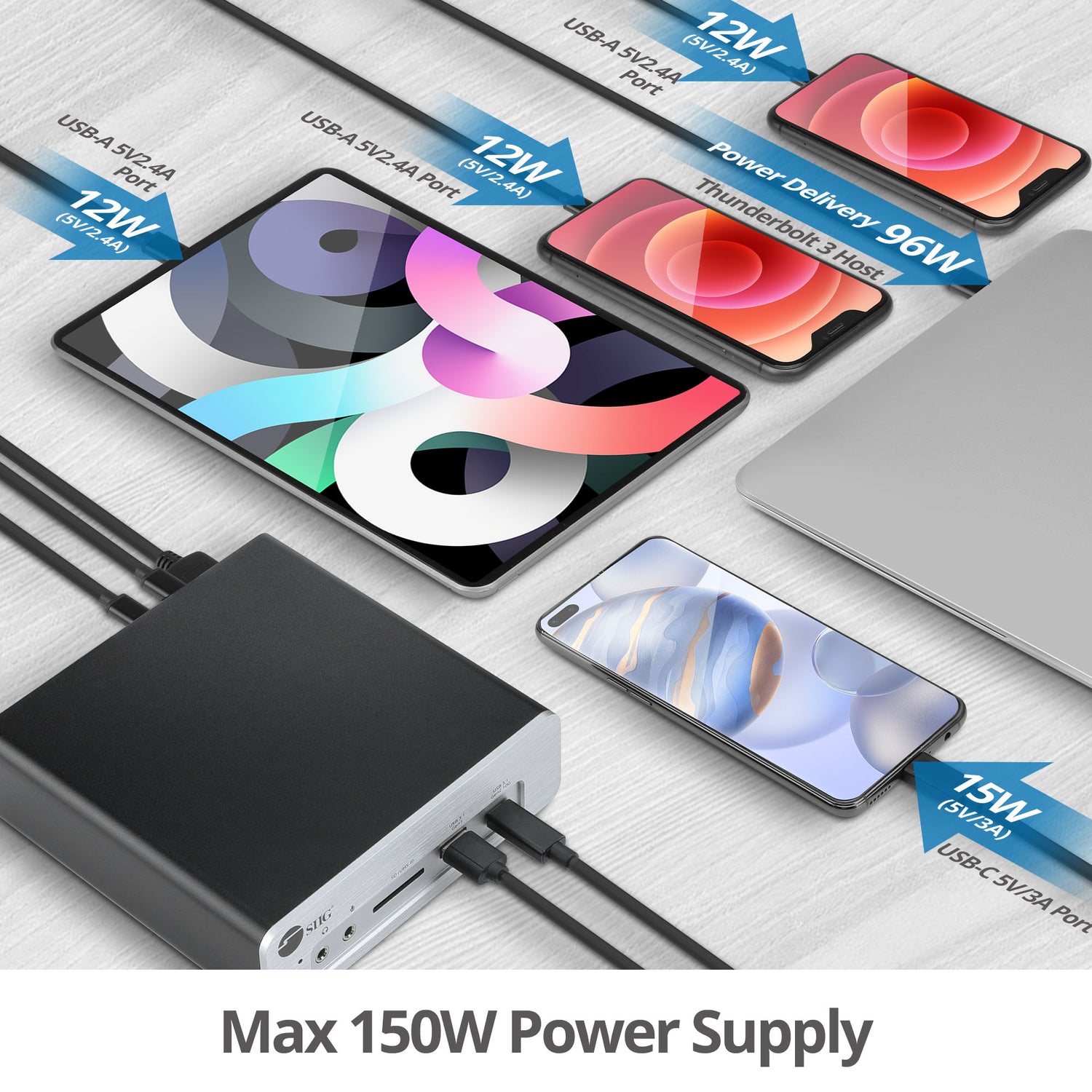

| Power | |

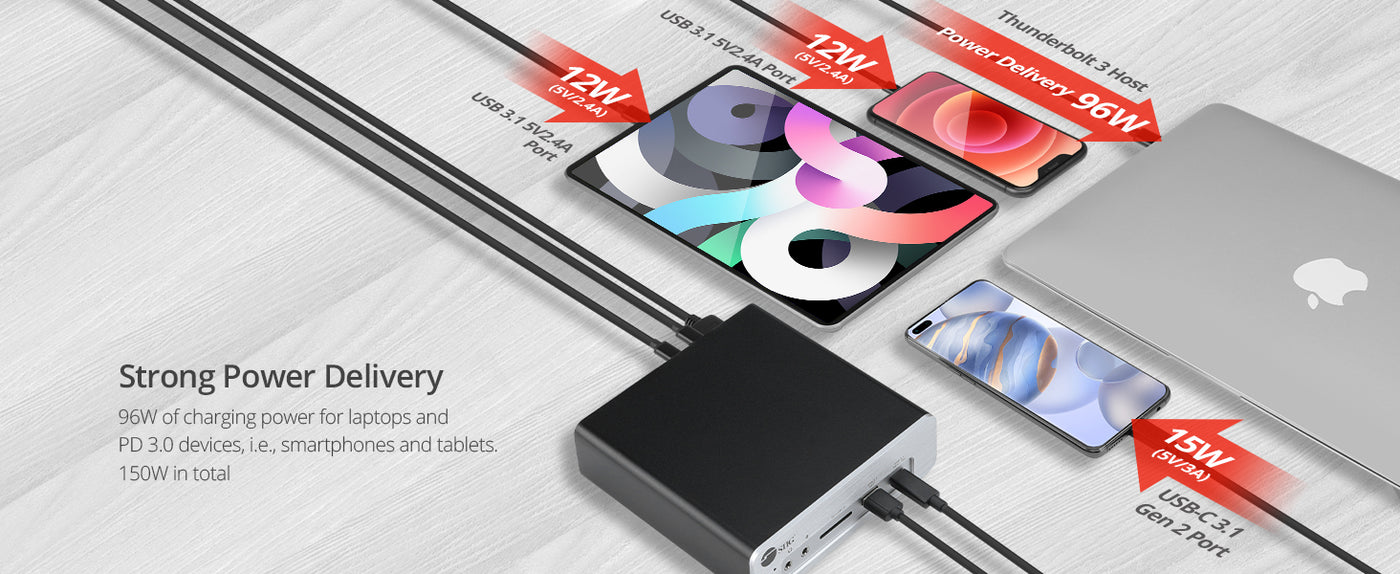

| Power Delivery 3.0 | up to 96W |
| Power Adapter | Input: AC 100-240V / 50-60Hz, Output: DC 20V/7.5A |
| UL Listed | E209833 /Level: VI |
| Environmental Conditions | |
| Operating temperature | 32 to 104 degrees F |
| Storage temperature | -4 to 158 degrees F |
| Relative humidity | 10% to 90% RH (non-condensing) |
| Certifications/Standards | FCC, CE, RoHS, TAA compliant |
| UPC Code | 662774-044071 |
| Warranty | 2 years limited |
| Country of Origin | Taiwan |
| System Requirements | Desktop or Laptop with an available Thunderbolt 3 port Compliant with mac® M1, M2, M3 Pro, & Max systems for single extend video output Windows® 11 (64-bit) / 10 (32-/64-bit) mac OS® 10.14 or newer *Compliant with mac M1, M2, M3 Pro, & Max systems for single extend video output |

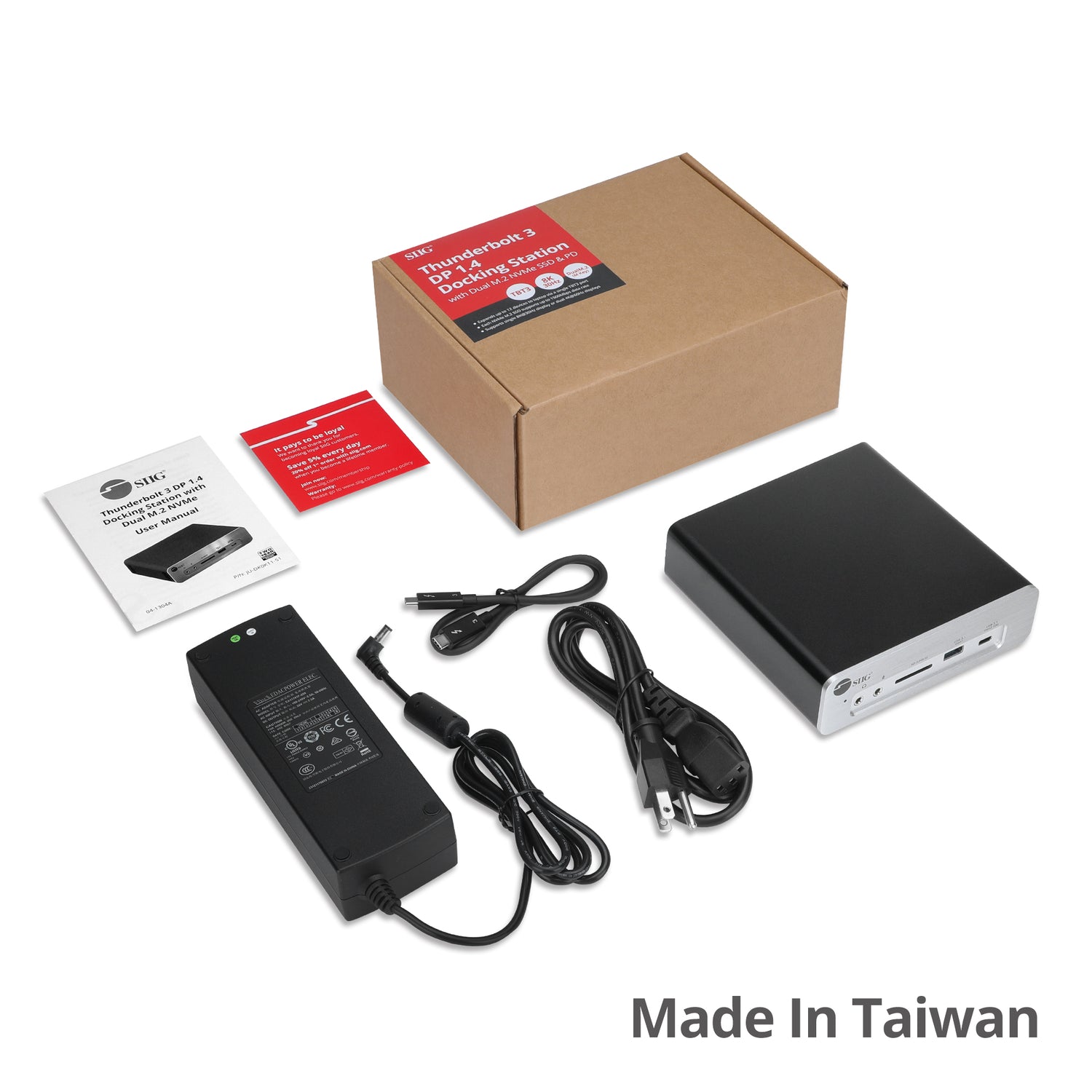

| Package Contents | 1x Thunderbolt 3 DP 1.4 Docking Station with Dual M.2 NVMe SSD & PD 1x Thunderbolt 3 Cable (50cm) 1x Power Adapter (20V/7.5A) 1x User reference guide |
Q1: Why does my DP to HDMI cable not work?
Q1: Why does my DP to HDMI cable not work?
A1: The DP port of the Docking Station is a DP native signal and requires an Active DP to HDMI cable or adapter. Please confirm your DP to HDMI cable or adapter has "Active" typeface
DP to HDMI cable/adapter without "Active" is passive product, used for DP dual mode signal
DP to HDMI cable/adapter without "Active" is passive product, used for DP dual mode signal
Q2: Do the two M.2 slots can support PCIE Gen 4 NVMe SSD?
Q2: Do the two M.2 slots can support PCIE Gen 4 NVMe SSD?
A2: Yes, they do, but only at PCIe Gen 3 x2 speed.
Q3: Do the two M.2 slots can support RAID?
Q3: Do the two M.2 slots can support RAID?
A3: Yes, they do, but only software RAID.
