Docking Station | SKU: JU-DK0C11-S1

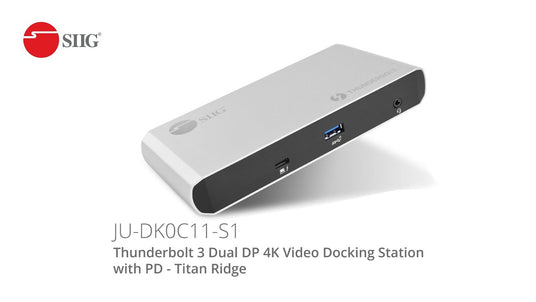

Thunderbolt 3 Dual DP 4K60Hz Video Docking Station with PD - Titan Ridge

Thunderbolt 3 Docking
Dual DisplayPort
40Gbps
USB-A/C 10Gbps
PD 60W
$129.88 $249.99
Shipping calculated at checkout.
Product Features

4K Thunderbolt 3 Docking Station

Transforms a single USB-C port (Thunderbolt 3 compatible) into multiple connections including two 4K Ultra HD displays OR a single 5K@30Hz display. Supports Thunderbolt data transfer speeds up to 40Gb/s, daisy chaining Thunderbolt devices such as monitors and external hard drives. Supports Power Delivery 3.0 (PD) charging up to 60W. USB 3.1 Gen-2 data transfer up to 10Gbps

Multiple Connectivity Ports

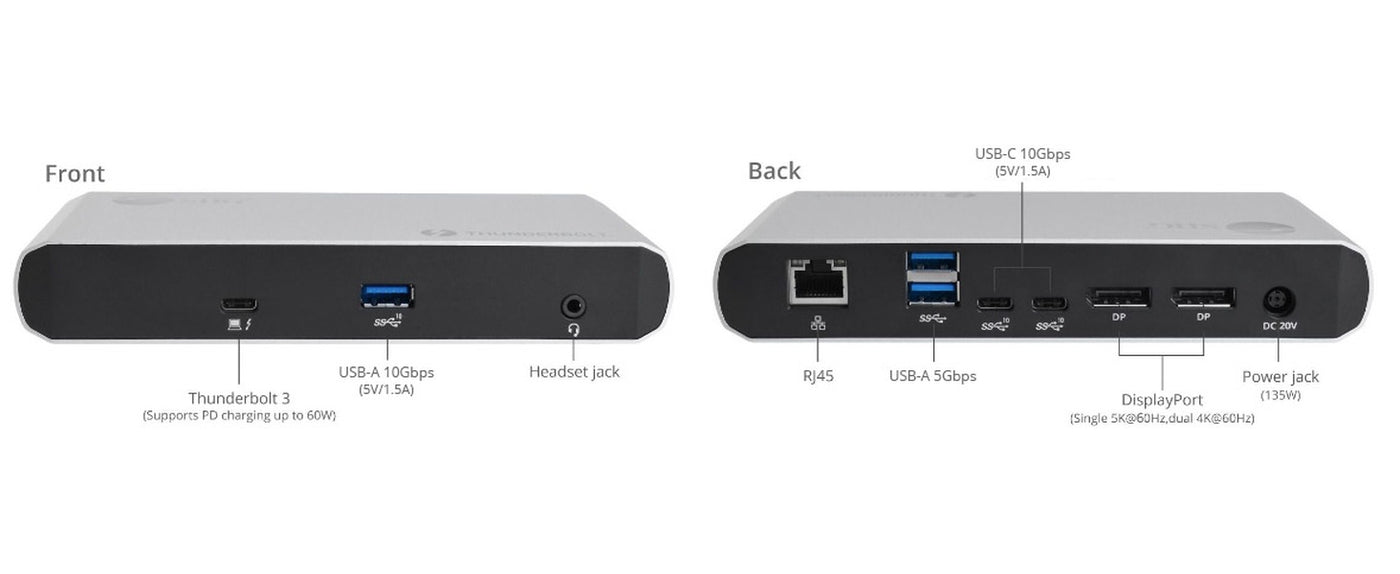

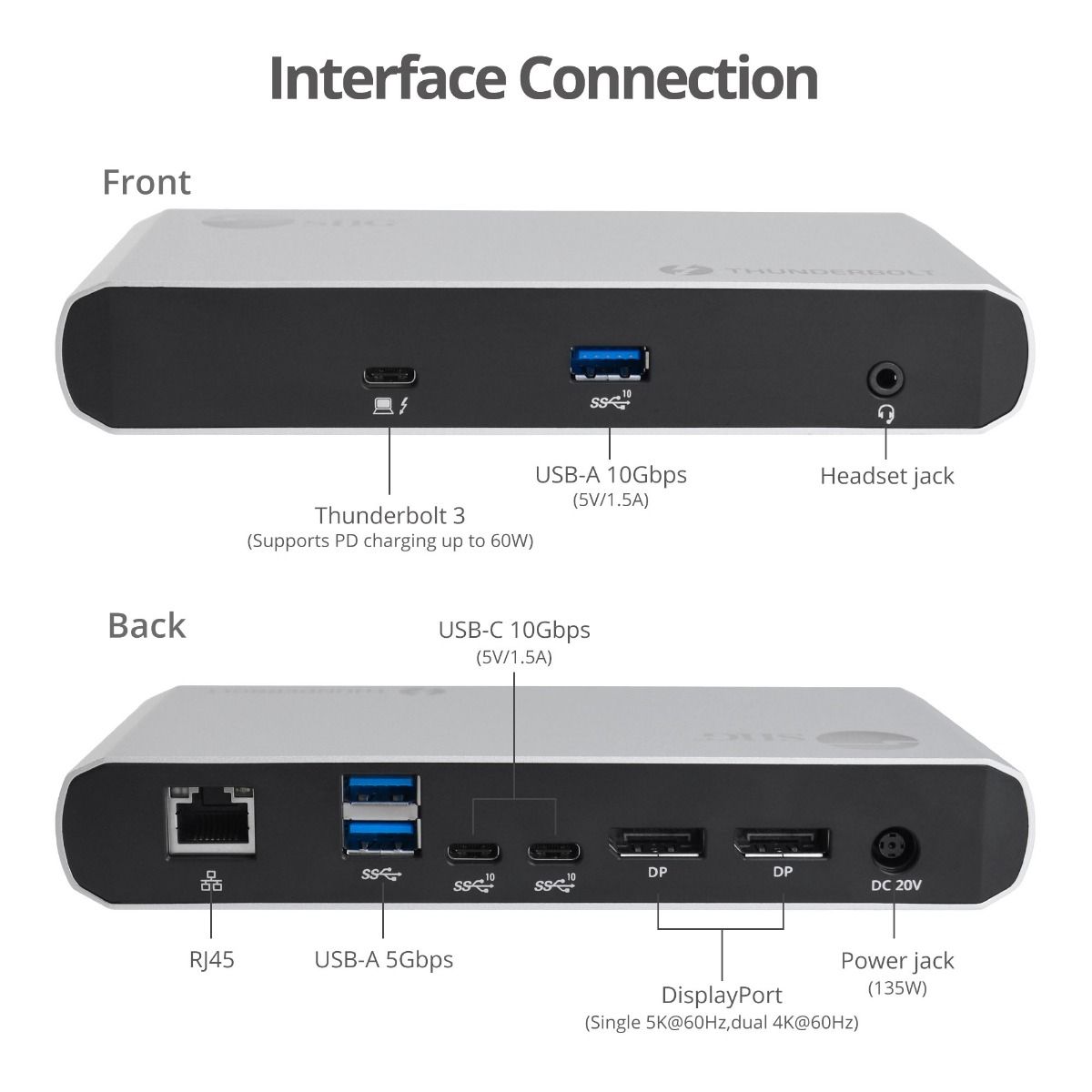

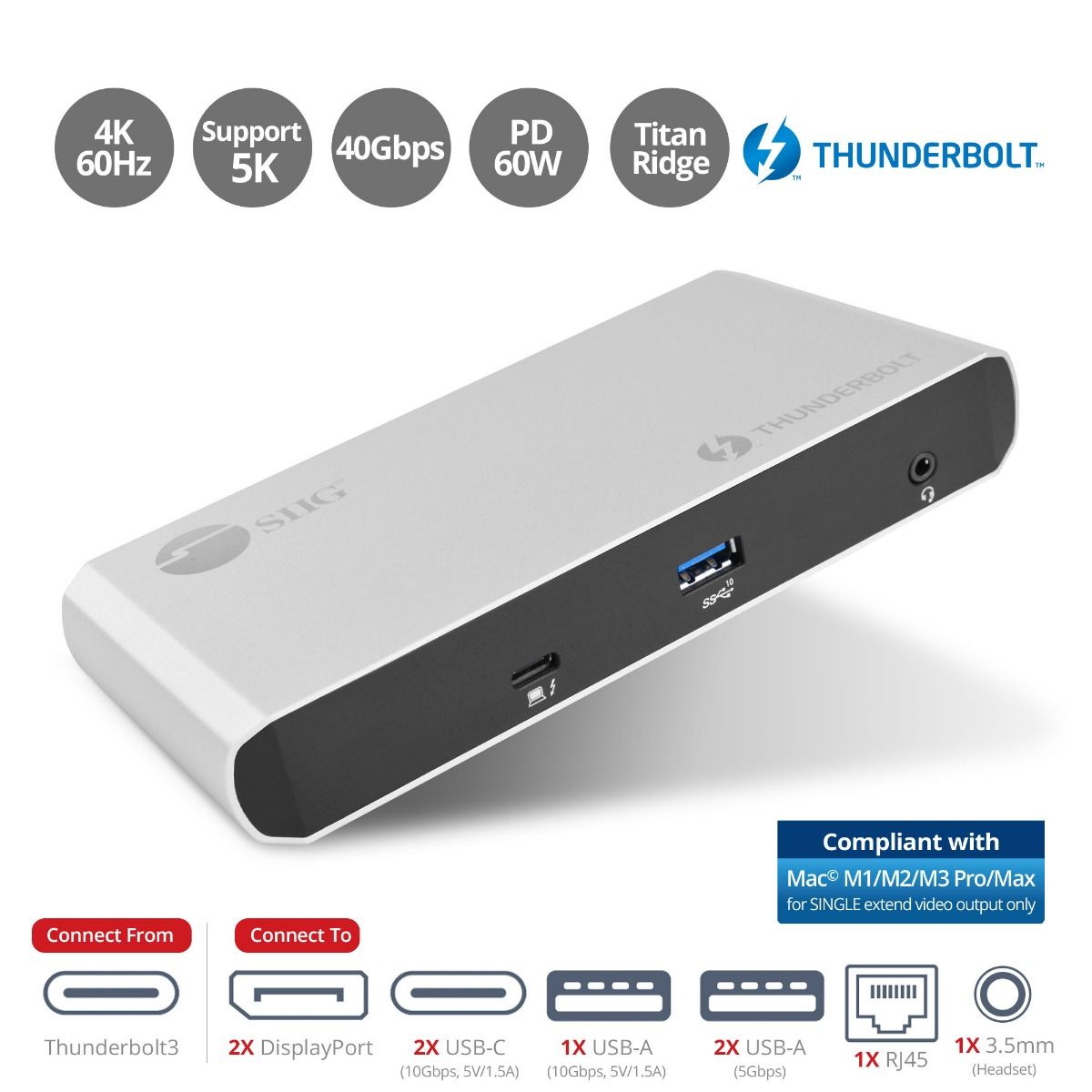

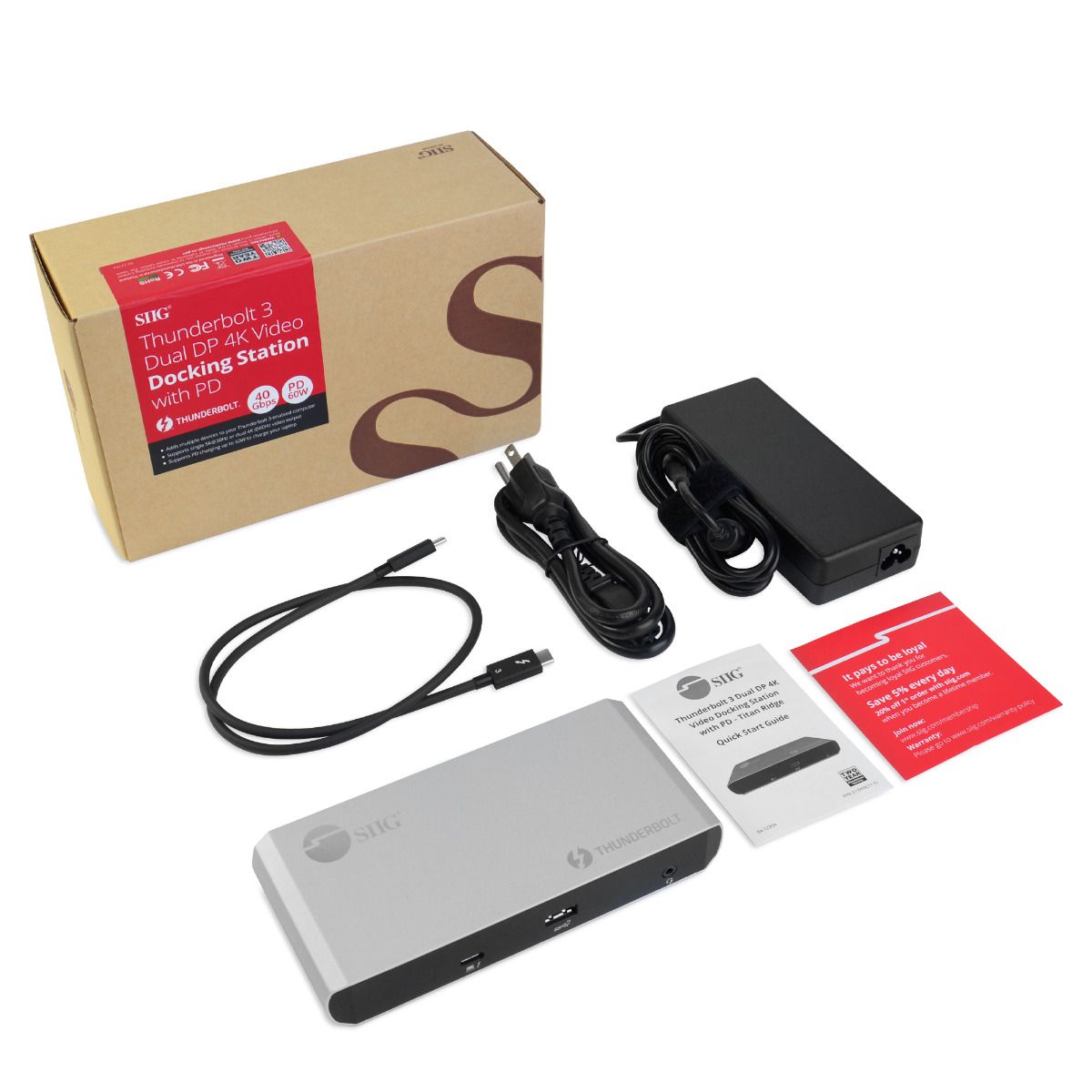

Features one Thunderbolt 3 port, two USB Type-C and one USB-A 10Gbps with 5V/1.5A charging ports, two USB-A 5Gbps ports, two DisplayPort 4K video ports, one Gigabit Ethernet port, and one dual mode 3.5mm audio jack to connect head phones / Stereo speakers or microphone input. The included 135W power adapter provides sufficient power for the connected peripherals.

Next Generation Intel Titan Ridge IC

The powerful Intel Titan Ridge Chipset provides compatibility with Thunderbolt 3 and USB-C DP Alt mode compliant systems. Experience high resolution graphics by connecting two 4K Ultra HD displays through DisplayPort connections or a single 5K@30Hz display through dual DisplayPort connections

Wide Compatibility

Desktop or laptop computer with an available USB-C DP Alt mode port or Thunderbolt 3 technology. Windows 10. Mac OS X 10.13 to 10.15 (present) - SEE IMPORTANT NOTES SECTION!

Customer Support

Fully compliant with Certifications/Standards: FCC, CE, RoHS. Our products are backed with a 2-year limited warranty and experienced tech support team in Silicon Valley.

  • Free Shipping on orders $100+

  • 45 Days Free Returns

  • 2 Years Warranty

  • Lifetime Technical Support

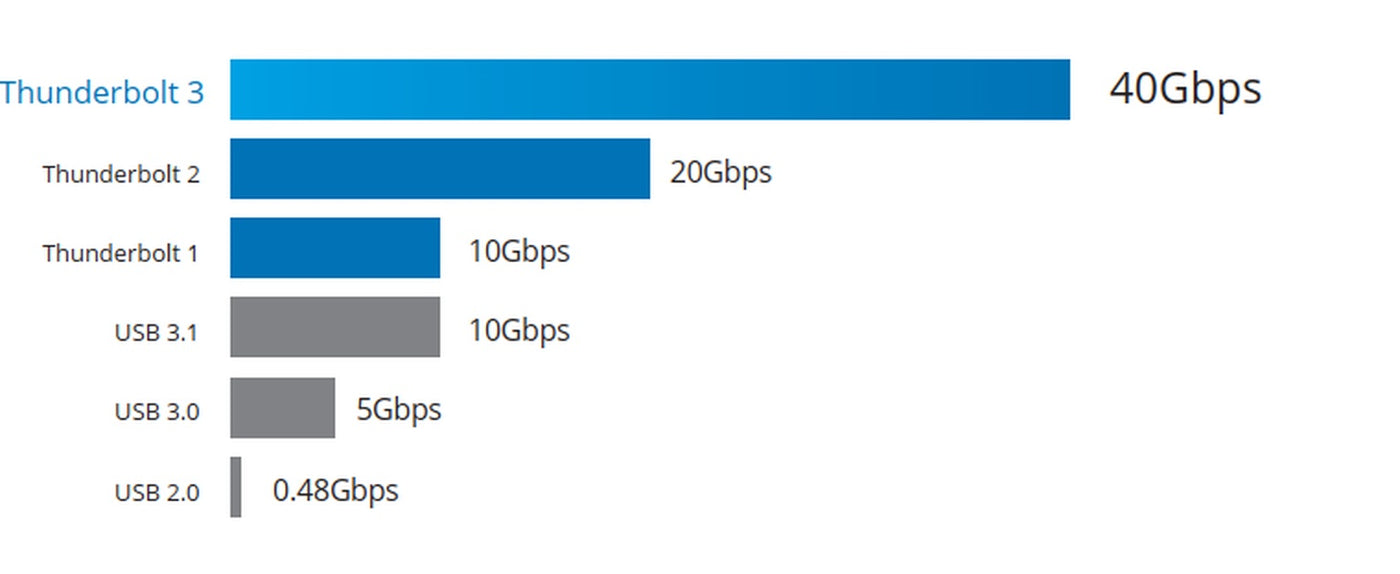

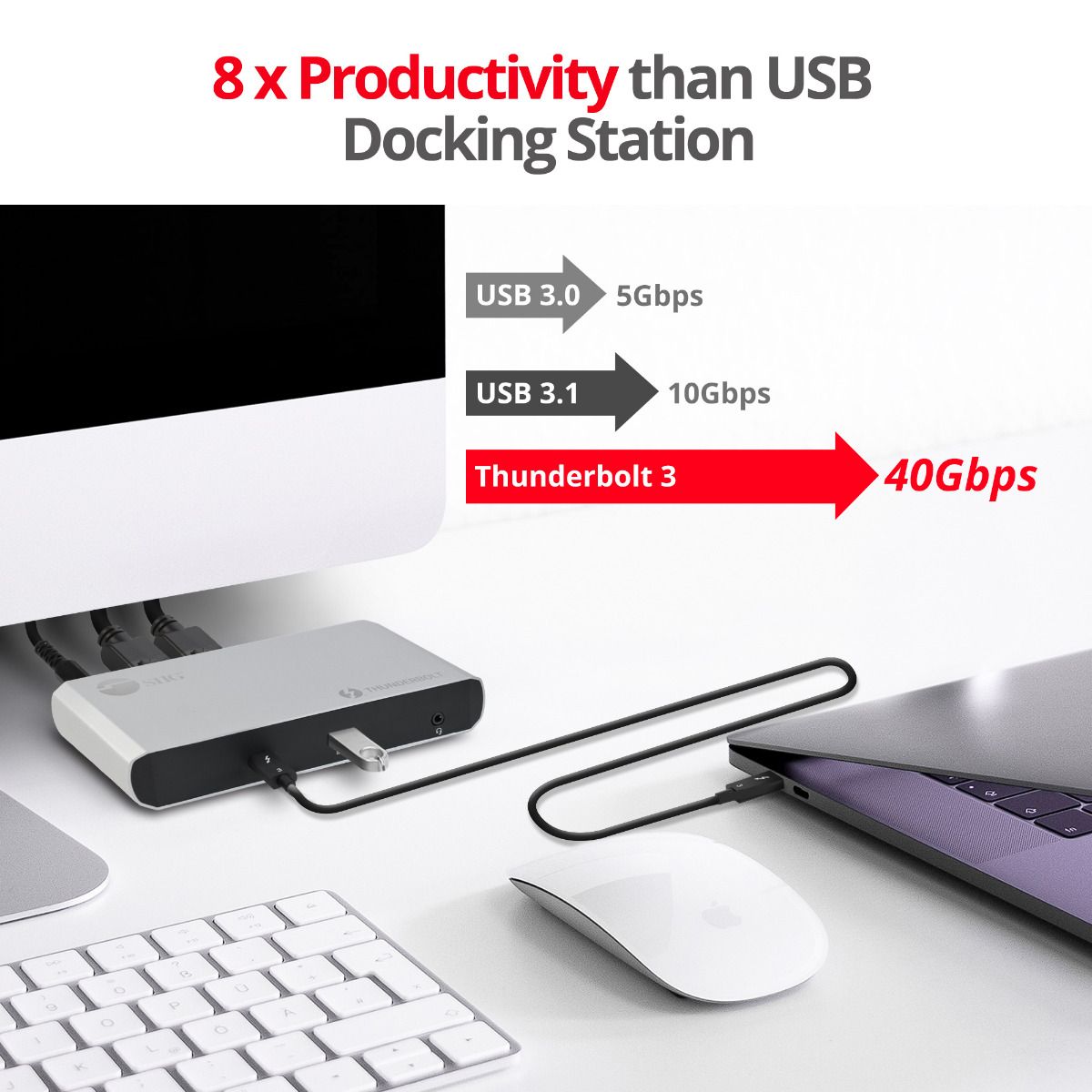

Increase Your Efficiency and Allows Data Transfer Speeds up to 40Gbps and Daisy-chain up to 6 Thunderbolt Devices

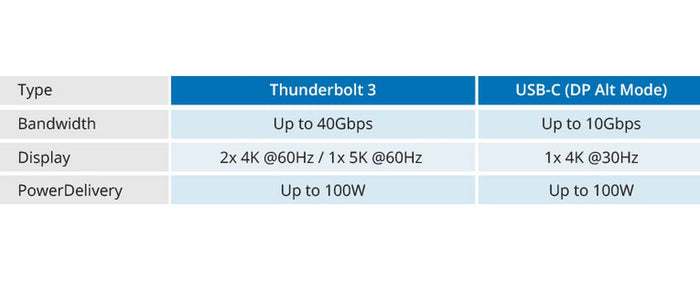

Expand multiple connectivity ports to your Thunderbolt 3/DP Alt Mode* USB-C enabled Mac or Windows PC to increase your efficiency and allows data transfer speeds up to 40Gbps and daisy-chain up to 6 Thunderbolt devices
*Note:

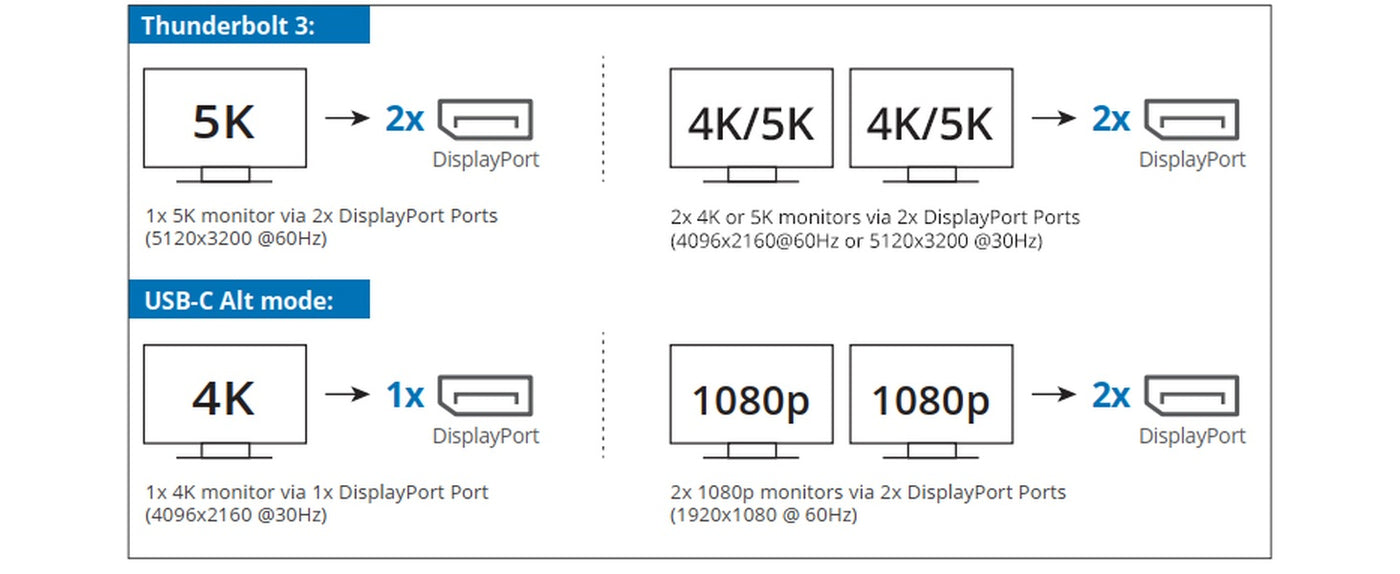

- When connecting to a DP Alt mode USB-C host port the resolution will be 4K@30Hz for single DisplayPort monitor or 1080p for two DisplayPort monitors
* Compatibility Notes:
1) The thunderbolt 3 has the same design as the USB-C port. Thunderbolt 3 has the capabilities of USB-C, but USB-C does not have the capabilities of Thunderbolt 3
2) The USB Type-C connector with DisplayPort technology via an Alternative Mode (Alt mode) and allows a USB-C equipped computer and cable to connect directly to a display/monitor

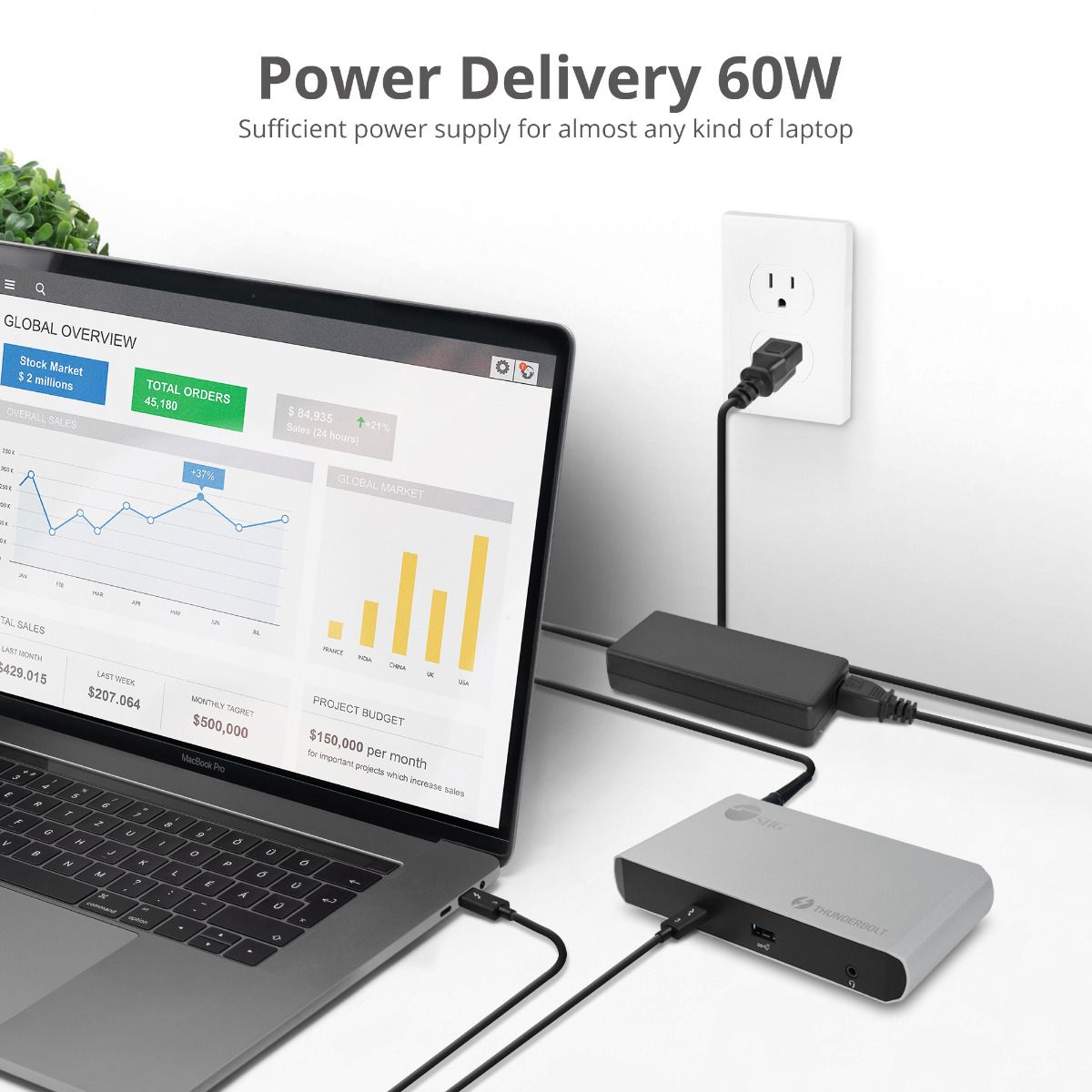

    60W Power Delivery- PD 3.0 charging specification compatible supplies up to 60 watts to charge your laptop, notebook, tablet, and smartphone. Includes 135W power adapter to provide enough power for the connected peripherals.
    High-Speed Data Transfer-Delivers two USB-C 10Gbps with 5V/1.5A charging ports, one USB-A 10Gbps with 5V/1.5A charging ports, two USB-A 5Gbps ports.
    1G Ethernet Data Transmission- Up to 1000Mbps data transfer rate and seamless backward compatible with 10/100Mbps.

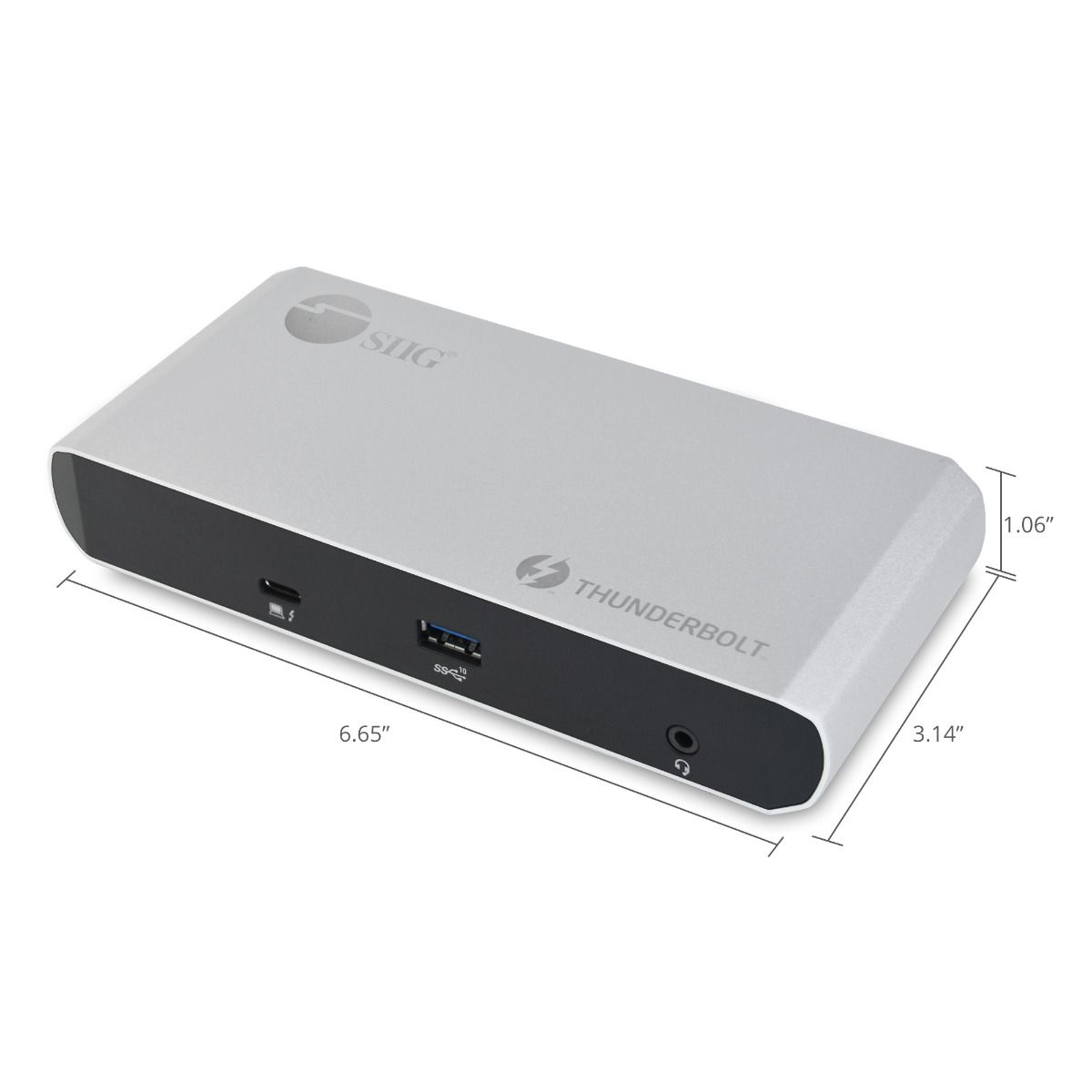

    Aluminum Housing Design- Premium aluminum housing provides efficient heat dissipation for reliable performance and long life.

    Need to Know Before Buying

      1.Please confirm your computer’s USB-C port supports Thunderbolt 3 and DP Alt Mode (check on manual of computer) and ensure it supports the resolutions and refresh rates you want.

      *Note: Compliant with mac® M1, M2, M3 Pro, & Max systems for single extend video output.
      2. Check the extended display/monitor resolution that supports 4K @60Hz and has Thunderbolt 3 and DisplayPort 1.2 ports.
      3. Thunderbolt 3, USB-C 10Gbps, USB-A 10Gbps and USB-A 5Gbps icons on certified products and cables.
      4. Check your USB-C port or cable with Power Delivery 3.0, then it can handle up to 60W and will go to 100W using a full-featured USB Type-C.
      5. If you are using a DP to HDMI cable or adapter, please make sure it has "Active" word on it. Passive products without "Active" are used for DP dual mode signals.

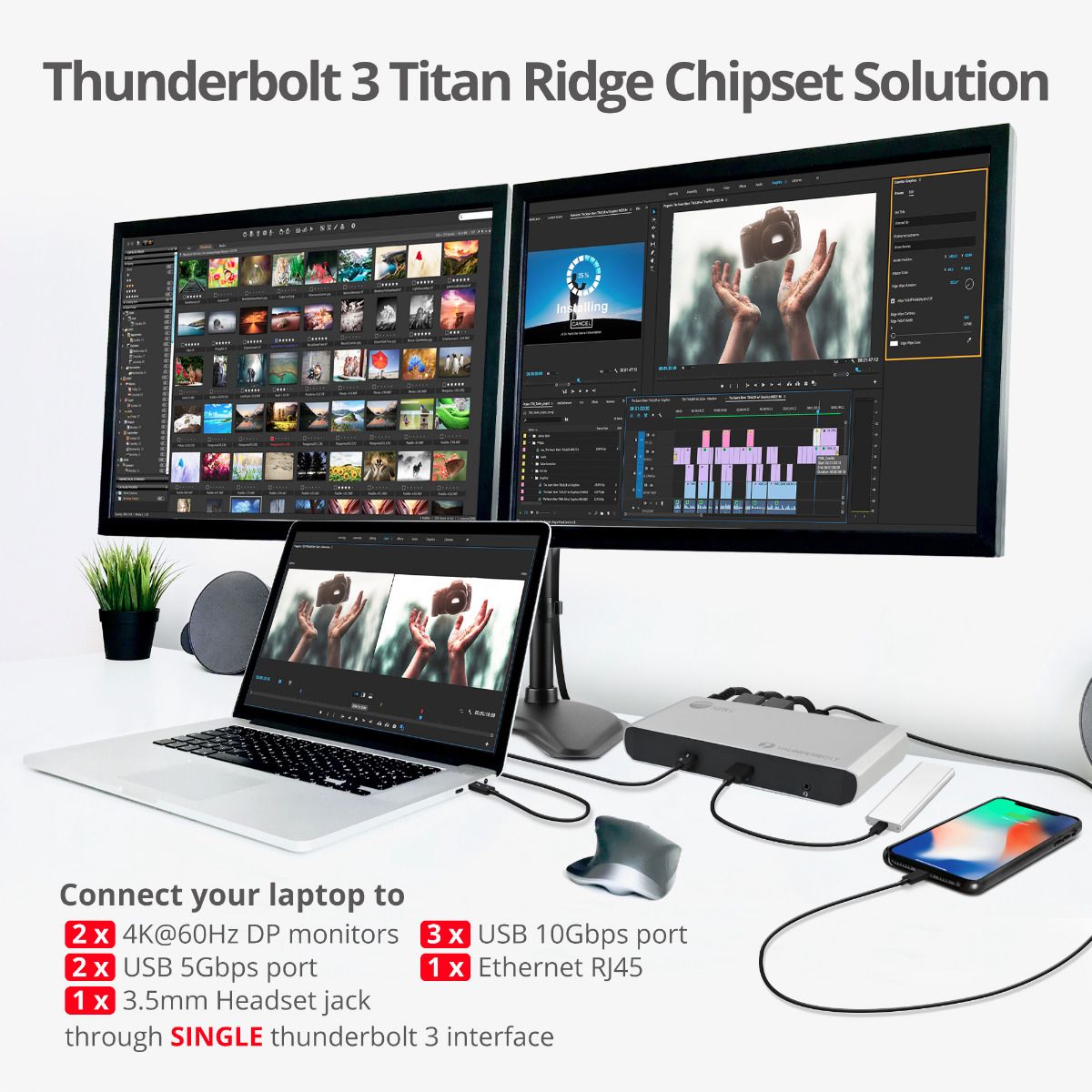

      The Thunderbolt 3 expansion dock features the next-generation Intel Titan Ridge chip, making it compatible with Thunderbolt 3 and USB-C DP Alt mode

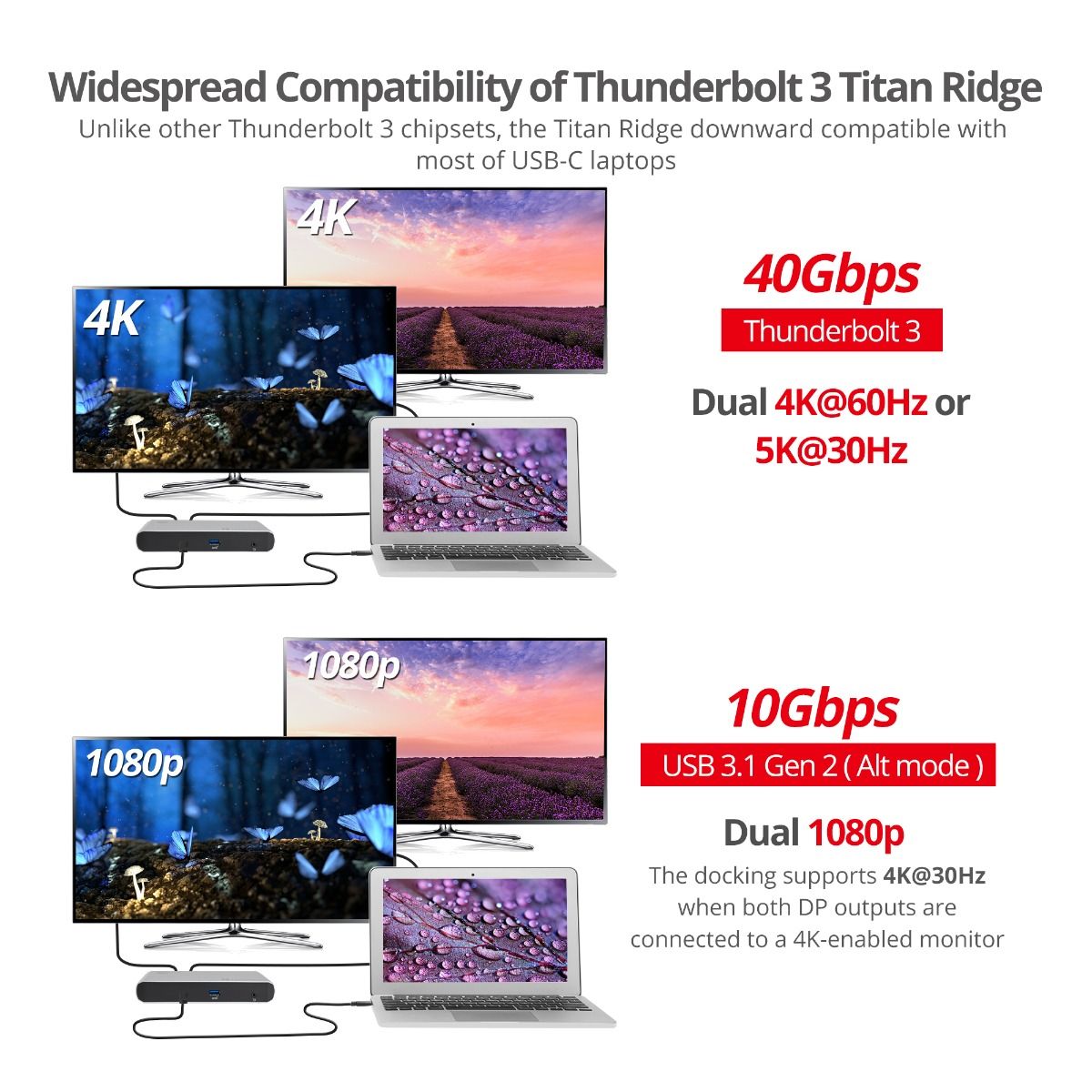

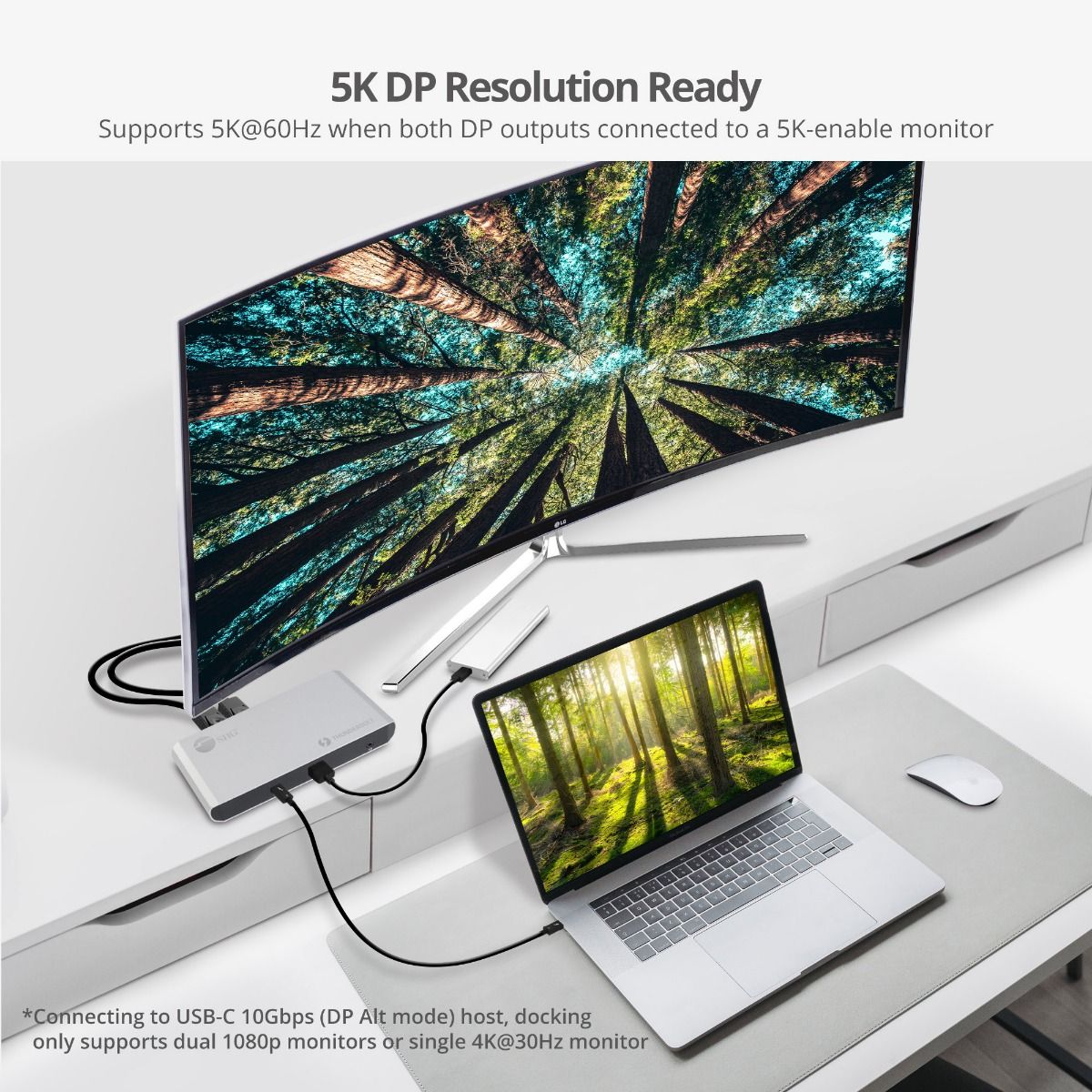

      High-Resolution Graphics - Allows you to connect two 4K Ultra HD displays through DisplayPort connections or a single 5K@60Hz display through dual DisplayPort connection when connected to a Thunderbolt 3 port

      Multiple Connectivity Ports

      Advanced Thunderbolt 3 docking station adds multiple connectivity ports to your Thunderbolt 3 or USB-C DP Alt mode enabled computer, notebook, or laptop
      • 5 stars: 3 (75%)
      • 4 stars: 1 (25%)
      • 3 stars: 0 (0%)
      • 2 stars: 0 (0%)
      • 1 star: 0 (0%)
      M
      MM
      Great for older thunderbolt 3 devices.

      I have an old iMac with the old Thunderbolt 2 ports that are not USB-C. You have to use the Apple adapter to connect it to a Thunderbolt 3 hub to actually use it. The problem is Thunderbolt 3 hubs were more expensive than Thunderbolt 4 hubs. So, since Thunderbolt 4 was backward compatible, I got one of those first. The problem was that it was unstable and crashed a lot. So, I was excited to give this Thunderbolt 3 hub a shot. I was not disappointed. It fixed all my crashes and let me plug my old Thunderbolt 4 hub into it, making the whole system more stable. It was easily capable of maxing out the speeds of my Thunderbolt 2 iMac. The display had no problem and connected flawlessly.

      D
      DMS
      Nice, but one flaw

      Since the Item's web page has a good description and photos, I will not add any more description (other than what is already stated) or photos.First off, the is one flaw (at least for me) I found with the device. Using my previous USB-C dock, everything was working fine with the cables and devices I had connected. Once I plugged everything into the SIIG Thunderbolt 3 dock everything worked, except for my external HDMI monitor.I contacted Tech support through the website and Amazon messaging, and they replied back within a day or two and asked if I was using an "Active" cable or adapter.Finding an "Active" cable was not as easy as you would think. Some vendors don't state if their cable or Adapters is "Passive" or "Active". Also "Active" cables are double the price then regular "Passive" cables.Nowhere in the product description, manual, or website stating an "Active" cable was required. I am not saying it's a design flaw, but they could have designed it to use either type.As far as the monitor use, using a Windows 10 compatible laptop device, I was able to extend my laptop display to the external monitor, not just mirror.The dock seems to be a bit thick (1"), then other docks I've usedOnce I got it up and running, the device is working as designed. I haven't done much heavy use of it yet, other than doing standard office applications and connecting VPN to work. but it seems to be a good device.

      R
      Robert Ryan Productions
      works very well

      The SIIG Thunderbolt 3 or USB C Dual 4K Display Docking Station with 60W Laptop Charging - Titan Ridge (1x USB 3.0, 2X USB 3.1, 2X DP 1.2, 2X USB-C, Ethernet) for Windows PC & MacBook Pro JU-DK0C11-S1This is a Thunderbolt 3 dock, that can run your monitors, charge your laptop, and give you various USB ports, there is also a network port. The dock is well made, and so far working exactly as it should. I just edited a very large photography project using this dock. Moving files from one hard drive to another. Dragging things to and from a NAS thorough the network port, and uploading final files to the internet again through the network port. All ports functioning very well. Of note one of the USB ports is faster than the other two, but I absolutely love that there are two USB C ports as well. A very modern and necessary feature. You should also be aware that there are two display ports and no HDMI, which is fine and good, but you should be aware of what ports your monitor has. Overall I am very happy with this dock. The only thing I think is odd for my use case anyway, is the Thunderbolt computer hookup is on the front. I would prefer it be on the back, but that may not matter to you. One more thing to note is that there is no other Thunderbolt ports for daisy chaining Thunderbolt equipment. Only the USB C ports. The fact that this is such a great dock at such a reasonable price, makes me not miss that too much at this point, but extra Thunderbolt is great to have, but usually costs far more for that feature. Overall just the ability to have one plug going to your MacBook just makes this so useful for me. I love unplugging the one cable and throwing my laptop in my bag and go. Then when I get home, plug it back in and just get to work. no set up, no need for power just plug in and everything works. If you are using mac, make sure to remember to eject the hard drives before unplugging. Overall this is an awesome dock at a great price. I am very grateful to have it as part of my computer setup.

      D
      Darren a young
      works great

      Saw the other review mine does multiple displays fine. Great thunderbolt dock
