Extender |
SKU:
CE-H26L11-S1

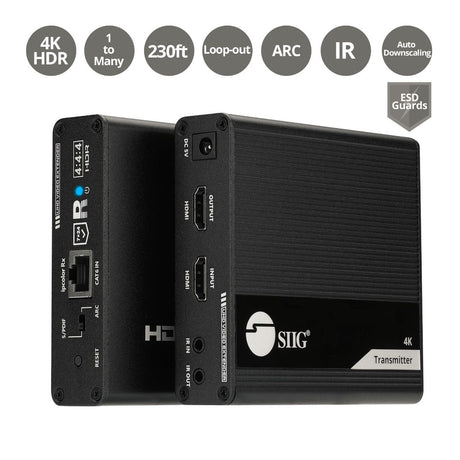

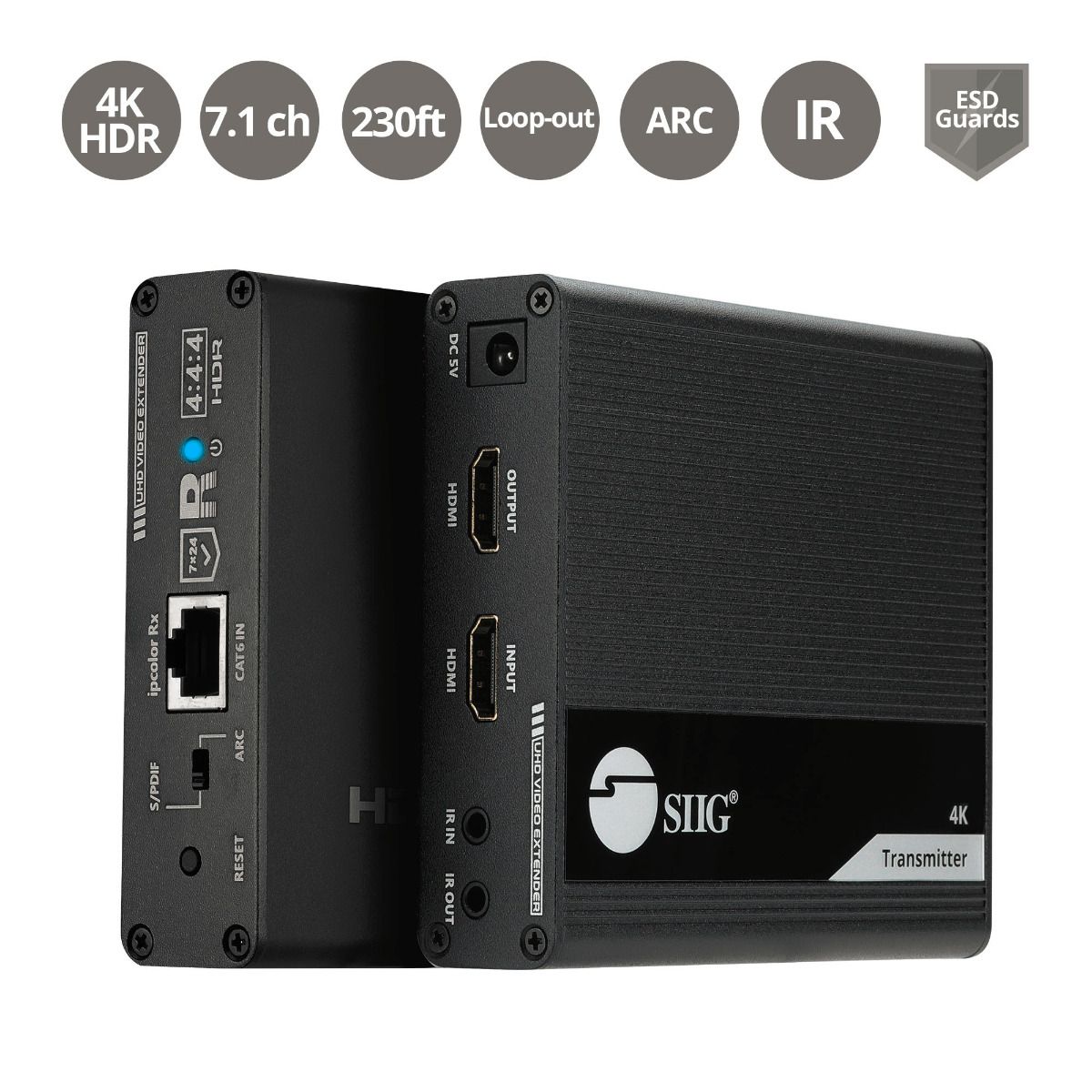

ipcolor 4K HDMI Extender with IR, HDR and ARC
HDMI Extender
4K60Hz
Up to 230ft (70m)
Cascade up to 10 RXs
Bi-directional IR
Regular price
$169.99
Unit price
/
Unavailable
Shipping calculated at checkout.
ipcolor 4K HDMI Extender with IR, HDR and ARC is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
Advanced ipcolor Transmission Technology
Advanced ipcolor Transmission Technology

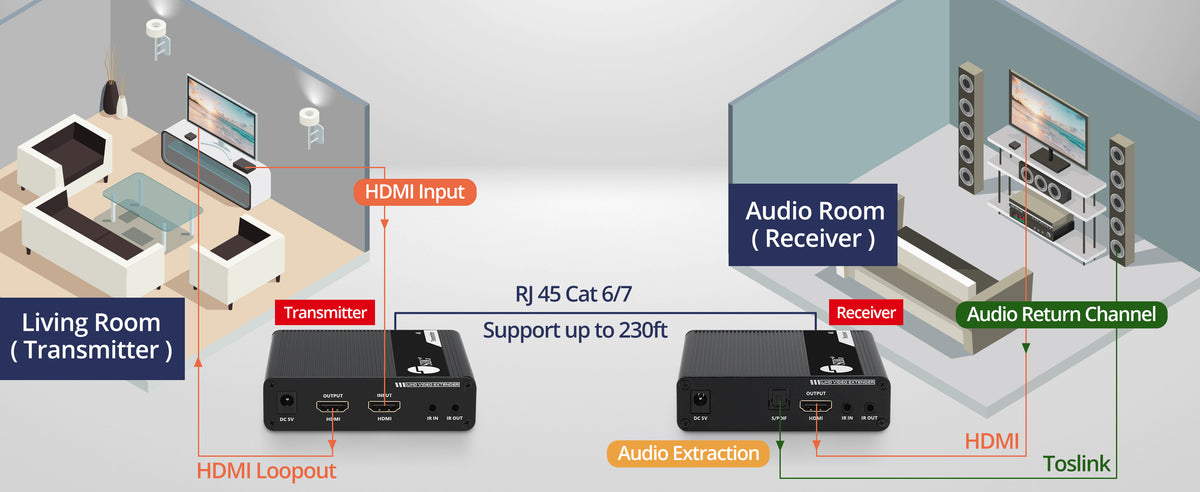

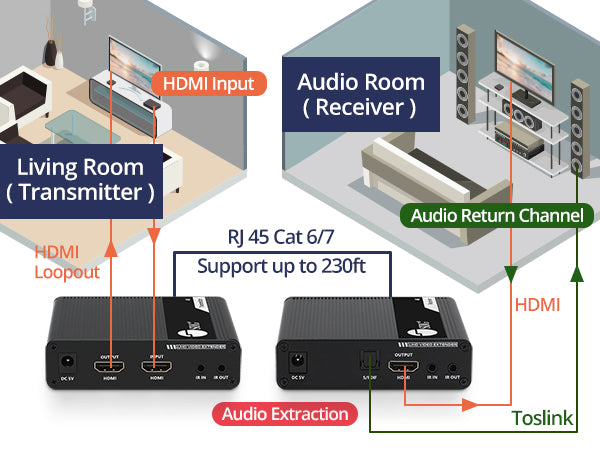

Audio Extraction/ARC
Audio Extraction/ARC
Auto Edid And Downscaling
Auto Edid And Downscaling
IR Extension
IR Extension

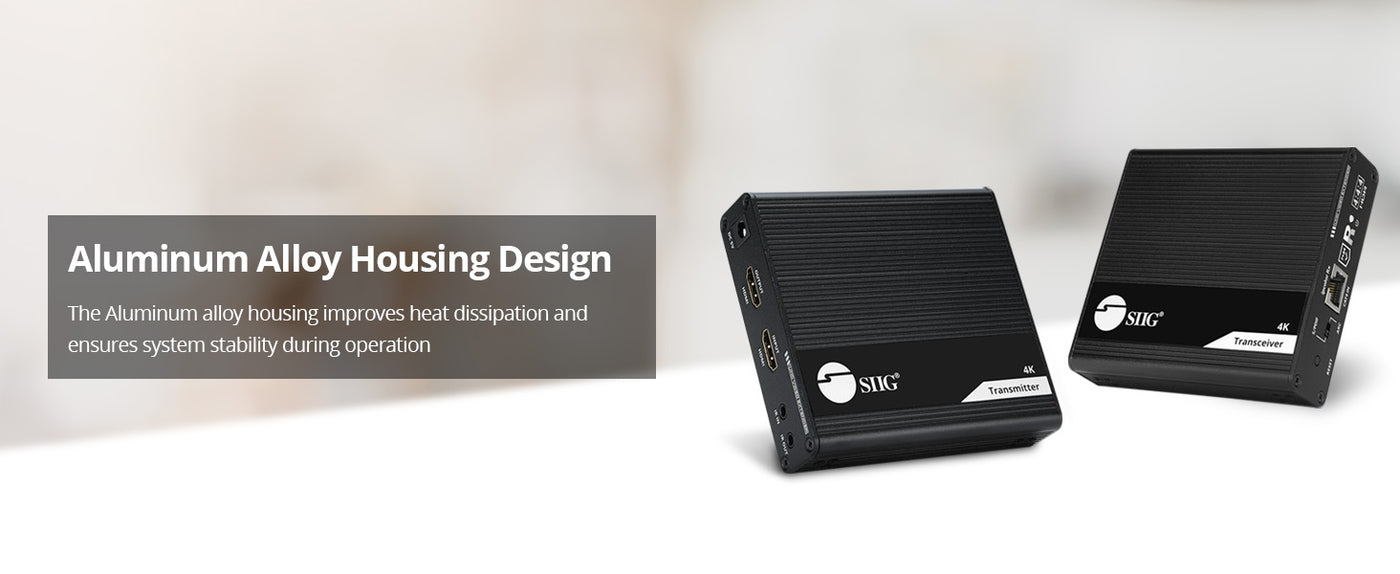

High Quality Design
High Quality Design
-
45 Days Free Return
-
2 Years Warranty
-
Lifetime Technical Support
SIIG ipcolor 4K HDMI Extender with IR, HDR and ARC
Don't let HDMI cable limitations restrict you and get rid of flickering or black screens. Our highest-value HDMI extenders allow you to transmit 4K video and audio over long distances at near-zero latency. Send 4K HDMI video and audio up to 230 feet by a CAT6/6a/7 Ethernet network cable.

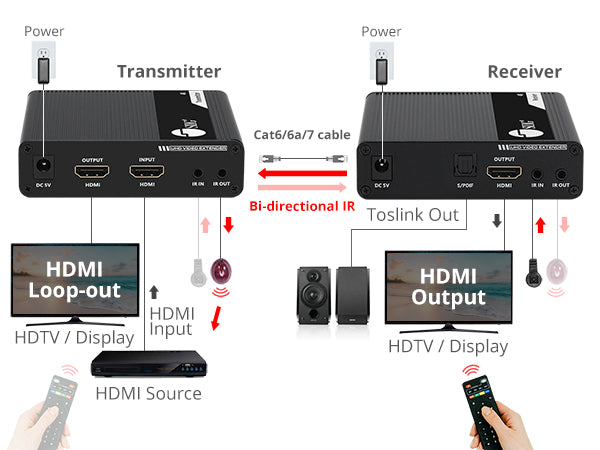

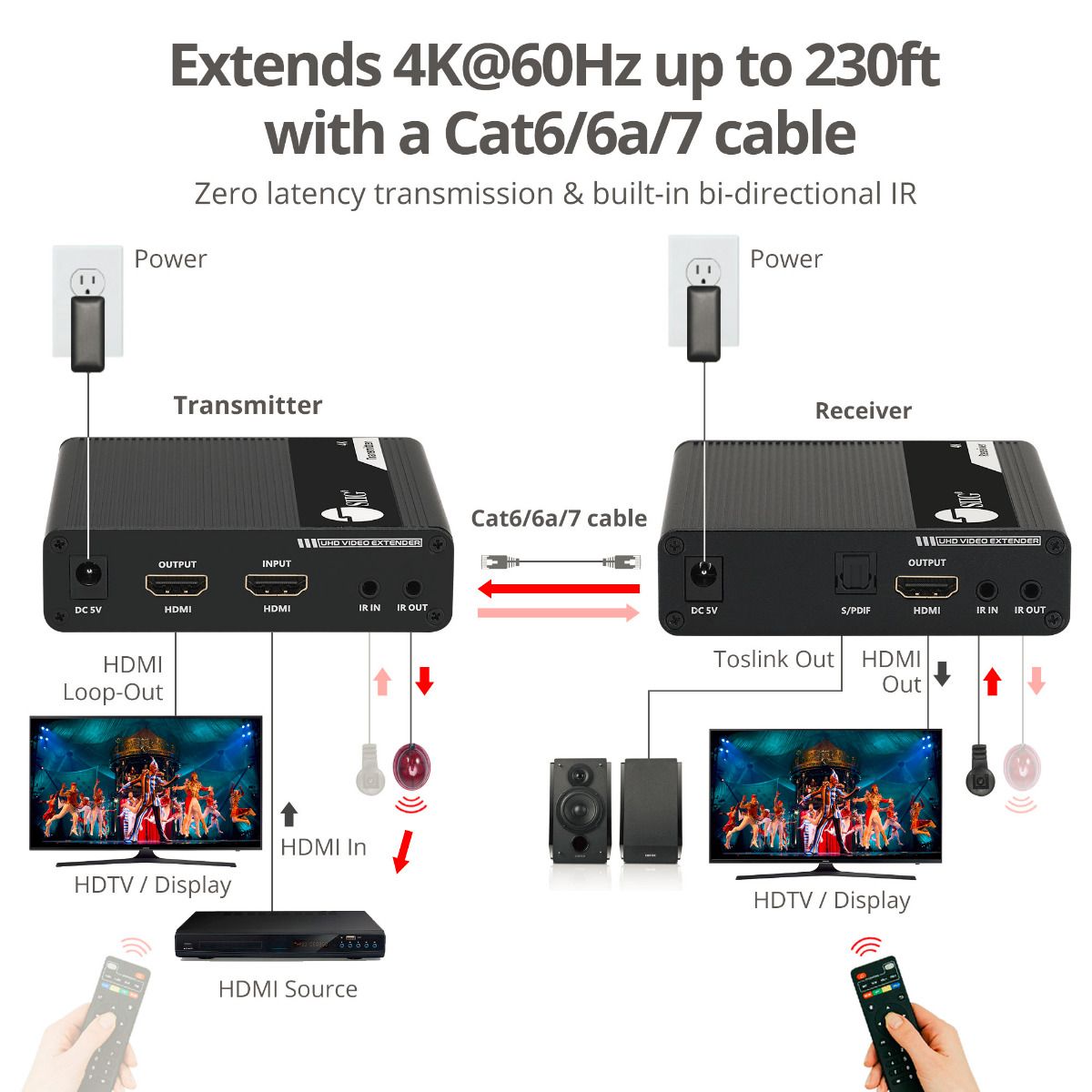

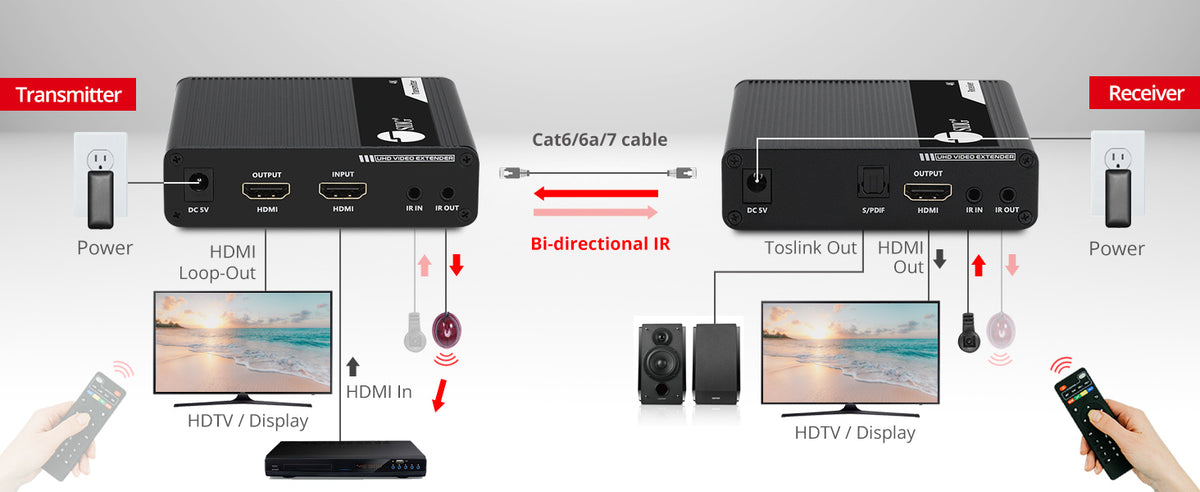

How It Works
- Connect your HDMI source device (PC, game console, Blu-ray player, media player) to the Transmitter
- Run a CATx cable from the Transmitter to Receiver
- Connect your HDTV from a remote location to the Receiver with an HDMI cable
- Connect power adapters to the transmitter and receiver

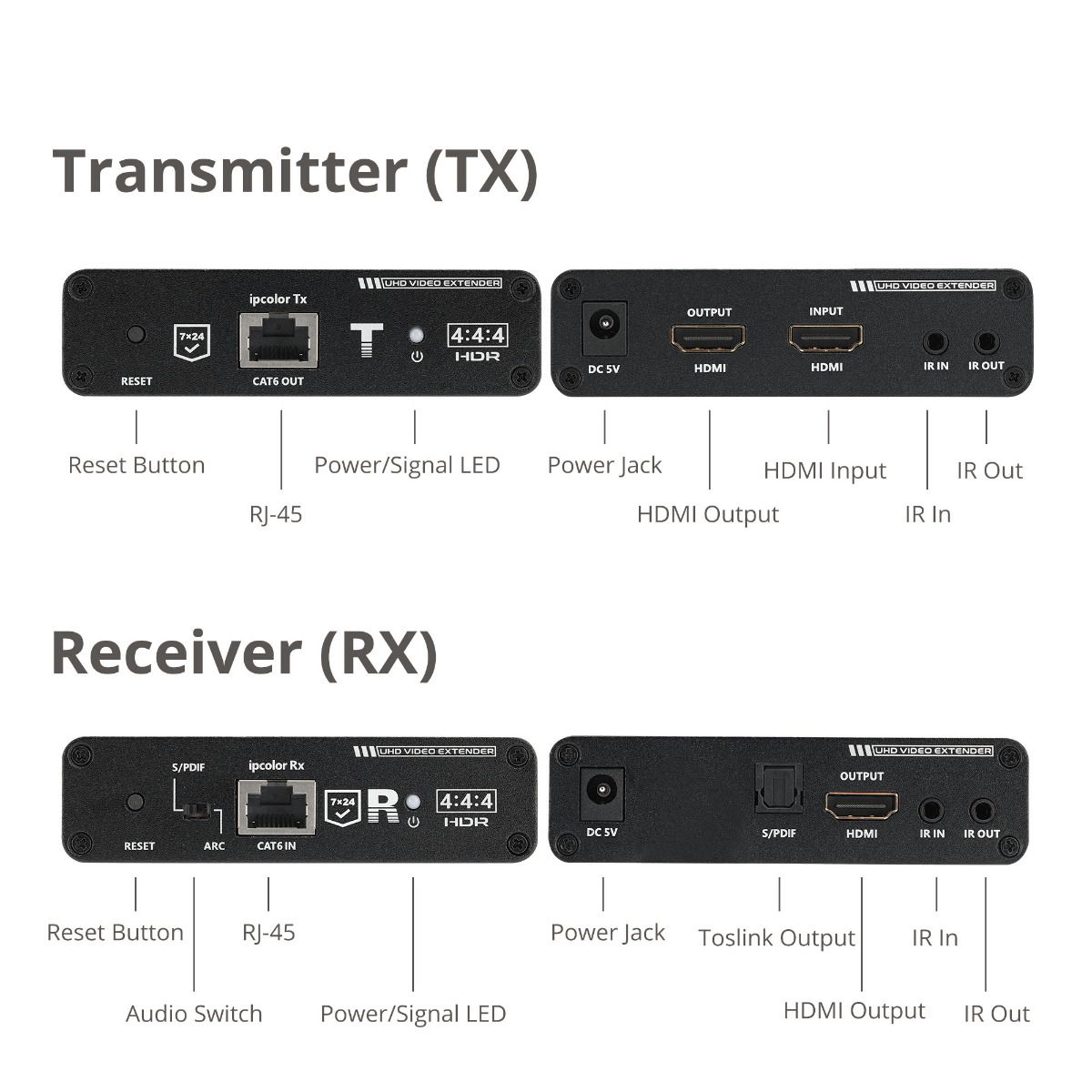

Connecting Interface
-

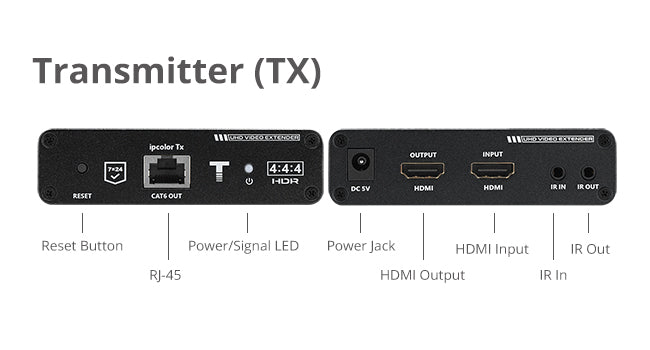

Transmitter unit

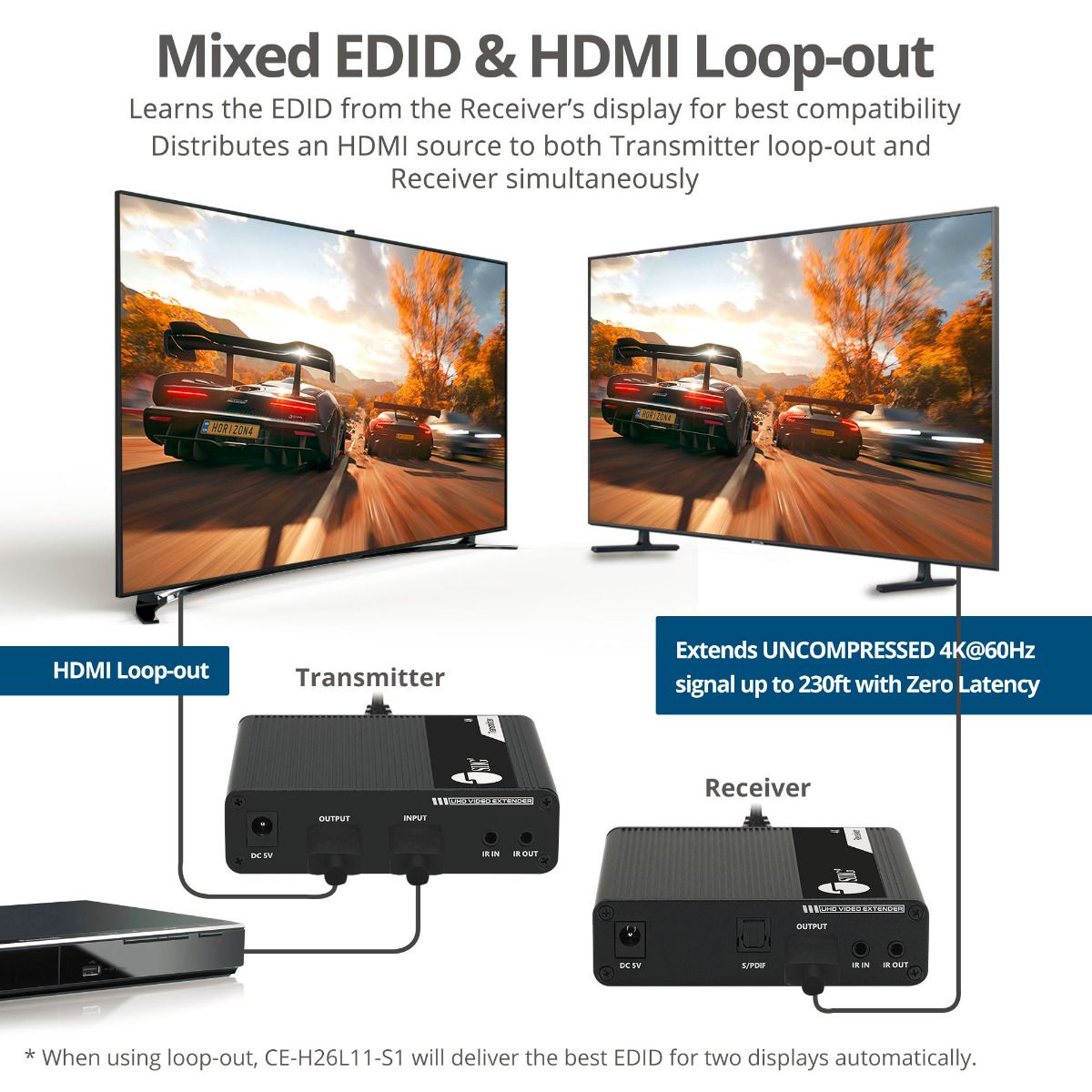

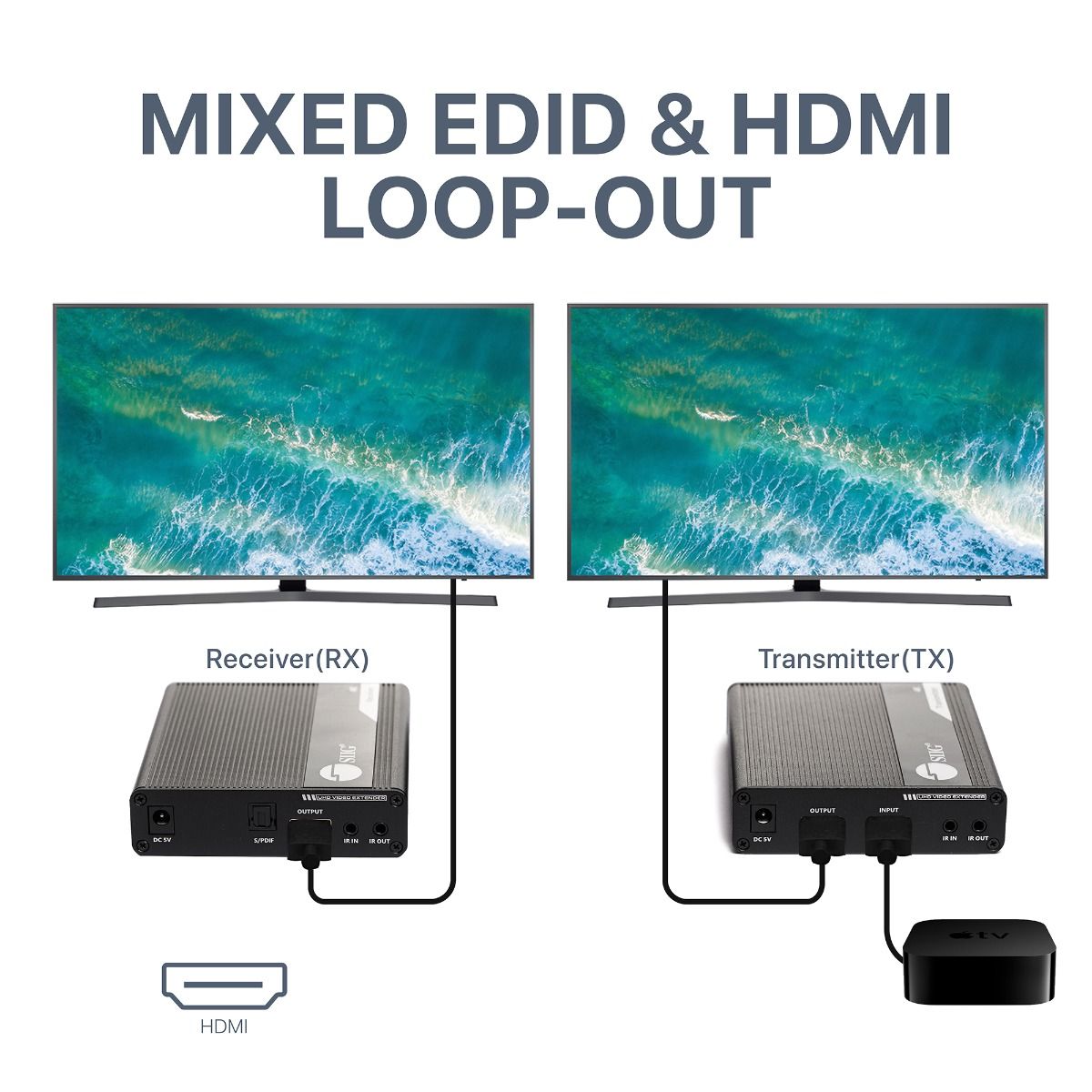

- 1x HDMI, Female (input)/ 1x HDMI, Loop-out, Female
- 1x RJ45 network (output)
- 1x 3.5mm infrared jack, IR emitter (output)/ 1x 3.5mm infrared jack, IR receiver (input)
- 1x power jack, 5V/2A
- 1x reset button -

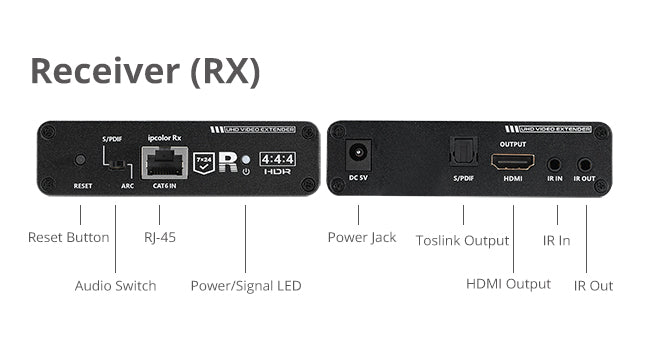

Receiver unit
- 1x HDMI, Female (output)/ 1x RJ45 network (input)
- 1x S/PDIF audio, Toslink (output)
- 1x 3.5mm infrared jack, IR emitter (output)/ 1x 3.5mm infrared jack, IR receiver (input)
- 1x power jack, 5V/2A/ 1x reset button

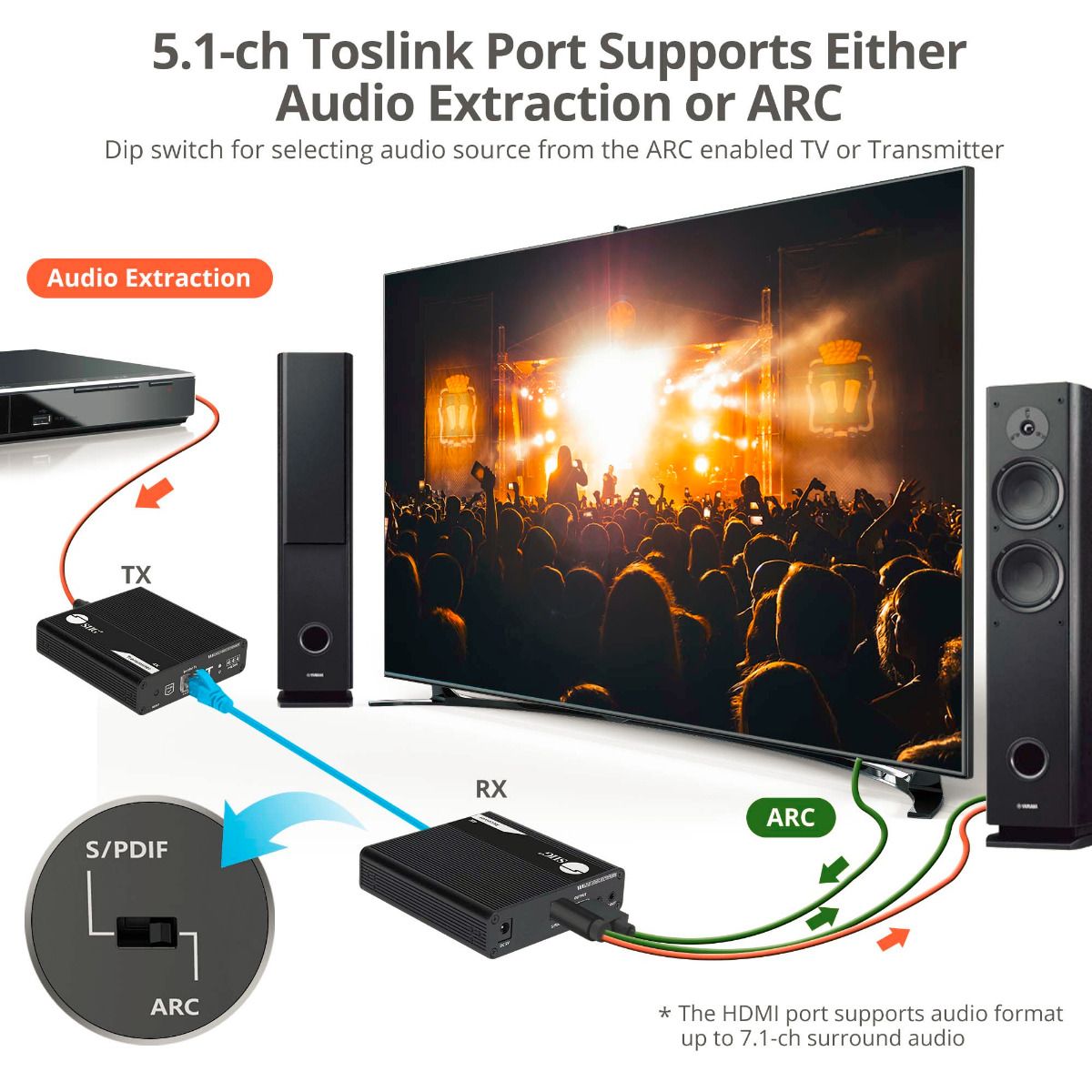

- 1x Audio slide switch, for select S/PDIF (audio extraction) or ARC
4K UHD Performance with IR, Audio & Advanced Protection
Supports up to 4K 3840x2160 @60Hz YUV 4:4:4 8-bit and HDR YUV 4:2:0 10-bit with HDCP 2.2 for crystal-clear image quality. Features built-in bi-directional IR extension for remote source control, high-quality audio extraction via S/PDIF or ARC, true 18Gbps bandwidth, and uncompressed 7.1-channel surround sound. EDID auto-learning enhances display compatibility, while ESD, lightning, and surge protection help safeguard connected equipment.
| Facet | ||||
|---|---|---|---|---|
| SKU | ||||
| SKU | ||||
| Connection port | ||||
| Connection port | ||||
| Data Transfer (Max) | ||||
| Data Transfer (Max) | ||||
| Additional function | ||||
| Additional function | ||||
| Housing material | ||||
| Housing material | ||||
| Color | ||||
| Color | ||||
| Dimensions | ||||
| Dimensions | ||||
| Weight | ||||
| Weight | ||||
| Mountable | ||||
| Mountable | - |
|||
| Certification/ Standards | ||||
| Certification/ Standards | ||||
| Warranty | ||||
| Warranty | ||||
| Country of Origin | ||||
| Country of Origin | ||||
| Resolution | ||||
| Resolution | ||||
| Audio spec | ||||
| Audio spec | - |
|||
| IR function | ||||
| IR function | - |
|||
| Remote control | ||||
| EDID button | ||||
| EDID button | - | - | - |
|
| Distance | ||||
| Distance | - |
|||
| Antenna spec | ||||
| Reset key | ||||
| Reset key | - |
|||
| Bandwidth | ||||
| Bandwidth | ||||
| Power Output (Max) | ||||
| Power Indicator | ||||
| Power Indicator | - |
|||
| Protection | ||||
| Protection | ||||
| Protocol | ||||
| Protocol | ||||
| Power Adapter | ||||
| Power Adapter | ||||
| Spec | ||||
| Spec | ||||
| Video | |
| HDMI | 1x input, 1x output, 1x loop-out |
| Standard | HDCP 2.2/1.4 compliant |
| Resolution | HDR 4K (3840x2160) / 2160p / 1080p / 1080i / 720p / 480i / 480p 60Hz |
| Transmission distance | Up to 230ft (70m) |
| Bandwidth | Up to 18Gbps |
| Audio | - 7.1 channel surround sound from HDMI port, audio format PCM 2.0/5.1/7.1, Dolby 5.1, and DTS 5.1 - 5.1 channel surround sound from S/PDIF (Toslink) port, audio format: PCM 2.0, Dolby 5.1, and DTS 5.1 |
| IR pass-through | - Bi-directional IR allows remote control of the HDMI source device and playback function at the remote display - Full Frequency |
| Interface | |
| Transmitter Unit | 1x 19-pin, HDMI, female (input) 1x 19-pin, HDMI, Loop-out, female 1x 8-pin, RJ45 network (output) 1x 3.5mm infrared jack, IR emitter (output) 1x 3.5mm infrared jack, IR receiver (input) 1x Power jack, 5V/2A 1x Reset button |
| Receiver Unit | 1x 19-pin, HDMI, female (output) 1x 8-pin, RJ45 network (input) 1x S/PDIF audio, Toslink (output) 1x 3.5mm infrared jack, IR emitter (output) 1x 3.5mm infrared jack, IR receiver (input) 1x Power jack, 5V/2A 1x Reset button 1x Audio slide switch, for select S/PDIF (audio extraction) or ARC |

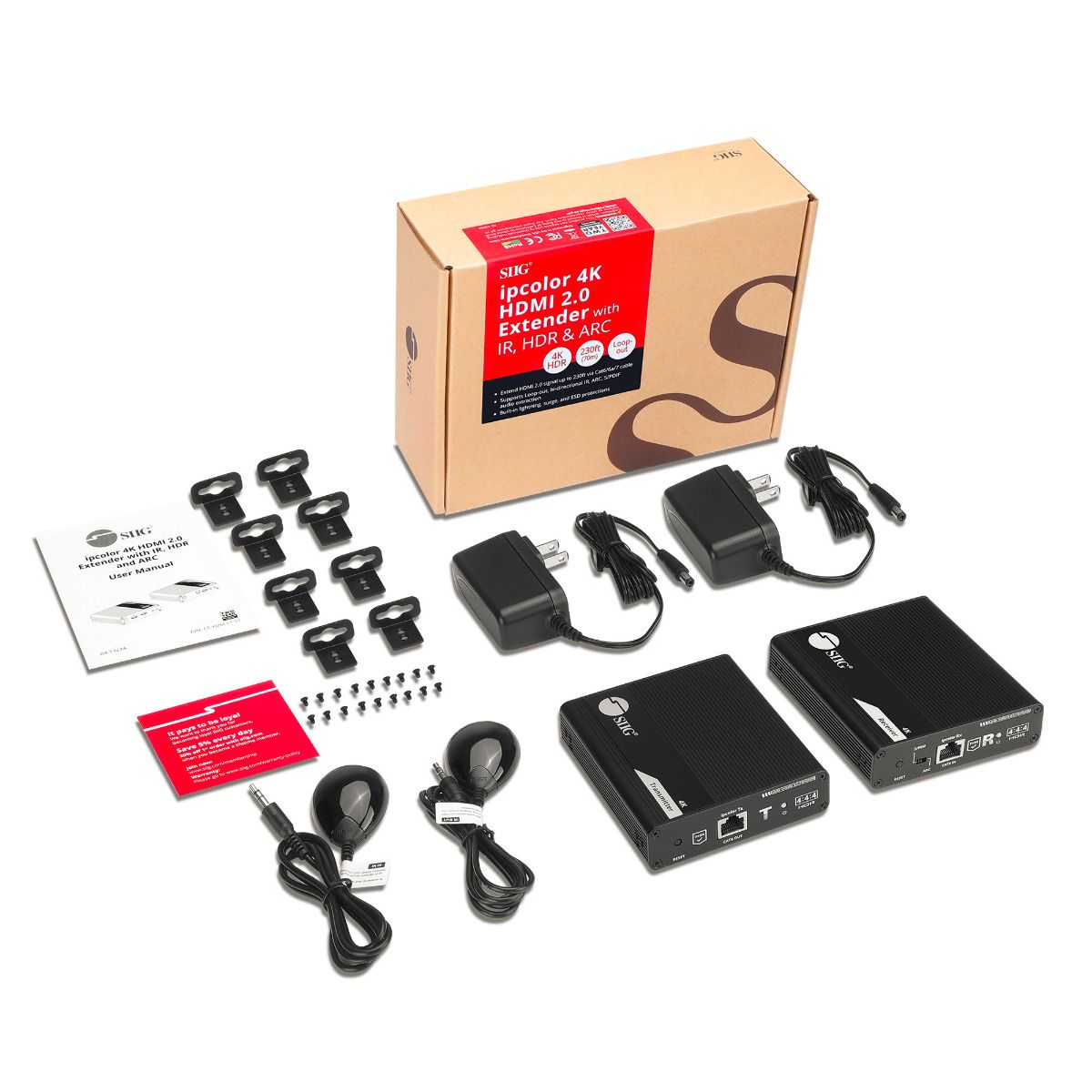

| Package Contents | 1x ipcolor 4K HDMI 2.0 Extender with IR, HDR and ARC 1x 3.5mm IR emitter extension cable 1x 3.5mm IR receiver extension cable 1x Mounting kits 2x DC power adapter, 5V/2A 1x User reference guide |
| Certifications/Standards | FCC, CE, RoHS, REACH |
| UPC Code | 662774-044613 |
| Warranty | 2 years limited |
| Country of origin | China |
| Product | |
| Transmitter Unit (TX) | |

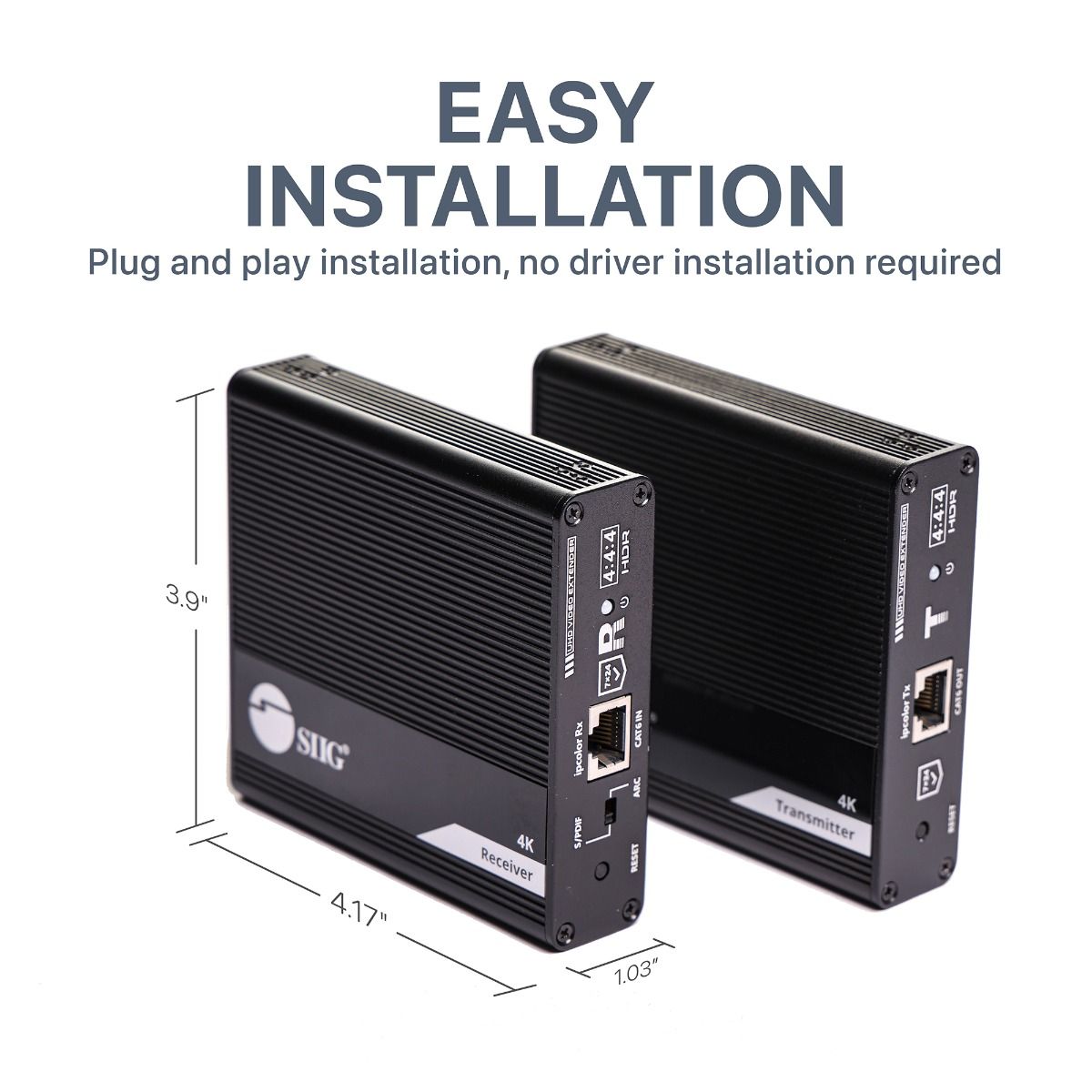

| Dimensions (L) x (H) x (W) | 4.17″ x 1.03″ x 3.90″ 10.59 cm x 2.62 cm x 9.91 cm |
| Weight | 0.46 lbs (0.21 kg) |
| Color | Black |
| Housing Material | Aluminum alloy |
| Receiver Unit (RX) | |
| Dimensions (L) x (H) x (W) | 4.17″ x 1.03″ x 3.90″ 10.59 cm x 2.62 cm x 9.91 cm |
| Weight | 0.46 lbs (0.21 kg) |
| Color | Black |
| Housing Material | Aluminum alloy |
| Unit package | |
| Dimensions (L) x (H) x (W) | 9.45″ x 3.15″ x 6.93″ 24.00 cm x 8.00 cm x 17.60 cm |
| Weight | 2.01 lbs (0.91 lbs) |
| Master carton | |
| Dimensions (L) x (H) x (W) | 10.63″ x 16.54″ x 14.96″ 27.00 cm x 42.01 cm x 38.00 cm |
| Weight | 21.83 lbs (9.90 kg) |
| Quantity | 10pcs/ctn |
| Power Adapter | |
| Input | 100-240V/50-60Hz |
| Output | UL listed |
| UL listed | E335801/Level: VI |
| Environmental Conditions | |
| Operating Temperature | 14 to 140 degrees F |
| Storage Temperature | -4 to 158 degrees F |
| Relative Humidity | 5% to 90% RH (non-condensing) |
Q1: I need to output full stereo via Toslink. Does this downmix Dolby to 2 channels including the subwoofer channels?
Q1: I need to output full stereo via Toslink. Does this downmix Dolby to 2 channels including the subwoofer channels?
A1: No, it doesn't have Digital 5.1 downmix to PCM 2.0 function
Q2: Does this extender support CEC pass-through between Transmitter & Receiver?
Q2: Does this extender support CEC pass-through between Transmitter & Receiver?
A2: No, it doesn't support CEC pass-through between Transmitter & Receiver. It only supports CEC from TV to RX for ARC use
Q3: Will this work to send hdmi arc & cec from tv to a sonos amp over a cat6 cable?
Q3: Will this work to send hdmi arc & cec from tv to a sonos amp over a cat6 cable?
A3: This work to send HDMI ARC & CEC from TV to Toslink of receiver without going through Cat6 cable (No ARC audio from TV connected to transmitter, only from TV connected to receiver).
How it work:
1. Connect your HDMI source device to transmitter.
2. Run a Cat6 cable from the transmitter to receiver.
3. Connect your HDTV from a remote location to the receiver with an HDMI cable. 4. Connect power adapter to the transmitter and receiver.
How it work:
1. Connect your HDMI source device to transmitter.
2. Run a Cat6 cable from the transmitter to receiver.
3. Connect your HDTV from a remote location to the receiver with an HDMI cable. 4. Connect power adapter to the transmitter and receiver.
