Extender |
SKU:
CE-H27D11-S1
4K 60Hz HDMI Over Cat6 Extender with Loopout & IR
4K60Hz
Up to 70m
HDMI Loopout
IR Extension
Audio Extractor
Regular price
$189.99
Unit price
/
Unavailable
Shipping calculated at checkout.
4K 60Hz HDMI Over Cat6 Extender with Loopout & IR is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
Extend HDMI Signals
Extend HDMI Signals
Resolution & Distance
Resolution & Distance

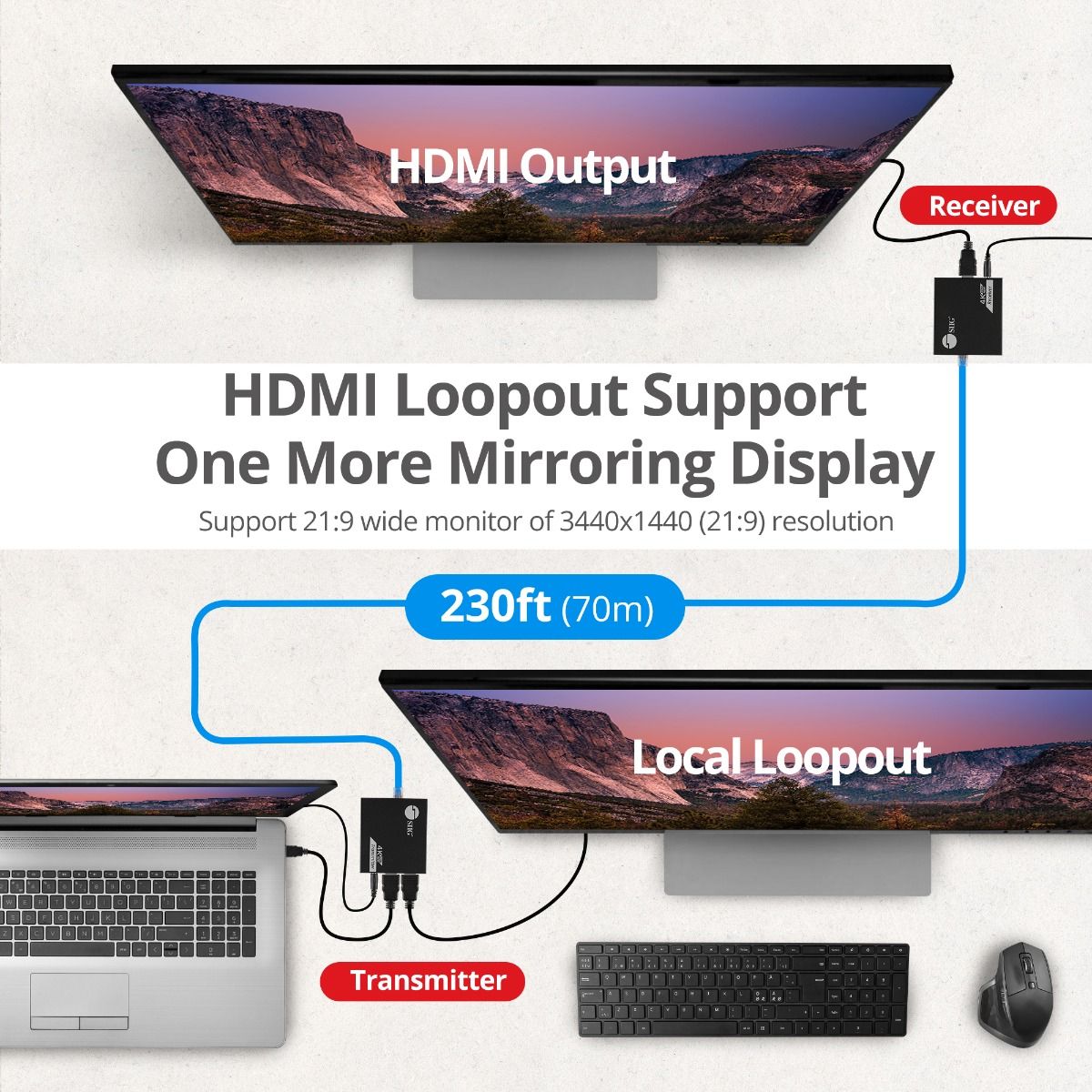

HDMI Loop-Out
HDMI Loop-Out
Audio Formats & IR Remote Control Signal Extension Supported
Audio Formats & IR Remote Control Signal Extension Supported

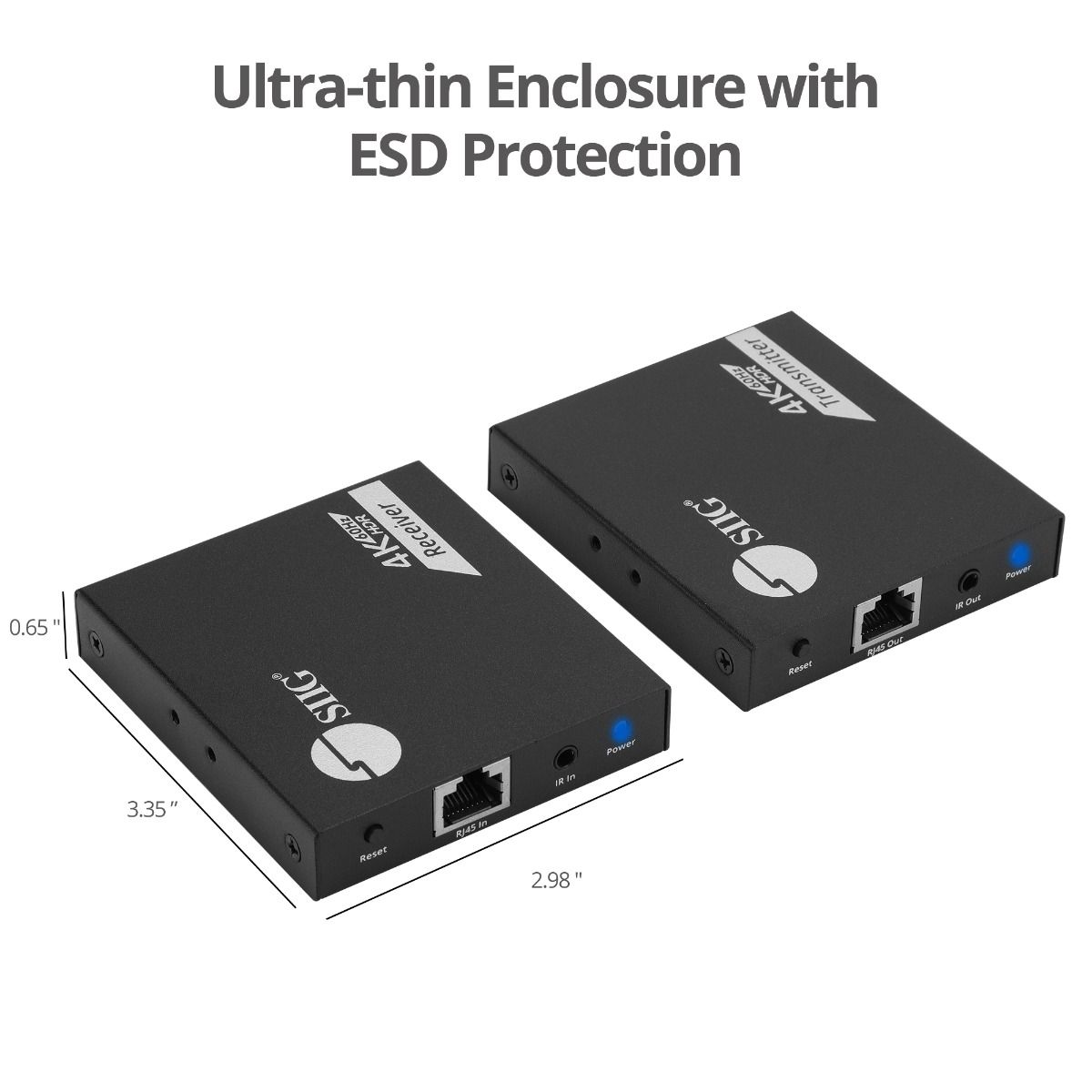

Protection Components & Metal Housing Design
Protection Components & Metal Housing Design

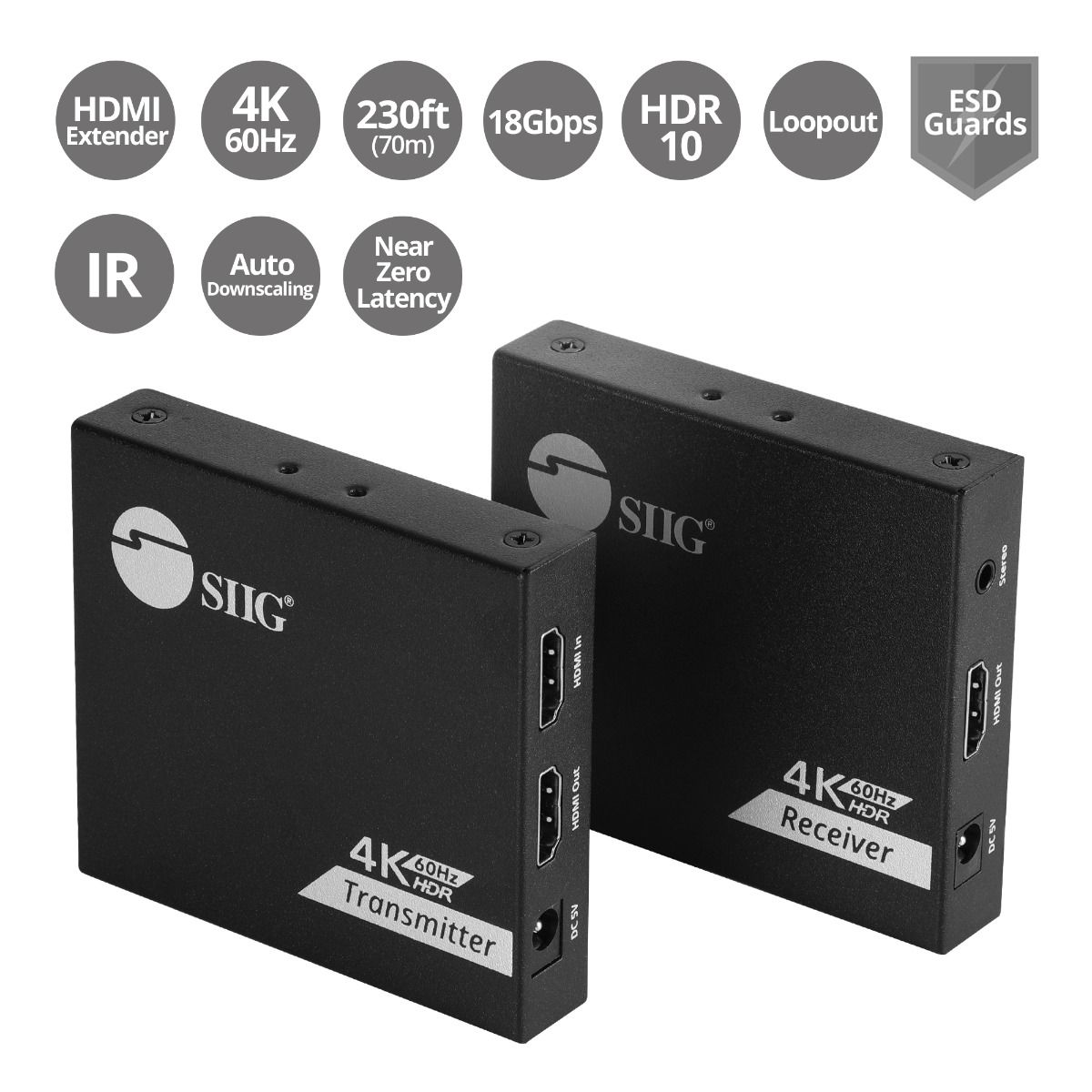

SIIG 4K 60Hz HDMI Over Cat6 Extender with Loopout & IR
4K HDMI Extender, easily extends HDMI 4K 60Hz signals up to 230ft over a single Cat6/7 networking cable with a local HDMI output for monitoring the extended display, Nearly zero latency, Auto Downscaling, IR Remote Control.

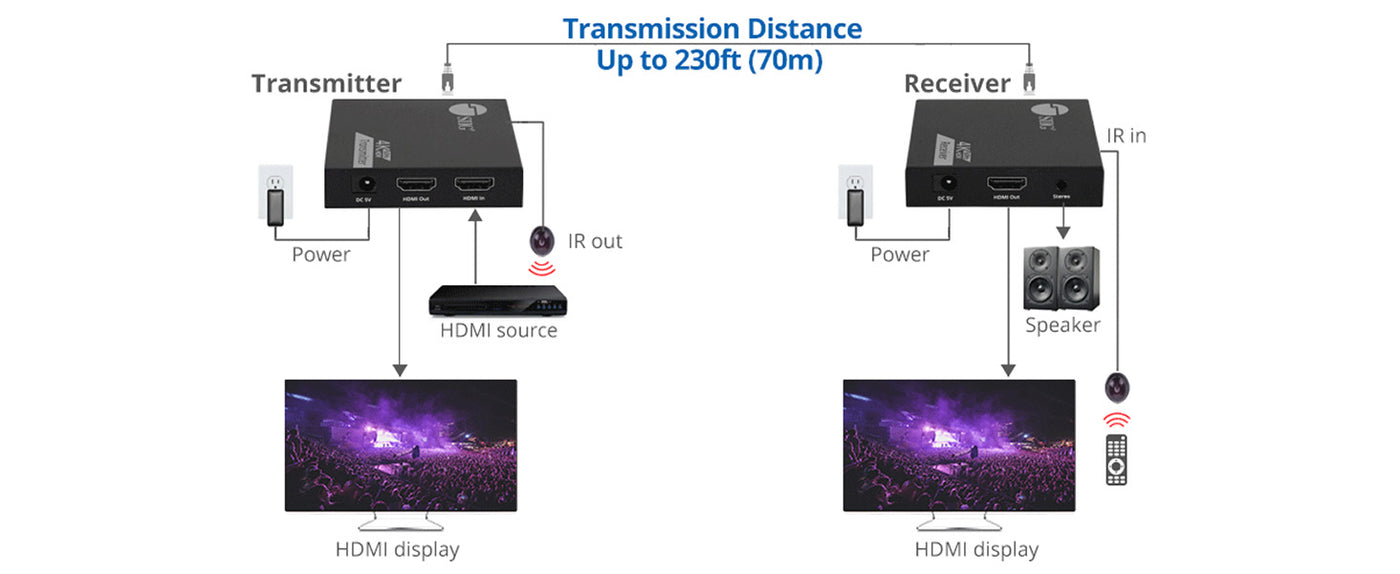

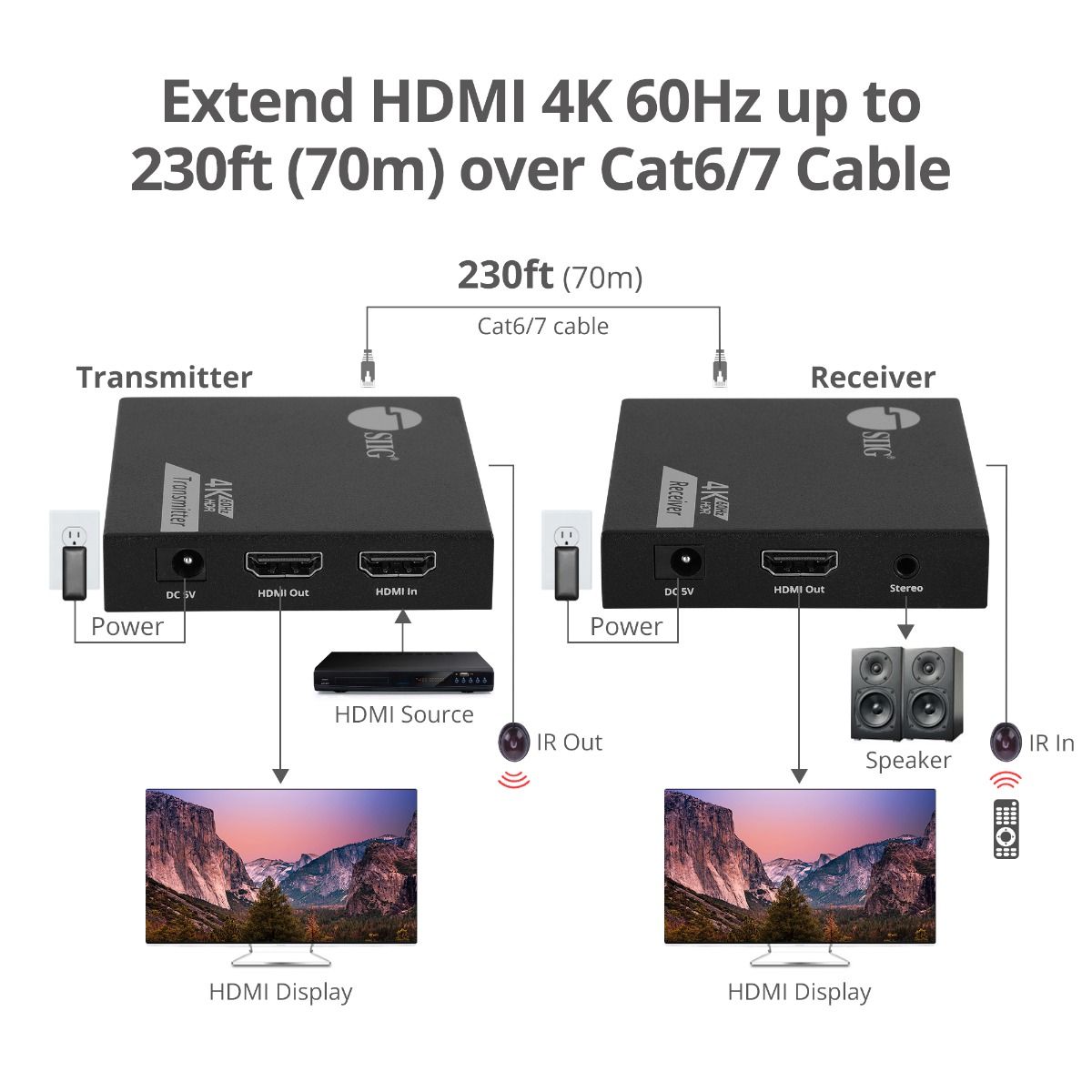

Easily extend HDMI audio and video signals up to 230ft (70m) via Cat6/7 cable, remote control via IR, and local monitoring of HDMI device.
| Video | |
| HDMI | 1x input, 1x output, 1x loop-out |
| Resolution | HDCP 2.2, HDR, 4K 3840x2160 / 1080p / 1080i / 720p / 480i / 480p 60Hz |
| Transmission Distance | Up to 230ft (70m) via Cat6/7 cable |
| Transfer Rate | Up to 18Gbps |
| Audio | - 7.1 channel surround sound from HDMI output, audio format: PCM2.0/5.1/7.1 and DTS 5.1 - 2 channel stereo audio from 3.5mm L/R audio jack, audio format: PCM2.0 |
| IR Pass-Through | - Built-in one IR remote control, allows you to control the HDMI source device at the remote display - Full frequency: 20KHz to 60KHz |
| Interface | |

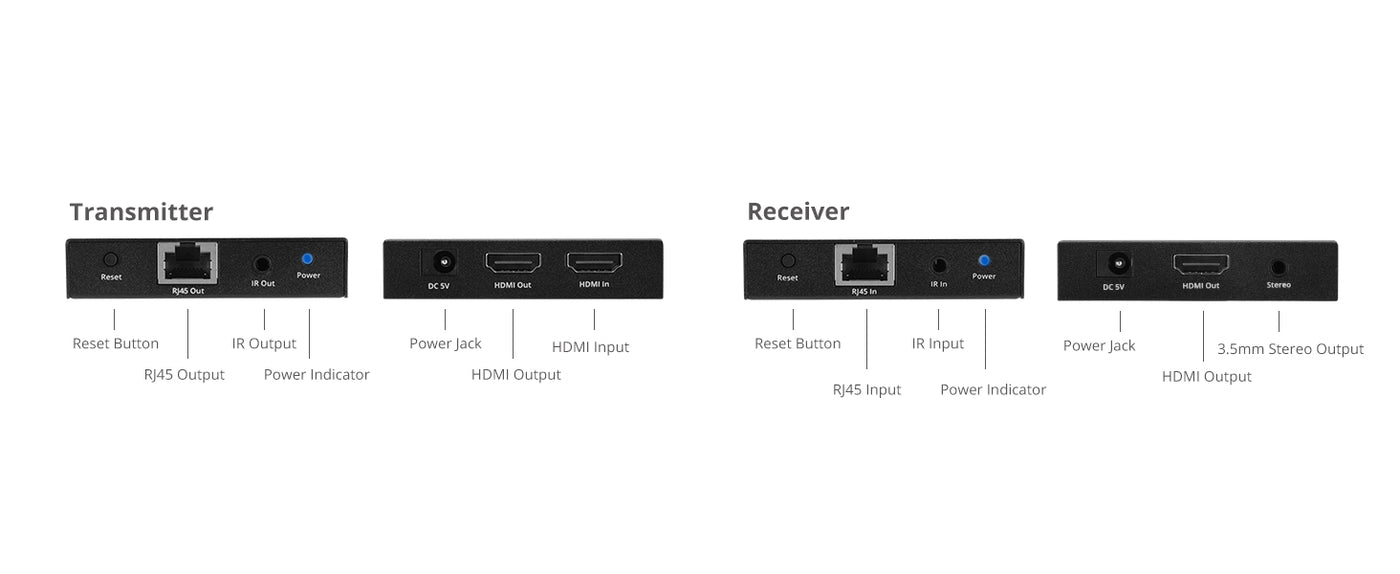

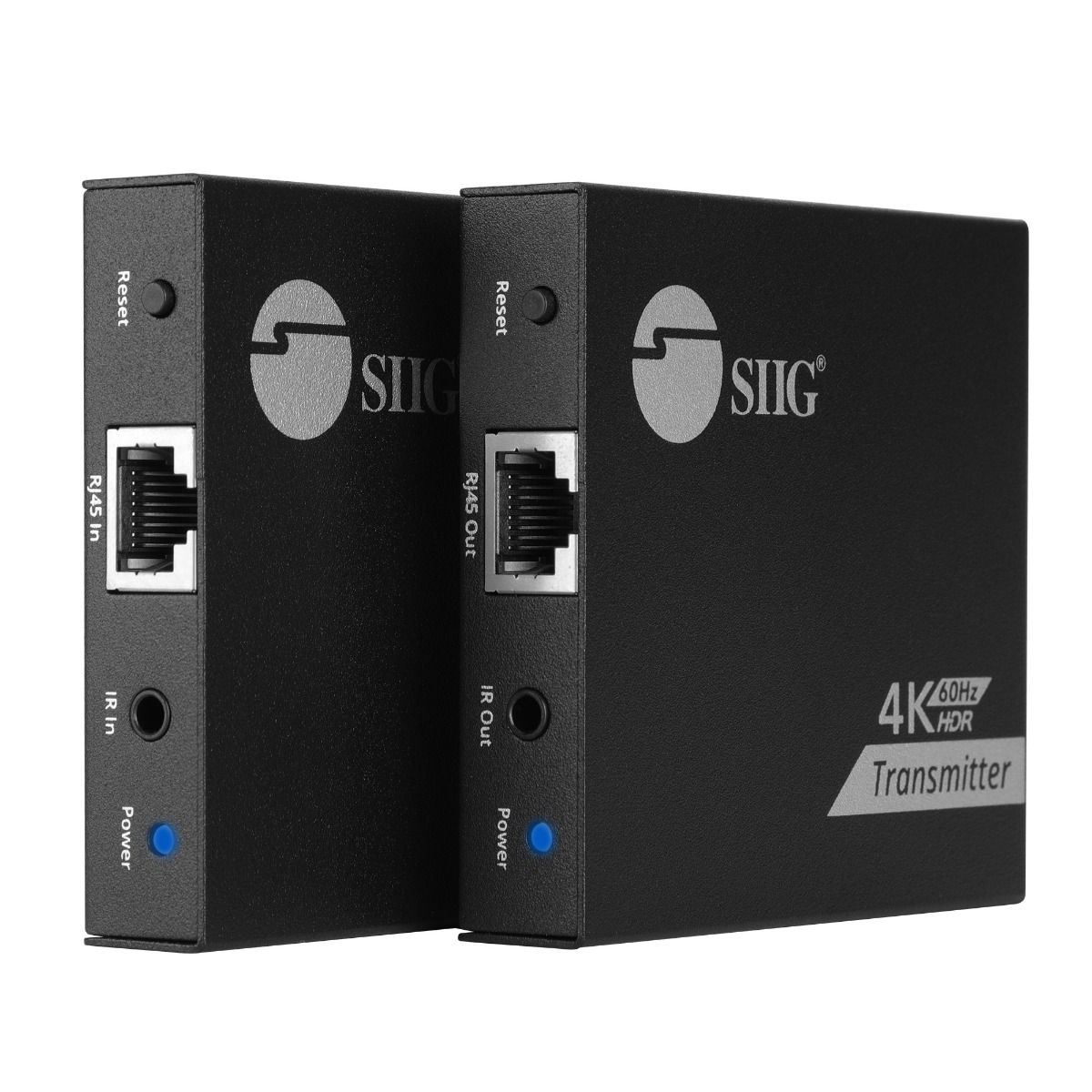

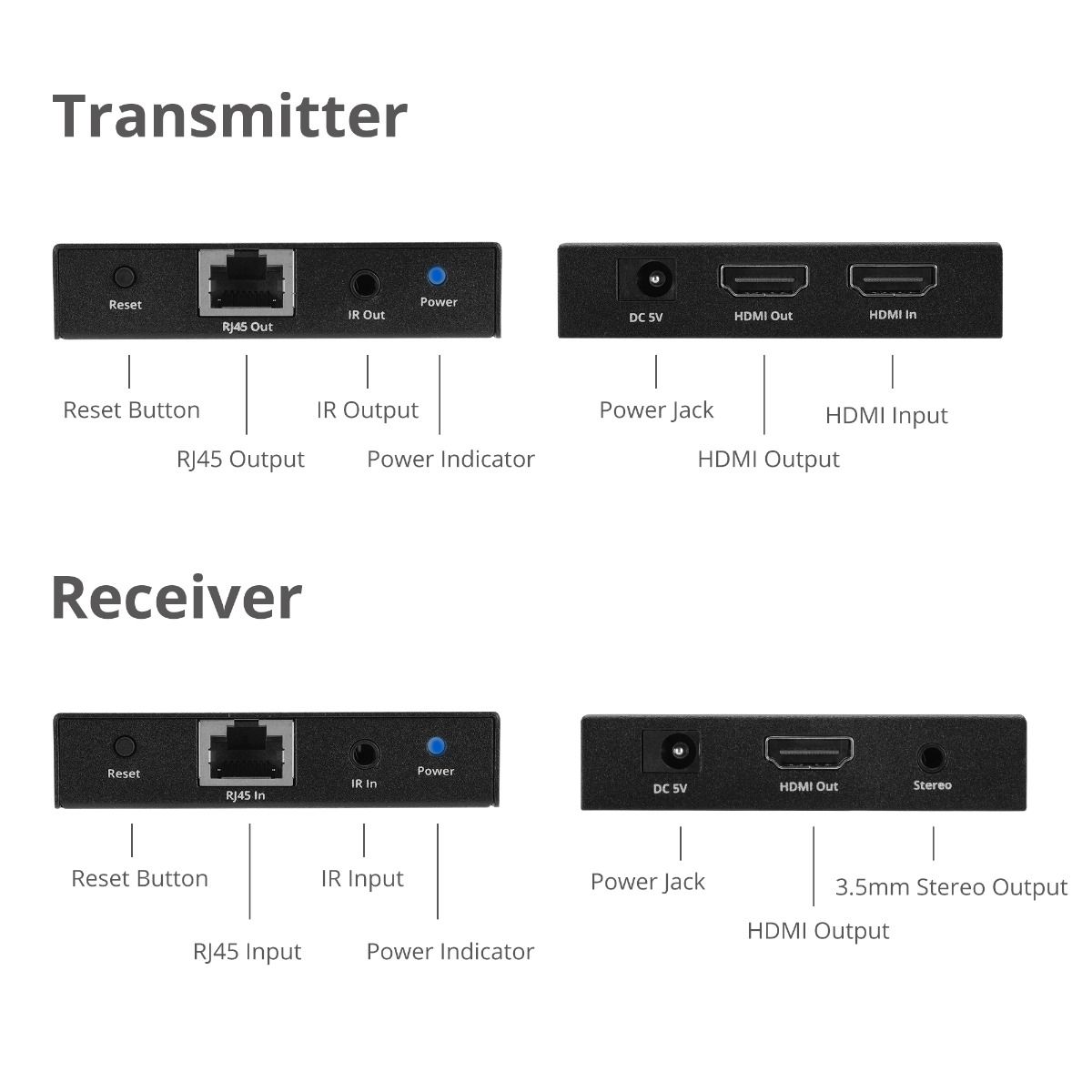

| Transmitter Unit (TX) | 1x 19-pin, HDMI, female, input 1x 19-pin, HDMI, loop-out, female, output 1x 3.5mm infrared jack, IR emitter (output) 1x 8-pin, RJ45, output 1x Reset button 1x DC power jack, 5V/1A |
| Receiver Unit (RX) | 1x 19-pin, HDMI, female, output 1x 3.5mm infrared jack, IR receiver, input 1x 8-pin, RJ45, input 1x 3.5mm L/R stereo audio 1x Reset button 1x DC power jack, 5V/1A |
| Power Adapter | |
| Input | 100-240V/50-60Hz, TX |
| Output | DC 5V/1A, RX DC 5V/1A |
| UL Listed | E335801/Level: VI |

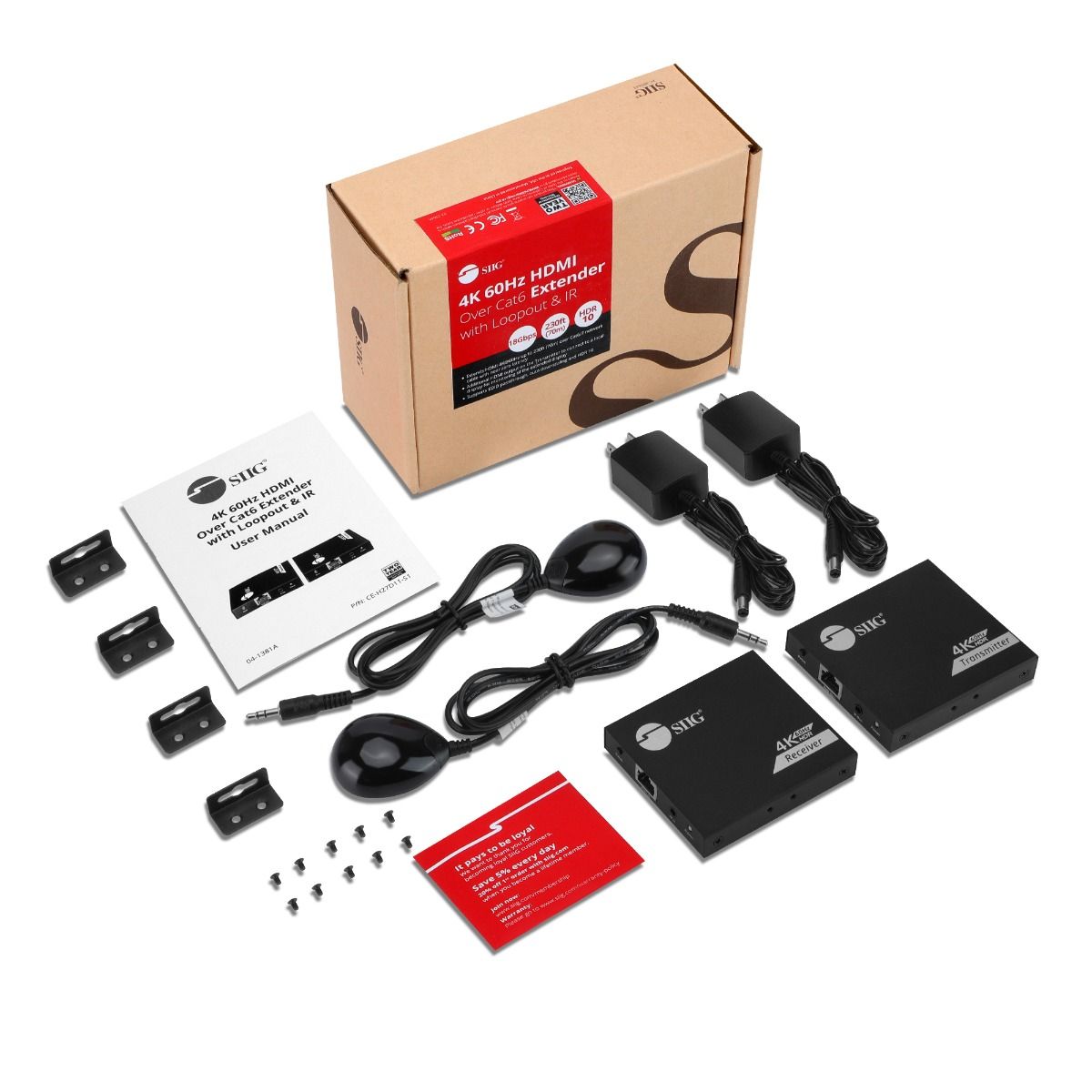

| Package Contents | 1x 4K 60Hz HDMI Over Cat6 Extender with Loopout & IR 1x 3.5mm IR emitter extension cable 1x 3.5mm IR receiver extension cable 1x Mounting Kit 2x DC power adapter, 5V/1A 1x User reference guide |
| Product | |
| Transmitter Unit (TX) | |
| Dimensions (L) x (H) x (W) | 3.35" x 0.65″ x 2.97" 8.51 cm x 1.65 cm x 7.54 cm |
| Weight for TX | 0.30 lb (0.14 kg) |
| Color | Black |
| Housing Material | Metal |
| Receiver Unit (RX) | |
| Dimensions (L) x (H) x (W) | 3.35″ x 0.65″ x 2.97″ 8.51 cm x 1.65 cm x 7.54 cm |
| Weight | 0.30 lb (0.14 kg) |
| Color | Black |
| Housing Material | Metal |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 7.83″ x 3.15″ x 5.87″ 19.89 cm x 8.00 cm x 14.91 cm |
| Weight | 1.42 lbs (0.64 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 16.73" x16.54" x 12.4" 42.49 cm x 42.01 cm x 31.50 cm |
| Weight | 29.88 lbs (13.55 kg) |
| Quantity | 20 pcs/ctn |
| Environmental Conditions | |
| Operating Temperature | -20 to 60 degrees F |
| Storage Temperature | -30 to 70 degrees F |
| Relative Humidity | 0% to 90% RH (non-condensing) |
| Certifications/Standards | FCC, CE, RoHS, REACH |
| UPC Code | 662774-045382 |
| Warranty | 2 years limited |
| Country of Origin | China |
