Extender |
SKU:
CE-H26M11-S1

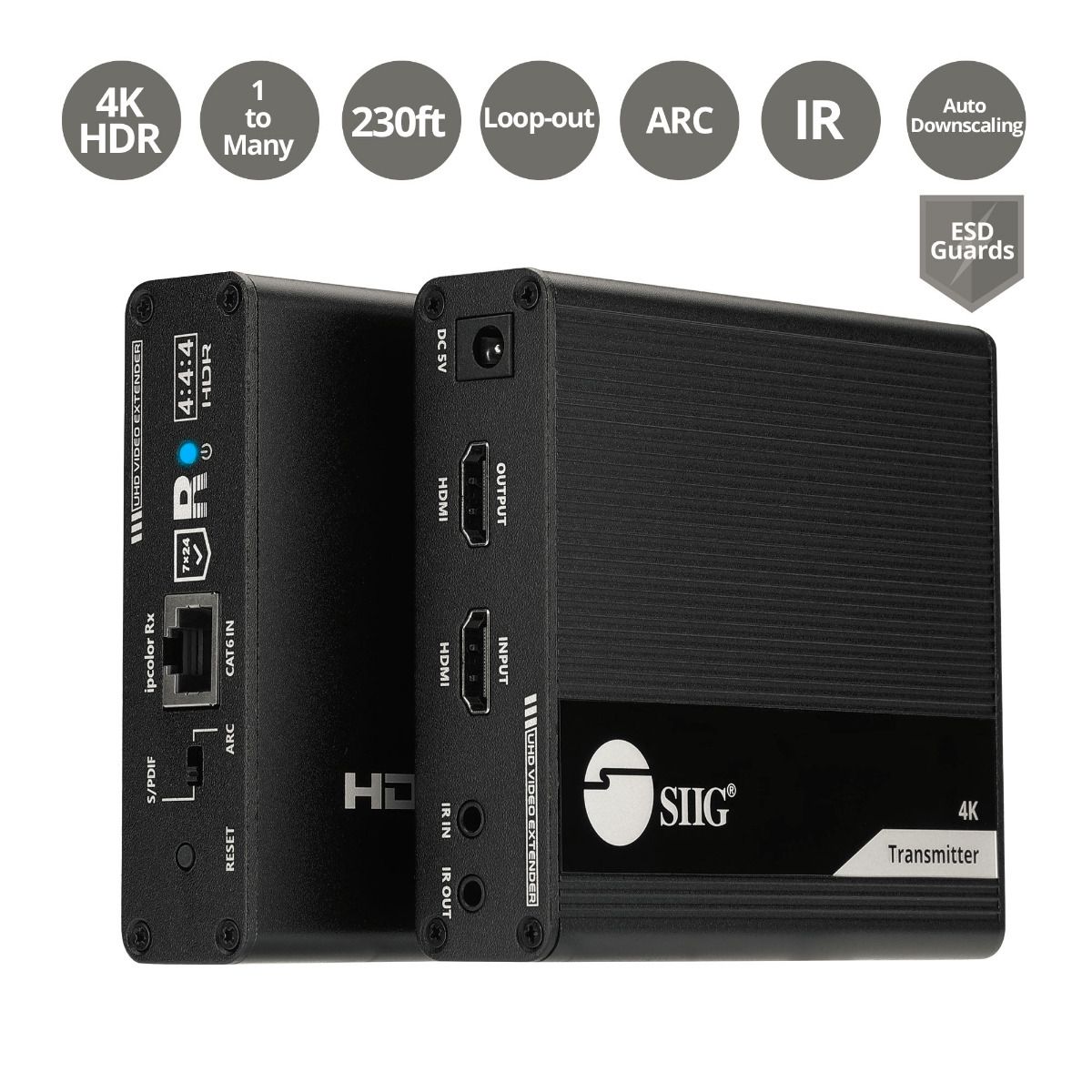

ipcolor 4K HDMI Extender Daisy Chain Transmission Kit
HDMI Extender
4K60Hz
Up to 230ft (70m)
Cascade up to 10 RXs
Bi-directional IR
Regular price
$189.99
Unit price
/
Unavailable
Shipping calculated at checkout.
ipcolor 4K HDMI Extender Daisy Chain Transmission Kit is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
Advanced ipcolor Transmission Technology
Advanced ipcolor Transmission Technology
Daisy Chain Extensio
Daisy Chain Extensio
ARC
ARC

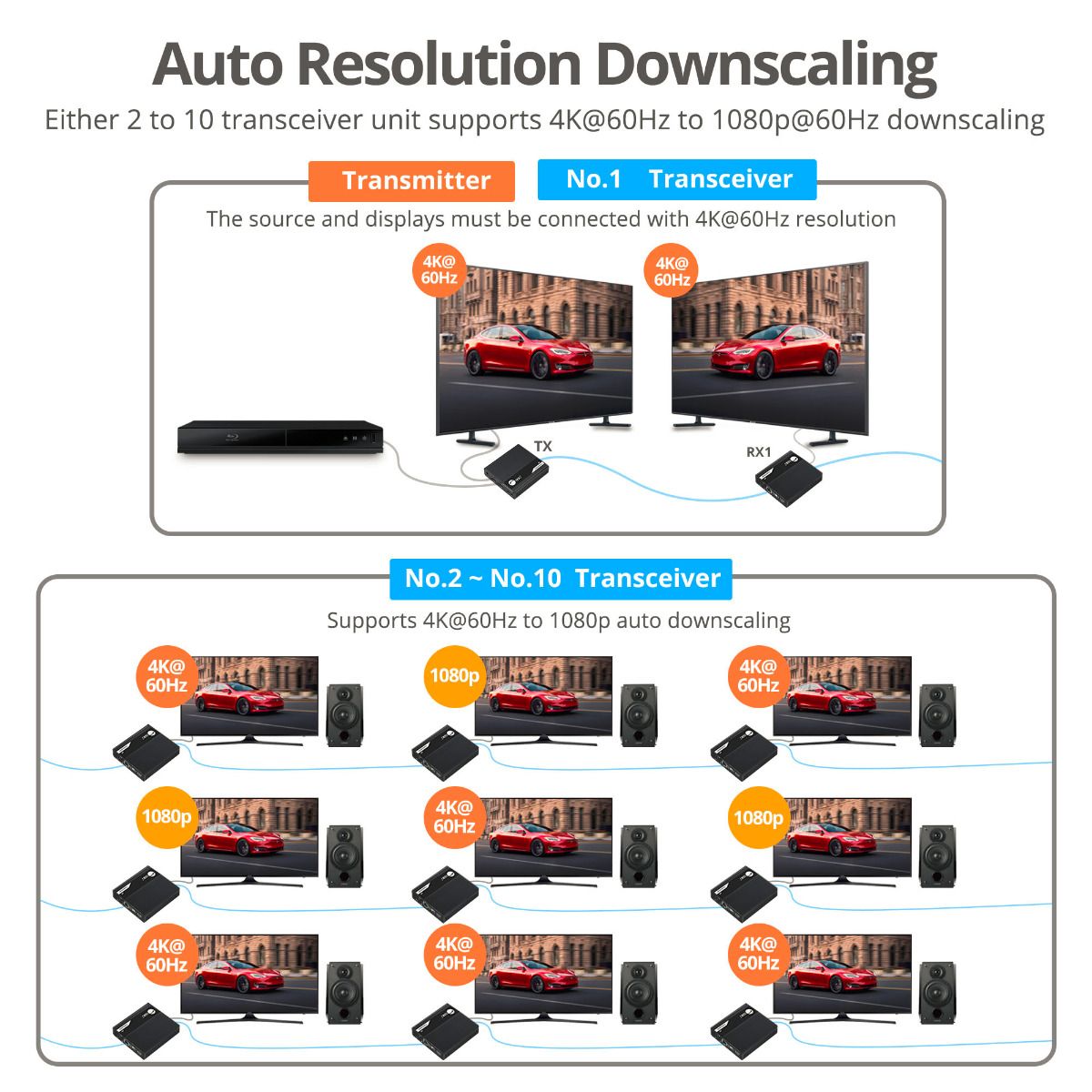

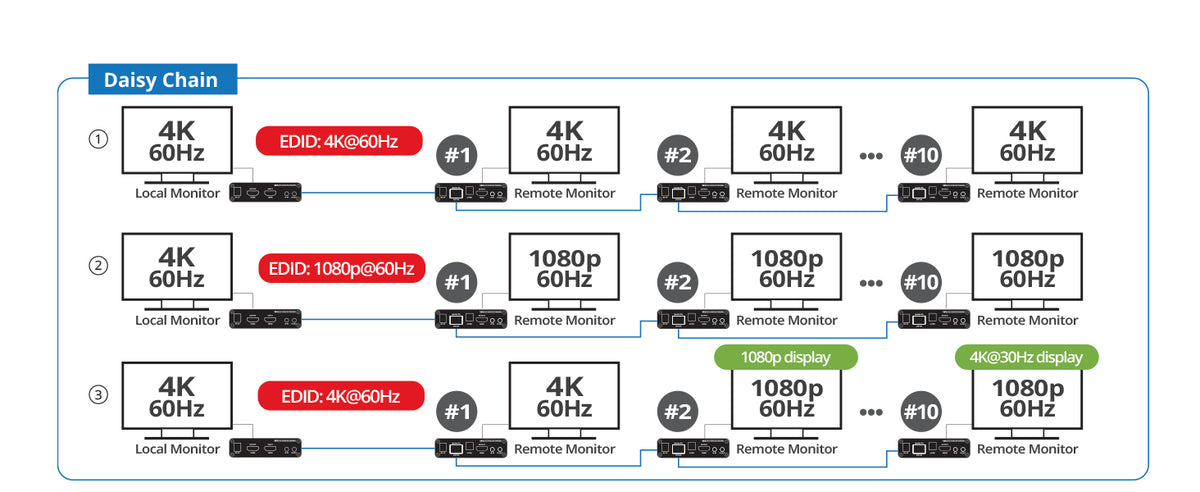

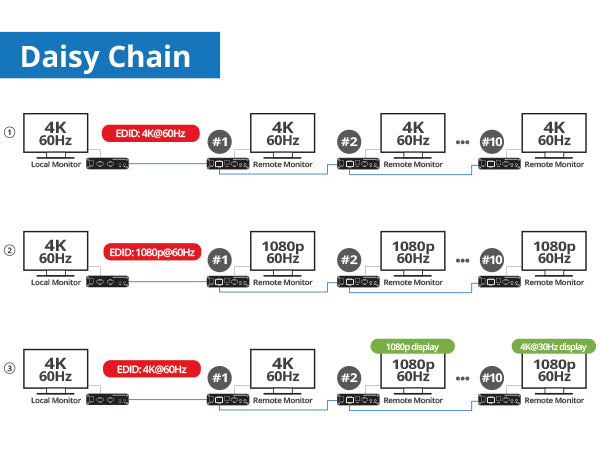

Auto EDID And Downscaling
Auto EDID And Downscaling

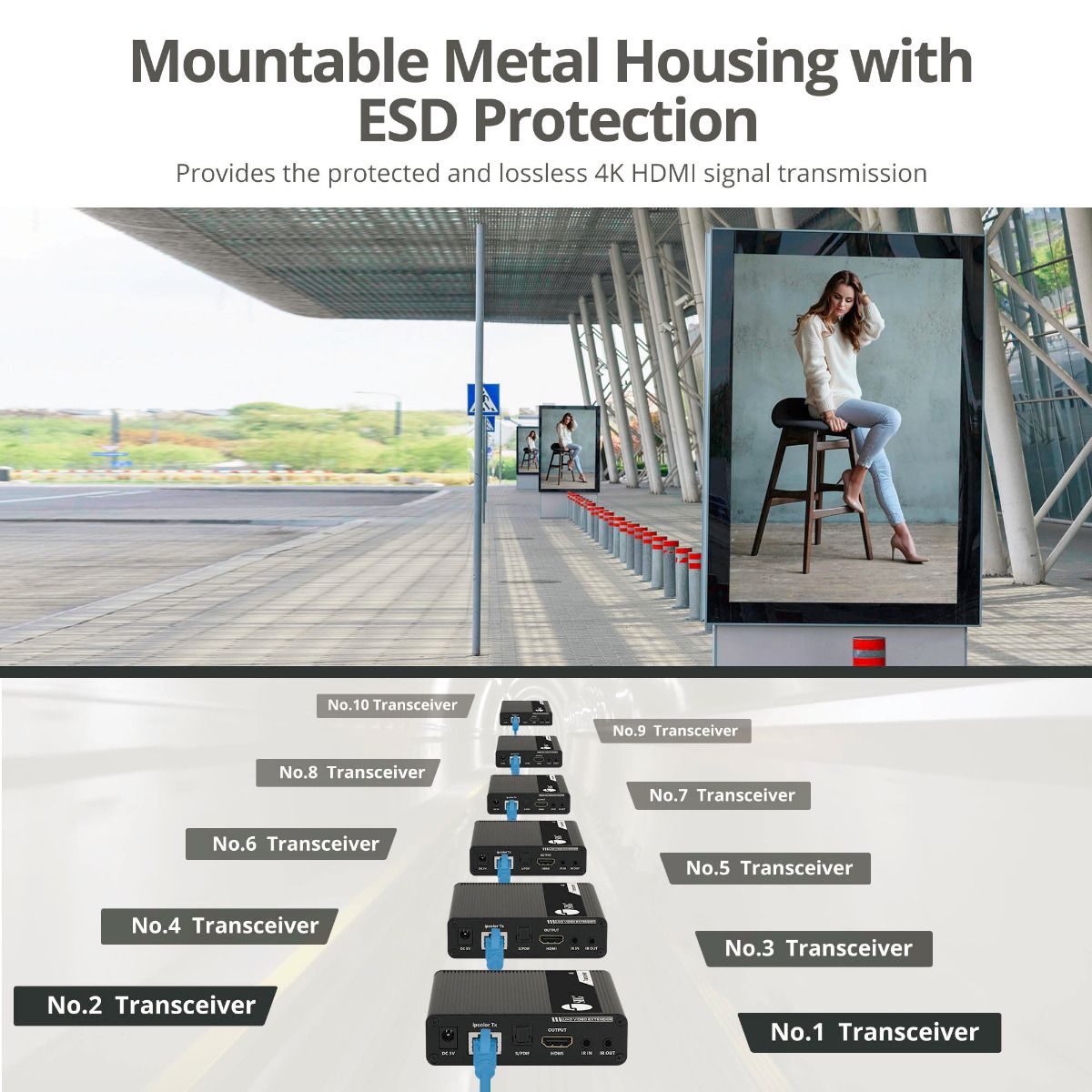

High Quality Construction
High Quality Construction
-
45 Days Free Return
-
2 Years Warranty
-
Lifetime Technical Support
SIIG ipcolor 4K HDMI Extender Daisy Chain Transmission Kit
Don't let HDMI cable limitations restrict you and get rid of flickering or black screens. Our HDMI extenders allow you to transmit 4K video and audio over long distances at near-zero latency by the daisy chain feature. Send 4K HDMI video and audio up to 165 feet to multiple receivers up to 10 units

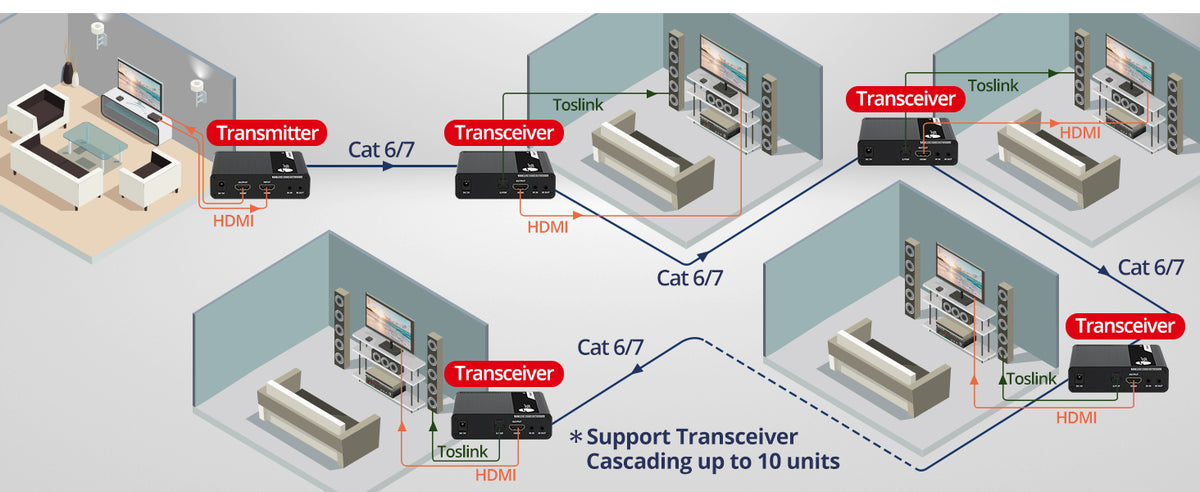

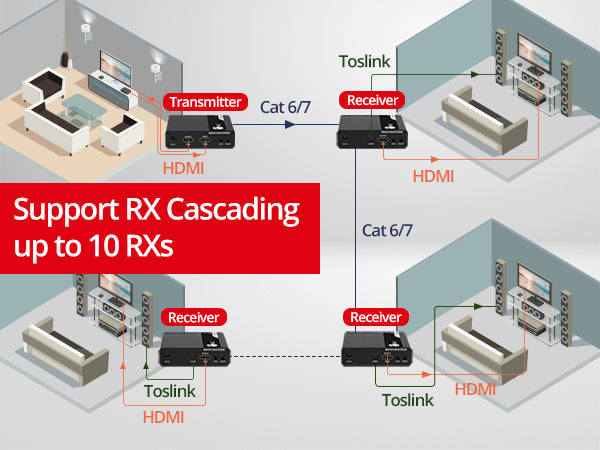

4K60Hz Long-Range Extension with Cascade Support
Allows transmission and expansion of uncompressed 4K 60Hz HDMI audio/video HDR signals to a remote 4K Ultra HD display up to 230ft (70m) over a Cat6/7 network cable with nearly zero latency and cascade up to 10 receivers to scale audio/video setup at a low cost.

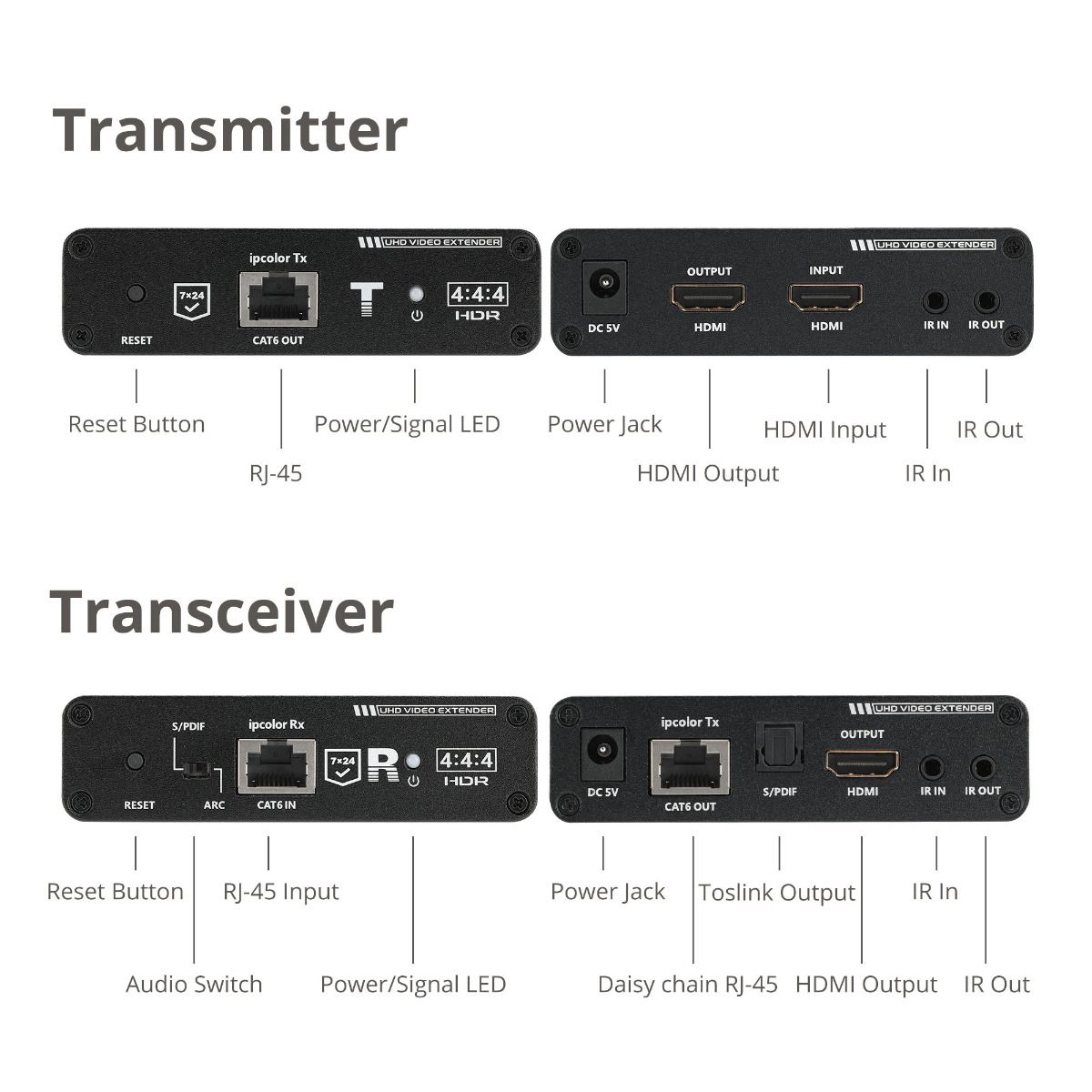

Multiple Connectivity Ports
-

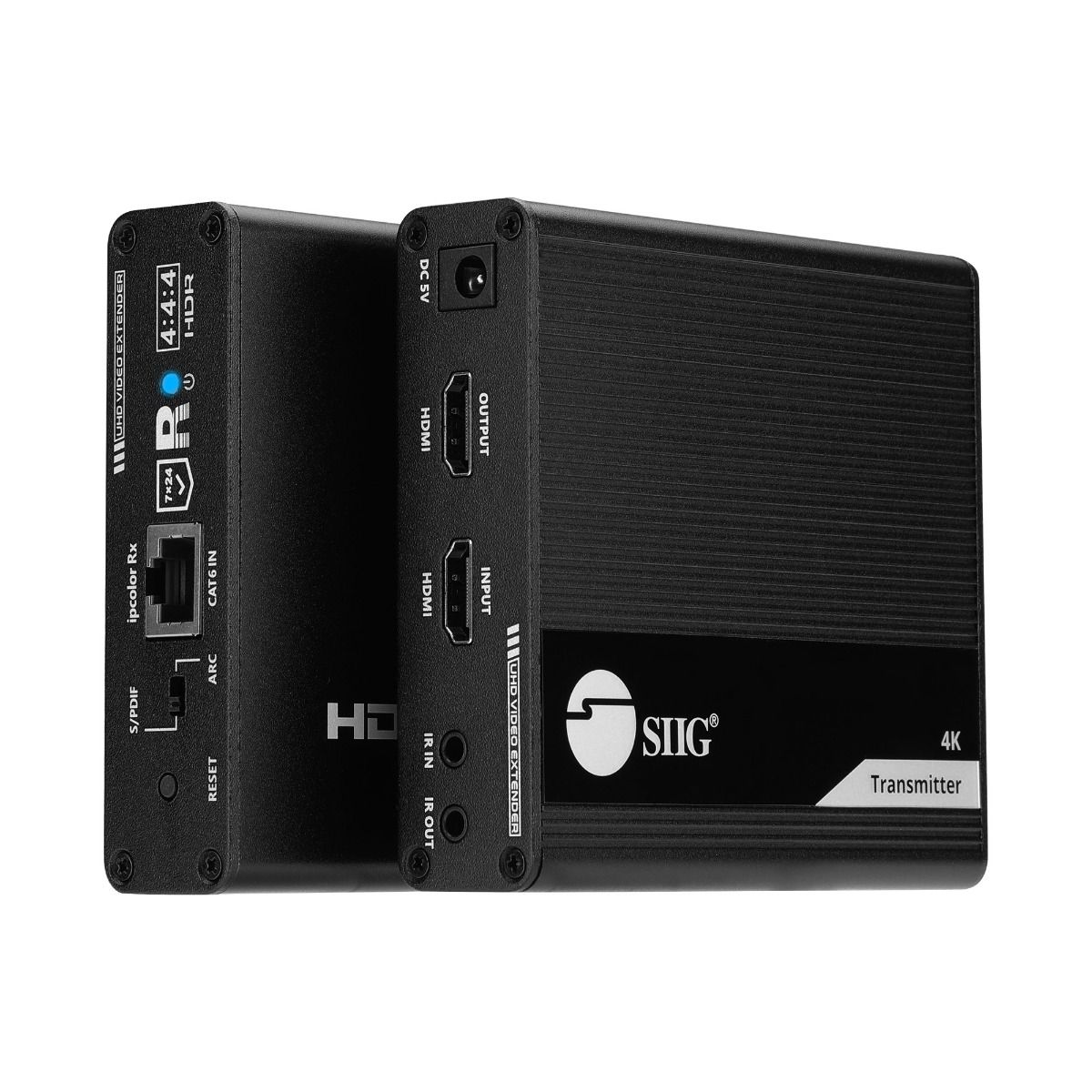

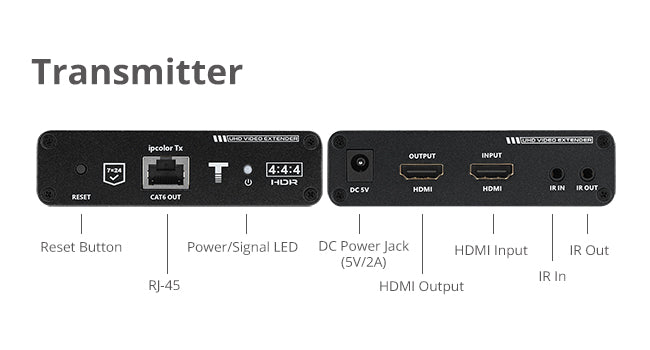

Transmitter unit

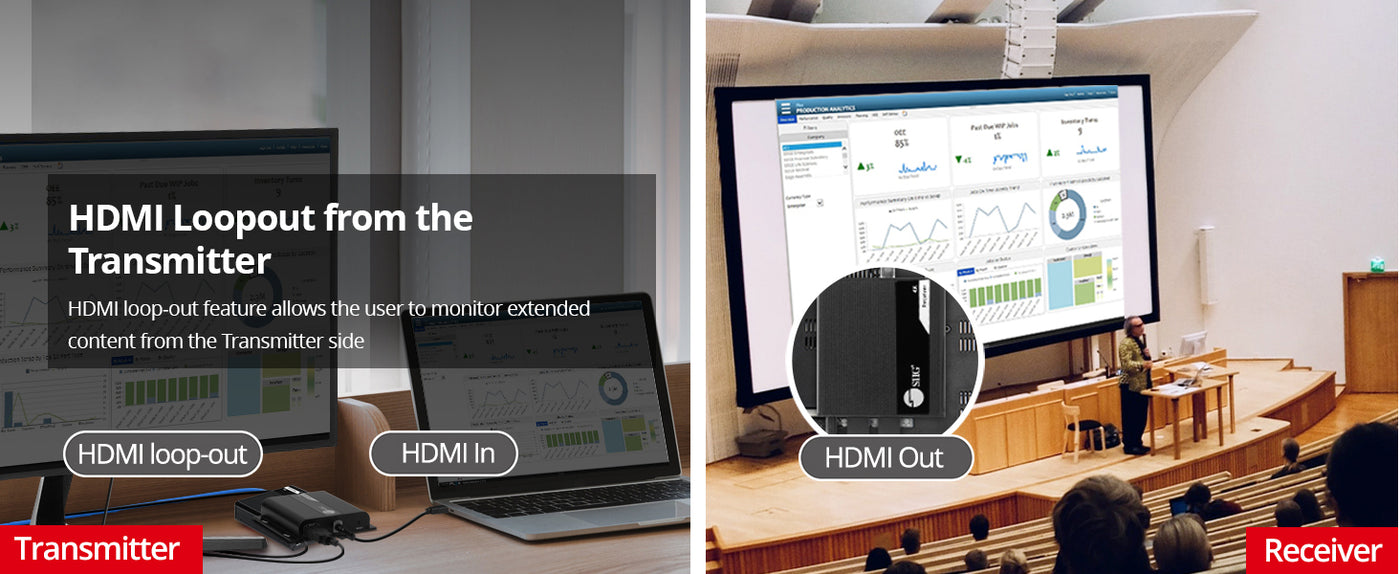

- 1x HDMI, Female (input)/ 1x HDMI, Loop-out, Female
- 1x RJ45 network (output)
- 1x 3.5mm infrared jack, IR emitter (output)/ 1x 3.5mm infrared jack, IR receiver (input)
- 1x power jack, 5V/2A
- 1x reset button -

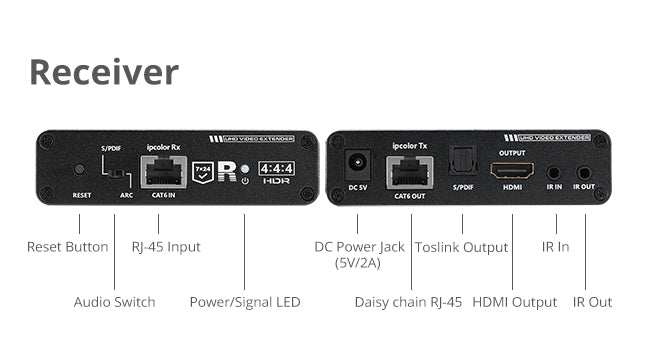

Receiver unit
- 1x HDMI, Female (output)/ 1x RJ45 network (input)
- 1x S/PDIF audio, Toslink (output)
- 1x 3.5mm infrared jack, IR emitter (output)/ 1x 3.5mm infrared jack, IR receiver (input)
- 1x power jack, 5V/2A/ 1x reset button

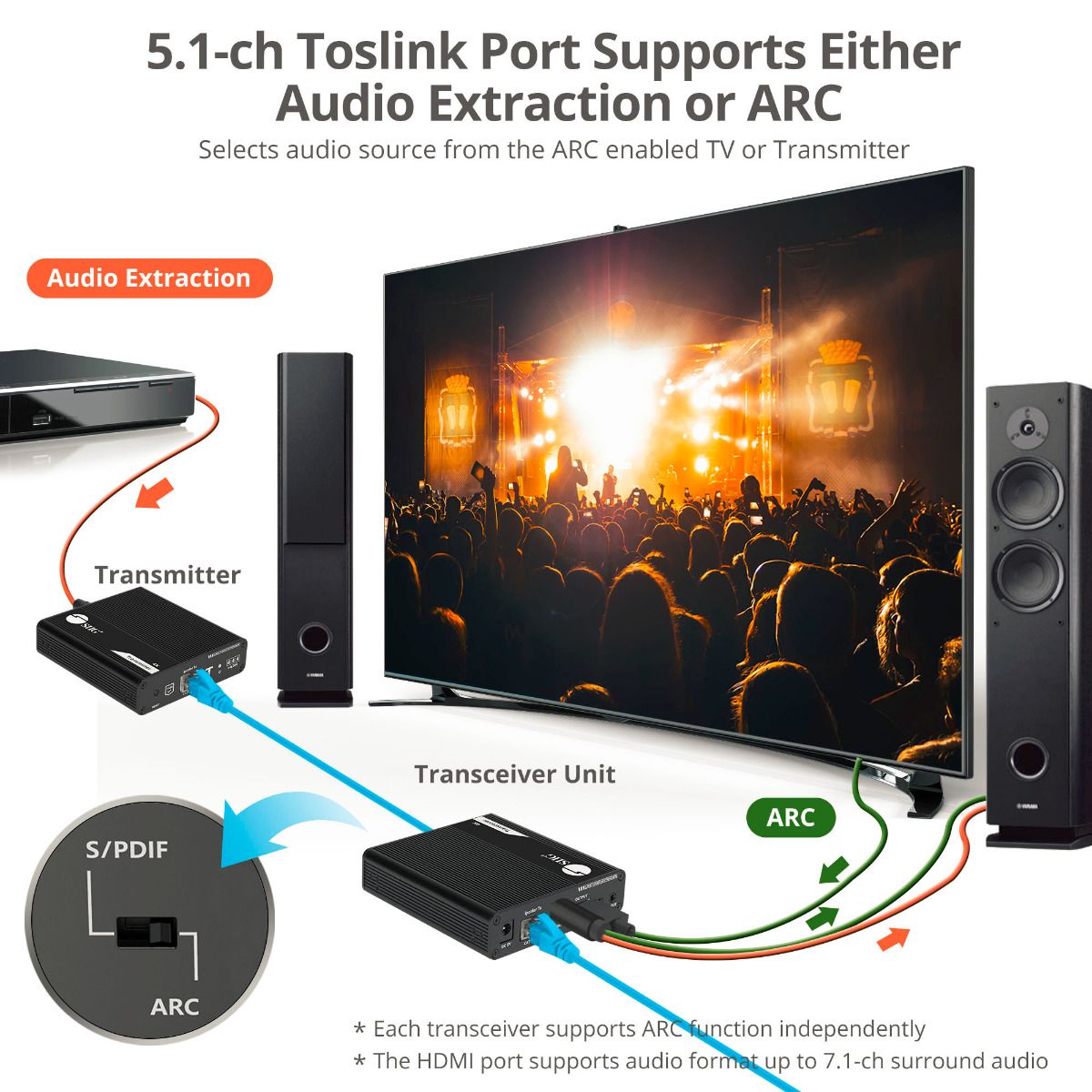

- 1x Audio slide switch, for select S/PDIF (audio extraction) or ARC
Comparison Table
| Facet | ||||
|---|---|---|---|---|
| SKU | ||||
| SKU | ||||
| Connection port | ||||
| Connection port | ||||
| Data Transfer (Max) | ||||
| Data Transfer (Max) | ||||
| Additional function | ||||
| Additional function | ||||
| Housing material | ||||
| Housing material | ||||
| Color | ||||
| Color | ||||
| Dimensions | ||||
| Dimensions | ||||
| Weight | ||||
| Weight | ||||
| Mountable | ||||
| Mountable | - |
|||
| Certification/ Standards | ||||
| Certification/ Standards | ||||
| Warranty | ||||
| Warranty | ||||
| Country of Origin | ||||
| Country of Origin | ||||
| Resolution | ||||
| Resolution | ||||
| Audio spec | ||||
| Audio spec | - |
|||
| IR function | ||||
| IR function | - |
|||
| Remote control | ||||
| EDID button | ||||
| EDID button | - | - | - |
|
| Distance | ||||
| Distance | - |
|||
| Antenna spec | ||||
| Reset key | ||||
| Reset key | - |
|||
| Bandwidth | ||||
| Bandwidth | ||||
| Power Output (Max) | ||||
| Power Indicator | ||||
| Power Indicator | - |
|||
| Protection | ||||
| Protection | ||||
| Protocol | ||||
| Protocol | ||||
| Power Adapter | ||||
| Power Adapter | ||||
| Spec | ||||
| Spec | ||||
| Video | |
| HDMI | 1x input, 1x output, 1x loop-out |
| Standard | HDCP 2.2/1.4 compliant |
| Resolution | HDR 4K (3840x2160) / 2160p / 1080p / 1080i / 720p / 480i / 480p @60Hz |
| Transmission Distance | Up to 230ft (70m) |
| Bandwidth | Up to 18Gbps |

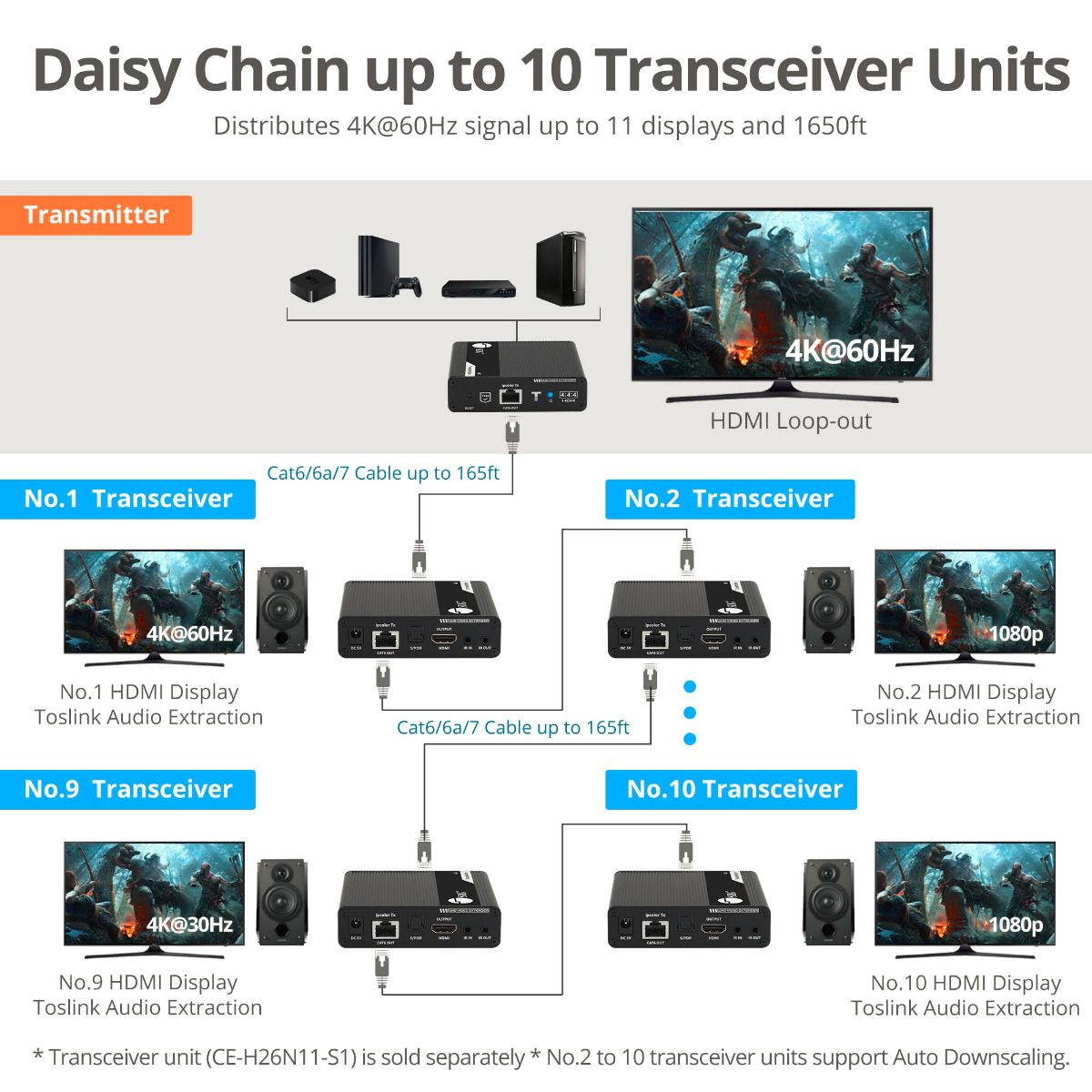

| Daisy Chain | |
| Transceiver | Up to 10 receivers (part# CE-H26N11-S1), sold separately * Have to work with Transmitter |
| Transmission Distance | Up to 165ft for each (best quality) |
| Audio | - 7.1 channel surround sound from HDMI port, audio format PCM 2.0/5.1/7.1, Dolby 5.1, and DTS 5.1 - 5.1 channel surround sound from S/PDIF (Toslink) port, audio format: PCM 2.0, Dolby 5.1, and DTS 5.1 |

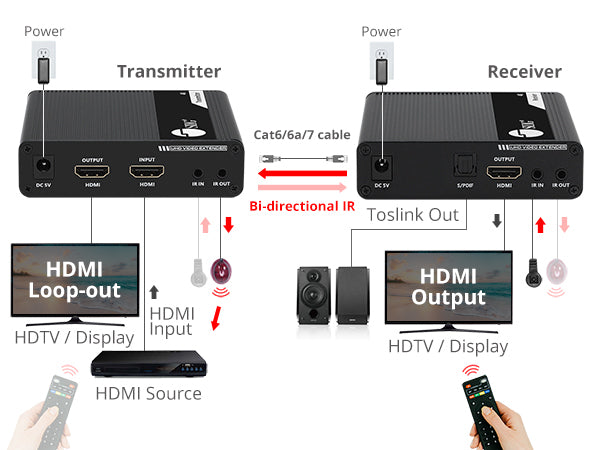

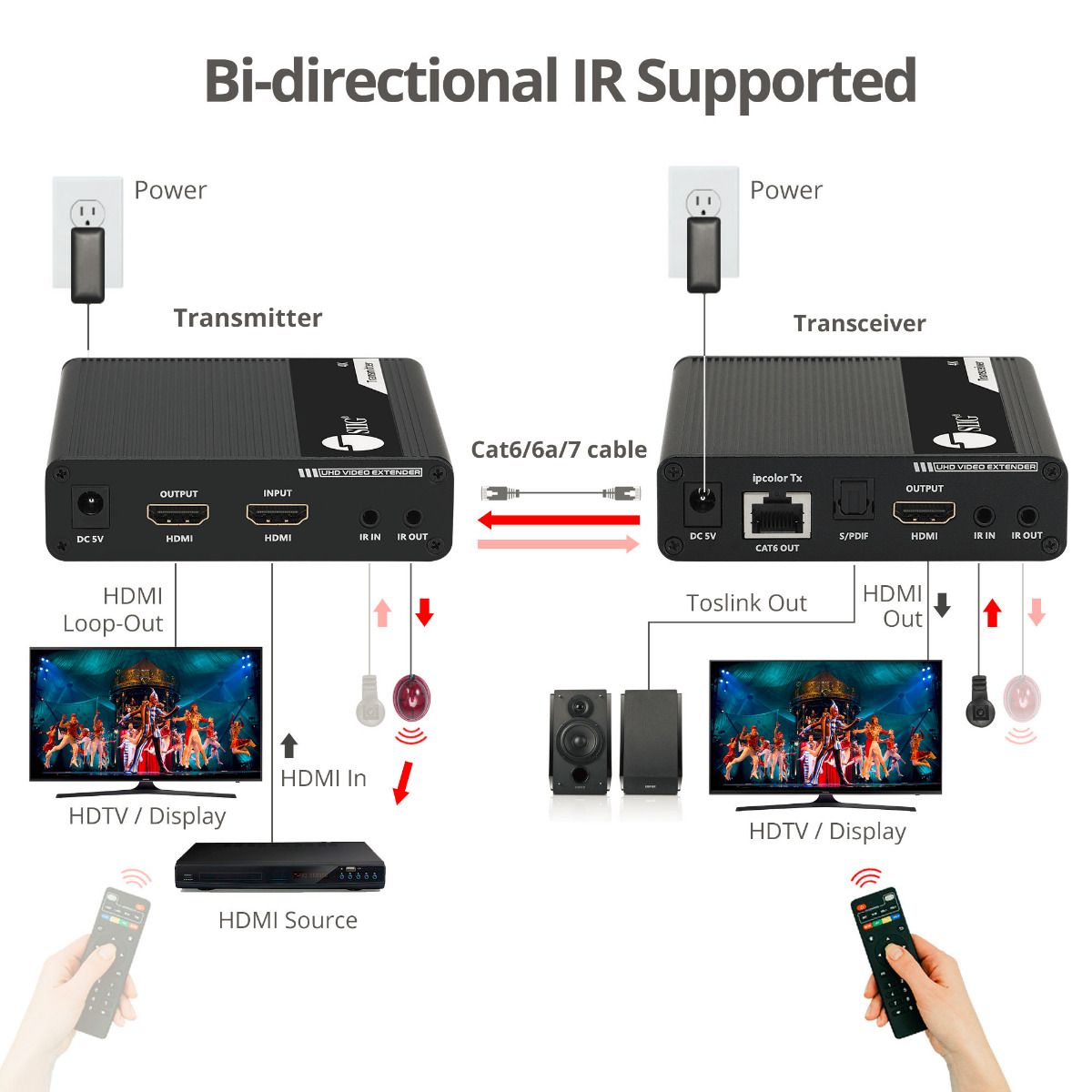

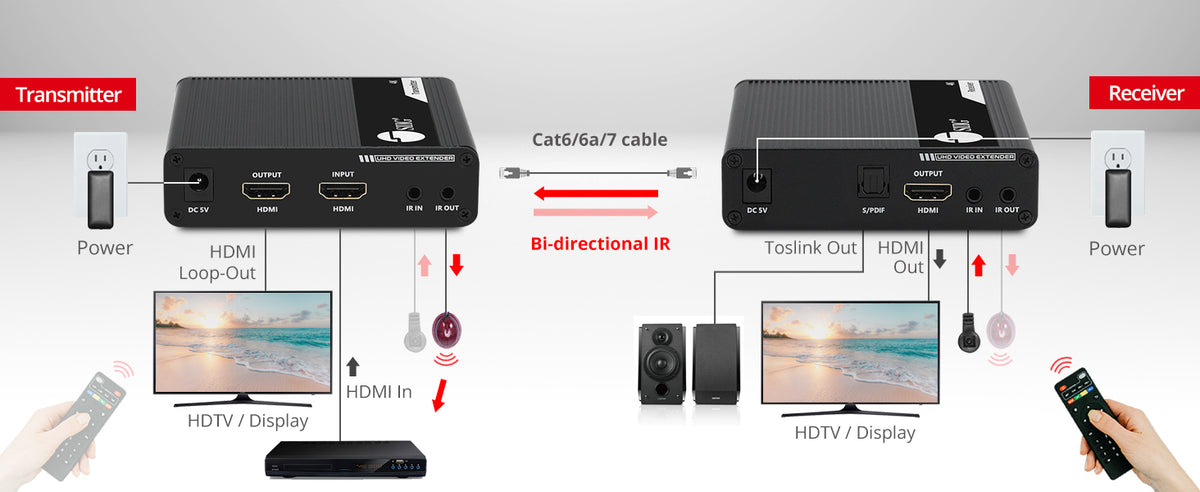

| IR Pass-Through | - Bi-directional IR allows remote control of the HDMI source device and playback function at the remote display - Full frequency: 20KHz to 60KHz |
| Power Adapter | |
| Input | 100-240V/50-60Hz |
| Output | DC 5V/2A |
| UL listed | E335801/Level: VI |
| Interface | |
| Transmitter Unit | 1x 19-pin, HDMI, female (input) 1x 19-pin, HDMI, Loop-out, female 1x 8-pin, RJ45 network (output) 1x 3.5mm infrared jack, IR emitter (output) 1x 3.5mm infrared jack, IR receiver (input) 1x Power jack, 5V/2A 1x Reset button |
| Receiver unit | 1x 19-pin, HDMI, female (output) 1x 8-pin, RJ45 network (input) 1x 8-pin, RJ45 network, for daisy chain (output) 1x S/PDIF audio, Toslink (output) 1x 3.5mm infrared jack, IR emitter (output) 1x 3.5mm infrared jack, IR receiver (input) 1x Power jack, 5V/2A 1x Reset button 1x Audio slide switch, for select S/PDIF (audio extraction) or ARC |
| Product | |
| Transmitter unit (TX) | |

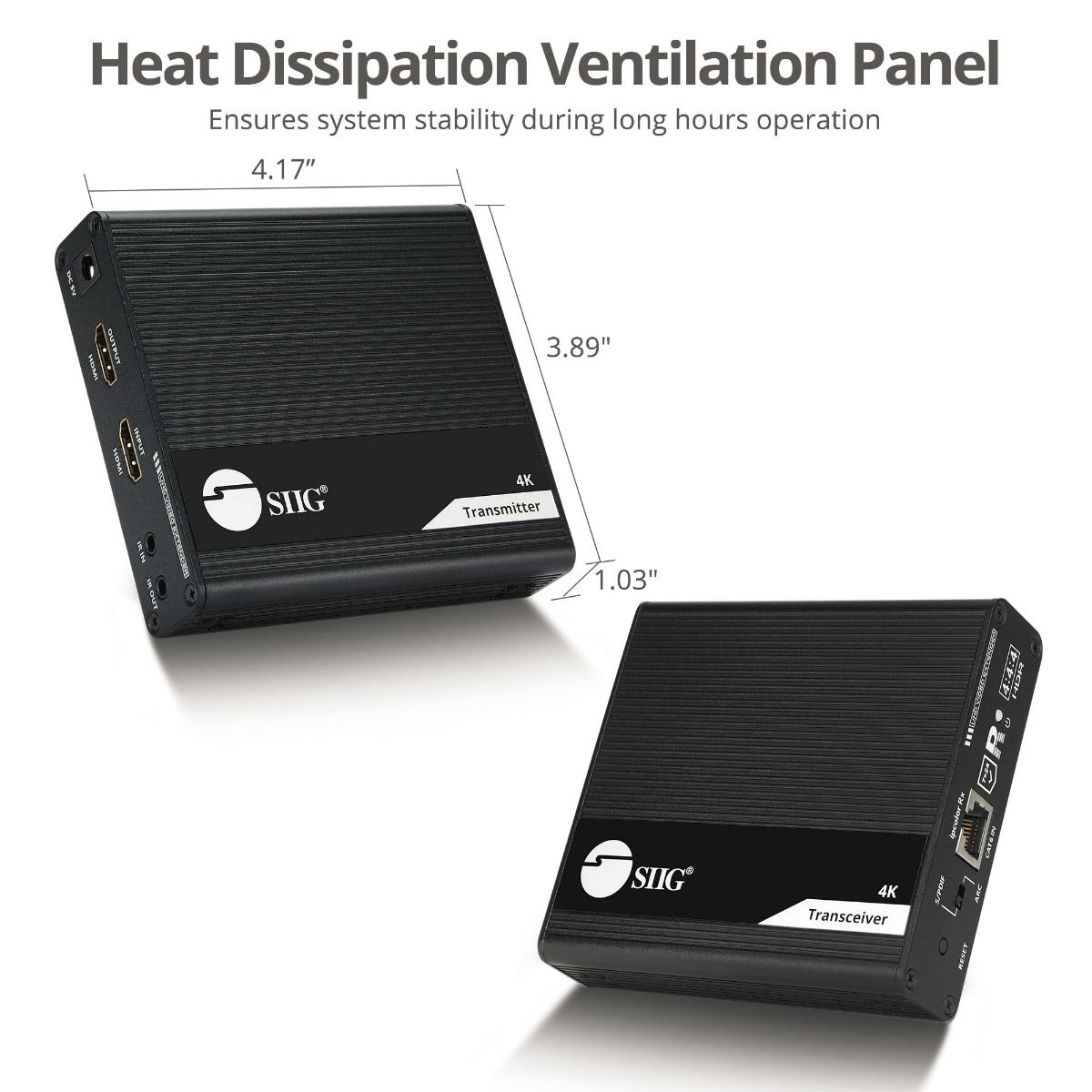

| Dimensions (L) x (H) x (W) | 4.17″ x 1.03″ x 3.90″ 10.59 cm x 2.62 cm x 9.90 cm |
| Weight | 0.46 lbs |
| Color | Black |
| Housing material | Aluminum alloy |
| Receiver unit (RX) | |
| Dimensions (L) x (H) x (W) | 4.17″ x 1.03″ x 3.90″ 10.59 cm x 2.62 cm x 9.90 cm |
| Weight | 0.46 lbs |
| Color | Black |
| Housing material | Aluminum alloy |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 9.45″ x 3.15″x 6.93″ 24.00 cm x 8.00 cm x 17.60 cm |
| Weight | 2.03 lbs |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 10.63″ x 16.54″ x 14.96″ 27.00 cm x 42.01 cm x 38.00 cm |
| Weight | 22.01 lbs |
| Quantity | 10pcs/ctn |

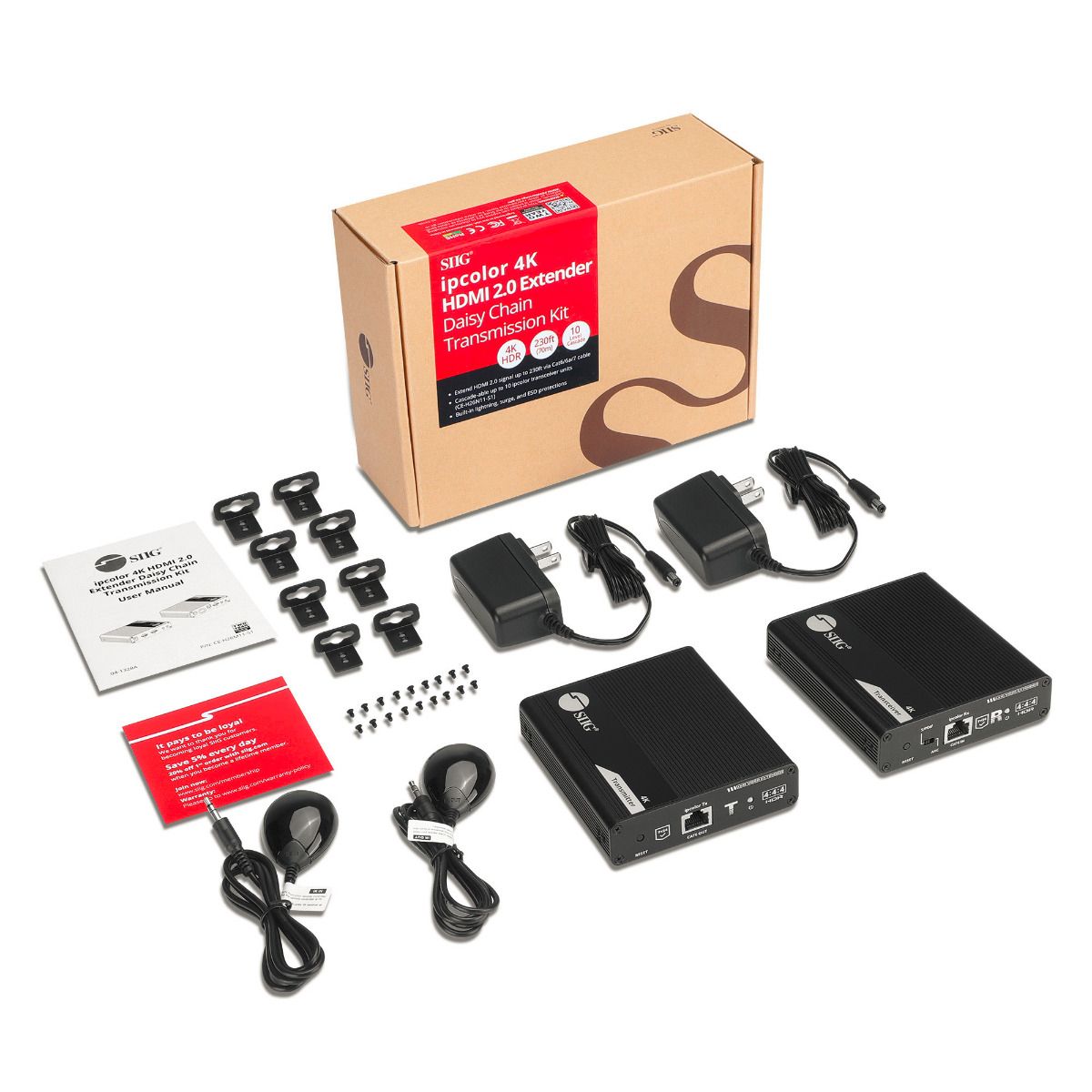

| Package Contents | 1x ipcolor 4K HDMI Extender Daisy Chain Transmission Kit 1x 3.5mm IR emitter extension cable 1x 3.5mm IR receiver extension cable 1x Mounting kits 2x DC power adapter, 5V/2A 1x User reference guide |
| Environmental Conditions | |
| Operating Temperature | 14 to 140 degrees F |
| Storage Temperature | -4 to 158 degrees F |
| Relative Humidity | 5% to 90% RH (non-condensing) |
| Certifications/Standards | FCC, CE, RoHS, REACH |
| UPC Code | 662774-044620 |
| Warranty | 2 years limited |
| Country of Origin | China |
