Docking Station |
SKU:
JU-DK0L11-S1

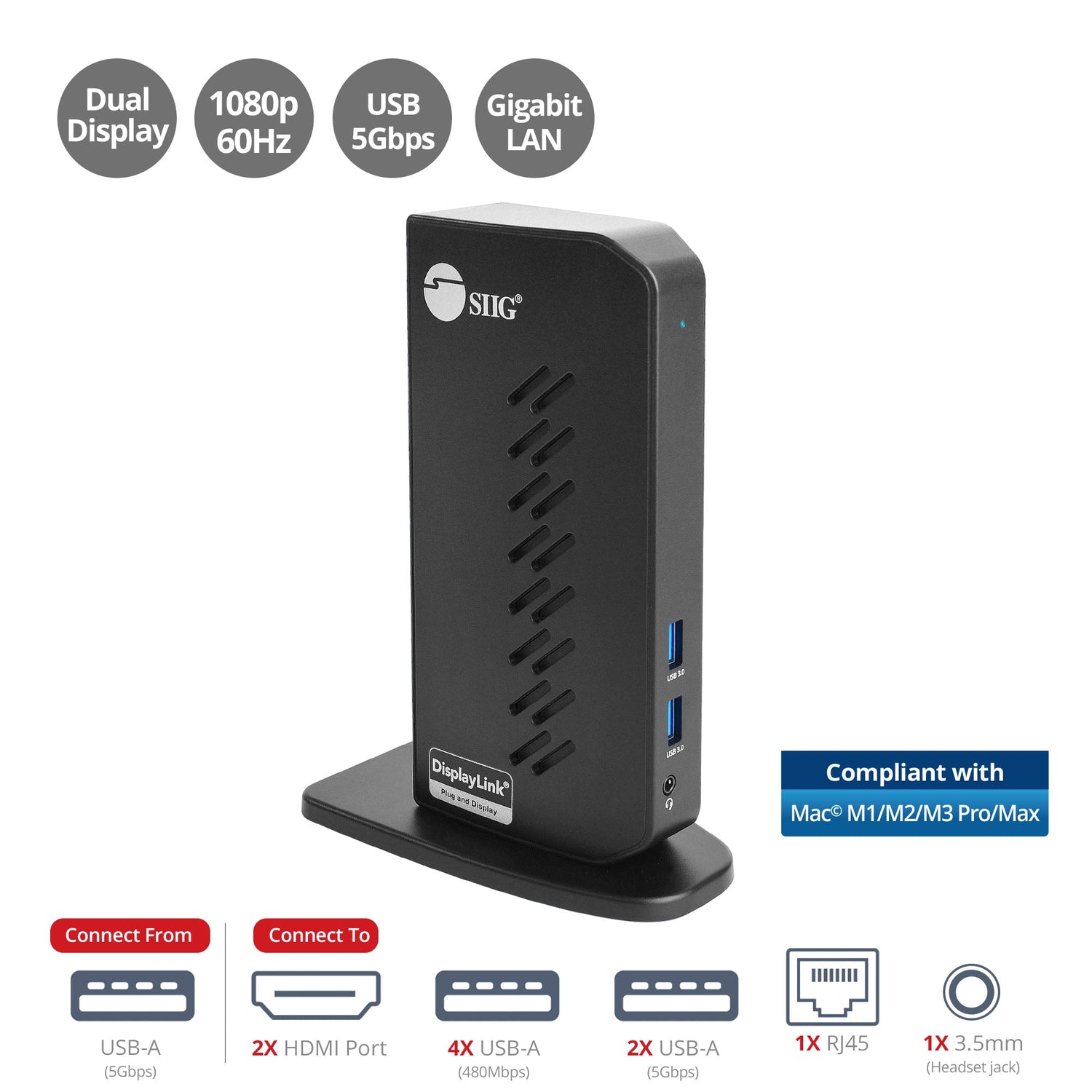

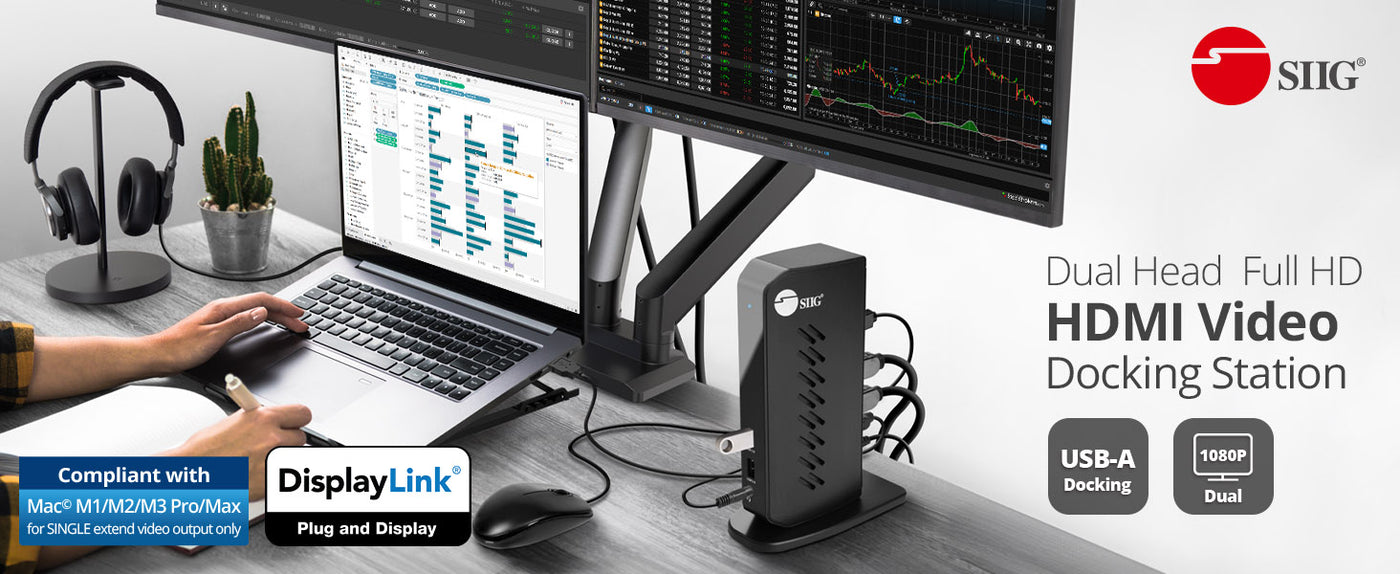

Dual Head Full HD HDMI Video Docking Station- Windows & Mac M1/M2/M3 Pro/Max Compatible
USB-A to USB-B Input
Dual View
1080p@60Hz
2x HDMI
DisplayLink IC
Regular price
$189.99
Unit price
/
Unavailable
Shipping calculated at checkout.
Dual Head Full HD HDMI Video Docking Station- Windows & Mac M1/M2/M3 Pro/Max Compatible is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features

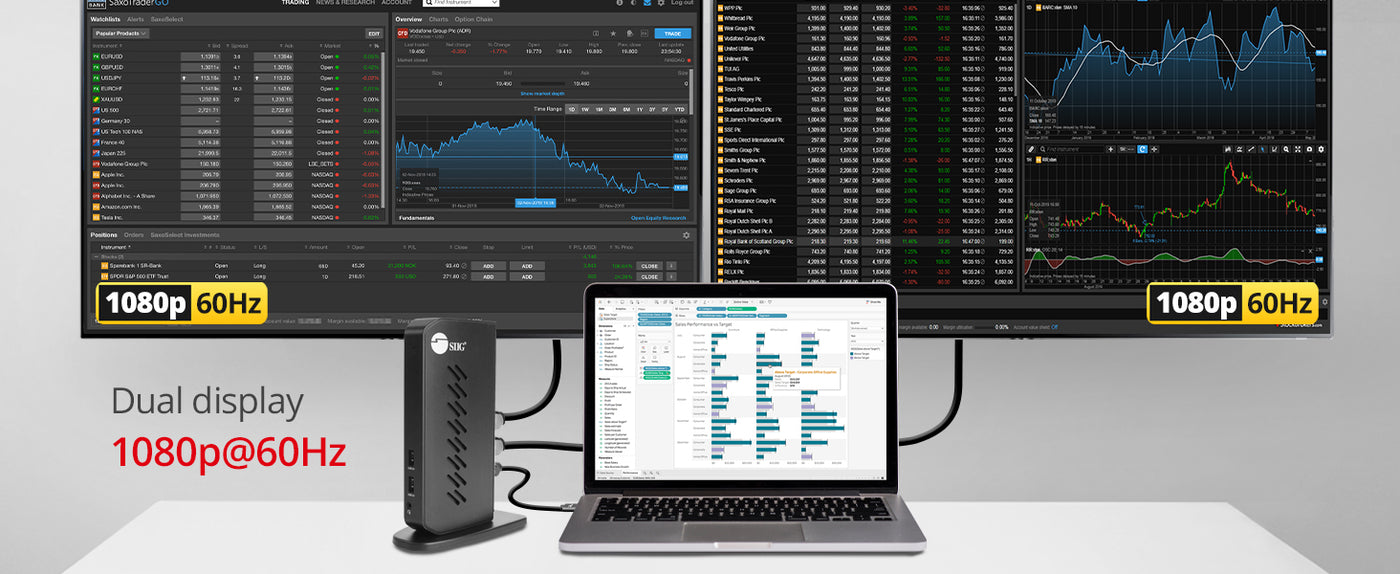

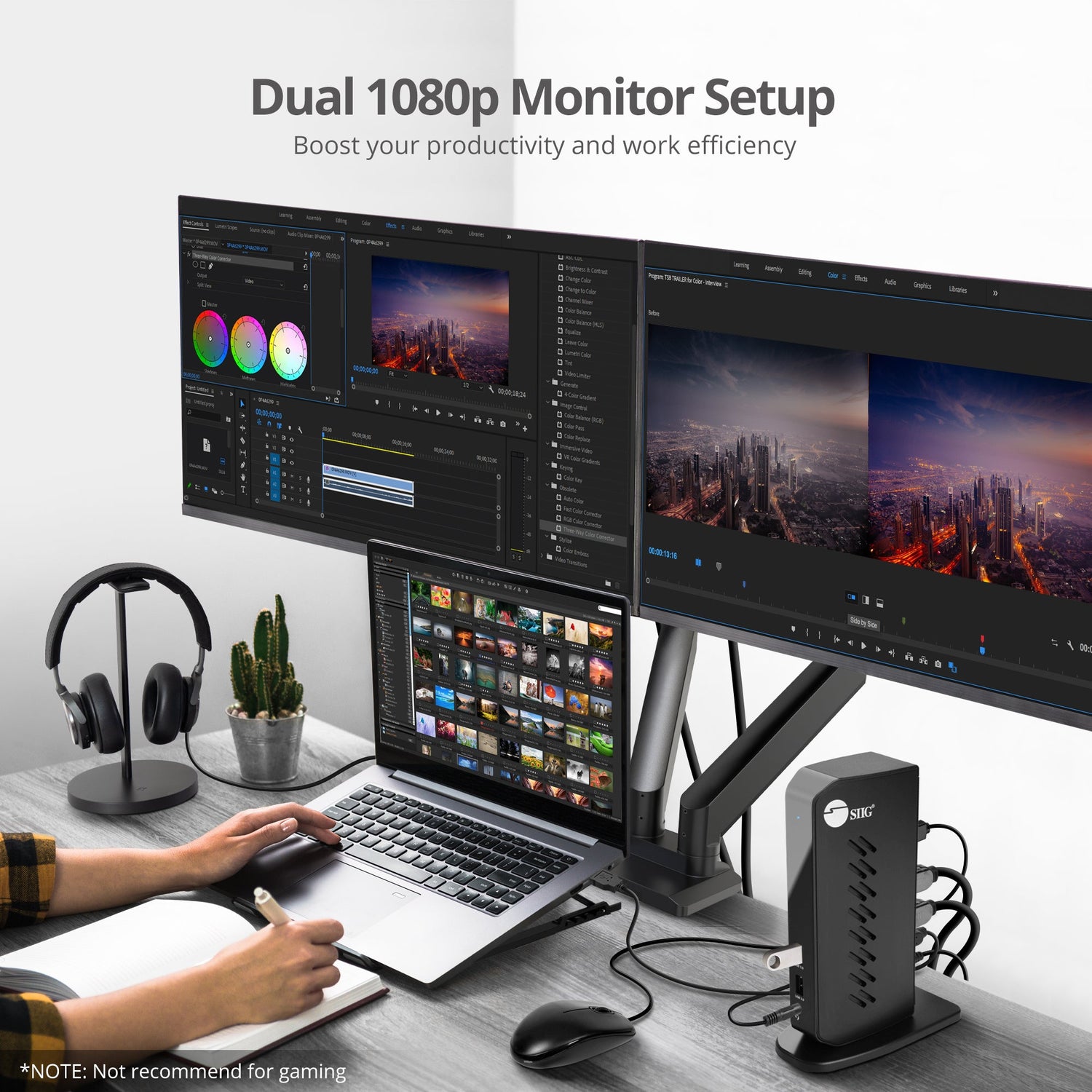

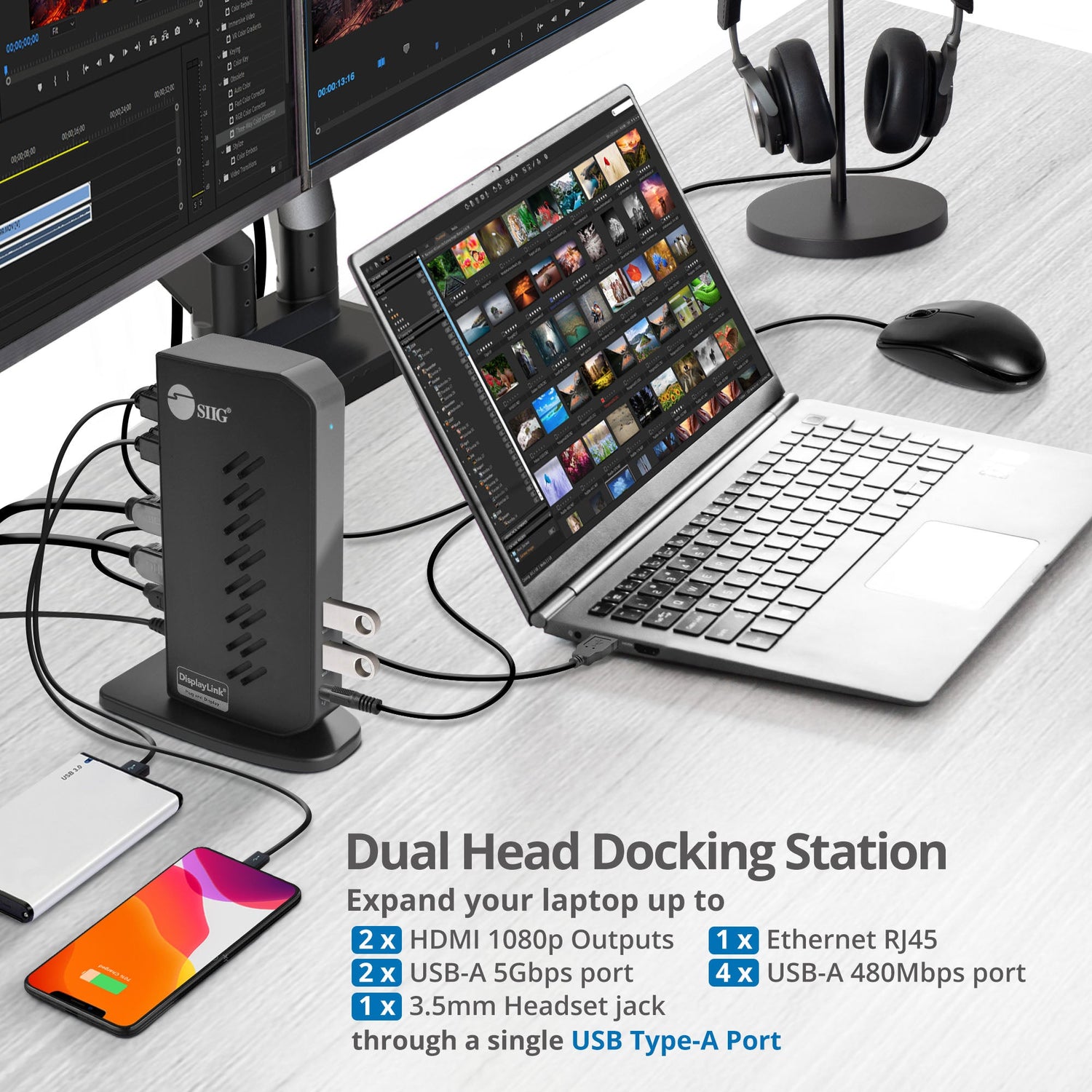

1080p Dual Monitor Docking Station
1080p Dual Monitor Docking Station
Extended Display
Extended Display
High Performance DisplayLink
High Performance DisplayLink

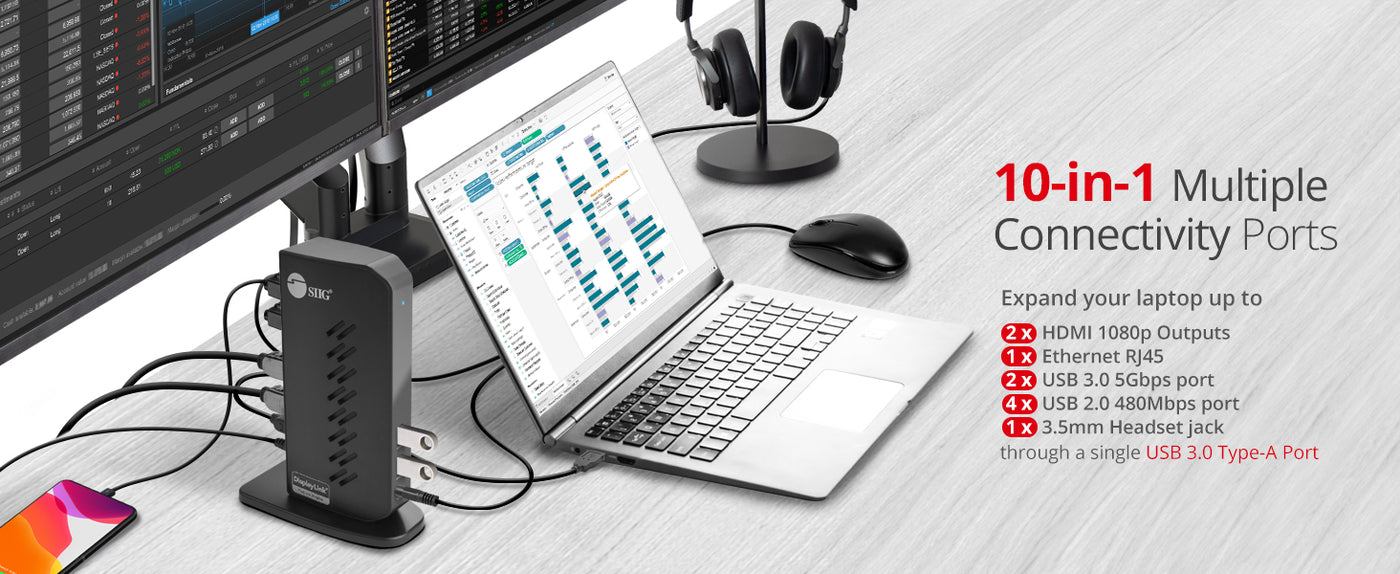

Multiple Ports
Multiple Ports
Space-saving design
Space-saving design
Dual Head Full HD HDMI Video Docking Station- Windows & Mac M1/...
Estimated shipping by May 25, 2026
Regular price
$189.99
Unit price
/
Unavailable
-
45 Days Free Return
-
2 Years Warranty
-
Lifetime Technical Support
SIIG Dual Head Full HD HDMI Video Docking Station (JU-DK0L11-S1)

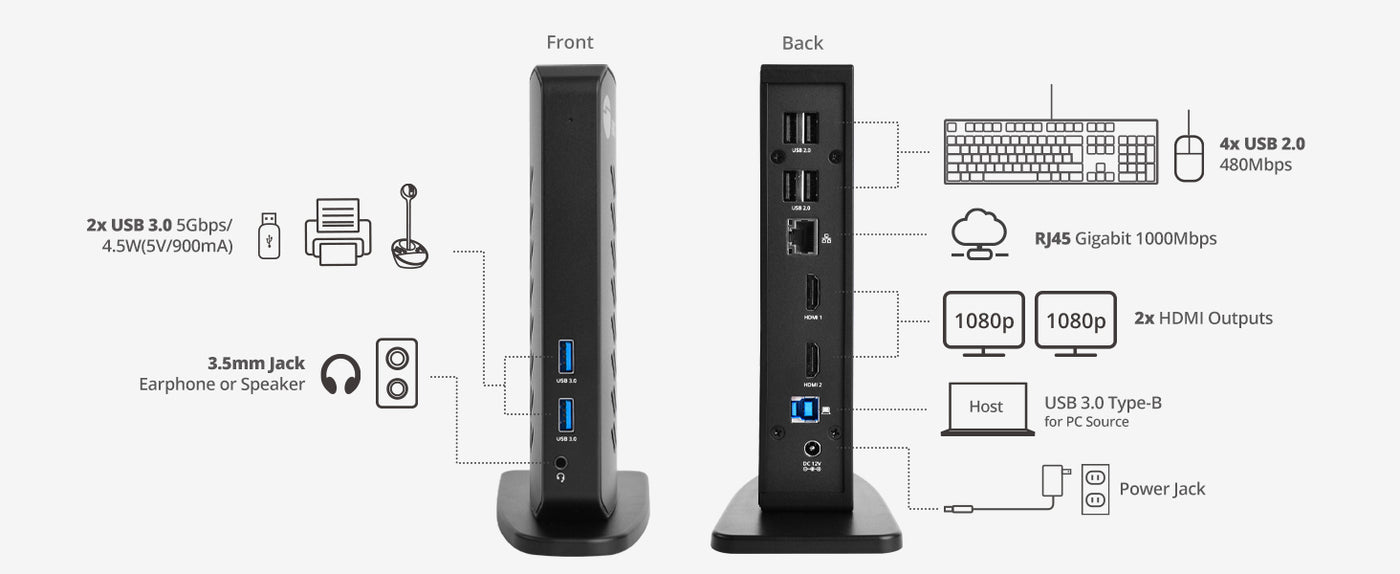

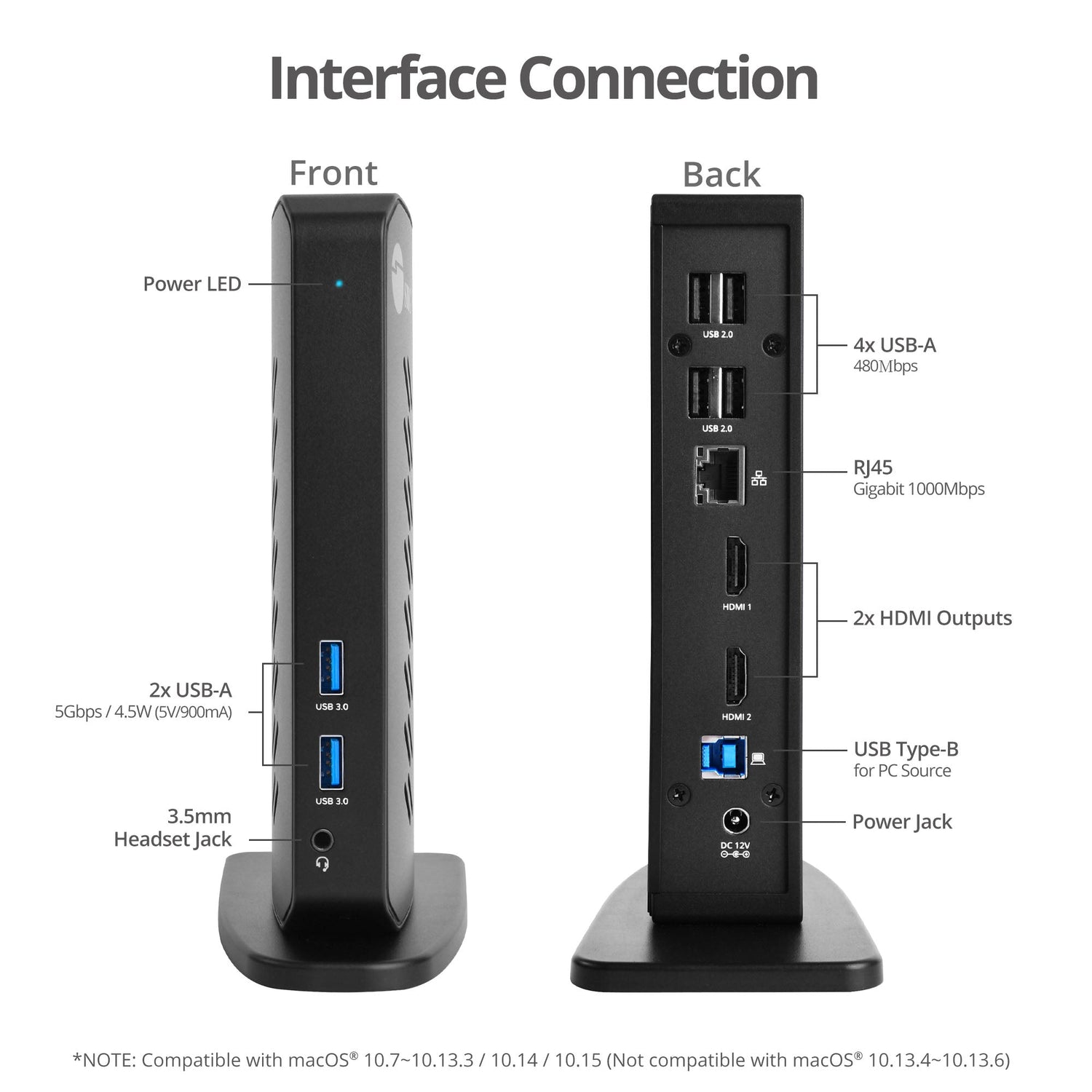

Interface Connection
| Facet |

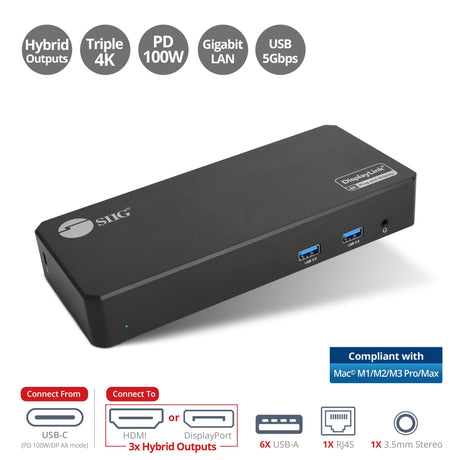

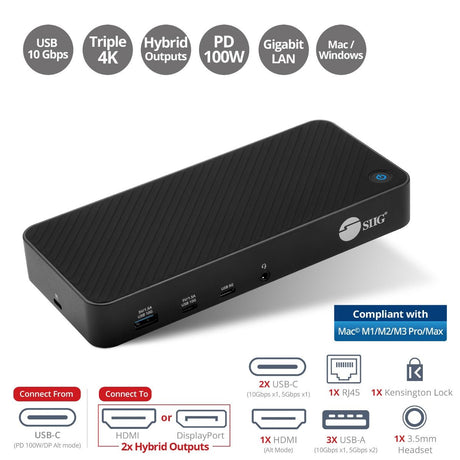

Universal Hybrid Triple 4K Video Docking Station with PD 3.0- Windows & Mac M1/M2/M3 Pro/Max Compatible View details |
Triple Hybrid 4K Video Docking Station with PD Charging- Windows & Mac M1/M2/M3 Pro/Max Compatible View details | ||
|---|---|---|---|---|
| SKU | ||||
| SKU | ||||
| Connection port | ||||
| Connection port | ||||
| Data Transfer (Max) | ||||
| Data Transfer (Max) | ||||
| Additional function | ||||
| Additional function | ||||
| Housing material | ||||
| Housing material | ||||
| Color | ||||
| Color | ||||
| Dimensions | ||||
| Dimensions | ||||
| Weight | ||||
| Weight | ||||
| Mountable | ||||
| Certification/ Standards | ||||
| Certification/ Standards | ||||
| Warranty | ||||
| Warranty | ||||
| Country of Origin | ||||
| Country of Origin | ||||
| Supported External Displays | ||||
| Supported External Displays | ||||
| Resolution | ||||
| Resolution | ||||
| Power Delivery | ||||
| Power Delivery | - | - |
||
| Spec | ||||
| Spec | ||||
| Protocol | ||||
| Protocol | ||||
| Bandwidth | ||||
| Bandwidth | ||||
| Power Output (Max) | ||||
| Power Output (Max) | ||||
| Power Indicator | ||||
| Power Indicator | ||||
| Protection | ||||
| Protection | ||||
| Power Adapter | ||||
| Power Adapter | ||||
| Form Factor | ||||
| Form Factor | - | - | - |
|
| Frequency | ||||
| Hardware | |
| Chipset | DisplayLink DL-3900 |
| Software | |
| OS Compatibility | Windows® 11 & mac OS® 12 or newer |
| Video | |
| HDMI | x2, 1080p @60Hz, Cable up to 10M |
| Resolution | 1080p / 1080i / 720p / 480p |
| Display Mode | Mirror / Extended / Primary video modes |
| Audio | 5.1 channel surround sound from HDMI output 2 channel stereo audio from 3.5mm audio jack |
| USB Performance | |
| USB-A (High Speed) | x2, data transfer rate up to 5Gbps and compatible with USB 2.0 specification |
| USB-A (Standard) | x4, data transfer rate up to 480Mbps and compatible with USB 1.1 specification |
| Ethernet Performance | |
| Data Transfer Rate | Up to 1G (1000Mbps), Backward compatible with 10/100Mbps |
| Network Support | IEEE 802.3x Full Duplex flow operation Crossover detection & auto-correction Compatible with IEEE 802.3 802.3u |
| Enterprise Features | Wake on LAN and PXE boot Note: Mac address pass-through not supported |
| Ports & Connectors | |
| Input: | 1x 9-pin, USB 3.0 Type-B, Female (PC Input) 1x DC power Jack |

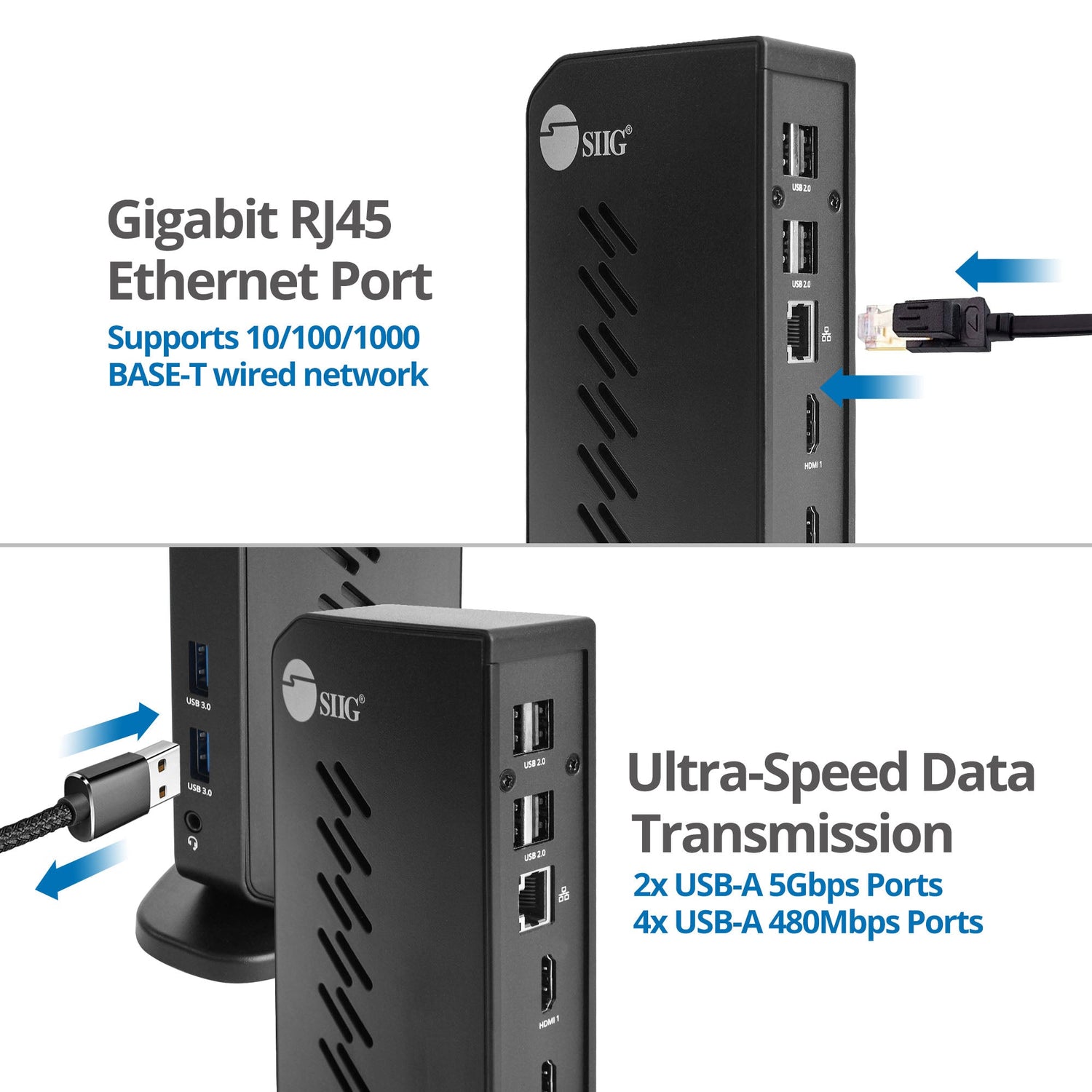

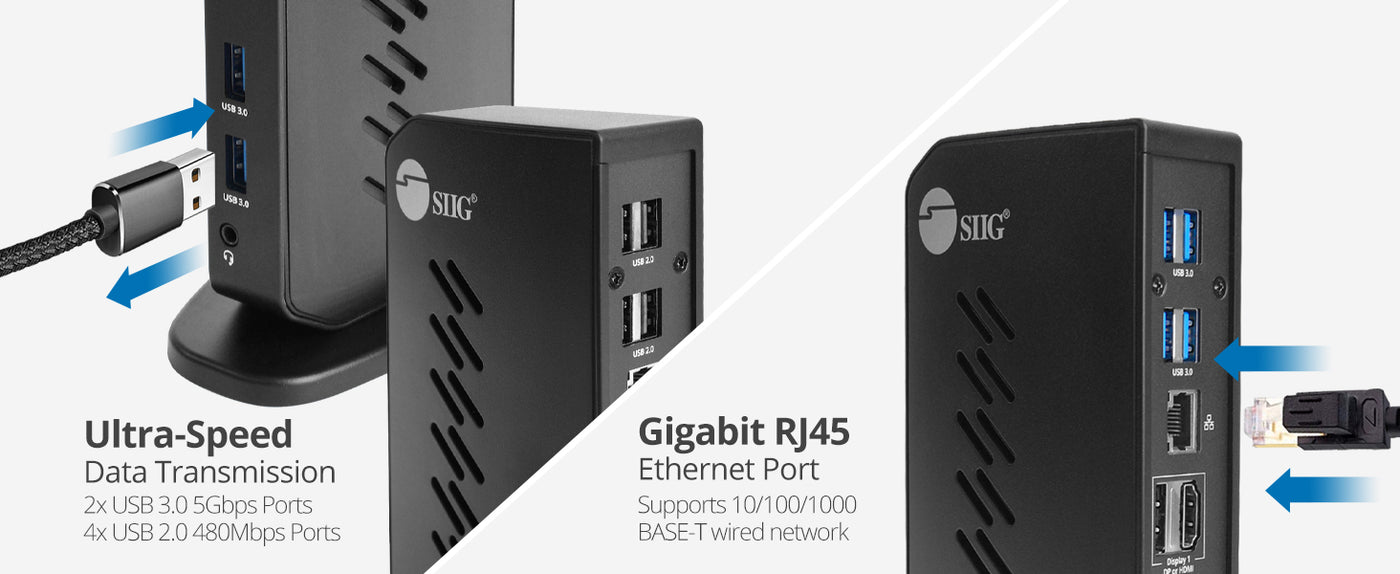

| Output: | 2x 19-pin, HDMI, Female 2x 9-pin, USB-A, 5Gbps, Female 4x 4-pin, USB-A, 480Mbps, Female 1x 8-pin, RJ45, Gigabit Ethernet, Female 1x 3.5mm Audio Jack (Headset/Mic) |
| Power Adapter | |
| Input | AC 100-240V / 50-60Hz |
| Output | DC 12V/2A |
| UL Listed | E221556 / Level: VI |
| Product | |

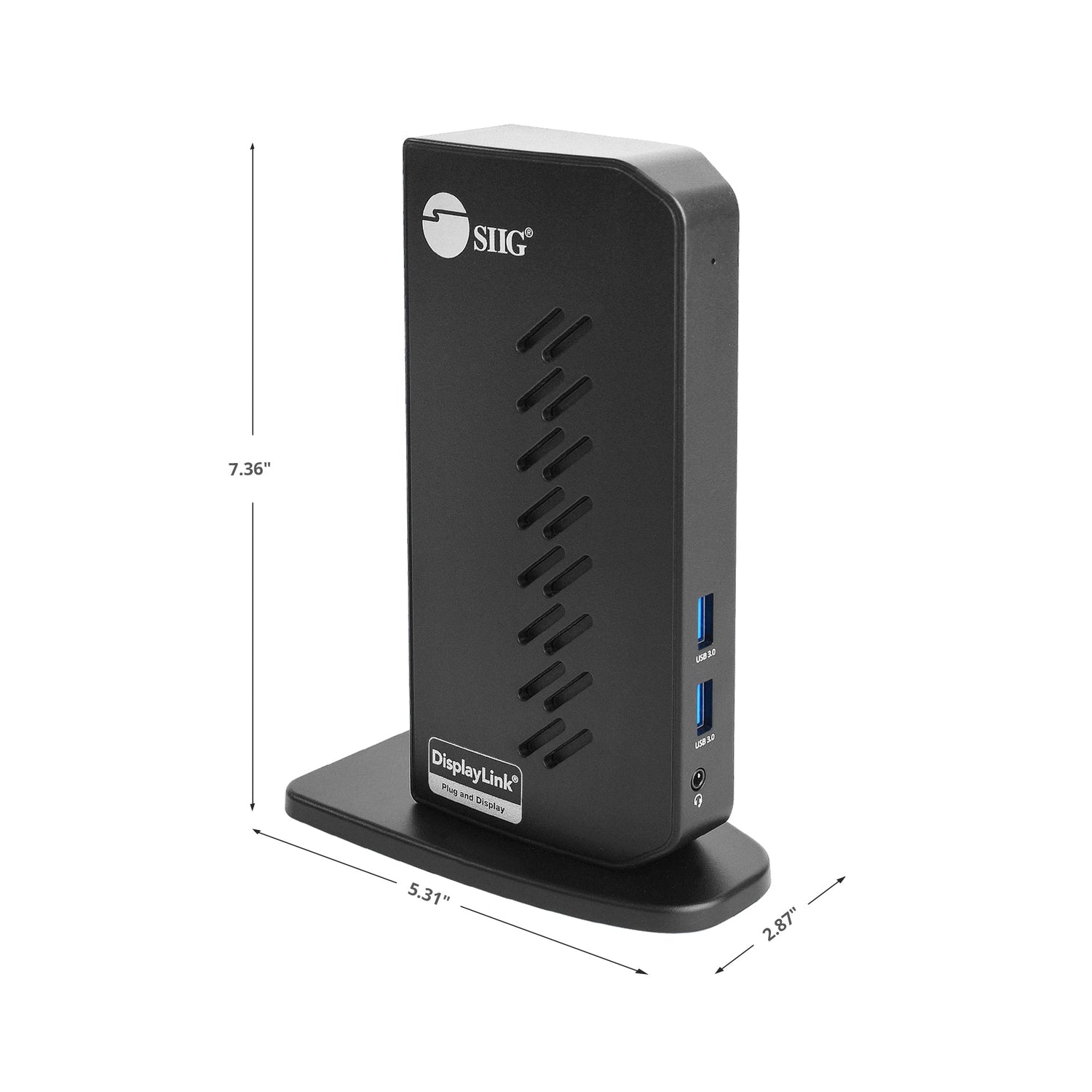

| Dimensions (W x H x D) | 5.31" x 7.36" x 2.87" |
| Weight | 0.75 lbs |
| Color | Black |
| Housing material | ABS |
| Unit Package | |
| Dimensions (W x H x D) | 8.07" x 5.51" x 4.33" |
| Weight | 1.54 lbs |
| Master Carton | |
| Dimensions (W x H x D) | 13.78" x 9.06" x 12.99" |
| Weight | 10.45 lbs |
| Quantity | 6 pcs/ctn |
| Environmental Conditions | |
| Operating temperature | 32 to 104 degrees F |
| Storage temperature | 14 to 158 degrees F |
| Relative humidity | 10% to 90% RH (non-condensing) |
| Certifications & Warranty | |
| Certifications/Standards | FCC, CE, RoHS |
| UPC Code | 662774_044255 |
| Warranty | 2 years limited |
| Country of origin | Thailand |
| System Requirements | - Desktop or laptop computer with an available USB 3.0 Type-A port - Compliant with mac® system for M1, M2, M3 Pro, & Max - Windows® 11 (64-bit) / 10 (32-/64-bit) / 8.1 (32-/64-bit) / 8 (32-/64-bit) / 7 (32-/64-bit) - macOS® 12 to 10.10* *Note: Our adapter is not compatible with 10.13.4 to 10.13.6 |

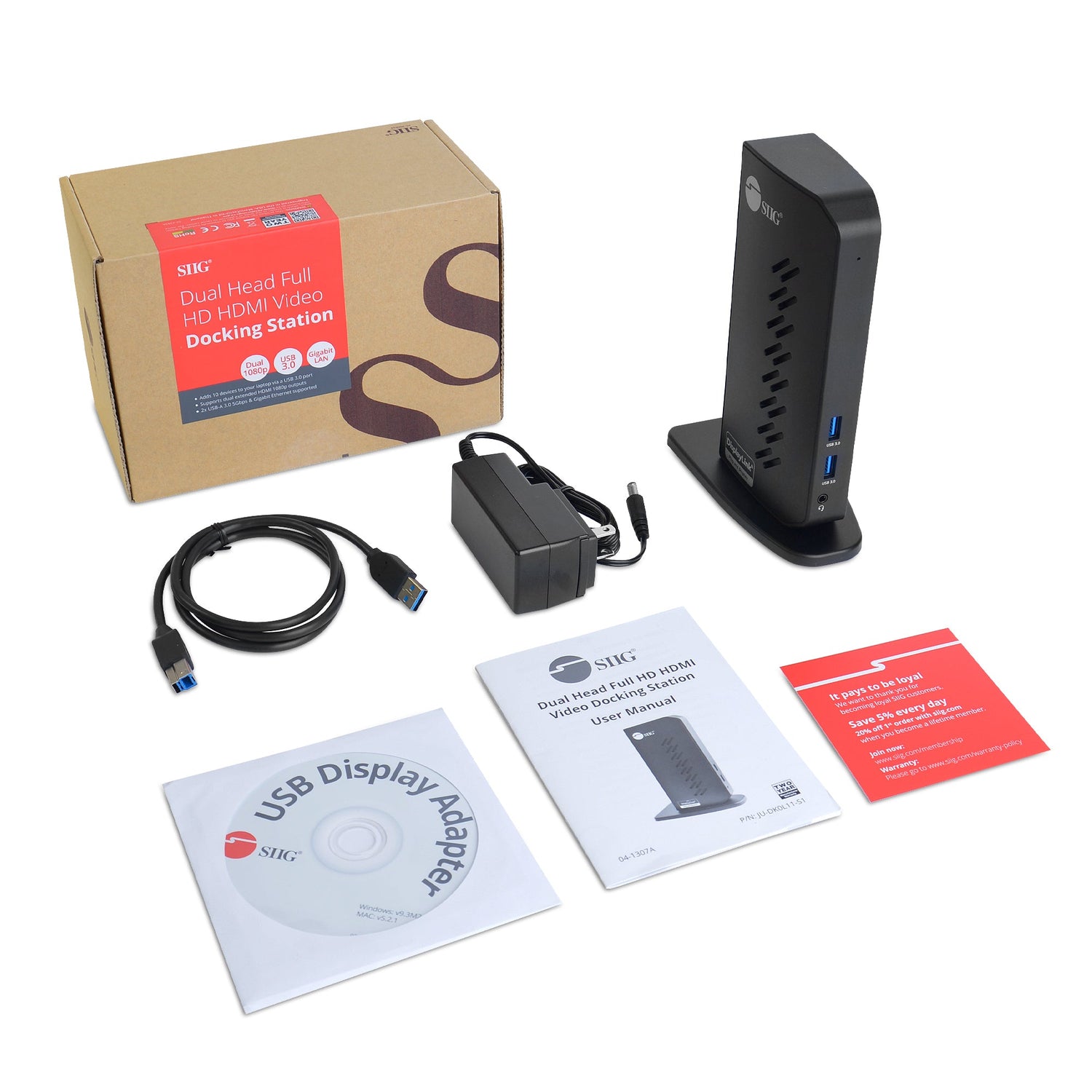

| Package contents | - Dual Head Full HD 1080p HDMI Video Docking Station - Power Adapter 12V/2A - USB 3.0 A to B cable - Driver CD - User manual |
Can I enable Clamshell mode or lid closed mode on my Macbook Pro?
Can I enable Clamshell mode or lid closed mode on my Macbook Pro?
Clamshell mode (lid closed) is supported on computers using Apple M1 silicon with external power connected (e.g. Apple MacBook power adapter or docking station with charging capability) on macOS Big Sur version 11.1 and later. Clamshell mode on Intel-based MacBooks was introduced in macOS 12 Monterey.
Need help?
Contact usManuals
Drivers (Hardware Version: 1)
- macOS 15 / 14 / 13: Download v13.1
- Windows 11 / 10: Download v11.7 M4
- macOS 12 / 11: Download Manager 1.9
- Windows 8 (32-/64-bit): Download v9.3 M1
- macOS X 10.10: Download v3.1
- macOS X 10.11.5 to 10.11: Download v4.1
- macOS X 10.13 to 10.13.3* / 10.12 / 10.11.6: Download v4.3.1
- macOS 10.14.x: Download v5.2.6
- macOS Catalina 10.15.x: Download Manager 1.5
