Docking Station |
SKU:
JU-DK0J11-S1
Universal Hybrid Triple 4K Video Docking Station with PD 3.0- Windows & Mac M1/M2/M3 Pro/Max Compatible
Triple 4K / Single 5K
USB-C DP Alt Mode
DIsplayLink Solution
PD 100W
USB-A 5Gbps
Regular price
$359.99
Unit price
/
Unavailable
Shipping calculated at checkout.
Universal Hybrid Triple 4K Video Docking Station with PD 3.0- Windows & Mac M1/M2/M3 Pro/Max Compatible is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability

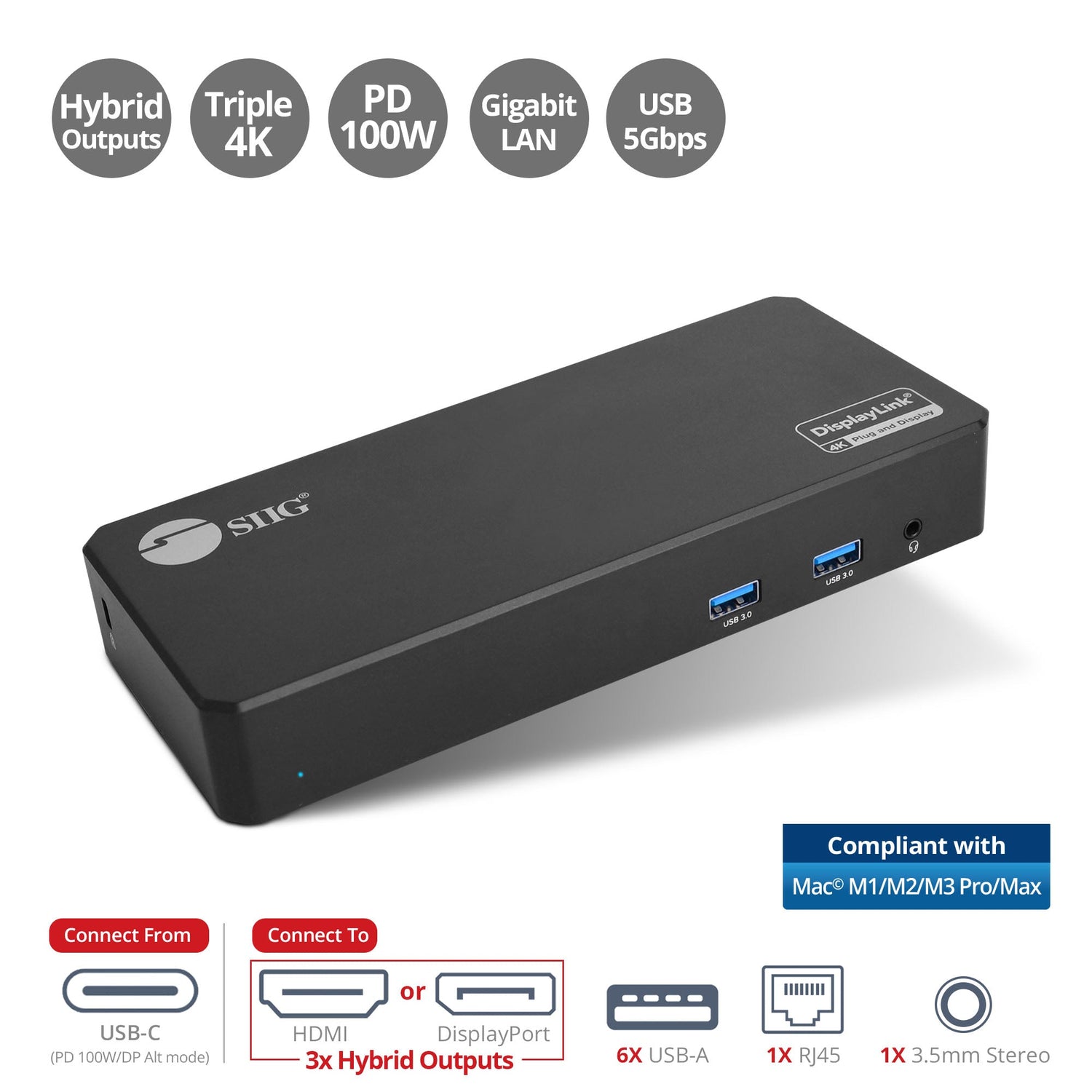

Product Features

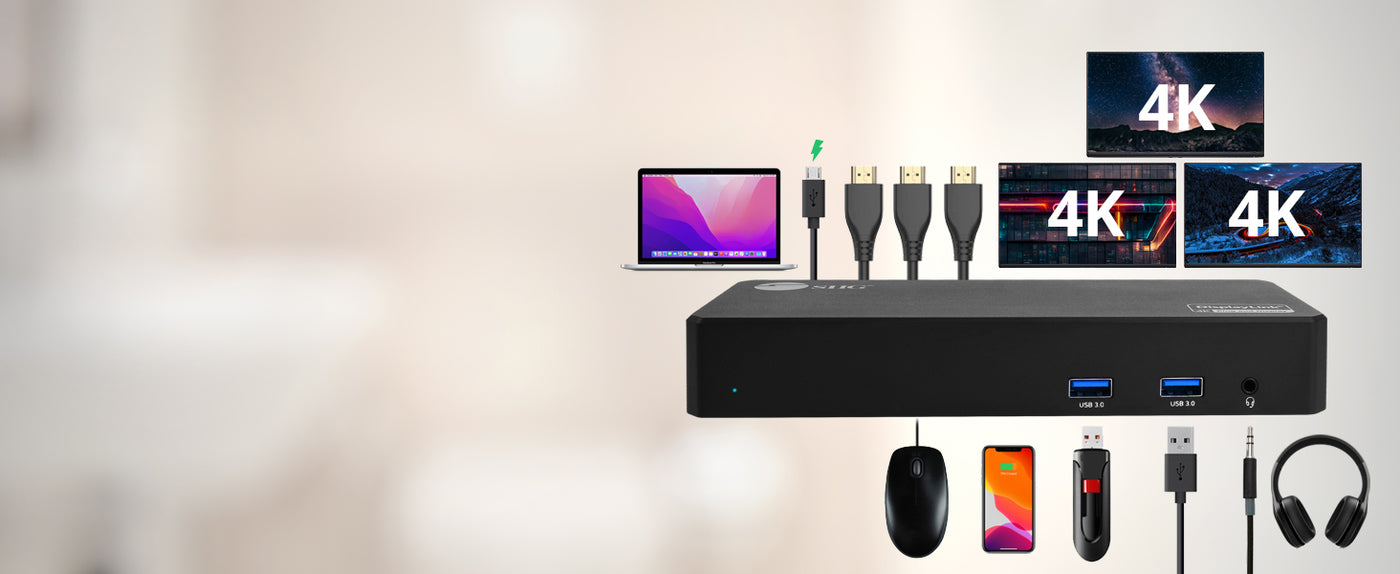

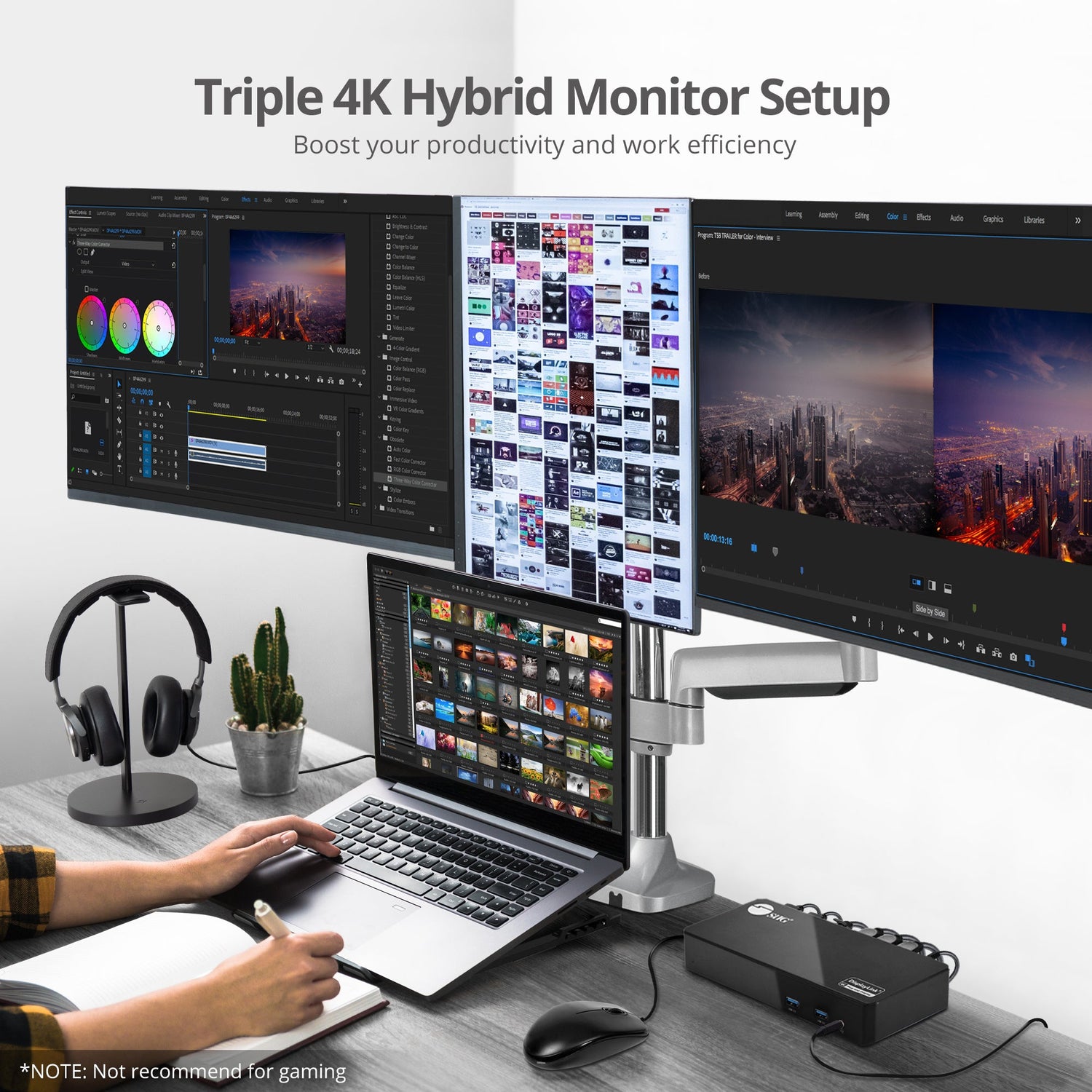

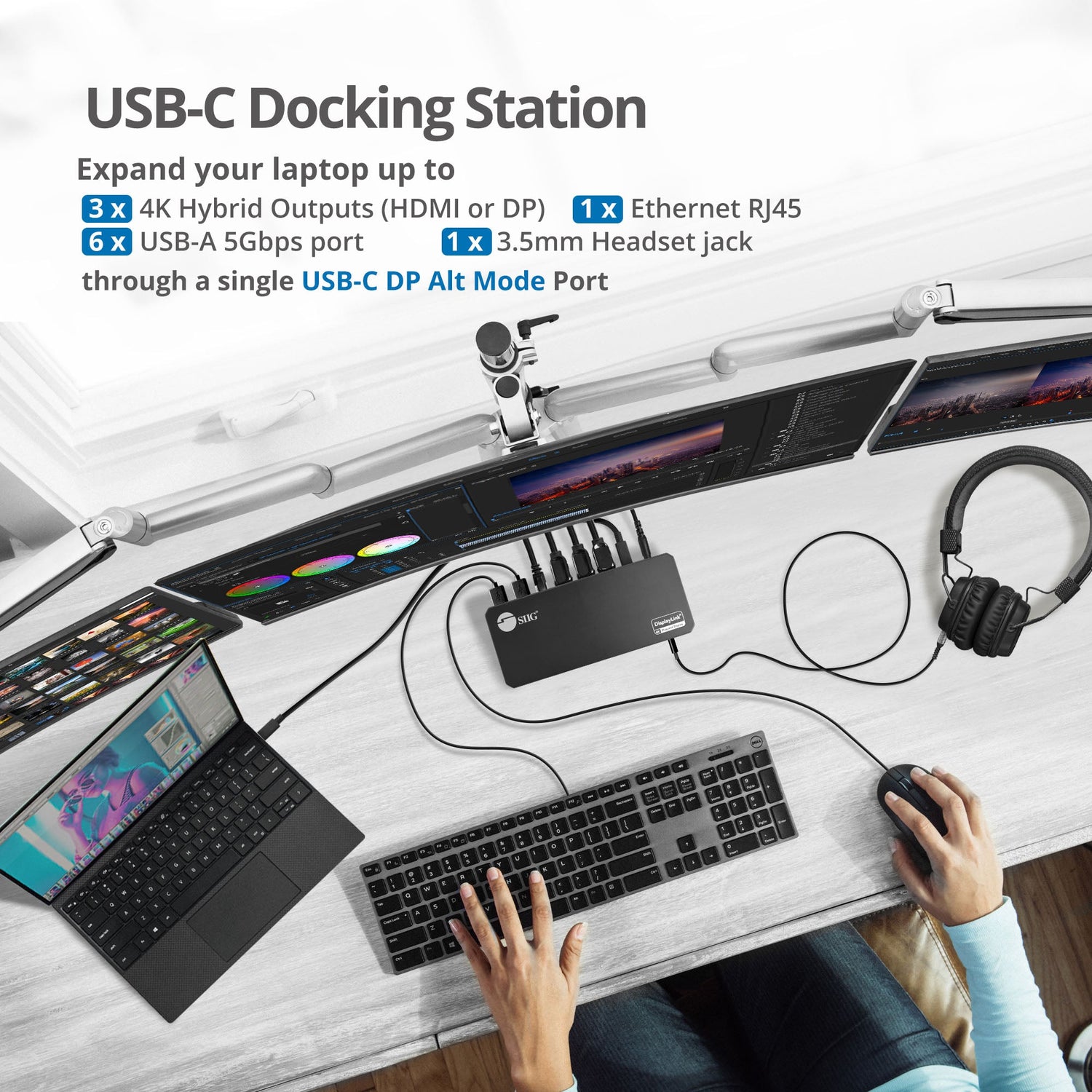

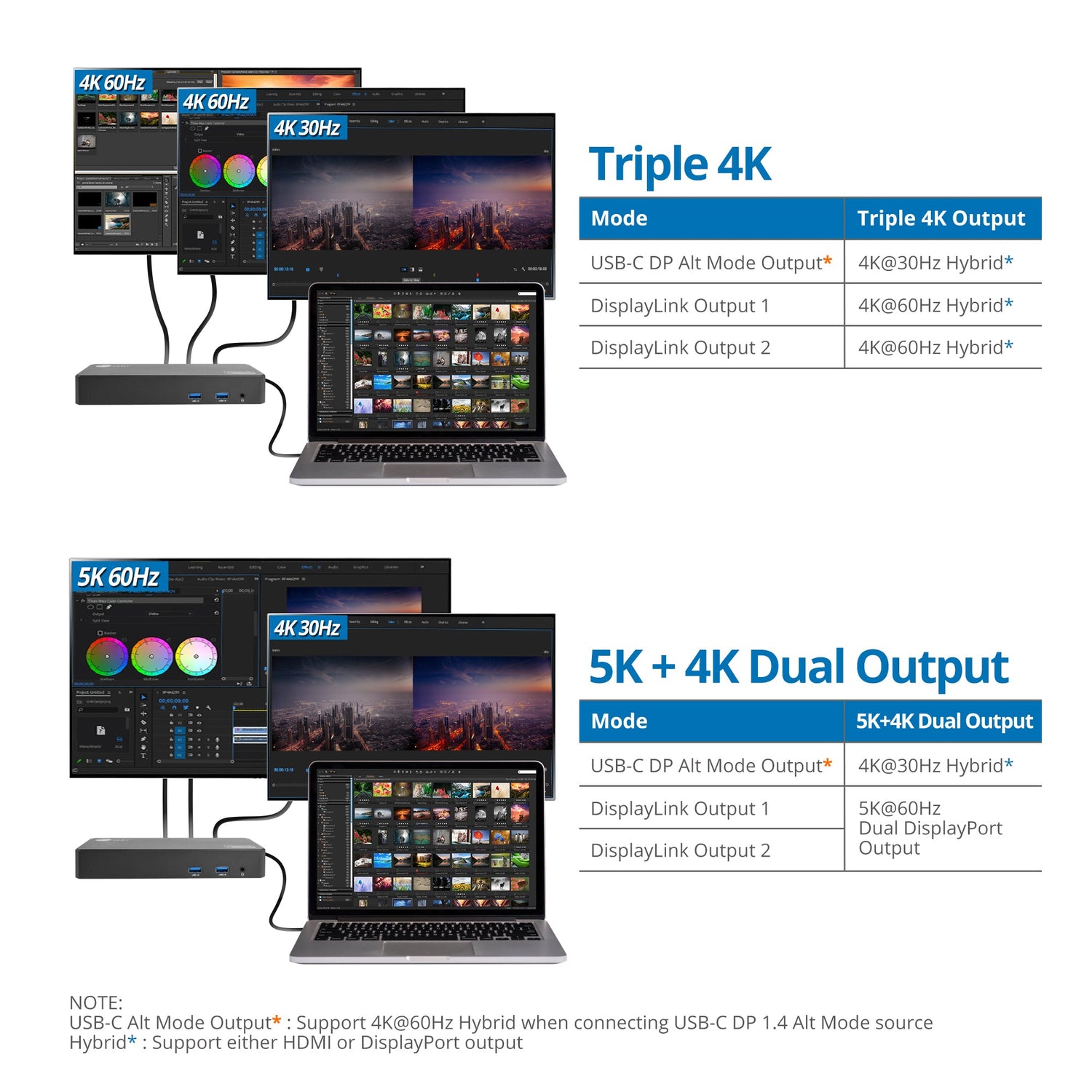

Triple Display Docking Station
Triple Display Docking Station

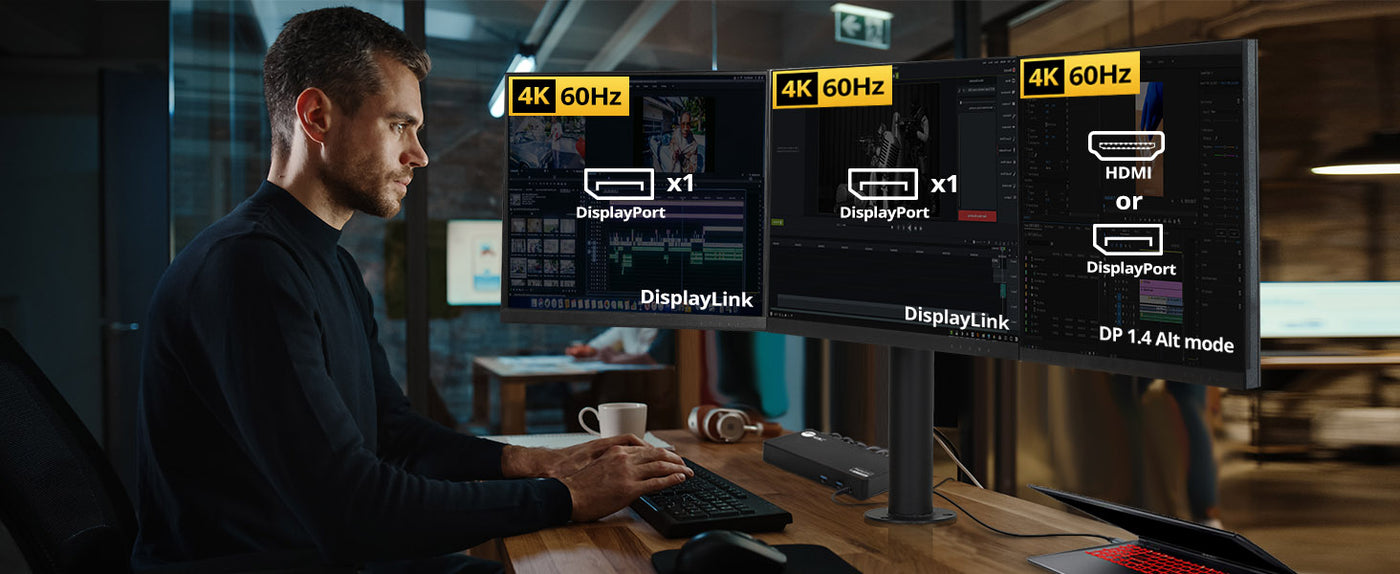

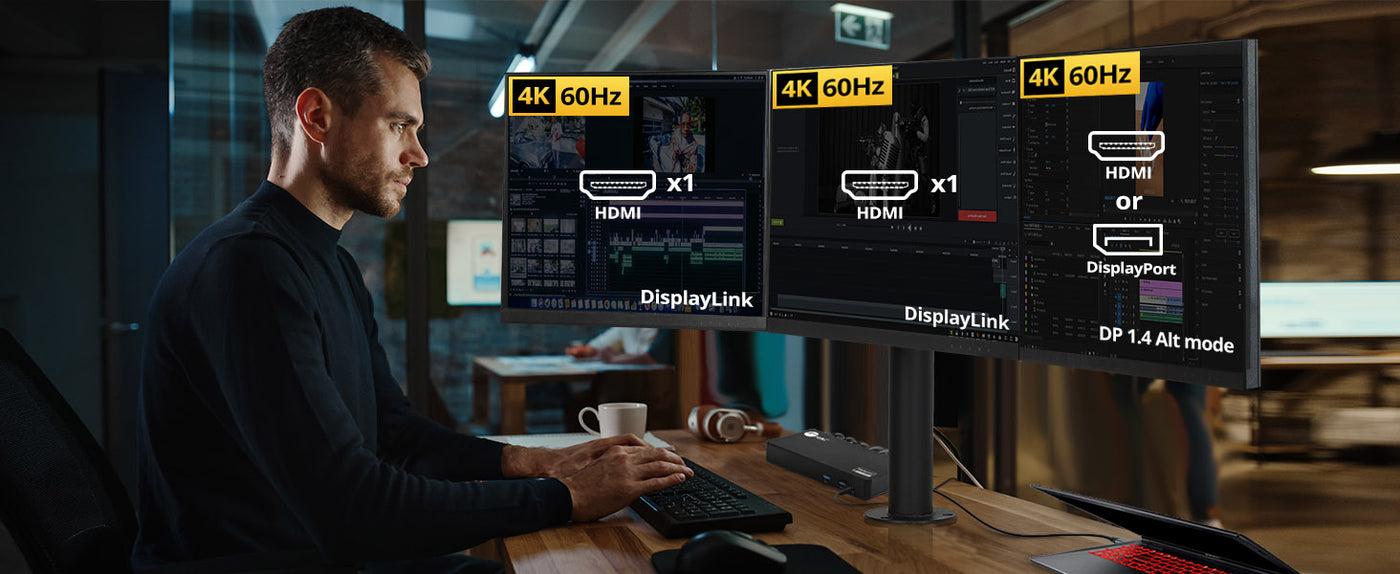

Video Resolution
Video Resolution

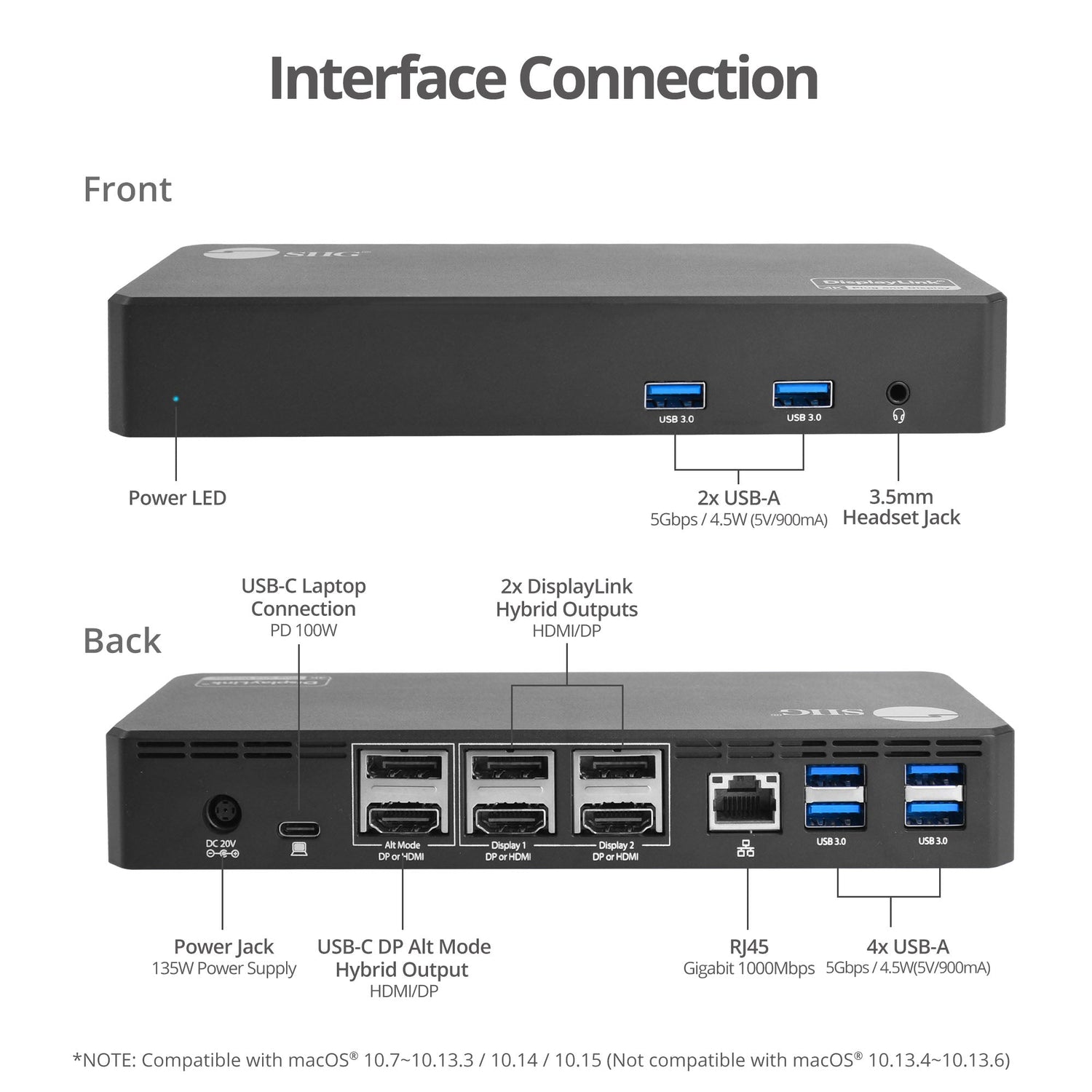

Power Delivery & Data Transfer
Power Delivery & Data Transfer
Ethernet Data & Audio Jack
Ethernet Data & Audio Jack
ABS Housing Design
ABS Housing Design
-
45 Days Free Return
-
2 Years Warranty
-
Lifetime Technical Support
Universal Hybrid Triple 4K Video Docking Station (JU-DK0J11-S1)
| Facet |
Universal Hybrid Triple 4K Video Docking Station with PD 3.0- Windows & Mac M1/M2/M3 Pro/Max Compatible View details |
USB-C Quad Hybrid 4K Video Docking Station with PD- Windows & Mac M1/M2/M3 Pro/Max Compatible View details |
Triple Hybrid 4K Video Docking Station with PD Charging- Windows & Mac M1/M2/M3 Pro/Max Compatible View details |
|---|---|---|---|
| SKU | |||
| SKU | |||
| Connection port | |||
| Connection port | |||
| Data Transfer (Max) | |||
| Data Transfer (Max) | |||
| Additional function | |||
| Additional function | |||
| Housing material | |||
| Housing material | |||
| Color | |||
| Color | |||
| Dimensions | |||
| Dimensions | |||
| Weight | |||
| Weight | |||
| Mountable | |||
| Certification/ Standards | |||
| Certification/ Standards | |||
| Warranty | |||
| Warranty | |||
| Country of Origin | |||
| Country of Origin | |||
| Supported External Displays | |||
| Supported External Displays | |||
| Resolution | |||
| Resolution | |||
| Power Delivery | |||
| Power Delivery | |||
| Spec | |||
| Spec | |||
| Protocol | |||
| Protocol | |||
| Bandwidth | |||
| Bandwidth | |||
| Power Output (Max) | |||
| Power Output (Max) | |||
| Power Indicator | |||
| Power Indicator | |||
| Protection | |||
| Protection | |||
| Power Adapter | |||
| Power Adapter | |||
| Form Factor | |||
| Frequency | |||
| Hardware | |
| Chipset | DisplayLink DL-6950-N |
| USB Specification | Compliant with Universal Serial Bus 3.0 and 2.0 specification |
| Video | |

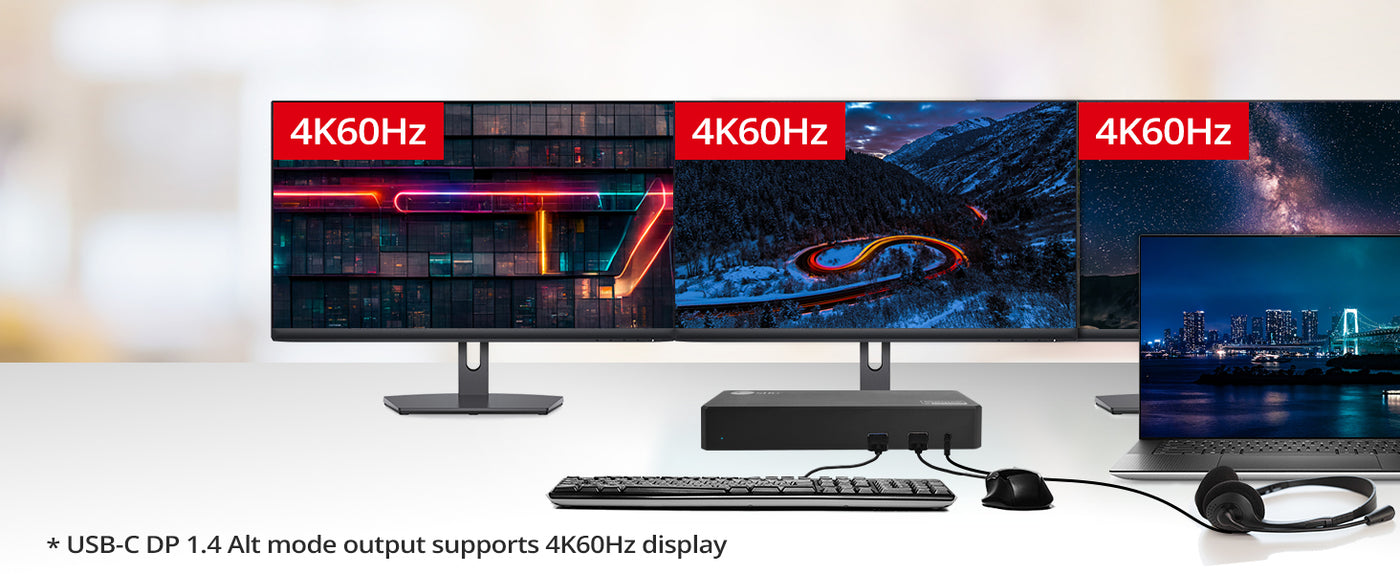

| DisplayPort 1.2 | 5K (Connect both DisplayLink controlled DisplayPort 1.2 outputs to a single 5K DisplayPort TV/Monitor) / 4K / 1080p / 1080i / 720p / 480p; 5K/4K@60Hz: cable up to 3M 1080p@60Hz: cable up to 5M |
| HDMI | 4K @60Hz, cable up to 3M |
| USB | |

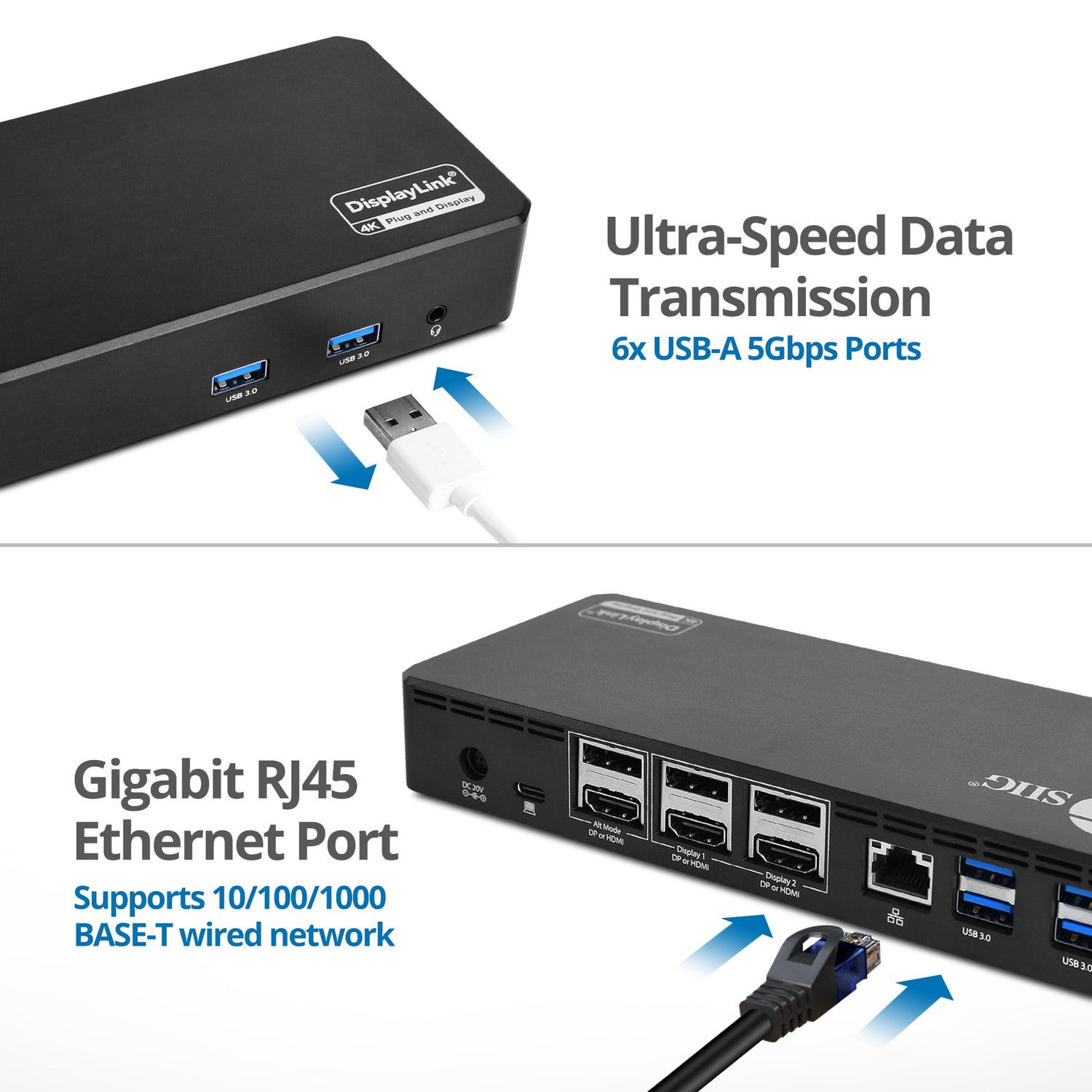

| USB-A | x6, Data transfer rate up to 5Gbps, 5V/900mA, Compatible with USB 2.0 specification |
| Fast Charging Port | Yes |
| Audio | |
| HDMI/DisplayPort output | 5.1 channel surround sound |
| 3.5mm Headset Jack | 2 channel stereo audio & microphone |
| Display Mode | Mirror, Extended, and Primary video modes |
| Power | |

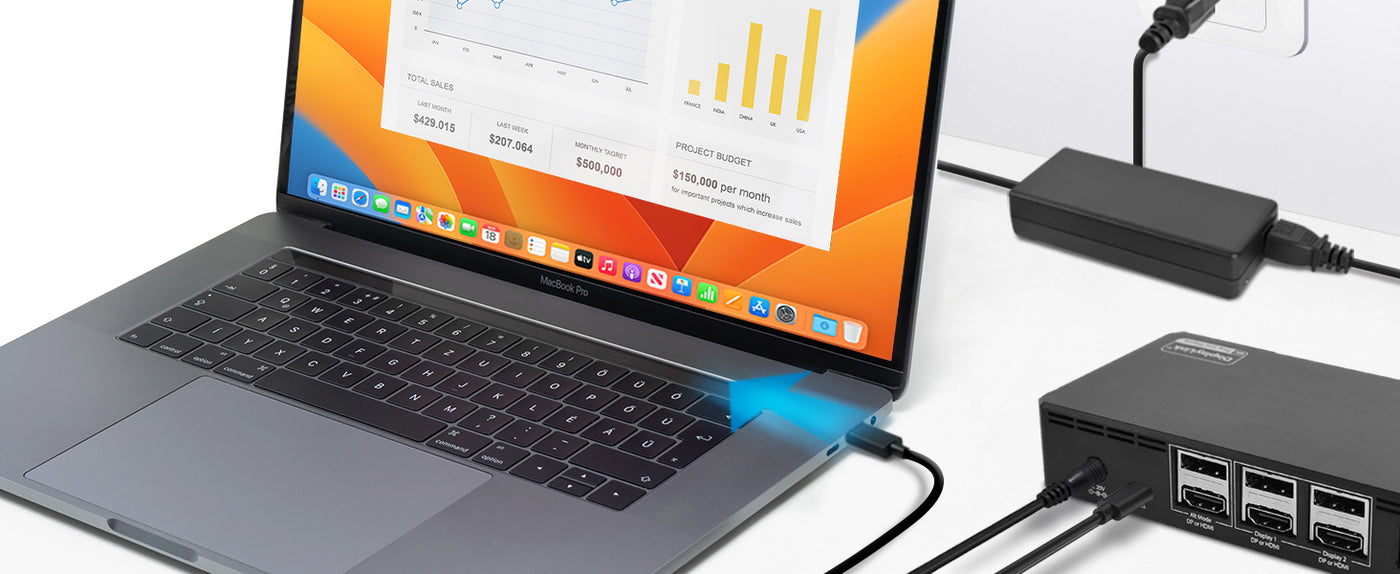

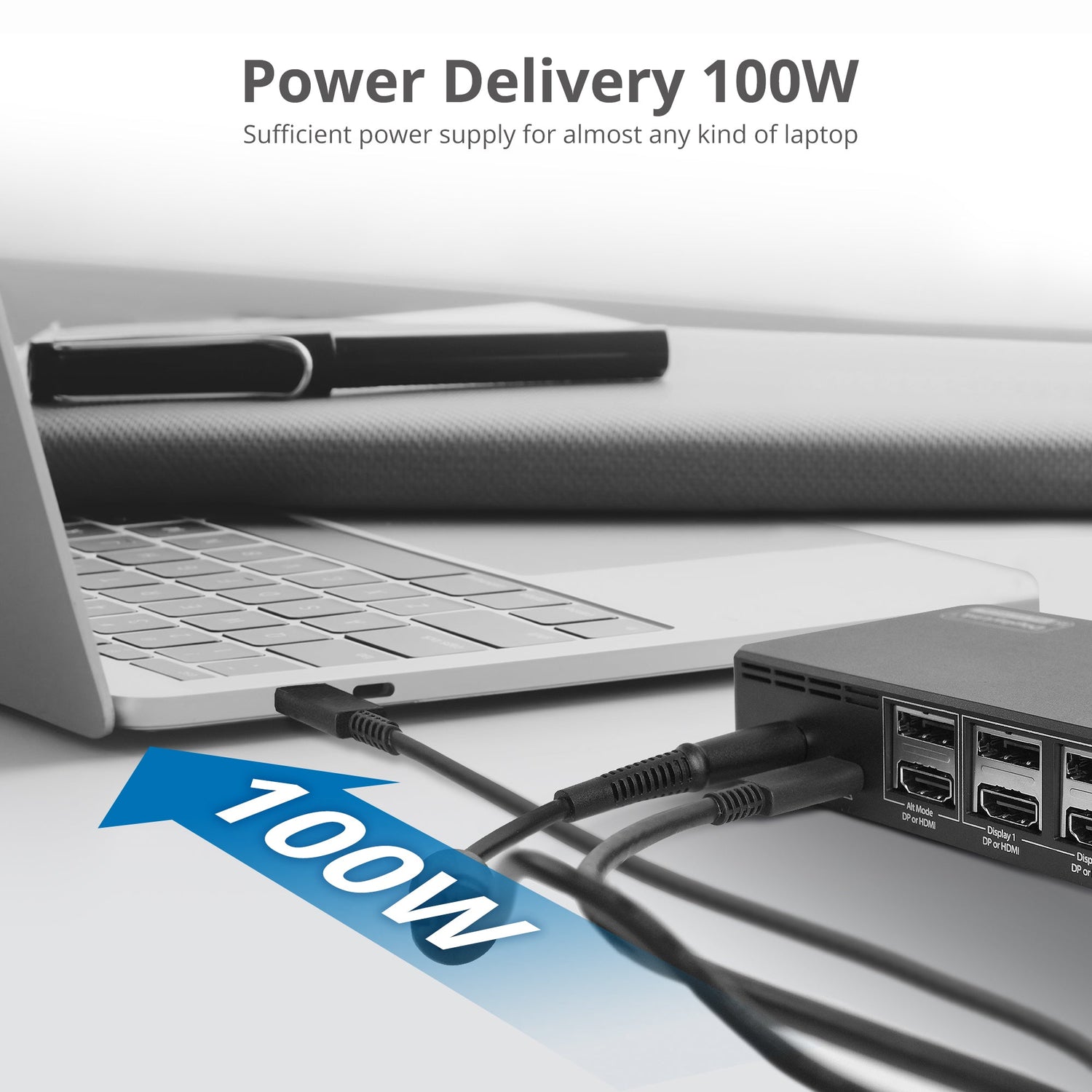

| Power Delivery 3.0 | Up to 100W via USB-C (Host) |
| Power Adapter | Input: AC 100-240V / 50-60Hz Output: DC 20V/6.75A |
| UL Listed | E132068, Level: VI |
| Ethernet | |
| Data Transfer Rate | up to 1G (1000Mbps), backward compatible with 10/100Mbps |
| Supports | IEEE 802.3x Full Duplex flow operation, crossover detection, and auto-correction |
| Standards | Compatible with IEEE 802.3, 802.3u |
| Enterprise Features | Wake on LAN and PXE boot *Note: Mac address pass-through not supported |
| Certifications/Standards | FCC, CE, RoHS |
| UPC Code | 662774-044064 |
| Product | |

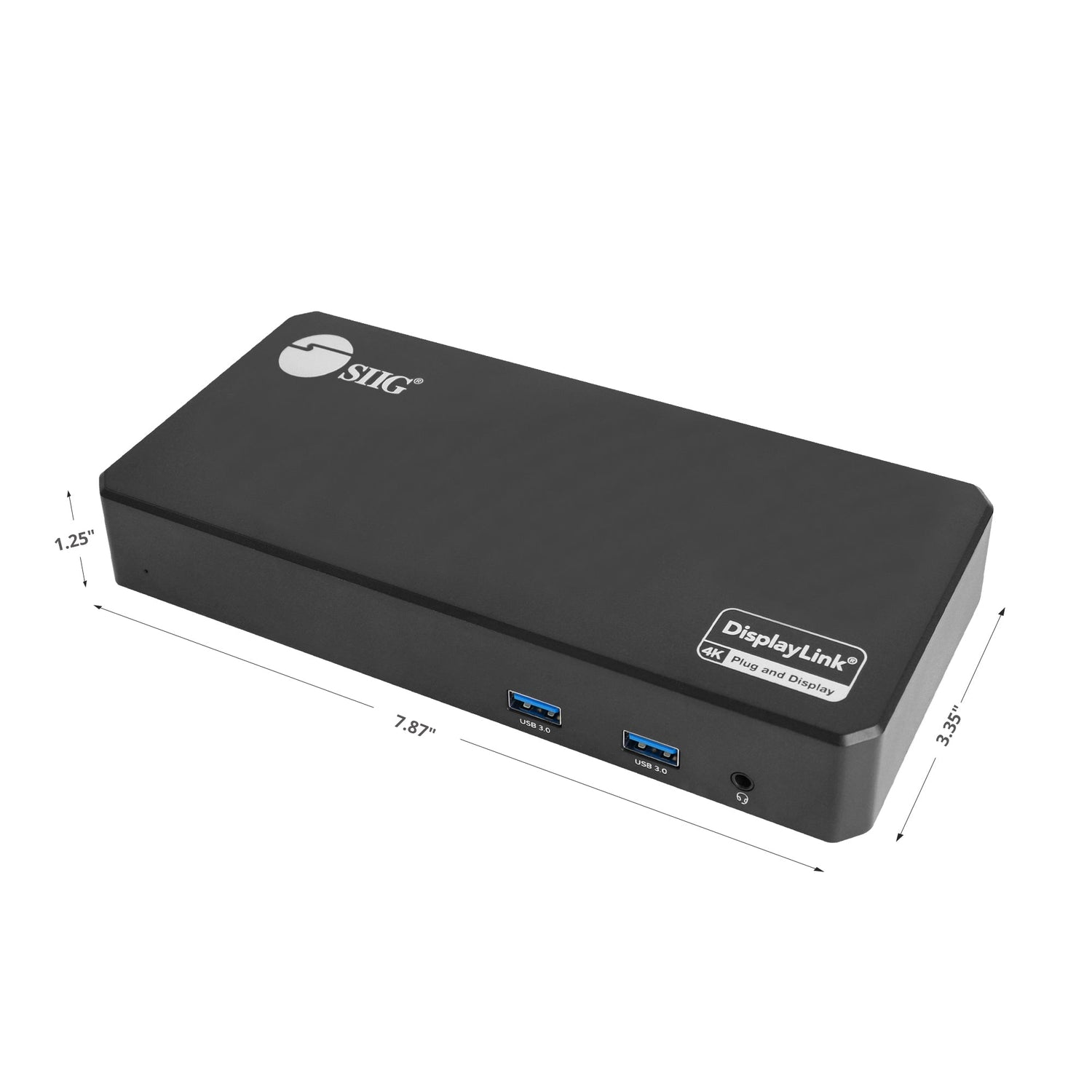

| Dimensions (W x H x D) | 3.35″ x 1.18″ x 7.87″ 8.51 cm x 2.99 cm x 19.99 cm |
| Weight | 0.68 lbs |
| Color | Black |
| Housing | ABS |
| Unit Package | |
| Dimensions (W x H x D) | 9.09″ x 3.25″ x 5.67″ 23.09 cm x 8.26 cm x 14.40 cm |
| Weight | 2.49 lbs |
| Master Carton | |
| Dimensions (W x H x D) | 14.17″ x 7.09″ x 9.84″ 36.00 cm x 18.01 cm x 25.00 cm |
| Weight | 11.07 lbs |
| Quantity | 4 pcs / ctn |
| Environmental Conditions | |
| Operating temperature | 32 to 104 degrees F |
| Storage temperature | 14 to 158 degrees F |
| Relative humidity | 10% to 90% RH (non-condensing) |
| Warranty | 2 years limited |
| Country of origin | Thailand |
| System Requirements | - Desktop or Laptop with an available USB-C with DP Alt mode or Thunderbolt 3 port - Compliant with mac® system for M1, M2, M3 Pro, & Max - Windows® 11 (64-bit) / 10 (32-/64-bit) / 8.1 (32-/64-bit) / 8 (32-/64-bit) / 7 (32-/64-bit) - macOS® 12 to 10.10 (not compatible with 10.13.4 to 10.13.6) |

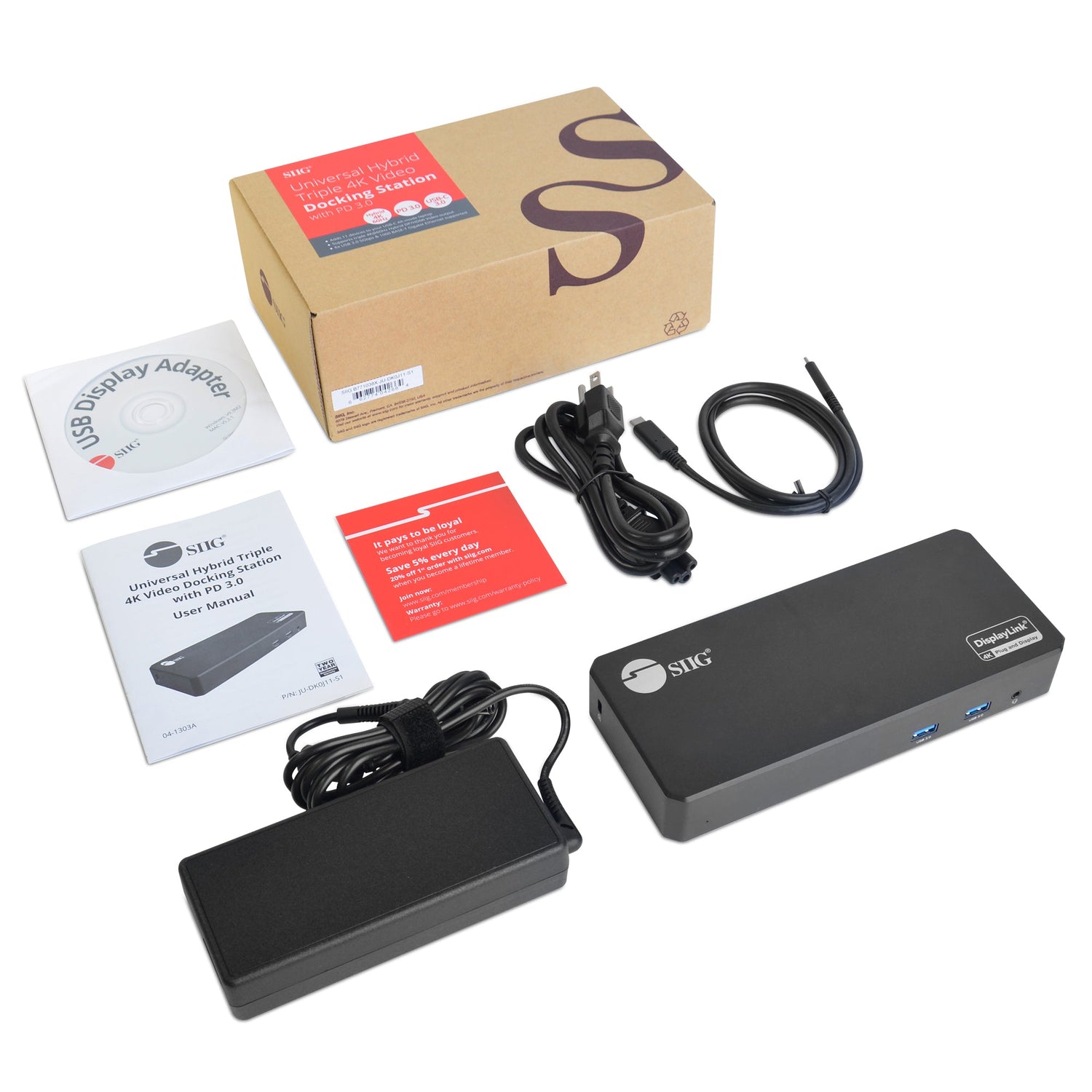

| Package Contents | 1x Universal Hybrid Triple 4K Video Docking Station with PD 3.0 1x USB 3.0 C to C cable, 100W (Gen 2, 20V/5A), 1M 1x Driver CD 1x Power Adapter (20V/6.75A) 1x User Reference Guide |
Can I enable Clamshell mode or lid closed mode on my Macbook Pro?
Can I enable Clamshell mode or lid closed mode on my Macbook Pro?
Clamshell mode (lid closed) is supported on computers using Apple M1 silicon with external power connected (e.g. Apple MacBook power adapter or docking station with charging capability) on macOS Big Sur version 11.1 and later. Clamshell mode on Intel-based MacBooks was introduced in macOS 12 Monterey.
Need help?
Contact usManuals
Drivers (Hardware Version: 1)
- macOS Catalina 10.15.xFor the latest MAC driver please visit, https://www.synaptics.com/displaylink/downloads/macos, and download the latest driver to maximize compatibility
- mac OS 10.14.xBuild: v5.2.6 (128)
- mac OS X 10.13 to 10.13.3* / 10.12 / 10.11.6Download driver v4.3.1
- mac OS X 10.11.5 to 10.11: Download v4.1
- mac OS X 10.10: Download v3.1
- Windows 8.1 (32-/64-bit) / 7 (32-/64-bit)Software Package Version: 10.3.6419.0. Driver version: 10.3.6400.0
- Windows 8 (32-/64-bit)|
- macOS Monterey 12 / Big Sur 11Build: 0c503bb076 (148). For the latest MAC driver please visit, https://www.synaptics.com/displaylink/downloads/macos, and download the latest driver to maximize compatibility
- Windows 11 / 10Software Package Version: 11.7.5852.0. DisplayLink Graphics Driver version: 11.7.5813.0
- macOS Sequoia 15 / Sonoma 14 / Ventura 13Build:2e286d25064 (46)
