Extender | SKU: CE-H24811-S1

8-Port HDMI Splitter Over Cat6 Extender with IR - 40M

1080p 60Hz
Up to 40m
EDID
7.1ch
IR Extension
$539.99
Shipping calculated at checkout.
Product Features

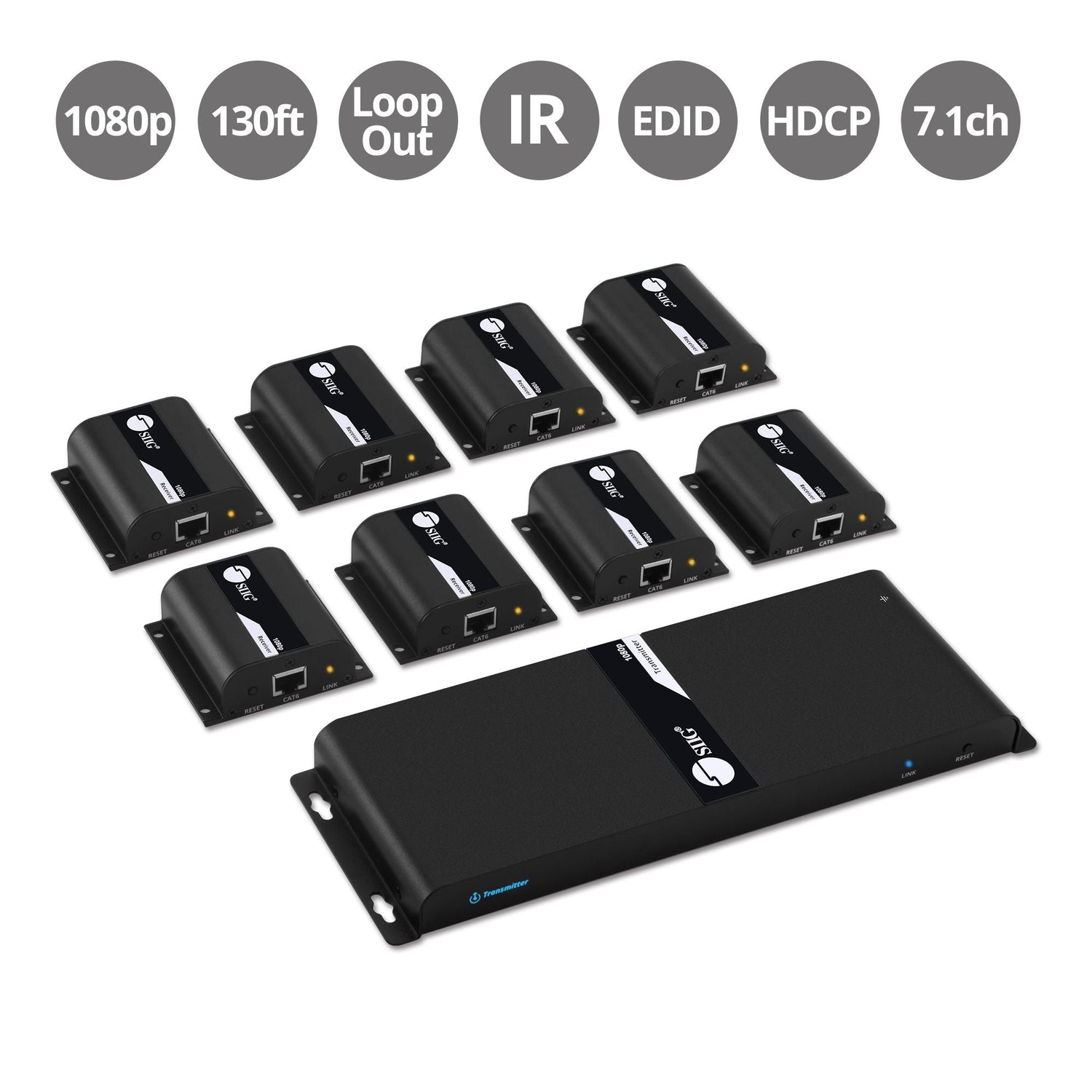

HDMI Splitter Kit

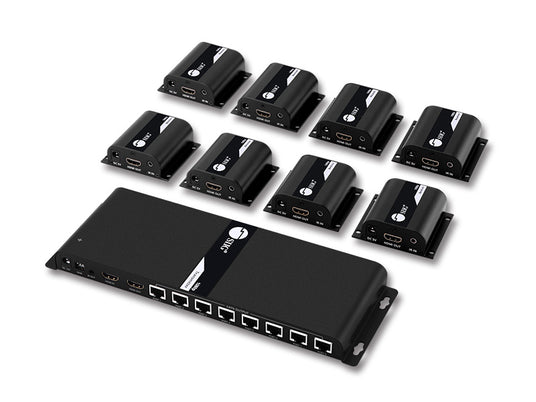

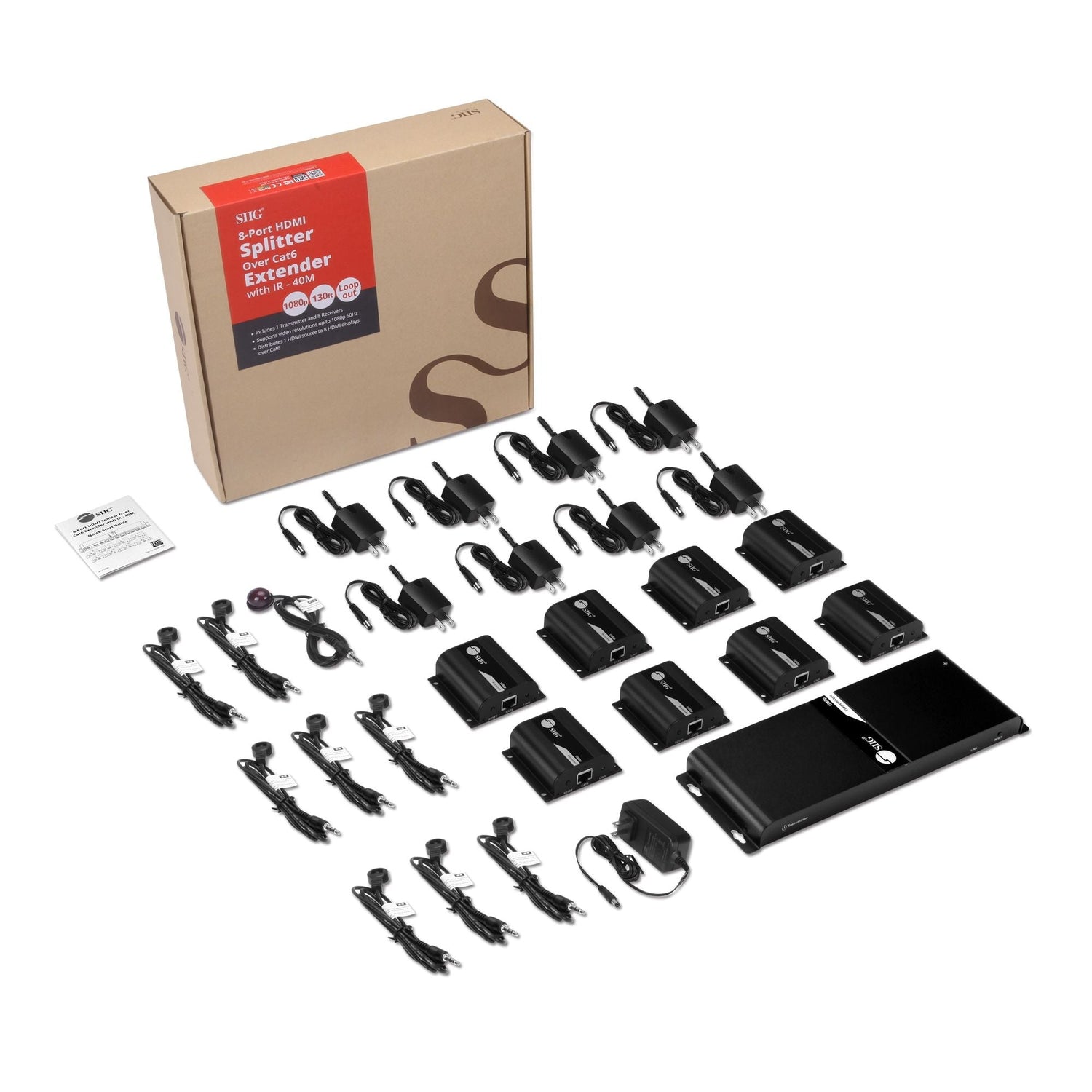

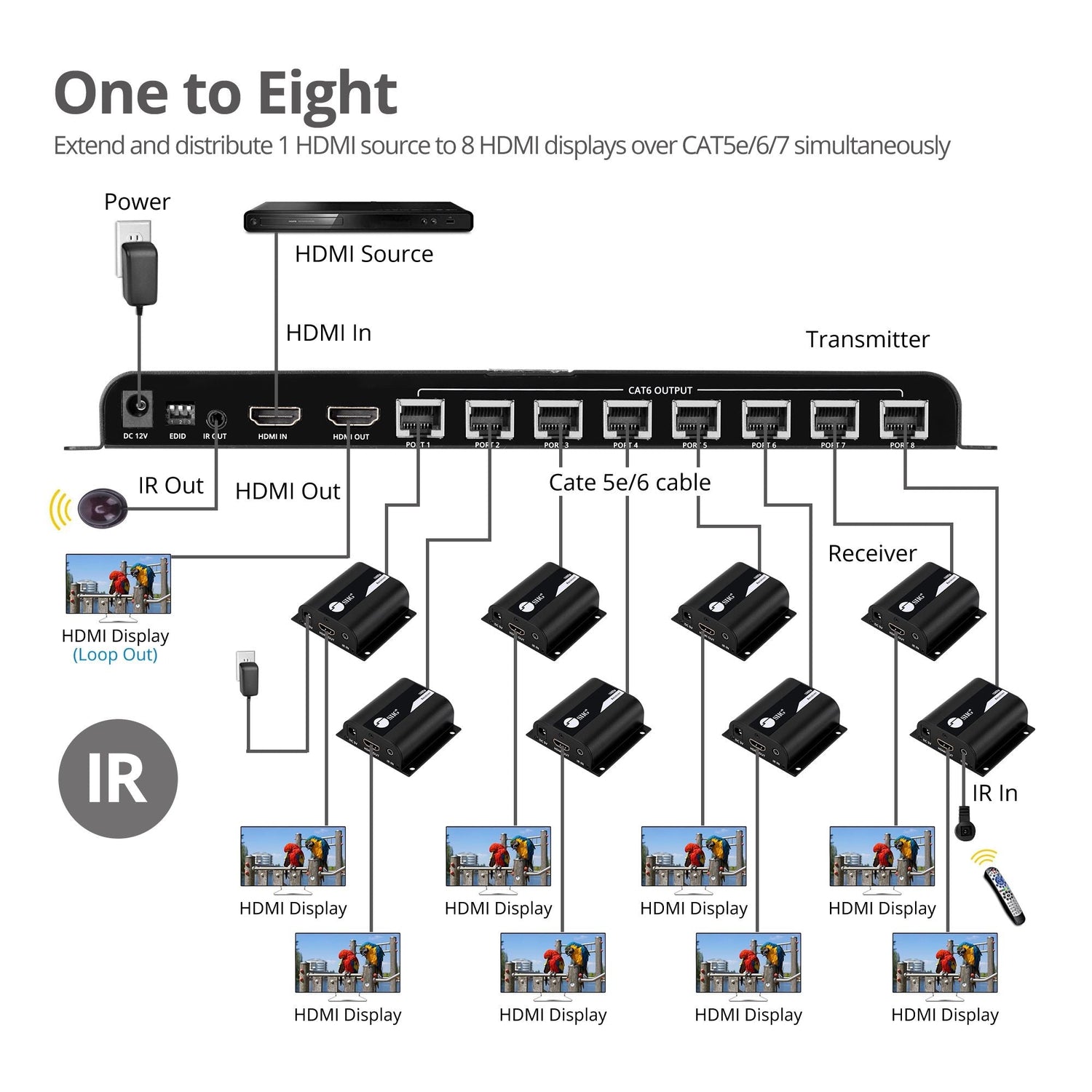

Extends and distributes 1 HDMI source to 8 HDMI displays over a Cat6/7 cable simultaneously with signals up to 130ft (40m). Includes 1 transmitter and 8 receivers.

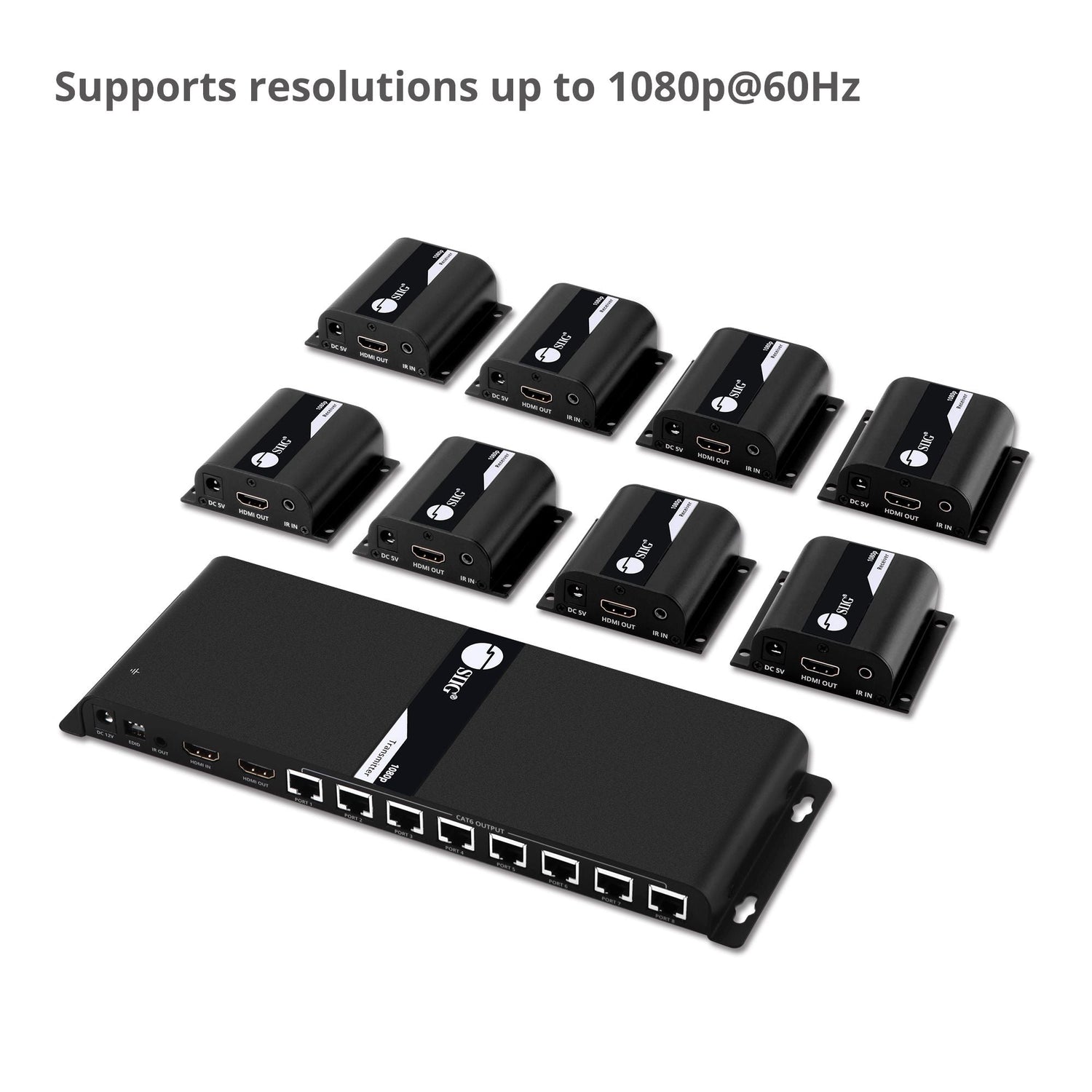

Full HD Resolution

Delivers crystal clear content up to 1080p 60Hz / 480p / 720p / 1080i over Cat6/6A/7 cables. Supports digital stereo 7.1ch, PCM, DTS, AC3 audio.

HDMI Loopout

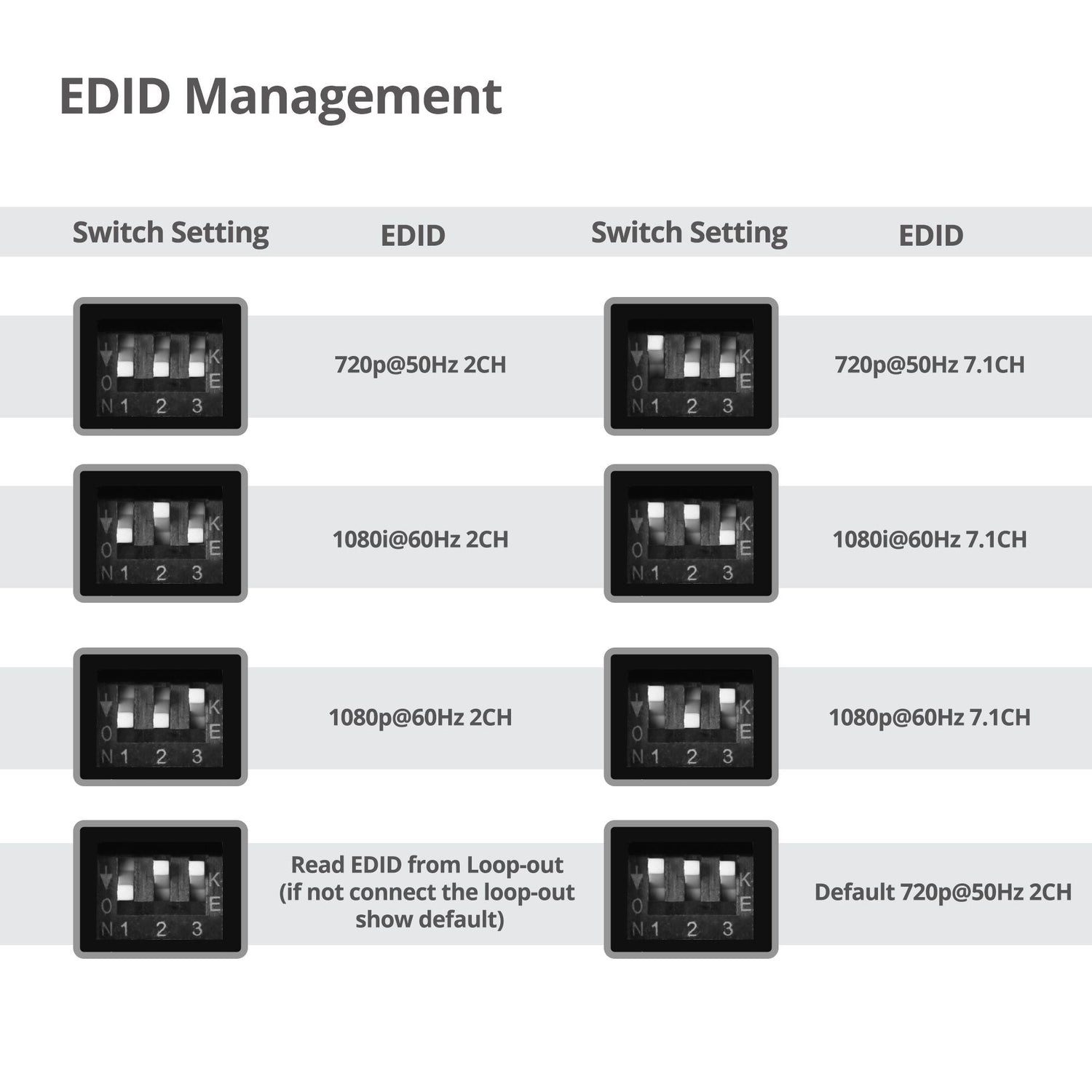

The HDMI loopout allows for an additional local HDMI display for monitoring. Easy to use EDID switches via the DIP switches. See manual for EDID configuration.

IR Remote Control

Allows you to remotely control the HDMI source device at a secondary location with the included IR cables for convience. Supports full frequency IR signal from 20KHz to 60KHz.

Plug-n-Play

No software installation is required. With a built-in power LED indicator help provide easy power status monitoring. This HDMI splitter over Cat6 extender is supported with a Manufacturer warranty. Aluminum metal housing with ventilation panels provides excellent heat dissipation to ensure reliable performance and system stability during long hours of operation. Wall mount design makes it easy to install the kit.

  • 45 Days Free Return

  • 2 Years Warranty

  • Lifetime Technical Support

SIIG 8-Port HDMI Splitter Over Cat6 Extender with IR

    Delivers 1080p HDMI signals to up to eight displays over a single Cat6 cable, reaching distances up to 130 feet. Designed for easy plug-and-play installation, it provides a reliable and cost-effective solution for multi-display setups, with dedicated support available when needed.
    8-Port HDMI Splitter Over Cat6 Extender with IR - 40M
    View details
    1x8 4K 60Hz HDMI Extender Splitter Over Cat6 with Loopout, IR, ARC & RS-232 - Up to 230ft (70m) - Near Zero Latency
    View details
    1x8 HDMI Splitter, Over IP Extender Kit, 1080p 60Hz, 120m
    View details
    4-Port HDMI Splitter over Cat6 Extender with IR - 40m
    View details
    1x4 HDMI Splitter, Over IP Extender Kit, 1080p 60Hz, 120m
    View details
    SKU
    SKU
    CE-H24811-S1
    CE-H27B11-S1
    CE-H26W11-S1
    CE-H23U11-S1
    CE-H26V11-S1
    Connection port
    Connection port

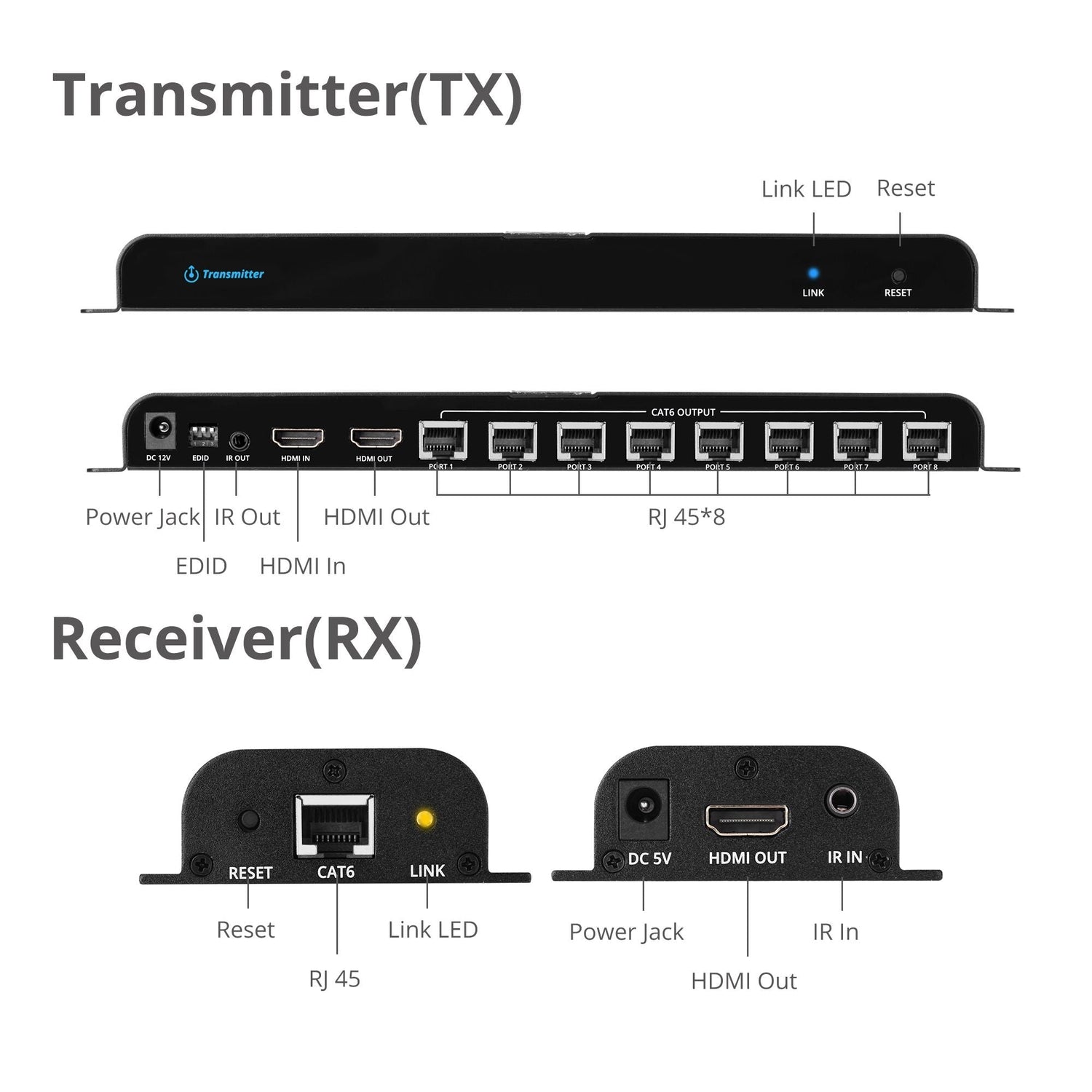

    9x HDMI, 9x 3.5mm, 16x RJ45, 9x Power Jack
    6x HDMI, 10x 3.5mm, 8x RJ45, 5x Power Jack, 5x 3-pin RS-232, 4x S/PDIF
    9x HDMI, 9x 3.5mm, 16x RJ45
    5x HDMI, 5x 3.5mm, 8x RJ45, 5x Power Jack
    5x HDMI, 5x 3.5mm, 8x RJ45
    Data Transfer (Max)
    Data Transfer (Max)
    6.75Gbps
    18Gbps
    10.2Gbps
    6.75Gbps
    10.2Gbps
    Additional function
    Additional function
    IR, DIP Switch, Reset
    IR, Reset, EDID, RS-232, Audio Extractor
    IR
    IR, DIP Switch, Reset
    IR
    Housing material
    Housing material
    Metal
    Metal
    Metal
    Metal
    Metal
    Color
    Color
    Black
    Black
    Black
    Black
    Black
    Dimensions
    Dimensions

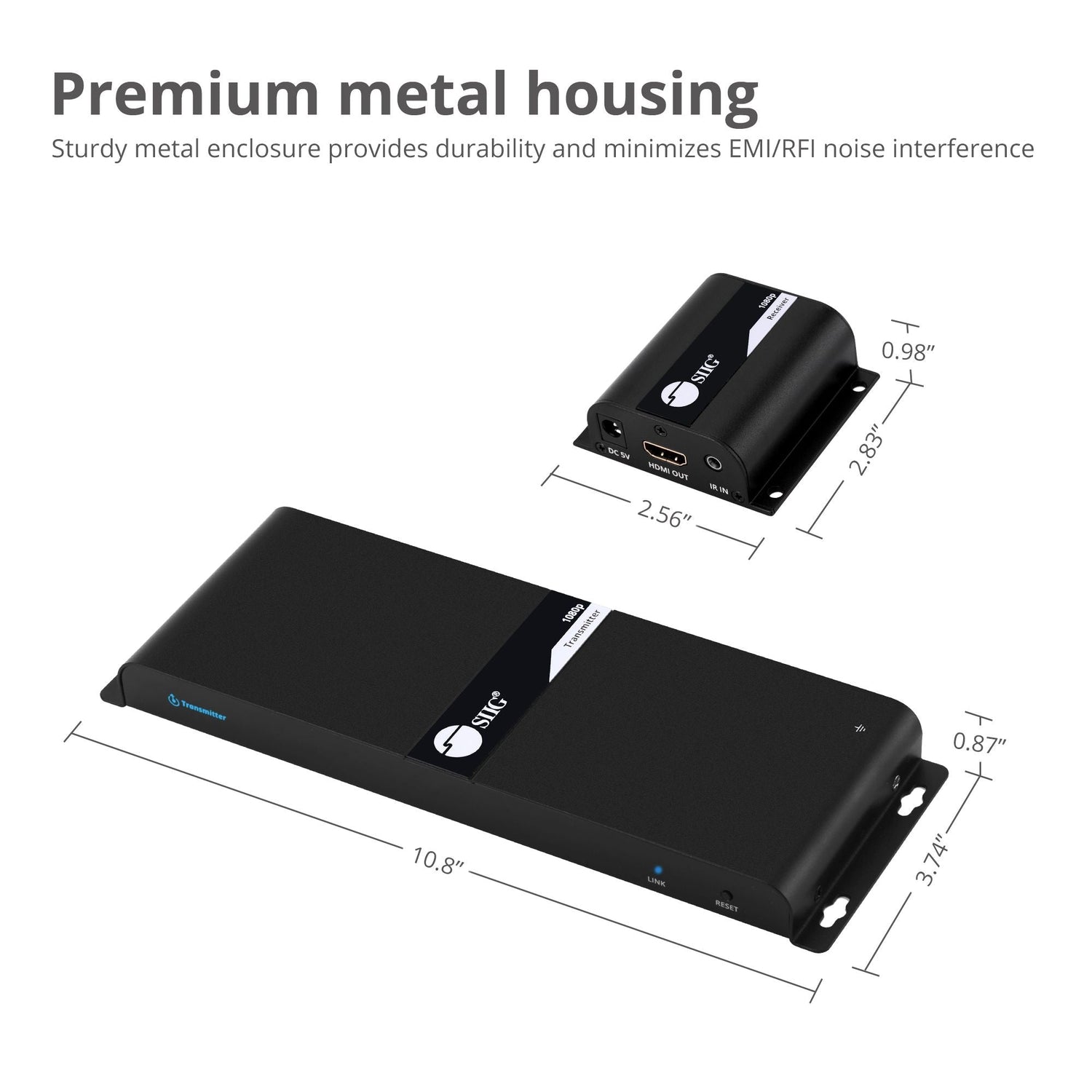

    TX:10.87" (W) x 0.91" (H) x 3.82" (D) (27.61 cm x 2.31 cm x 9.7 cm) RX:2.81" (W) x 0.98" (H) x 2.64" (D) (7.14 cm x 2.49 cm x 6.71 cm)
    TX: 10.39” (W) x 0.91” (H) x 4.72" (D) (26.39 cm x 2.31 cm x 11.99 cm) RX: 4.15" (W) x 0.79" (H) x 4.04" (D) (10.54 cm x 2 cm x 10.26 cm)
    TX:11.81” (W) x 1.18” (H) x 4.37" (D) (30 cm x 3 cm x 11.10 cm) RX: 3.81” (W) x 0.93” (H) x 3.70" (D) (9.68 cm x 2.36 cm x 9.4 cm)
    TX:7.48" (W) x 0.94" (H) x 3.74" (D)(19 cm x 2.88 cm x 9.5 cm) RX:2.83" (W) x 0.98" (H) x 2.60" (D) (7.19 cm x 2.49 cm x 6.6 cm)
    TX: 9.92” (W) x 0.98” (H) x 3.82" (D) (25.20 cm x 2.49 cm x 9.70 cm) RX: 3.81” (W) x 0.93” (H) x 3.70" (D) (9.68 cm x 2.36 cm x 9.40 cm)
    Weight
    Weight
    TX: 1.33 lbs RX: 0.19 lbs
    TX: 1.6 lbs RX: 0.54 lbs
    TX: 1.81 lbs RX: 0.33 lbs
    TX: 0.93 lbs RX: 0.20 lbs
    TX: 1.34 lbs RX: 0.33 lbs
    Mountable
    Mountable
    Yes
    Yes
    Yes
    Yes
    Yes
    Certification/ Standards
    Certification/ Standards
    FCC / CE / RoHS
    FCC / CE / RoHS
    FCC / CE / RoHS
    FCC / CE / RoHS
    FCC / CE / RoHS
    Warranty
    Warranty
    2 years
    2 years
    2 years
    2 years
    2 years
    Country of Origin
    Country of Origin
    China
    China
    China
    China
    China
    Resolution
    Resolution
    1080p 60Hz
    4K60Hz
    Up to 1080p 60Hz
    1080p 60Hz
    Up to 1080p 60Hz
    Audio spec
    Audio spec
    2.1, 7.1ch, PCM, DTS, AC3 audio
    PCM 2.0, 5.1, 7.1, Dolby, DTS
    2ch
    2.1, 7.1ch, PCM, DTS, AC3 audio
    2ch
    IR function
    IR function
    Yes
    Yes
    Yes
    Yes
    Yes
    Remote control
    EDID button
    EDID button
    Yes
    Yes
    -
    Yes
    -
    Distance
    Distance
    Up to 40M
    Up to 70M
    Up to 120M
    Up to 40M
    Up to 120M
    Antenna spec
    Reset key
    Reset key
    Yes
    Yes
    Yes
    Yes
    Yes
    Bandwidth
    Bandwidth
    6.75Gbps
    18Gbps
    10.2Gbps
    6.75Gbps
    10.2Gbps
    Power Output (Max)
    Power Indicator
    Power Indicator
    Yes
    Yes
    Yes
    Yes
    Yes
    Protection
    Protection
    ESD
    ESD
    ESD
    ESD
    ESD
    Protocol
    Protocol
    Passthrough
    Passthrough
    HDBitT
    Passthrough
    HDBitT
    Power Adapter
    Power Adapter
    TX: 12V/2A RX: 5V/1A
    TX: 12V/2A RX: 5V/2A
    TX: 5V/2A RX: 5V/1A
    TX: 5V/3A RX: 5V/1A
    TX: 5V/2A RX: 5V/1A
    Spec
    Spec
    HDMI 1.2, HDCP 1.2
    HDMI 2.0, HDCP 2.2
    HDMI 1.3, HDCP 1.2
    HDMI 1.2, HDCP 1.2
    HDMI 1.3, HDCP 1.2

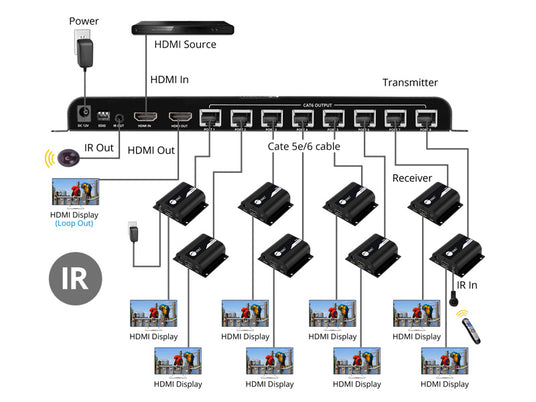

    Extend HDMI Signal to 8 Distant HD Displays

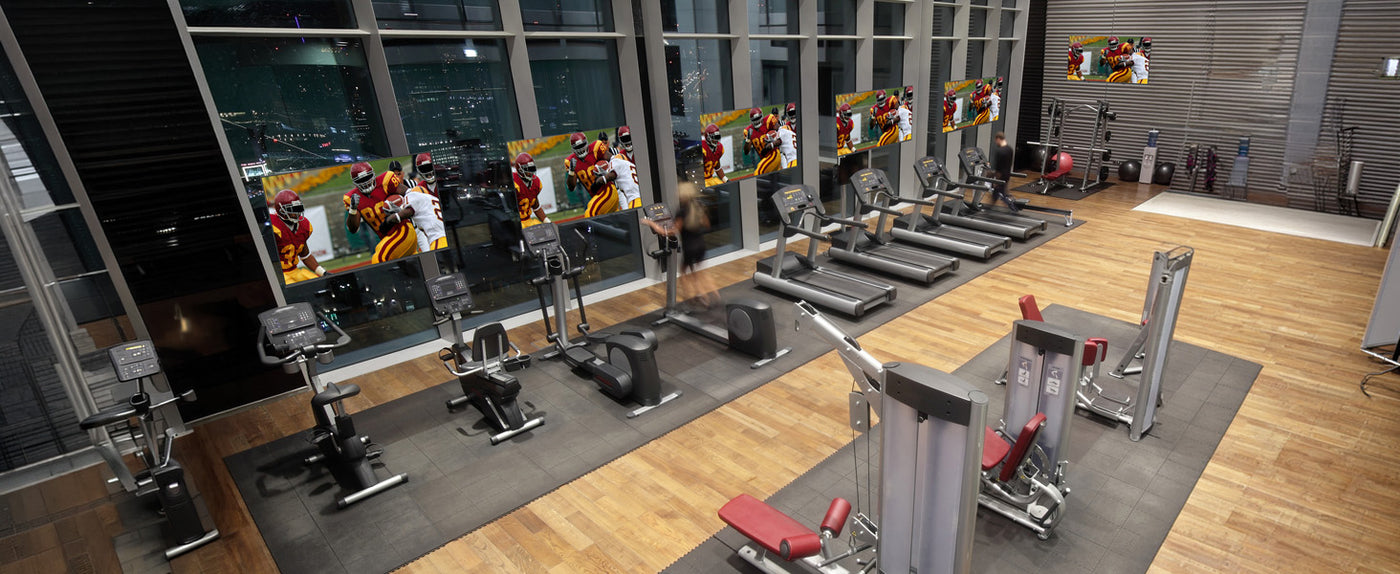

    Easily install this AV system in various environments, such as restaurants, sports bars, museums, lecture halls, home theater systems, church services, and much more! Plug and play with no software installation and hassle free set up.

    HDMI Loopout / IR Control / EDID (Extended Display Identification Data)

    HDMI loopout enables a local display for easy monitoring without checking remote screens. IR control over Catx allows source operation from the remote display location. EDID auto-scaling ensures proper resolution matching for optimal picture quality across different displays.
