SKU:
CE-H23U11-S1

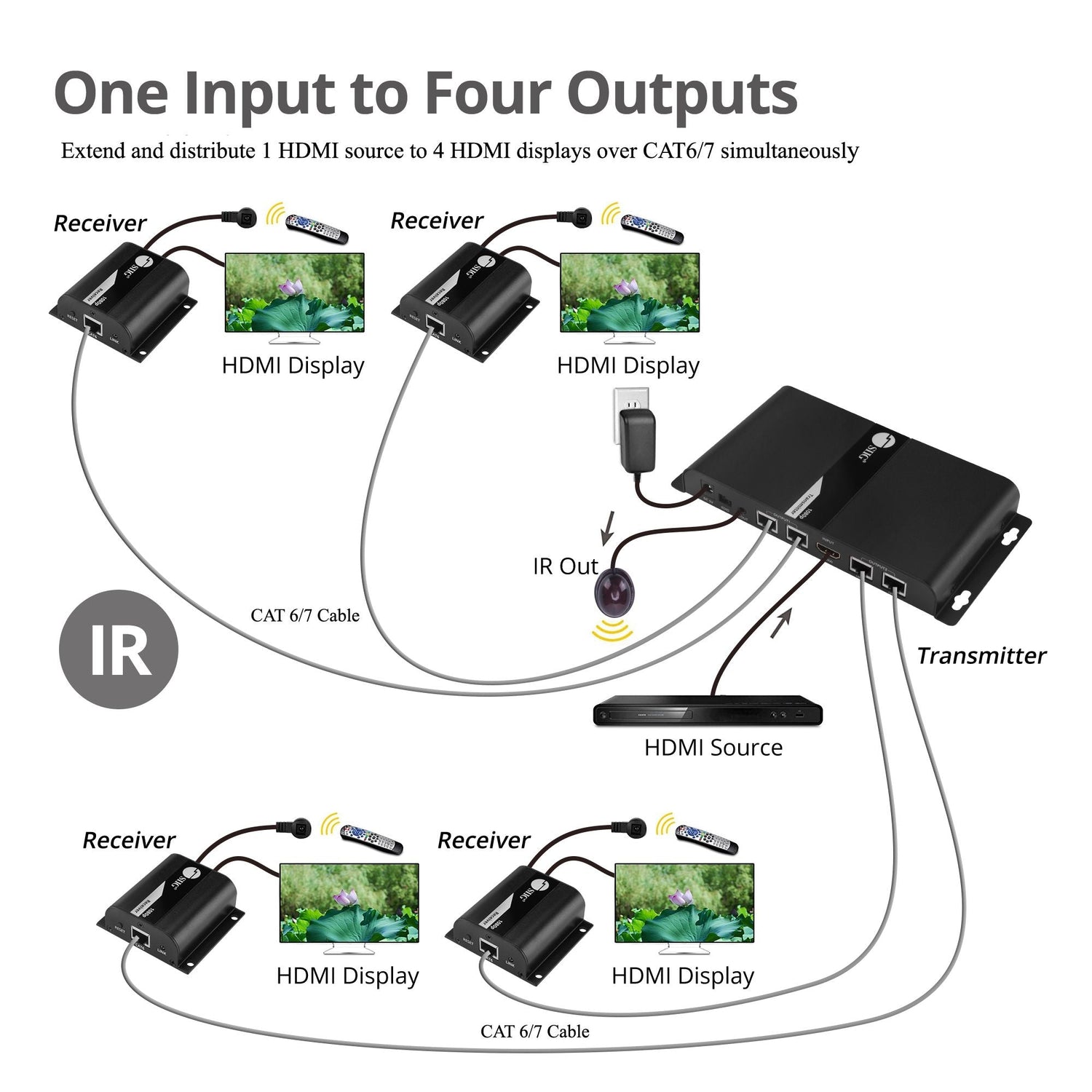

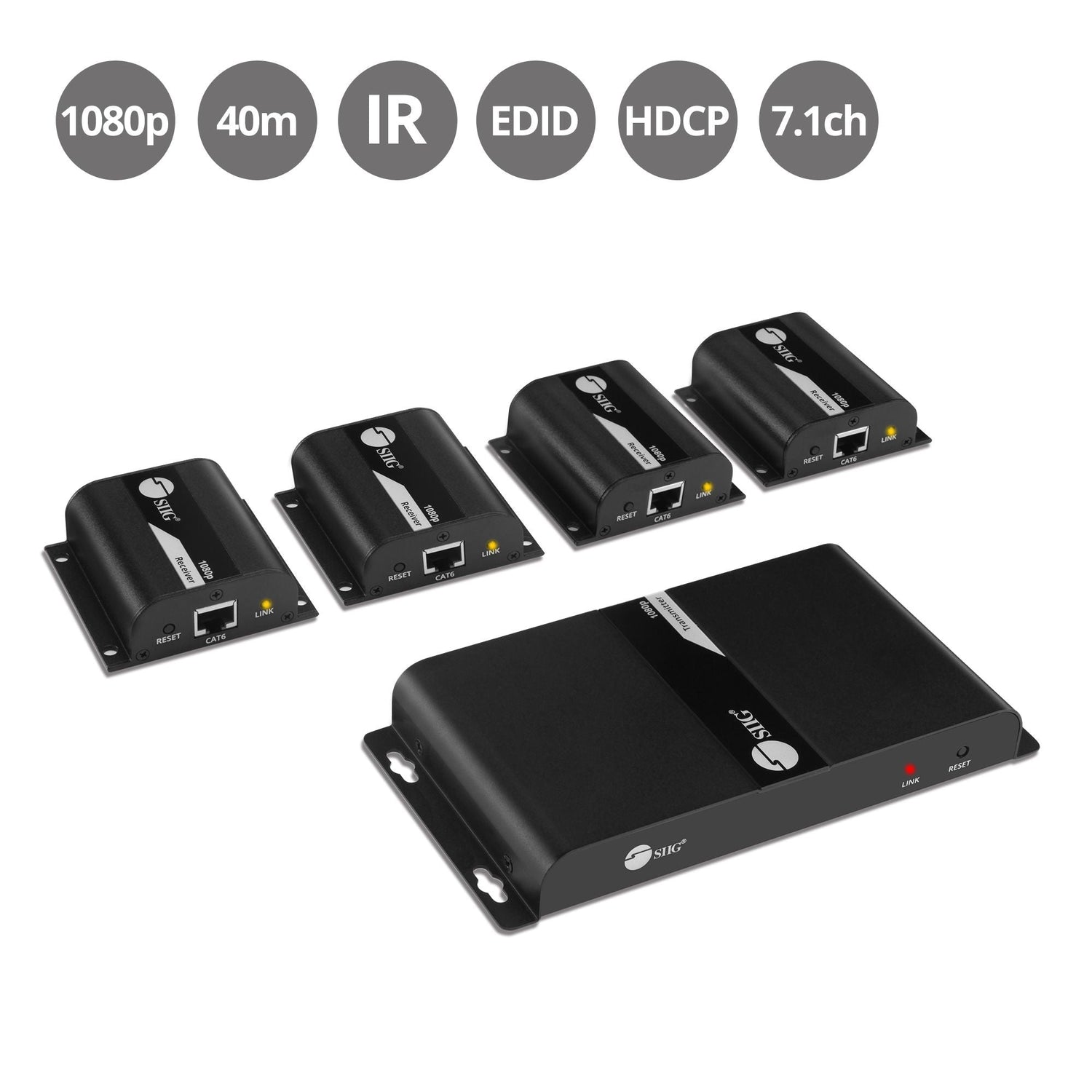

4-Port HDMI Splitter over Cat6 Extender with IR - 40m
1080p 60Hz
Up to 40m
EDID
7.1ch
IR Extension
Regular price
$419.99
Unit price
/
Unavailable
Shipping calculated at checkout.
4-Port HDMI Splitter over Cat6 Extender with IR - 40m is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
HDMI Extension
HDMI Extension
Full HD 1080p Clarity
Full HD 1080p Clarity
Remote IR Control
Remote IR Control
Durable Metal Housing
Durable Metal Housing
Easy Plug-and-Play Setup
Easy Plug-and-Play Setup
No content found
| Standard | HDCP 1.2 compliant |
| Transmission Protocol | HDBitT |
| Transmission Distance | Up to 130 feet (40 meters) at 1080p 60Hz |
| Audio | Digital stereo 7.1-channel, PCM, DTS, AC3 audio Full frequency IR signal from 20KHz to 60KHz |

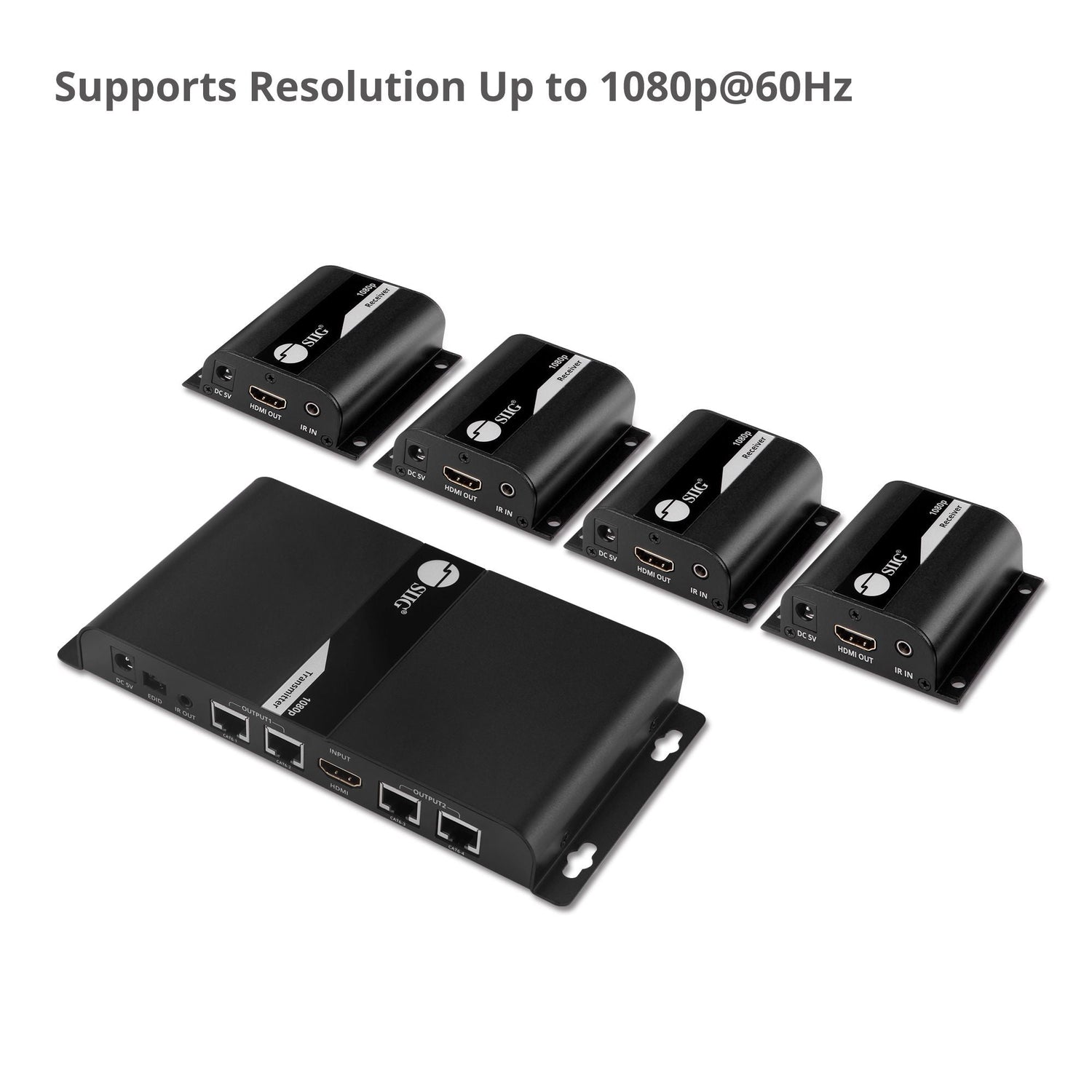

| Resolution | 480p / 720p / 1080i / 1080p 60Hz |
| Network Cable | UTP/STP CAT6/6a/7 Wiring standard: T-568B |

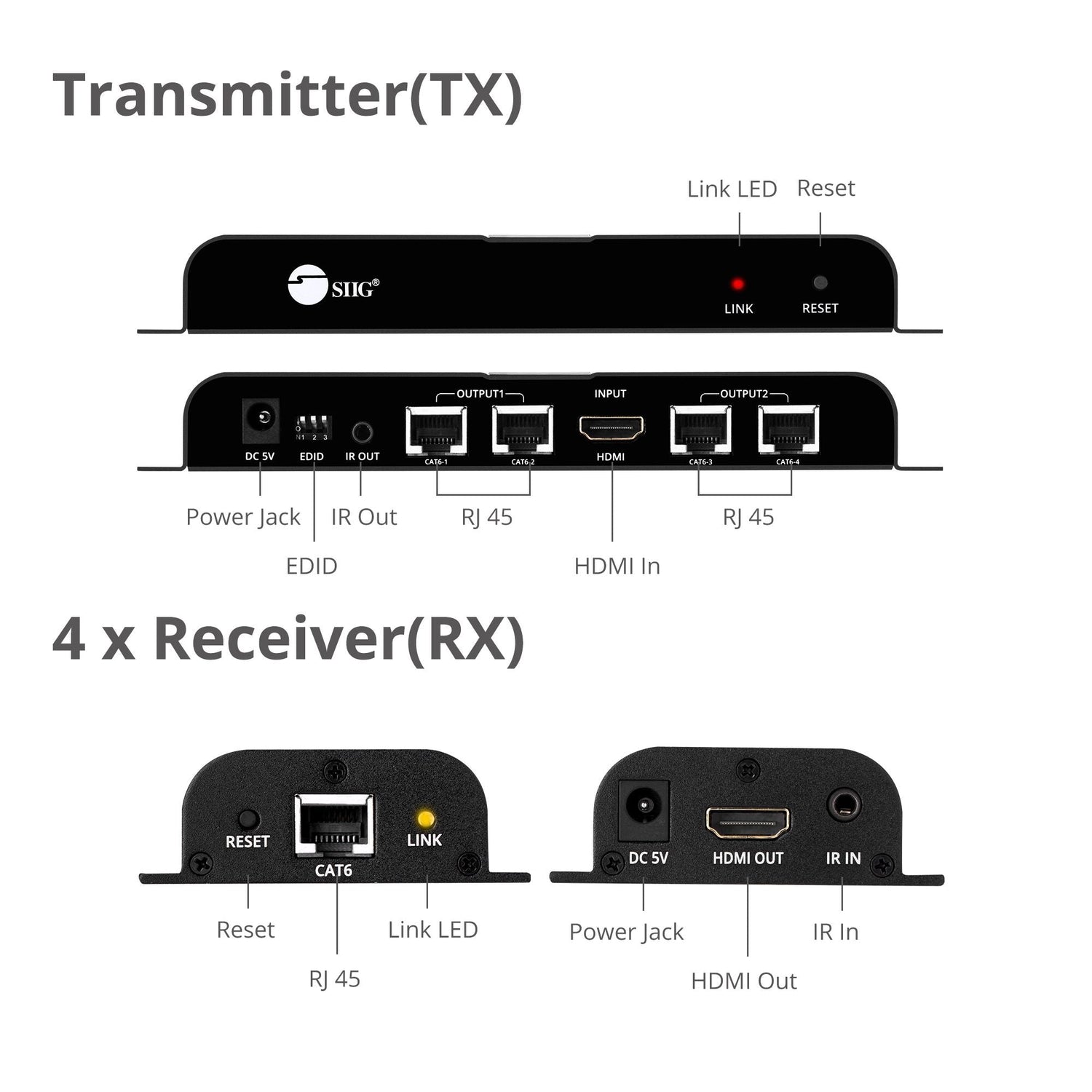

| Interface | |

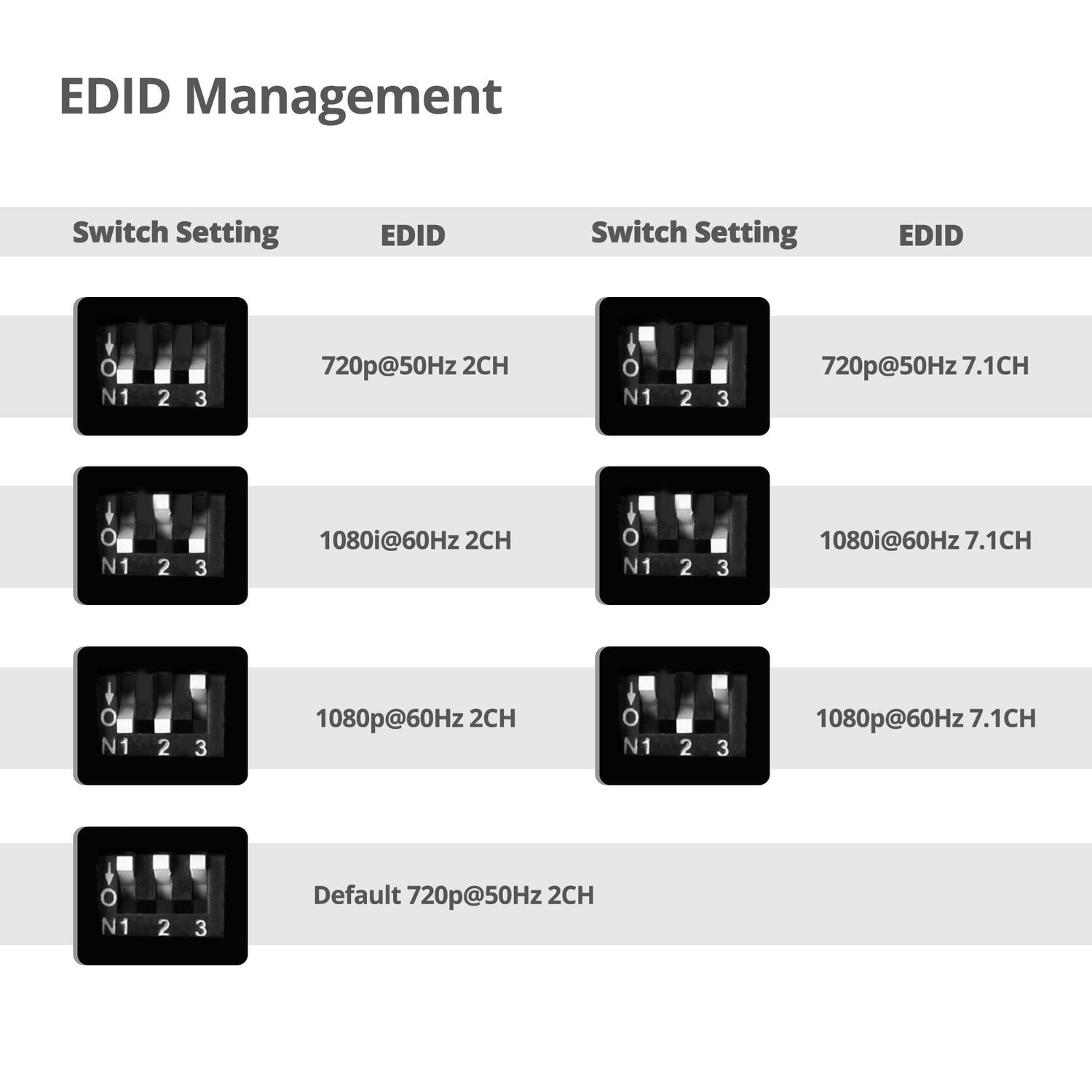

| Transmitting Unit (TX) | 1x 19-pin HDMI, Type A, female, input 1x 3.5mm jack, IR, output 1x 8-pin, RJ45, HDMI signal, HDBitT, output 1x Power jack 1x Reset button 1x 4-Pin EDID switch, EDID management |
| Receiving Unit (RX) | 1x 19-pin HDMI, Type A, female, output 1x 3.5mm jack, IR, input 1x 8-pin, RJ45, HDMI signal, HDBitT, input 1x Power jack 1x Reset button |
| Power Adapter | |
| Input | 100-240V / 50-60Hz |
| Output | DC 5V/3A for TX |
| UL Listed | E335801 / Level: VI |
| System Requirements | - HDMI source device, such as computers, game consoles, Blu-ray/DVD players, and media players - HDMI displays, monitors, and HD TVs - HDMI cables - CAT 6 cable |

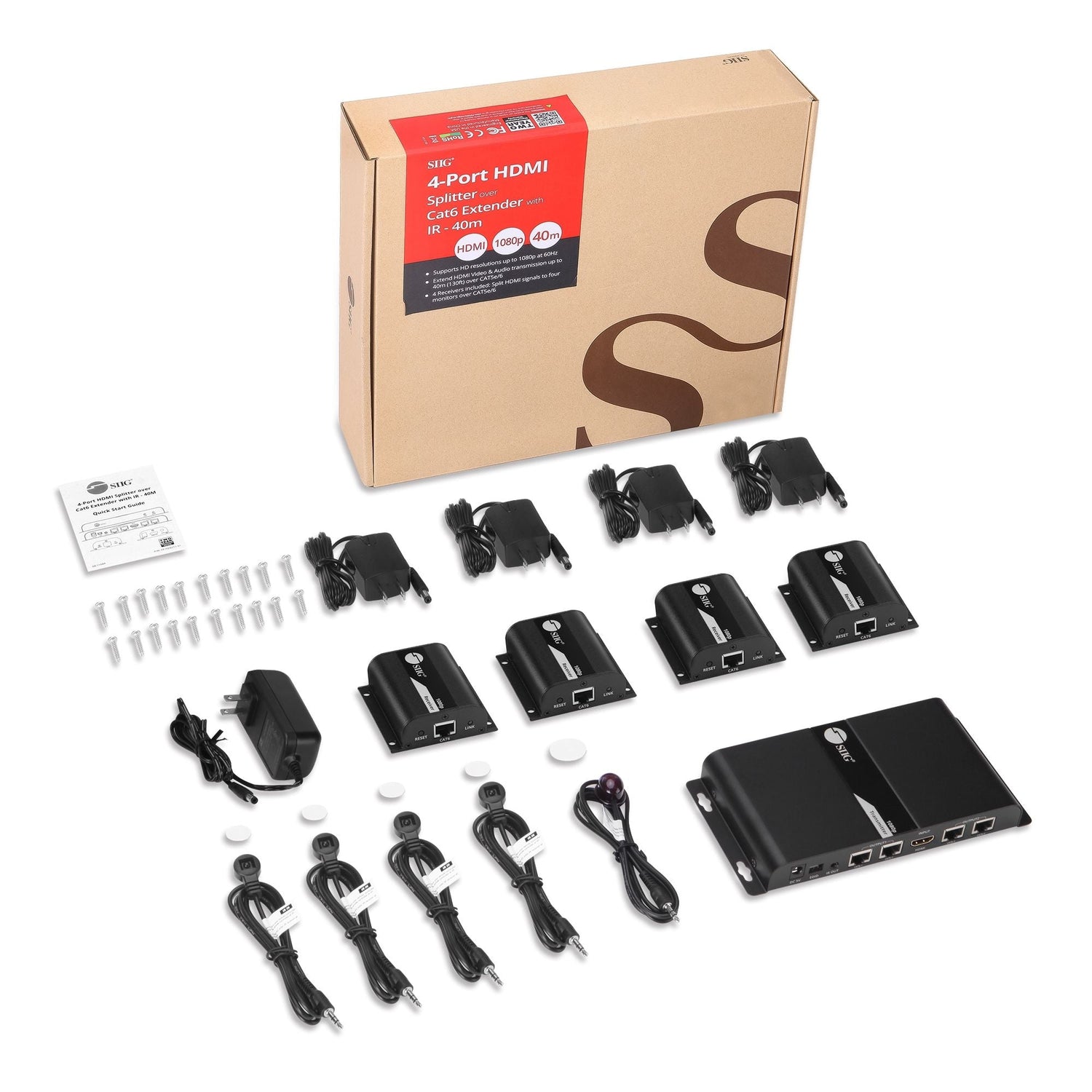

| Package Contents | 1x 4-Port HDMI Splitter over Cat6 Extender with IR Kit - 40M (1x TX & 4x RX) 5x Power adapter 1x IR Blaster extension cable 4x IR Receiver extension cable 1x Screw kit 1x User reference guide |
| Product | |
| Transmitter Unit (TX) | |

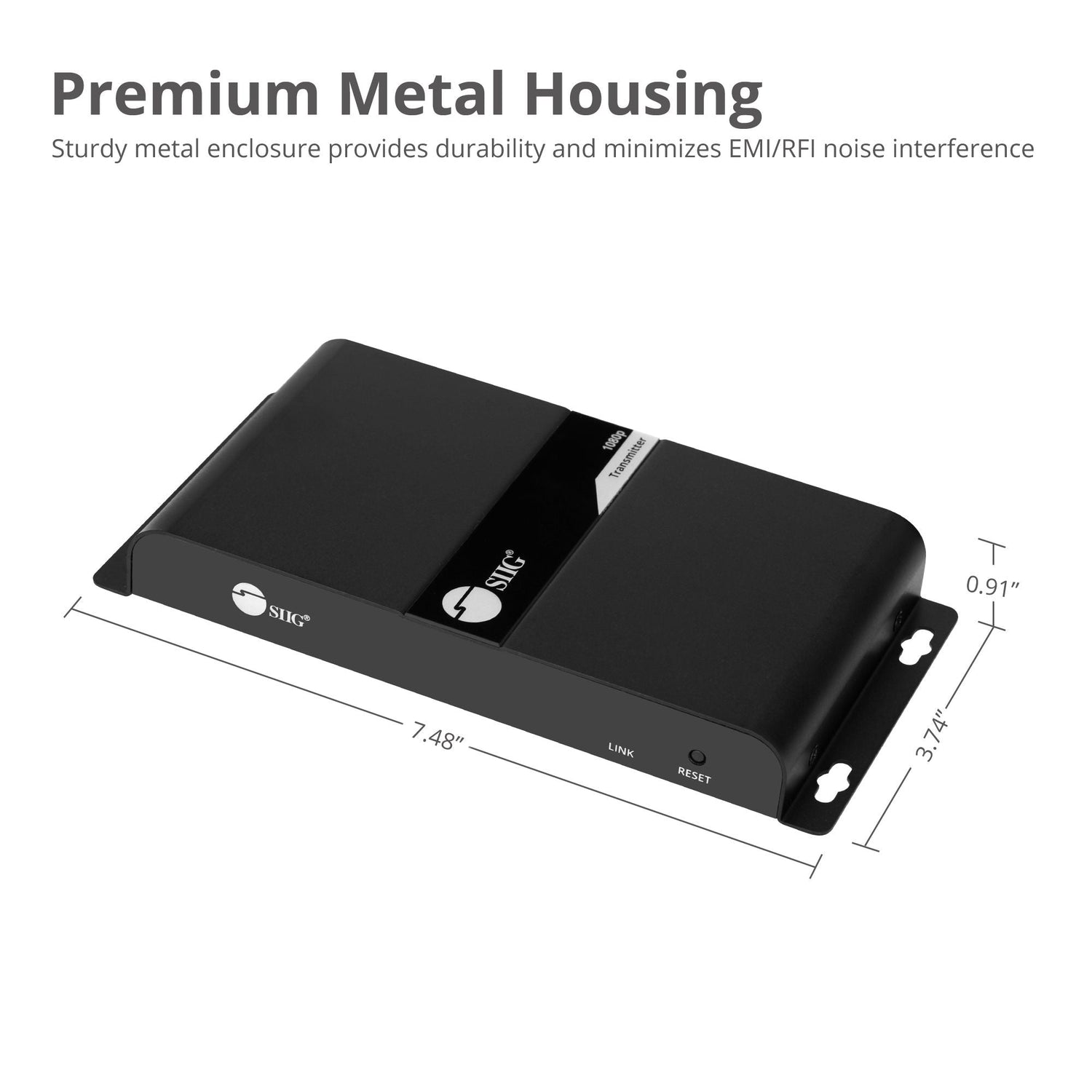

| Dimensions (L) x (H) x (W) | 7.48″ x 0.94″ x 3.74″ 19.00 cm x 2.39 cm x 9.50 cm |
| Weight | 0.93 lbs (0.42 kg) |
| Housing Material | Aluminum housing with wall mount design |
| Receiver Unit (RX) | |
| Dimensions (L) x (H) x (W) | 2.83″ x 0.98″ x 2.60″ 7.19 cm x 2.49 cm x 6.60 cm |
| Weight | 0.20 lbs (0.09 kg) |
| Housing Material | Aluminum housing with wall mount design |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 12.01″ x 2.76″ x 10.83″ 30.51 cm x 7.01 cm x 27.51 cm |
| Weight | 3.42lbs (1.55 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 21.85″ x 12.60″ x 14.76″ 55.50 cm x 32.00 cm x 37.49 cm |
| Weight | 36.4lbs (16.51 kg) |
| Quantity | 10pcs/ctn |
| Environmental Conditions | |
| Operating Temperature | 32 to 104 degrees F |
| Storage Temperature | 14 to 158 degrees F |
| Relative Humidity | 5% to 90% RH (non-condensing) |
| Certifications/Standards | FCC, CE, RoHS |
| UPC Code | 662774-041940 |
| Warranty | 2 years limited |
| Country of Origin | China |
Q1: Can this extend to 4 different screens?
Q1: Can this extend to 4 different screens?
A1: No, it can not extend to 4 different screens. All splitter outputs will always have the same screens.
