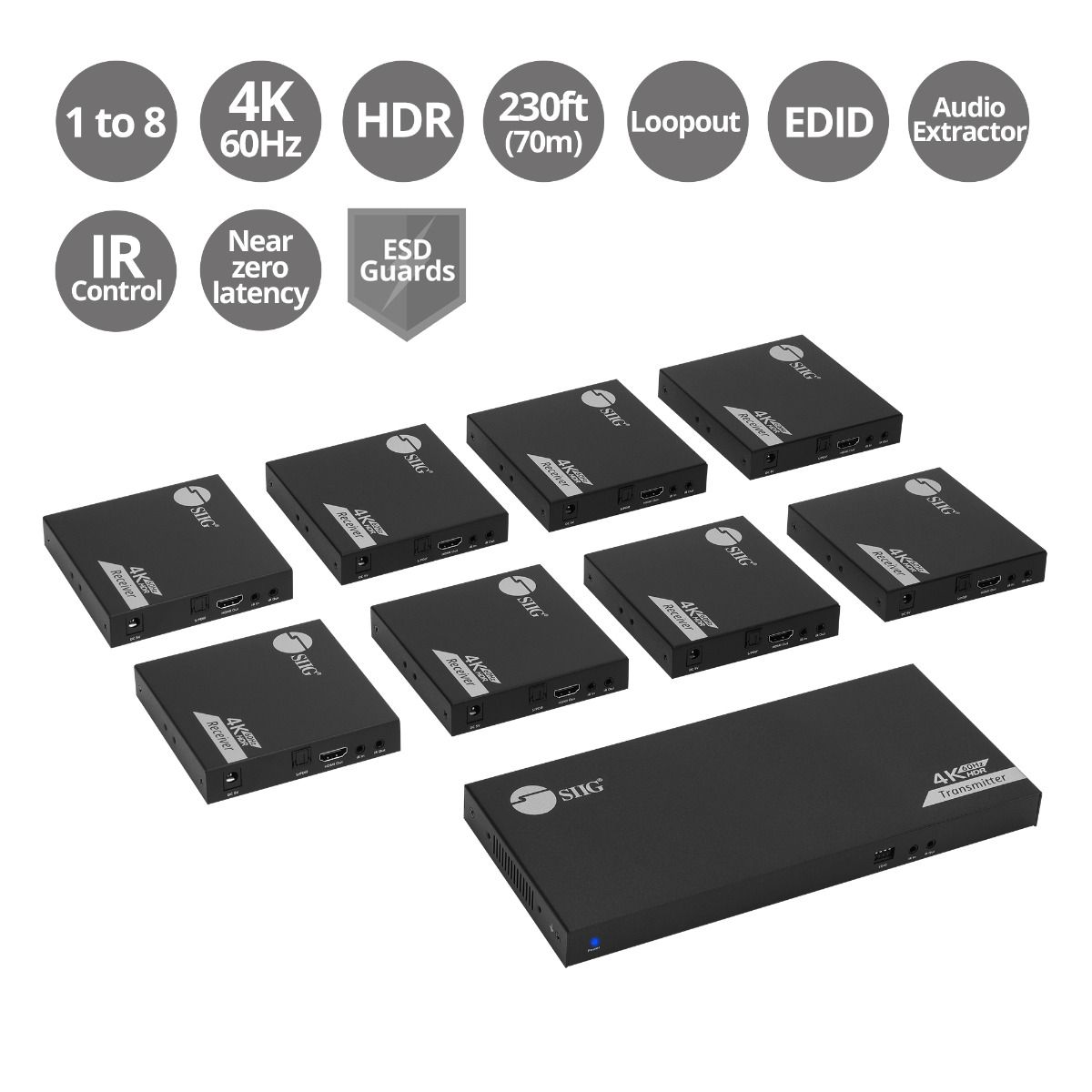

Extender | SKU: CE-H27B11-S1

1x8 4K 60Hz HDMI Extender Splitter Over Cat6 with Loopout, IR, ARC & RS-232 - Up to 230ft (70m) - Near Zero Latency

1x8 Extender
Up to 70m
4K60Hz
IR / RS-232
Audio Extractor
$1,799.99
Shipping calculated at checkout.
Product Features

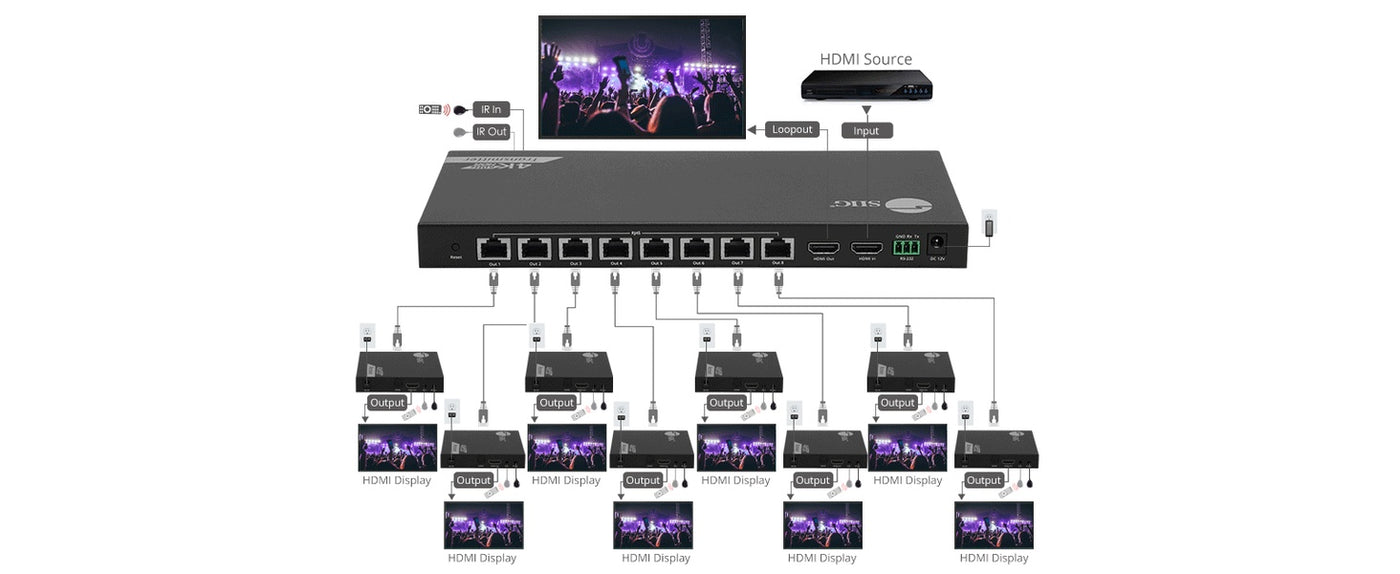

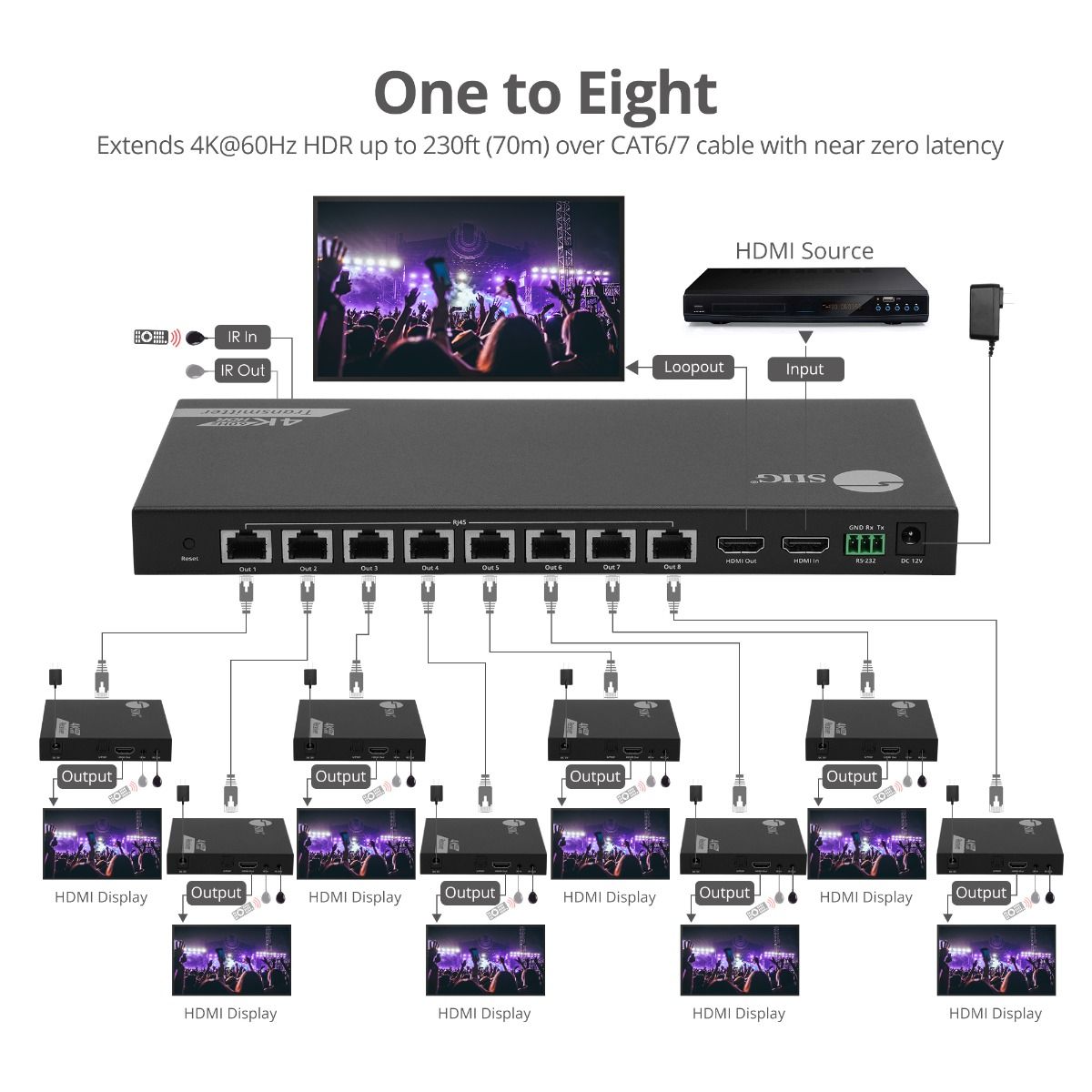

1x8 4K 60Hz HDMI Splitter Over Cat6

Extend 1 HDMI source to 8 HDMI displays and 1 HDMI Loopout using a single Cat6/7 cable simultaneously with near zero latency.

4K 60Hz HDMI Splitter

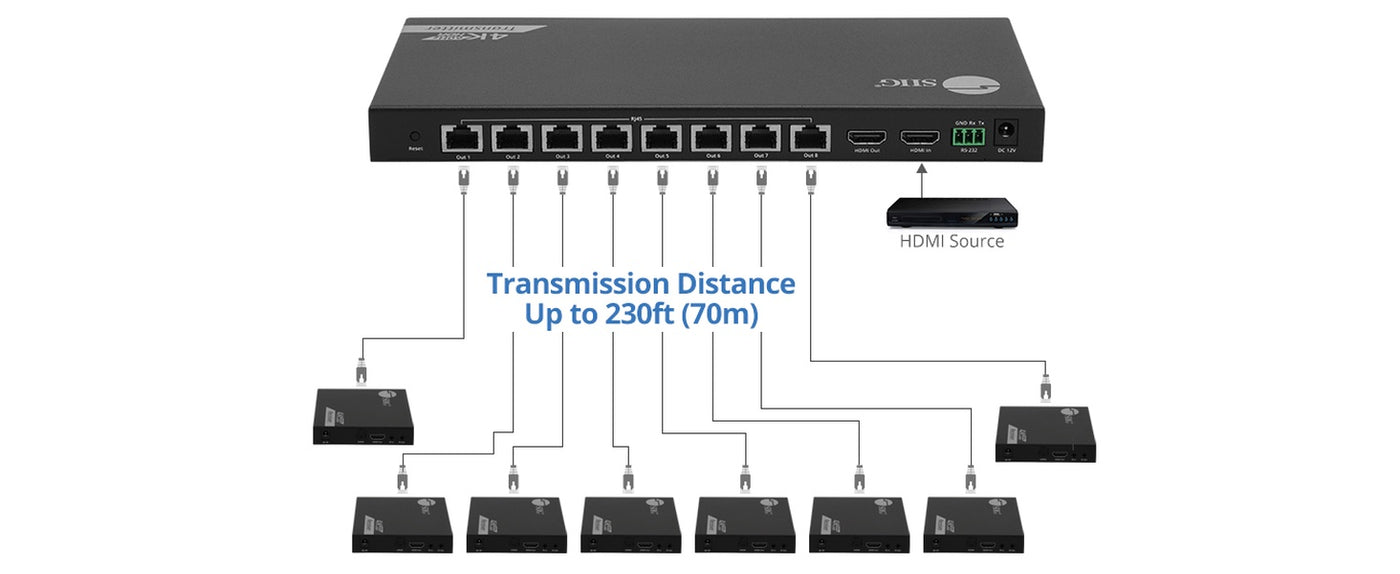

Supports up to 4K 60Hz HDMI audio and video, including HDR and HDCP 2.2 compliant. Extends HDMI signal transmission up to 230ft (70m).

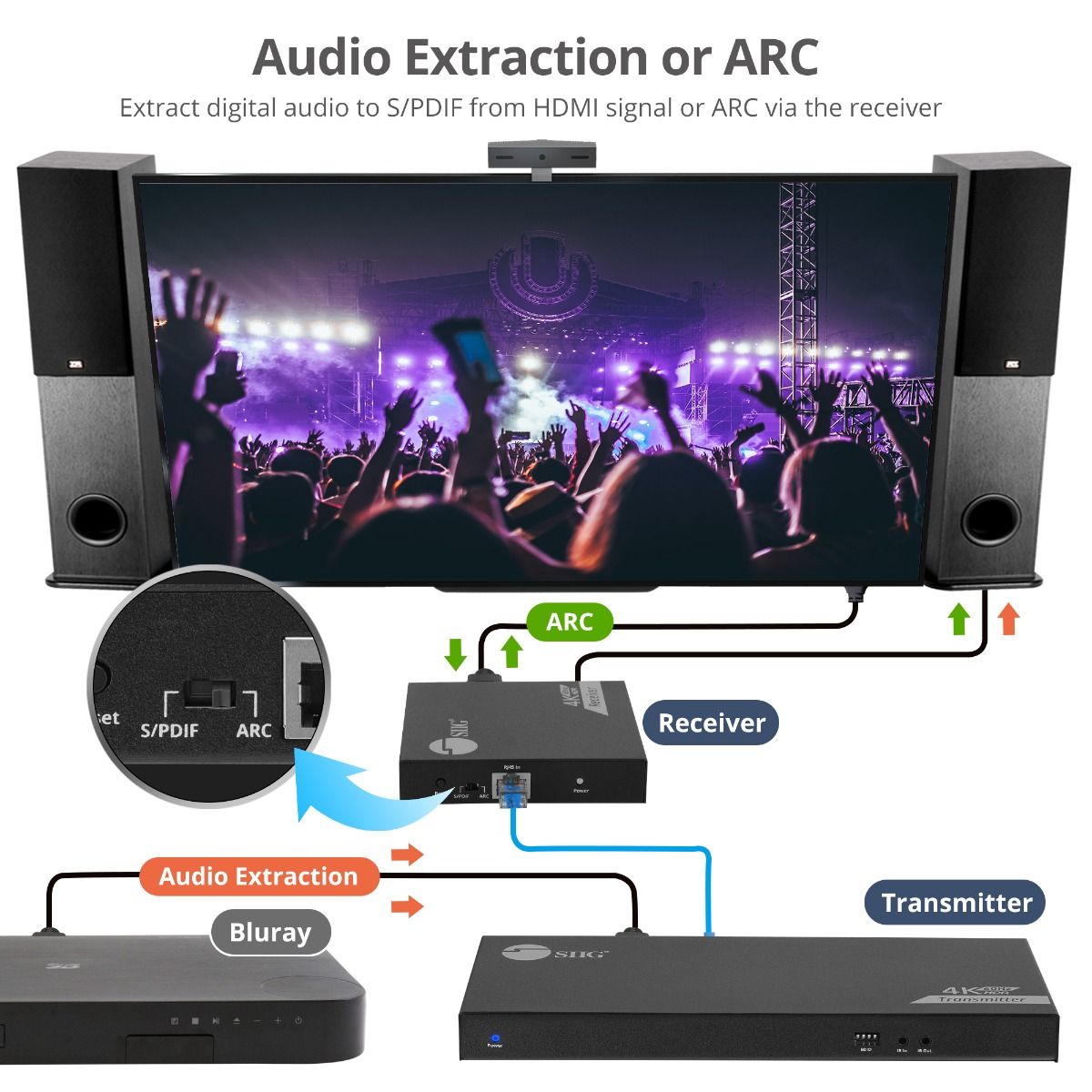

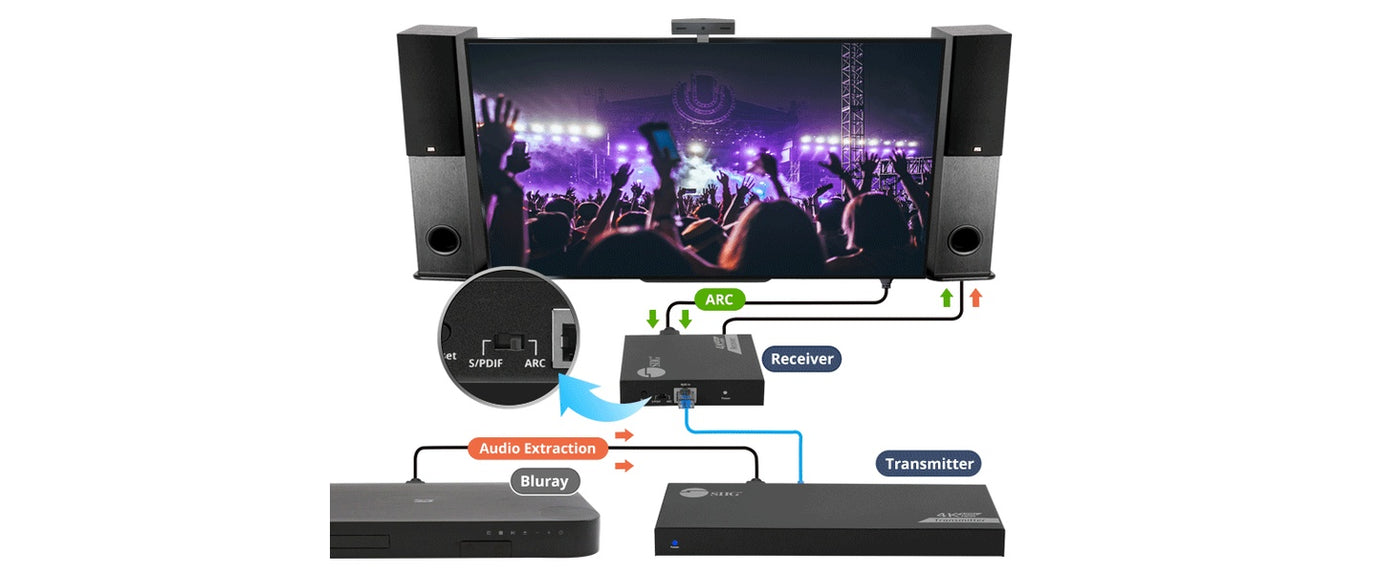

EDID Management & Audio Extraction

Supports EDID management capability to control the display resolution output. Audio Switch allows you select extract audio from HDMI Input or ARC from TV for Toslink use. Supports Toslink Audio PCM2, compatible with Dolby & DTS 5.1.

Wide Range Applications

Connect your HDMI source device (Compatible with PC, Xbox, PS4/ 5, Blu-ray player, Cable Box, Chromecast with Google TV, Roku Box, surveillance system NVR, DVR, and more) to the Transmitter, utilize existing Ethernet structure in your house/ office/ church/ school/ shop to extend to the Receiver which connected to your HDTV, display or monitor at a remote location via CAT6 cable.

Ease of use

No software or driver is required. Surface mountable housing. At SIIG, we are proud of our products and service. Our products are of high quality and built to last. We are here to assist should you need us. We provide Manufacturer Warranty for our products and email support. Contact us thru Amazon if any issues arise.

  • 45 Days Free Return

  • 2 Years Warranty

  • Lifetime Technical Support

SIIG 1x8 4K 60Hz HDMI Extender Splitter Over Cat6 with Loopout, IR, ARC & RS-232

    Simultaneously splits HDMI audio and video signals to eight displays up to 230ft (70m) via Cat6/7 cable with zero latency, local display, audio extraction, ARC and IR remote control of HDMI devices.

    4K UHD Resolution

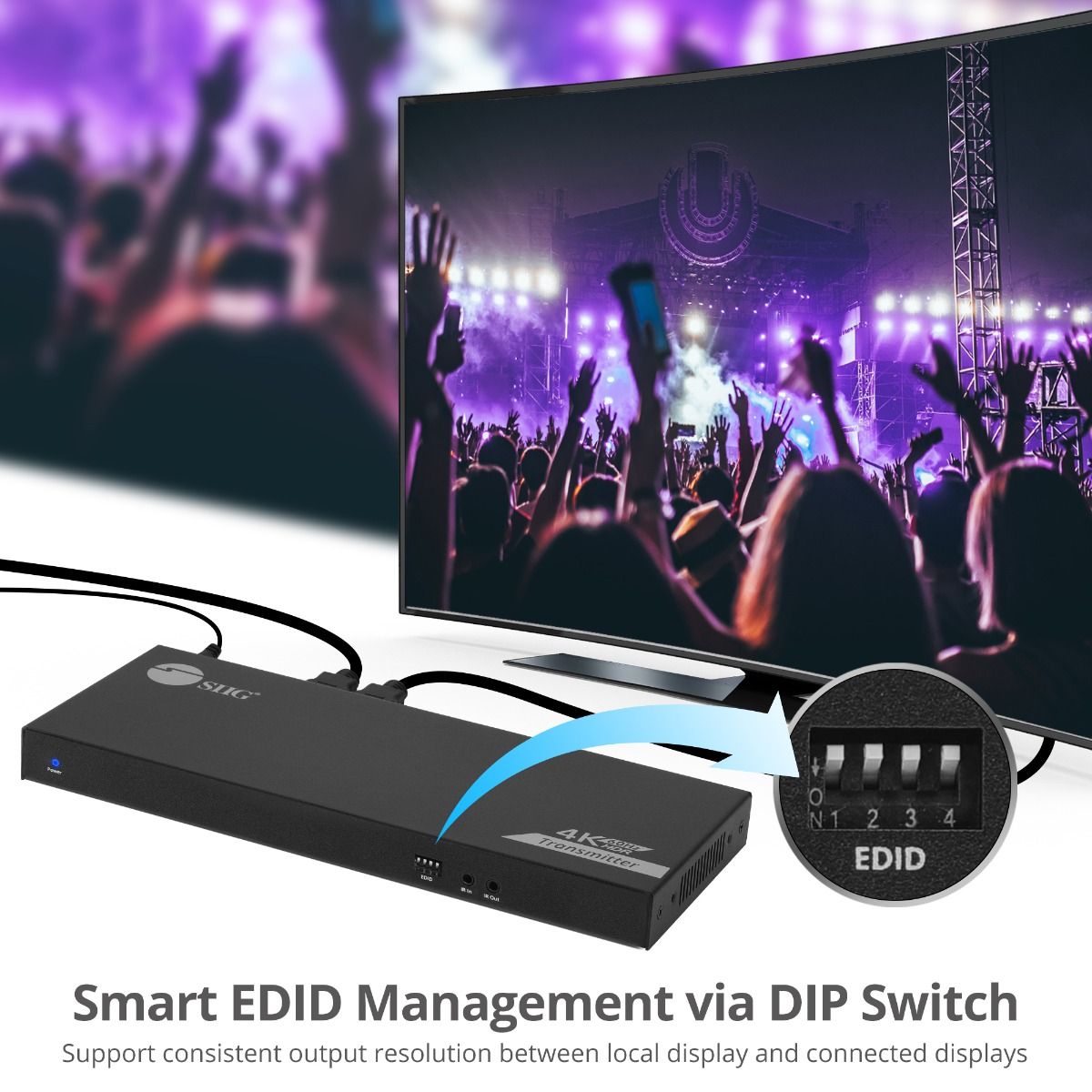

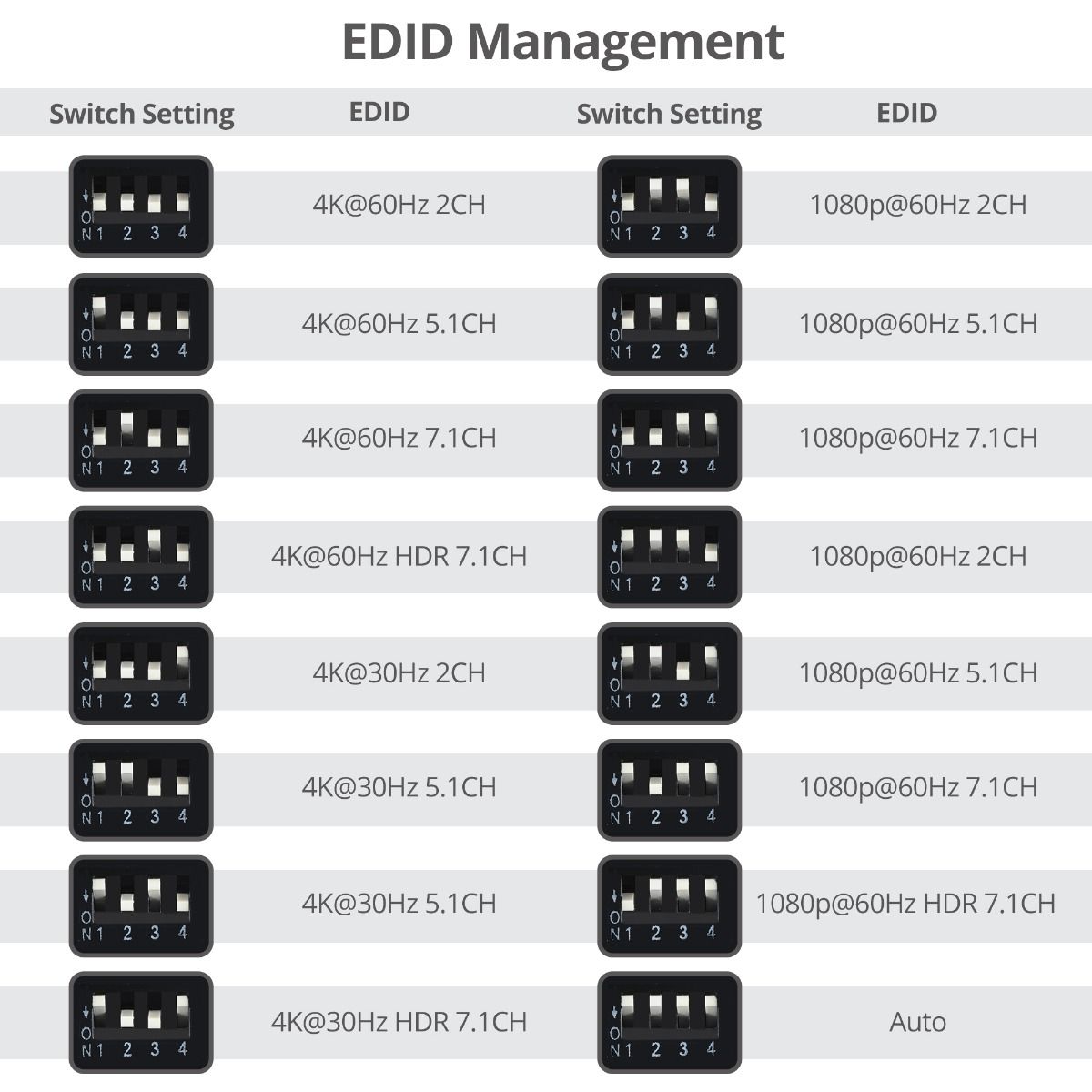

      Supports Ultra high-definition video resolution up to 4K (3840x2160) 60Hz, HDR, HDCP 2.2, YUV 4:4:4 to deliver a crystal-clear picture quality Allows EDID management via DIP switch to control remote/local displays resolution and RS-232 command control the device.

      Comparison Table

      1x8 4K 60Hz HDMI Extender Splitter Over Cat6 with Loopout, IR, ARC & RS-232 - Up to 230ft (70m) - Near Zero Latency
      View details

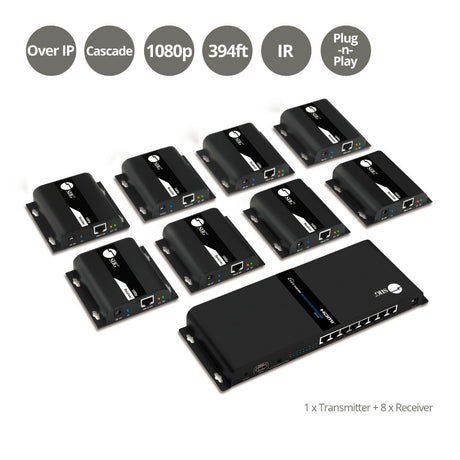

      1x8 HDMI Splitter, Over IP Extender Kit, 1080p 60Hz, 120m
      View details

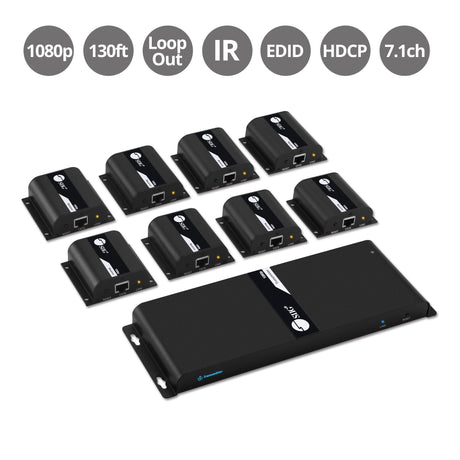

      8-Port HDMI Splitter Over Cat6 Extender with IR - 40M
      View details

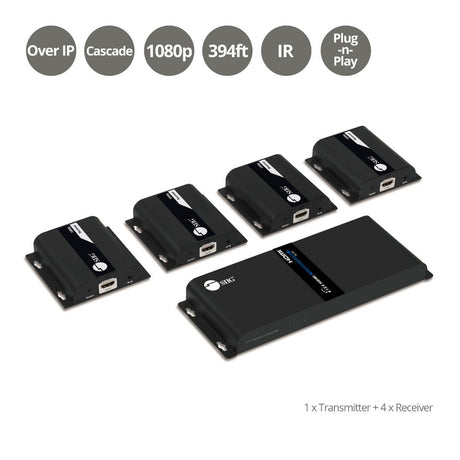

      1x4 HDMI Splitter, Over IP Extender Kit, 1080p 60Hz, 120m
      View details

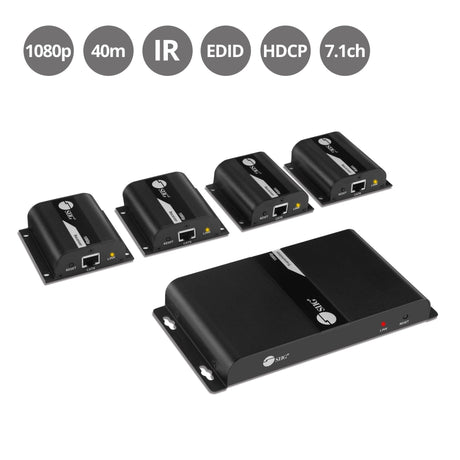

      4-Port HDMI Splitter over Cat6 Extender with IR - 40m
      View details
      SKU
      SKU
      CE-H27B11-S1
      CE-H26W11-S1
      CE-H24811-S1
      CE-H26V11-S1
      CE-H23U11-S1
      Connection port
      Connection port

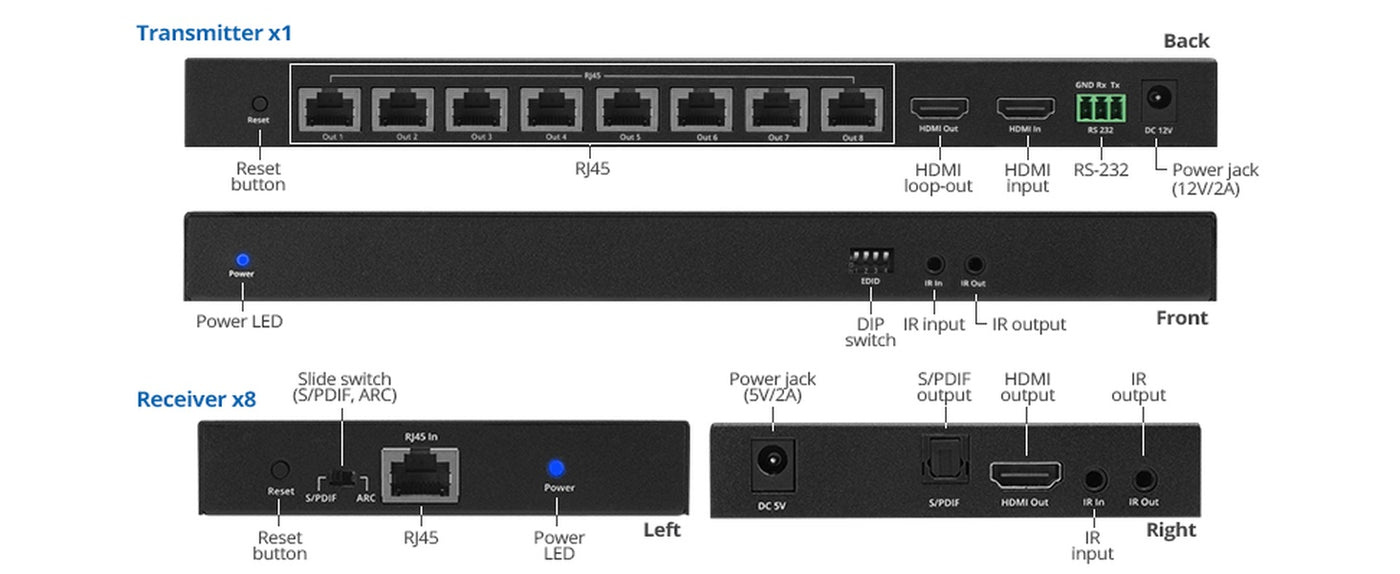

      6x HDMI, 10x 3.5mm, 8x RJ45, 5x Power Jack, 5x 3-pin RS-232, 4x S/PDIF
      9x HDMI, 9x 3.5mm, 16x RJ45
      9x HDMI, 9x 3.5mm, 16x RJ45, 9x Power Jack
      5x HDMI, 5x 3.5mm, 8x RJ45
      5x HDMI, 5x 3.5mm, 8x RJ45, 5x Power Jack
      Data Transfer (Max)
      Data Transfer (Max)
      18Gbps
      10.2Gbps
      6.75Gbps
      10.2Gbps
      6.75Gbps
      Additional function
      Additional function
      IR, Reset, EDID, RS-232, Audio Extractor
      IR
      IR, DIP Switch, Reset
      IR
      IR, DIP Switch, Reset
      Housing material
      Housing material
      Metal
      Metal
      Metal
      Metal
      Metal
      Color
      Color
      Black
      Black
      Black
      Black
      Black
      Dimensions
      Dimensions

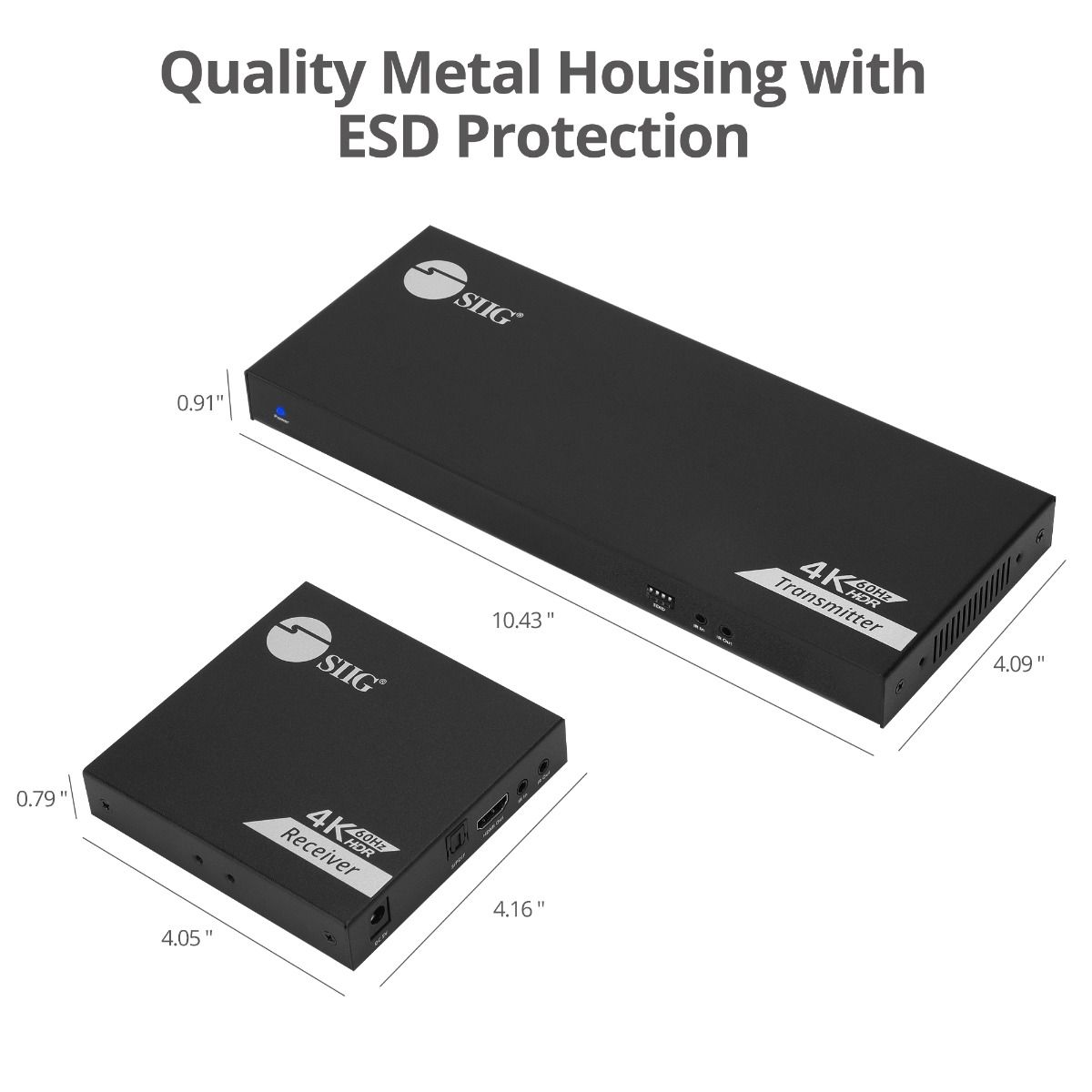

      TX: 10.39” (W) x 0.91” (H) x 4.72" (D) (26.39 cm x 2.31 cm x 11.99 cm) RX: 4.15" (W) x 0.79" (H) x 4.04" (D) (10.54 cm x 2 cm x 10.26 cm)
      TX:11.81” (W) x 1.18” (H) x 4.37" (D) (30 cm x 3 cm x 11.10 cm) RX: 3.81” (W) x 0.93” (H) x 3.70" (D) (9.68 cm x 2.36 cm x 9.4 cm)
      TX:10.87" (W) x 0.91" (H) x 3.82" (D) (27.61 cm x 2.31 cm x 9.7 cm) RX:2.81" (W) x 0.98" (H) x 2.64" (D) (7.14 cm x 2.49 cm x 6.71 cm)
      TX: 9.92” (W) x 0.98” (H) x 3.82" (D) (25.20 cm x 2.49 cm x 9.70 cm) RX: 3.81” (W) x 0.93” (H) x 3.70" (D) (9.68 cm x 2.36 cm x 9.40 cm)
      TX:7.48" (W) x 0.94" (H) x 3.74" (D)(19 cm x 2.88 cm x 9.5 cm) RX:2.83" (W) x 0.98" (H) x 2.60" (D) (7.19 cm x 2.49 cm x 6.6 cm)
      Weight
      Weight
      TX: 1.6 lbs RX: 0.54 lbs
      TX: 1.81 lbs RX: 0.33 lbs
      TX: 1.33 lbs RX: 0.19 lbs
      TX: 1.34 lbs RX: 0.33 lbs
      TX: 0.93 lbs RX: 0.20 lbs
      Mountable
      Mountable
      Yes
      Yes
      Yes
      Yes
      Yes
      Certification/ Standards
      Certification/ Standards
      FCC / CE / RoHS
      FCC / CE / RoHS
      FCC / CE / RoHS
      FCC / CE / RoHS
      FCC / CE / RoHS
      Warranty
      Warranty
      2 years
      2 years
      2 years
      2 years
      2 years
      Country of Origin
      Country of Origin
      China
      China
      China
      China
      China
      Resolution
      Resolution
      4K60Hz
      Up to 1080p 60Hz
      1080p 60Hz
      Up to 1080p 60Hz
      1080p 60Hz
      Audio spec
      Audio spec
      PCM 2.0, 5.1, 7.1, Dolby, DTS
      2ch
      2.1, 7.1ch, PCM, DTS, AC3 audio
      2ch
      2.1, 7.1ch, PCM, DTS, AC3 audio
      IR function
      IR function
      Yes
      Yes
      Yes
      Yes
      Yes
      Remote control
      EDID button
      EDID button
      Yes
      -
      Yes
      -
      Yes
      Distance
      Distance
      Up to 70M
      Up to 120M
      Up to 40M
      Up to 120M
      Up to 40M
      Antenna spec
      Reset key
      Reset key
      Yes
      Yes
      Yes
      Yes
      Yes
      Reset key
      Reset key
      Yes
      Yes
      Yes
      Yes
      Yes
      Bandwidth
      Bandwidth
      18Gbps
      10.2Gbps
      6.75Gbps
      10.2Gbps
      6.75Gbps
      Power Output (Max)
      Power Indicator
      Power Indicator
      Yes
      Yes
      Yes
      Yes
      Yes
      Protection
      Protection
      ESD
      ESD
      ESD
      ESD
      ESD
      Protocol
      Protocol
      Passthrough
      HDBitT
      Passthrough
      HDBitT
      Passthrough
      Power Adapter
      Power Adapter
      TX: 12V/2A RX: 5V/2A
      TX: 5V/2A RX: 5V/1A
      TX: 12V/2A RX: 5V/1A
      TX: 5V/2A RX: 5V/1A
      TX: 5V/3A RX: 5V/1A
      Spec
      Spec
      HDMI 2.0, HDCP 2.2
      HDMI 1.3, HDCP 1.2
      HDMI 1.2, HDCP 1.2
      HDMI 1.3, HDCP 1.2
      HDMI 1.2, HDCP 1.2
