Extender | SKU: CE-H26W11-S1

1x8 HDMI Splitter, Over IP Extender Kit, 1080p 60Hz, 120m

HDMI IP Extender
1080p 60Hz
Up to 394ft (120m)
One to Many
Many to Many
$1,299.99
Shipping calculated at checkout.
Product Features

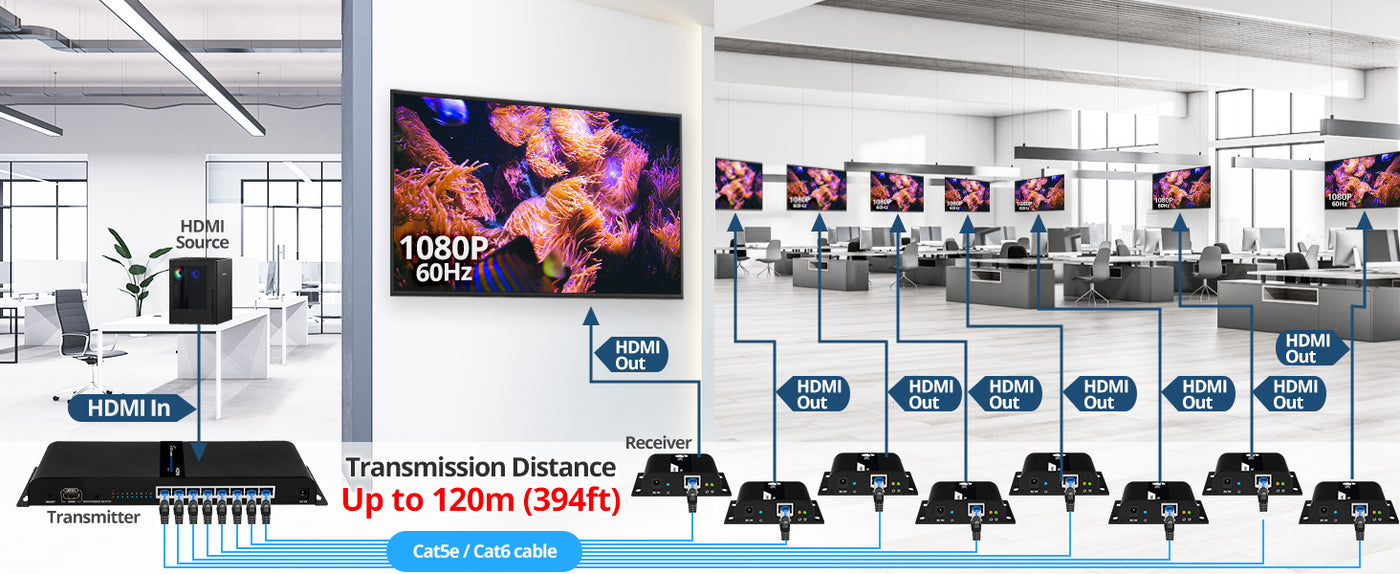

Extend Distance

The 1x8 HDMI Splitter HDbitT over IP Extender is designed for transmission/security, up to 394ft (120m) per each HDMI signal through HDbitT protocol and Gigabit Ethernet switch to the remote HDMI displays

Full HD Resolution

Supports high-definition video resolution up to 1080p (1920x1080) @60Hz, HDCP 1.2 to deliver a clear picture quality

IR Extension

IR pass-through feature allows remote control of the HDMI source device and playback function at the remote display

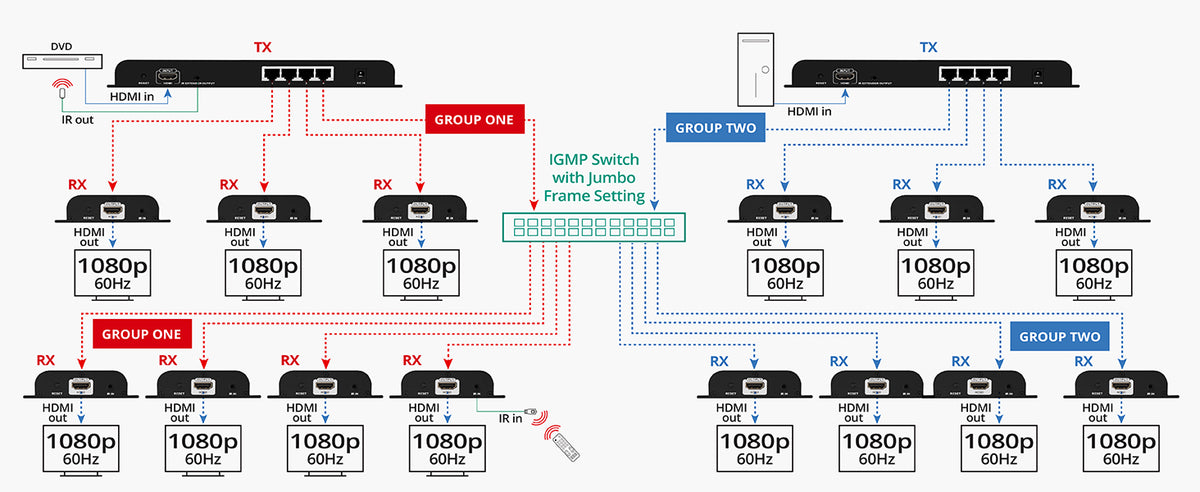

Highly Scalable

Works as a scalable TX/RX matrix over the dedicated IP network and allows receiver(RX) units up to 253 and extends/splits HDMI signals to multiple displays. The additional receiver unit (part#- CE-H26U11-S1) is sold separately

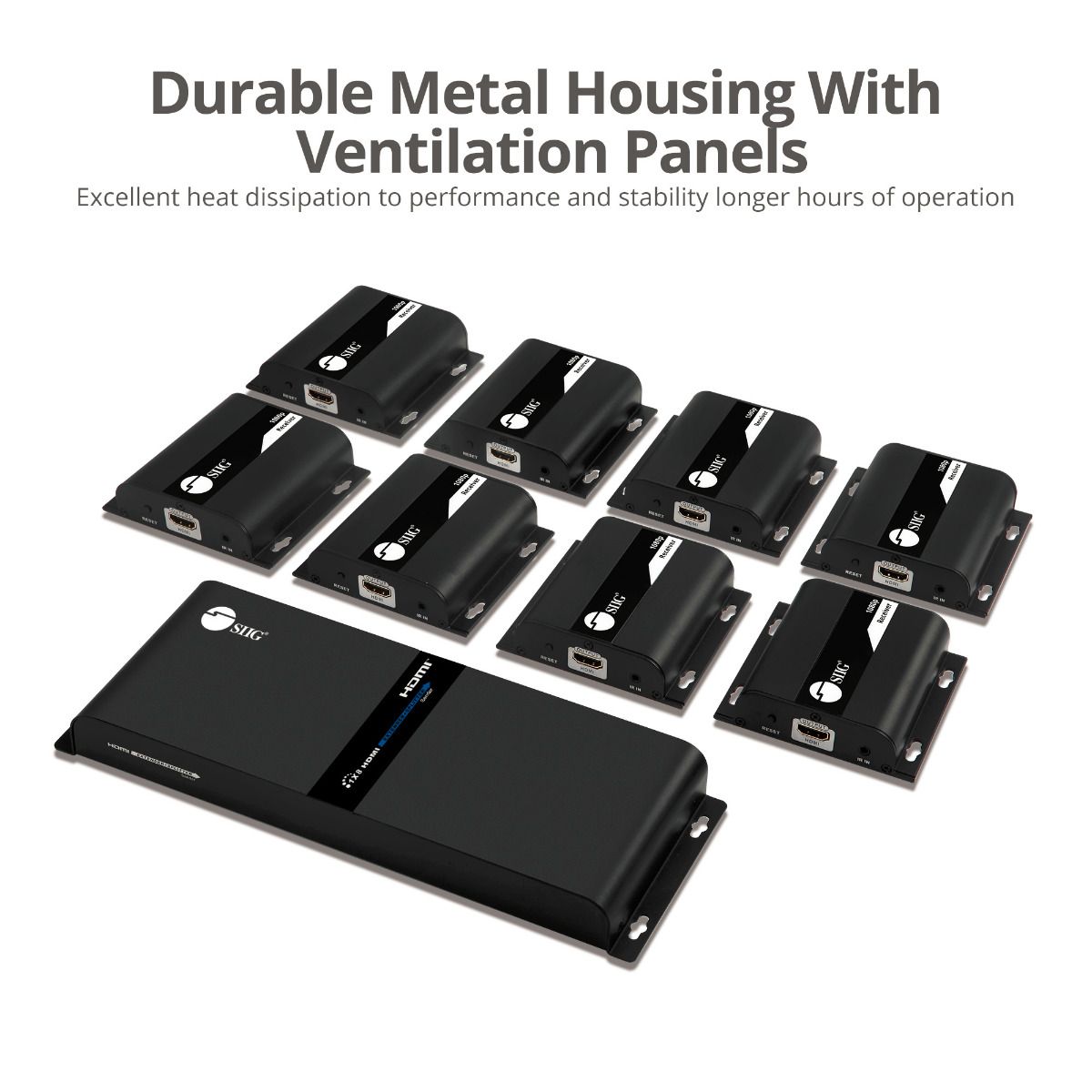

Metal Housing Design

Protects the inside PCBA, also enhance the heat dissipation for better performance. Military-grade component for long service life

  • 45 Days Free Return

  • 2 Years Warranty

  • Lifetime Technical Support

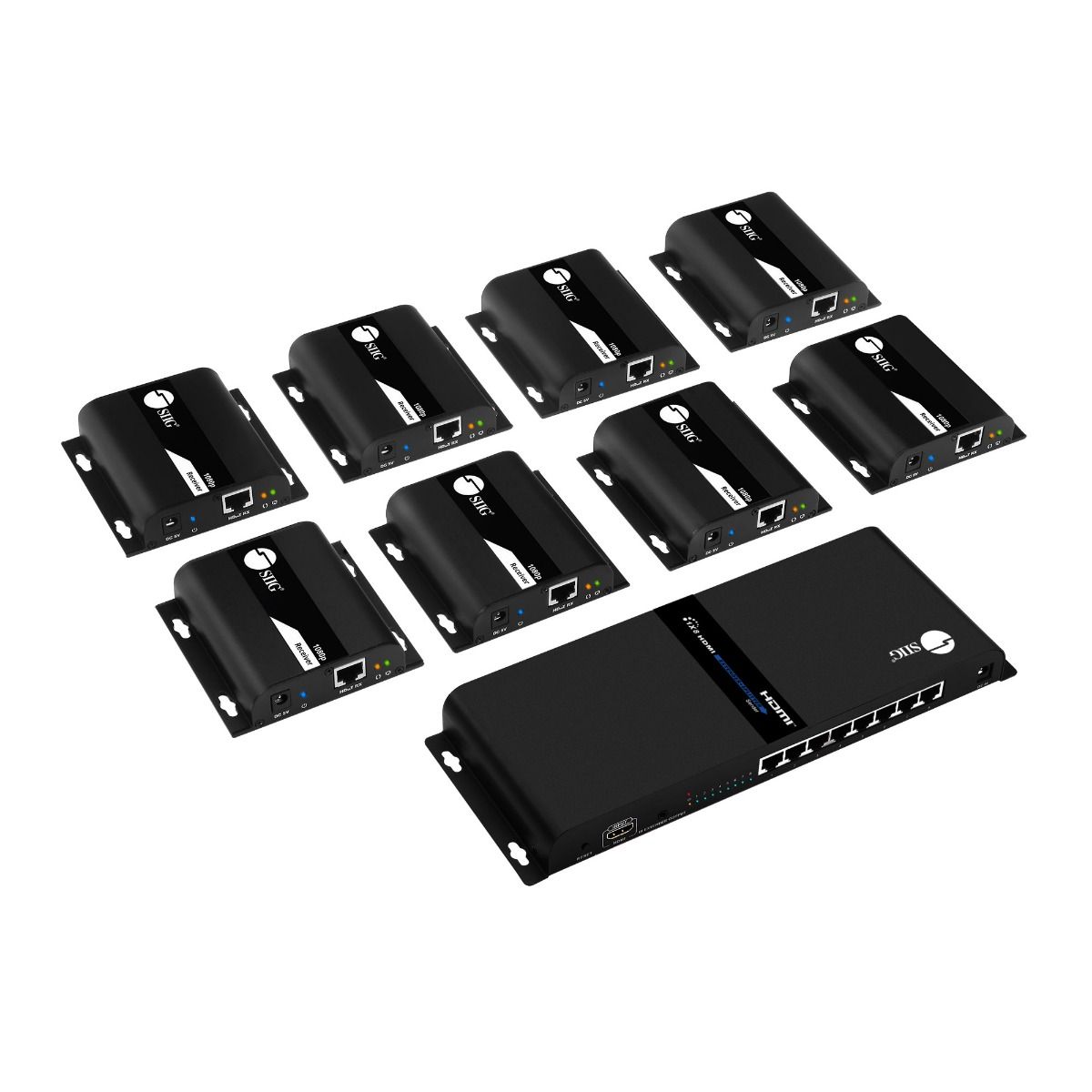

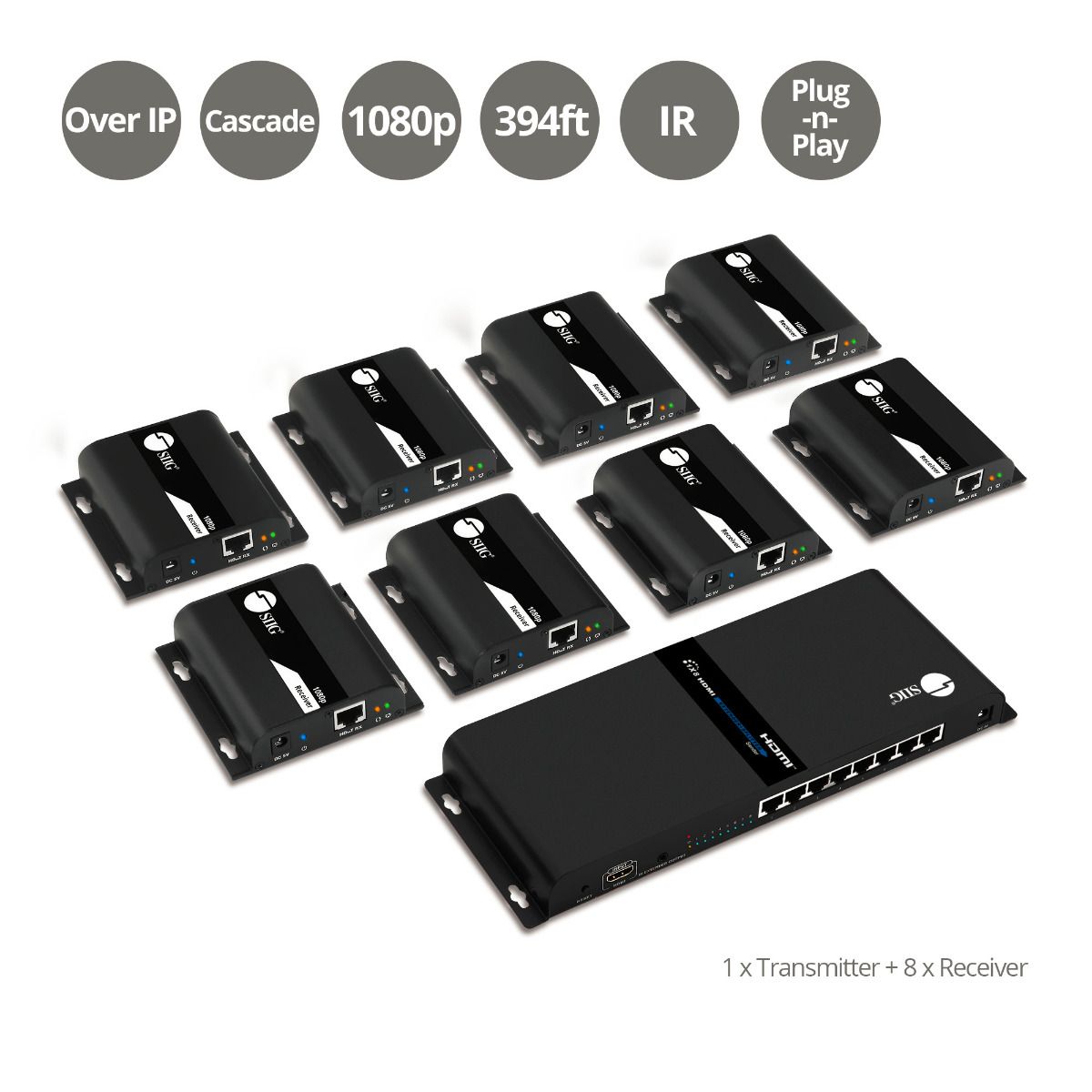

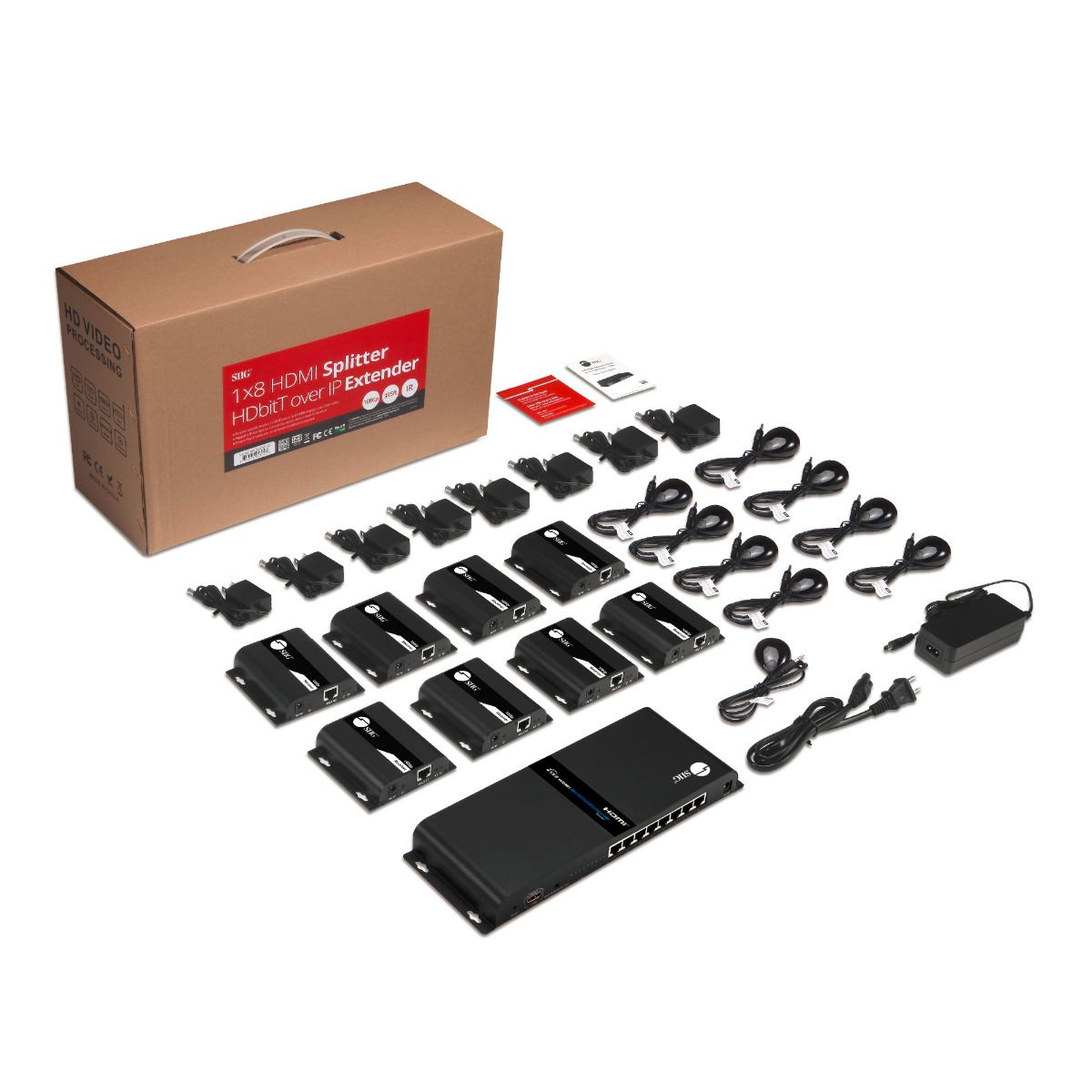

SIIG 1x8 HDMI Splitter Over IP Extender Kit

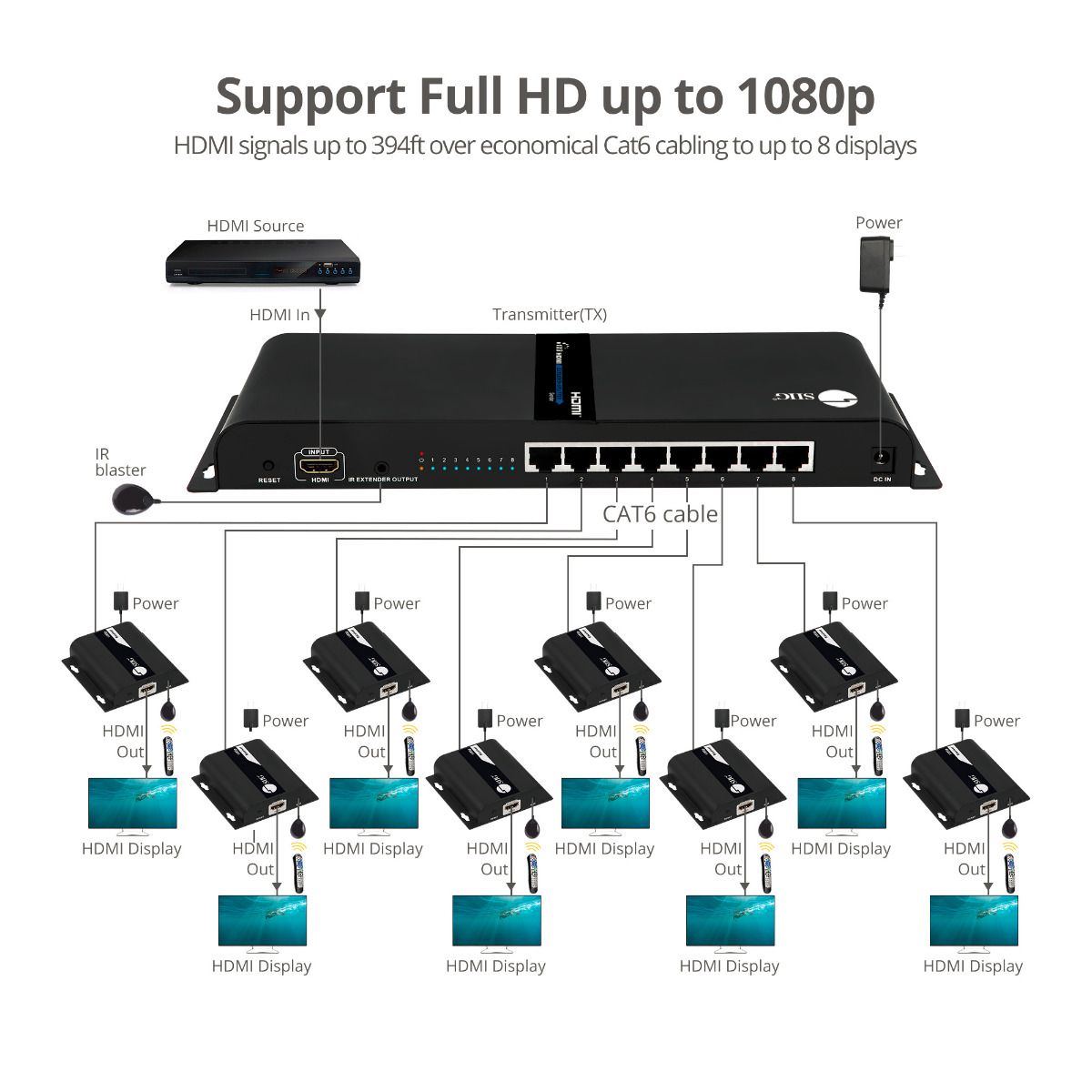

    Extends 1080p HDMI signal up to 394ft over Cat6 cable to up to 8 displays, IR control, works with Gigabit network switches for more displays and extension.

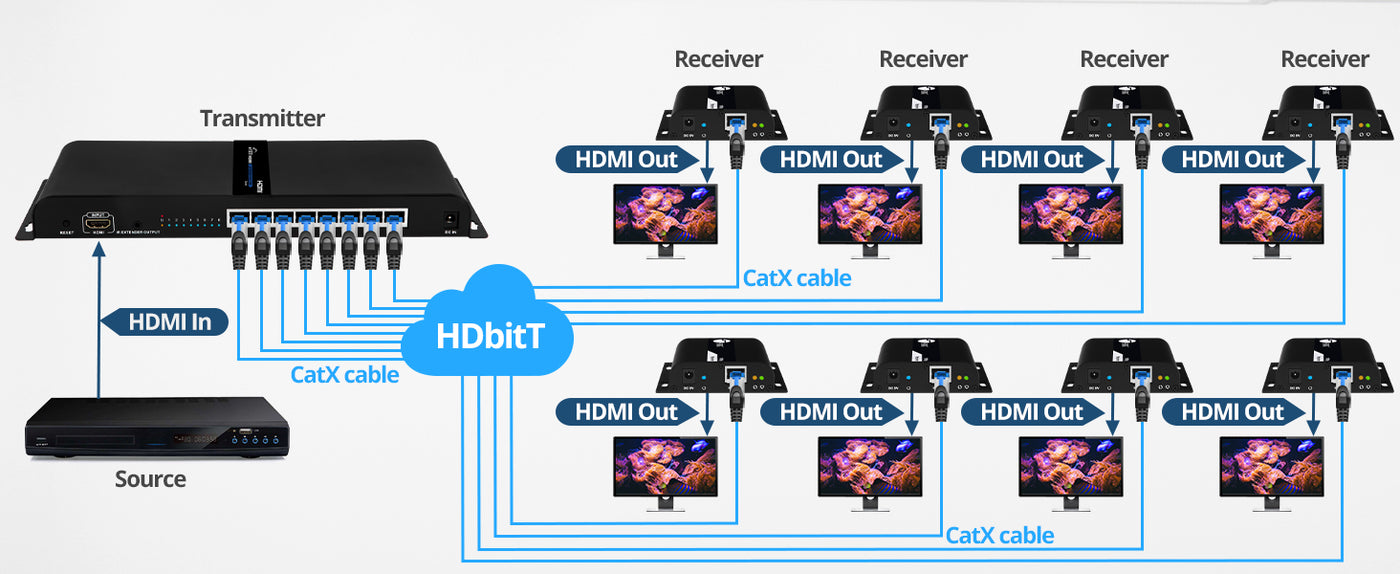

    What is HDbitT?

      The HDbitT protocol is a cutting-edge solution for transmitting audio and video digitally. It offers reliable performance, can transmit long distances, and delivers high-definition signals.

      8-Display HDMI over IP with IR Control

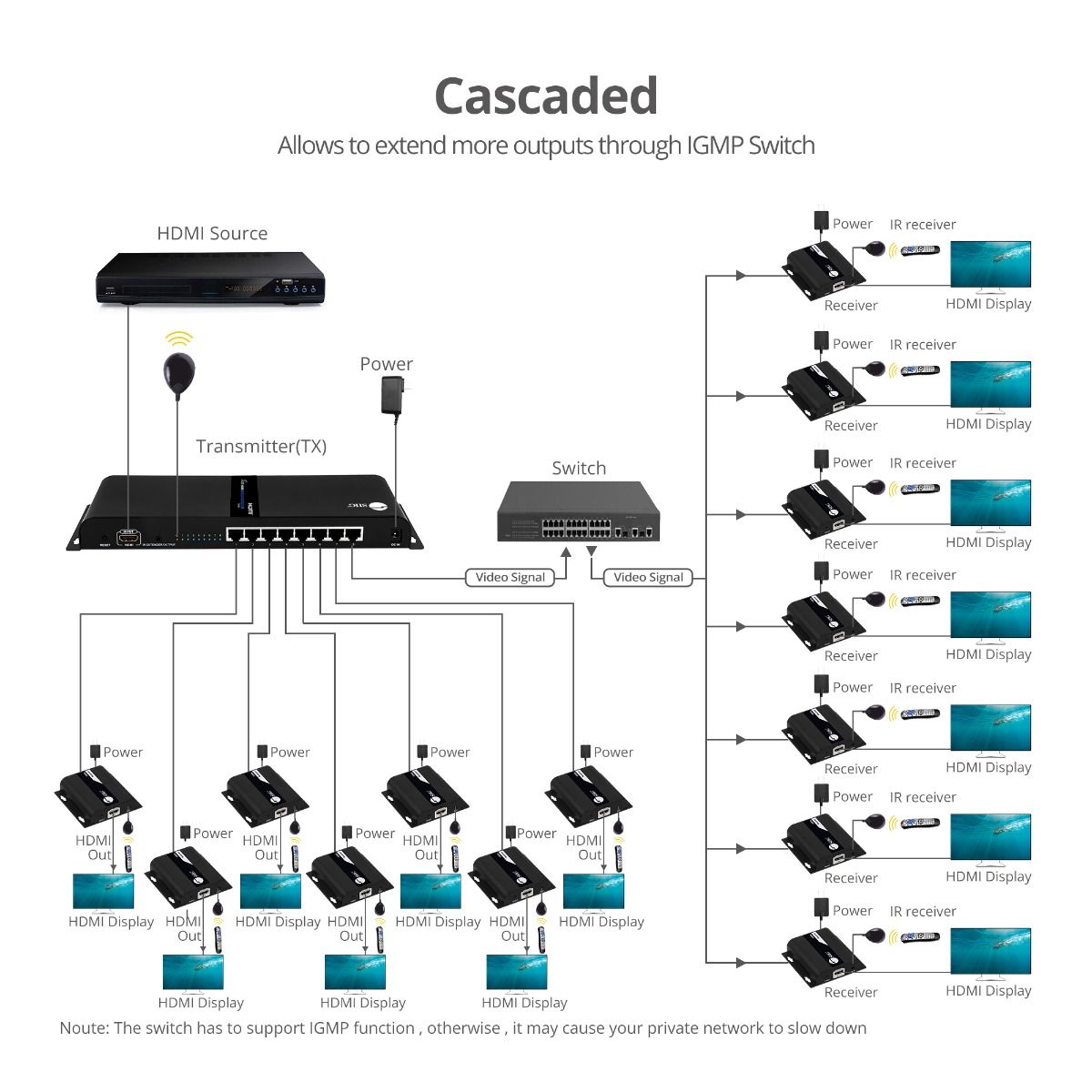

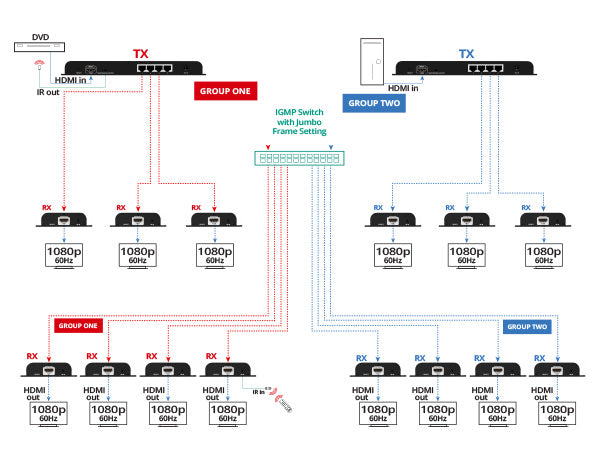

        Distribute HDMI signal up to 8 receivers with IR control extension, Direct TX-RX connection, or over IP with Network Switches.

        Connecting Ports

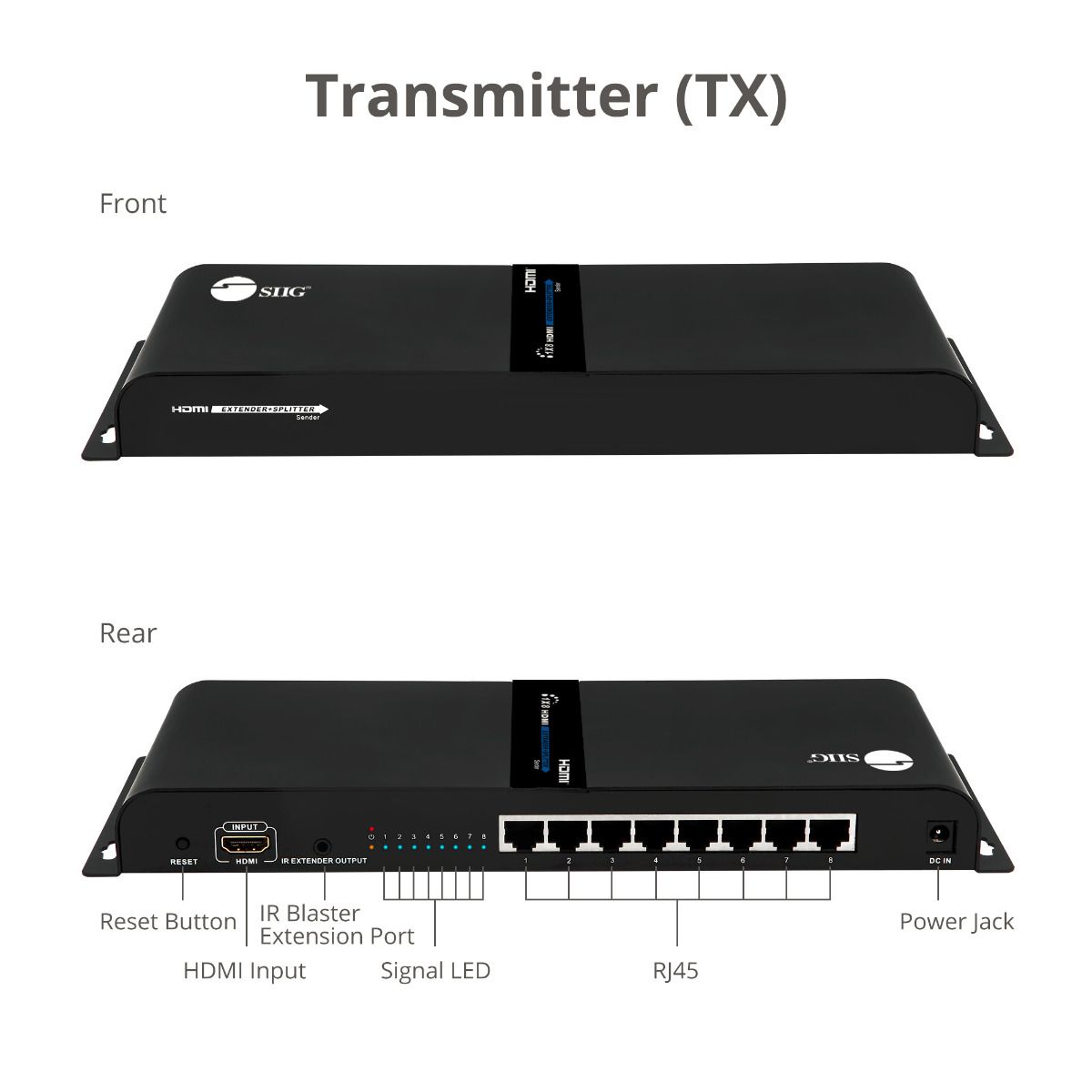

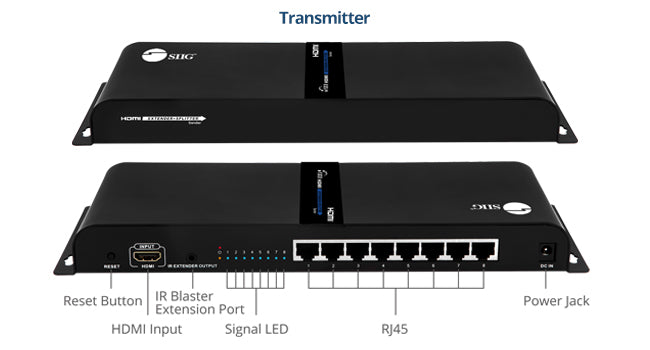

        • Transmitter Front and Back

          - 1x 19-pin, HDMI, Female (input)
          - 1x 3.5mm infrared jack, IR emitter (output)
          - 8x 8-pin, RJ45 (output)
          - 1x Reset button
          - 1x DC power jack, 5V/2A

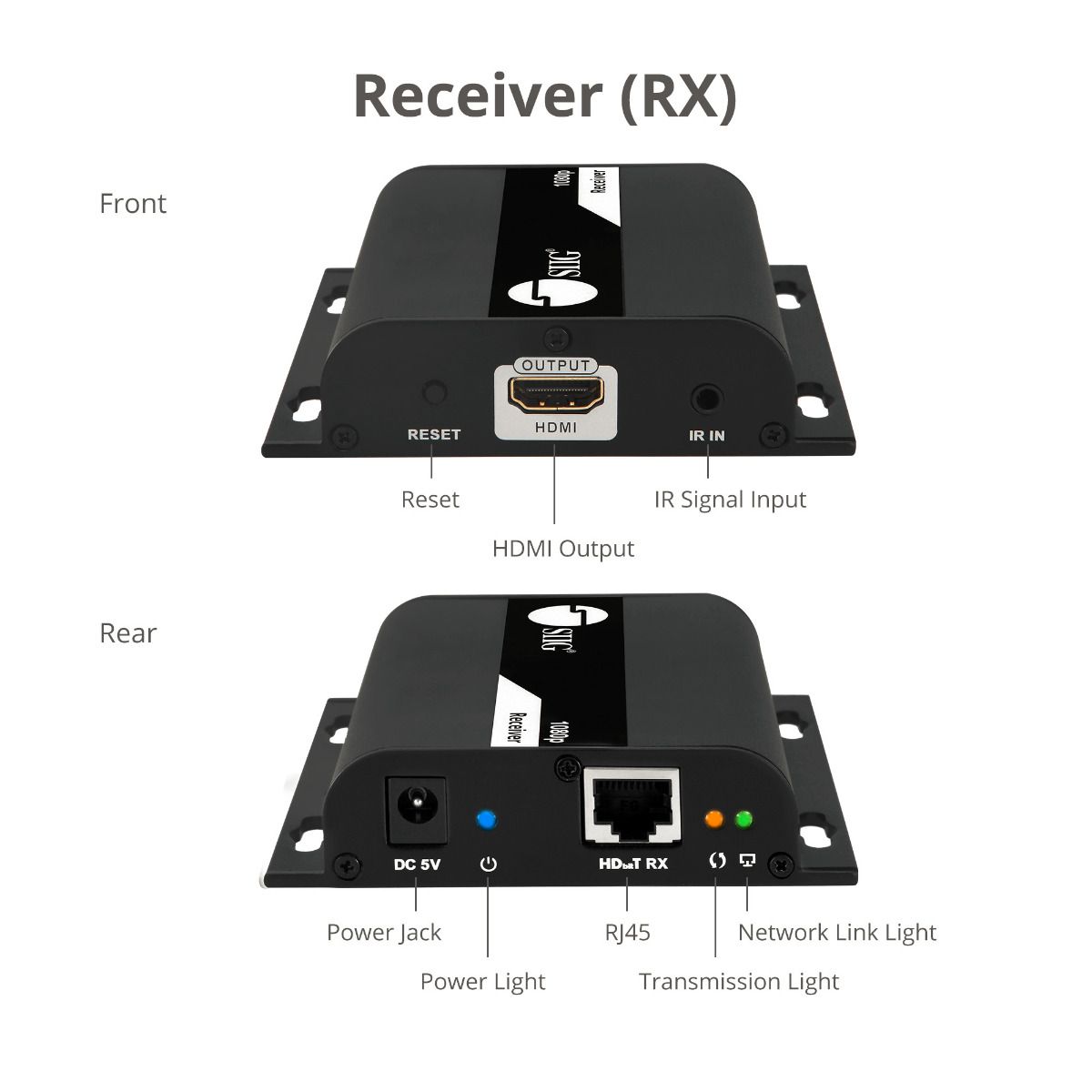

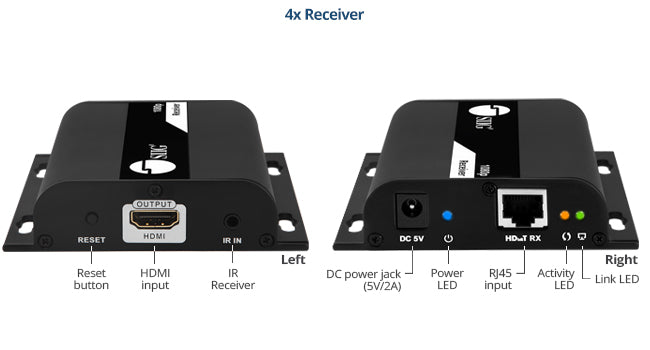

        • Receiver Front and Back

          - 8x 19-pin, HDMI, Female (output)
          - 8x 3.5mm infrared jack, IR receiver (input)
          - 8x 8-pin, RJ45 (input)
          - 8x Reset button
          - 8x DC power jack, 5V/1A
        1x8 HDMI Splitter, Over IP Extender Kit, 1080p 60Hz, 120m
        View details
        1x8 4K 60Hz HDMI Extender Splitter Over Cat6 with Loopout, IR, ARC & RS-232 - Up to 230ft (70m) - Near Zero Latency
        View details
        8-Port HDMI Splitter Over Cat6 Extender with IR - 40M
        View details
        1x4 HDMI Splitter, Over IP Extender Kit, 1080p 60Hz, 120m
        View details
        4-Port HDMI Splitter over Cat6 Extender with IR - 40m
        View details
        SKU
        SKU
        CE-H26W11-S1
        CE-H27B11-S1
        CE-H24811-S1
        CE-H26V11-S1
        CE-H23U11-S1
        Connection port
        Connection port
        9x HDMI, 9x 3.5mm, 16x RJ45
        6x HDMI, 10x 3.5mm, 8x RJ45, 5x Power Jack, 5x 3-pin RS-232, 4x S/PDIF
        9x HDMI, 9x 3.5mm, 16x RJ45, 9x Power Jack
        5x HDMI, 5x 3.5mm, 8x RJ45
        5x HDMI, 5x 3.5mm, 8x RJ45, 5x Power Jack
        Data Transfer (Max)
        Data Transfer (Max)
        10.2Gbps
        18Gbps
        6.75Gbps
        10.2Gbps
        6.75Gbps
        Additional function
        Additional function
        IR
        IR, Reset, EDID, RS-232, Audio Extractor
        IR, DIP Switch, Reset
        IR
        IR, DIP Switch, Reset
        Housing material
        Housing material
        Metal
        Metal
        Metal
        Metal
        Metal
        Color
        Color
        Black
        Black
        Black
        Black
        Black
        Dimensions
        Dimensions
        TX:11.81” (W) x 1.18” (H) x 4.37" (D) (30 cm x 3 cm x 11.10 cm) RX: 3.81” (W) x 0.93” (H) x 3.70" (D) (9.68 cm x 2.36 cm x 9.4 cm)
        TX: 10.39” (W) x 0.91” (H) x 4.72" (D) (26.39 cm x 2.31 cm x 11.99 cm) RX: 4.15" (W) x 0.79" (H) x 4.04" (D) (10.54 cm x 2 cm x 10.26 cm)
        TX:10.87" (W) x 0.91" (H) x 3.82" (D) (27.61 cm x 2.31 cm x 9.7 cm) RX:2.81" (W) x 0.98" (H) x 2.64" (D) (7.14 cm x 2.49 cm x 6.71 cm)
        TX: 9.92” (W) x 0.98” (H) x 3.82" (D) (25.20 cm x 2.49 cm x 9.70 cm) RX: 3.81” (W) x 0.93” (H) x 3.70" (D) (9.68 cm x 2.36 cm x 9.40 cm)
        TX:7.48" (W) x 0.94" (H) x 3.74" (D)(19 cm x 2.88 cm x 9.5 cm) RX:2.83" (W) x 0.98" (H) x 2.60" (D) (7.19 cm x 2.49 cm x 6.6 cm)
        Weight
        Weight
        TX: 1.81 lbs RX: 0.33 lbs
        TX: 1.6 lbs RX: 0.54 lbs
        TX: 1.33 lbs RX: 0.19 lbs
        TX: 1.34 lbs RX: 0.33 lbs
        TX: 0.93 lbs RX: 0.20 lbs
        Mountable
        Mountable
        Yes
        Yes
        Yes
        Yes
        Yes
        Certification/ Standards
        Certification/ Standards
        FCC / CE / RoHS
        FCC / CE / RoHS
        FCC / CE / RoHS
        FCC / CE / RoHS
        FCC / CE / RoHS
        Warranty
        Warranty
        2 years
        2 years
        2 years
        2 years
        2 years
        Country of Origin
        Country of Origin
        China
        China
        China
        China
        China
        Resolution
        Resolution
        Up to 1080p 60Hz
        4K60Hz
        1080p 60Hz
        Up to 1080p 60Hz
        1080p 60Hz
        Audio spec
        Audio spec
        2ch
        PCM 2.0, 5.1, 7.1, Dolby, DTS
        2.1, 7.1ch, PCM, DTS, AC3 audio
        2ch
        2.1, 7.1ch, PCM, DTS, AC3 audio
        IR function
        IR function
        Yes
        Yes
        Yes
        Yes
        Yes
        Remote control
        EDID button
        EDID button
        -
        Yes
        Yes
        -
        Yes
        Distance
        Distance
        Up to 120M
        Up to 70M
        Up to 40M
        Up to 120M
        Up to 40M
        Antenna spec
        Reset key
        Reset key
        Yes
        Yes
        Yes
        Yes
        Yes
        Bandwidth
        Bandwidth
        10.2Gbps
        18Gbps
        6.75Gbps
        10.2Gbps
        6.75Gbps
        Power Output (Max)
        Power Indicator
        Power Indicator
        Yes
        Yes
        Yes
        Yes
        Yes
        Protection
        Protection
        ESD
        ESD
        ESD
        ESD
        ESD
        Protocol
        Protocol
        HDBitT
        Passthrough
        Passthrough
        HDBitT
        Passthrough
        Power Adapter
        Power Adapter
        TX: 5V/2A RX: 5V/1A
        TX: 12V/2A RX: 5V/2A
        TX: 12V/2A RX: 5V/1A
        TX: 5V/2A RX: 5V/1A
        TX: 5V/3A RX: 5V/1A
        Spec
        Spec
        HDMI 1.3, HDCP 1.2
        HDMI 2.0, HDCP 2.2
        HDMI 1.2, HDCP 1.2
        HDMI 1.3, HDCP 1.2
        HDMI 1.2, HDCP 1.2
