4K120Hz HDMI Extender with IR - up to 132ft (40M) - EDID - Nearly zero latency
HDMI Extender
4K120Hz
Bi-directional IR
EDID Slide Switch
Up to 132ft (40m)
Sale price
$249.99
Regular price
$329.99
Unit price
/
Unavailable
Shipping calculated at checkout.
4K120Hz HDMI Extender with IR - up to 132ft (40M) - EDID - Nearly zero latency is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
HDMI Extender
HDMI Extender
4K Resolution
4K Resolution
Edid Switch
Edid Switch
Multiple Features
Multiple Features
Hassle-Free Installation
Hassle-Free Installation
4K120Hz HDMI Extender with IR - up to 132ft (40M) - EDID - Nearly z...
Estimated shipping by June 20, 2026
Sale price
$249.99
Regular price
$329.99
Unit price
/
Unavailable
-
45 Days Free Return
-
2 Years Warranty
-
Lifetime Technical Support
| Facet | |||||
|---|---|---|---|---|---|
| SKU | |||||
| SKU | |||||
| Connection port | |||||
| Connection port | |||||
| Data Transfer (Max) | |||||
| Data Transfer (Max) | |||||
| Additional function | |||||
| Additional function | |||||
| Housing material | |||||
| Housing material | |||||
| Color | |||||
| Color | |||||
| Dimensions | |||||
| Dimensions | |||||
| Weight | |||||
| Weight | |||||
| Mountable | |||||
| Mountable | - | ||||
| Certification/ Standards | |||||
| Certification/ Standards | |||||
| Warranty | |||||
| Warranty | |||||
| Country of Origin | |||||
| Country of Origin | |||||
| Resolution | |||||
| Resolution | |||||
| Audio spec | |||||
| Audio spec | |||||
| IR function | |||||
| IR function | |||||
| Remote control | |||||
| EDID button | |||||
| EDID button | - | - | - | - |
|
| Distance | |||||
| Distance | |||||
| Antenna spec | |||||
| Reset key | |||||
| Reset key | |||||
| Bandwidth | |||||
| Bandwidth | |||||
| Power Output (Max) | |||||
| Power Indicator | |||||
| Power Indicator | |||||
| Protection | |||||
| Protection | |||||
| Protocol | |||||
| Protocol | - | ||||
| Power Adapter | |||||
| Power Adapter | |||||
| Spec | |||||
| Spec | |||||
| Video | |
| HDMI | 1x input, 1x output |
| Standard | HDCP 2.3 / 2.2 / 1.4 compliant |
| Transfer Rate | Up to 32Gbps (8Gbps per data channel) |
| Resolution | 4096 x 2160 60Hz / 50Hz / 30Hz / 25Hz / 24Hz 3840 x 2160 120Hz / 60Hz / 50Hz / 30Hz / 25Hz / 24Hz 1920 x 1080 120Hz / 60Hz / 50Hz / 30Hz / 25Hz / 24Hz 1280 x 720p 60Hz / 50Hz 1024 x 576p 50Hz 640 x 480p 60Hz |
| Color Deep | 36-bit (12-bit per channel) |

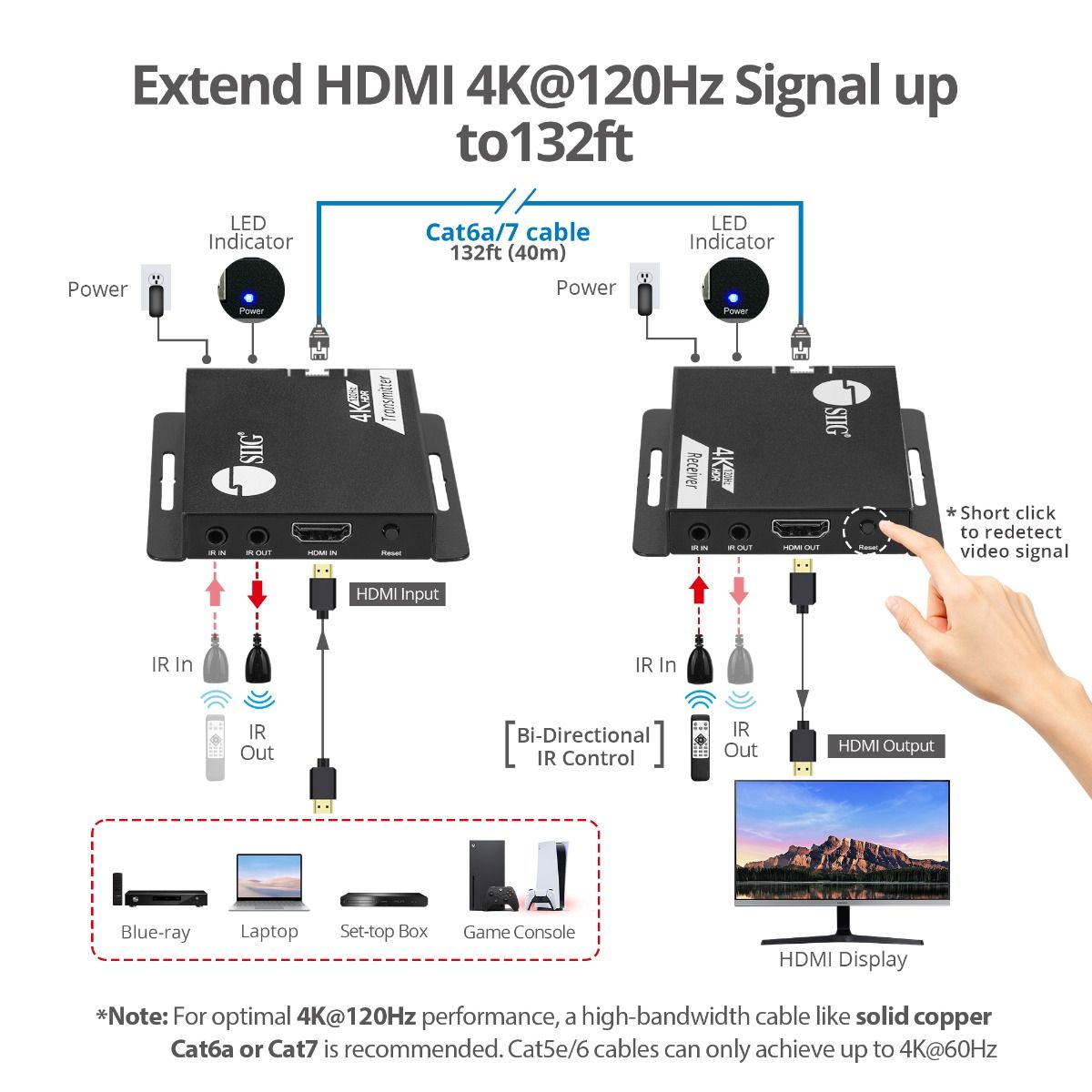

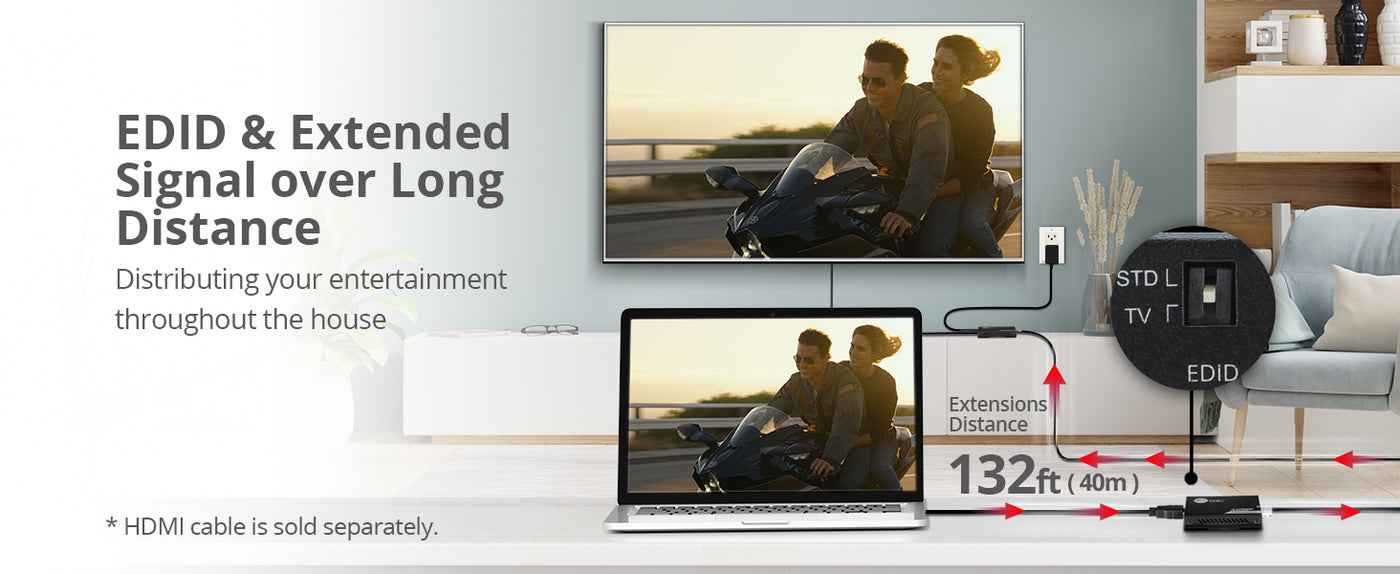

| Transmission Distance | up to 132ft (40m) via Cat6a/7 cable |

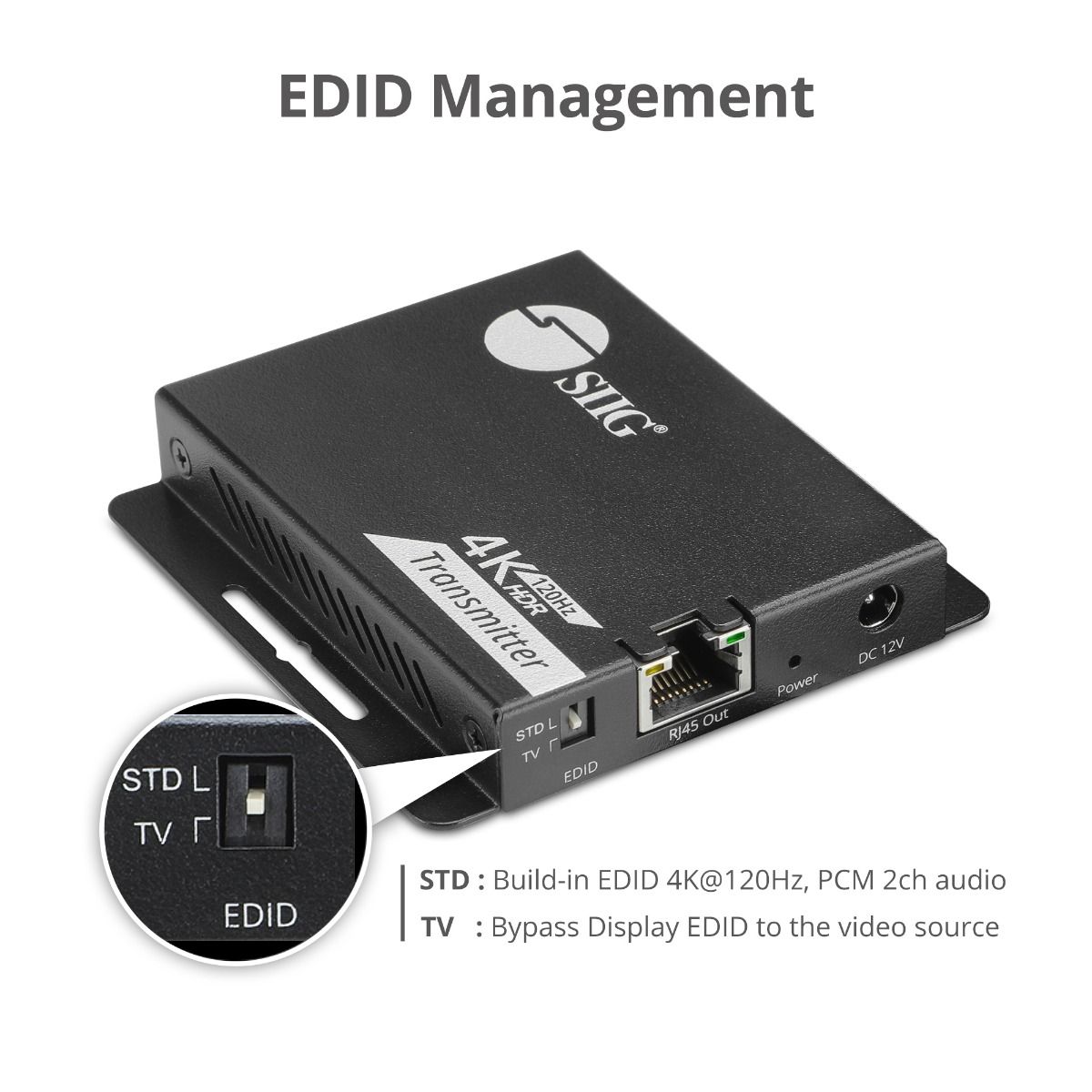

| EDID Switch | Select STD mode or pass through to TV EDID mode |
| Audio | |
| HDMI | Dolby 5.1/7.1 and Atmos (need to switch to TV EDID mode), DTS 5.1/7.1, and PCM 2/5.1/7.1 |
| TMDS Character Rate | Up to 800MHz |

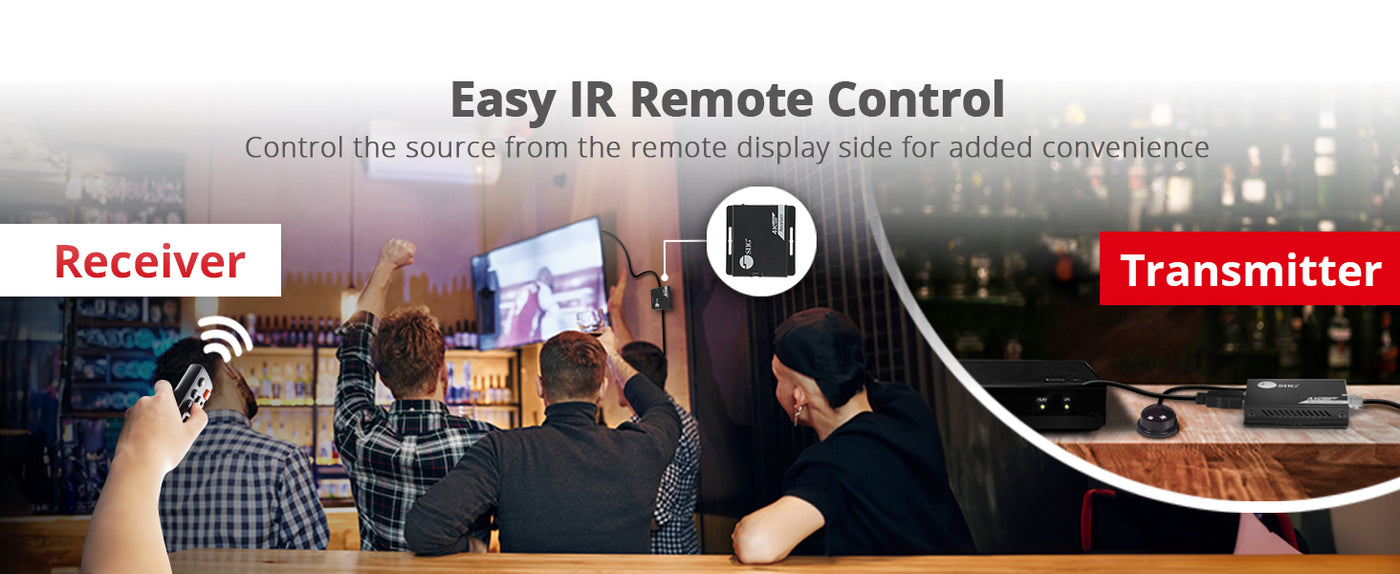

| IR Signal | Built Bi-directional IR remote control, allows you to control the HDMI source device at the remote Full frequency: 20KHz to 60KHz |
| Power Adapter | |
| Input | AC 100-240V/50-60Hz |
| Output | DC 12V/1A |
| UL Listed | E470034/Level: VI |
| Interface | |

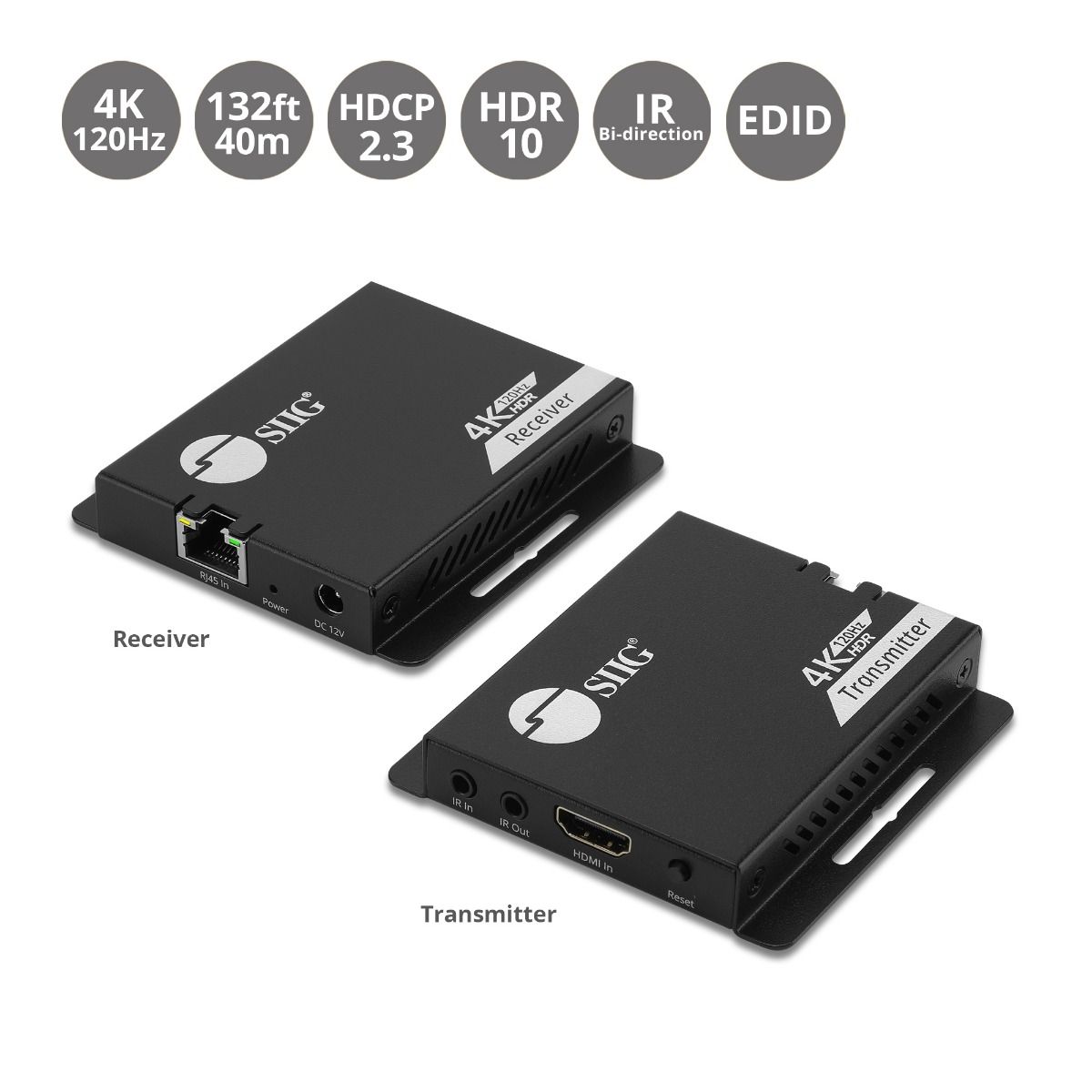

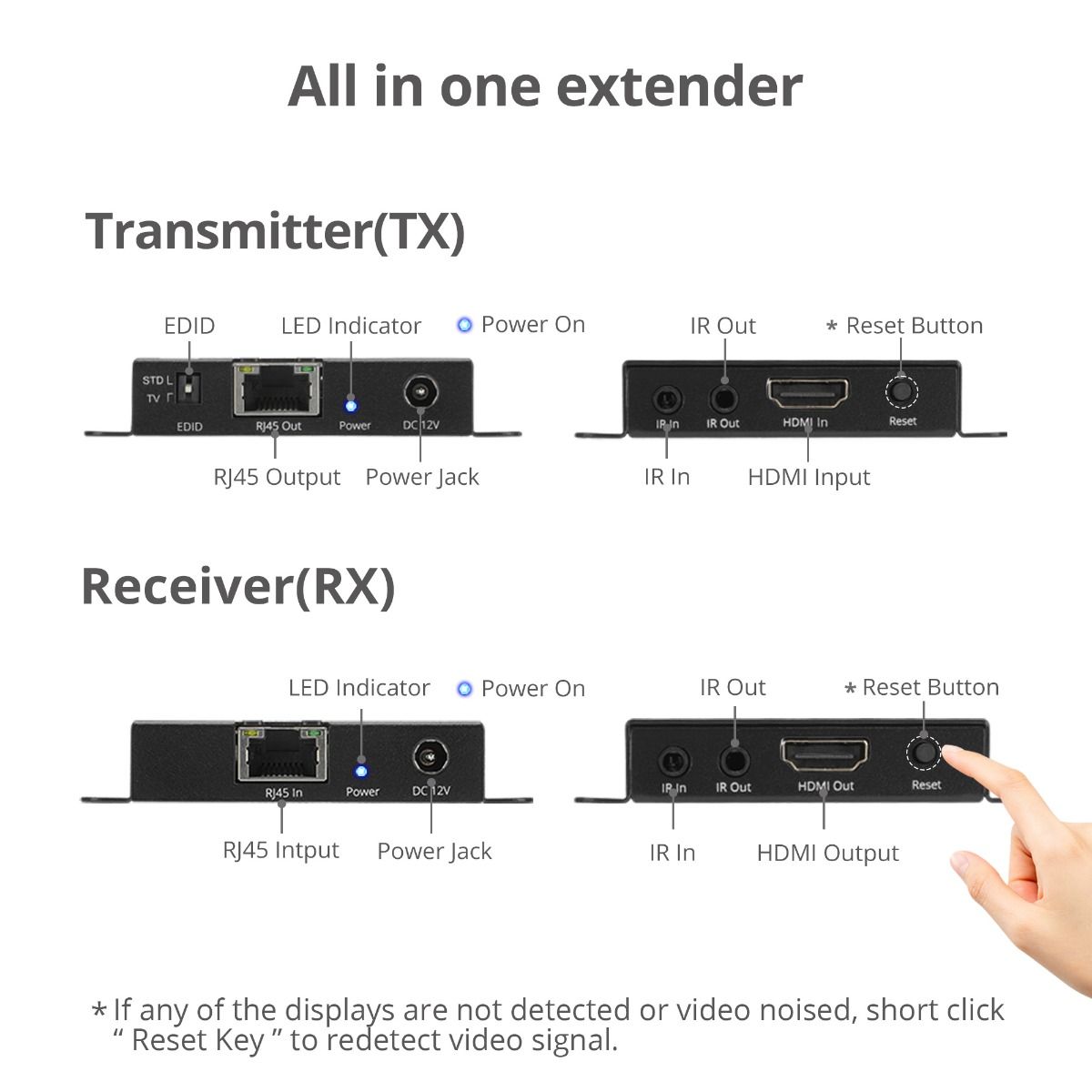

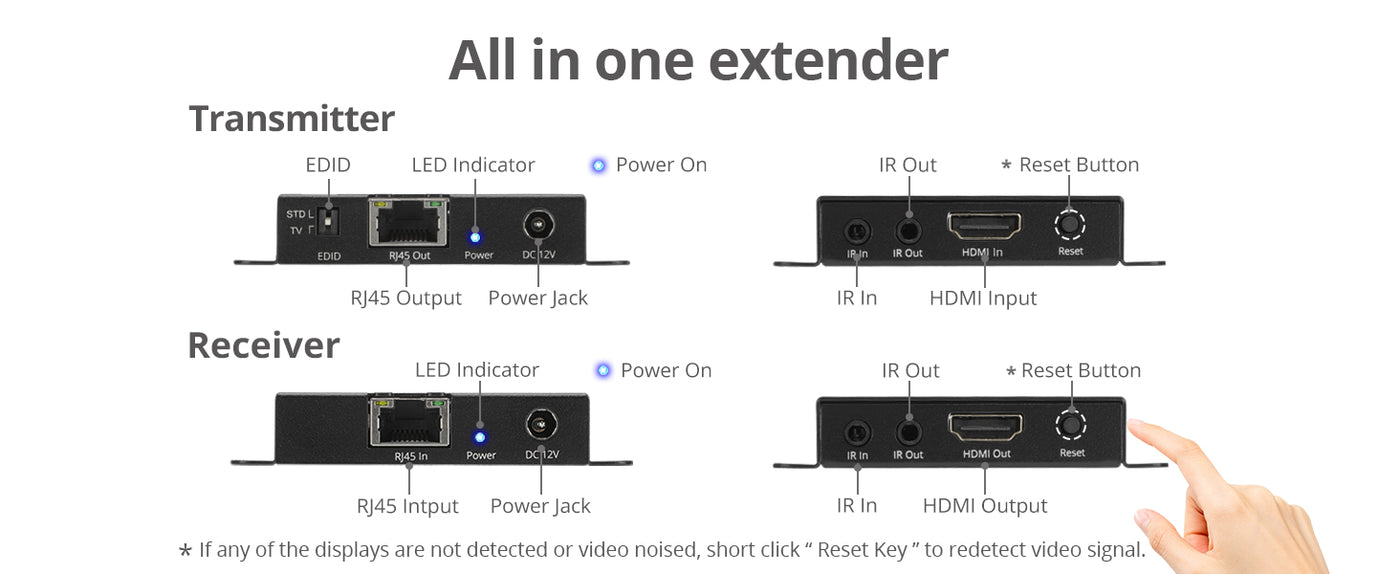

| Transmitter (TX) | 1x 19-pin, HDMI, female (input) 1x 3.5mm infrared jack, IR emitter (output) 1x 3.5mm infrared jack, IR receiver (input) 1x 8-pin, RJ45 (output) 1x 2-pin, DIP switch for EDID switch, STD/TV 1x Reset button 1x DC power jack, 12V/1A |
| Receiver (RX) | 1x 19-pin, HDMI, female (output) 1x 3.5mm infrared jack, IR emitter (input) 1x 3.5mm infrared jack, IR receiver (output) 1x 8-pin, RJ45 (input) 1x Reset button 1x DC power jack, 12V/1A |
| Product | |
| Transmitter Unit (TX) | |

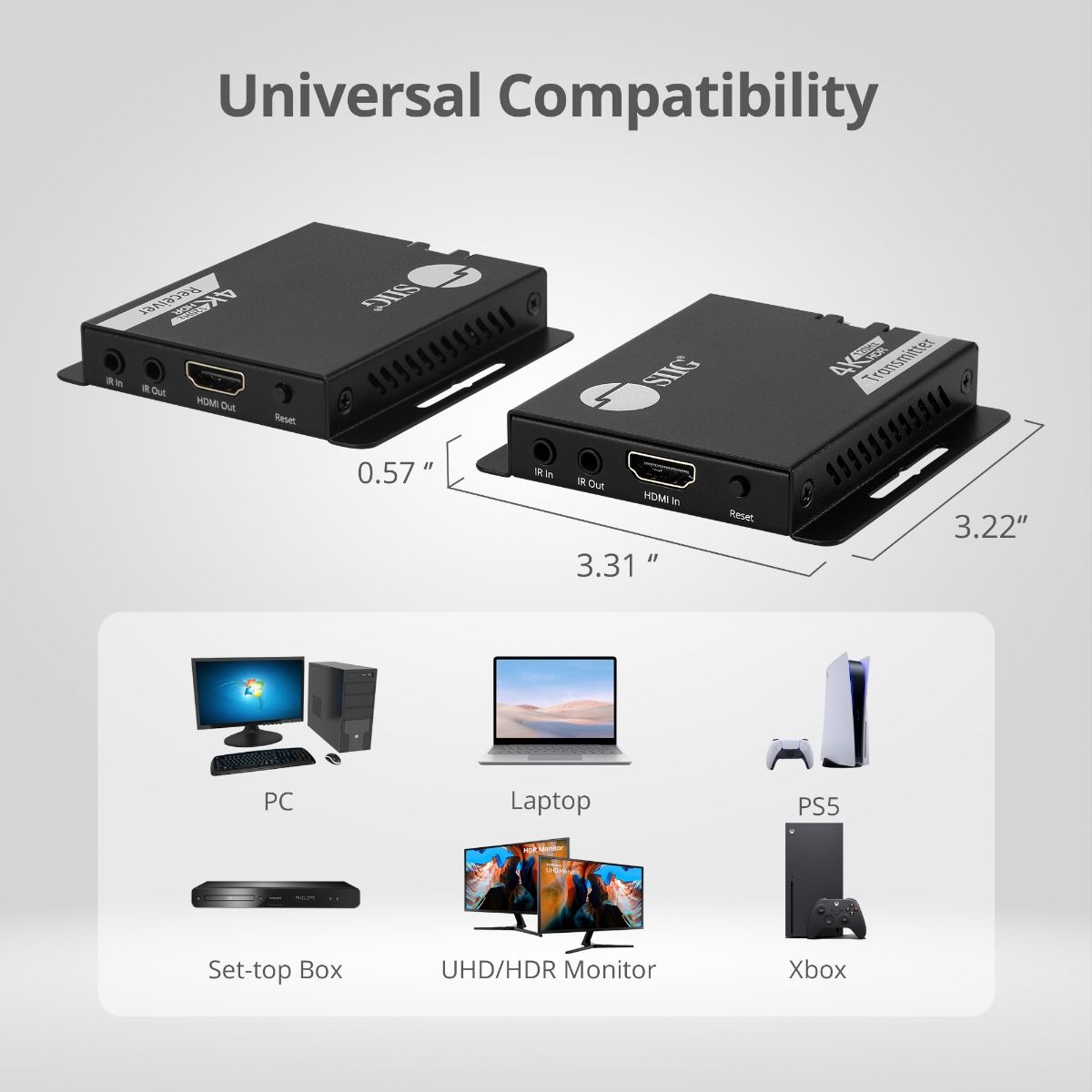

| Dimensions (L) x (H) x (W) | 3.27″ x 3.23″ x 0.57″ 8.31 cm x 8.20 cm x 1.45 cm |
| Weight | 0.27 lbs (0.12 kg) |
| Color | Black |

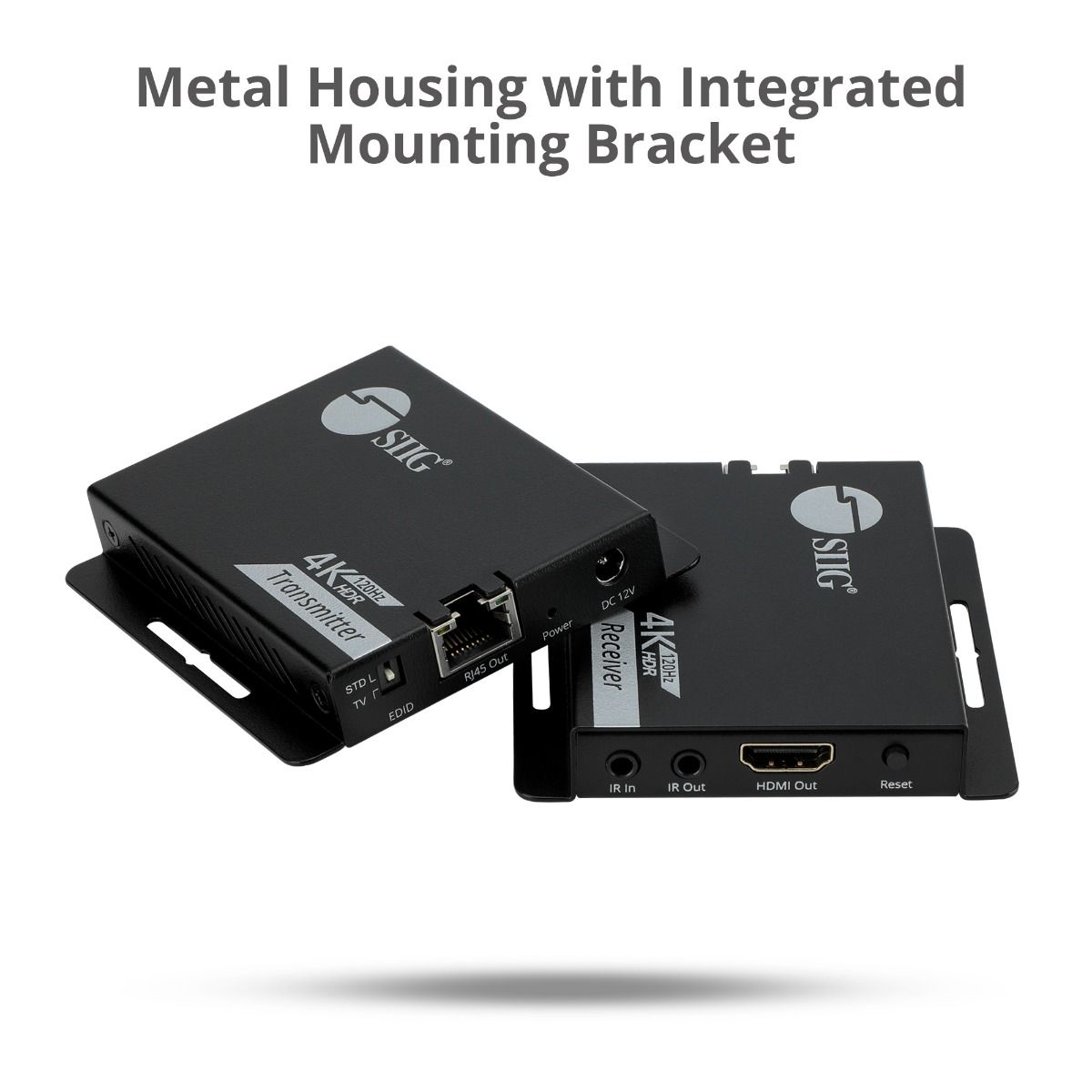

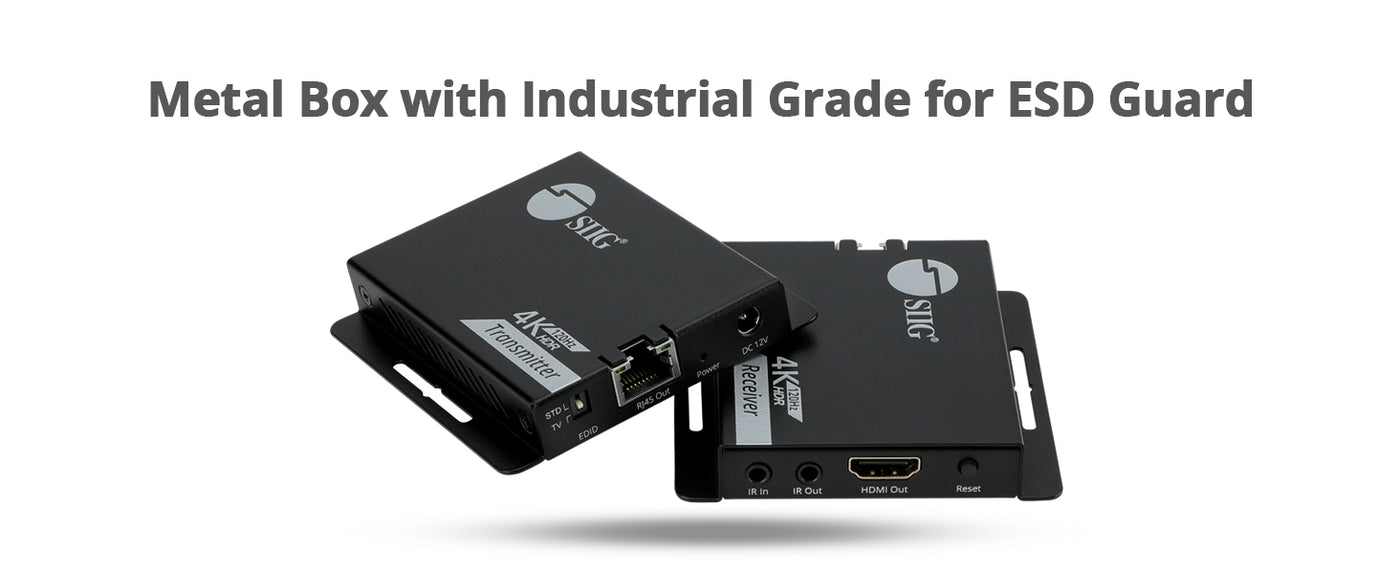

| Housing Material | Metal |
| Receiver Unit (RX) | |
| Dimensions (L) x (H) x (W) | 3.27″ x 3.23″ x 0.57″ 8.31 cm x 8.20 cm x 1.45 cm |
| Weight | 0.27 lbs (0.12 kg) |
| Color | Black |
| Housing Material | Metal |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 8.74″ x 1.97” x 5.67″ 22.20 cm x 5.00 cm x 14.40 cm |
| Weight | 1.25 lbs (0.57 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 19.69″ x 11.22″ x 18.31″ 50.01 cm x 28.50 cm x 46.51 cm |
| Weight | 39.60 lbs (17.96 kg) |
| Quantity | 30 pcs/ctn |

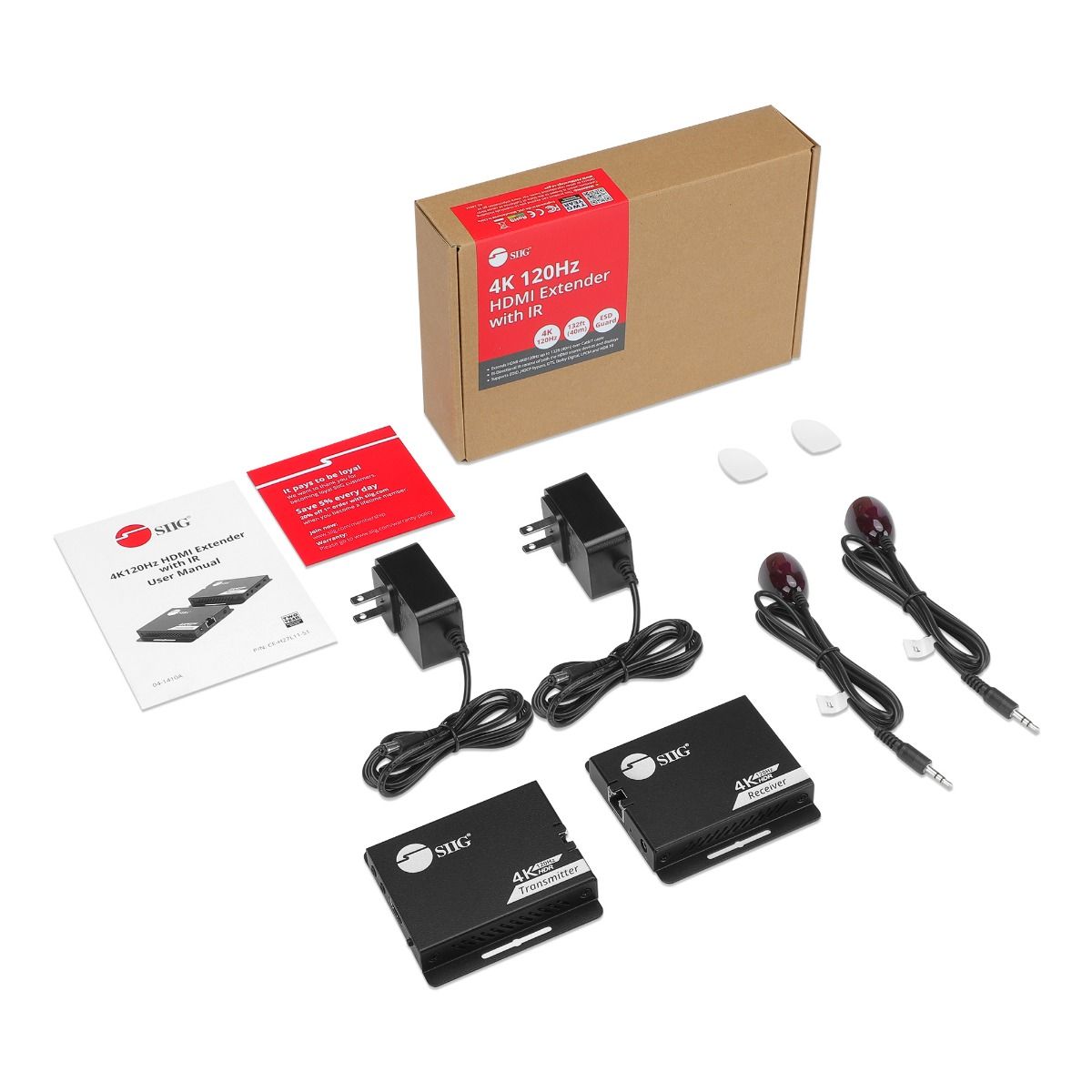

| Package Contents | 1x 4K120Hz HDMI Extender with IR 1x 3.5mm IR emitter extension cable 1x 3.5mm IR receiver extension cable 2x DC power adapter, 12V/1A 1x User reference guide |
| Environmental Conditions | |
| Operating Temperature | 32° to 122° F |
| Storage Temperature | 14° to 140° F |
| Relative Humidity | 5% to 90% RH (non-condensing) |
| Certifications/Standards | FCC, CE, RoHS, REACH |
| UPC Code | 662774-045986 |
| Warranty | 2 years limited |
| Country of Origin | China |
