Extender | SKU: CE-H3EX01-S1

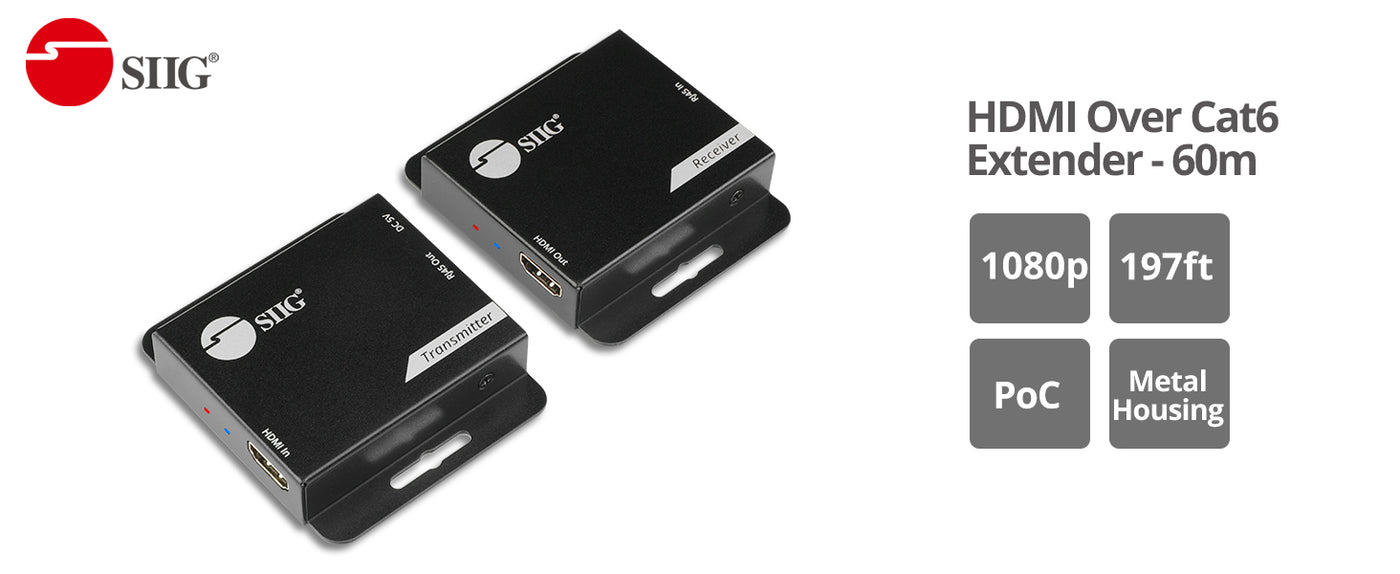

HDMI Over Cat6 Extender - 60m - 1080p - PoC - Metal Housing

HDMI Extender
1080p
POC
HDCP 1.4
Up to 197ft (60m)
$52.99
Shipping calculated at checkout.
Product Features

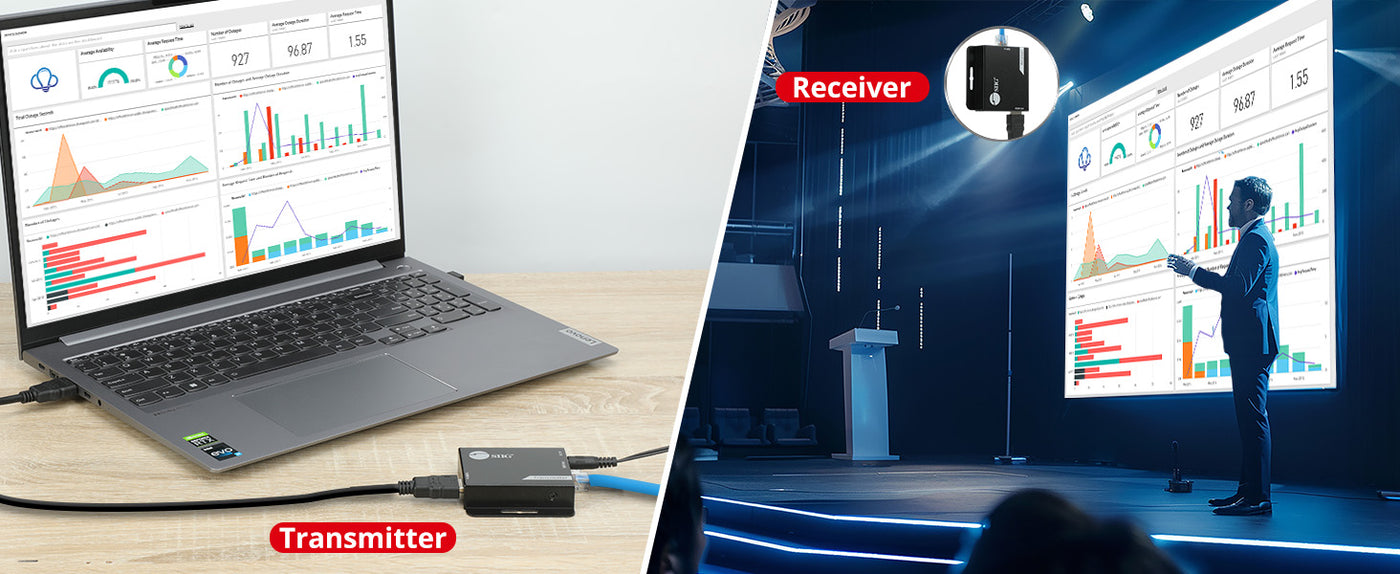

Signal Extending

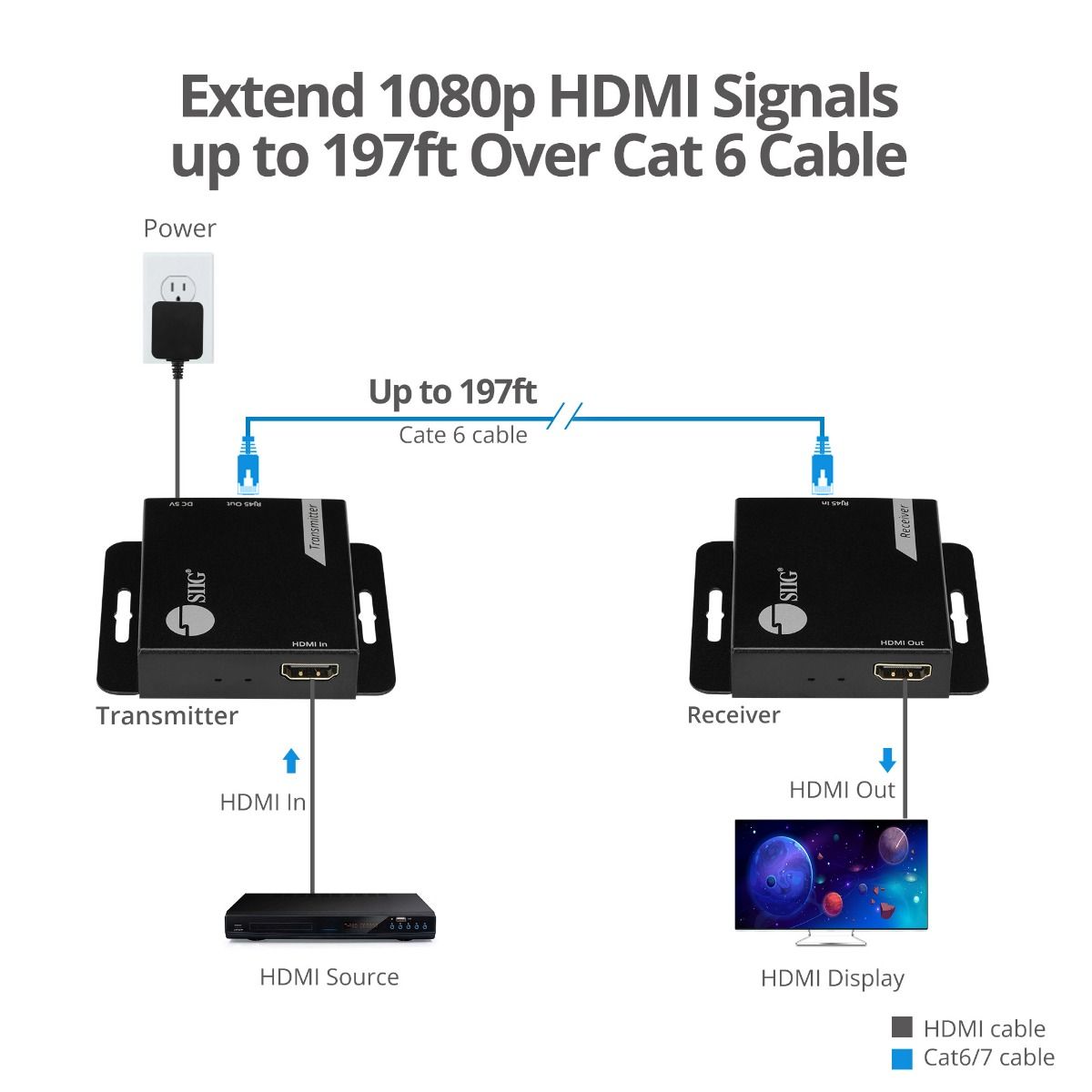

Easily extend HDMI audio/video signals over a single Cat6 network cable, while maintaining signal strength and superior quality and extends transmission distance up to 197ft (60m)

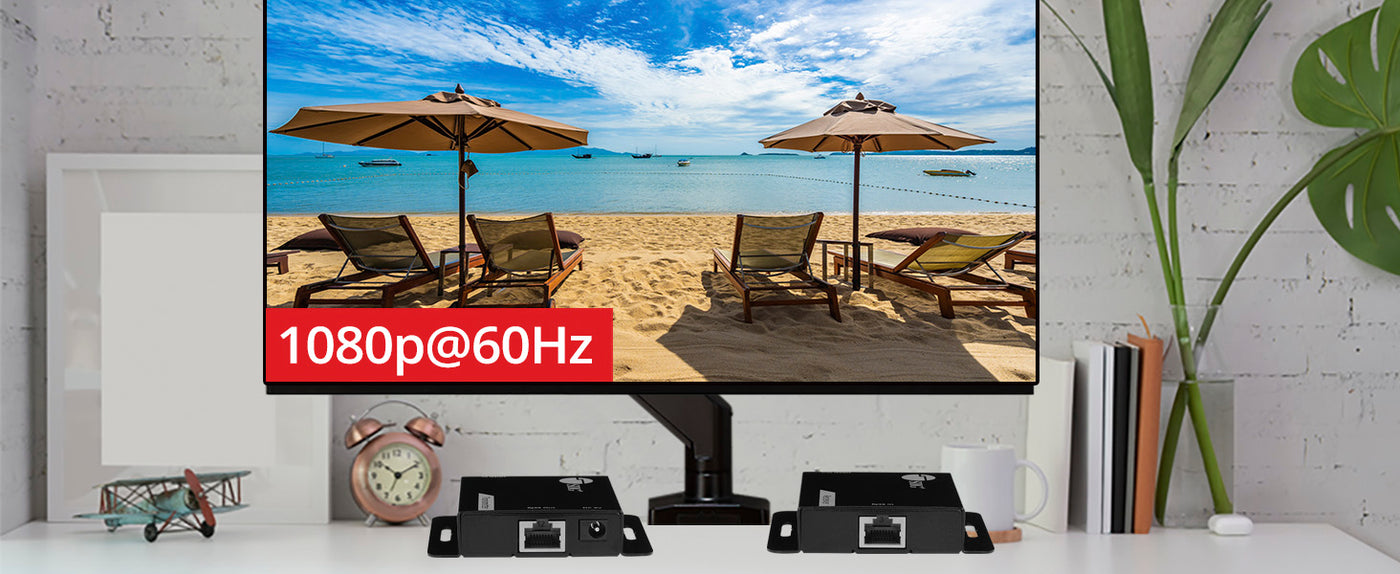

Video Resolution

Supports video resolution up to 1080p (1920x1080) @60Hz YUV 4:4:4 8-bit, HDCP 1.4 to deliver a clear picture quality, supports 3D video formats

High Performance

Offers a true 10.2Gbps video bandwidth and supports LPCM 2.0 audio, delivering high-quality sound and video

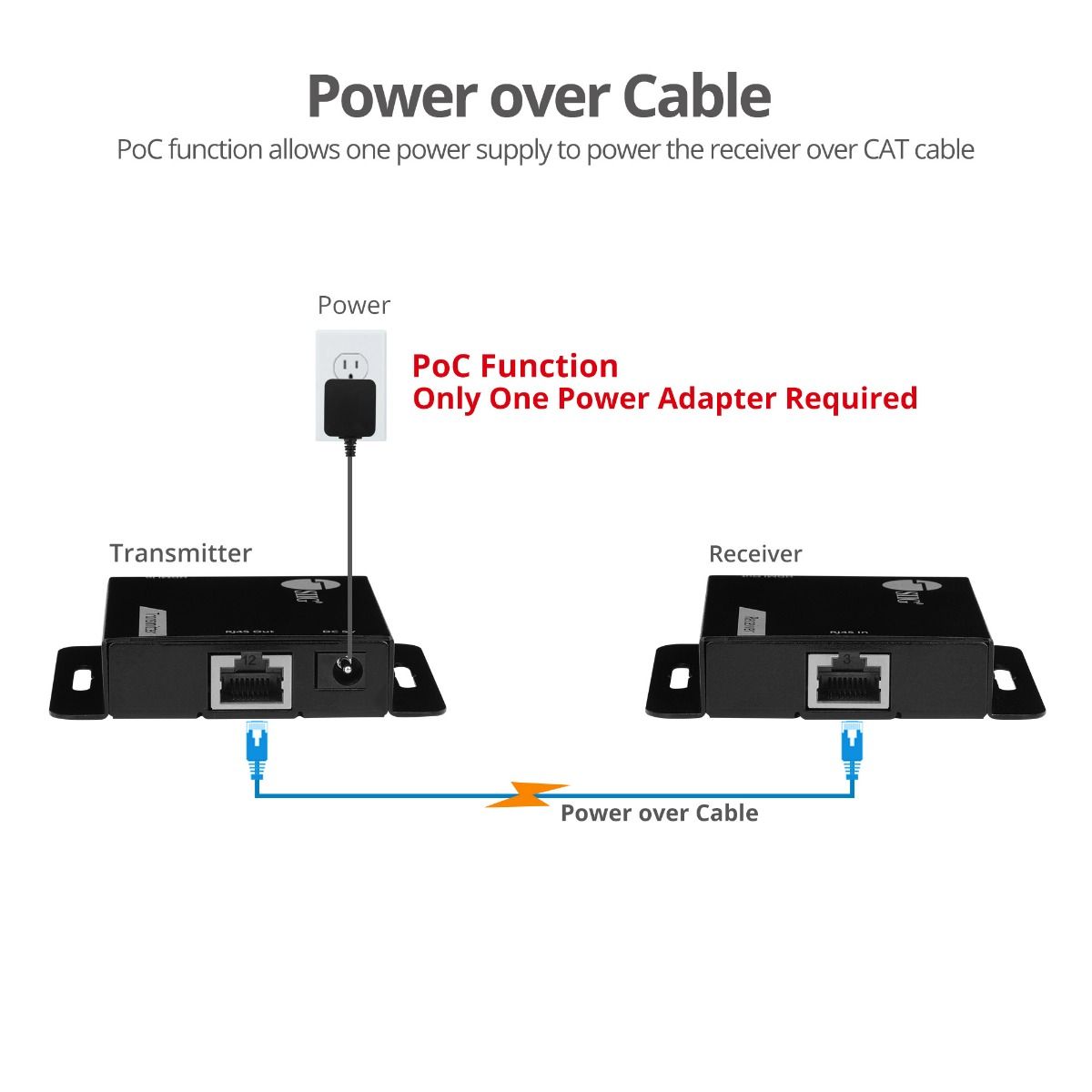

Power Over Cable (PoC) Technology

Allowing a single power supply connected to the transmitter (TX) to power the receiver (RX) over the Cat 6/7 cable, simplifies installation and reduces the need for additional power outlets or adapters at the receiver end, saving wiring space and cost

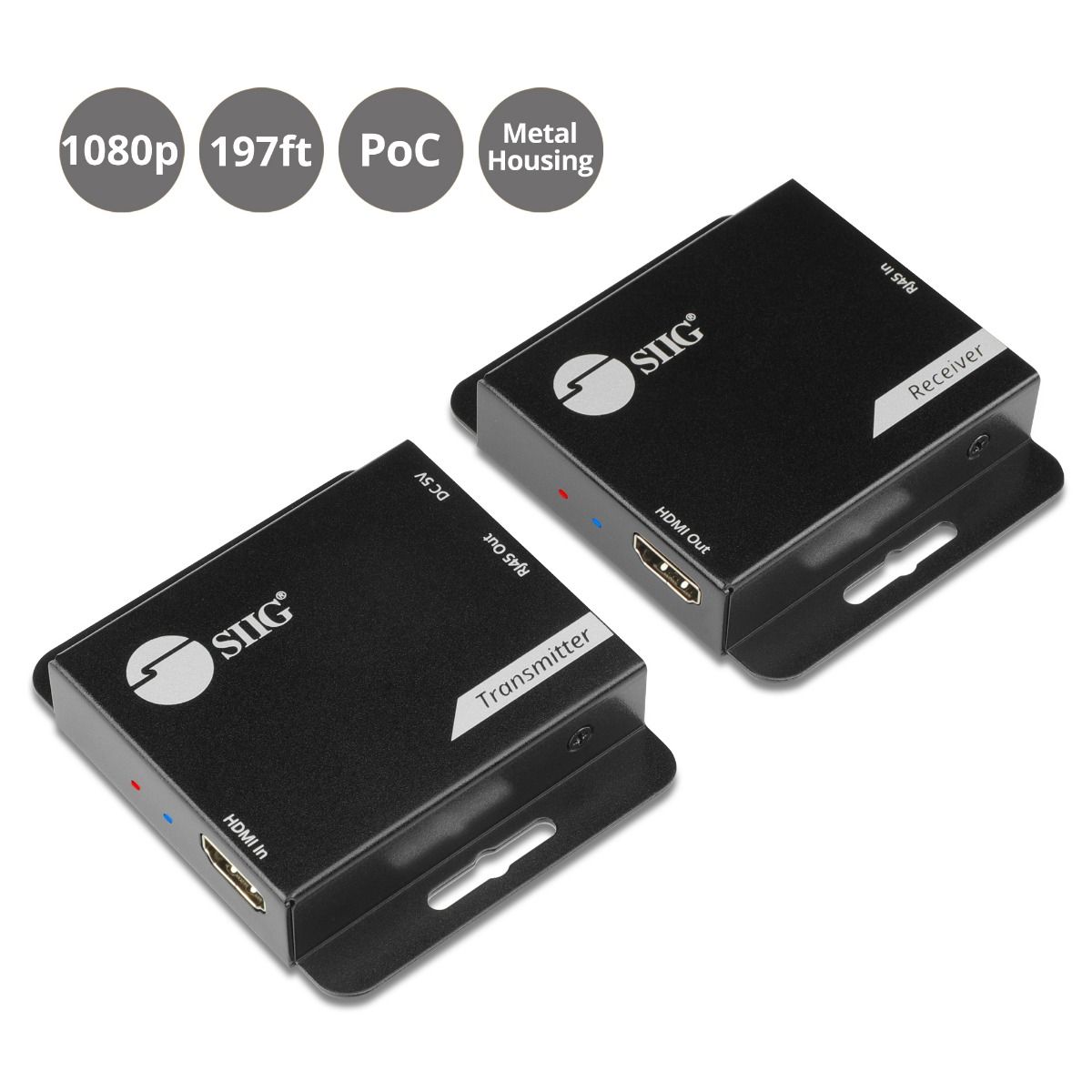

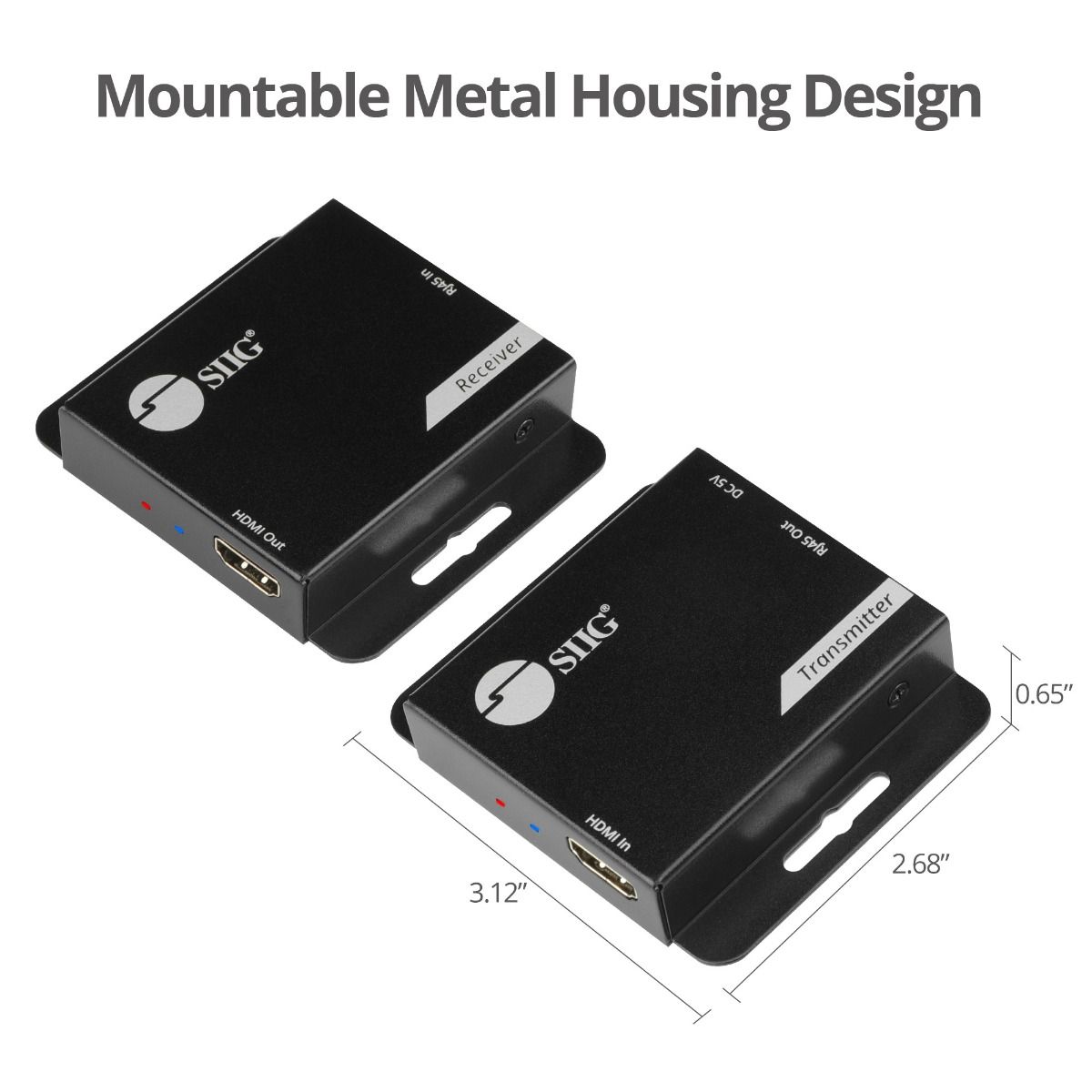

Mountable Metal Housing Design

Features a mountable metal housing design for durability and ease of installation. The robust construction ensures long-term reliability and performance, even in demanding environments

  • 45 Days Free Return

  • 2 Years Warranty

  • Lifetime Technical Support

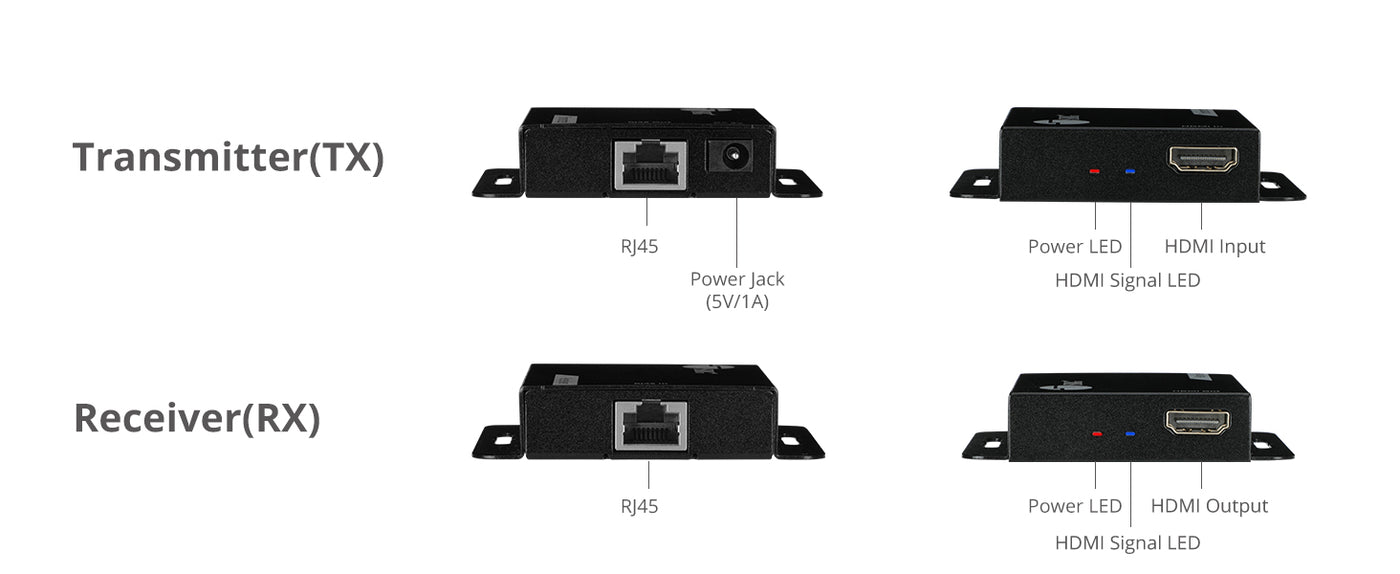

SIIG HDMI Over Cat6 Extender

    Extends HDMI audio/video signals up to 197ft over Cat6 cable. Supports 720p/1080i/1080p at 60Hz resolutions, PoC, HDCP1.4, 3D, Mountable Metal Housing Design.

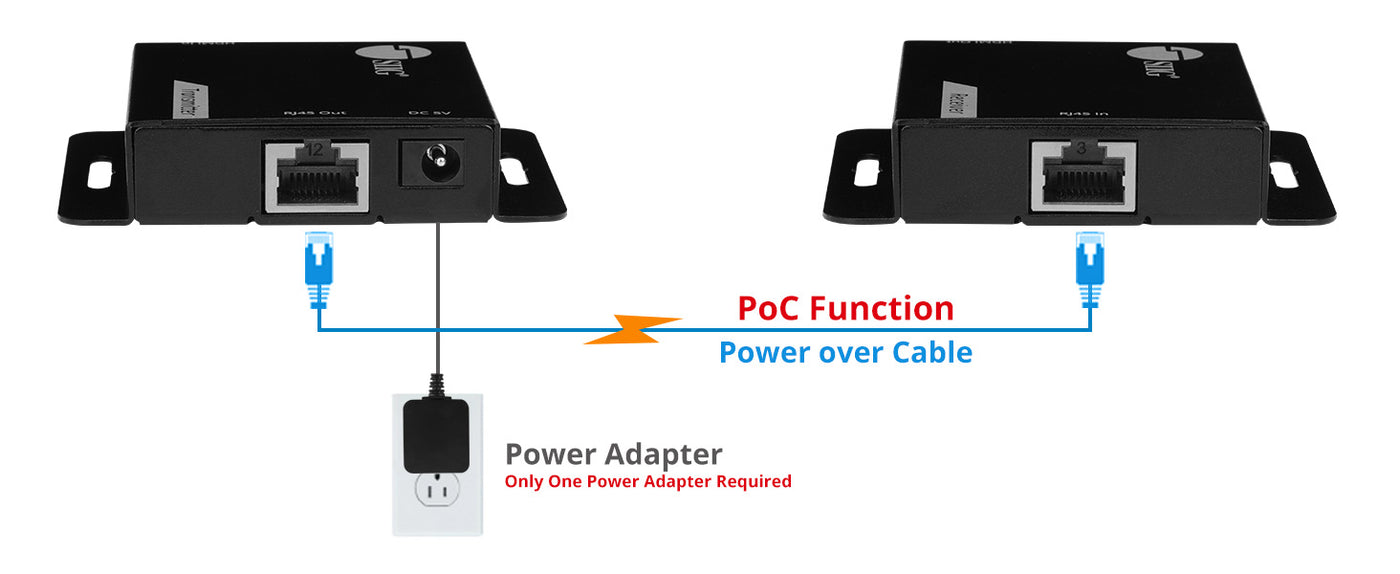

    Power over Cable (PoC)

      Utilizes Power over Cable technology, allowing a single power supply connected to the transmitter (TX) to power the receiver (RX) over the Cat 6/7 cable, simplifies installation and reduces the need for additional power outlets or adapters at the receiver end, saving wiring space and cost.
      HDMI Over Cat6 Extender - 60m - 1080p - PoC - Metal Housing
      View details

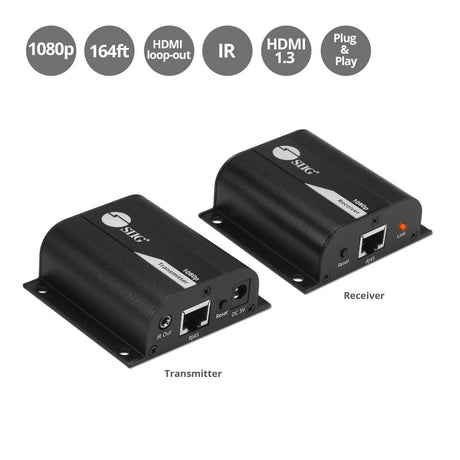

      Full HD HDMI Extender over Cat5e/6 with IR and local HDMI out - 164ft
      View details
      4K60Hz HDMI over Cat6 Extender with Loopout & IR - 50m
      View details

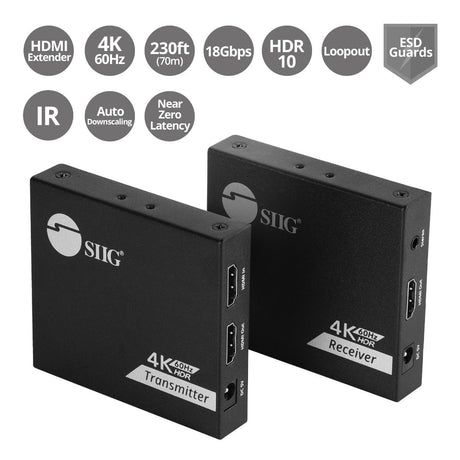

      4K 60Hz HDMI Over Cat6 Extender with Loopout & IR
      View details

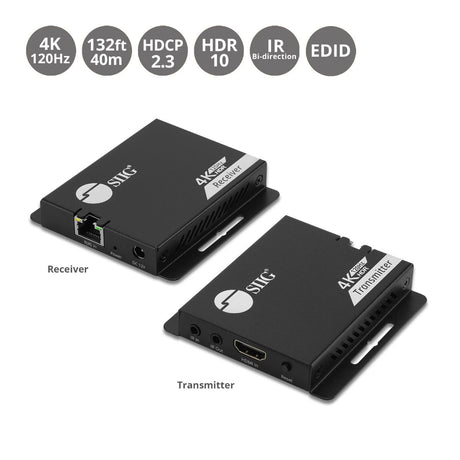

      4K120Hz HDMI Extender with IR - up to 132ft (40M) - EDID - Nearly zero latency
      View details
      SKU
      SKU
      CE-H3EX01-S1
      CE-H26011-S1
      CE-H27K11-S1
      CE-H27D11-S1
      CE-H27L11-S1
      Connection port
      Connection port

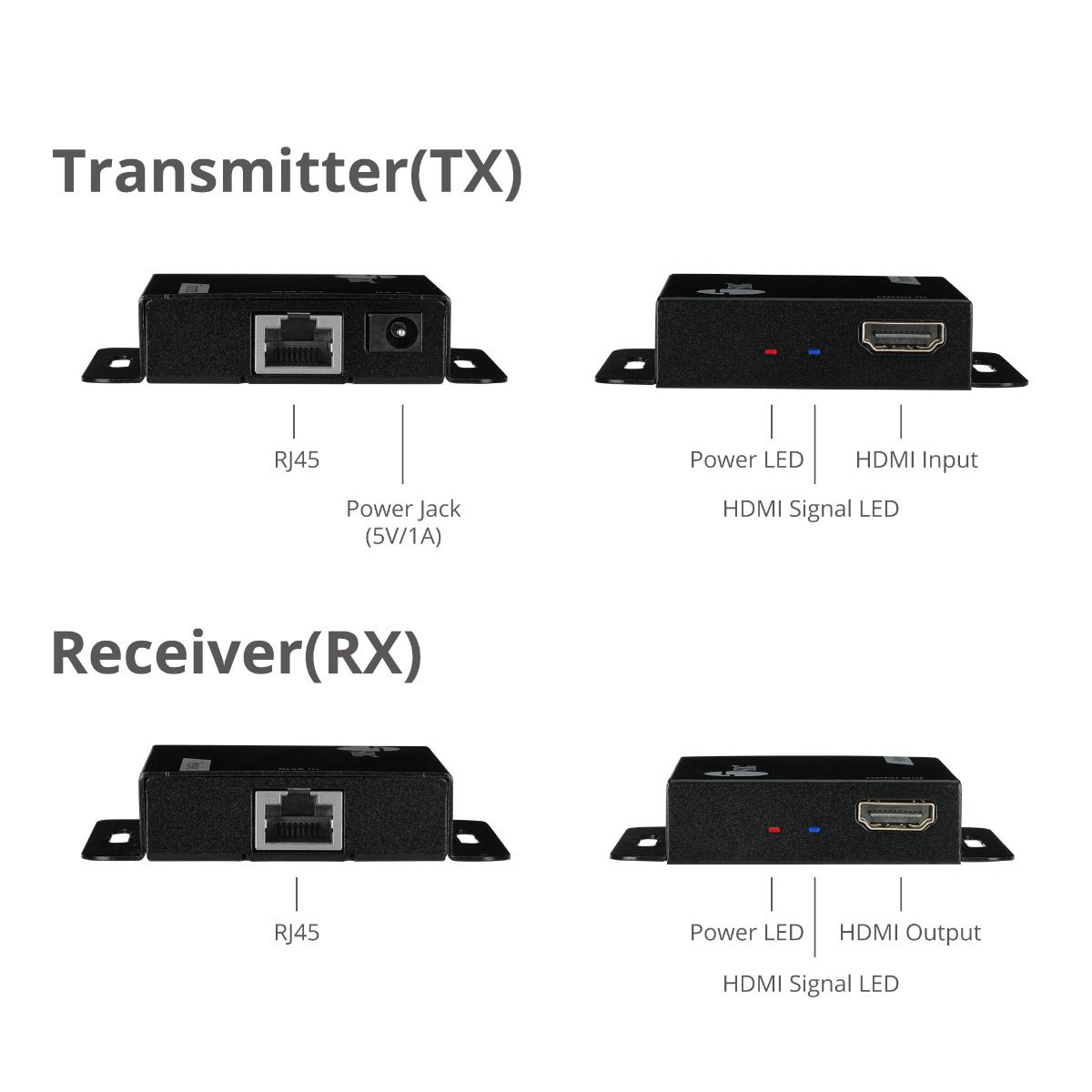

      2x HDMI, 2x RJ45
      3x HDMI, 2x 3.5mm, 2x RJ45, 2x Power Jack
      3x HDMI, 2x 3.5mm, 2x RJ45
      3x HDMI, 3x 3.5mm, 2x RJ45, 2x Power Jack
      2x HDMI, 4x 3.5mm, 2x RJ45, 2x Power Jack
      Data Transfer (Max)
      Data Transfer (Max)
      4.95Gbps
      10.2Gbps
      18Gbps
      18Gbps
      32Gbps
      Additional function
      Additional function
      PoC
      IR, Reset
      IR, Auto downscaling
      IR, Reset, Audio Extractor
      IR, EDID
      Housing material
      Housing material
      Metal
      Metal
      Metal
      Metal
      Metal
      Color
      Color
      Black
      Black
      Black
      Black
      Black
      Dimensions
      Dimensions
      TX/RX:3.12(W) x 0.65"(H) x 2.68"(D) (7.92 cm x 1.65 cm x 6.81 cm )
      TX/RX: 2.80” (W) x 0.97” (H) x 2.60" (D) (7.11 cm x 2.46 cm x 6.6 cm)
      TX/RX:2.95" (W) x 0.83" (H) x 2.36" (D) (7.49 cm x 2.11 cm x 5.99 cm)
      TX/RX: 3.35” (W) x 0.65” (H) x 2.97" (D) (8.51 cm x 1.65 cm x 7.54 cm)
      TX/RX:3.27” (W) x 0.57” (H) x 3.23" (D) (8.31 cm x 1.45cm x 8.20 cm )
      Weight
      Weight
      TX/RX:0.26 lbs
      TX/RX: 0.19 lbs
      TX/RX:0.29 lbs
      TX/RX: 0.30 lbs
      TX/RX:0.27 lbs
      Mountable
      Mountable
      Yes
      Yes
      -
      Yes
      Yes
      Certification/ Standards
      Certification/ Standards
      FCC / CE / RoHS
      FCC / CE / RoHS
      FCC / CE / RoHS
      FCC / CE / RoHS
      FCC / CE / RoHS
      Warranty
      Warranty
      2 years
      2 years
      2 years
      2 years
      2 years
      Country of Origin
      Country of Origin
      China
      China
      China
      China
      China
      Resolution
      Resolution
      Up to 1080p 60Hz
      1080p 60Hz
      Up to 4K60Hz
      4K60Hz
      Up to 4K120Hz
      Audio spec
      Audio spec
      2ch
      Up to 7.1ch
      Up to 7.1ch
      PCM 2.0, 5.1, 7.1, DTS
      Dolby, Atmos, DTS, PCM 2/5.1/7.1
      IR function
      IR function
      -
      -
      Yes
      Yes
      Yes
      Remote control
      EDID button
      EDID button
      -
      -
      -
      Yes
      -
      Distance
      Distance
      Up to 60M
      Up to 50M
      Up to 50M
      Up to 70M
      Up to 40M
      Antenna spec
      Reset key
      Reset key
      -
      Yes
      Yes
      Yes
      Yes
      Bandwidth
      Bandwidth
      4.95Gbps
      10.2Gbps
      18Gbps
      18Gbps
      32Gbps
      Power Output (Max)
      Power Indicator
      Power Indicator
      Yes
      Yes
      Yes
      Yes
      Yes
      Protection
      Protection
      ESD
      ESD
      Lightning, Surge, ESD
      ESD
      ESD
      Protocol
      Protocol
      Passthrough
      Passthrough
      Passthrough
      Passthrough
      -
      Power Adapter
      Power Adapter
      5V/1A
      TX/RX: 5V/1A
      5V/0.5A
      TX/RX: 5V/1A
      12V/1A
      Spec
      Spec
      HDMI 1.3, HDCP 1.4
      HDMI 1.3, HDCP 1.2
      HDMI 2.0, HDCP 2.2
      HDMI 2.0, HDCP 2.2
      HDMI 2.1, HDCP 2.3, HDCP 2.2, HDCP 1.4
