41 Years US Based Company
1 9
USB | SKU: CE-H28311-S1

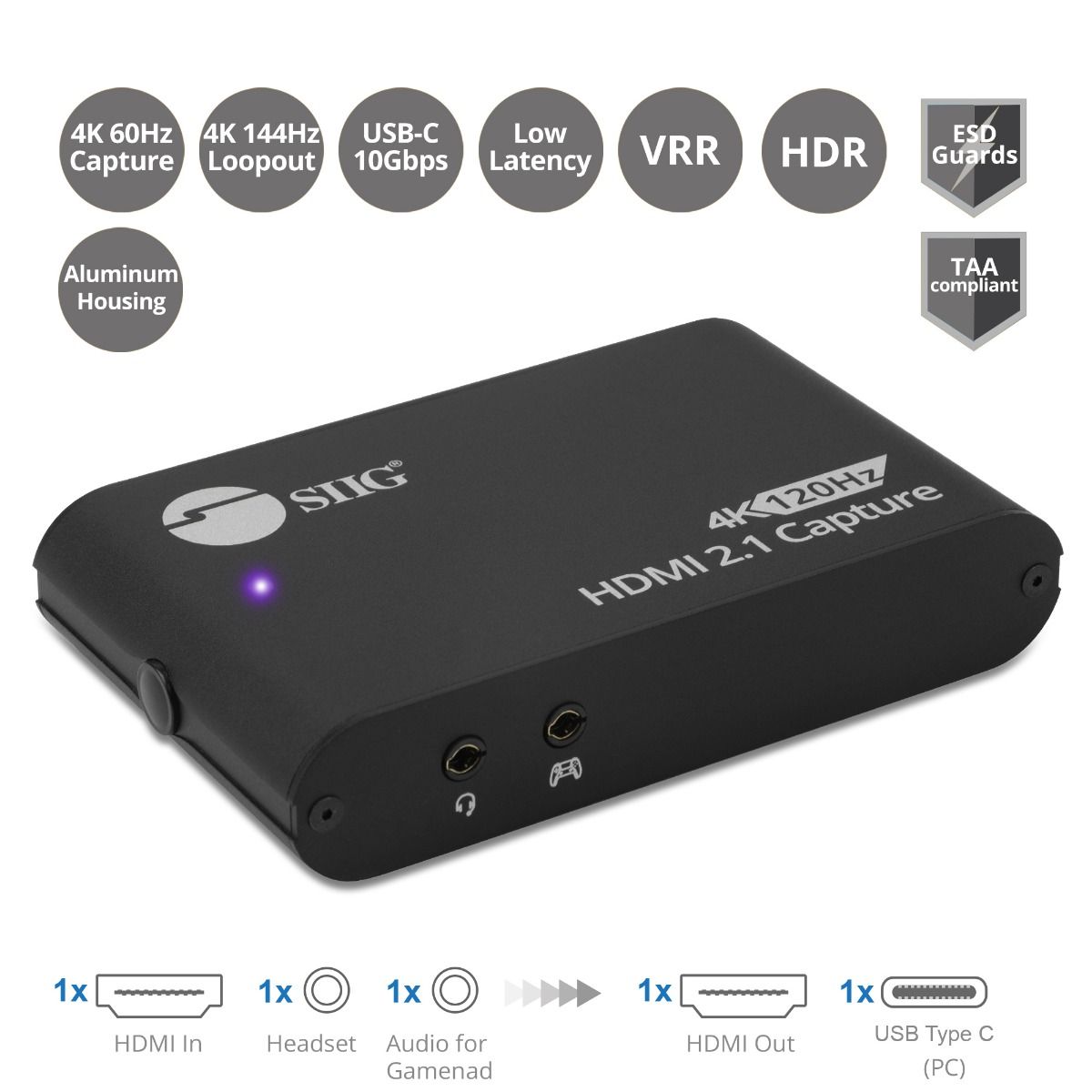

4K120Hz HDMI 2.1 Capture Device for Gaming and Streaming - 4K60Hz Capture - 4K 120Hz (Console) / 4K144Hz (PC) Loopout - USB-C 10Gbps - TAA Compliant

HDMI Capture/Record
4K60Hz Capture
USB-C 10Gbps
Support Gamepad
TAA Compliant
$369.99
Shipping calculated at checkout.
Product Features

Live and Party Chat

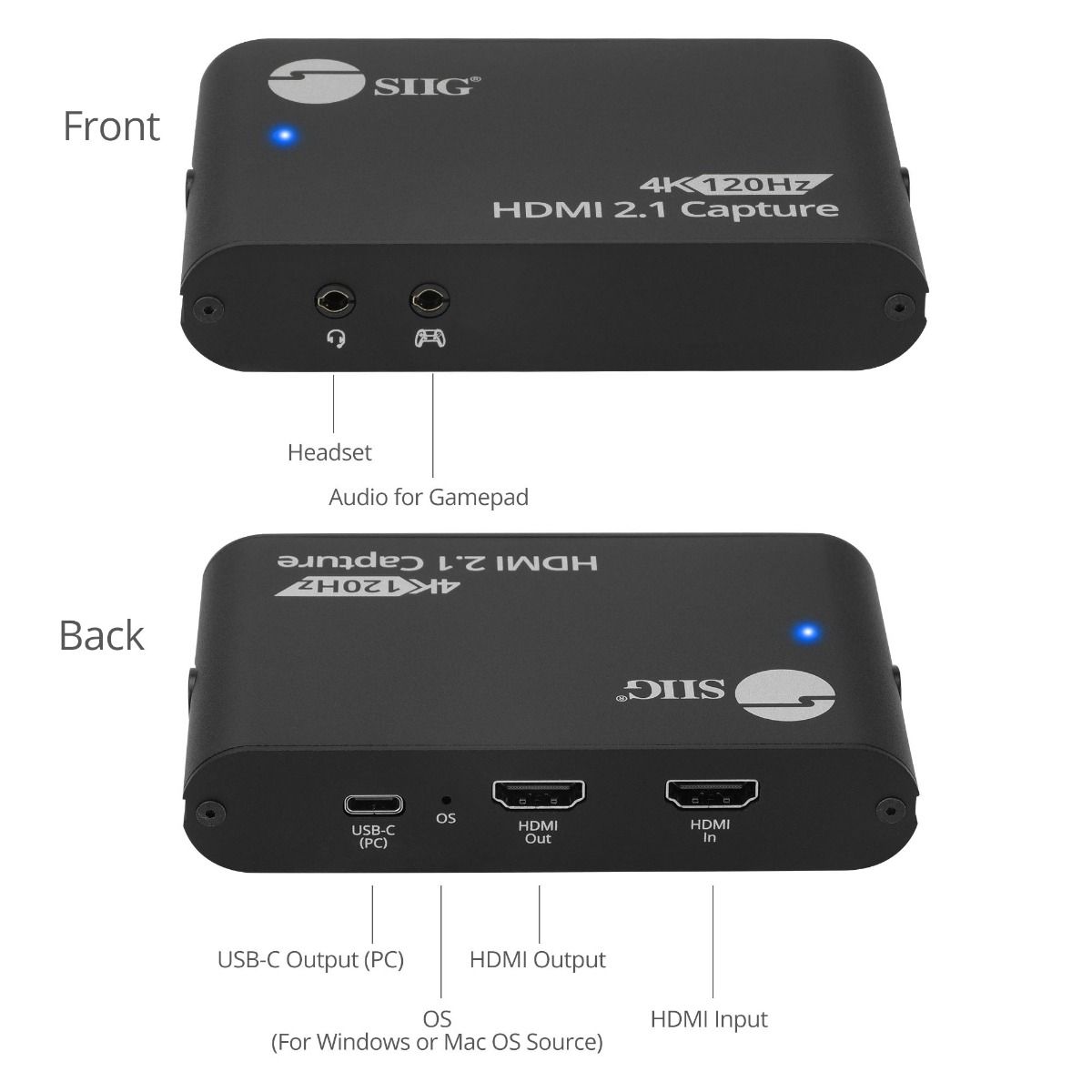

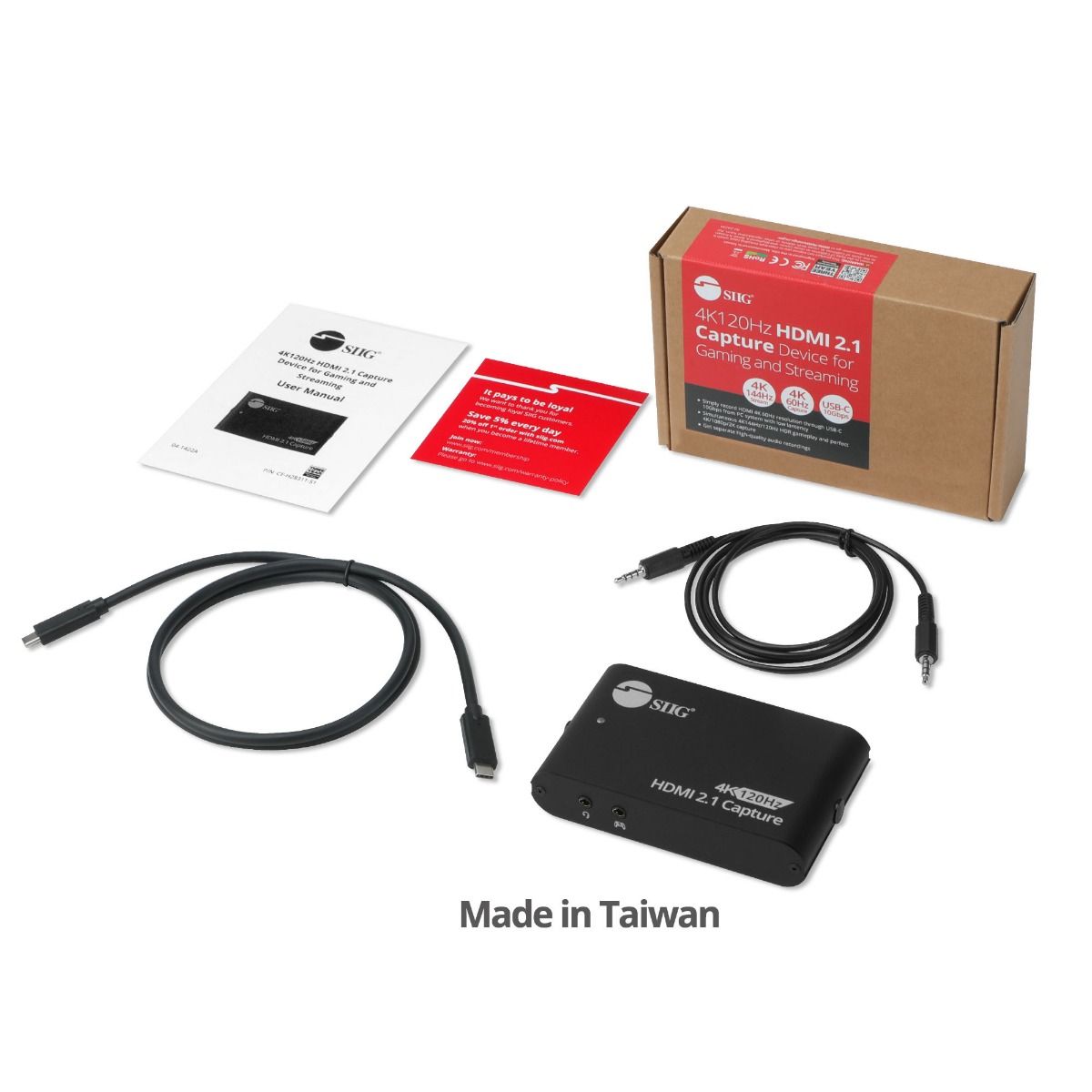

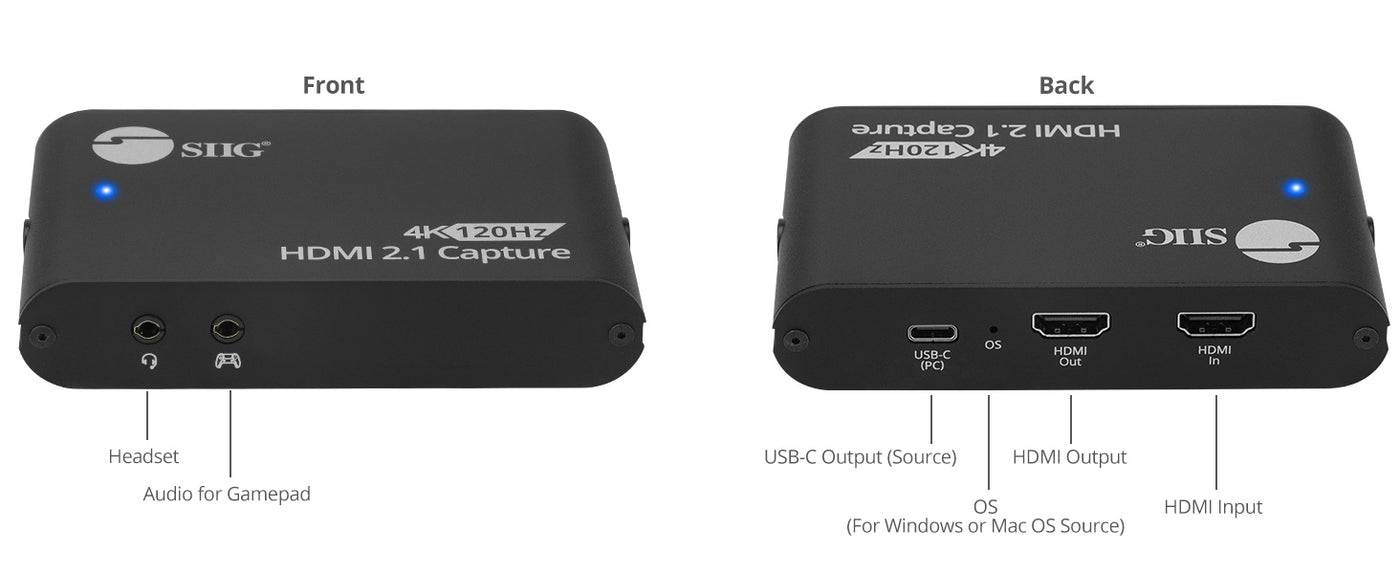

Built-in two 4-pole 3.5mm jacks enable connection with a controller and headset for game console party mode, easily control game and chat volume, simultaneous party chat & live commentary recording. One 4-pole 3.5mm cable included, no additional purchase required

HDR and VRR Support

Immerse in vibrant, true-to-life visuals through HDR and enjoying the tear-free and smooth gameplay with VRR (variable refresh rate) support, ensuring a seamless gaming experience. Specifically designed for PS5 and Xbox Series X/S consoles. *Note: Ensure the HDMI source device and monitor come with VRR feature

Maximum Compatibility

Auto-detection video formats to ensure plug-play operations, compatible with Windows, MacOS system and work with third party software such as OBS studio, VLC, AMCap, Potplayer , Skype, Zoom, Hangout, Team Viewer…

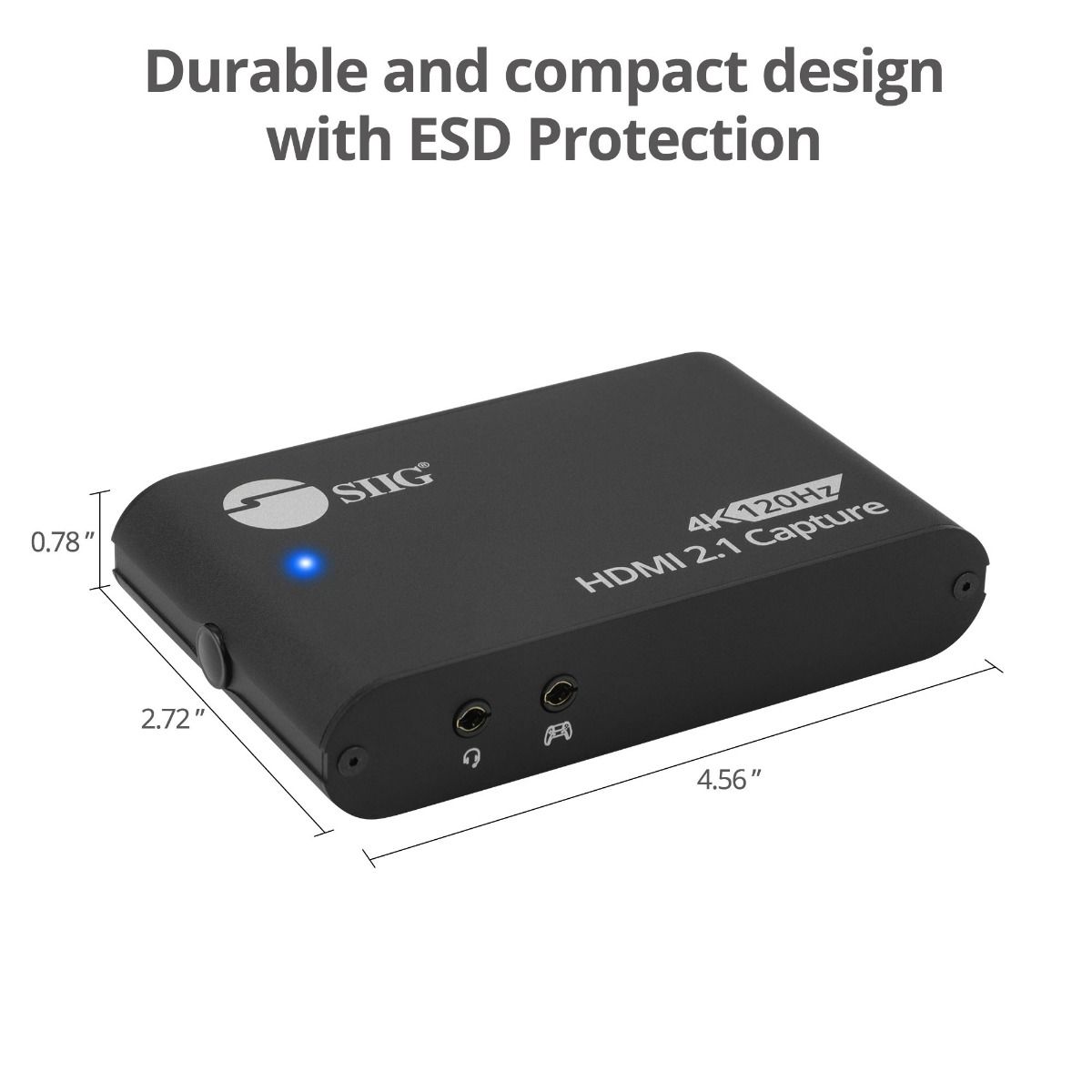

ESD Protection

An ESD protection device protects a circuit from an Electrostatic discharge (ESD), in order to prevent a malfunction or breakdown of an electronic device

TAA Compliant

Our device complies with the Trade Agreements Act (TAA), meeting the highest standards of quality and compliance for government and commercial applications

  • 45 Days Free Return

  • 2 Years Warranty

  • Lifetime Technical Support

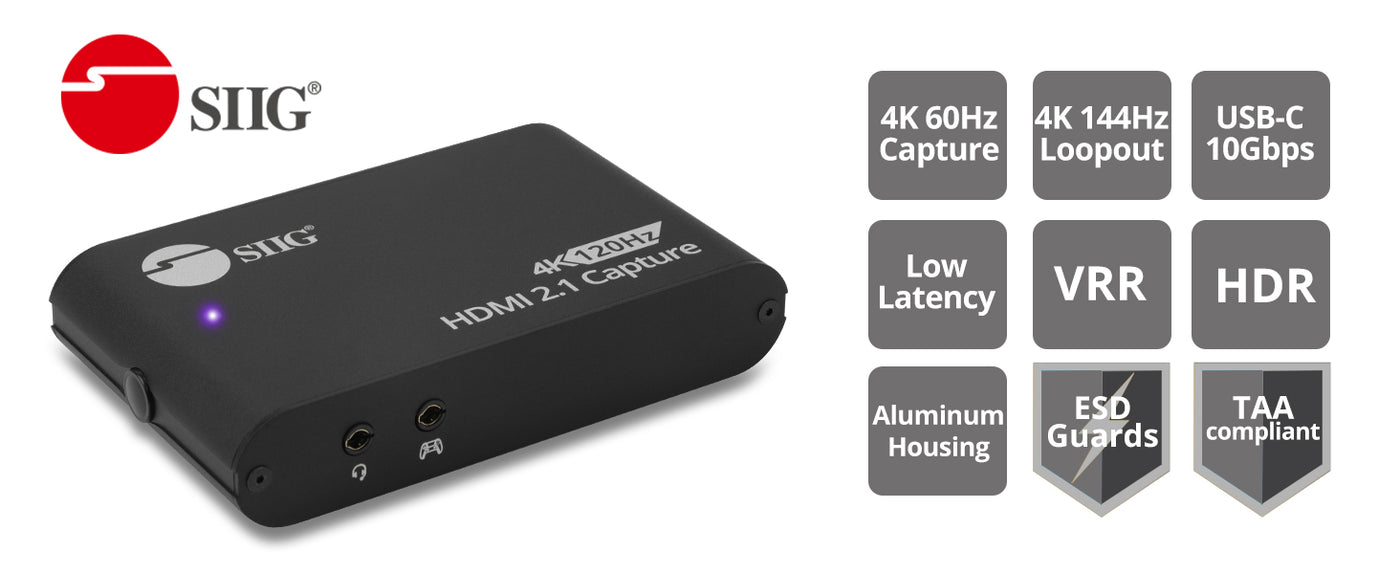

SIIG 4K120Hz HDMI 2.1 Capture Device for Gaming and Streaming

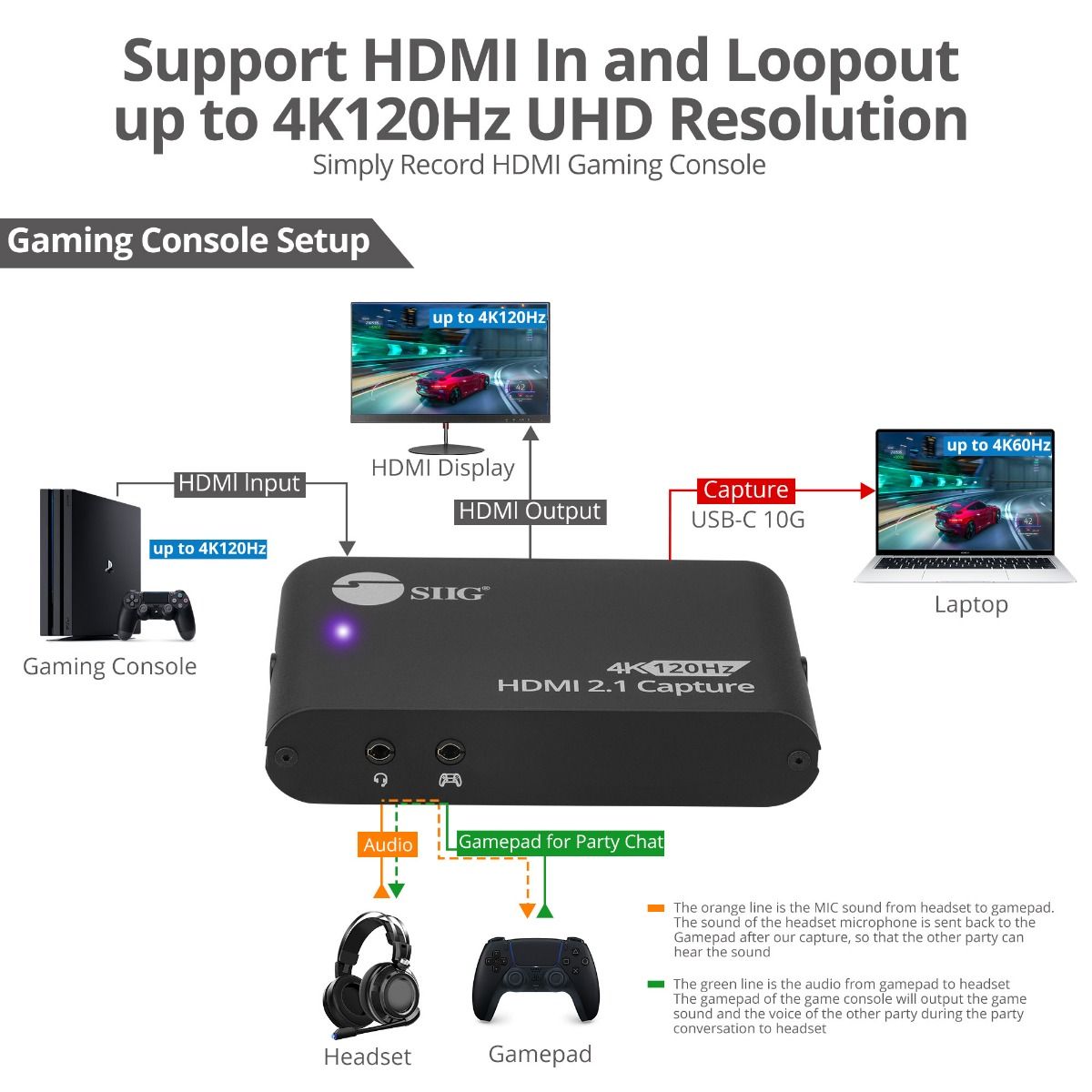

    Easily capture and recording 4K60Hz resolution from any HDMI source such as Gaming PC (4K144Hz), Gaming console (4K120Hz), Media players or Set-top box while simultaneously viewing in the HDMI loopout for 4K144Hz / 4K120Hz, 1080p240Hz resolution, USB-C 10Gbps, VRR, ESD Protection, TAA Compliant.

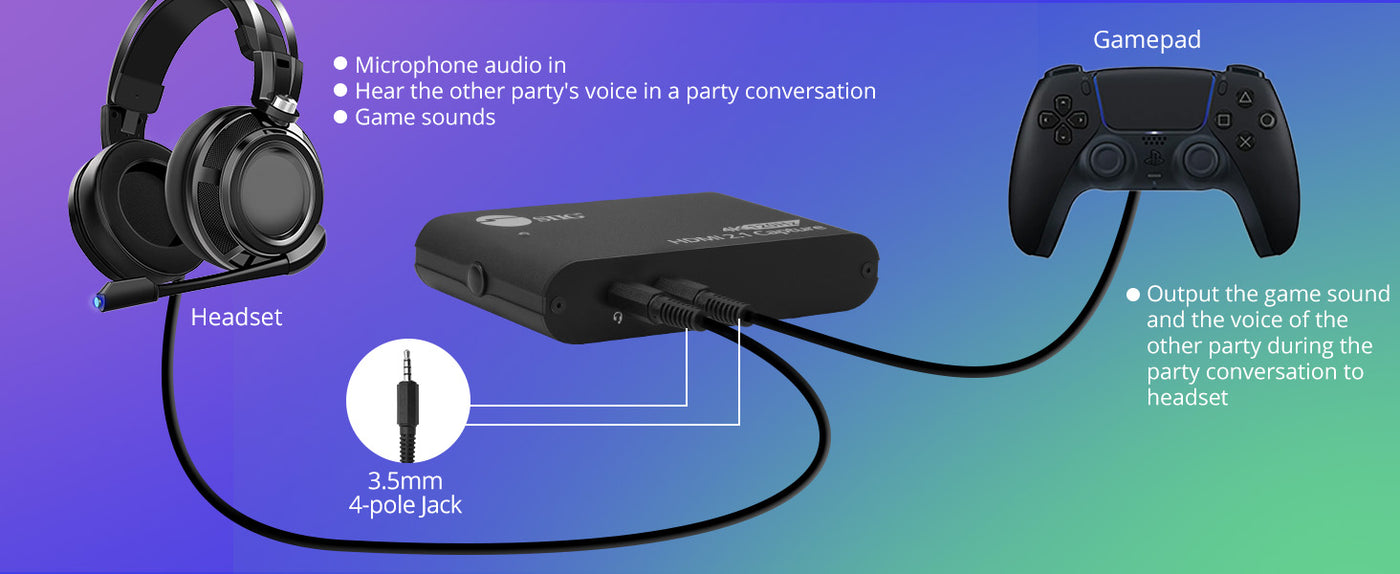

    Live and Party Chat

      Built-in two 4-pole 3.5mm jacks enable connection with a controller and headset for game console party mode, easily control game and chat volume, simultaneous party chat & live commentary recording. One 4-pole 3.5mm cable included, no additional purchase required.

      Unlock Stunning Visuals with HDR & VRR Support

        Immerse in vibrant, true-to-life visuals through HDR and enjoying the tear-free and smooth gameplay with VRR support, ensuring a seamless gaming experience. Specifically designed for PS5 and Xbox Series X/S consoles (*Note: Ensure the HDMI source device and monitor come with VRR feature).

        Seamless 4K Gaming and Capture

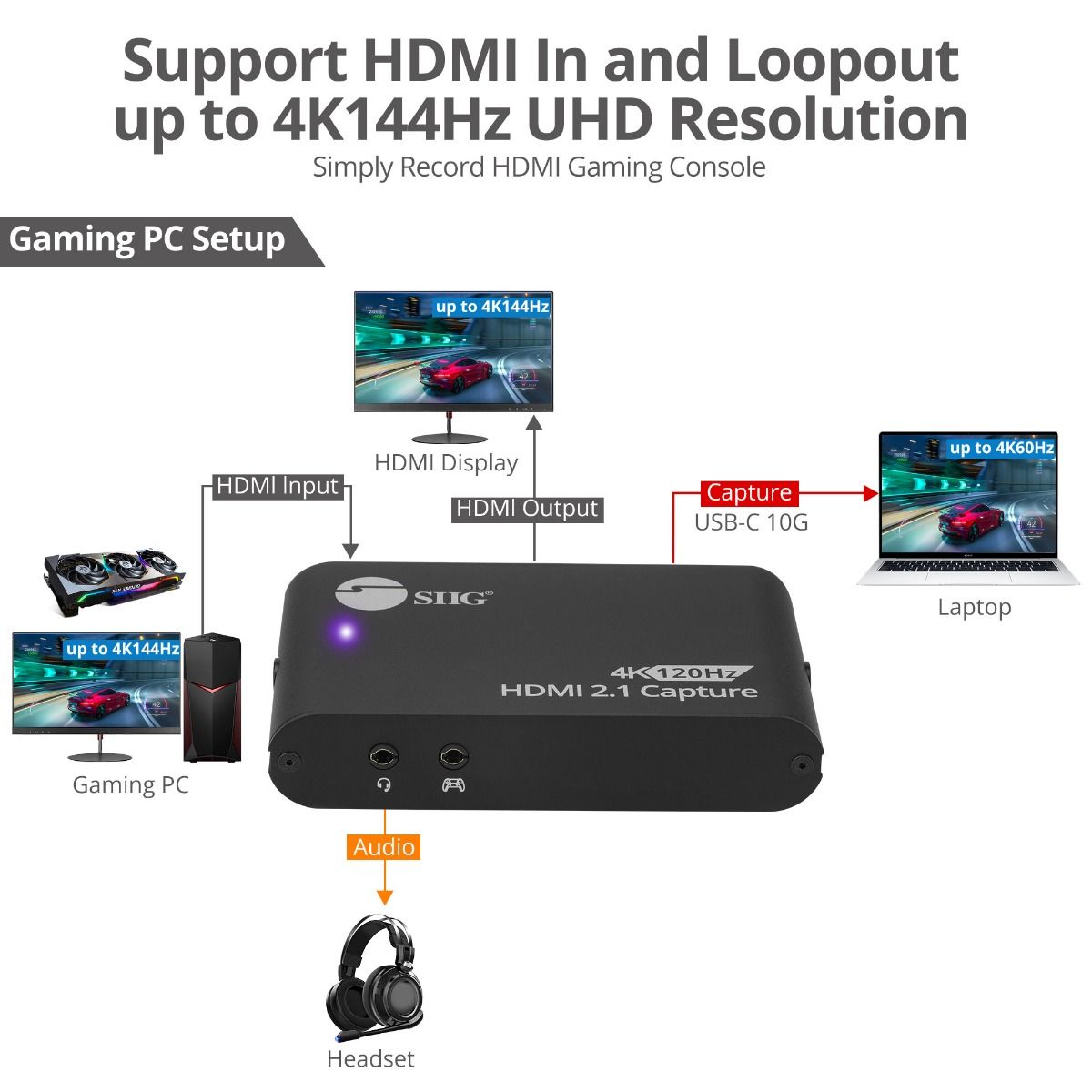

        Supports up to 4K144Hz / 2K144Hz gaming pass-through and smooth USB-C 10Gbps capture up to 4K60Hz, 2K120Hz, and 1080p240Hz for high-performance gaming and streaming.

        Comparison Table

        4K120Hz HDMI 2.1 Capture Device for Gaming and Streaming - 4K60Hz Capture - 4K 120Hz (Console) / 4K144Hz (PC) Loopout - USB-C 10Gbps - TAA Compliant
        View details

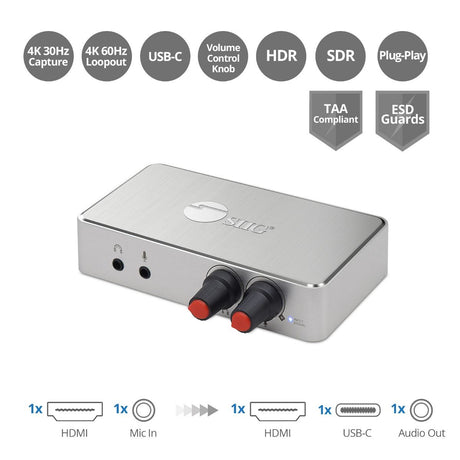

        4K HDMI Video Capture Box with Volume Control & Loopout
        View details

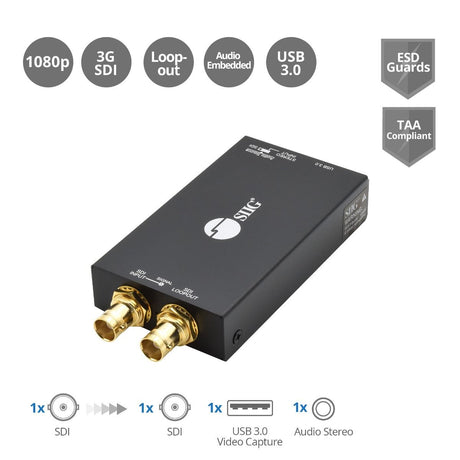

        USB 3.0 3G-SDI Capture Device with Loopout
        View details
        SKU
        SKU
        CE-H28311-S1
        CE-H27311-S1
        CE-SD0K11-S1
        Connection port
        Connection port
        2x HDMI, 2x 3.5mm, USB-C
        2x HDMI, 2x 3.5mm, USB-C
        2x SDI, 3.5mm, USB A
        Data Transfer (Max)
        Data Transfer (Max)
        10Gbps
        5Gbps
        5Gbps
        Additional function
        Additional function
        Gamepad, Headset, FW update
        Audio knob
        Audio switch
        Housing material
        Housing material
        Metal
        Metal
        Metal
        Color
        Color
        Black
        Silver
        Black
        Dimensions
        Dimensions
        4.56" (W) x 0.78" (H) x 2.72" (D) (11.58 cm x 1.98 cm x 11.94 cm)
        4.57” (W) x 0.91” (H) x 2.53” (D) (11.61 cm x 2.31 cm x 6.43 cm)
        4.86″ (W) x 0.79″ (H) x 2.18″ (D)
        Weight
        Weight
        0.44 lbs
        0.44 lbs
        0.37 lbs
        Mountable
        Certification/ Standards
        Certification/ Standards
        FCC / CE / RoHS / TAA Compliant
        FCC / CE / RoHS / TAA Compliant
        FCC, CE, RoHS, TAA compliant
        Warranty
        Warranty
        3 years
        3 years
        3 years limited
        Country of Origin
        Country of Origin
        Taiwan
        Taiwan
        Taiwan
        Resolution
        Resolution
        -
        Up to 4K60Hz
        Up to 108060Hz
        Audio spec
        IR function
        Remote control
        EDID button
        Distance
        Antenna spec
        Reset key
        Bandwidth
        Bandwidth
        48Gbps
        18Gbps
        2.970 Gbps, 2,970/1.001 Gbps
        Power Output (Max)
        Power Indicator
        Power Indicator
        Yes
        Yes
        -
        Protection
        Protection
        ESD
        ESD
        ESD
        Protocol
        Protocol
        -
        USB
        SDI
        Power Adapter
        Power Adapter
        Bus power
        Bus power
        Bus power
        Spec
        Spec
        USB 10G, HDMI 2.1
        USB 5G, HDMI 2.0
        USB 5G, 3G-SDI
