USB | SKU: CE-H27311-S1

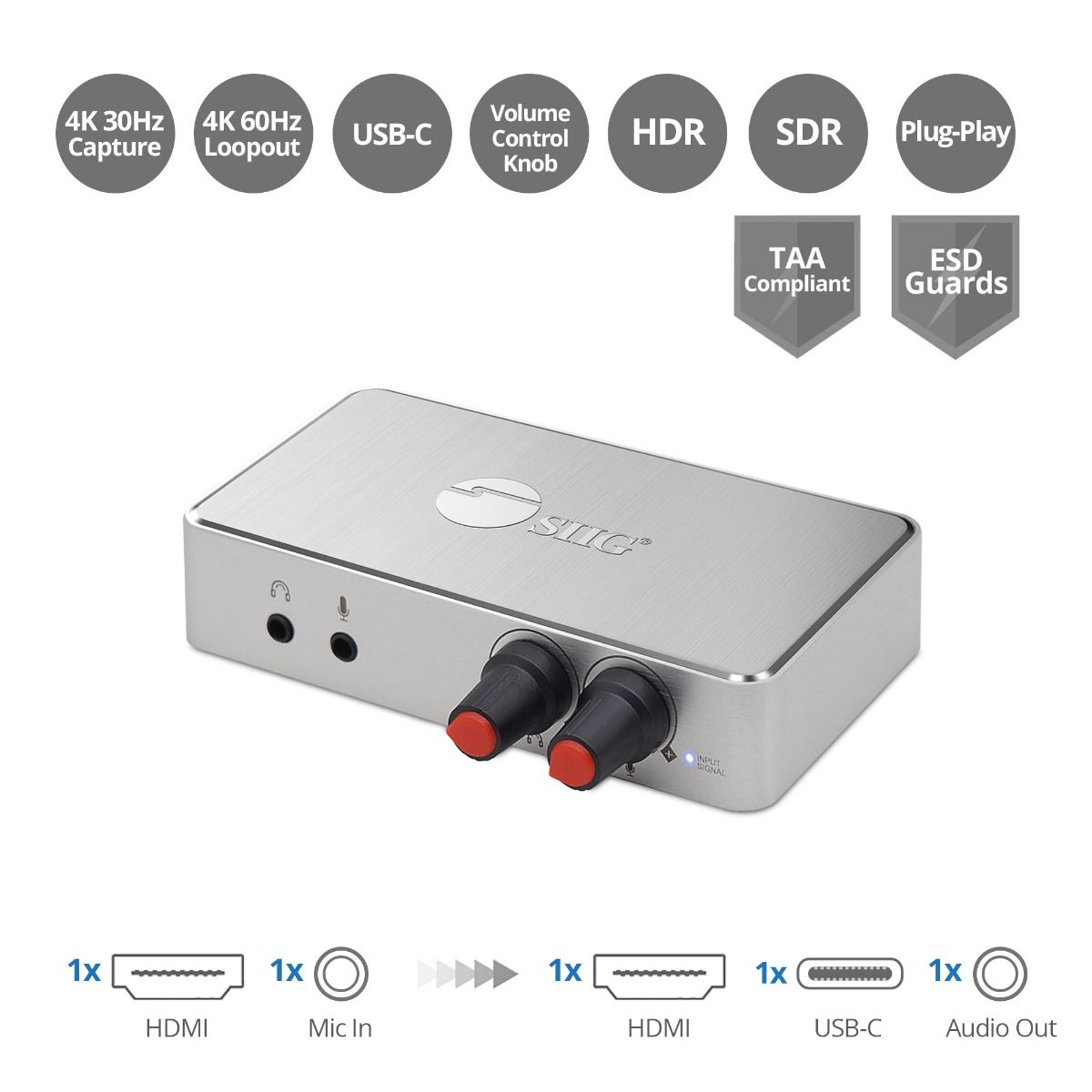

4K HDMI Video Capture Box with Volume Control & Loopout

HDMI Capture/Record
4K 30Hz Capture
Volume Control Knob
USB-C
TAA Compliant
$189.99
Shipping calculated at checkout.
Product Features

4K 30Hz Video Capture

Easily capture and record 4K HDMI live video with low latency via a USB-C device and adjust the sound directly with the volume knob from any HDMI source such as Gaming console, Media players, or Set-top box while simultaneously viewing in 4K 60Hz resolution

HDR Convert SDR

This 4K HDMI Video Capture Box supports HDR10 to SDR conversion when a monitor/display without HDR or HDMI source with HDR *Note: Does not supports HDR10 plus, HLG, and Dolby Vision to SDR conversion"

USB Record

Stream video via USB-C and supports USB Video Class (UVC) 1.0/1.1/1.5 and up to 5Gbps date transfer

Auto Downscaling

Detects and configures the video resolution automatically according to the capabilities of the connected monitor *Note: 4K 30Hz monitor will display in 1080p 60Hz when the source content is 4K 60Hz

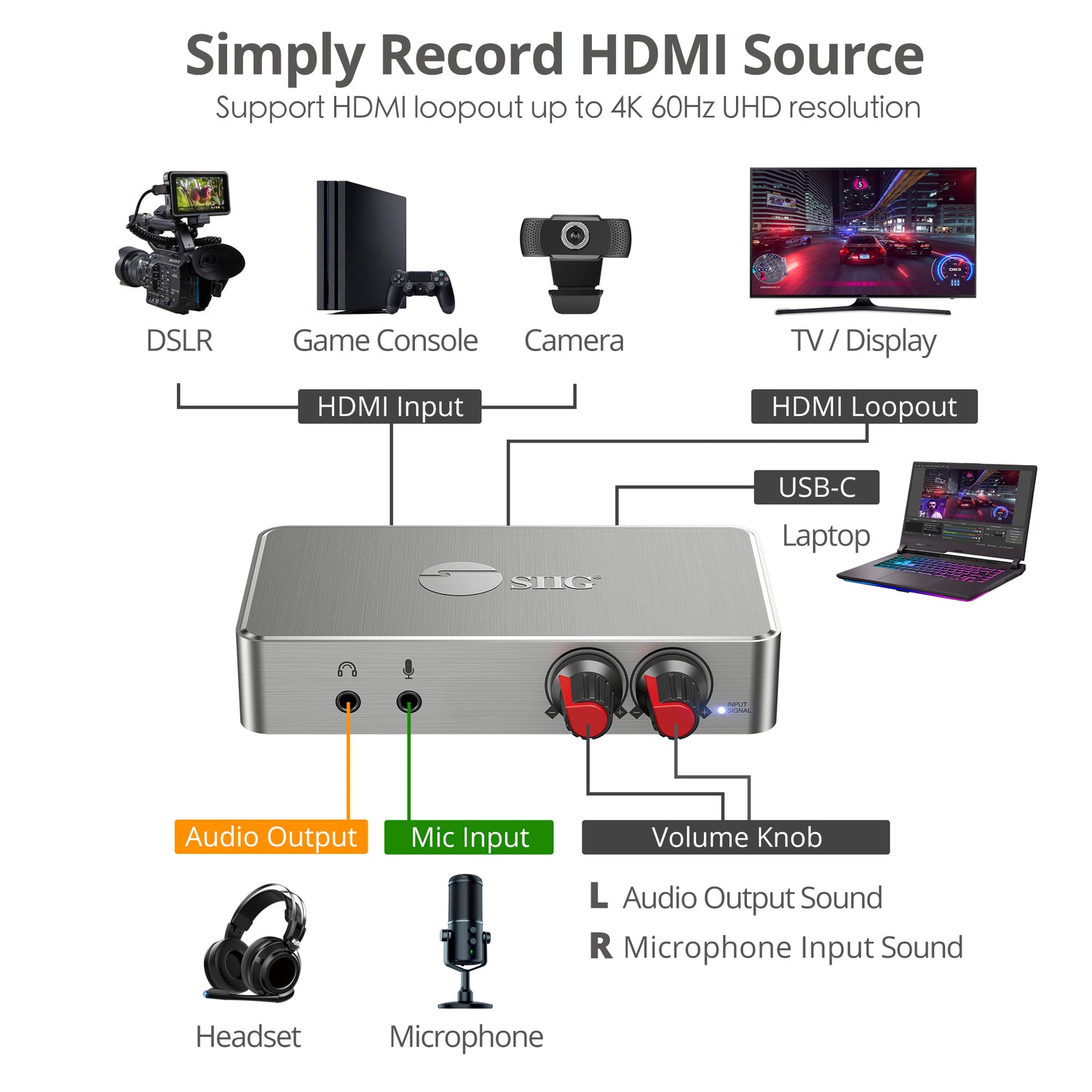

Support Mic-In For Commentary And Multiple Connectivity

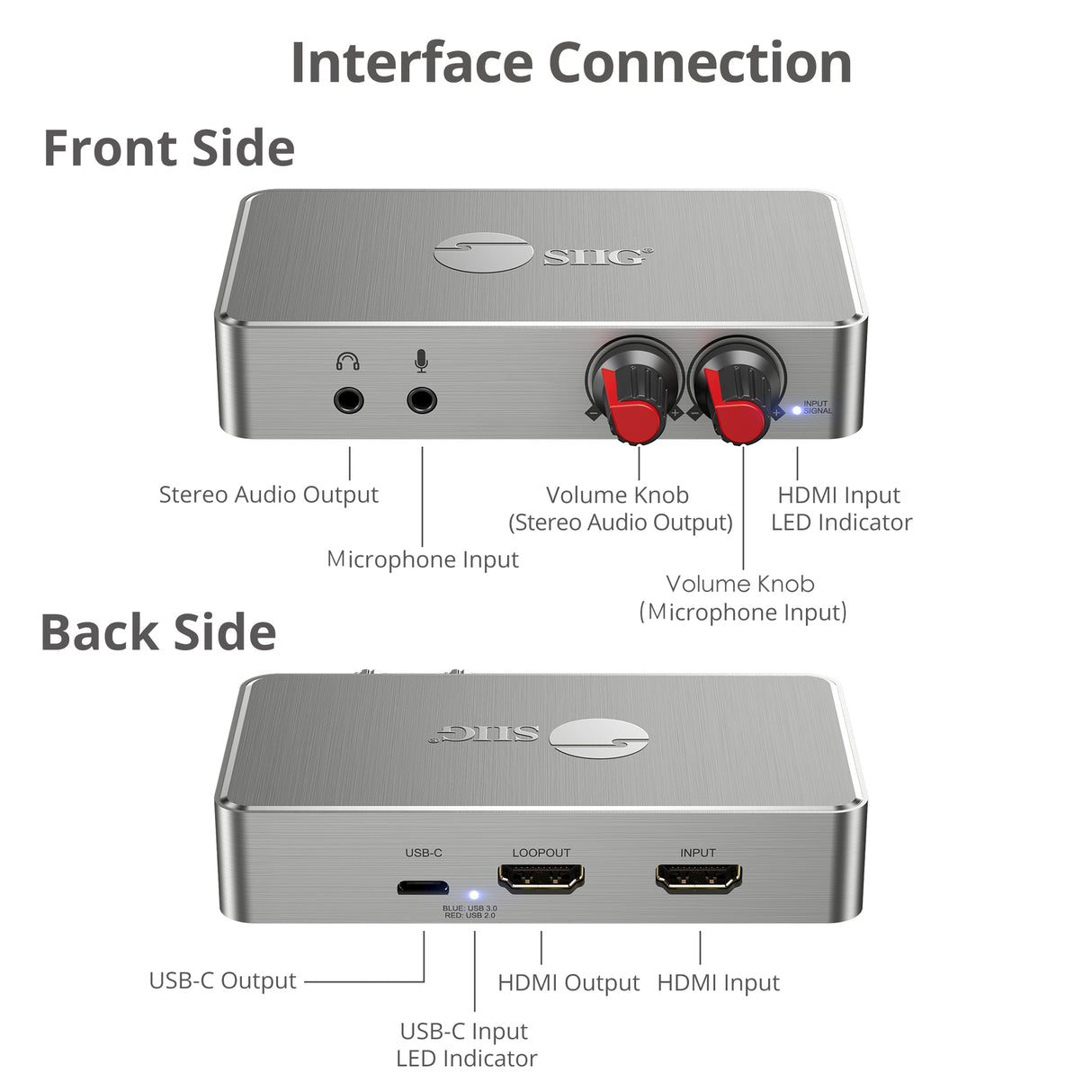

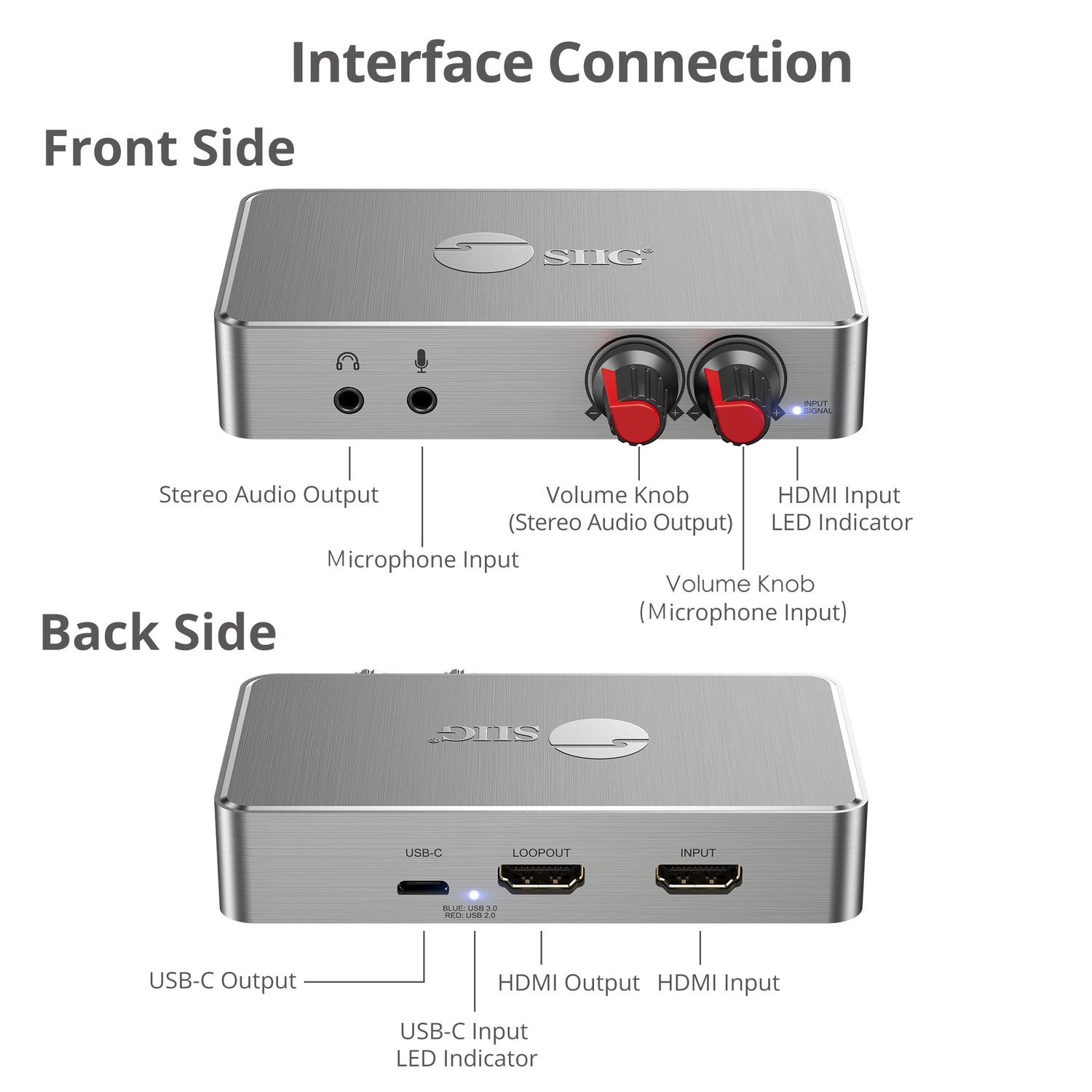

Supports stereo audio embedded and HDMI audio extractor great for adding voice over to your gameplay. Built-in volume control knob to adjust the microphone/headphone volume. It comes with one HDMI video input port, one HDMI video output port, one USB-C 3.2 Gen 1 output port (Host), one 3.5mm microphone input port, one 3.5mm stereo audio output port, and two audio volume knob

  • 45 Days Free Return

  • 2 Years Warranty

  • Lifetime Technical Support

Supports HDR10 to SDR conversion

when a monitor/display without HDR or HDMI source with HDR

Automatic Resolution Detection

Detects and configures the video resolution automatically

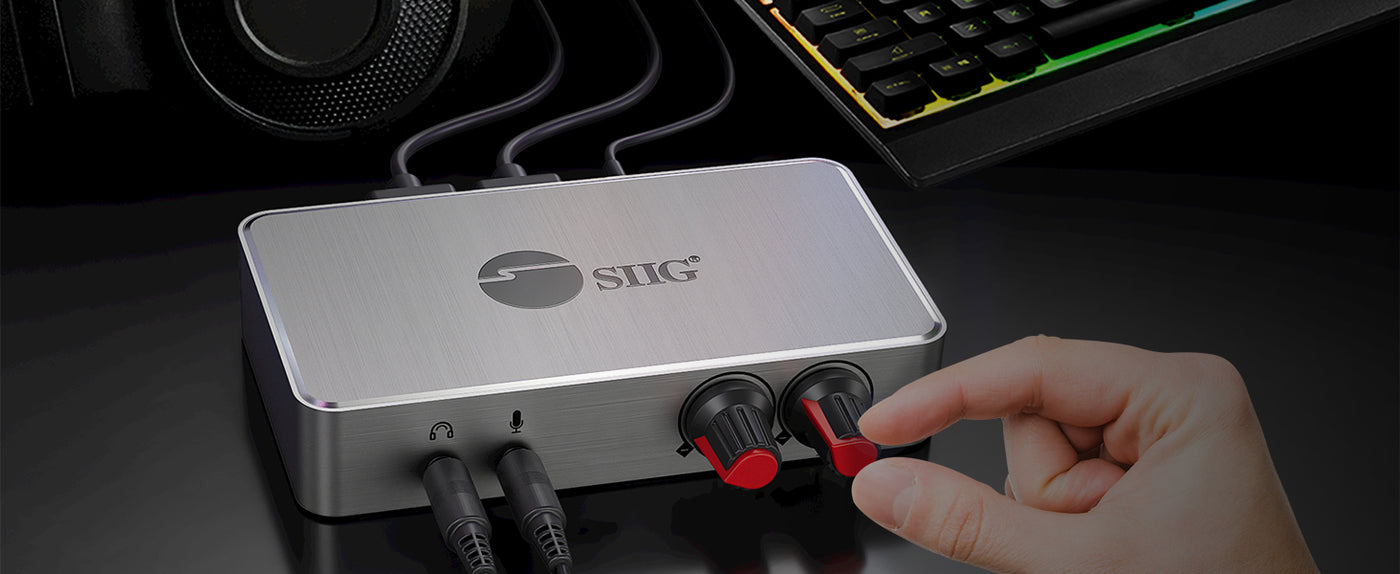

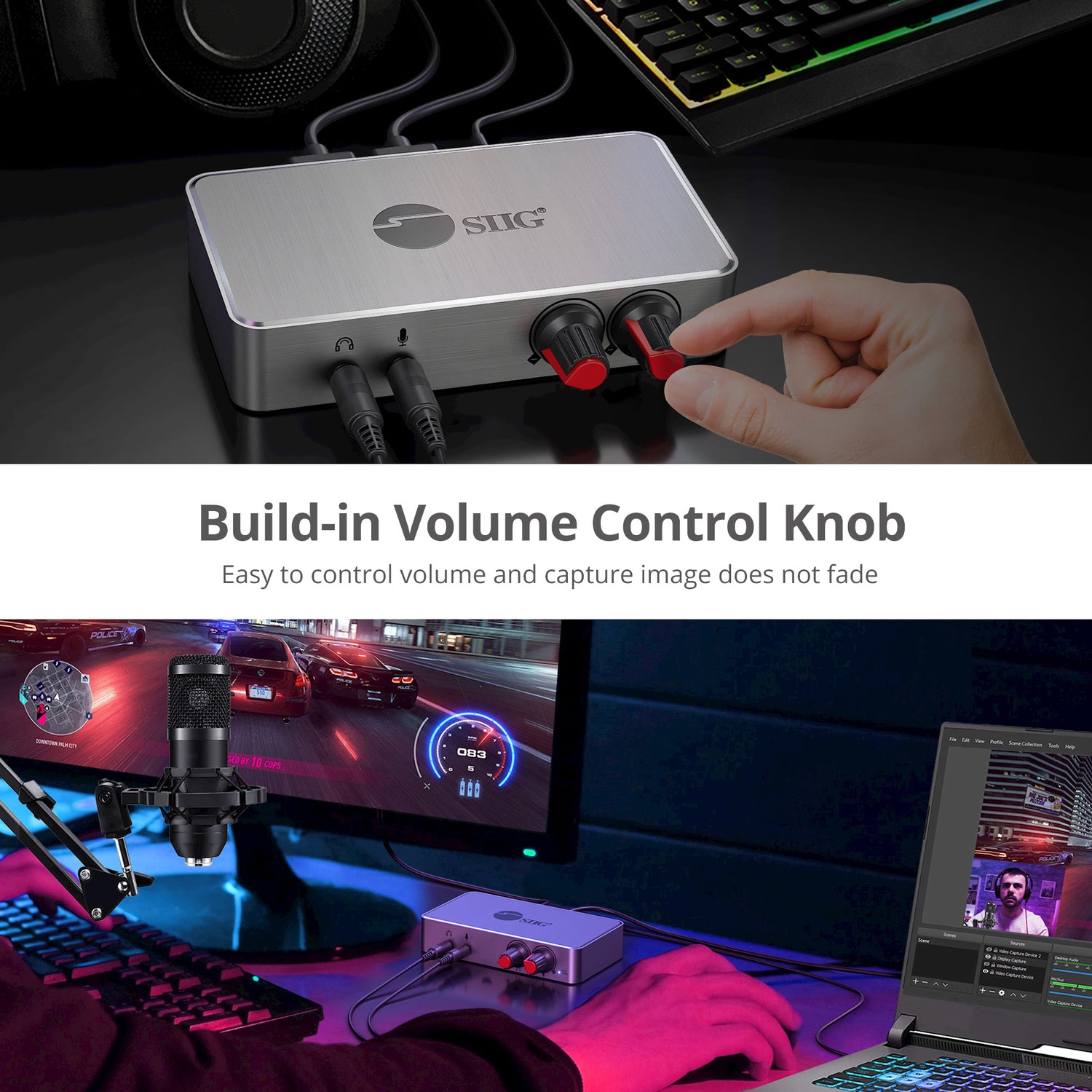

Built-in volume control knob

Adjust the microphone/headphone volume

SIIG 4K HDMI Video Capture Box with Volume Control & Loopout

    Easily capture and save 4K 60Hz HDMI signals in 4K 30Hz resolution from any HDMI source such as Gaming console, Media players, or Set-top box while simultaneously viewing in 4K 60Hz resolution, Volume Control, Aluminum Housing, TAA compliant.

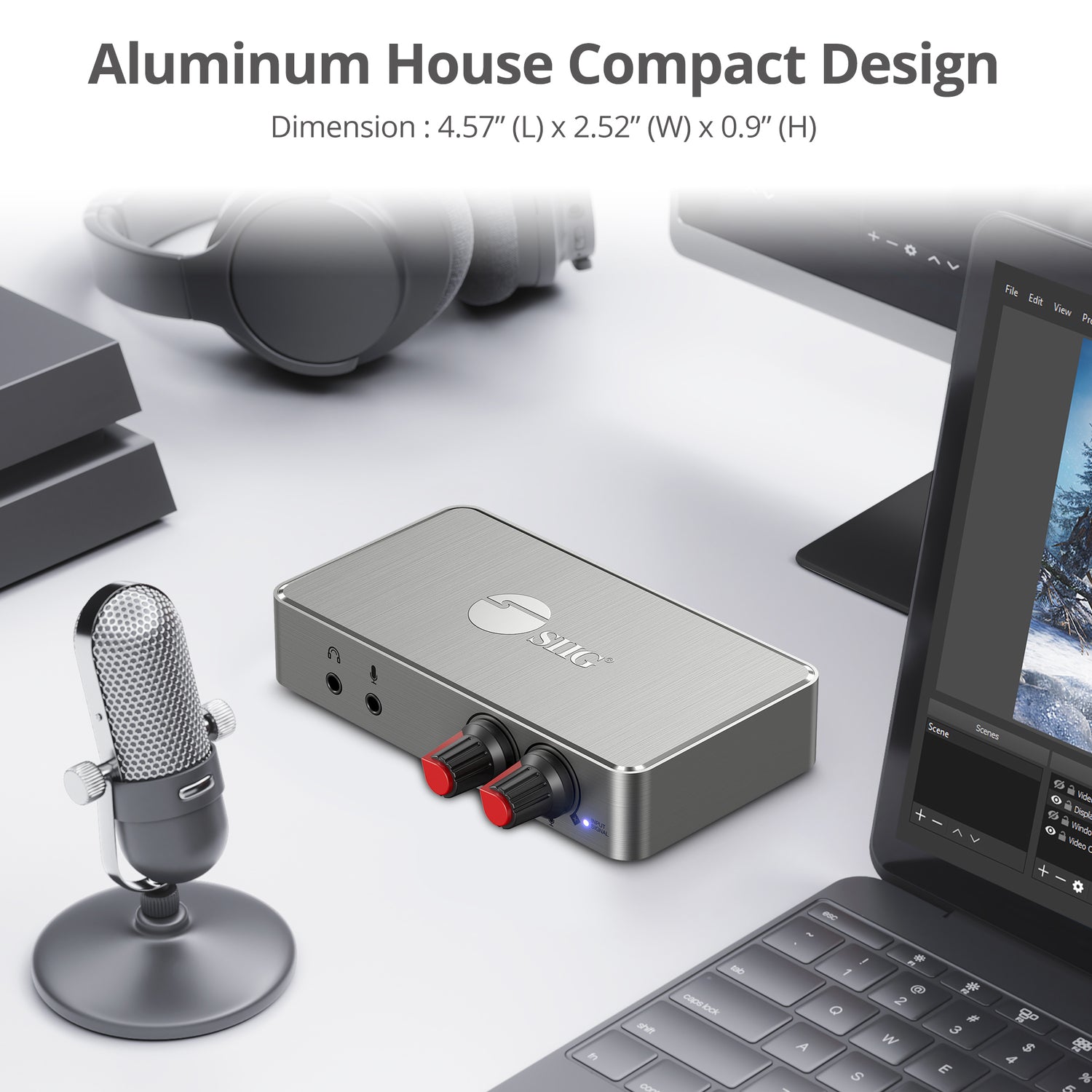

      Durable and compact design with premium aluminum housing provides efficient heat dissipation design for reliable performance and increase efficiency.

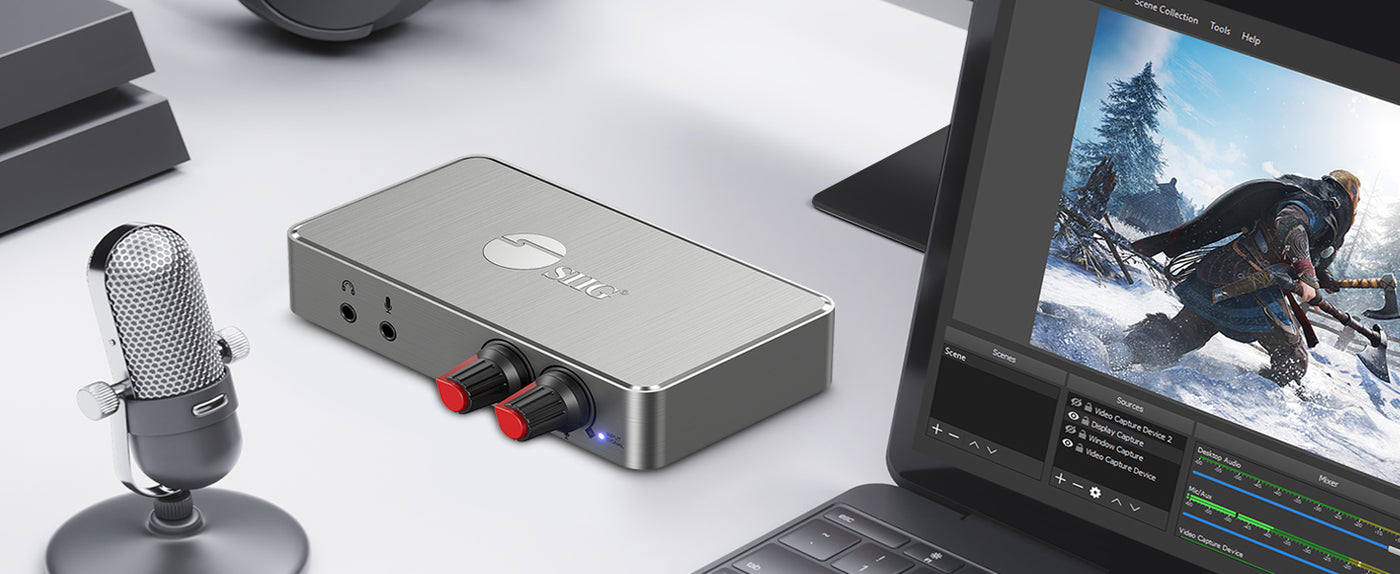

      Aluminum Housing Design

      Comparison Table

      4K HDMI Video Capture Box with Volume Control & Loopout
      View details
      4K120Hz HDMI 2.1 Capture Device for Gaming and Streaming - 4K60Hz Capture - 4K 120Hz (Console) / 4K144Hz (PC) Loopout - USB-C 10Gbps - TAA Compliant
      View details
      USB 3.0 3G-SDI Capture Device with Loopout
      View details
      SKU
      SKU
      CE-H27311-S1
      CE-H28311-S1
      CE-SD0K11-S1
      Connection port
      Connection port
      2x HDMI, 2x 3.5mm, USB-C
      2x HDMI, 2x 3.5mm, USB-C
      2x SDI, 3.5mm, USB A
      Data Transfer (Max)
      Data Transfer (Max)
      5Gbps
      10Gbps
      5Gbps
      Additional function
      Additional function
      Audio knob
      Gamepad, Headset, FW update
      Audio switch
      Housing material
      Housing material
      Metal
      Metal
      Metal
      Color
      Color
      Silver
      Black
      Black
      Dimensions
      Dimensions
      4.57” (W) x 0.91” (H) x 2.53” (D) (11.61 cm x 2.31 cm x 6.43 cm)
      4.56" (W) x 0.78" (H) x 2.72" (D) (11.58 cm x 1.98 cm x 11.94 cm)
      4.86″ (W) x 0.79″ (H) x 2.18″ (D)
      Weight
      Weight
      0.44 lbs
      0.44 lbs
      0.37 lbs
      Mountable
      Certification/ Standards
      Certification/ Standards
      FCC / CE / RoHS / TAA Compliant
      FCC / CE / RoHS / TAA Compliant
      FCC, CE, RoHS, TAA compliant
      Warranty
      Warranty
      3 years
      3 years
      3 years limited
      Country of Origin
      Country of Origin
      Taiwan
      Taiwan
      Taiwan
      Resolution
      Resolution
      Up to 4K60Hz
      -
      Up to 108060Hz
      Audio spec
      IR function
      Remote control
      EDID button
      Distance
      Antenna spec
      Reset key
      Bandwidth
      Bandwidth
      18Gbps
      48Gbps
      2.970 Gbps, 2,970/1.001 Gbps
      Power Output (Max)
      Power Indicator
      Power Indicator
      Yes
      Yes
      -
      Protection
      Protection
      ESD
      ESD
      ESD
      Protocol
      Protocol
      USB
      -
      SDI
      Power Adapter
      Power Adapter
      Bus power
      Bus power
      Bus power
      Spec
      Spec
      USB 5G, HDMI 2.0
      USB 10G, HDMI 2.1
      USB 5G, 3G-SDI
