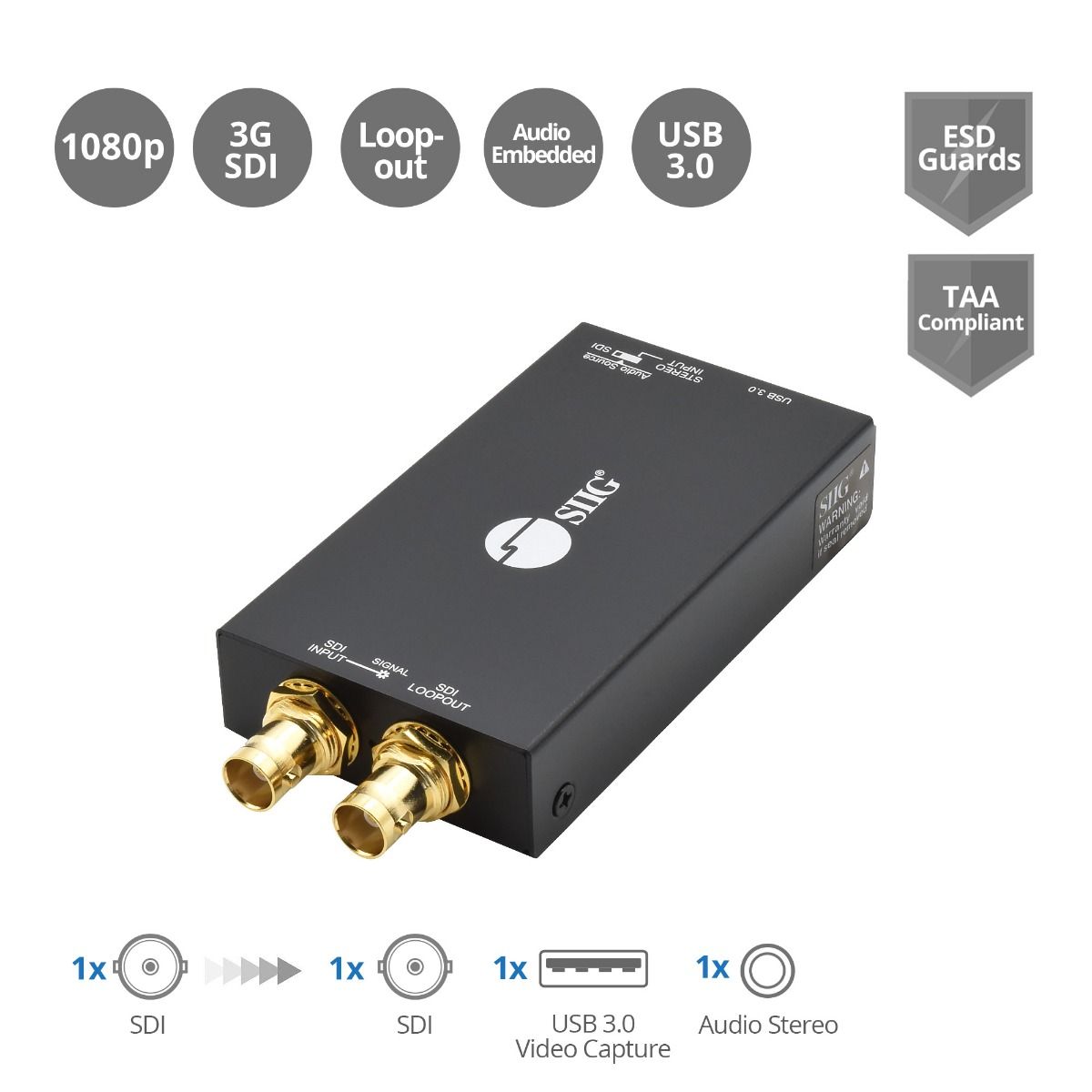

USB 3.0 3G-SDI Capture Device with Loopout
USB 3.0 3G-SDI Capture Device with Loopout is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
3G-SDI Capture
3G-SDI Capture
Video Resolution
Video Resolution
Applications
Applications
Software Compatibility
Software Compatibility
2-year Warranty
2-year Warranty
-
45 Days Free Return
-
2 Years Warranty
-
Lifetime Technical Support
| Chipset | EJ511 |
| Version | USB 3.0 |
| Video | |
| Input Video Bandwidth | 2.970 Gbps, 2.970/1.001 Gbps |
| Output Video Bandwidth | Up to 350MBps (USB 3.0) |
| Resolution | Up to 1080p 60Hz |
| Recoding Mode | H.264 (Software compression) |
| Recoding Video Format | YUY2 (USB 3.0) / MJPG (USB 2.0 / 3.0) |
| Audio | |

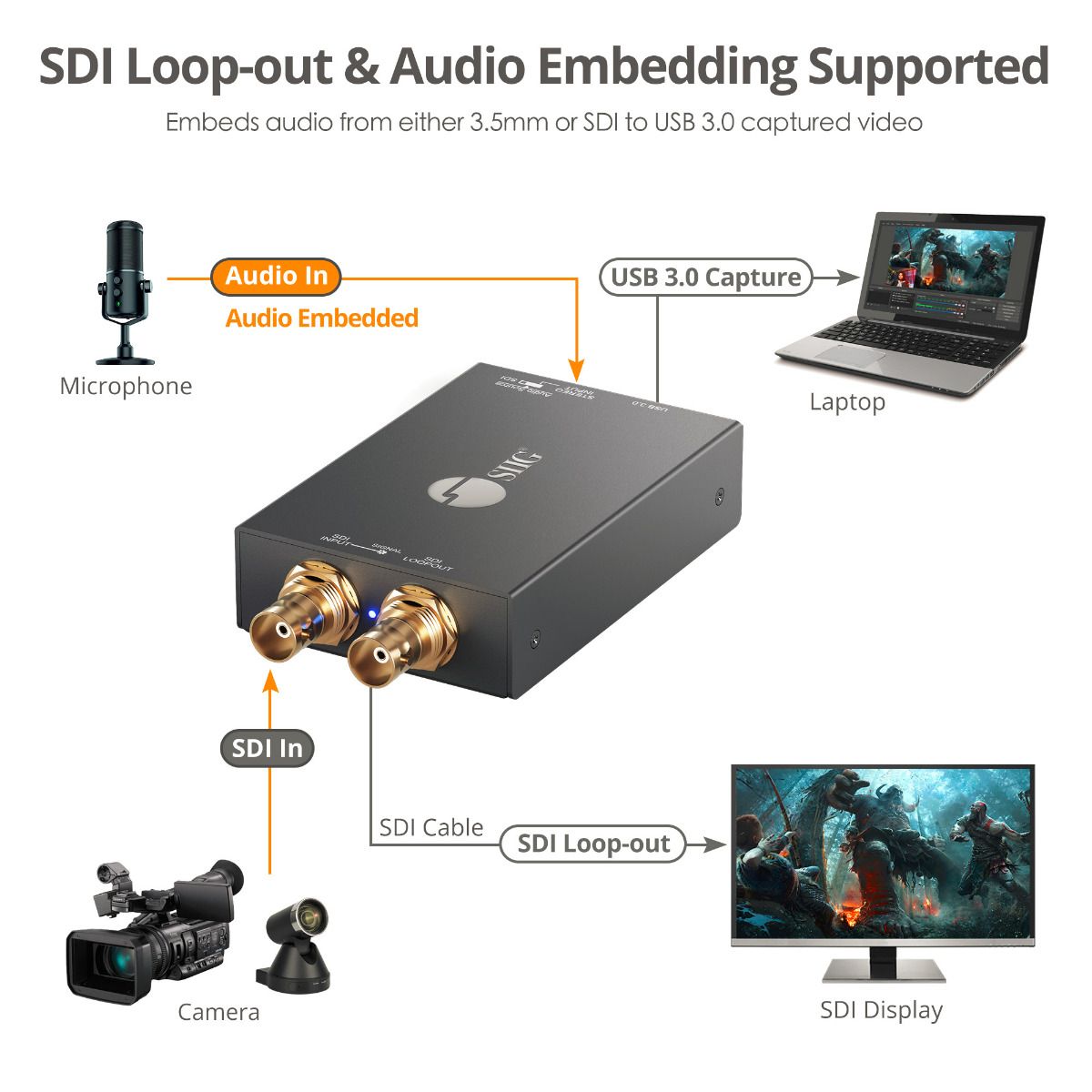

| Input | SDI Embedded Audio & Stereo Audio input |
| Format | 2 Channel, 44.1 and 48KHz sample rate, up to 16bit PCM |
| Software Compatibility | OBS Studio (Windows, Linux), AMCap (Windows), Potplayer (Windows), Skype (Windows, OS X), Hangout (Windows), TeamViewer (Windows) |

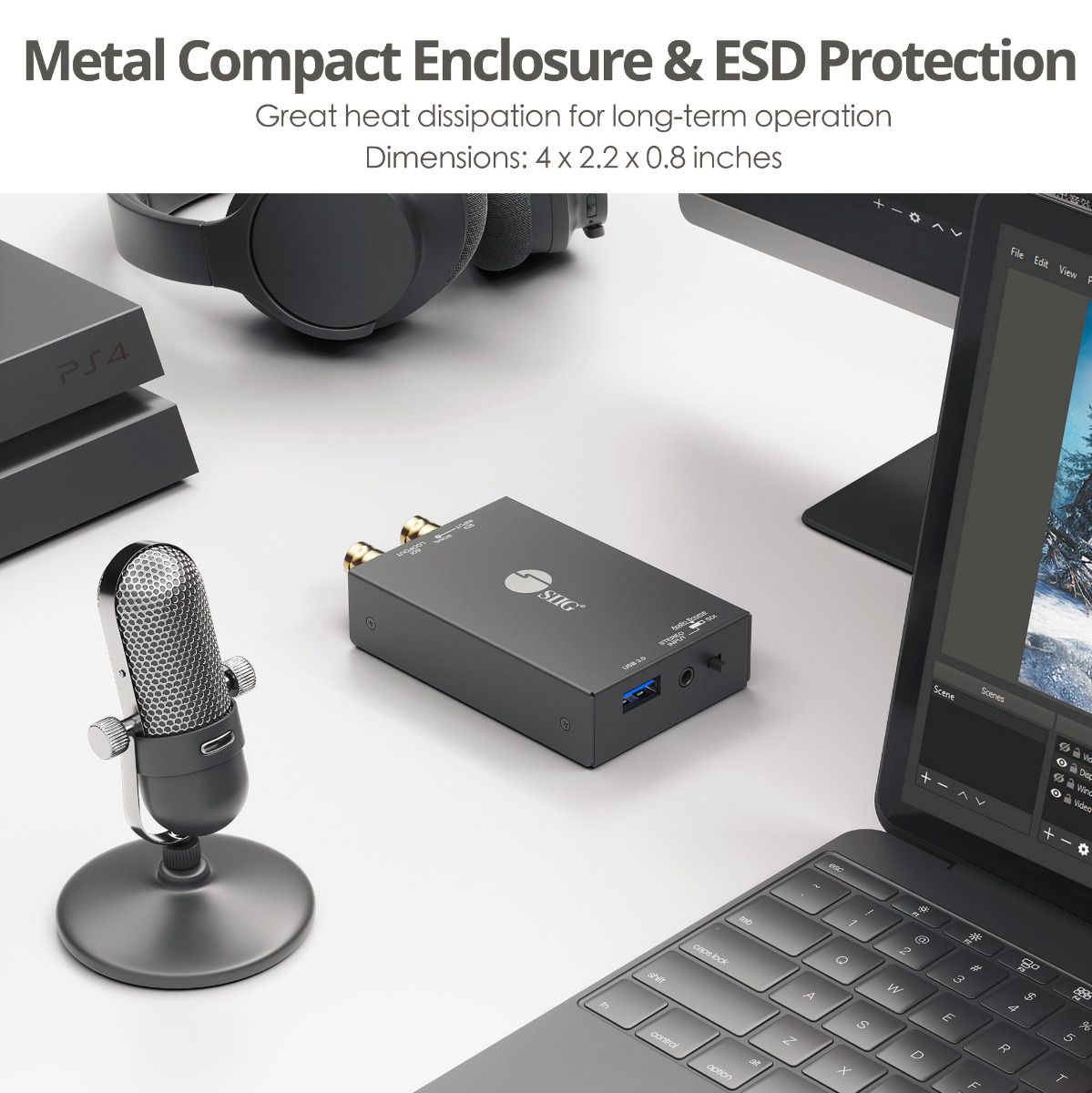

| ESD Protection | Human body model ±15KV (air-gap discharge); ±8KV (contact discharge) |

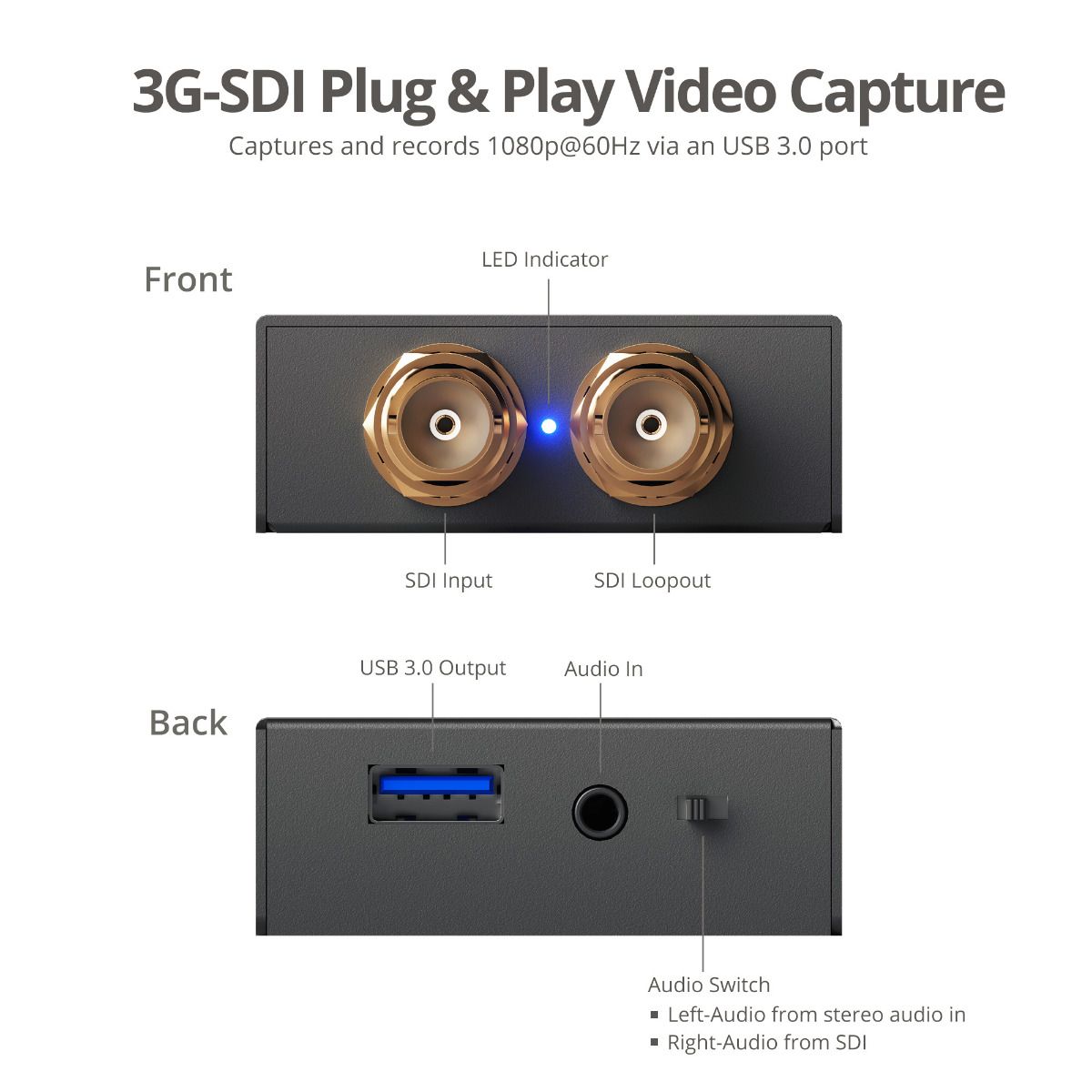

| Connectors | 1x SDI, Video input 1x SDI, Video Loop-out 1x 3.5mm Audio input 1x USB 3.0 Type-A, female for PC and FW update : 1x Slide switch, audio mode selection |
| System Requirements | Desktop PC with one available USB 3.0 port Windows® 11 / 10 / 8.1 / 7 (32-/64-bit) macOS® 10.15 / 11 / 12 |
| Certifications/Standards | FCC, CE, RoHS, TAA compliant |
| UPC Code | 662774-044729 |
| Product | |
| Dimensions (L) x (H) x (W) | 4.86″ x 0.79″ x 2.18″ 12.34 cm x 2.01 cm x 5.54 cm |
| Weight | 0.37 lb (0.16 kg) |
| Color | Black |
| Housing Material | Metal |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 9.06″ x 1.61″ x 3.74″ 23.01 cm x 4.09 cm x 9.50 cm |
| Weight | 0.62 lb (0.28 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 19.69″ x 9.49″ x 18.78″ 50.01 cm x 24.10 cm x 47.70 cm |
| Weight | 33.50 lbs (15.20 kg) |
| Quantity | 50 pcs/ctn |

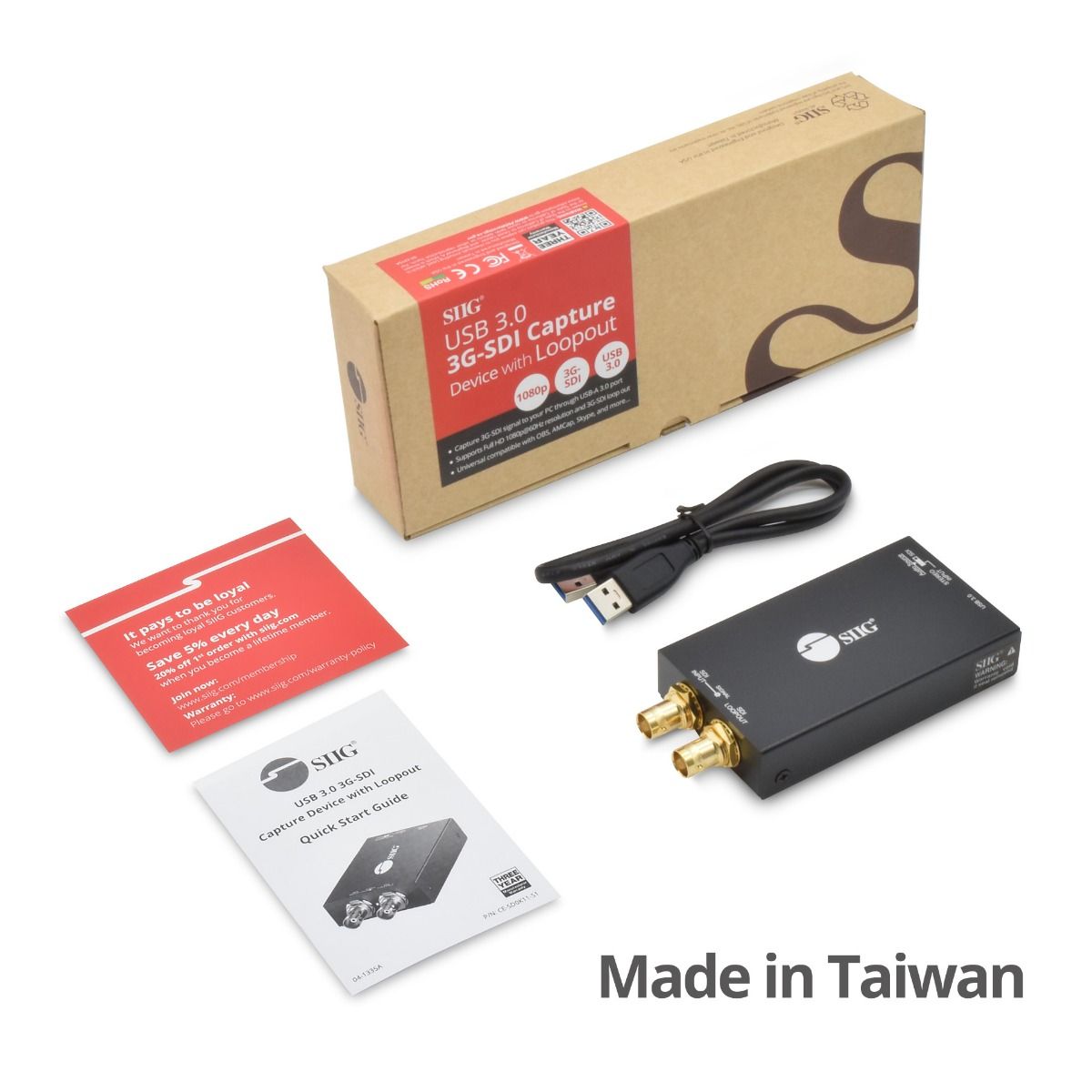

| Package Contents | 1x USB 3.0 3G-SDI Capture Device with Loopout 1x USB 3.0 A to A cable 1x Quick start guide |
| Environmental Conditions | |
| Operating Temperature | 32 to 104 degrees F |
| Storage Temperature | -4 to 140 degrees F |
| Relative Humidity | 20 to 90% RH (non-condensing) |
| Warranty | 3 years limited |
| Country of origin | Taiwan |
