Splitter | SKU: CE-H27N11-S1

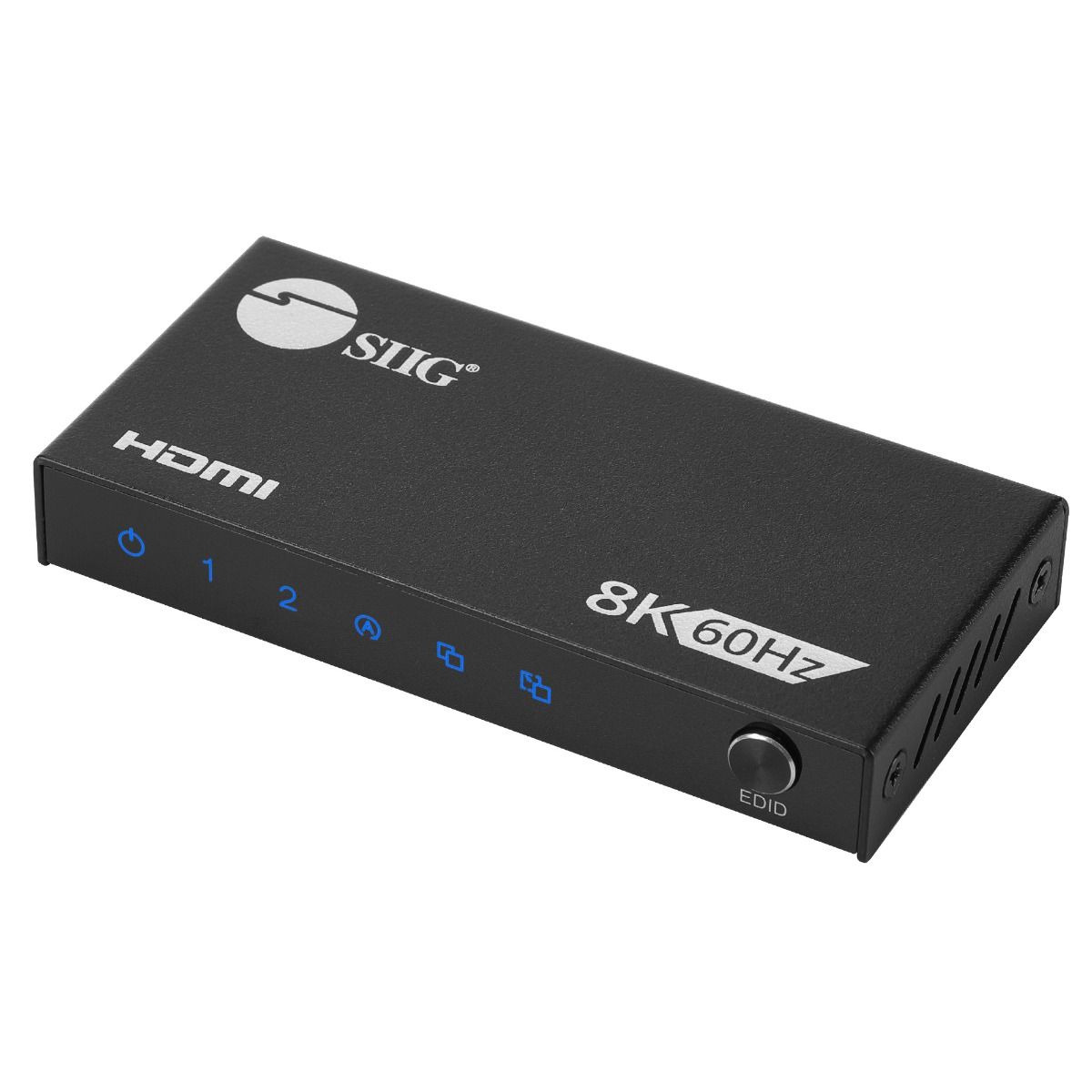

1x2 8K60Hz / 4K120Hz / 2K240Hz-HDMI Splitter with VRR/ALLM - 40G - EDID management - Auto/Copy/Downscaler mode

HDMI Splitter
8K60Hz / 4K120Hz
EDID Management
Downscaling
CEC on HDMI Out 1
$169.99
Shipping calculated at checkout.

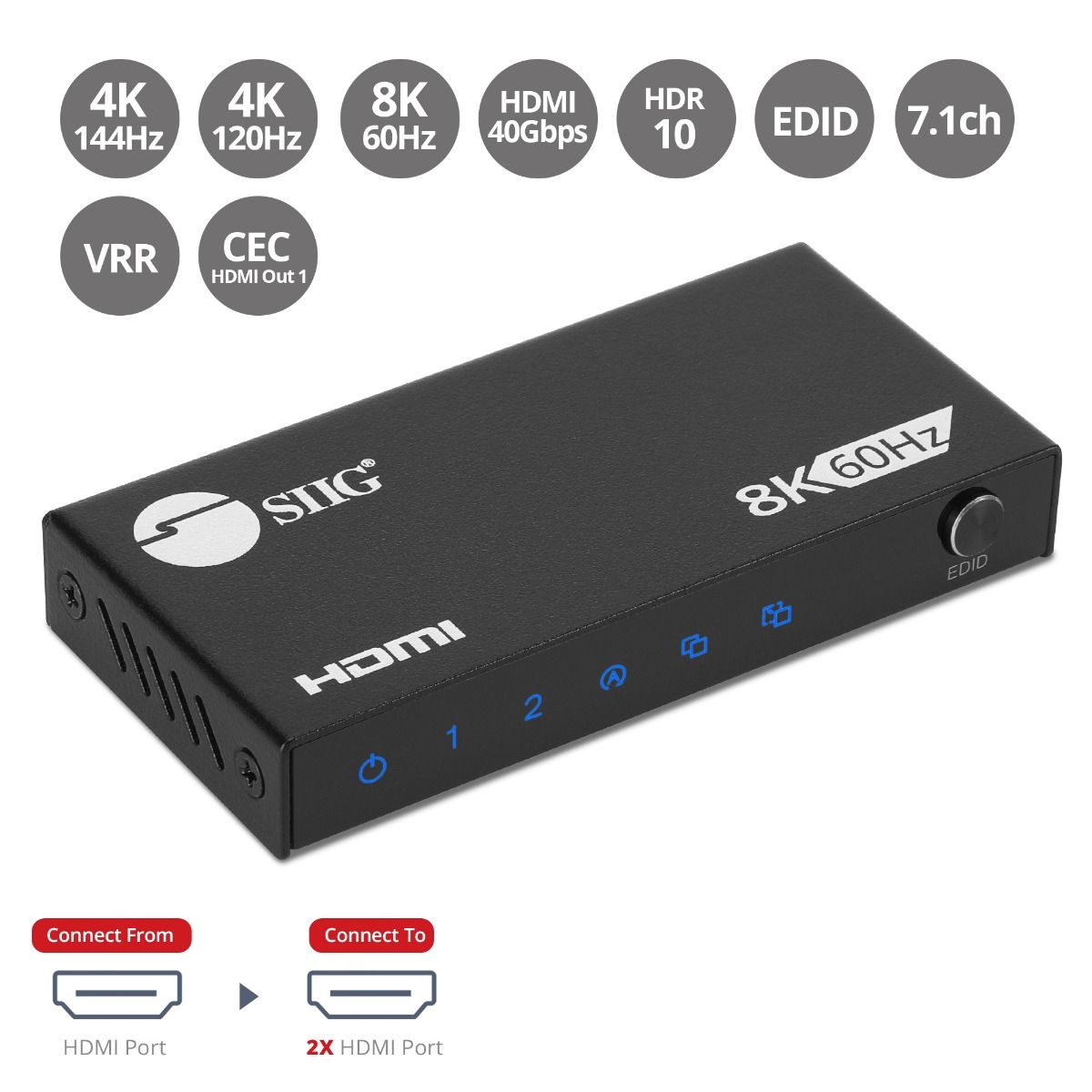

Product Features

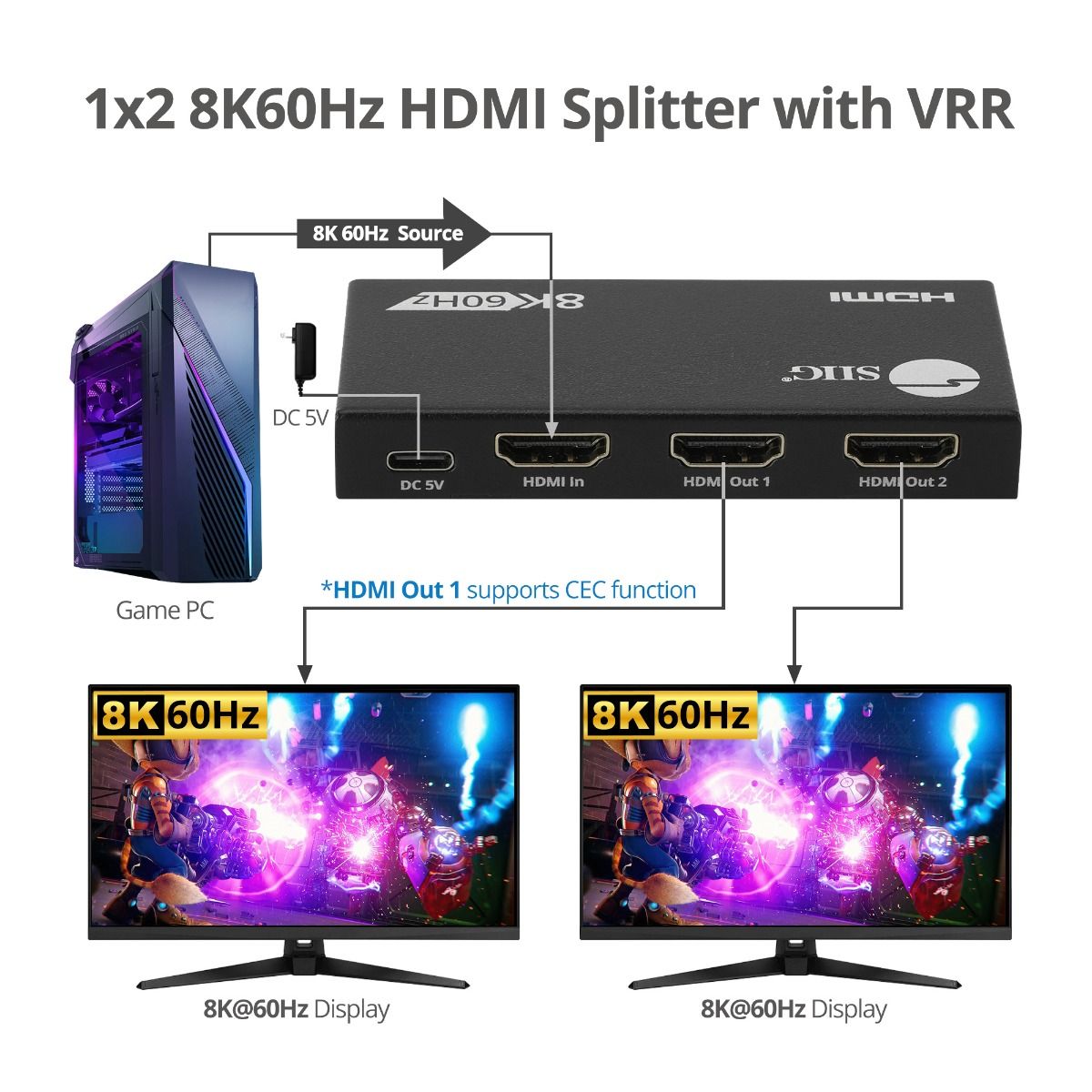

2-Port HDMI 2.1 Splitter

Splits one HDMI signal to two HDMI Displays simultaneously. Supports high speed HDMI 2.1 40Gbps video bandwidth, HDCP 2.3 compliant

Ultra HD Video and Audio

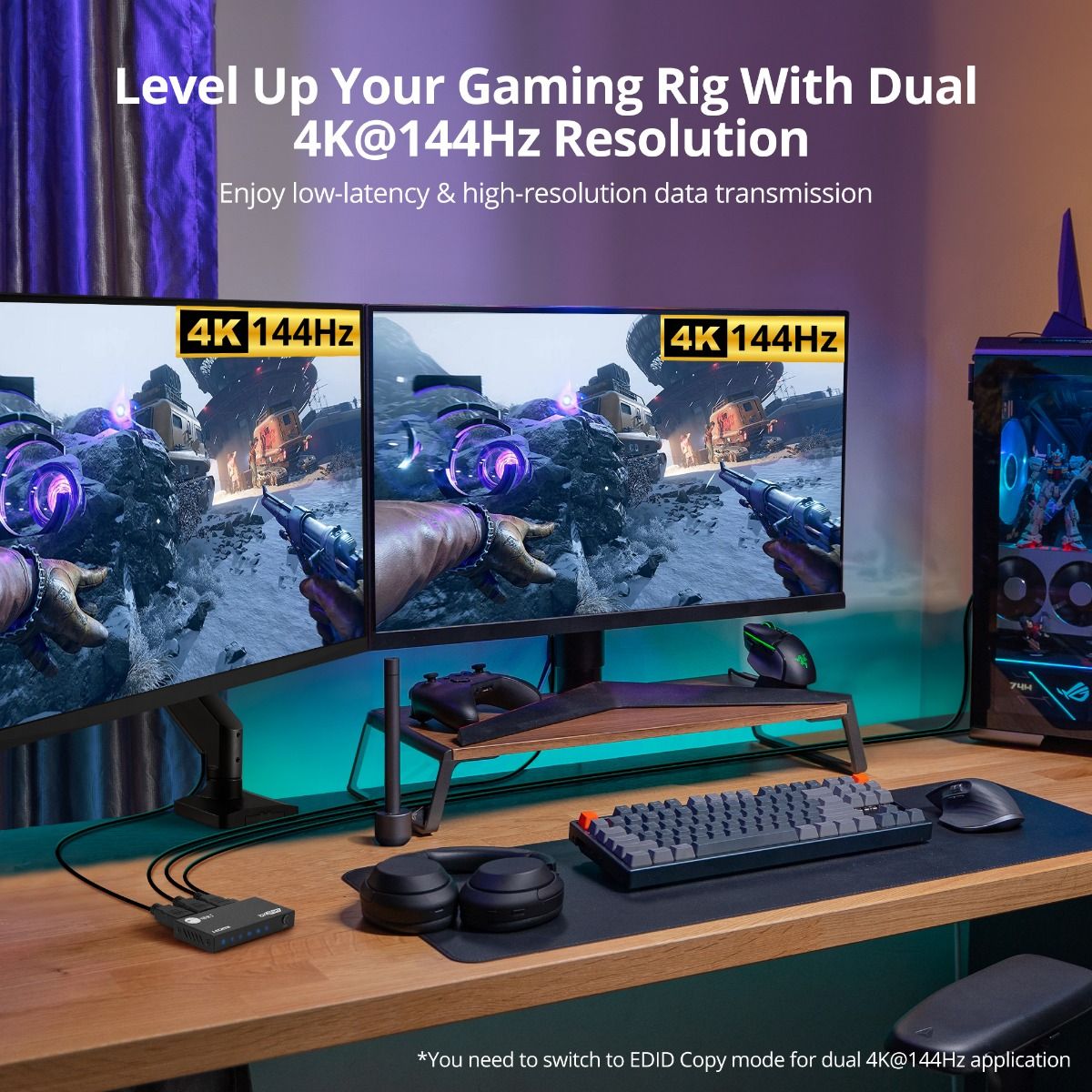

Supports Ultra HD resolution up to 8K 60Hz, 4K 144Hz (via Copy mode), 4K 120Hz, 2K (2560x1440 and 3440x1440) 240Hz (via Copy mode), HDR 10, CEC control on HDMI Out 1. Supports LPCM 7.1 ch, DTS-HD, Dolby Digital, Dolby TrueHD

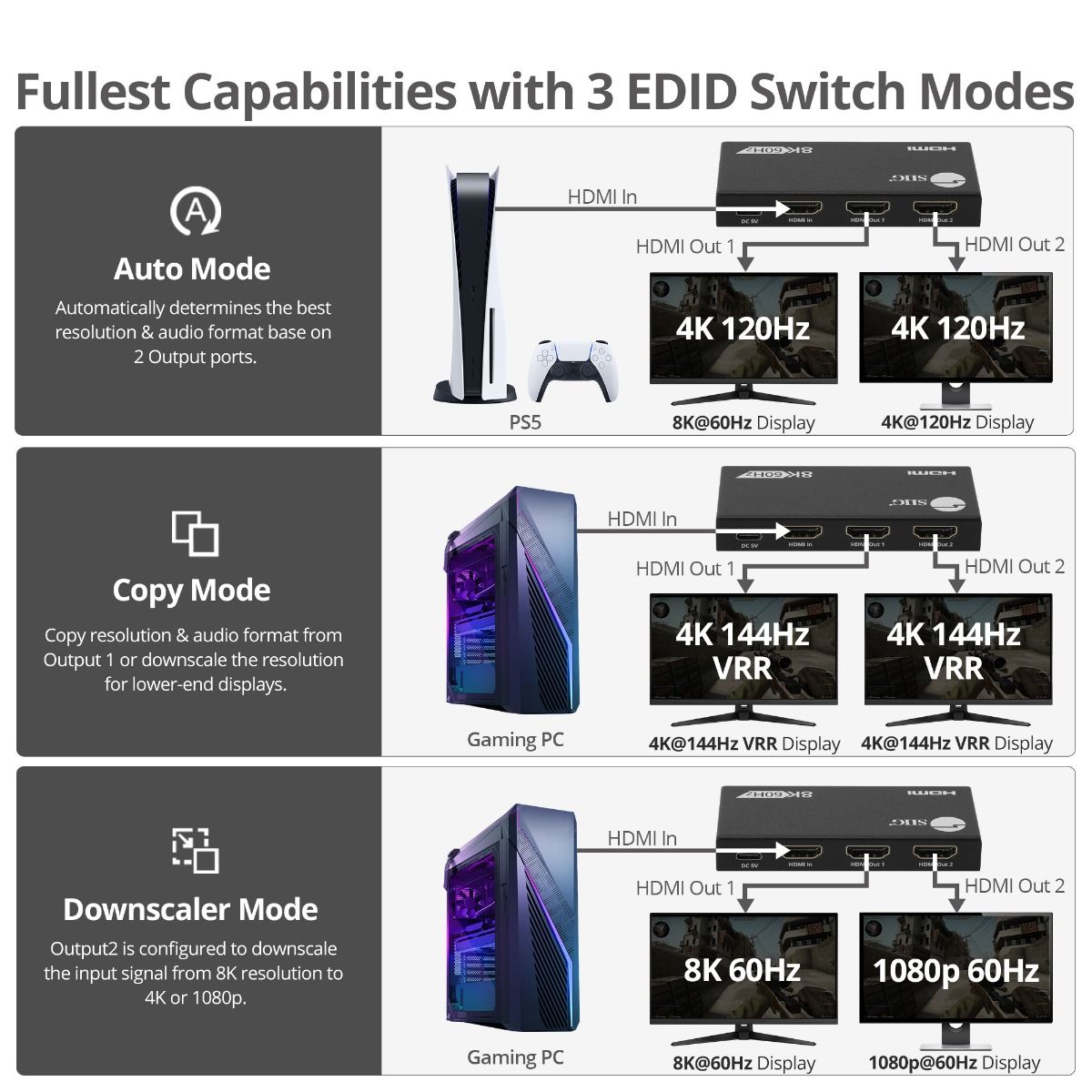

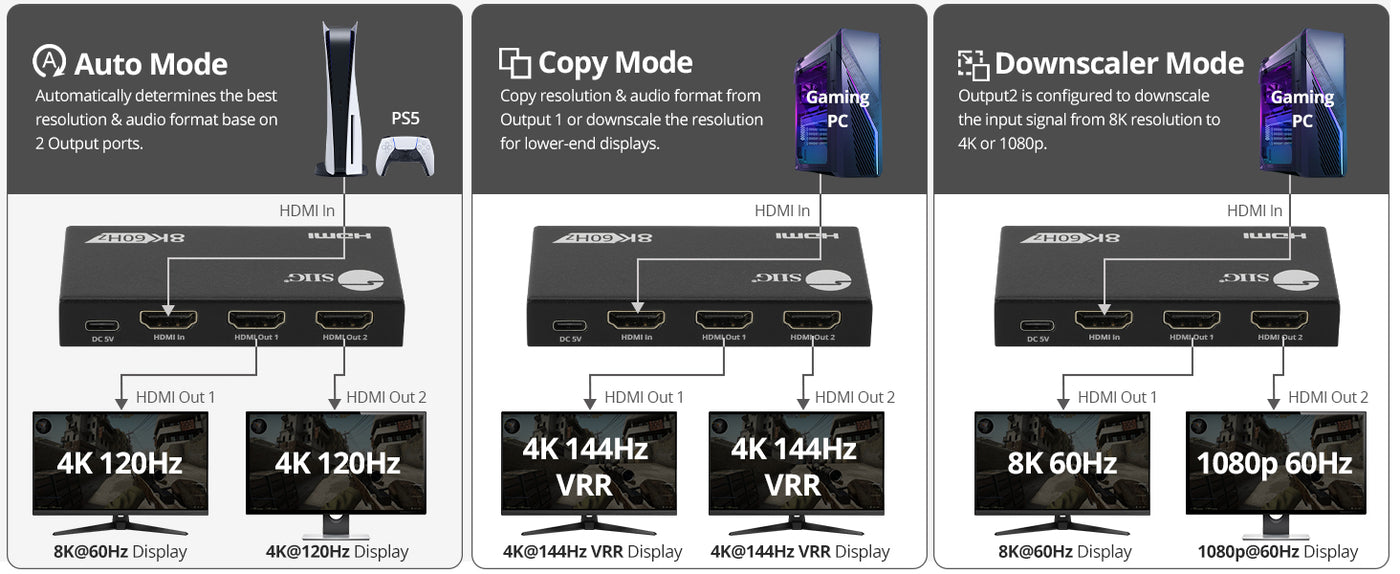

Edid Management With Downscaler

Supports Auto/Copy/Downscaler Modes via EDID: Auto detects best resolution based on output ports. Copy mode can copy the resolution of 1 output and display it on a compatible 2nd output. Downscaler supports video scaling down from 8K to 1080p. *Note: It can only support 60Hz down 60Hz, 30Hz down 30Hz, such as 8K 60Hz to 4K 60Hz, 8K 30Hz to 4K 30Hz

VRR/ALLM Support

Supports VRR (Variable Refresh Rate) and ALLM (Auto Low Latency Mode) technology to optimize the best gaming experience without any stuttering or tearing. *Note: Ensure the HDMI source device and monitor comes with VRR/ALLM feature. We recommend using identical monitors

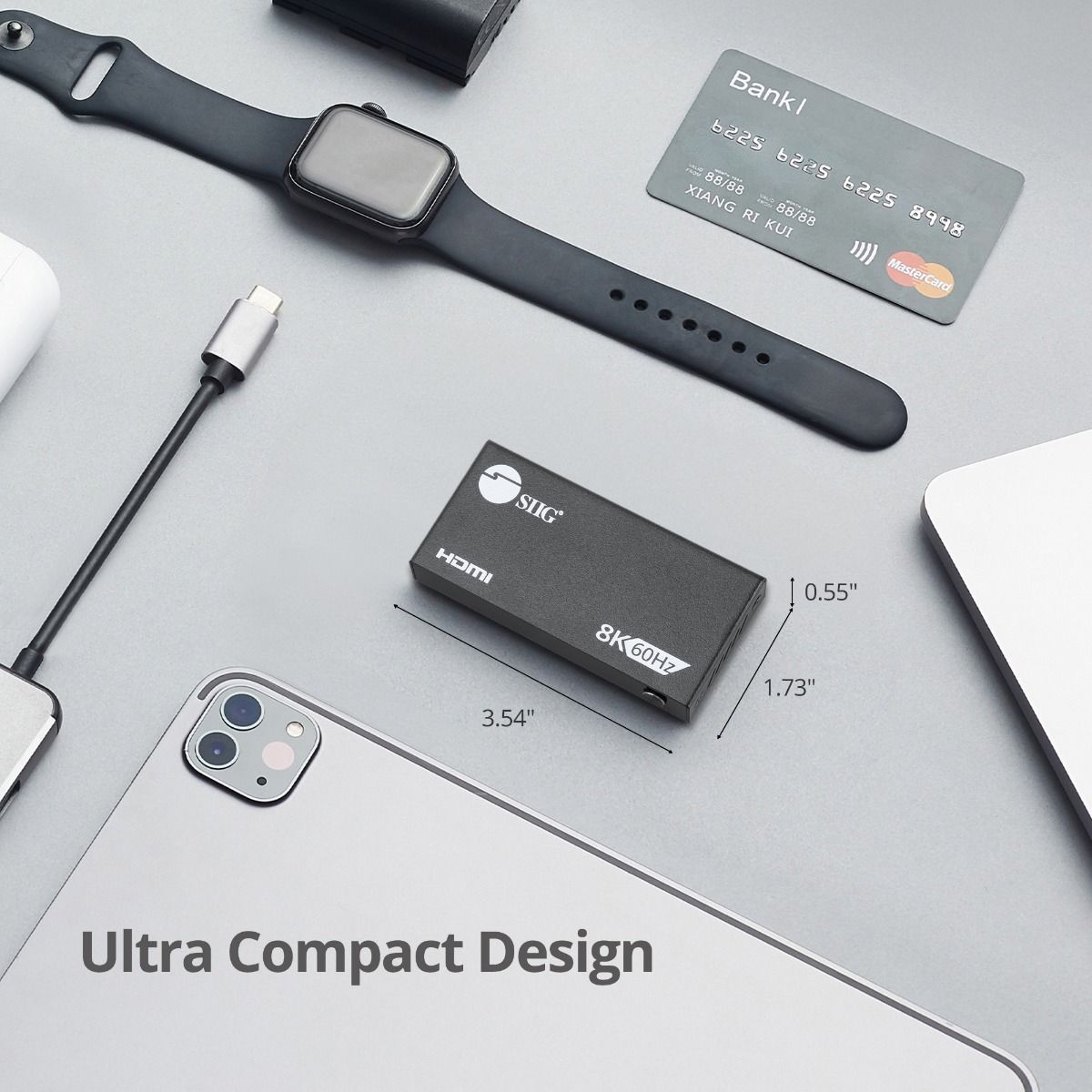

Ultra Compact

USB-C powered small form factor provides space-saving efficiency, premium metal housing provides efficient heat dissipation design for reliable performance

  • 45 Days Free Return

  • 2 Years Warranty

  • Lifetime Technical Support

1x2 40G HDMI Splitter with VRR/ALLM

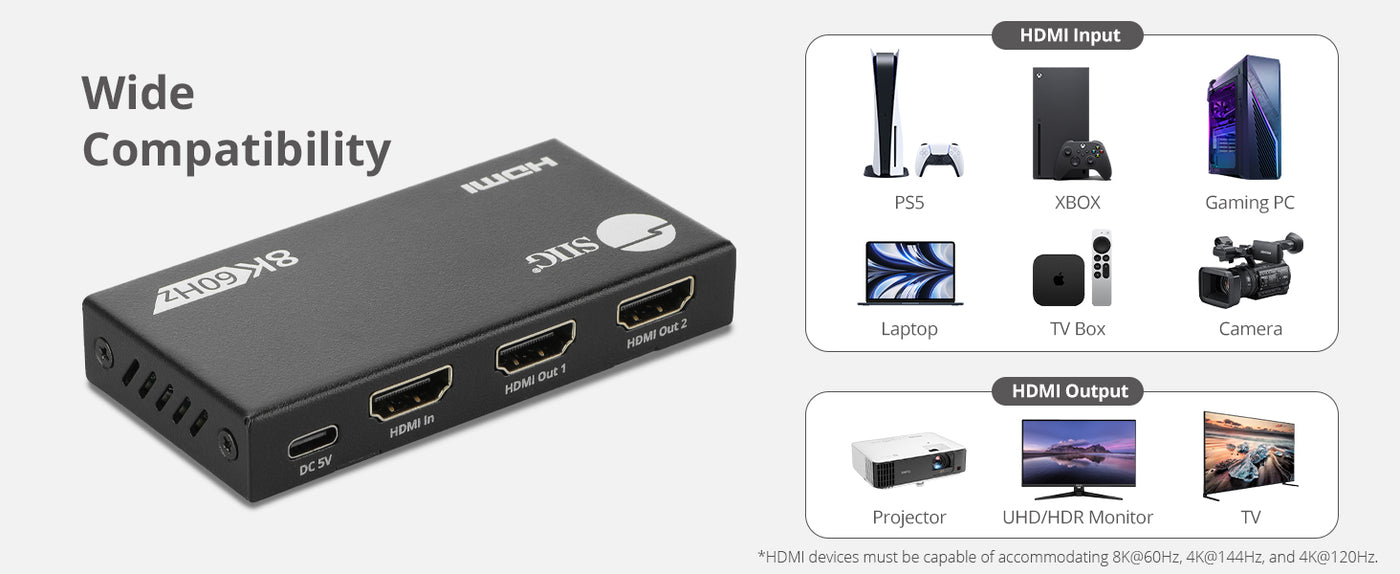

    Easily distributes a single HDMI source to 2 HDMI displays simultaneously, 8K 60Hz, 4K144Hz, 4K120Hz, 2K240Hz, 40G, HDCP 2.3, HDR, VRR/ALLM, LPCM 7.1ch, DTS-HD, Dolby Digital, Dolby TrueHD, comes with EDID management, Downscaler function. Works great with PS5, XBOX series, Nintendo Switch, etc.

    *Note: Both displays will show the same mirrored content, extended displays are not supported.
      Support LPCM 2/5.1/7.1ch uncompressed audio and Dolby Digital, Dolby Digital Plus, DTS Audio, DTS-HD, and Dolby TrueHD compressed audio.

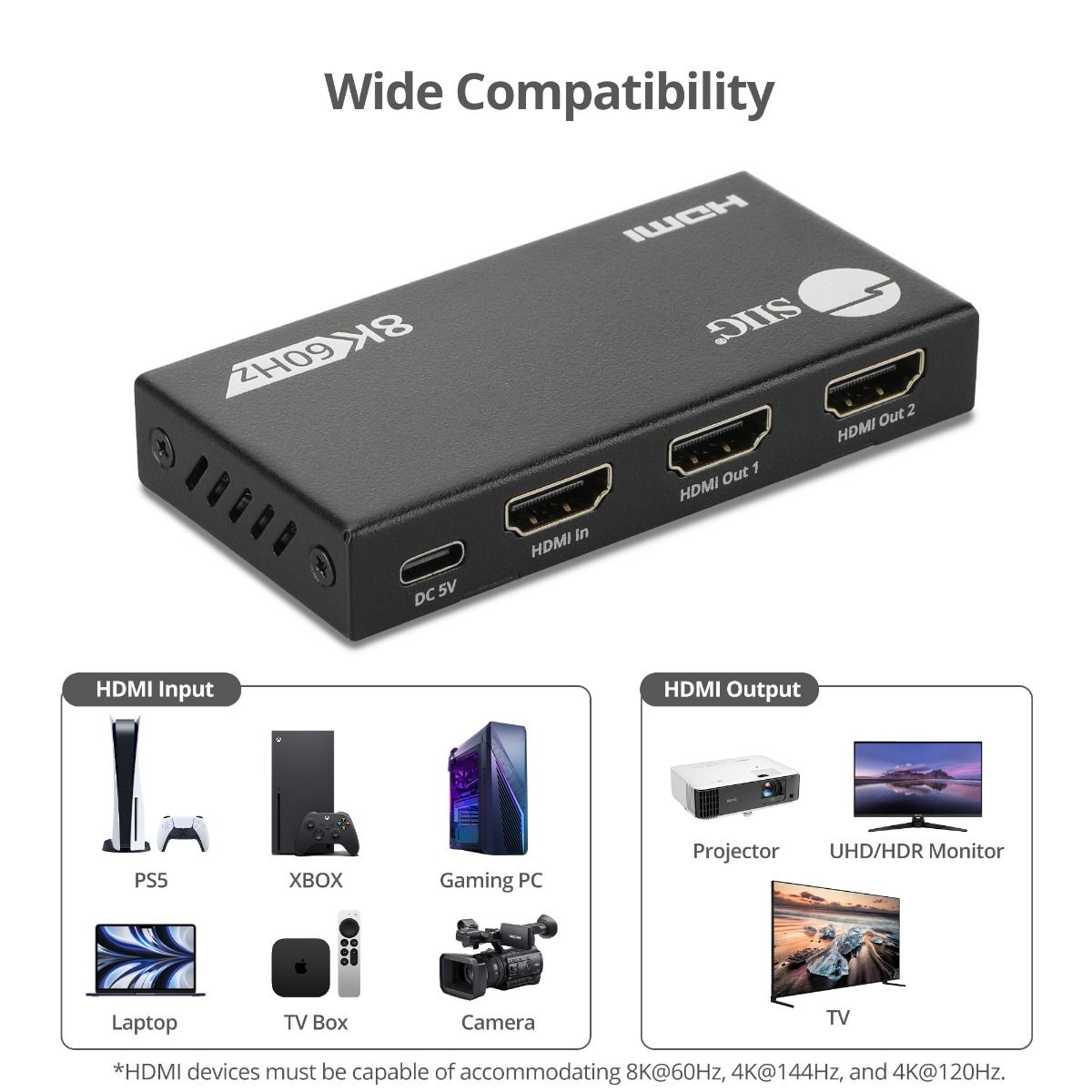

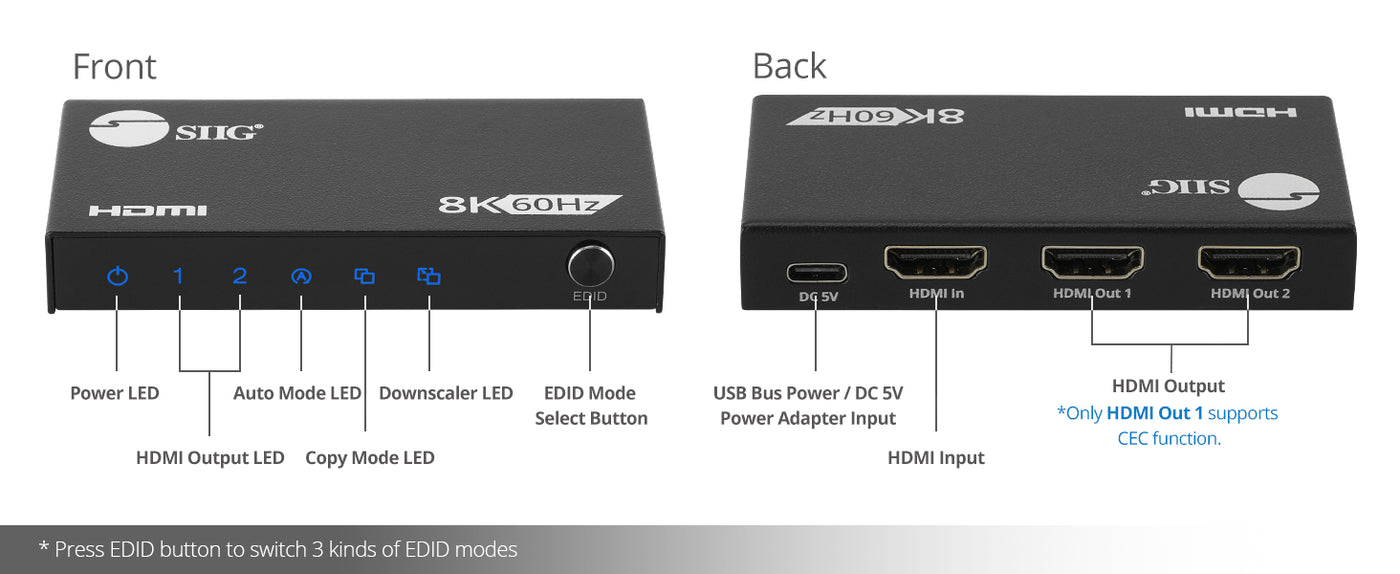

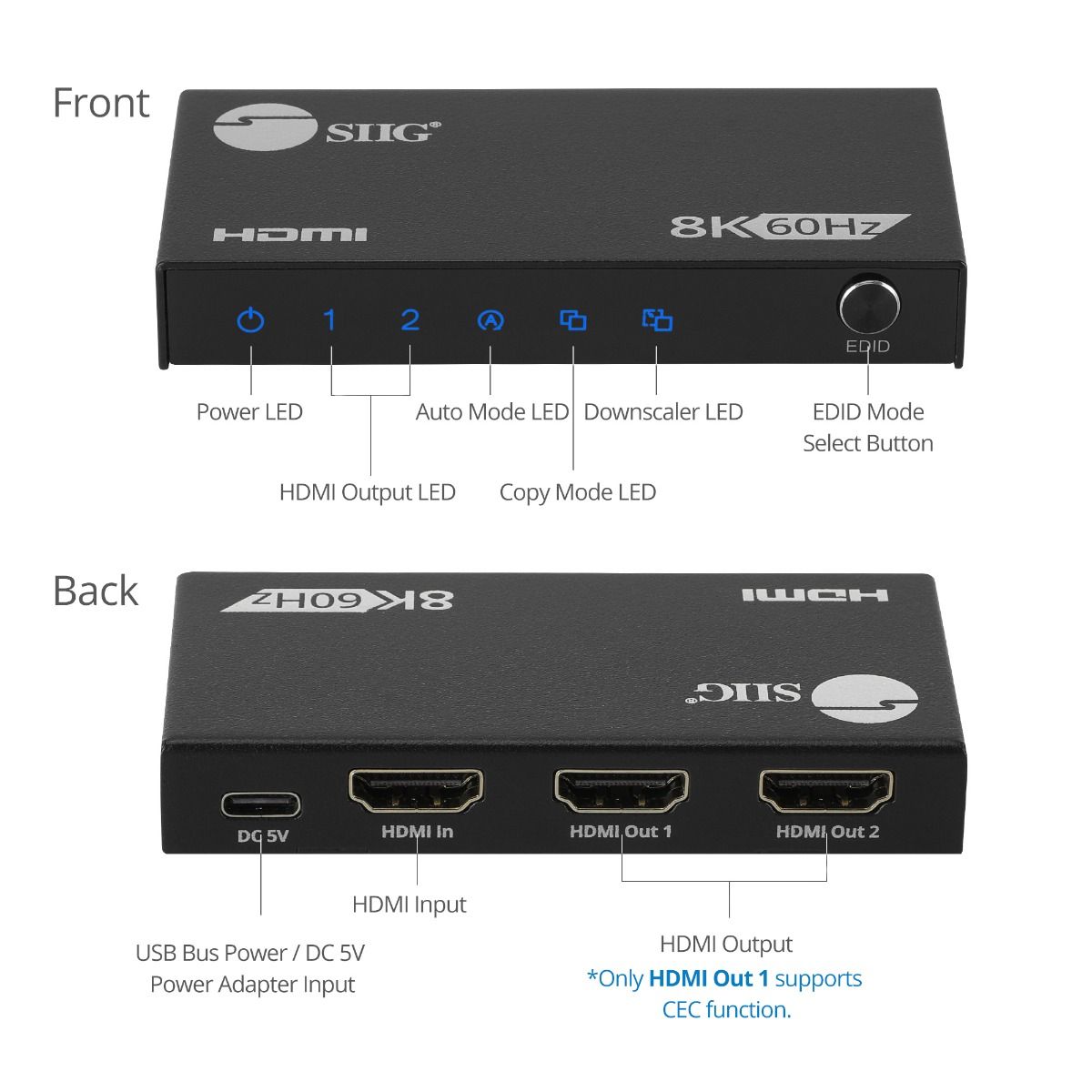

      Multiple Connectivity Ports

      Comparison Table

      1x2 8K60Hz / 4K120Hz / 2K240Hz-HDMI Splitter with VRR/ALLM - 40G - EDID management - Auto/Copy/Downscaler mode
      View details
      1x2 4K120Hz HDMI Splitter with EDID & Audio Extractor
      View details
      2 Port HDMI HDR Splitter with EDID and Downscaler
      View details
      SKU
      SKU
      CE-H27N11-S1
      CE-H27C11-S1
      CE-H26B11-S1
      Connection port
      Connection port
      3x HDMI, USB-C
      3x HDMI, Micro USB, S/PDIF, 3.5mm, Power Jack
      3x HDMI, Micro USB
      Data Transfer (Max)
      Data Transfer (Max)
      32Gbps
      40Gbps
      18Gbps
      Additional function
      Additional function
      EDID, Auto downscaler, CEC
      Scale Down/Up, VRR, ALLM, Audio Extractor
      EDID, Auto downscaler
      Housing material
      Housing material
      Metal
      Metal
      Metal
      Color
      Color
      Black
      Black
      Black
      Dimensions
      Dimensions
      3.54” (W) x0.55” (H) x 1.73" (D) (8.99 cm x 1.40 cm x 4.39 cm)
      4.66” (L) x 0.93” (H) x 2.59" (W) (11.84 cm x 2.36 cm x 6.58 cm)
      3.55" (W) x 0.70" (H) x 2.40" (D) (9.02 cm x 1.78 cm x 6.10 cm)
      Weight
      Weight
      0.20 lbs
      0.37 lbs
      0.26 lbs
      Mountable
      Mountable
      -
      Yes
      -
      Certification/ Standards
      Certification/ Standards
      FCC / CE / RoHS
      FCC / CE / RoHS / TAA Compliant
      FCC / CE / RoHS
      Warranty
      Warranty
      2 years
      3 years
      2 years
      Country of Origin
      Country of Origin
      China
      Taiwan
      China
      Resolution
      Resolution
      Up to 8K60Hz
      Up to 4K120Hz
      Up to 4K60Hz
      Audio spec
      Audio spec
      Dolby, Atmos, DTS, PCM 2.0, 5.1, 7.1
      PCM 2, 5.1, 7.1, Dolby, DTS
      LPCM 2.0, DTS-HD, Dolby True-HD, AC3, DTS, DSD
      IR function
      Remote control
      EDID button
      EDID button
      Yes
      -
      -
      Distance
      Antenna spec
      Reset key
      Reset key
      -
      Yes
      -
      Bandwidth
      Bandwidth
      32Gbps
      10.2Gbps
      18Gbps
      Power Output (Max)
      Power Indicator
      Power Indicator
      Yes
      Yes
      Yes
      Protection
      Protection
      ESD
      ESD
      ESD
      Protocol
      Power Adapter
      Power Adapter
      5V/1A
      5V/1A
      5V/1A
      Spec
      Spec
      HDMI 2.1, HDCP 2.3, HDCP 2.2, HDCP 1.4
      HDMI 2.1, HDCP 2.3, HDCP 1.4
      HDMI 2.0, HDCP 2.2, HDCP 1.4
