Splitter | SKU: CE-H26B11-S1

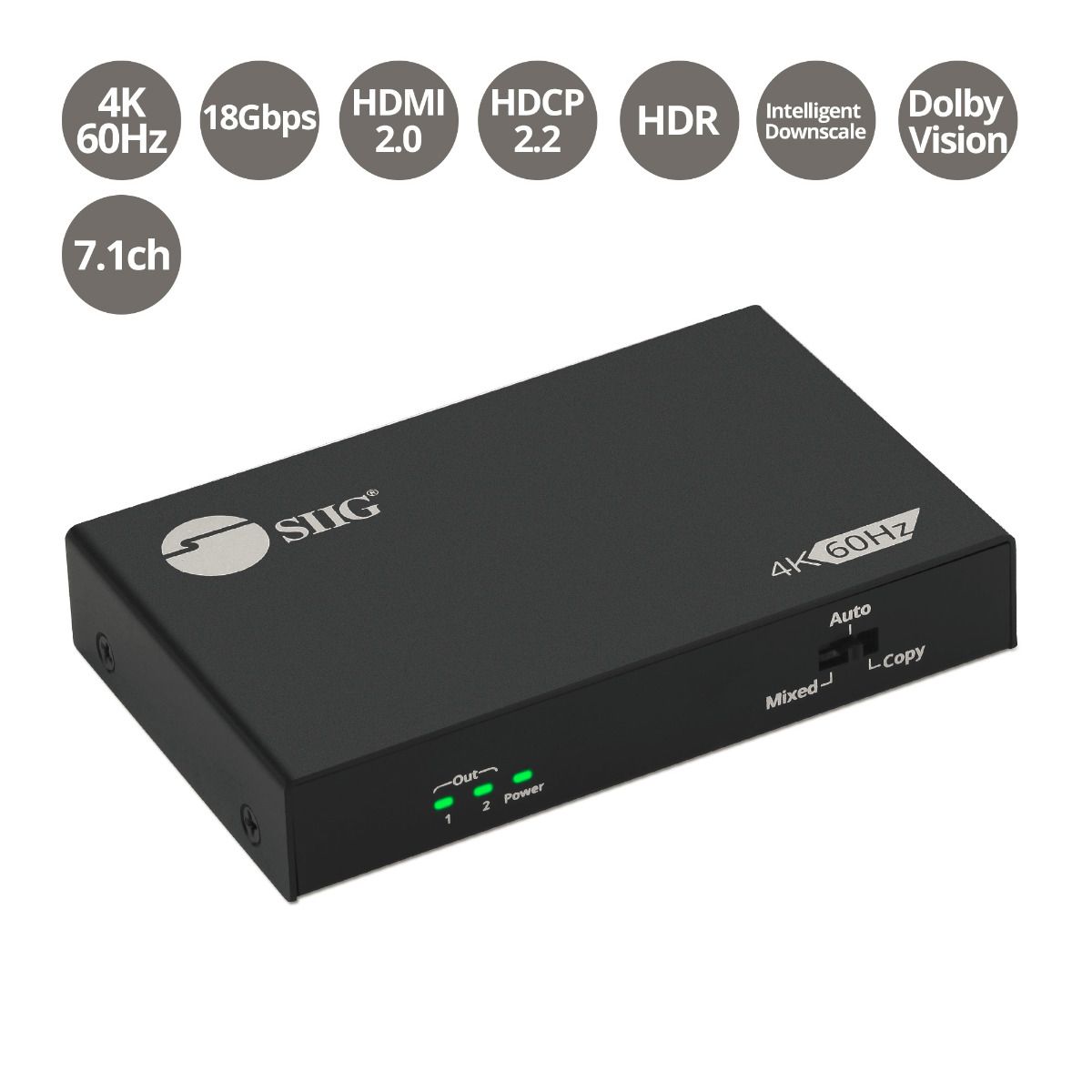

2 Port HDMI HDR Splitter with EDID and Downscaler

HDMI Splitter
4K60Hz
EDID Management
Downscaling
Metal Housing
$45.99
Shipping calculated at checkout.
Product Features

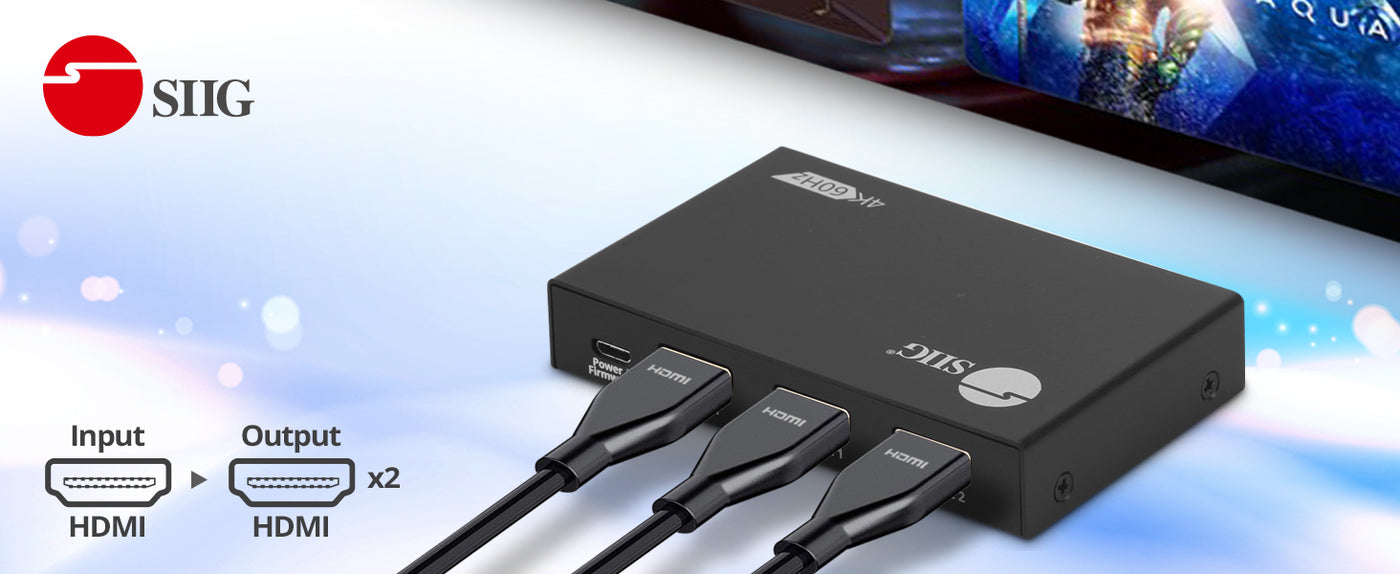

Compact HDMI Splitter

Distributes HDMI video and audio from a single source to 2 HDMI displays simultaneously while maintaining signal quality Compliant with HDMI 2.0a, HDCP 2.2/1.4 Bypass with 18Gbps bandwidth

True 4K HDR & Immersive Audio

Supports 4K@60Hz (4:4:4 8-bit), 3D, HDR, Deep Color, and Dolby Vision. Delivers LPCM 7.1, Dolby Atmos, DTS-HD Master Audio, and more.

Smart Auto Scaling

Automatically adjusts resolution based on each connected display. Ensures optimal viewing even when mixing 4K and 1080p monitors.

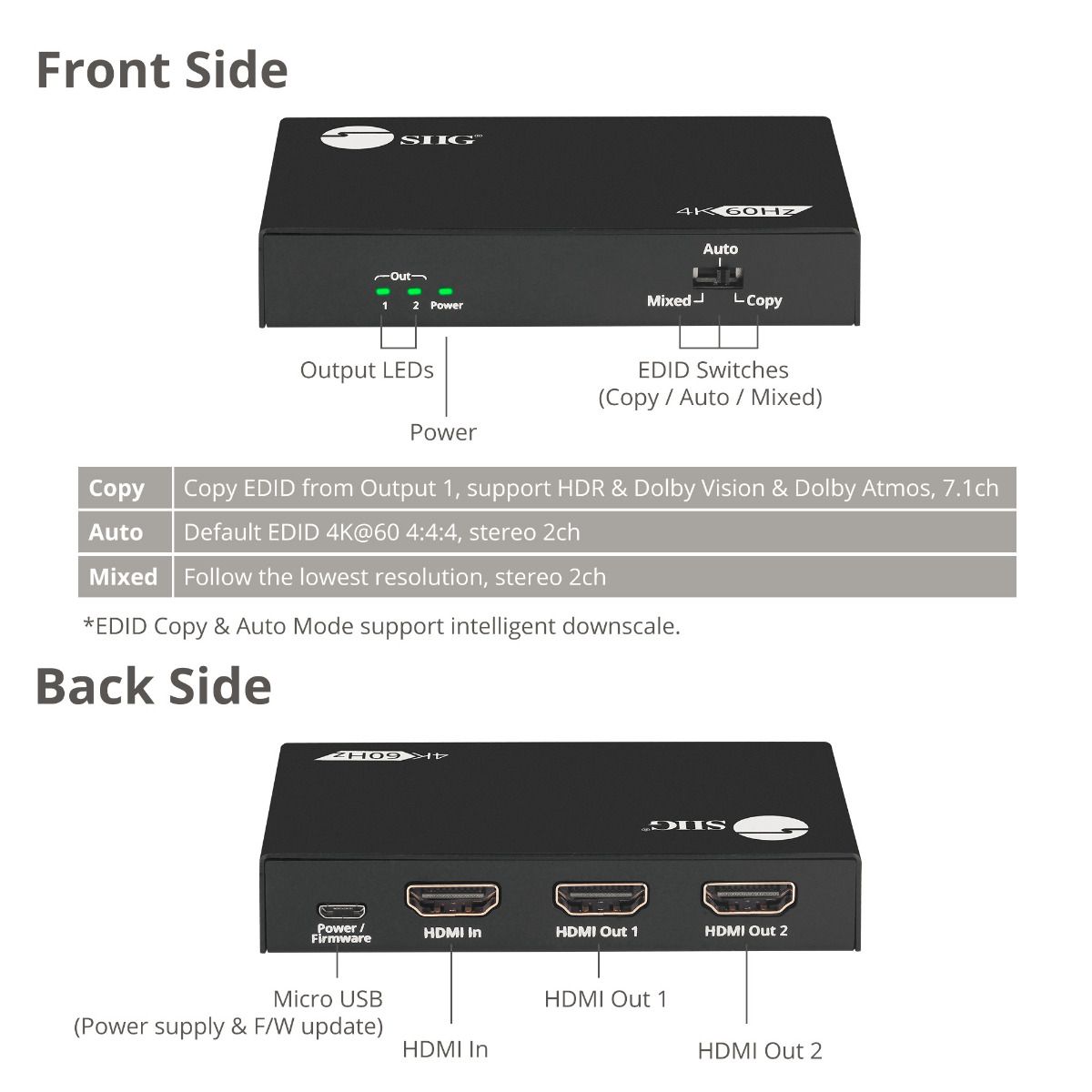

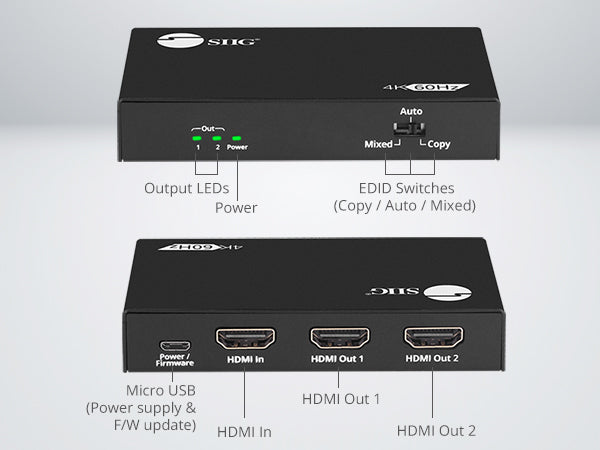

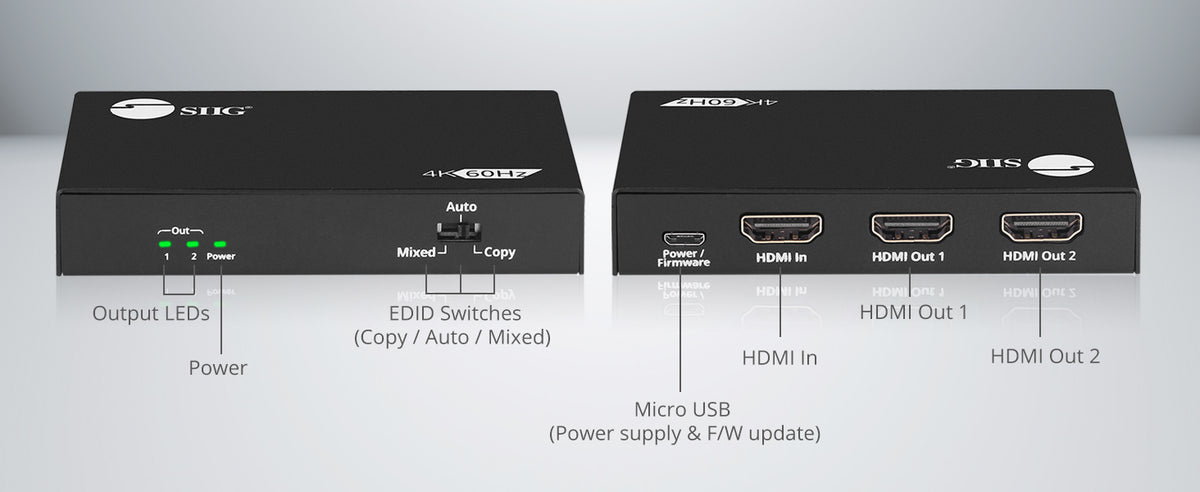

Advanced EDID & Firmware Support

Built-in EDID management with learning function for broad display compatibility. Firmware upgradable via Mini USB to ensure future-proof performance.

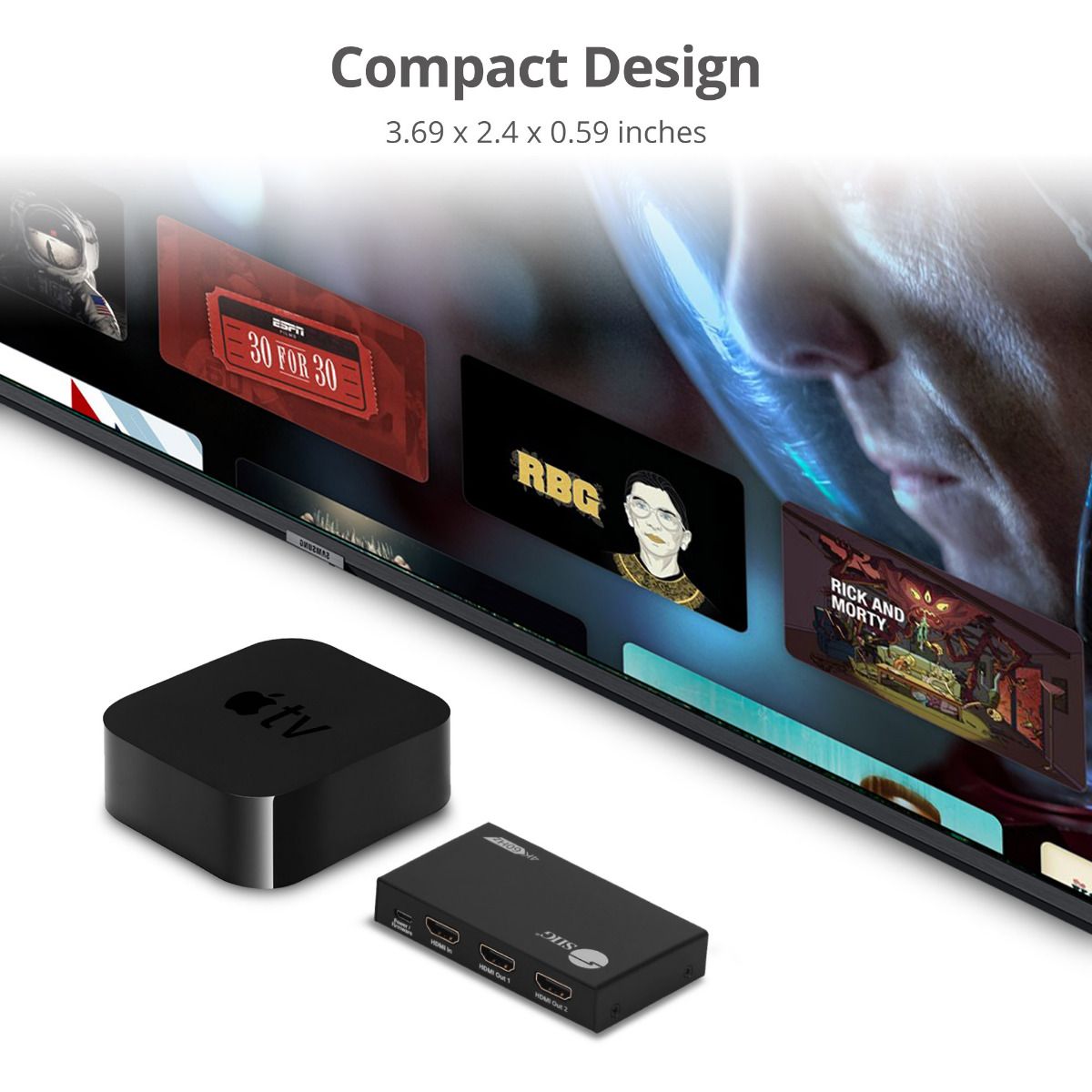

Durable Metal Housing Design

Low-heat metal enclosure improves heat dissipation and reduces EMI/RFI. Built with premium materials for long-lasting, stable operation.

  • 45 Days Free Return

  • 2 Years Warranty

  • Lifetime Technical Support

SIIG 2 Port HDMI HDR Splitter with EDID and Downscaler

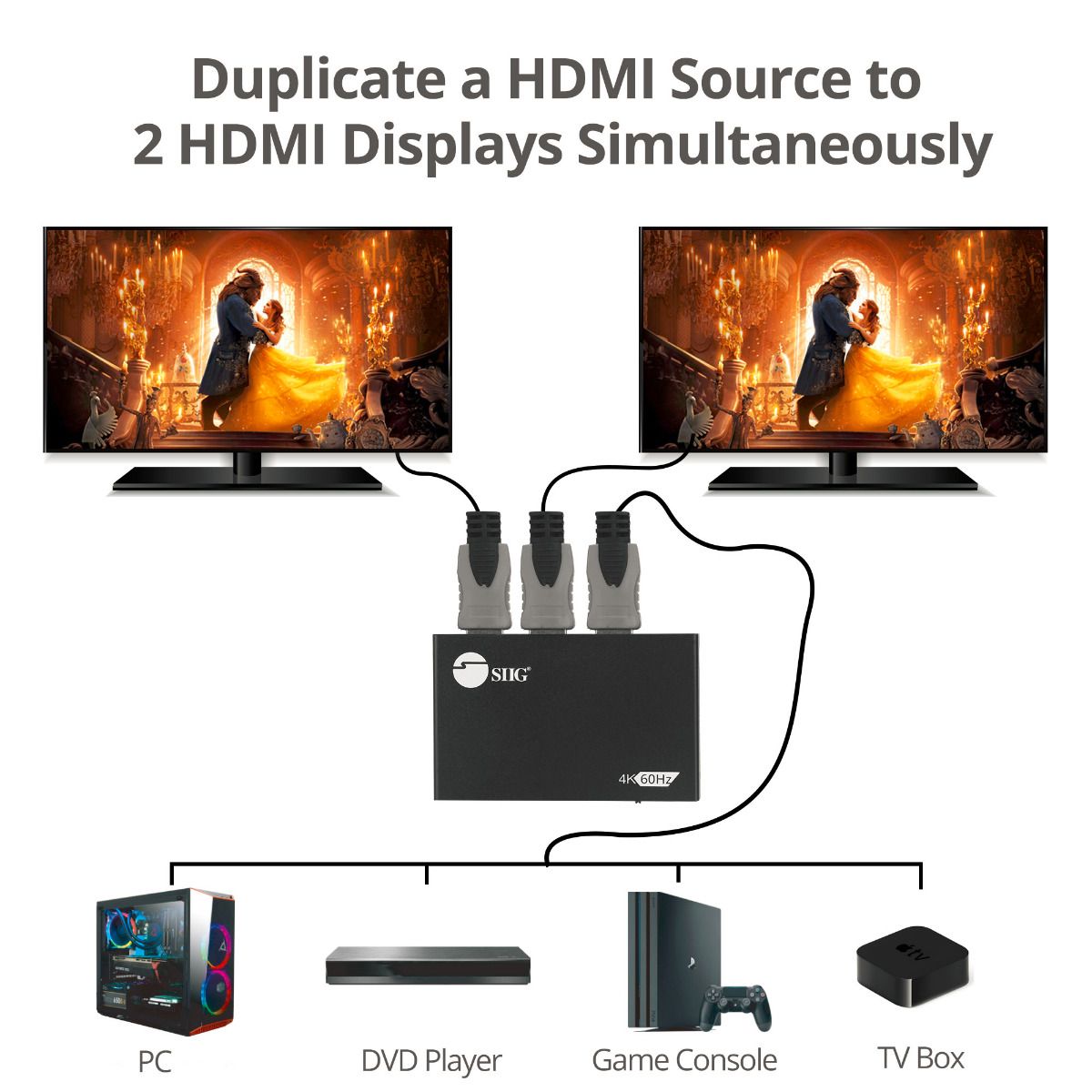

    Distribute HDMI video and audio from a single source to two displays simultaneously with no signal loss (mirror mode only; extended mode not supported). Designed for flexibility, it supports mixed 4K and 1080p outputs—allowing a 4K source to deliver true 4K to compatible displays while automatically downscaling to 1080p for others. Perfect for gaming setups, it enables seamless 4K gameplay while recording in 1080p using devices like Elgato game capture device.

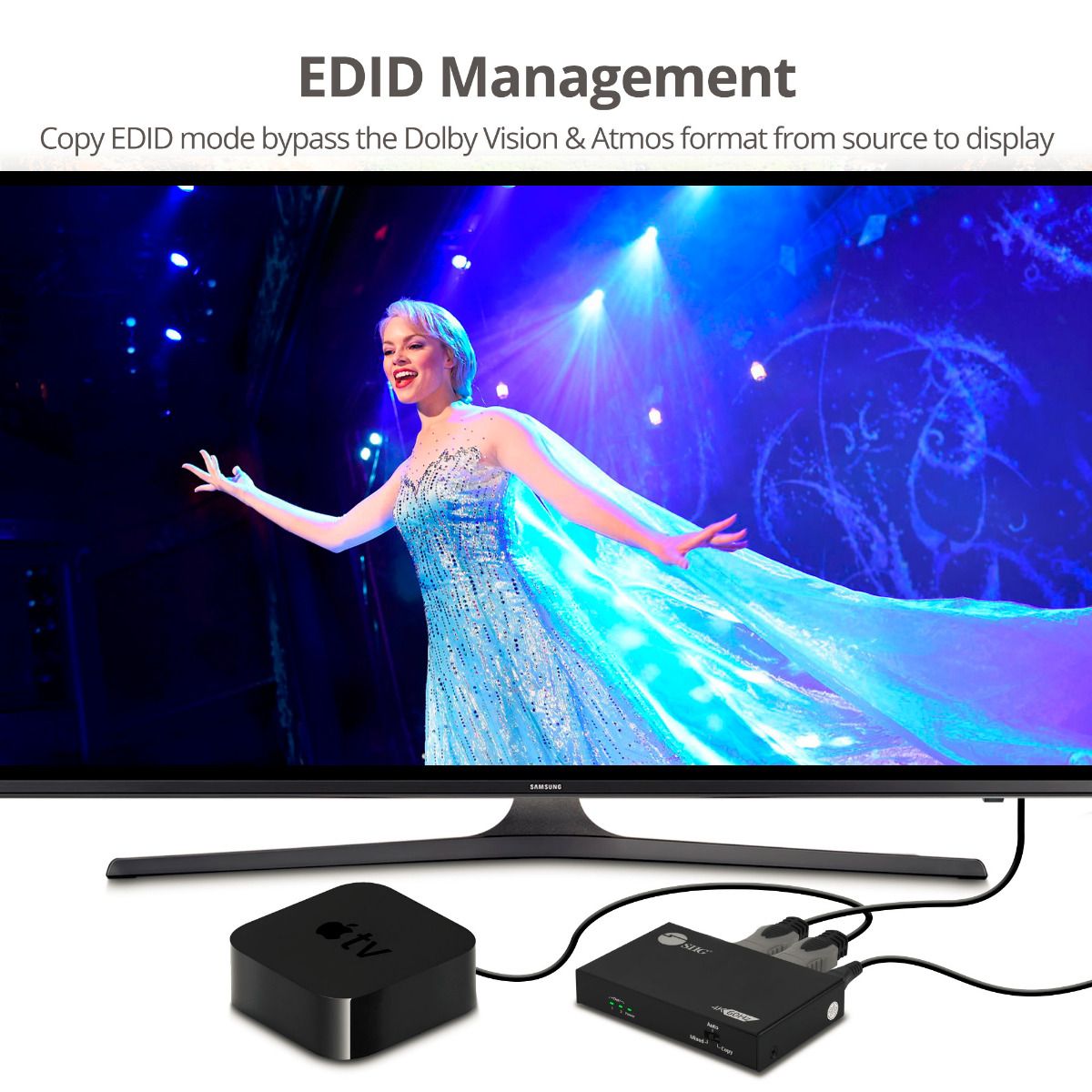

    Built-in EDID management ensures broad compatibility by supporting both pre-configured EDID settings and EDID learning from connected displays, with firmware upgradeability via Mini USB for future-proof performance.

    Engineered with a durable metal housing, it enhances stability, reduces heat buildup, and minimizes EMI/RFI interference—ensuring reliable, long-term operation even during extended use.

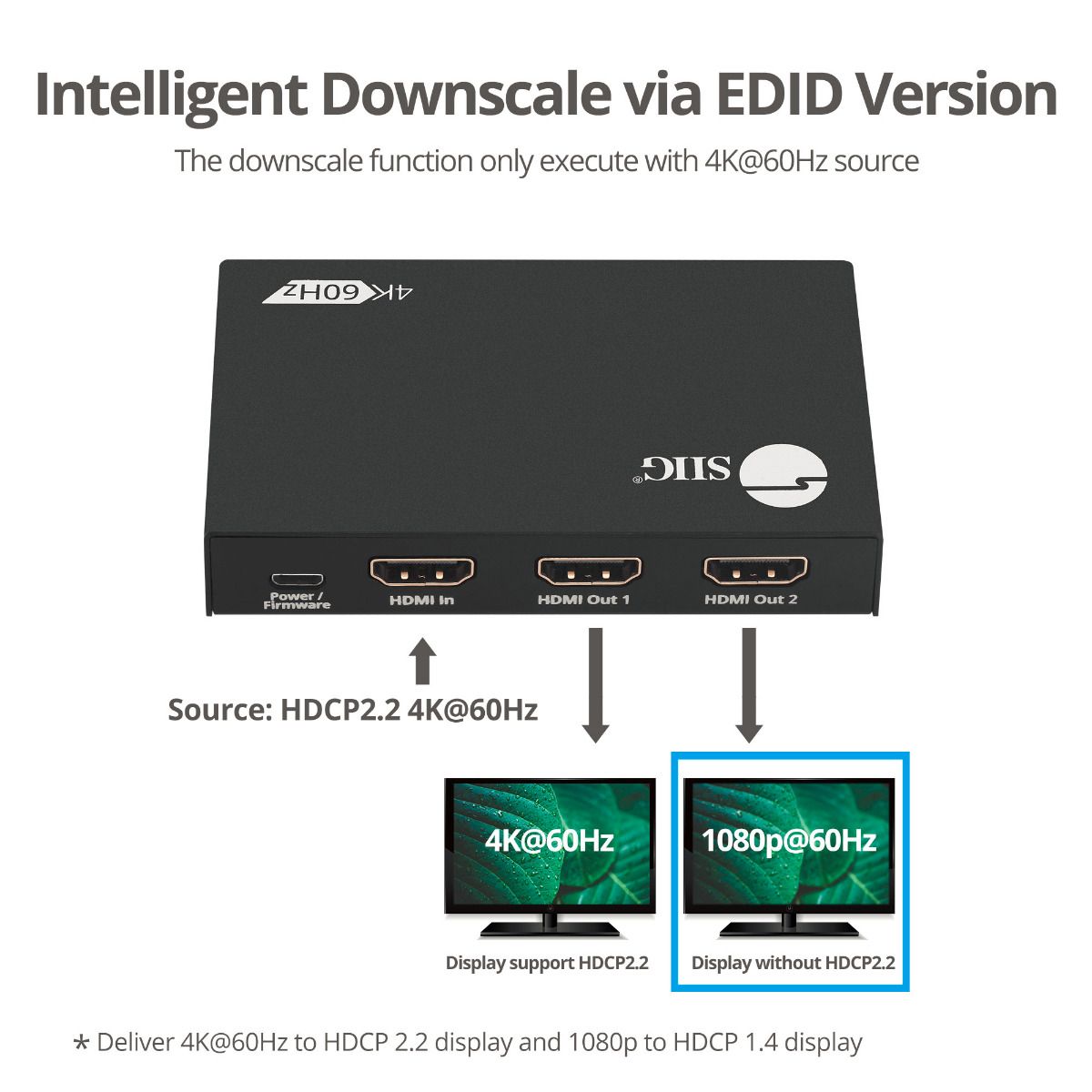

    Mixed Resolution Downscaling

      Seamlessly distribute a 4K signal to dual displays with different resolutions—delivering true 4K to one display while downscaling to 1080p on the other. Ideal for mixed-display environments, this feature allows newer 4K screens and legacy 1080p monitors to work together without compromise.

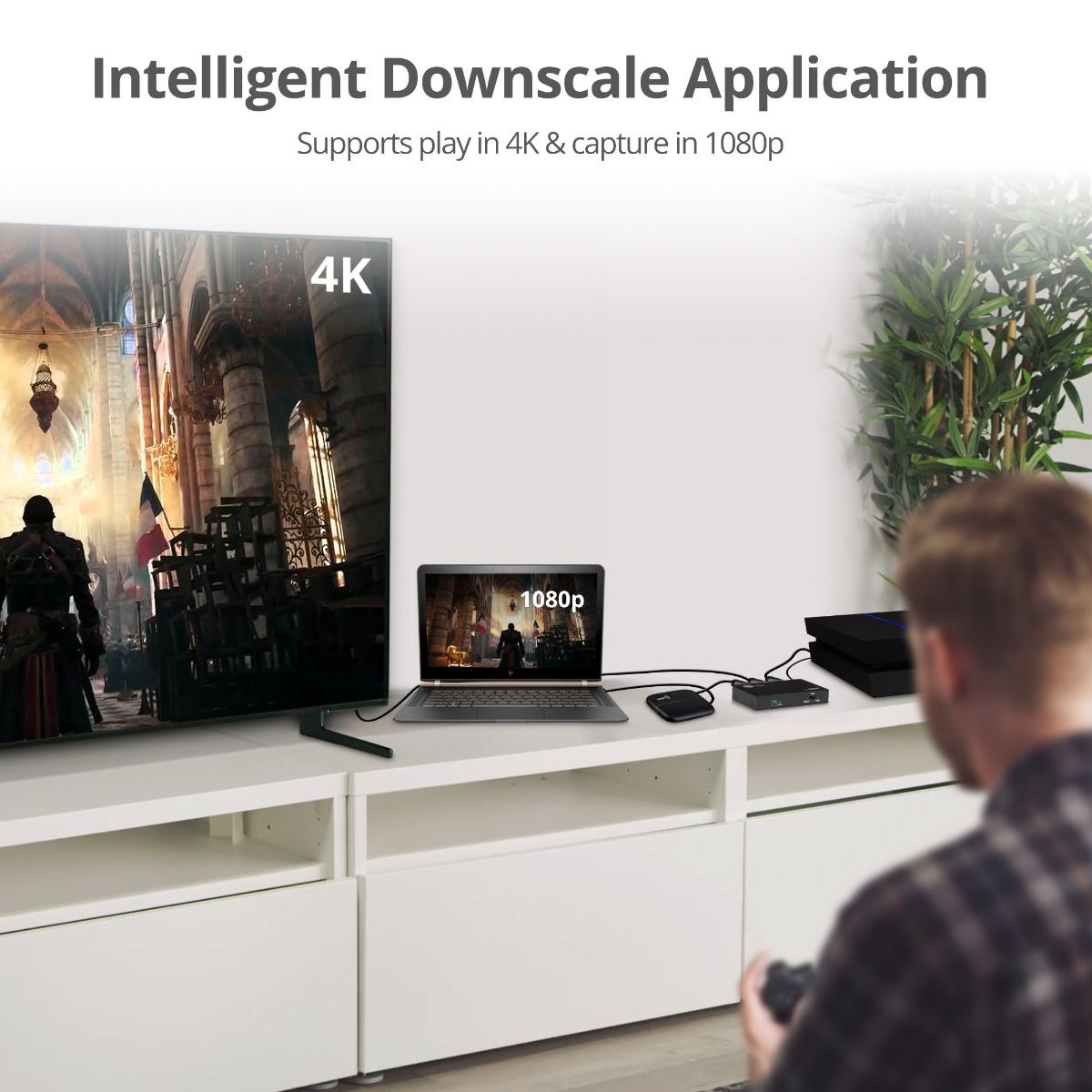

      Perfect for gaming setups, it enables 4K gameplay while recording in 1080p using devices like Elgato game capture device—eliminating the need for a costly 4K capture card.

      Supports downscaling from 4K@60Hz (4:4:4) to 1080p only. Other conversions such as 720p to 480p, 4K@60Hz (4:2:2) to 1080p, or 2K to 1080p are not supported. HDR content is passed through but not optimized for 1080p, which may result in a washed-out image. Not compatible with HDMI 1.4 or earlier AV receivers, and frame rate conversion (e.g., 60Hz to 24Hz) is not supported.

      Comparison Table

      2 Port HDMI HDR Splitter with EDID and Downscaler
      View details

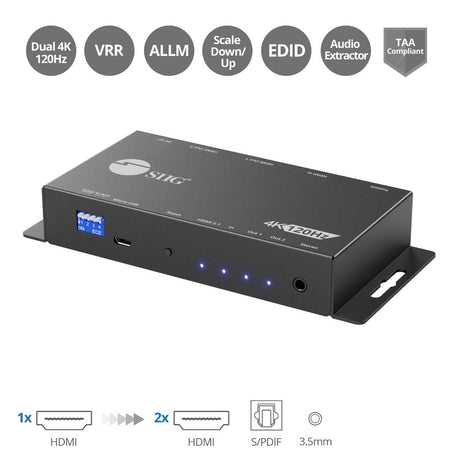

      1x2 4K120Hz HDMI Splitter with EDID & Audio Extractor
      View details

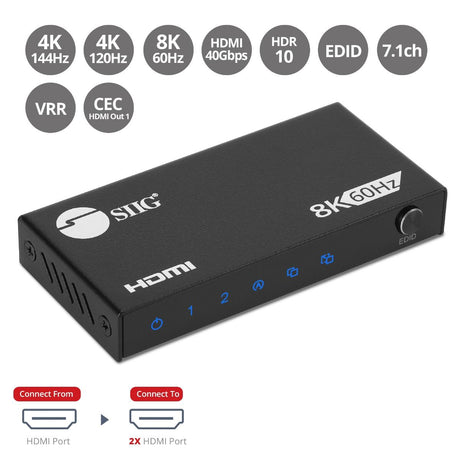

      1x2 8K60Hz / 4K120Hz / 2K240Hz-HDMI Splitter with VRR/ALLM - 40G - EDID management - Auto/Copy/Downscaler mode
      View details
      SKU
      SKU
      CE-H26B11-S1
      CE-H27C11-S1
      CE-H27N11-S1
      Connection port
      Connection port
      3x HDMI, Micro USB
      3x HDMI, Micro USB, S/PDIF, 3.5mm, Power Jack
      3x HDMI, USB-C
      Data Transfer (Max)
      Data Transfer (Max)
      18Gbps
      40Gbps
      32Gbps
      Additional function
      Additional function
      EDID, Auto downscaler
      Scale Down/Up, VRR, ALLM, Audio Extractor
      EDID, Auto downscaler, CEC
      Housing material
      Housing material
      Metal
      Metal
      Metal
      Color
      Color
      Black
      Black
      Black
      Dimensions
      Dimensions

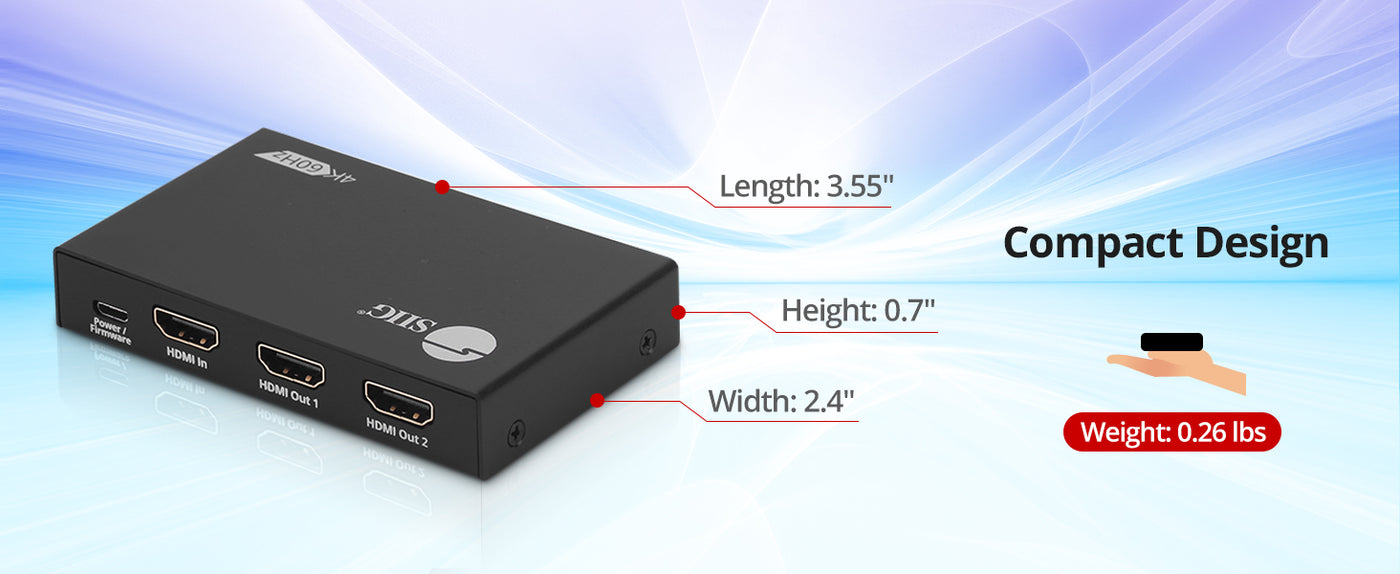

      3.55" (W) x 0.70" (H) x 2.40" (D) (9.02 cm x 1.78 cm x 6.10 cm)
      4.66” (L) x 0.93” (H) x 2.59" (W) (11.84 cm x 2.36 cm x 6.58 cm)
      3.54” (W) x0.55” (H) x 1.73" (D) (8.99 cm x 1.40 cm x 4.39 cm)
      Weight
      Weight
      0.26 lbs
      0.37 lbs
      0.20 lbs
      Mountable
      Mountable
      -
      Yes
      -
      Certification/ Standards
      Certification/ Standards
      FCC / CE / RoHS
      FCC / CE / RoHS / TAA Compliant
      FCC / CE / RoHS
      Warranty
      Warranty
      2 years
      3 years
      2 years
      Country of Origin
      Country of Origin
      China
      Taiwan
      China
      Resolution
      Resolution
      Up to 4K60Hz
      Up to 4K120Hz
      Up to 8K60Hz
      Audio spec
      Audio spec
      LPCM 2.0, DTS-HD, Dolby True-HD, AC3, DTS, DSD
      PCM 2, 5.1, 7.1, Dolby, DTS
      Dolby, Atmos, DTS, PCM 2.0, 5.1, 7.1
      IR function
      Remote control
      EDID button
      EDID button
      -
      -
      Yes
      Distance
      Antenna spec
      Reset key
      Reset key
      -
      Yes
      -
      Bandwidth
      Bandwidth
      18Gbps
      10.2Gbps
      32Gbps
      Power Output (Max)
      Power Indicator
      Power Indicator
      Yes
      Yes
      Yes
      Protection
      Protection
      ESD
      ESD
      ESD
      Protocol
      Power Adapter
      Power Adapter
      5V/1A
      5V/1A
      5V/1A
      Spec
      Spec
      HDMI 2.0, HDCP 2.2, HDCP 1.4
      HDMI 2.1, HDCP 2.3, HDCP 1.4
      HDMI 2.1, HDCP 2.3, HDCP 2.2, HDCP 1.4
