Splitter | SKU: CE-H27C11-S1

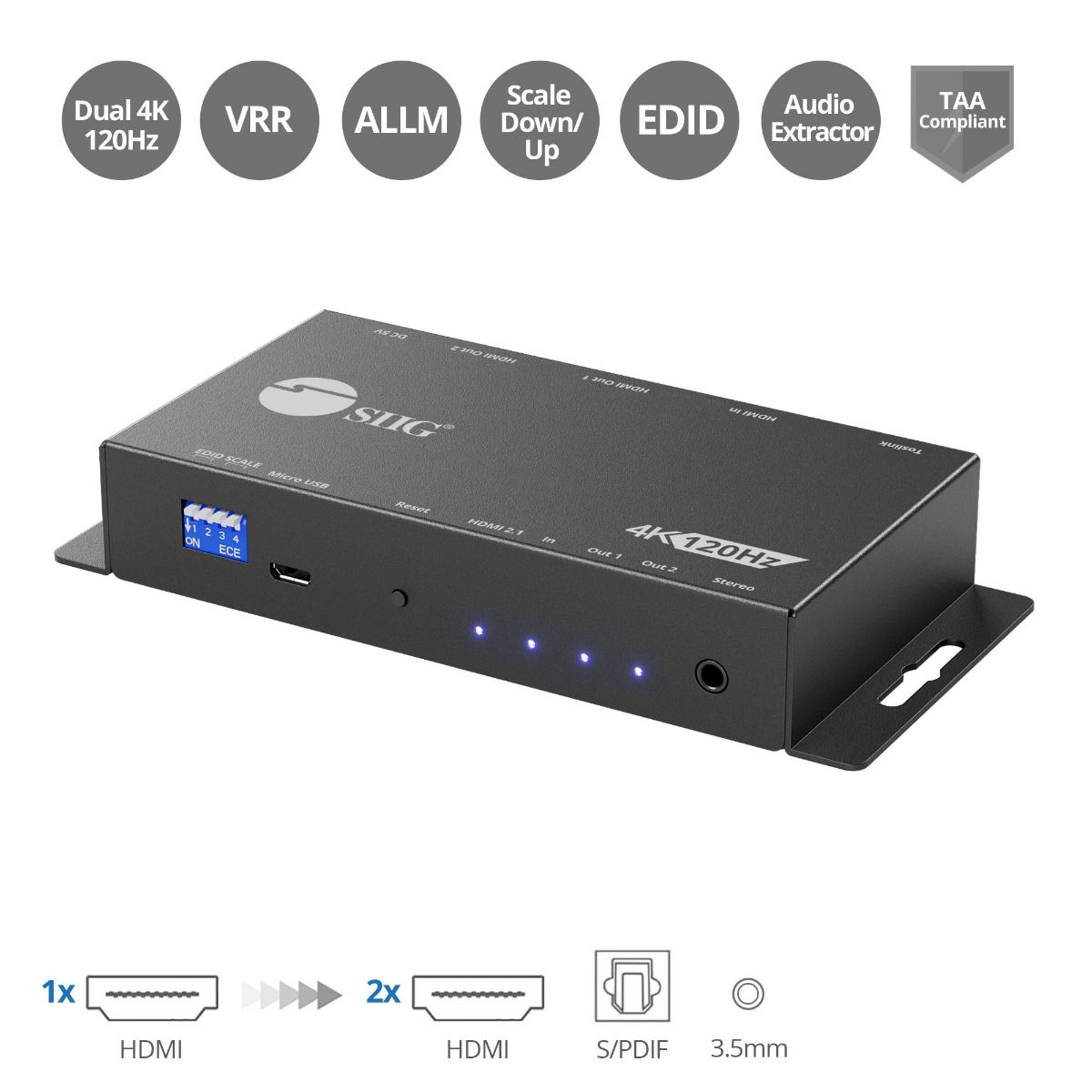

1x2 4K120Hz HDMI Splitter with EDID & Audio Extractor

1x2 HDMI Splitter
4K120Hz
EDID
Audio Extractor
TAA Compliant
$219.99
Shipping calculated at checkout.
Product Features

High Performance

Offers a true 40Gbps video bandwidth and supports 7.1-ch. surround sound from HDMI or 5.1-ch. surround sound from S/PDIF or 3.5mm PCM 2-ch. stereo audio

UP / Down Scaling

Detects and configures video resolution from 4K to 1080p or 1080p to 4K according to the capabilities of each connected monitor, Easily switch EDID/scaling modes by using the DIP switch. EDID mode supports default EDID and EDID learning

VRR / ALLM Tech

Supports VRR (Variable Refresh Rate) and ALLM (Auto Low Latency Mode) technology to optimize the gaming experience without stuttering or tearing

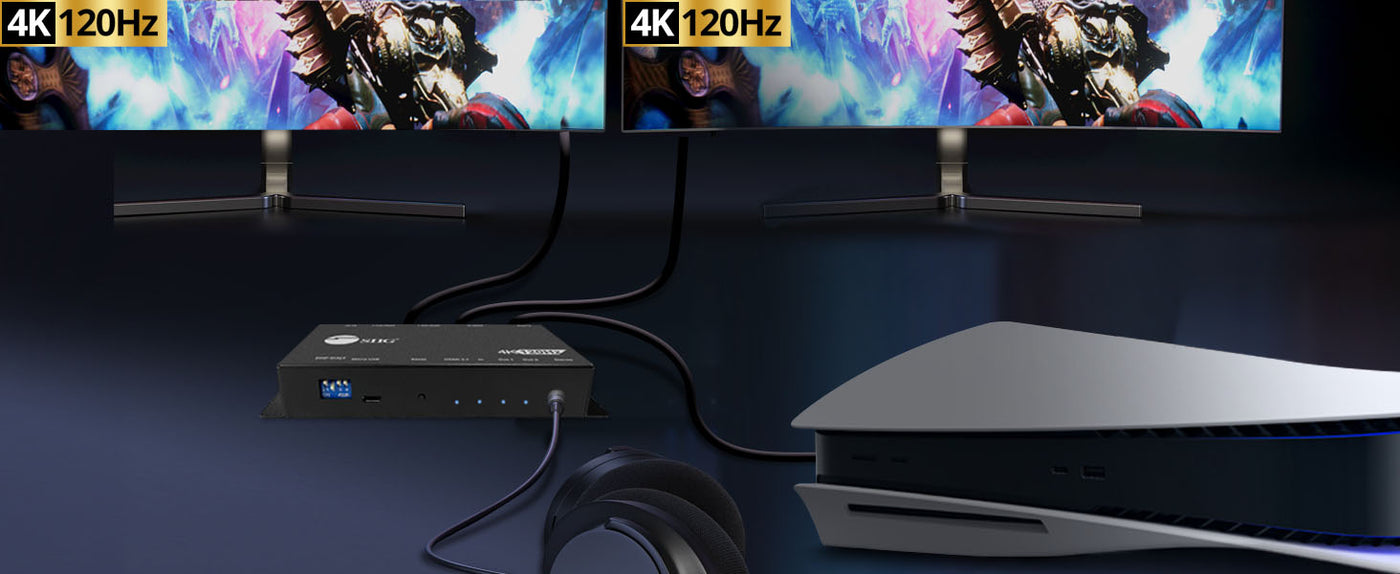

Extract Audio

Audio extraction via digital S/PDIF (Toslink) or 3.5mm stereo audio output port to extract Dolby Digital, Dolby TrueHD, LPCM, and DTS-HD master audio

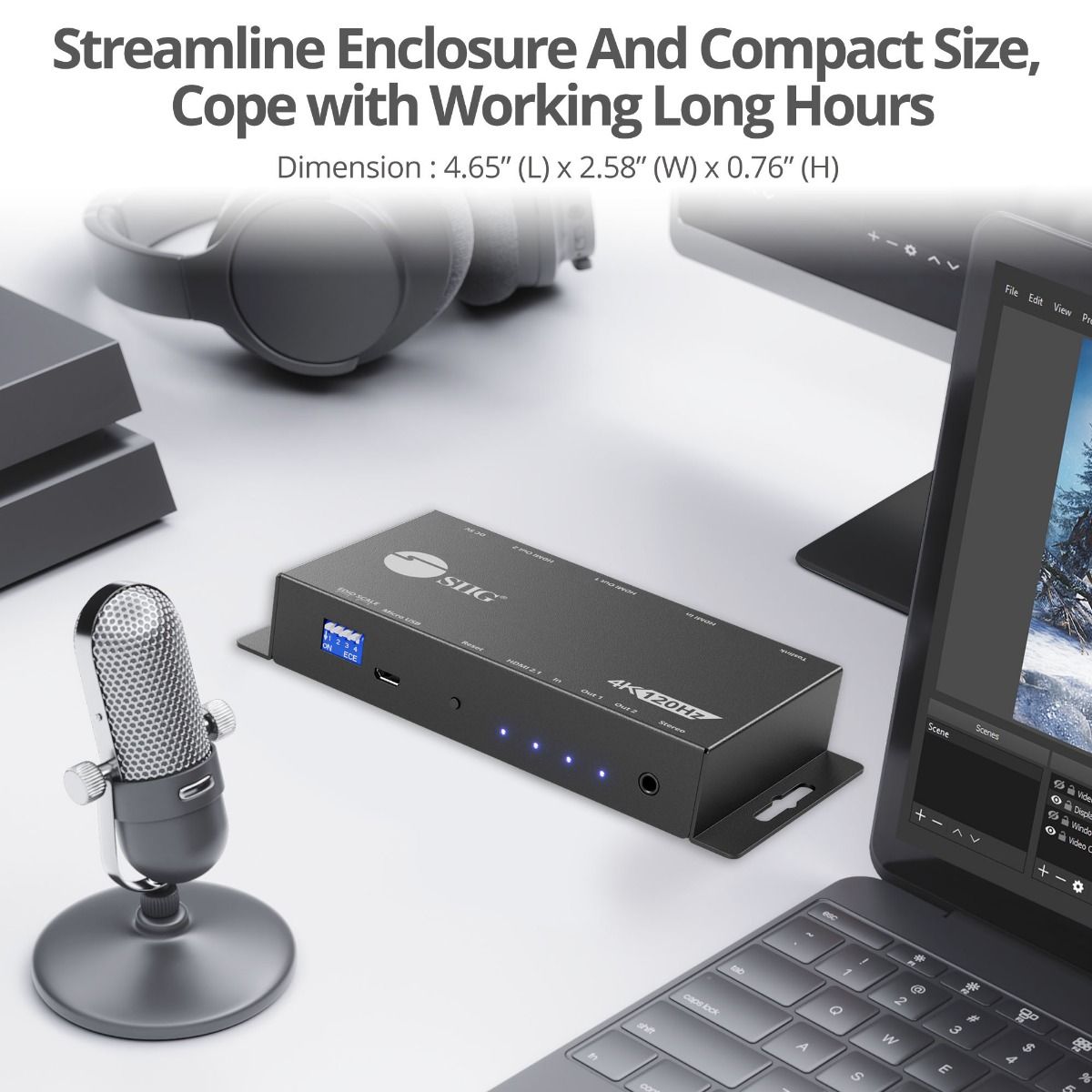

Aluminum Housing Design

Premium aluminum housing provides efficient heat dissipation design for reliable performance and increases efficiency

  • 45 Days Free Return

  • 2 Years Warranty

  • Lifetime Technical Support

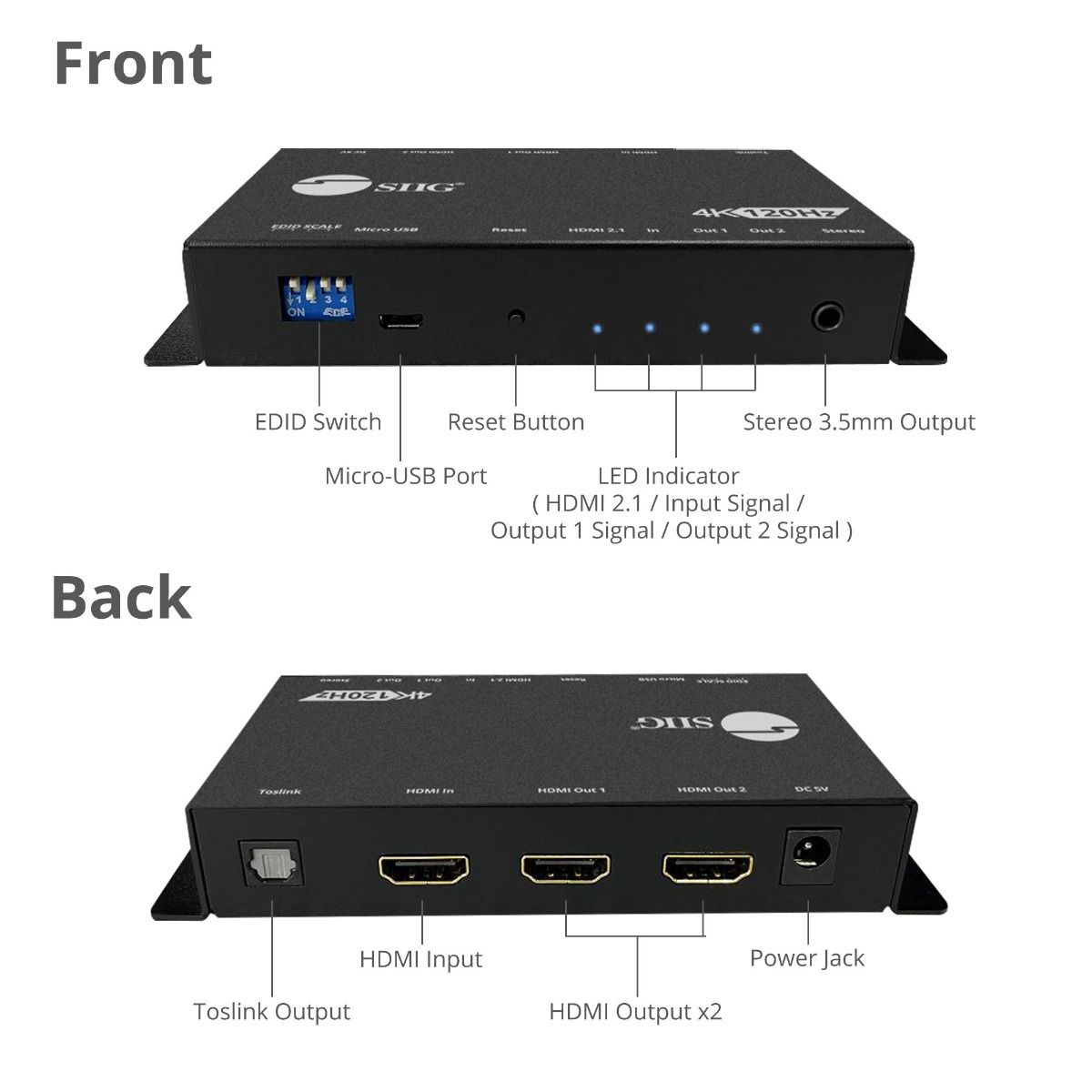

SIIG 1x2 4K120Hz HDMI Splitter with EDID & Audio Extractor

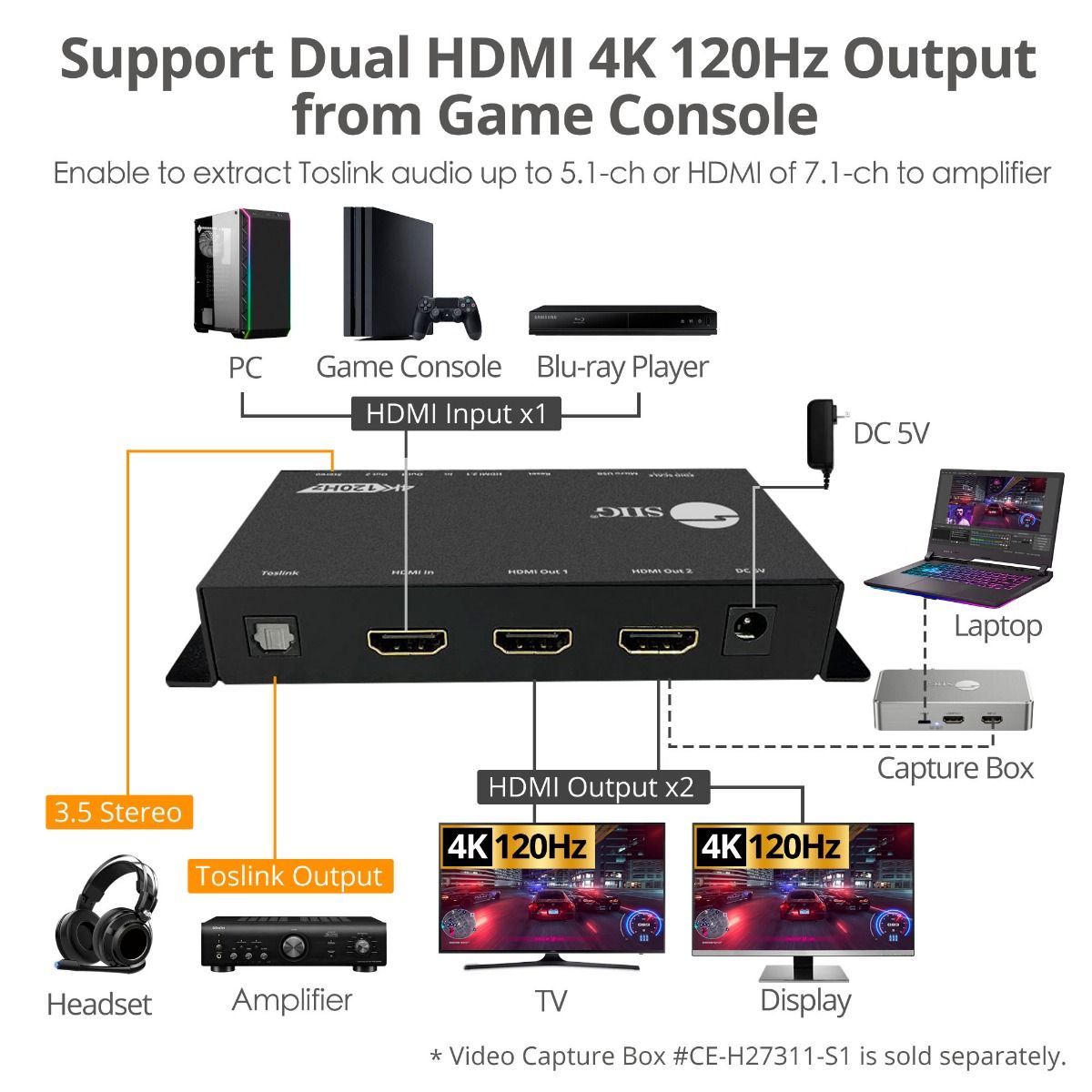

    1x2 4K@120Hz HDMI Splitter, distibutes HDMI video and audio from a single source to up to 2 HDMI displays simultaneously, 40G, HDCP 2.3, HDR, 7.1ch, S/PDIF, 3D, Up and Down Scaling, EDID Management, Audio Extractor, Aluminum Housing, TAA compliant.

    Dual 4K@120Hz HDMI Splitter with Audio Extraction & Scaling

      Splits one HDMI gaming/computer/DVD player… to two 4K@120Hz HDMI monitors/TVs simultaneously, resolution up/down scaling and extractor stereo audio and S/PDIF (Toslink) digital audio. Supports Ultra HD video resolution up to 4K (3840x2160) @120Hz, 4:4:4/4:2:2/4:2:0 and 4K (3840x2160) @60Hz 4:2:0 10-bit/12-bit, HDR, xvYCC, x.V.Color, Deep Color and 3D to enjoy the quality of a cinematic experience or make the game world more immersive.

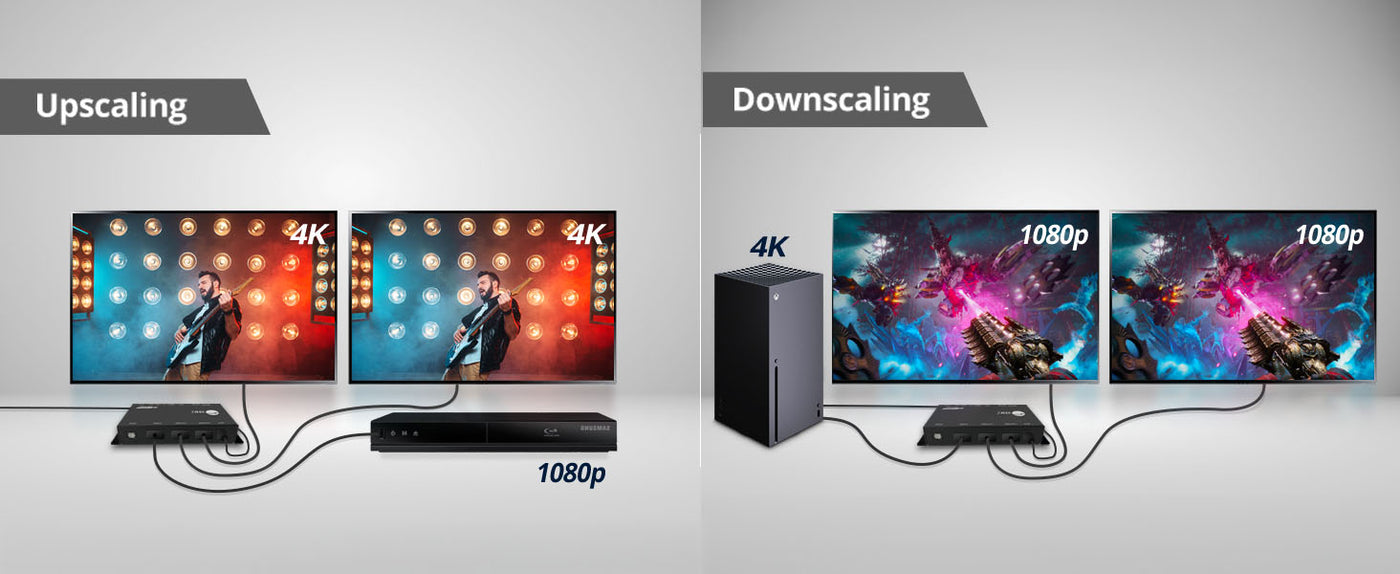

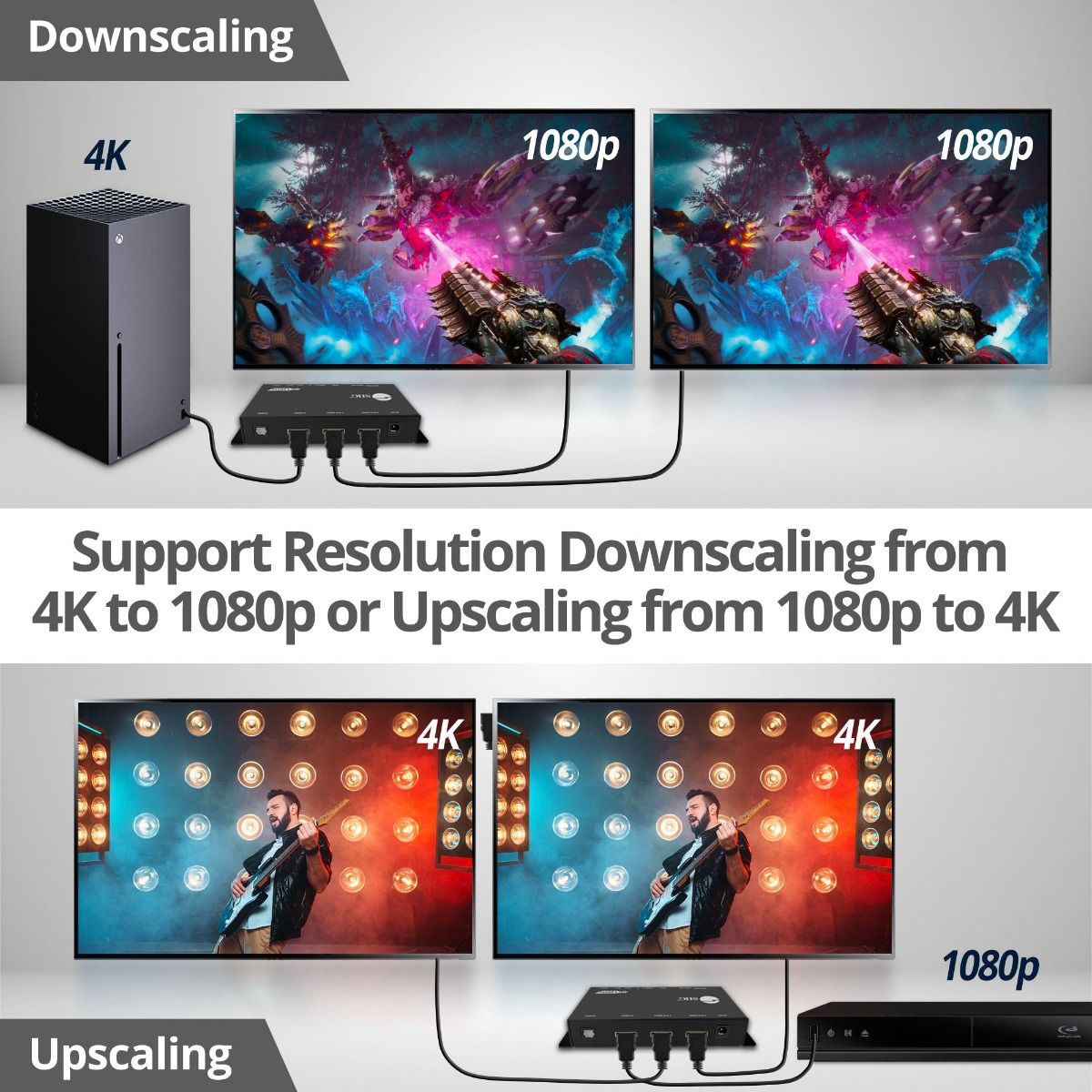

      UP/Down Scaling

        Detects and configures video resolution from 4K to 1080p or 1080p to 4K according to the capabilities of each connected monitor. Easily switch EDID/scaling modes by using the DIP switch. EDID mode supports default EDID and EDID learning.

        VRR / ALLM Tech

          Supports VRR (Variable Refresh Rate) and ALLM (Auto Low Latency Mode) technology to optimize the gaming experience without stuttering or tearing.
          1x2 4K120Hz HDMI Splitter with EDID & Audio Extractor
          View details
          2 Port HDMI HDR Splitter with EDID and Downscaler
          View details
          1x2 8K60Hz / 4K120Hz / 2K240Hz-HDMI Splitter with VRR/ALLM - 40G - EDID management - Auto/Copy/Downscaler mode
          View details
          SKU
          SKU
          CE-H27C11-S1
          CE-H26B11-S1
          CE-H27N11-S1
          Connection port
          Connection port
          3x HDMI, Micro USB, S/PDIF, 3.5mm, Power Jack
          3x HDMI, Micro USB
          3x HDMI, USB-C
          Data Transfer (Max)
          Data Transfer (Max)
          40Gbps
          18Gbps
          32Gbps
          Additional function
          Additional function
          Scale Down/Up, VRR, ALLM, Audio Extractor
          EDID, Auto downscaler
          EDID, Auto downscaler, CEC
          Housing material
          Housing material
          Metal
          Metal
          Metal
          Color
          Color
          Black
          Black
          Black
          Dimensions
          Dimensions
          4.66” (L) x 0.93” (H) x 2.59" (W) (11.84 cm x 2.36 cm x 6.58 cm)
          3.55" (W) x 0.70" (H) x 2.40" (D) (9.02 cm x 1.78 cm x 6.10 cm)
          3.54” (W) x0.55” (H) x 1.73" (D) (8.99 cm x 1.40 cm x 4.39 cm)
          Weight
          Weight
          0.37 lbs
          0.26 lbs
          0.20 lbs
          Mountable
          Mountable
          Yes
          -
          -
          Certification/ Standards
          Certification/ Standards
          FCC / CE / RoHS / TAA Compliant
          FCC / CE / RoHS
          FCC / CE / RoHS
          Warranty
          Warranty
          3 years
          2 years
          2 years
          Country of Origin
          Country of Origin
          Taiwan
          China
          China
          Resolution
          Resolution
          Up to 4K120Hz
          Up to 4K60Hz
          Up to 8K60Hz
          Audio spec
          Audio spec
          PCM 2, 5.1, 7.1, Dolby, DTS
          LPCM 2.0, DTS-HD, Dolby True-HD, AC3, DTS, DSD
          Dolby, Atmos, DTS, PCM 2.0, 5.1, 7.1
          IR function
          Remote control
          EDID button
          EDID button
          -
          -
          Yes
          Distance
          Antenna spec
          Reset key
          Reset key
          Yes
          -
          -
          Bandwidth
          Bandwidth
          10.2Gbps
          18Gbps
          32Gbps
          Power Output (Max)
          Power Indicator
          Power Indicator
          Yes
          Yes
          Yes
          Protection
          Protection
          ESD
          ESD
          ESD
          Protocol
          Power Adapter
          Power Adapter
          5V/1A
          5V/1A
          5V/1A
          Spec
          Spec
          HDMI 2.1, HDCP 2.3, HDCP 1.4
          HDMI 2.0, HDCP 2.2, HDCP 1.4
          HDMI 2.1, HDCP 2.3, HDCP 2.2, HDCP 1.4
