Extender | SKU: CE-H27A11-S1

1x4 4K 60Hz HDMI Splitter Over Cat6 Extender with Loopout, IR, ARC & RS-232 - Up to 230ft (70m) - Near Zero Latency

1x4 Extender
Up to 70m
4K60Hz
IR / RS-232
Audio Extractor
$849.99
Shipping calculated at checkout.
Product Features

4K UHD Resolution

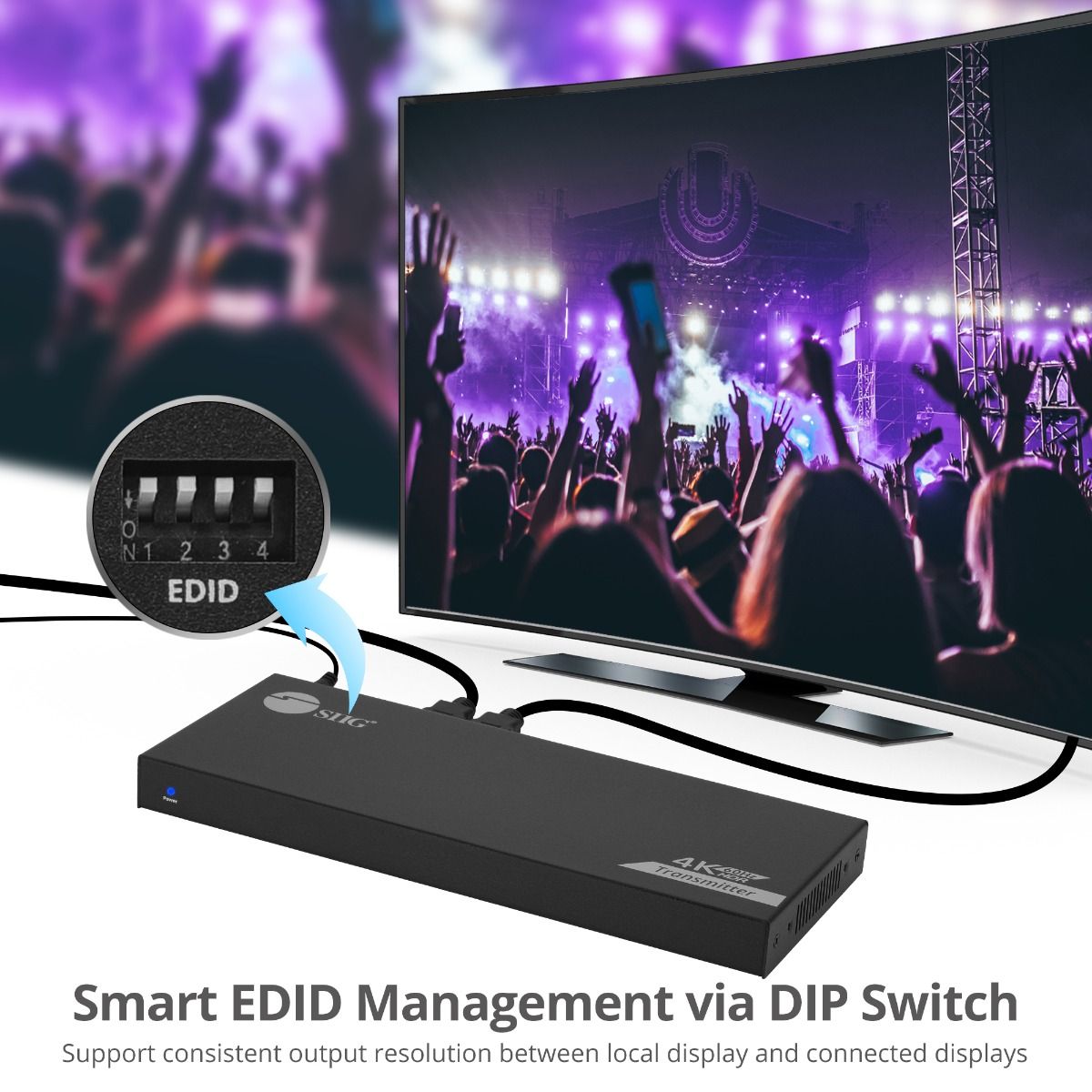

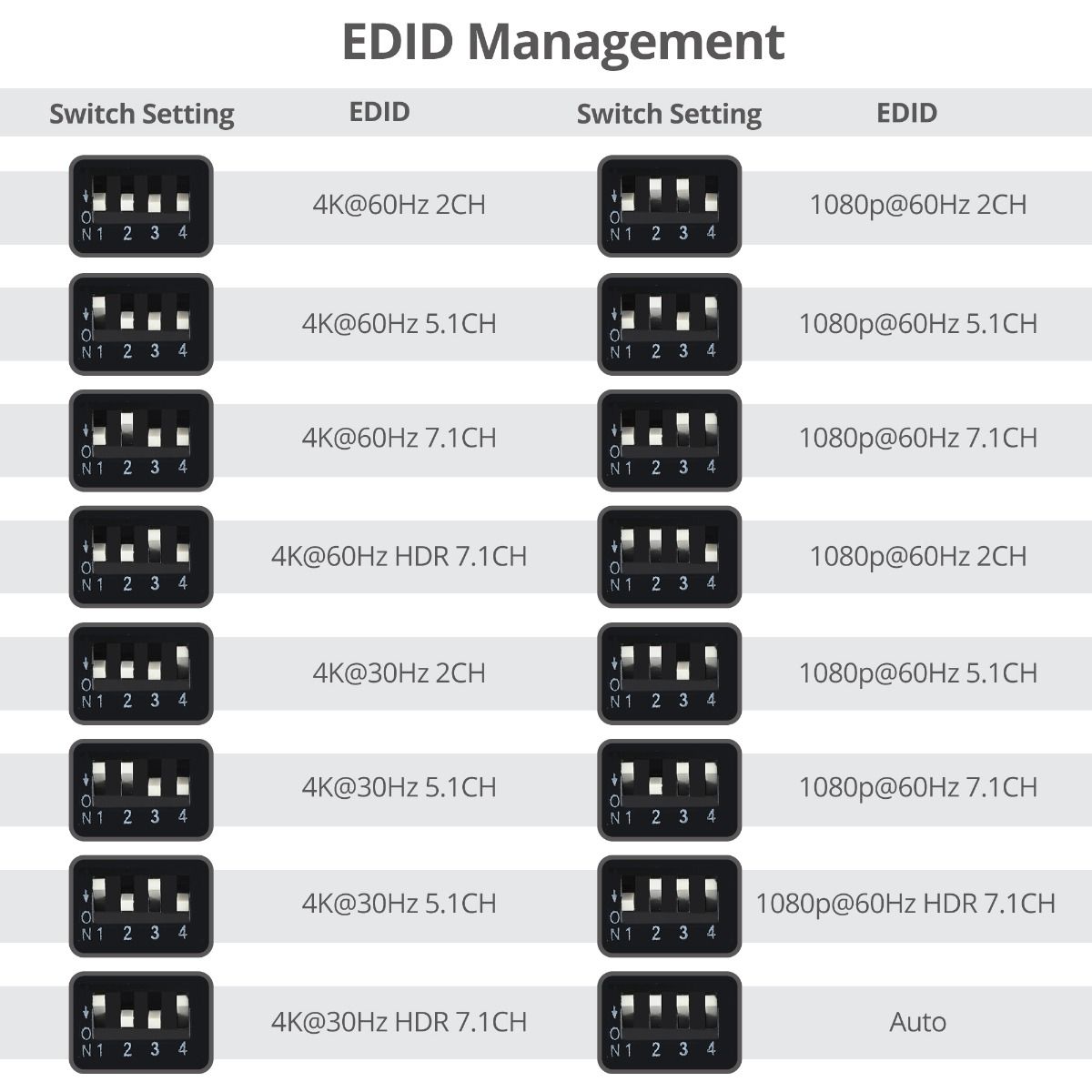

Supports Ultra high-definition video resolution up to 4K (3840x2160) 60Hz, HDR, HDCP 2.2, YUV 4:4:4 to deliver a crystal-clear picture quality. Allows EDID management via DIP switch to control remote/local displays resolution and RS-232 command control the device

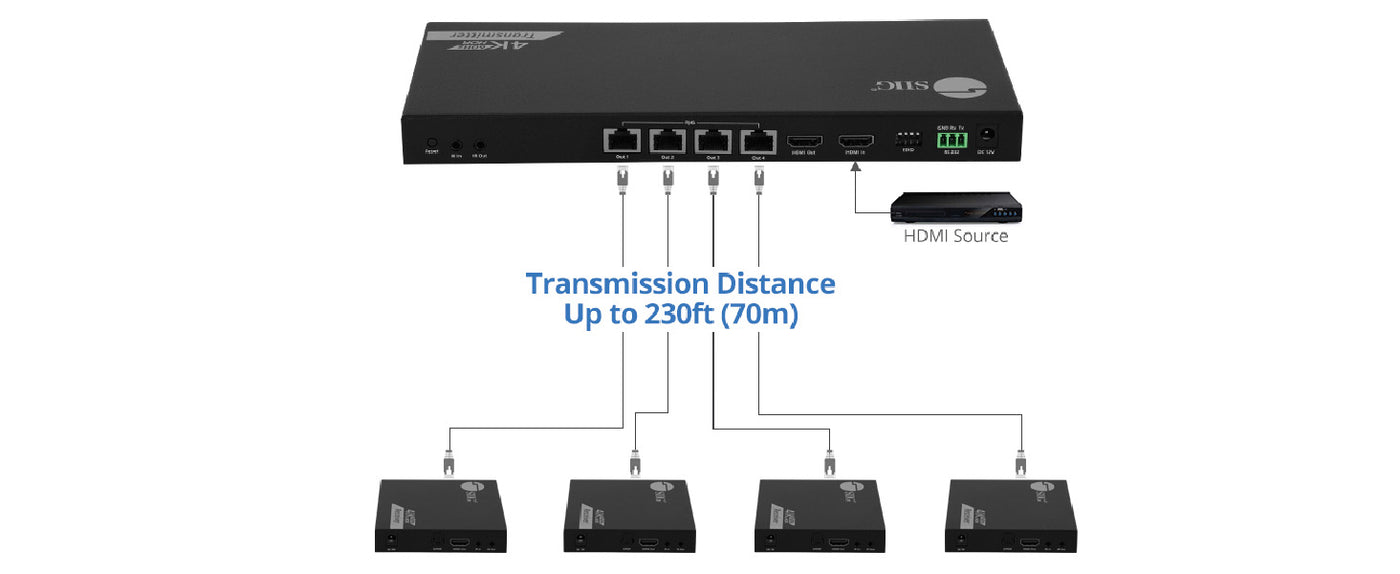

Extend Distance

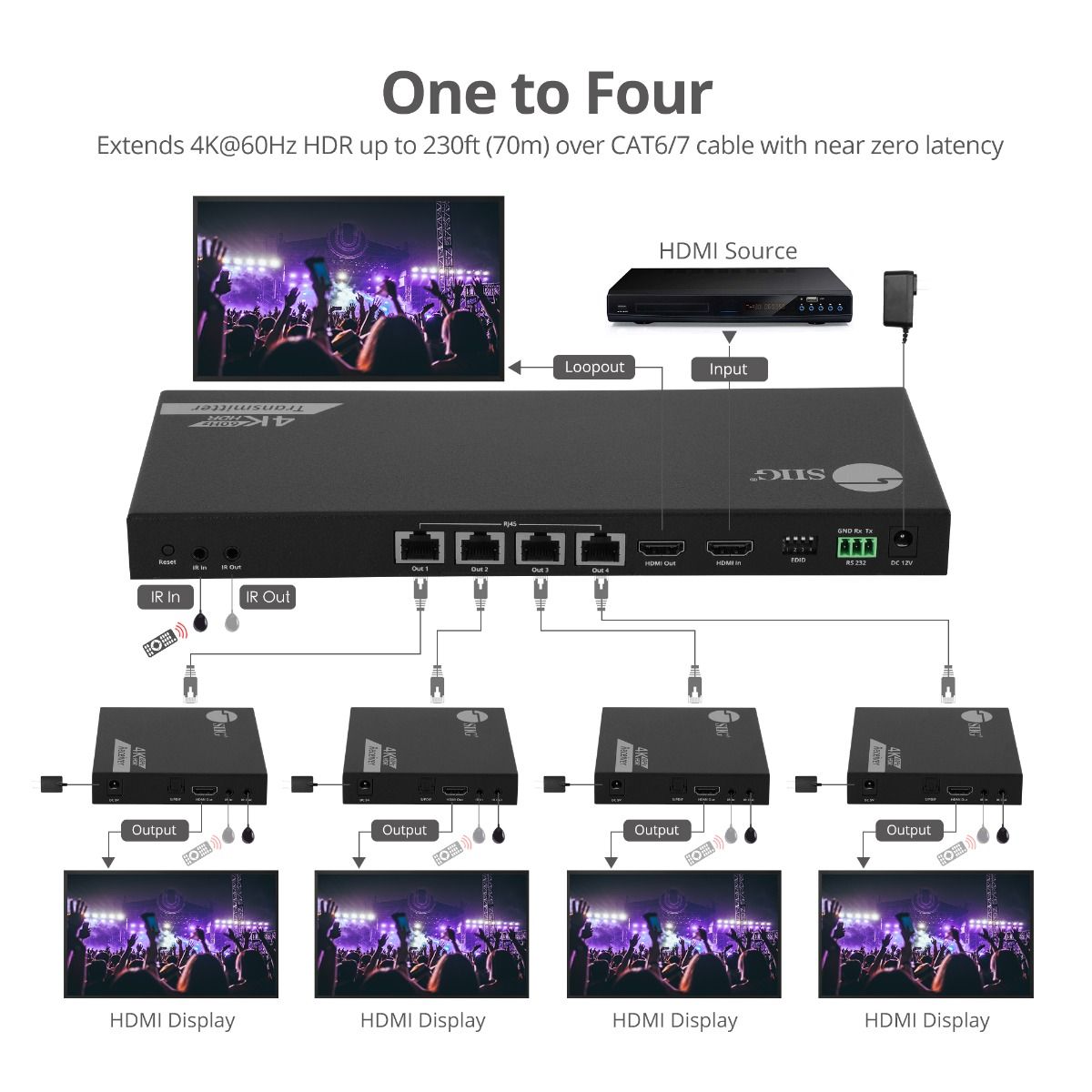

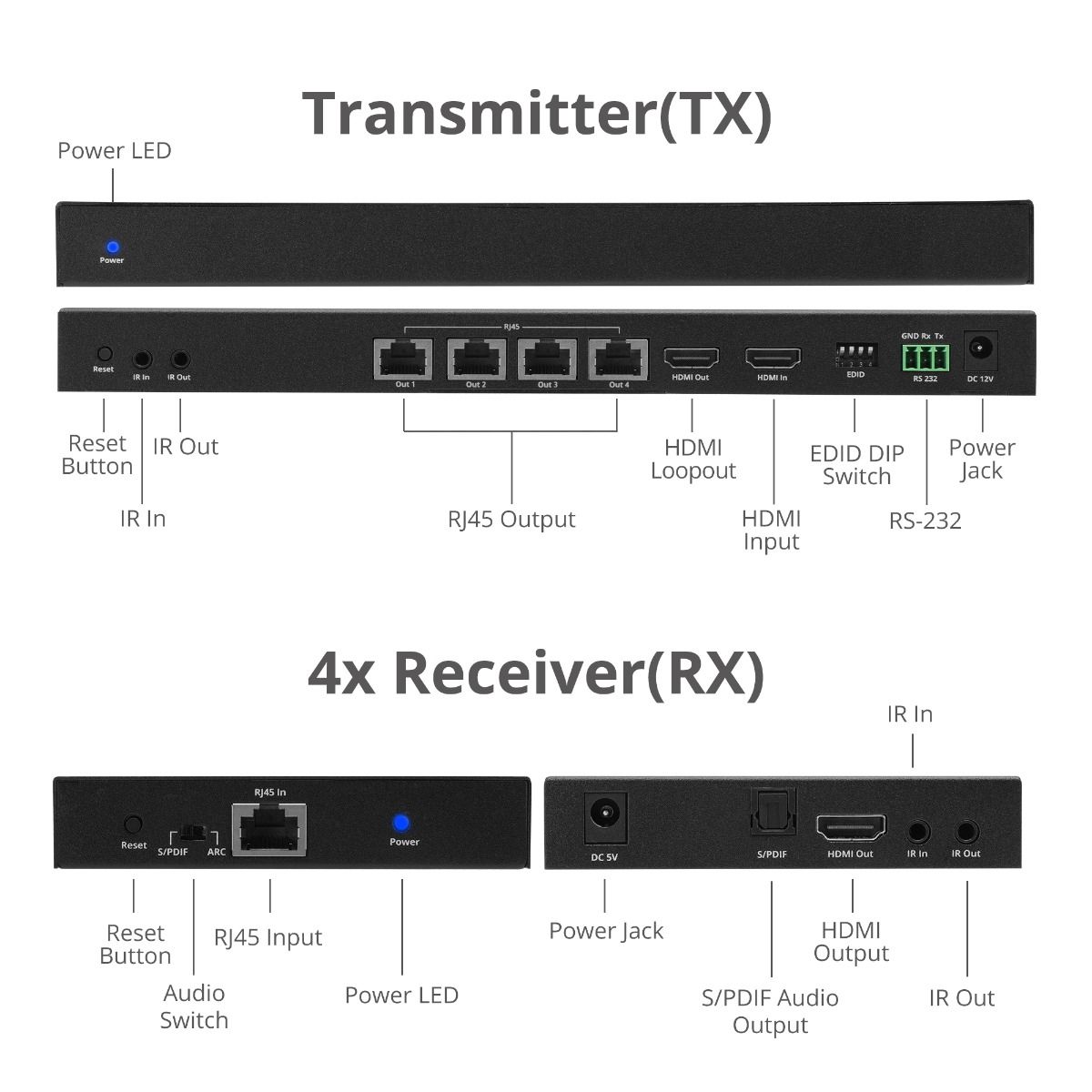

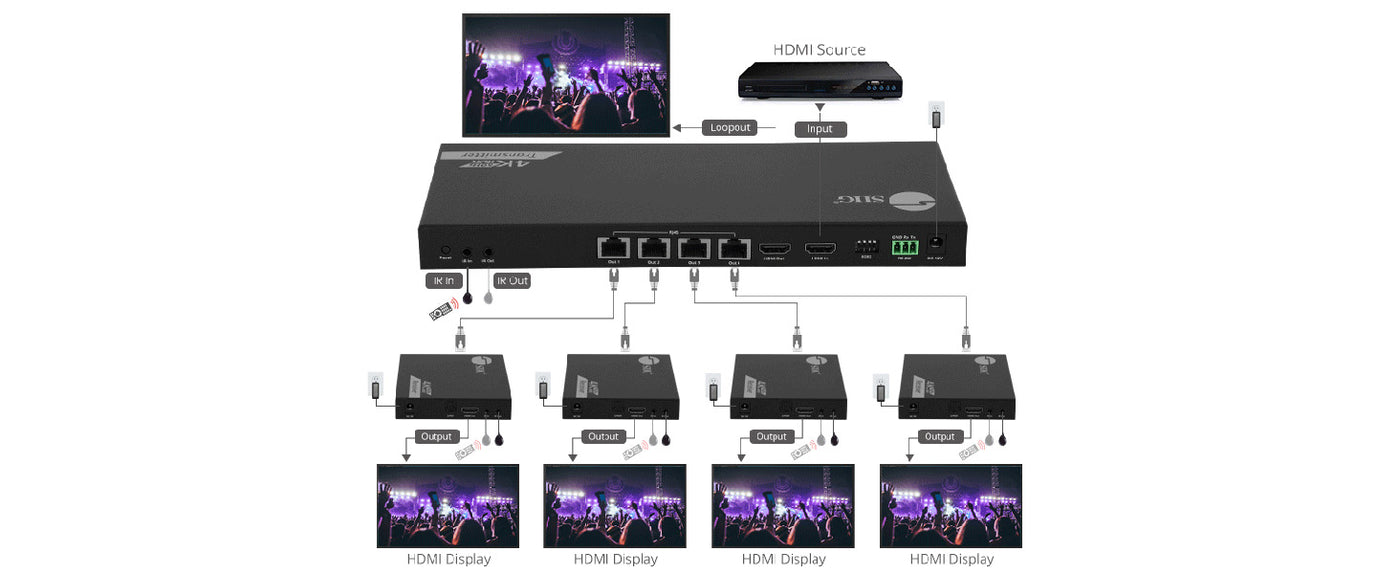

This 1x4 HDMI Splitter Over Cat6 Extender with Loopout designed to extends/splits HDMI signals up to 230ft (70m) through RJ45 network to four remote HDMI displays for reliability transmission. HDMI loop-out on the transmitter to connecting a local display for monitoring of the extended displays

IR Extension

Bi-directional IR remote control through Cat6/7 cable allows you to control the HDMI source device at the remote display location (IR blaster/receiver cables are included) *Note: Please make sure the remote control is within the effective range

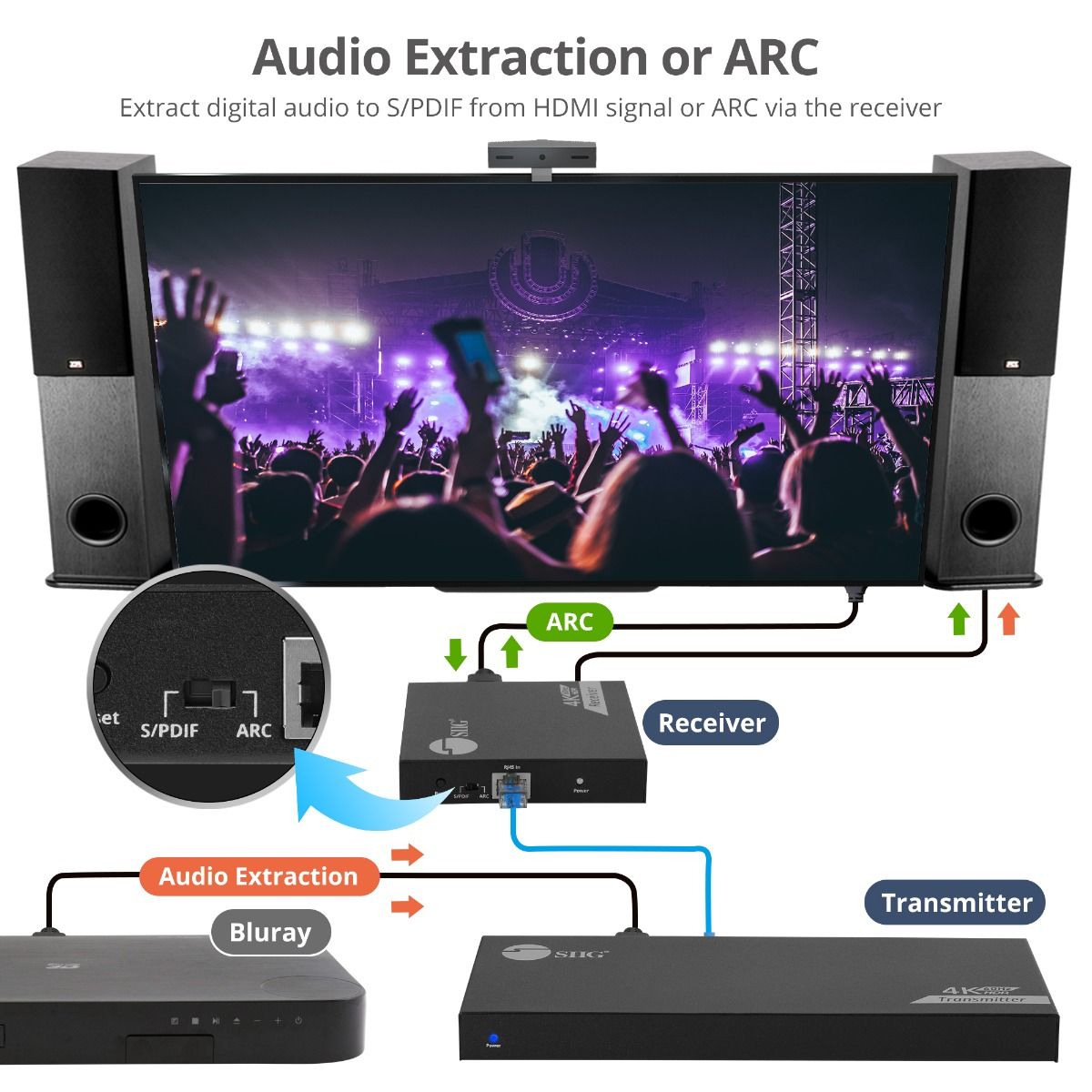

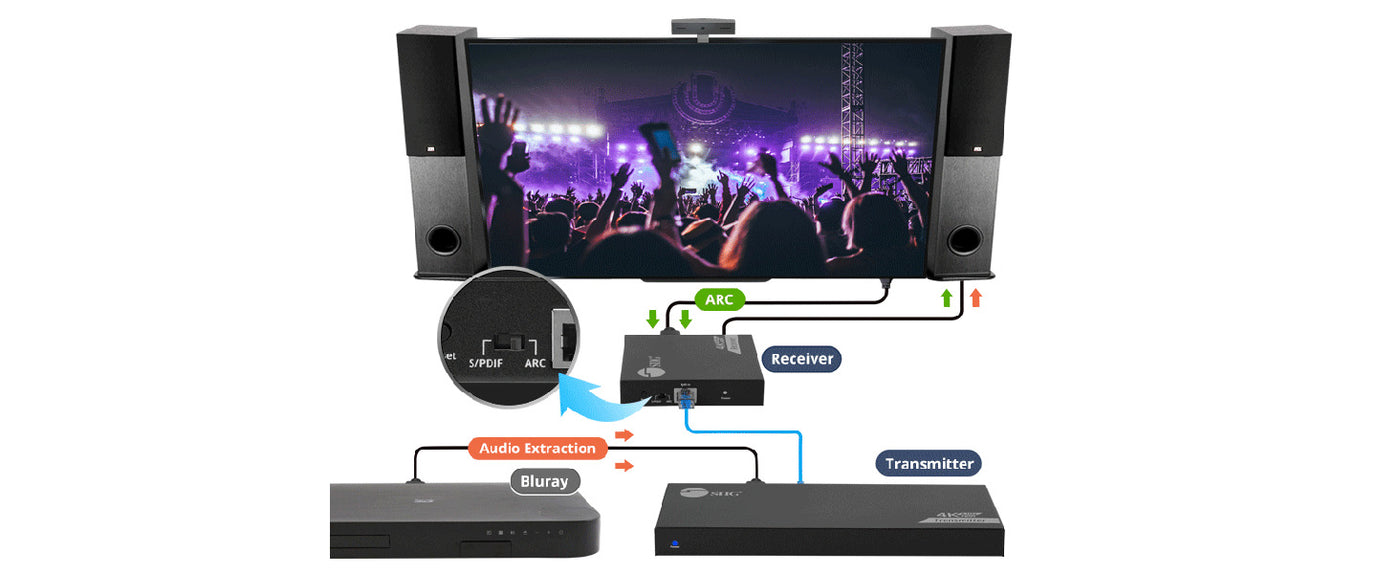

Audio Extraction

Easily extract audio via audio slid switch to select S/PDIF (Toslink) or ARC (Audio Return Channel) to return audio used to TV to the audio system/speaker.

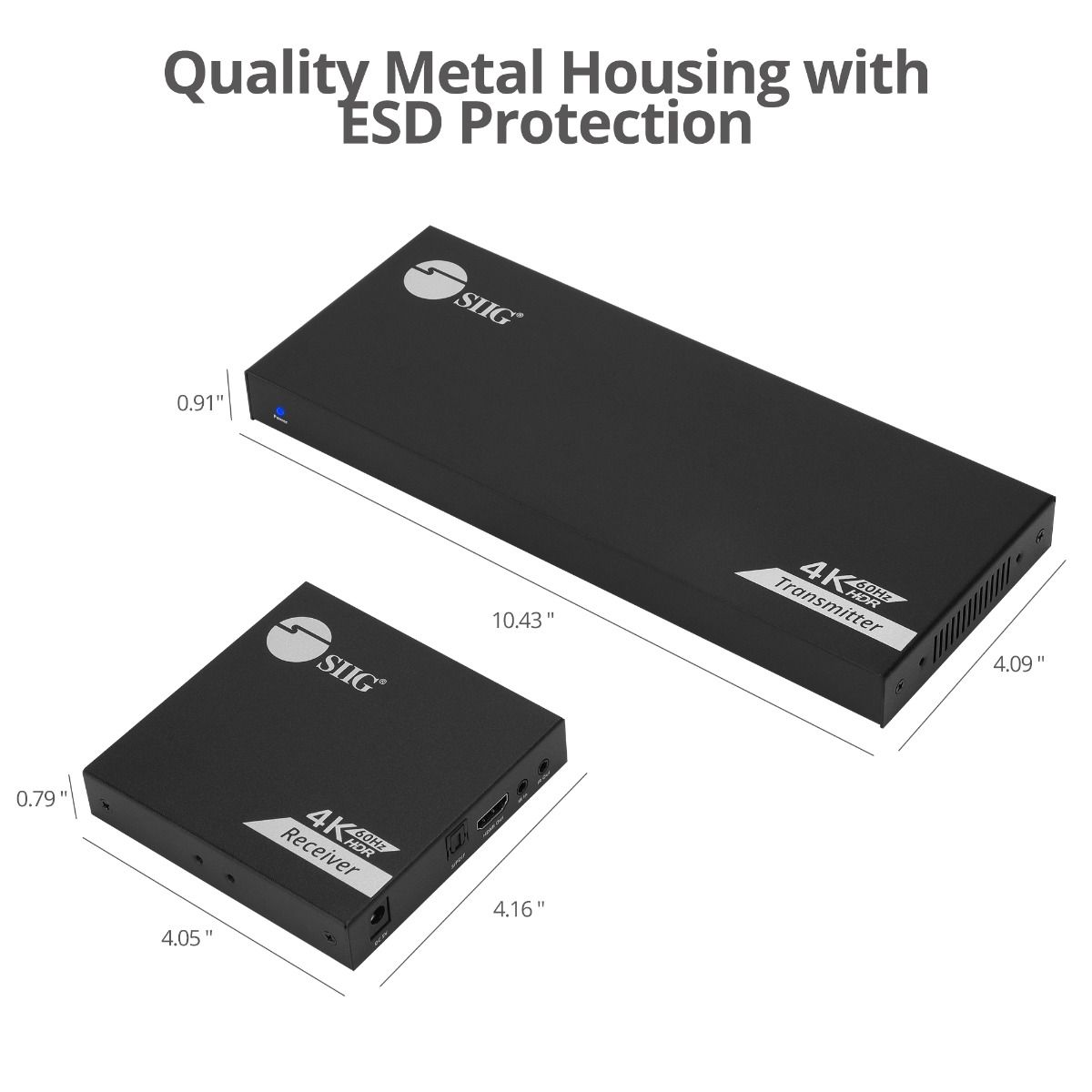

Metal Housing Design

Protects the inside PCBA, also enhance the heat dissipation for better performance. Military-grade component for long service life

  • 45 Days Free Return

  • 2 Years Warranty

  • Lifetime Technical Support

SIIG 1x4 4K 60Hz HDMI Splitter Over Cat6 Extender with Loopout, IR, ARC & RS-232

    Simultaneously splits HDMI audio and video signals to four displays up to 230ft (70m) via Cat6/7 cable with zero latency, local display, audio extraction, ARC and IR remote control of HDMI devices.

    4K UHD Resolution

      Supports Ultra high-definition video resolution up to 4K (3840x2160) 60Hz, HDR, HDCP 2.2, YUV 4:4:4 to deliver a crystal-clear picture quality Allows EDID management via DIP switch to control remote/local displays resolution and RS-232 command control the device.

      Comparison Table

      1x4 4K 60Hz HDMI Splitter Over Cat6 Extender with Loopout, IR, ARC & RS-232 - Up to 230ft (70m) - Near Zero Latency
      View details
      1x4 HDMI Splitter, Over IP Extender Kit, 1080p 60Hz, 120m
      View details
      1x2 4K 60Hz HDMI Splitter Over Cat6 Extender with Loopout, IR, ARC & RS-232 - Up to 230ft (70m) - Near Zero Latency
      View details
      1x8 4K 60Hz HDMI Extender Splitter Over Cat6 with Loopout, IR, ARC & RS-232 - Up to 230ft (70m) - Near Zero Latency
      View details
      1x8 HDMI Splitter, Over IP Extender Kit, 1080p 60Hz, 120m
      View details
      SKU
      SKU
      CE-H27A11-S1
      CE-H26V11-S1
      CE-H27911-S1
      CE-H27B11-S1
      CE-H26W11-S1
      Connection port
      Connection port

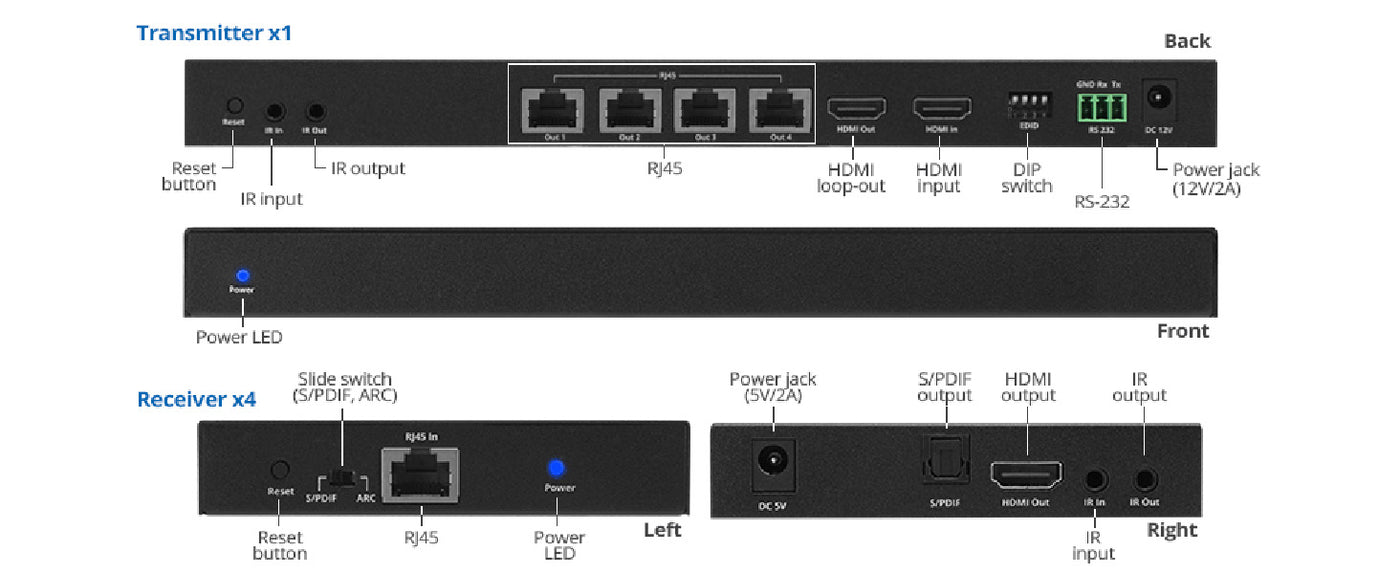

      6x HDMI, 10x 3.5mm, 8x RJ45, 5x Power Jack, 5x 3-pin RS-232, 4x S/PDIF
      5x HDMI, 5x 3.5mm, 8x RJ45
      4x HDMI, 6x 3.5mm, 4x RJ45, 3x Power Jack, 3x 3-pin RS-232, 2x S/PDIF
      6x HDMI, 10x 3.5mm, 8x RJ45, 5x Power Jack, 5x 3-pin RS-232, 4x S/PDIF
      9x HDMI, 9x 3.5mm, 16x RJ45
      Data Transfer (Max)
      Data Transfer (Max)
      18Gbps
      10.2Gbps
      18Gbps
      18Gbps
      10.2Gbps
      Additional function
      Additional function
      IR, Reset, EDID, RS-232, Audio Extractor
      IR
      IR, Reset, EDID, RS-232, Audio Extractor
      IR, Reset, EDID, RS-232, Audio Extractor
      IR
      Housing material
      Housing material
      Metal
      Metal
      Metal
      Metal
      Metal
      Color
      Color
      Black
      Black
      Black
      Black
      Black
      Dimensions
      Dimensions
      TX: 10.43" (W) x 0.91" (H) x 4.09" (D) (26.49 cm x 2.31 cm x 10.39 cm) RX: 4.15" (W) x 0.79" (H) x 4.04" (D) (10.54 cm x 2 cm x 10.26 cm)
      TX: 9.92” (W) x 0.98” (H) x 3.82" (D) (25.20 cm x 2.49 cm x 9.70 cm) RX: 3.81” (W) x 0.93” (H) x 3.70" (D) (9.68 cm x 2.36 cm x 9.40 cm)
      TX: 10.43" (W) x 0.91" (H) x 4.09" (D) (26.49 cm x 2.31 cm x 10.39 cm) RX: 4.15" (W) x 0.79" (H) x 4.04" (D) (10.54 cm x 2 cm x 10.26 cm)
      TX: 10.39” (W) x 0.91” (H) x 4.72" (D) (26.39 cm x 2.31 cm x 11.99 cm) RX: 4.15" (W) x 0.79" (H) x 4.04" (D) (10.54 cm x 2 cm x 10.26 cm)
      TX:11.81” (W) x 1.18” (H) x 4.37" (D) (30 cm x 3 cm x 11.10 cm) RX: 3.81” (W) x 0.93” (H) x 3.70" (D) (9.68 cm x 2.36 cm x 9.4 cm)
      Weight
      Weight
      TX: 1.46 lbs RX: 0.54 lbs
      TX: 1.34 lbs RX: 0.33 lbs
      TX: 1.46 lbs RX: 0.54 lbs
      TX: 1.6 lbs RX: 0.54 lbs
      TX: 1.81 lbs RX: 0.33 lbs
      Mountable
      Mountable
      Yes
      Yes
      Yes
      Yes
      Yes
      Certification/ Standards
      Certification/ Standards
      FCC / CE / RoHS
      FCC / CE / RoHS
      FCC / CE / RoHS
      FCC / CE / RoHS
      FCC / CE / RoHS
      Warranty
      Warranty
      2 years
      2 years
      2 years
      2 years
      2 years
      Country of Origin
      Country of Origin
      China
      China
      China
      China
      China
      Resolution
      Resolution
      4K60Hz
      Up to 1080p 60Hz
      4K60Hz
      4K60Hz
      Up to 1080p 60Hz
      Audio spec
      Audio spec
      PCM 2.0, 5.1, 7.1, Dolby, DTS
      2ch
      PCM 2.0, 5.1, 7.1, Dolby, DTS
      PCM 2.0, 5.1, 7.1, Dolby, DTS
      2ch
      IR function
      IR function
      Yes
      Yes
      Yes
      Yes
      Yes
      Remote control
      EDID button
      EDID button
      Yes
      -
      Yes
      Yes
      -
      Distance
      Distance
      Up to 70M
      Up to 120M
      Up to 70M
      Up to 70M
      Up to 120M
      Antenna spec
      Reset key
      Reset key
      Yes
      Yes
      Yes
      Yes
      Yes
      Bandwidth
      Bandwidth
      18Gbps
      10.2Gbps
      18Gbps
      18Gbps
      10.2Gbps
      Power Output (Max)
      Power Indicator
      Power Indicator
      Yes
      Yes
      Yes
      Yes
      Yes
      Protection
      Protection
      ESD
      ESD
      ESD
      ESD
      ESD
      Protocol
      Protocol
      Passthrough
      HDBitT
      Passthrough
      Passthrough
      HDBitT
      Power Adapter
      Power Adapter
      TX: 12V/2A RX: 5V/2A
      TX: 5V/2A RX: 5V/1A
      TX: 12V/2A RX: 5V/2A
      TX: 12V/2A RX: 5V/2A
      TX: 5V/2A RX: 5V/1A
      Spec
      Spec
      HDMI 2.0, HDCP 2.2
      HDMI 1.3, HDCP 1.2
      HDMI 2.0, HDCP 2.2
      HDMI 2.0, HDCP 2.2
      HDMI 1.3, HDCP 1.2
