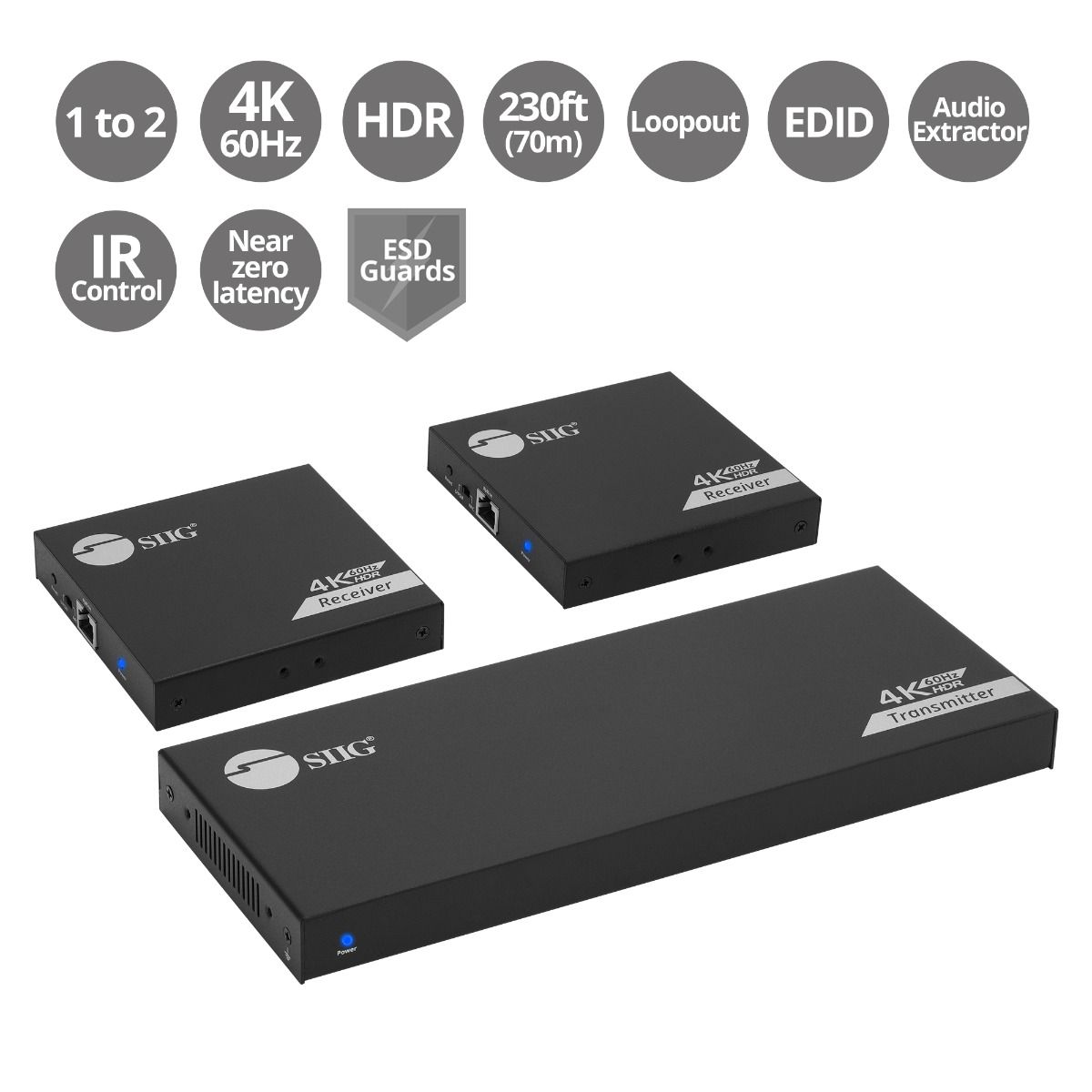

Extender | SKU: CE-H27911-S1

1x2 4K 60Hz HDMI Splitter Over Cat6 Extender with Loopout, IR, ARC & RS-232 - Up to 230ft (70m) - Near Zero Latency

1x2 Extender
Up to 70m
4K60Hz
IR / RS-232
Audio Extractor
$599.99
Shipping calculated at checkout.
Product Features

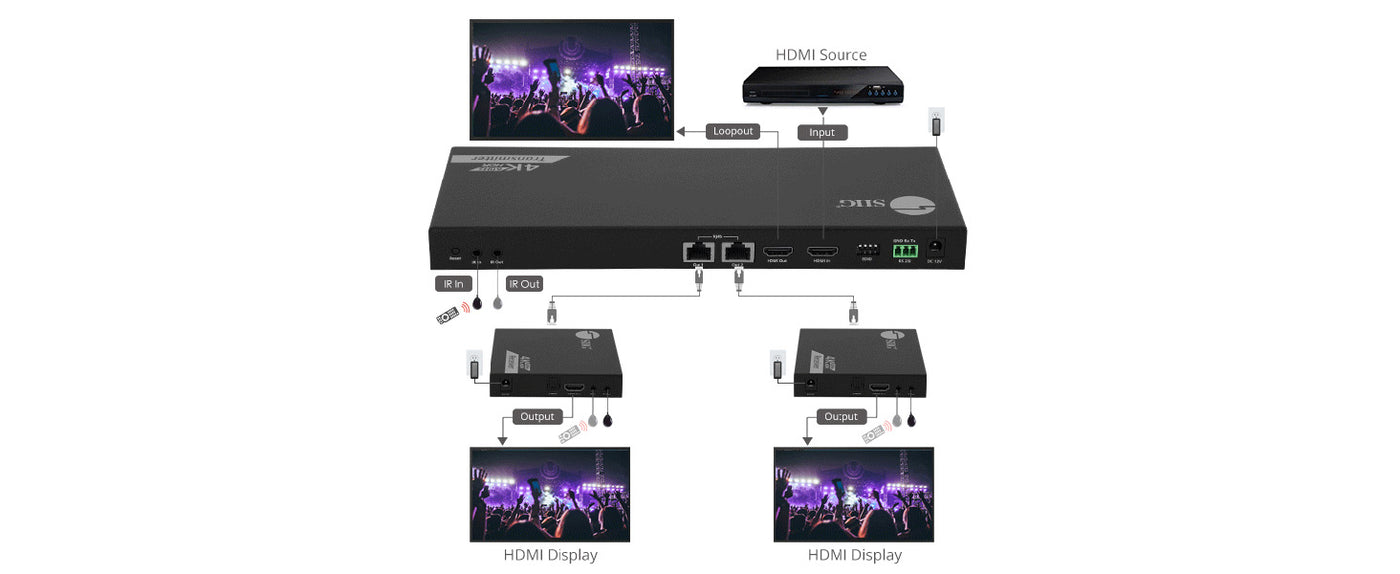

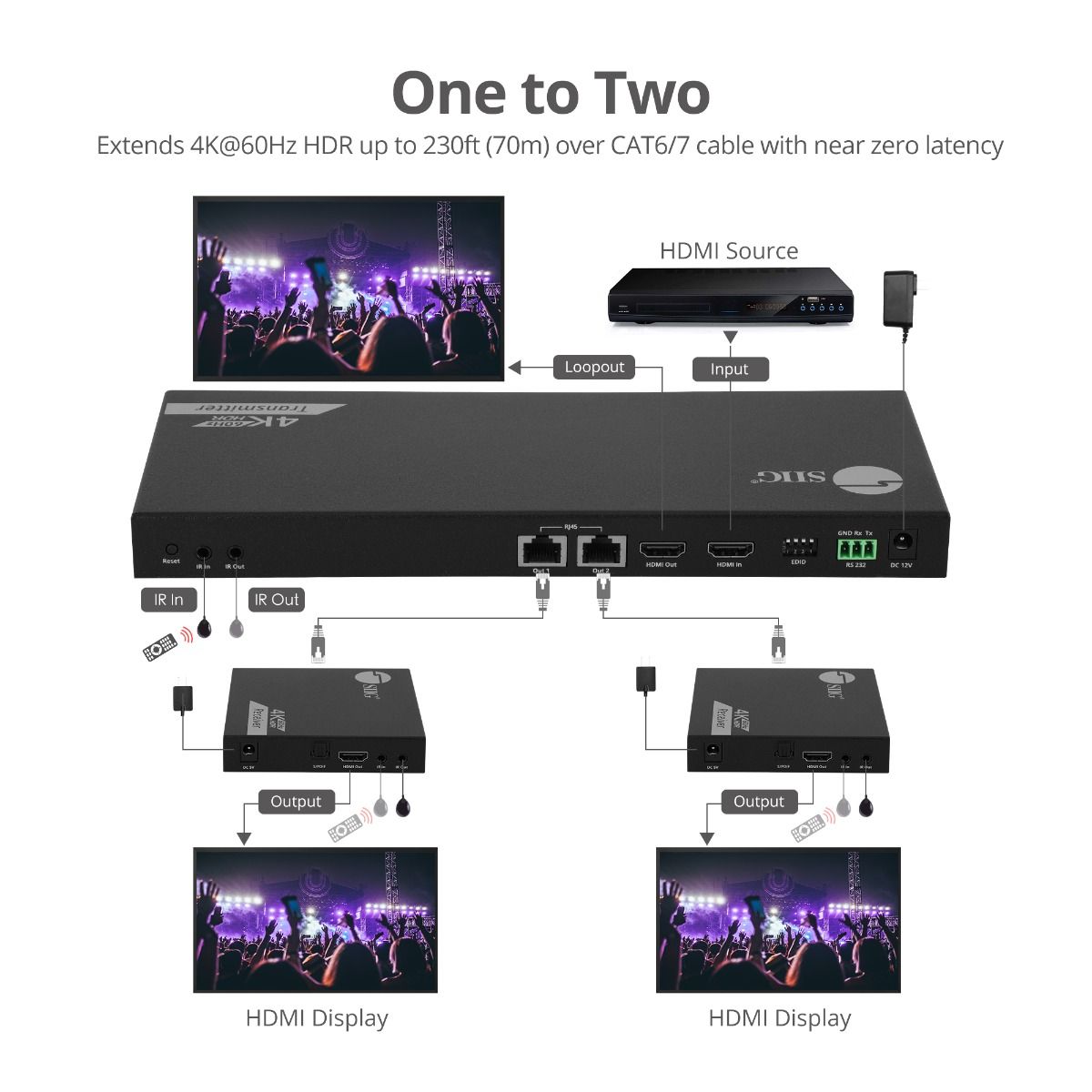

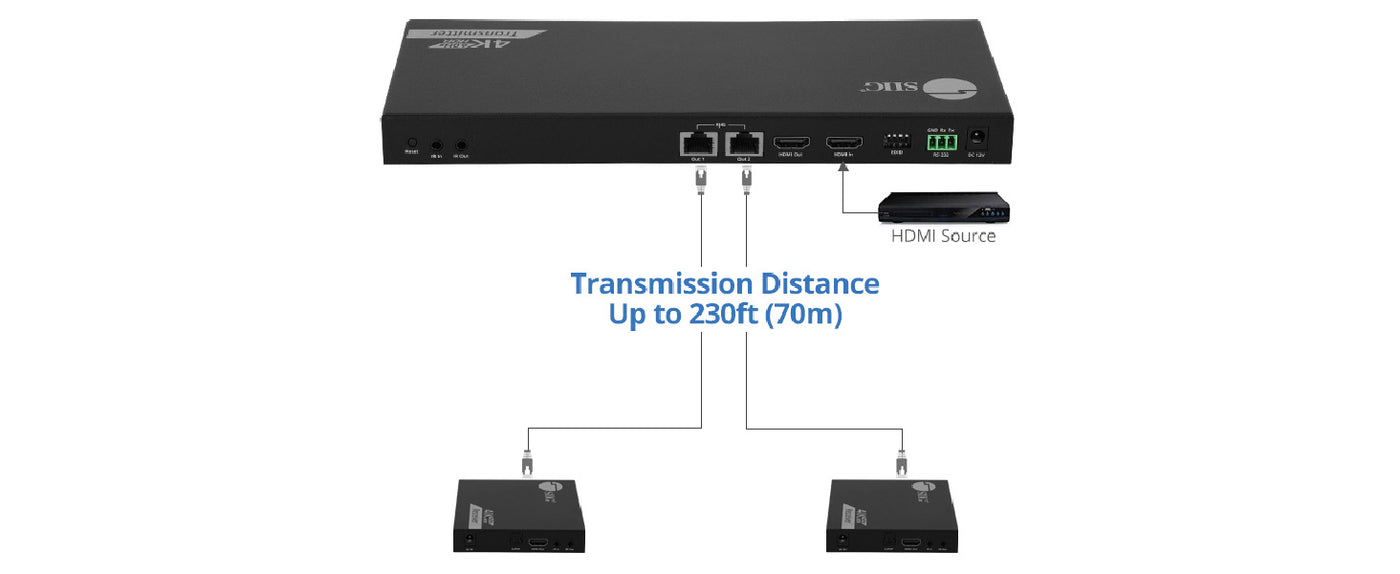

1x2 4K 60Hz HDMI Splitter Over Cat6

Using a single Cat6/7 cable, you can extend 1 HDMI source to 2 HDMI displays with CE-H27911-S1. Sending HDMI signal to receivers transmission up to 230ft (70m). Split your signal from the location of the source using the local HDMI loop-out port on the Transmitter, getting a 3th display for monitoring purposes with this product.

4K 60Hz HDMI Splitter

Supports up to 4K 60Hz HDMI audio and video, including HDR and HDCP 2.2 compliant. HDMI Audio output supports PCM2/5.1/7.1, Dolby Digital & DTS 5.1.

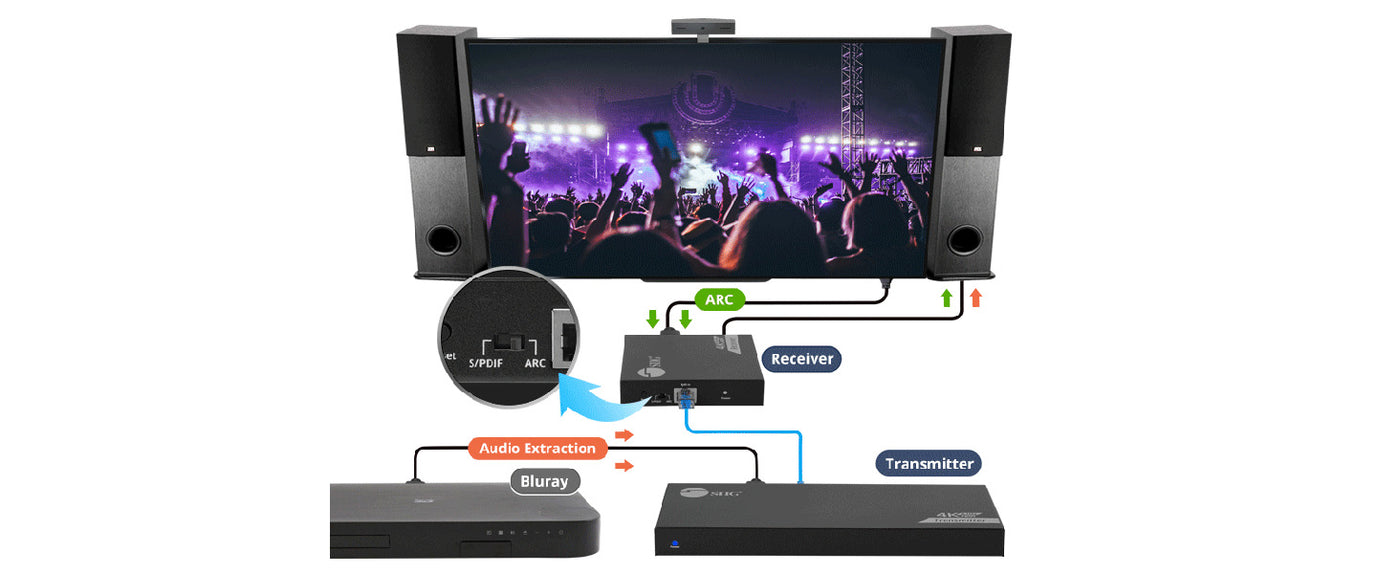

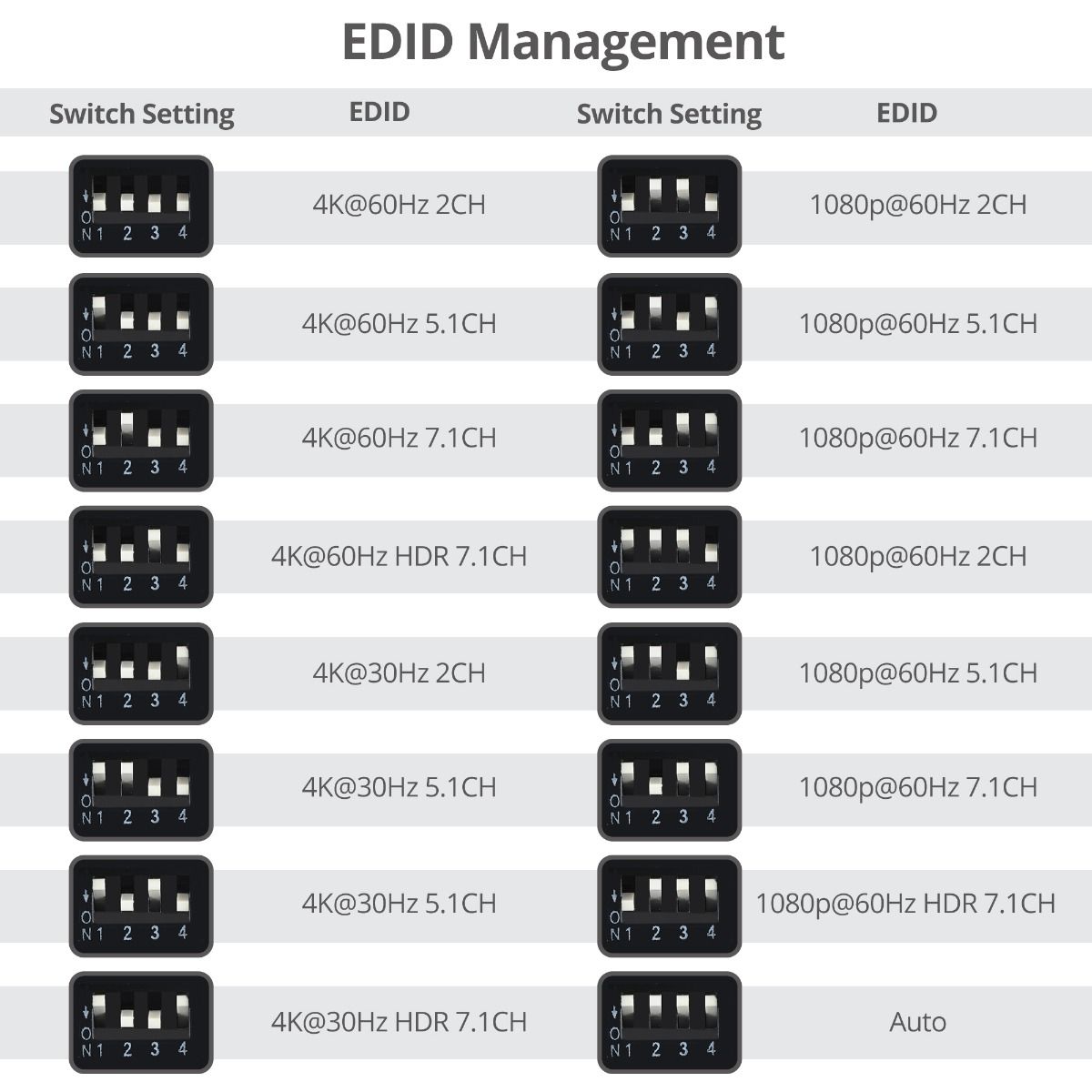

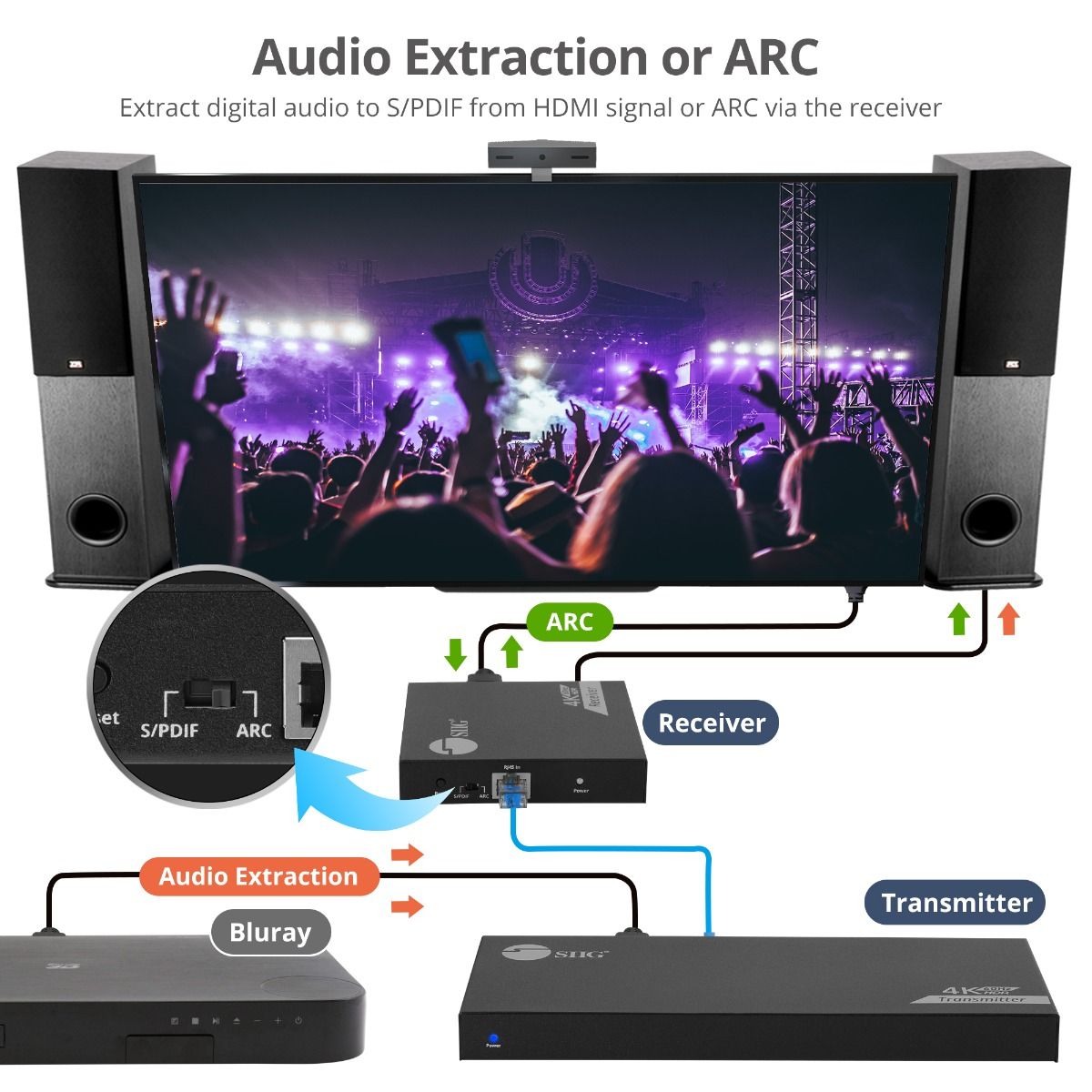

EDID Management & Audio Extraction

Supports EDID management capability to control the display resolution output. Audio Switch allows you select extract audio from HDMI Input or ARC from TV for Toslink use. Supports Toslink Audio PCM2, Dolby & DTS 5.1.

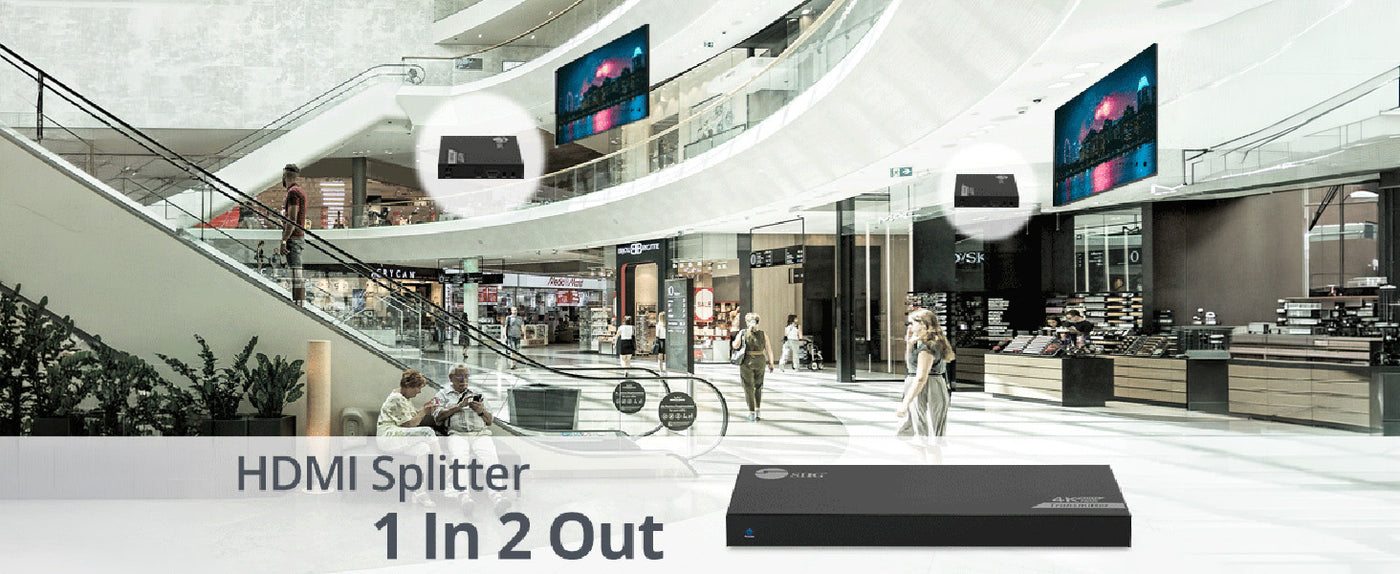

Wide Range Applications

Connect your HDMI source device (PC, Xbox, PS4/ 5, Blu-ray player, Cable Box, Chromecast with Google TV, Roku Box, Survallience system NVR, DVR, and more) to the Transmitter, utilize existing Ethernet structure in your house/ office/ church/ school/ shop to extend to the Receiver which connected to your HDTV, display or monitor at a remote location via CAT6 cable. Save your budget on HDMI signal boosters with expensive HDMI cables

Simple Setup/ Plug and Works

No software or driver is required on this HDMI extender. Even for 1st-time users, this extender is just plug-n-play and ready to use. Built-in Power LED, Activity indicator LED and Link status LED offer user-friendly experience in monitoring

  • 45 Days Free Return

  • 2 Years Warranty

  • Lifetime Technical Support

SIIG 1x2 4K 60Hz HDMI Splitter Over Cat6 Extender with Loopout, IR, ARC & RS-232

    Simultaneously splits HDMI audio and video signals to two displays up to 230ft (70m) via Cat6/7 cable with zero latency, local display, audio extraction, ARC and IR remote control of HDMI devices.

    4K UHD Resolution

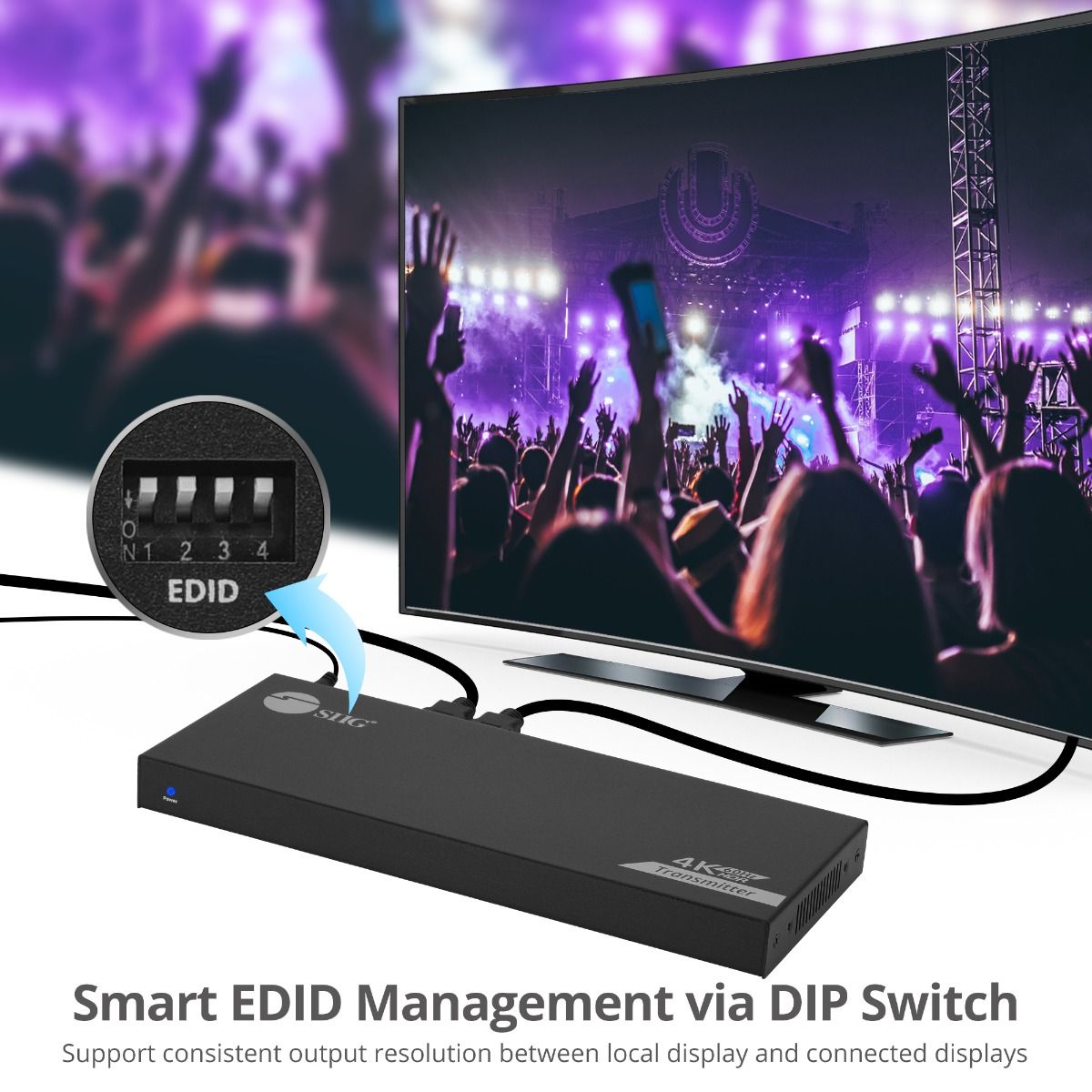

      Supports Ultra high-definition video resolution up to 4K (3840x2160) 60Hz, HDR, HDCP 2.2, YUV 4:4:4 to deliver a crystal-clear picture quality Allows EDID management via DIP switch to control remote/local displays resolution and RS-232 command control the device.

      Comparison Table

      1x2 4K 60Hz HDMI Splitter Over Cat6 Extender with Loopout, IR, ARC & RS-232 - Up to 230ft (70m) - Near Zero Latency
      View details
      1x4 4K 60Hz HDMI Splitter Over Cat6 Extender with Loopout, IR, ARC & RS-232 - Up to 230ft (70m) - Near Zero Latency
      View details
      1x4 HDMI Splitter, Over IP Extender Kit, 1080p 60Hz, 120m
      View details
      1x8 4K 60Hz HDMI Extender Splitter Over Cat6 with Loopout, IR, ARC & RS-232 - Up to 230ft (70m) - Near Zero Latency
      View details
      1x8 HDMI Splitter, Over IP Extender Kit, 1080p 60Hz, 120m
      View details
      SKU
      SKU
      CE-H27911-S1
      CE-H27A11-S1
      CE-H26V11-S1
      CE-H27B11-S1
      CE-H26W11-S1

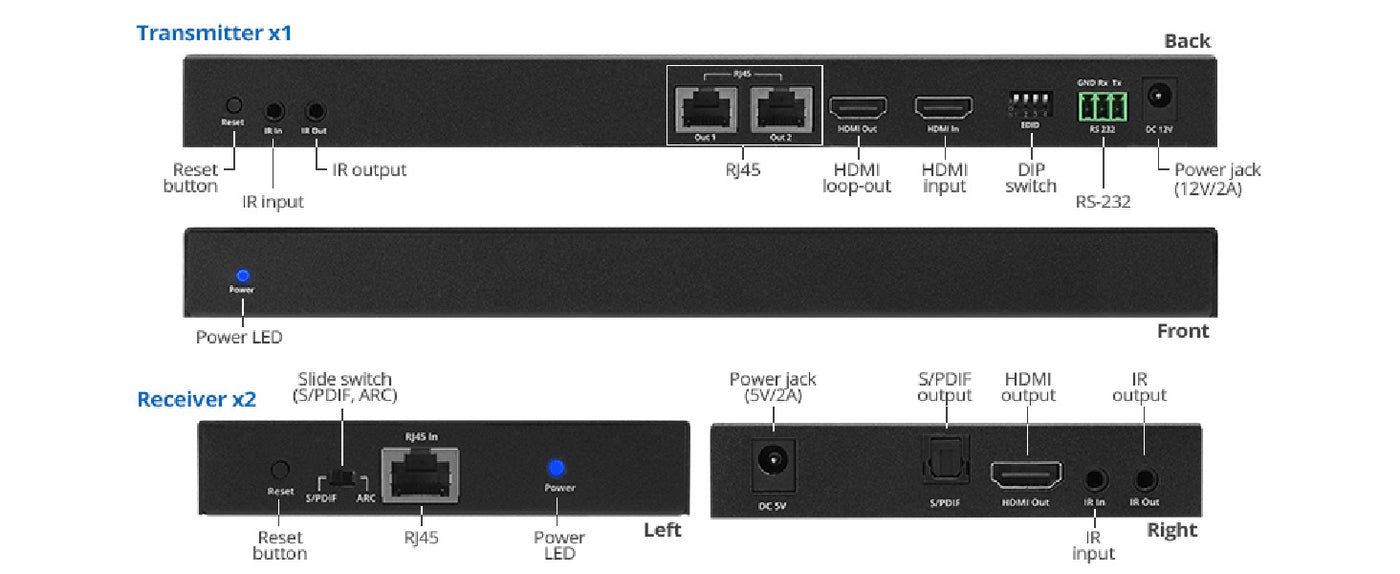

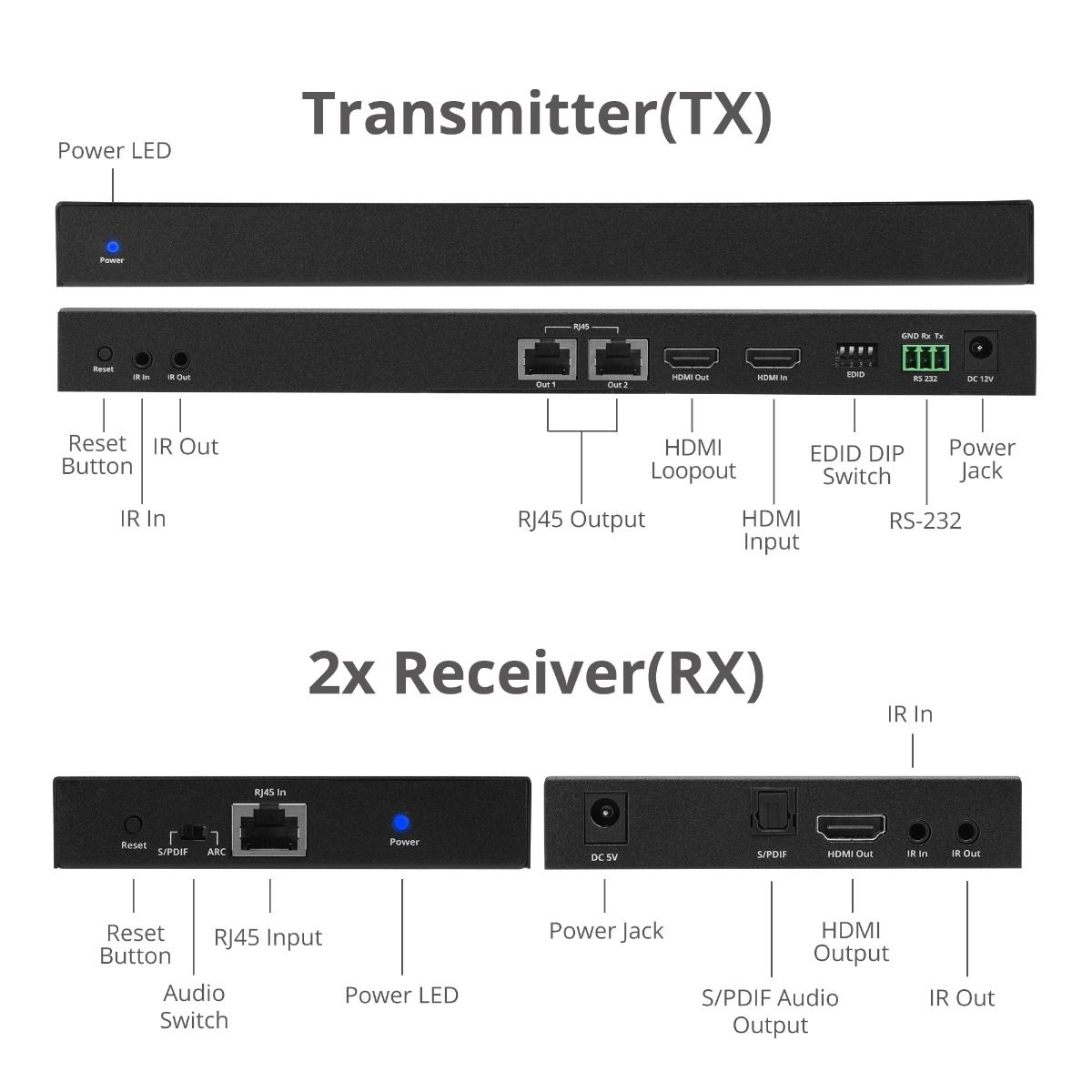

      Connection port
      Connection port
      4x HDMI, 6x 3.5mm, 4x RJ45, 3x Power Jack, 3x 3-pin RS-232, 2x S/PDIF
      6x HDMI, 10x 3.5mm, 8x RJ45, 5x Power Jack, 5x 3-pin RS-232, 4x S/PDIF
      5x HDMI, 5x 3.5mm, 8x RJ45
      6x HDMI, 10x 3.5mm, 8x RJ45, 5x Power Jack, 5x 3-pin RS-232, 4x S/PDIF
      9x HDMI, 9x 3.5mm, 16x RJ45
      Data Transfer (Max)
      Data Transfer (Max)
      18Gbps
      18Gbps
      10.2Gbps
      18Gbps
      10.2Gbps
      Additional function
      Additional function
      IR, Reset, EDID, RS-232, Audio Extractor
      IR, Reset, EDID, RS-232, Audio Extractor
      IR
      IR, Reset, EDID, RS-232, Audio Extractor
      IR
      Housing material
      Housing material
      Metal
      Metal
      Metal
      Metal
      Metal
      Color
      Color
      Black
      Black
      Black
      Black
      Black

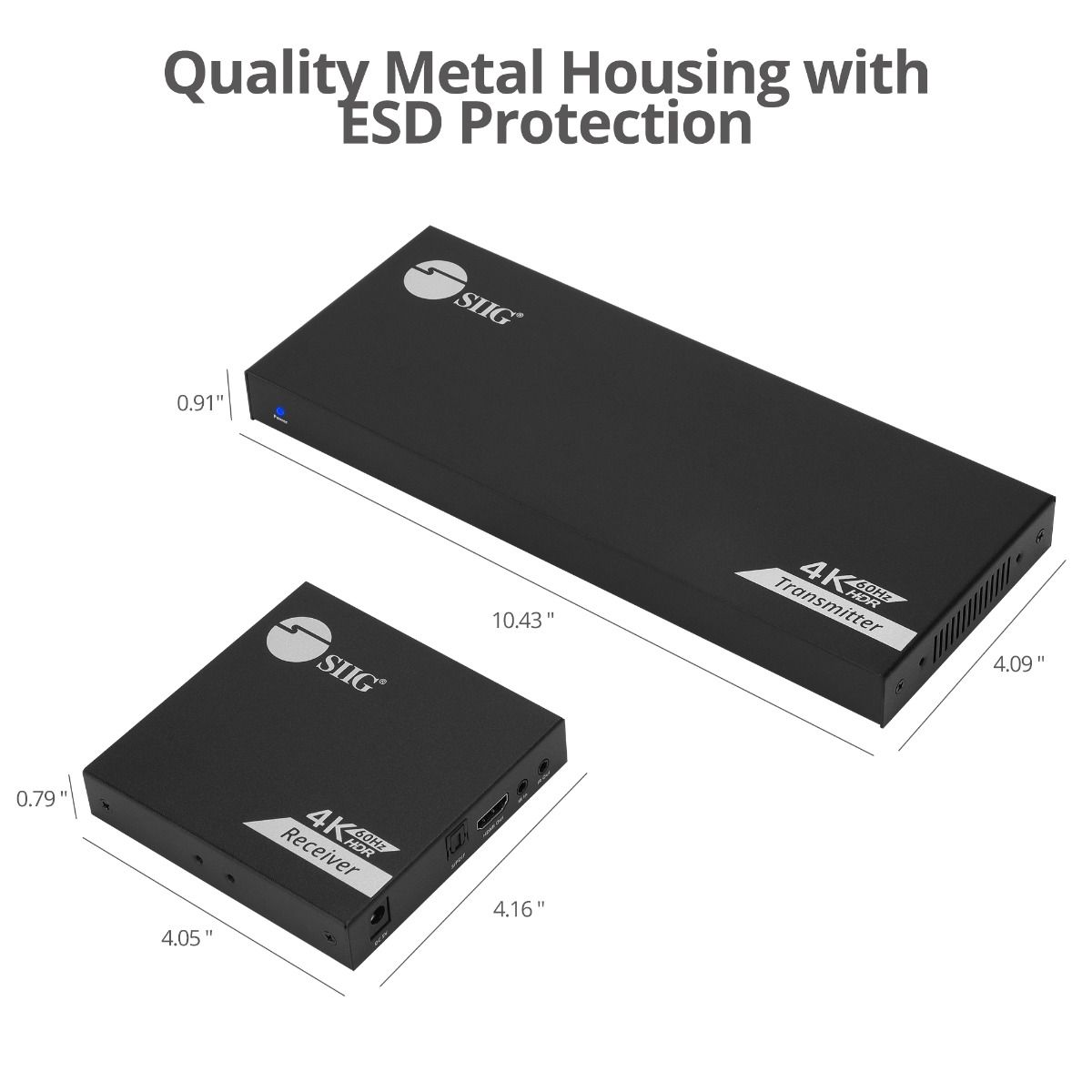

      Dimensions
      Dimensions
      TX: 10.43" (W) x 0.91" (H) x 4.09" (D) (26.49 cm x 2.31 cm x 10.39 cm) RX: 4.15" (W) x 0.79" (H) x 4.04" (D) (10.54 cm x 2 cm x 10.26 cm)
      TX: 10.43" (W) x 0.91" (H) x 4.09" (D) (26.49 cm x 2.31 cm x 10.39 cm) RX: 4.15" (W) x 0.79" (H) x 4.04" (D) (10.54 cm x 2 cm x 10.26 cm)
      TX: 9.92” (W) x 0.98” (H) x 3.82" (D) (25.20 cm x 2.49 cm x 9.70 cm) RX: 3.81” (W) x 0.93” (H) x 3.70" (D) (9.68 cm x 2.36 cm x 9.40 cm)
      TX: 10.39” (W) x 0.91” (H) x 4.72" (D) (26.39 cm x 2.31 cm x 11.99 cm) RX: 4.15" (W) x 0.79" (H) x 4.04" (D) (10.54 cm x 2 cm x 10.26 cm)
      TX:11.81” (W) x 1.18” (H) x 4.37" (D) (30 cm x 3 cm x 11.10 cm) RX: 3.81” (W) x 0.93” (H) x 3.70" (D) (9.68 cm x 2.36 cm x 9.4 cm)
      Weight
      Weight
      TX: 1.46 lbs RX: 0.54 lbs
      TX: 1.46 lbs RX: 0.54 lbs
      TX: 1.34 lbs RX: 0.33 lbs
      TX: 1.6 lbs RX: 0.54 lbs
      TX: 1.81 lbs RX: 0.33 lbs
      Mountable
      Mountable
      Yes
      Yes
      Yes
      Yes
      Yes
      Certification/ Standards
      Certification/ Standards
      FCC / CE / RoHS
      FCC / CE / RoHS
      FCC / CE / RoHS
      FCC / CE / RoHS
      FCC / CE / RoHS
      Warranty
      Warranty
      2 years
      2 years
      2 years
      2 years
      2 years
      Country of Origin
      Country of Origin
      China
      China
      China
      China
      China
      Resolution
      Resolution
      4K60Hz
      4K60Hz
      Up to 1080p 60Hz
      4K60Hz
      Up to 1080p 60Hz
      Audio spec
      Audio spec
      PCM 2.0, 5.1, 7.1, Dolby, DTS
      PCM 2.0, 5.1, 7.1, Dolby, DTS
      2ch
      PCM 2.0, 5.1, 7.1, Dolby, DTS
      2ch
      IR function
      IR function
      Yes
      Yes
      Yes
      Yes
      Yes
      Remote control
      EDID button
      EDID button
      Yes
      Yes
      -
      Yes
      -
      Distance
      Distance
      Up to 70M
      Up to 70M
      Up to 120M
      Up to 70M
      Up to 120M
      Antenna spec
      Reset key
      Reset key
      Yes
      Yes
      Yes
      Yes
      Yes
      Bandwidth
      Bandwidth
      18Gbps
      18Gbps
      10.2Gbps
      18Gbps
      10.2Gbps
      Power Output (Max)
      Power Indicator
      Power Indicator
      Yes
      Yes
      Yes
      Yes
      Yes
      Protection
      Protection
      ESD
      ESD
      ESD
      ESD
      ESD
      Protocol
      Protocol
      Passthrough
      Passthrough
      HDBitT
      Passthrough
      HDBitT
      Power Adapter
      Power Adapter
      TX: 12V/2A RX: 5V/2A
      TX: 12V/2A RX: 5V/2A
      TX: 5V/2A RX: 5V/1A
      TX: 12V/2A RX: 5V/2A
      TX: 5V/2A RX: 5V/1A
      Spec
      Spec
      HDMI 2.0, HDCP 2.2
      HDMI 2.0, HDCP 2.2
      HDMI 1.3, HDCP 1.2
      HDMI 2.0, HDCP 2.2
      HDMI 1.3, HDCP 1.2
