Extender | SKU: CE-H25D11-S2

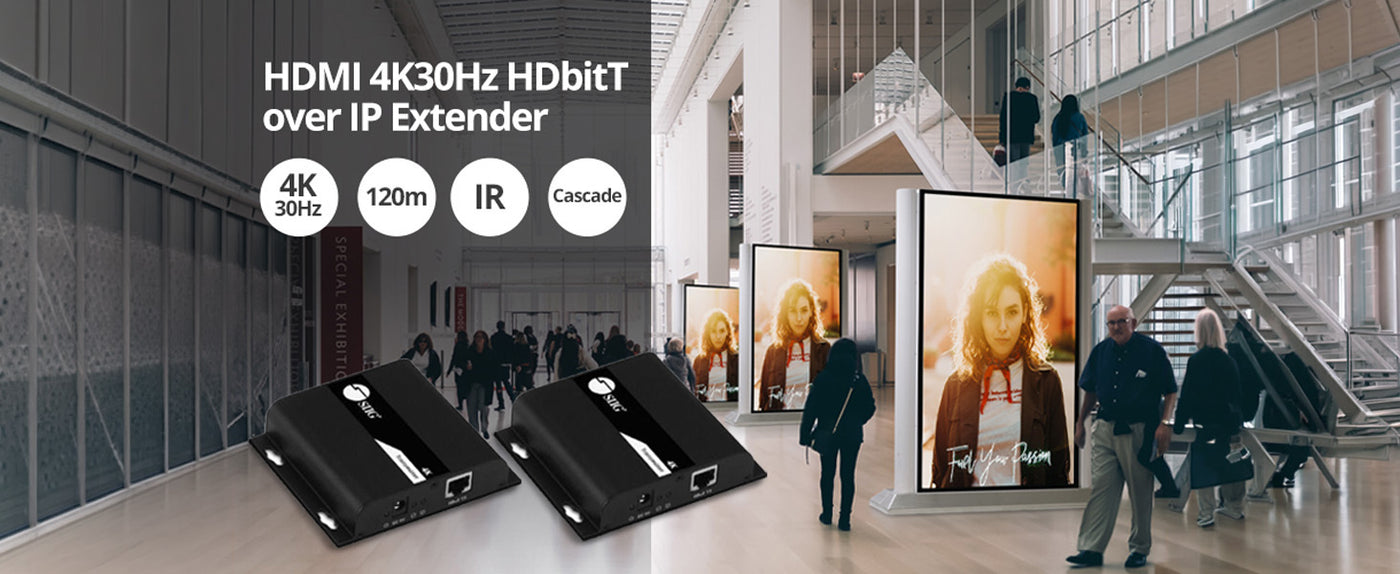

HDMI 4K30Hz HDbitT over IP Extender - 120m - Encode and Decode for One to One / One to Many / Many to Many - IR Control - Reset key

4K30Hz
Up to 120m
One to Many
IR Extension
Mountable
$259.99
Shipping calculated at checkout.
Product Features

HDMI Extender Over IP

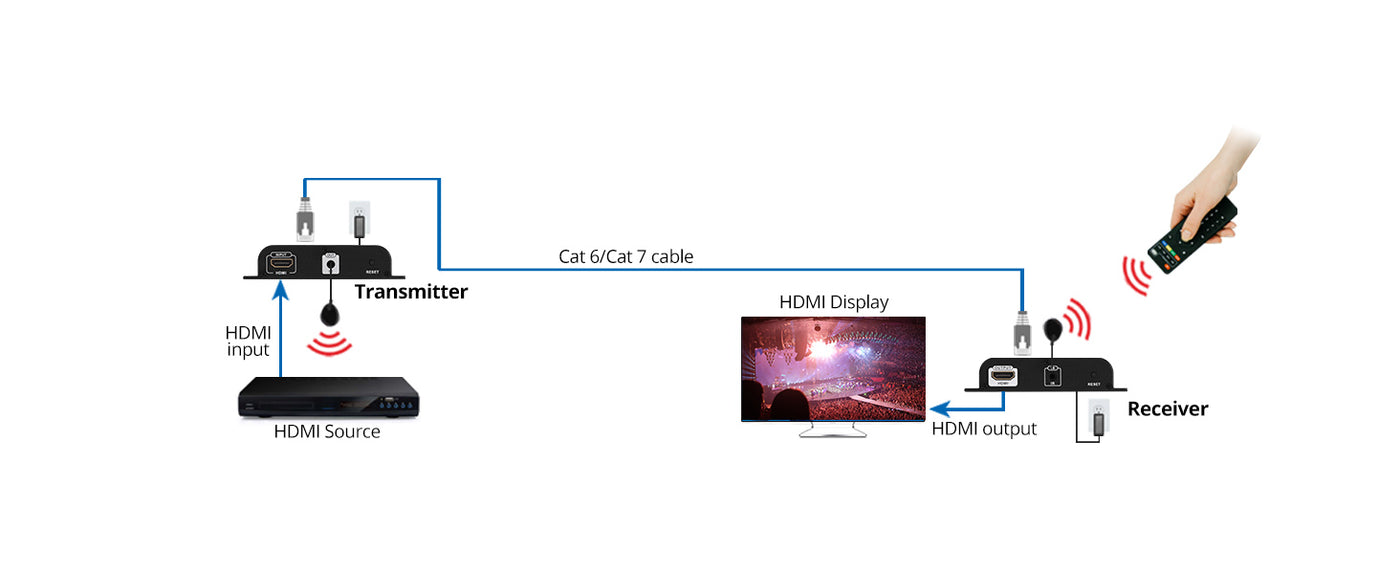

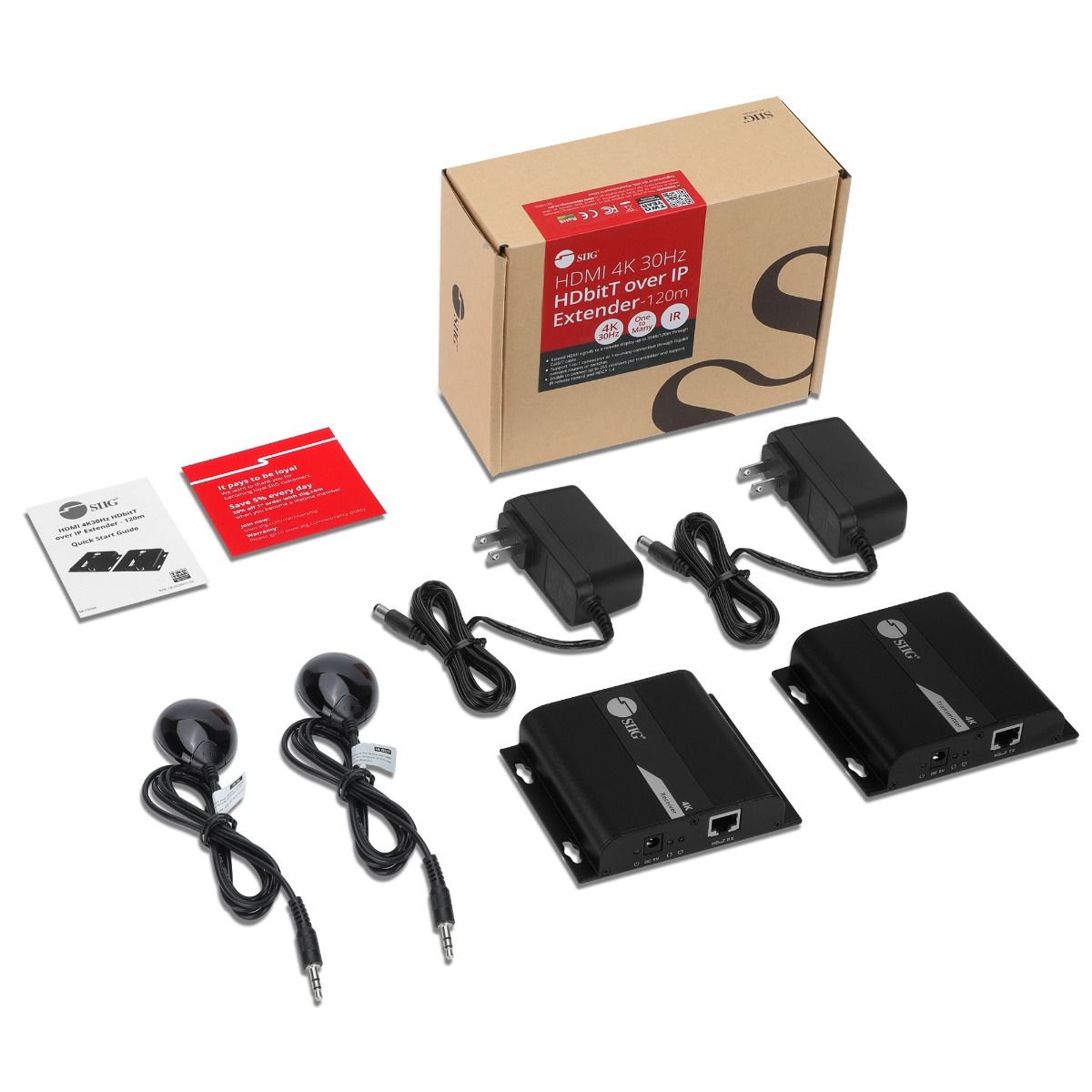

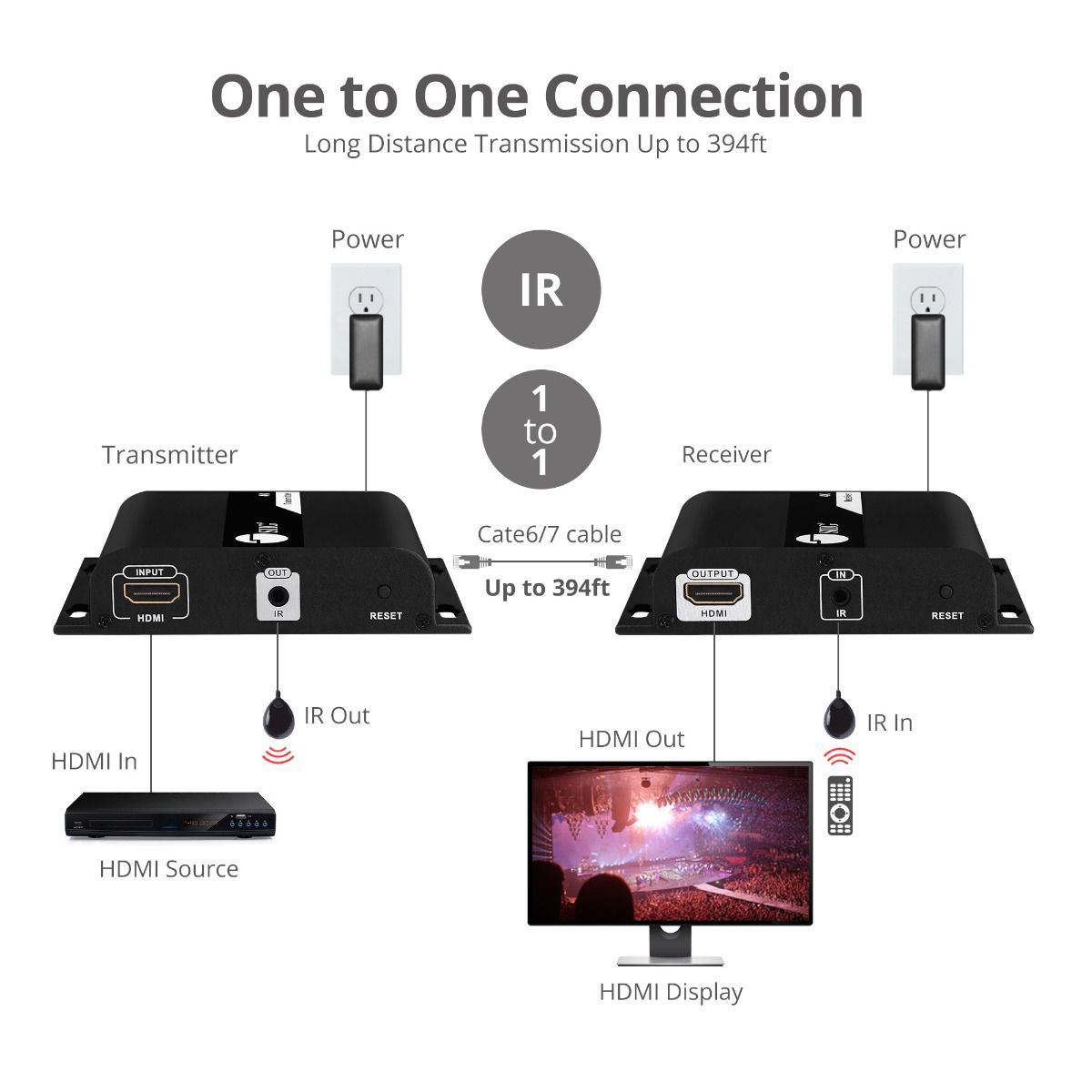

With a single Cat6 cable, you can easily extend HDMI audio/video signals up to 394ft. Connect your HDMI source device (PC, Blu-ray player, media player) to the Transmitter, utilize the existing Ethernet in your house/office to connect the transmitter to Receiver, then connect your HDTV from a remote location to the Receiver, Note: This kit comes with one Transmitter and one Receiver.

4K Resolution

Supports up to 4K 30Hz and 1080p. HDMI 1.4 and HDCP 2.2 compliant. Supports 2-channel Stereo Audio. Auto adjustment for different cable lengths to produce the best video/audio experience. We recommend using high-performance pure copper Cat6 cables to ensure reliable performance. Note: Good quality Cat cables are essential in delivering quality content. Cat6/7 is recommended over Cat5e.

Network Distribution

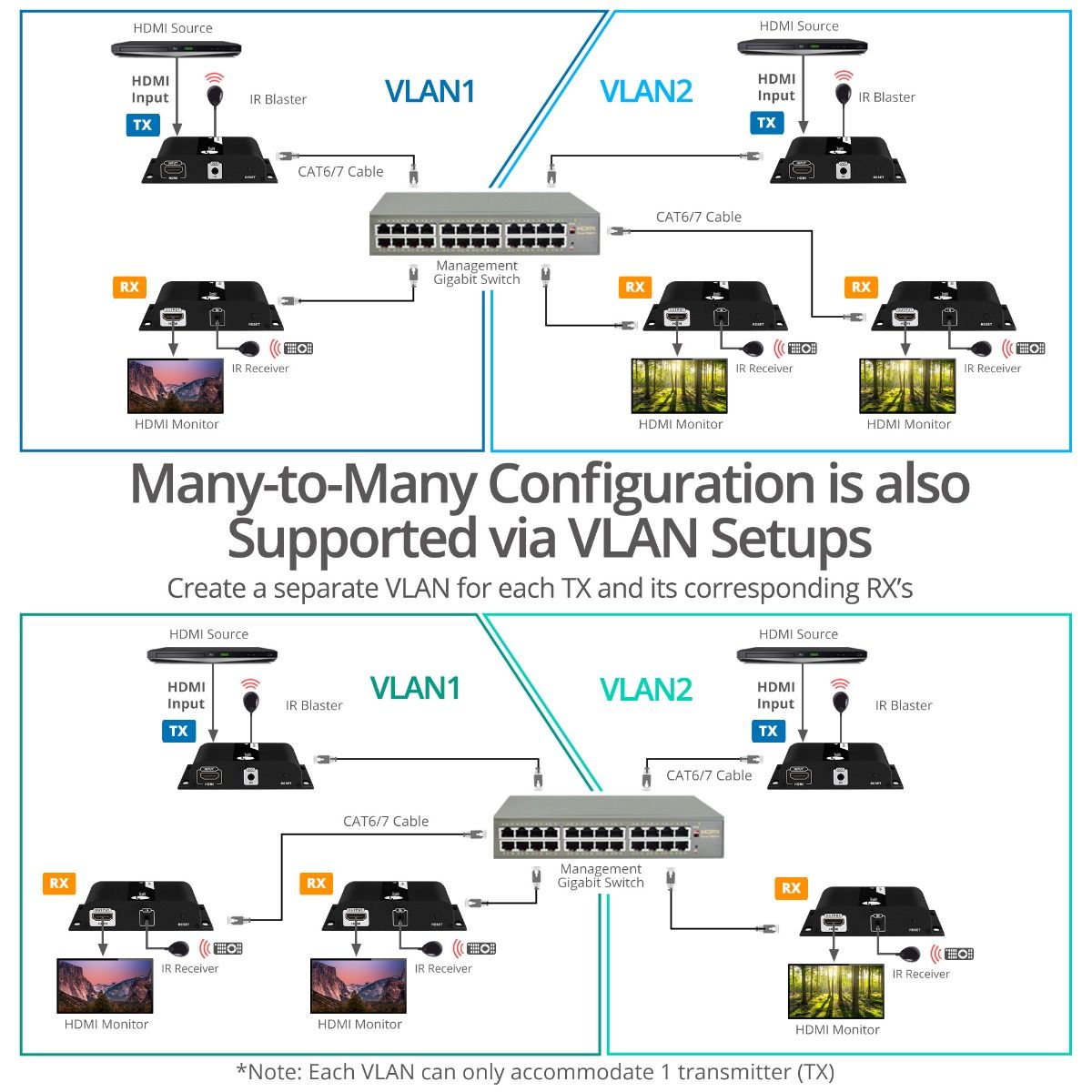

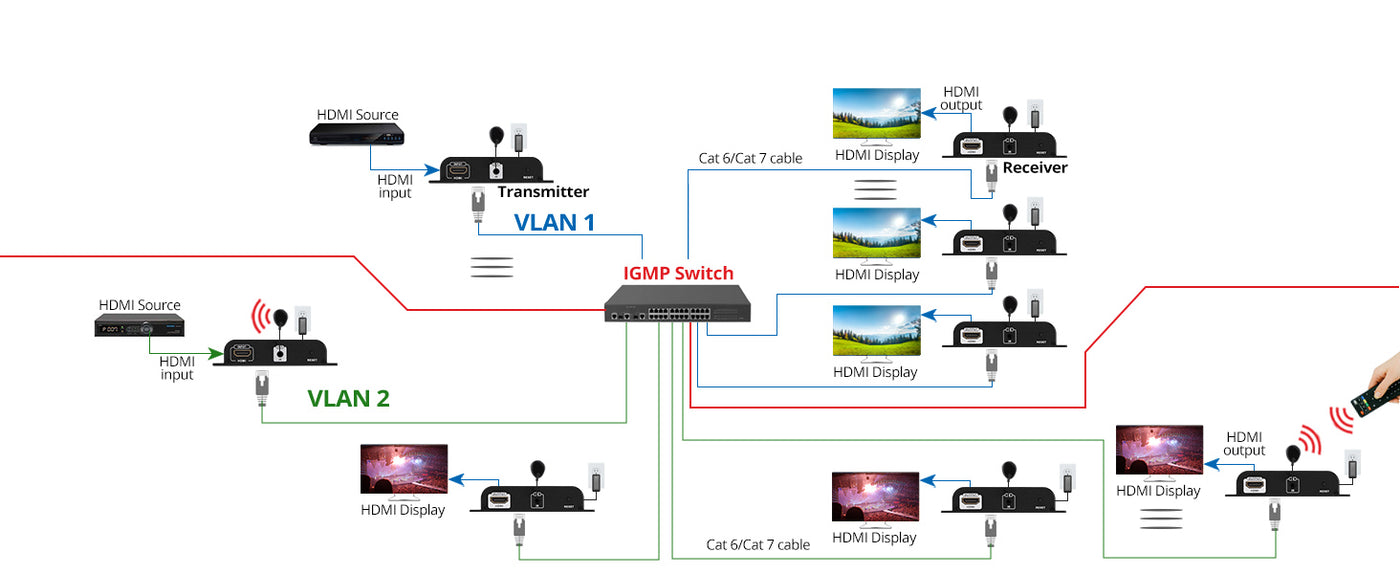

Direct 1-to-1 connection, 1-to-many through unmanaged Gigabit network switches, or many-to-many via VLAN through a Smart Ethernet Switch. With HDBitT transport protocol, connect up to 30 Receivers per Transmitter to not only extend but split HDMI signals to multiple displays.

IR Extension

Allows the source device to recognize remote commands from afar. You can control the HDMI source device at a remote location with the included IR cables that forward commands over a Cat6 cable.

Advanced Features

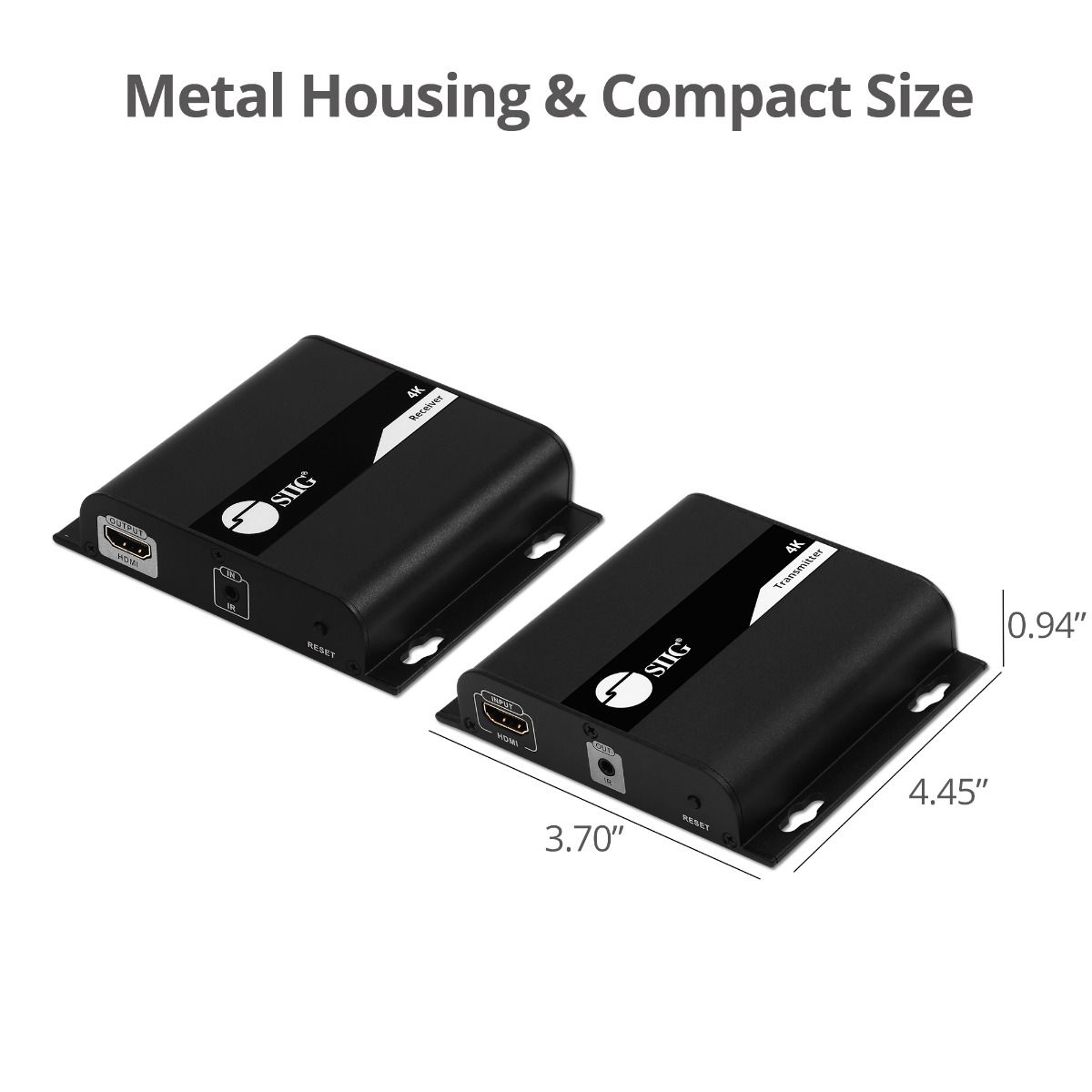

One-directional IR control from RX side to TX side. High-quality surface-mountable metal housing efficiently dissipates heat build-up, to ensure system stability.

  • 45 Days Free Return

  • 2 Years Warranty

  • Lifetime Technical Support

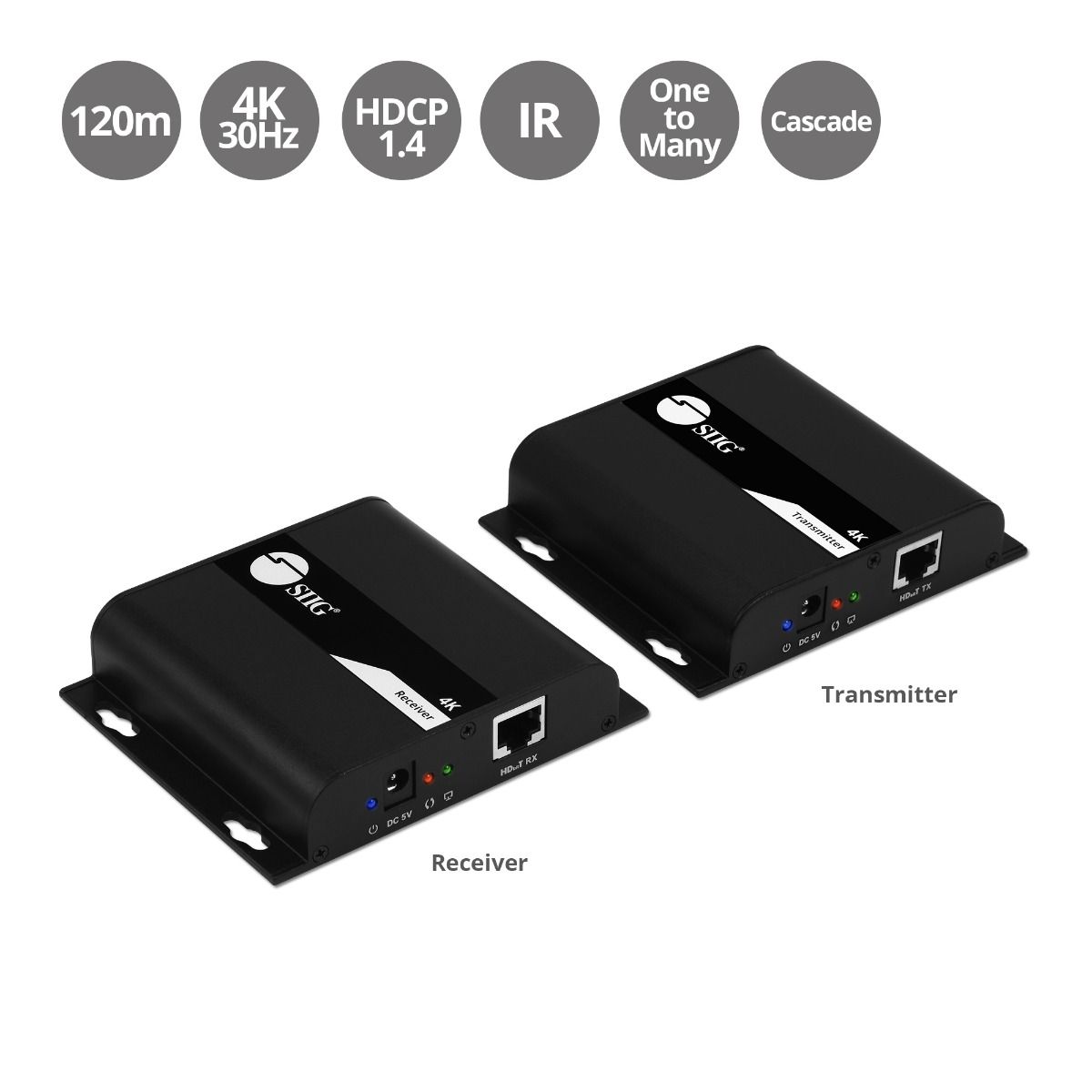

SIIG 120M HDMI 4K30Hz HDbitT over IP Extender

    Transmits HDMI audio and video signals to a remote display/monitor over UTP Cat6/7 cable up to 394ft (120m) and sends the 4K HD resolution to the receiver for stable transmission and cost saving. Allows multiple receivers to be used simultaneously in multiple configurations.

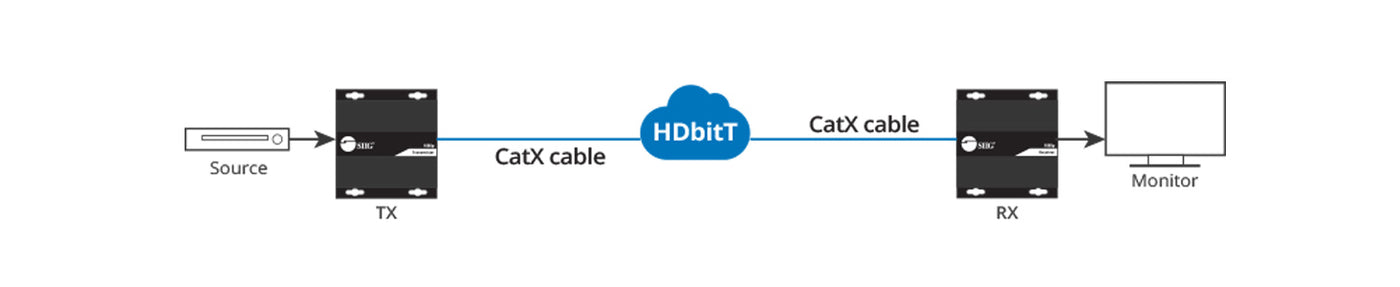

      HDbitT is a new generation audio/video digital connection transmission protocol solution. Provides stable performance, long-distance transmission, and high-definition signal.

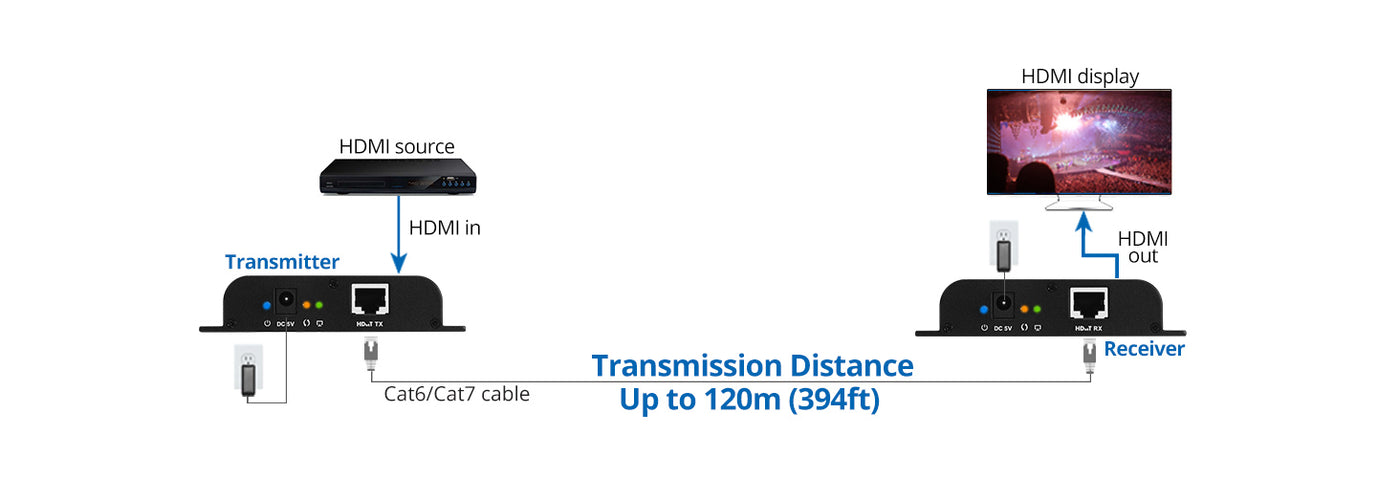

      Extend Distance

        This HDMI 4K30Hz HDbitT over IP Extender designed for transmission/security, HDMI signals up to 394ft (120m) through HDbitT protocol and Gigabit Ethernet switch to a remote HDMI display.

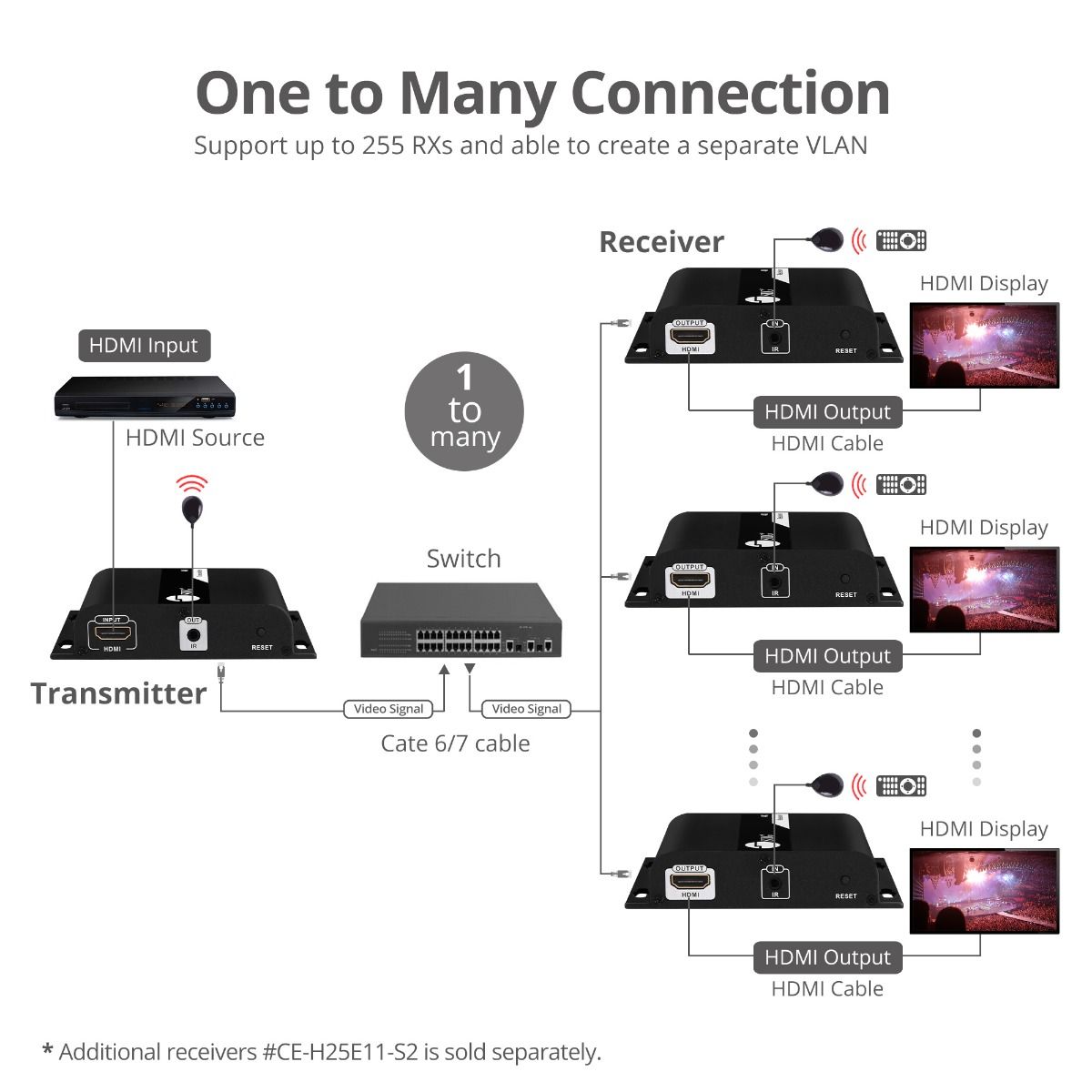

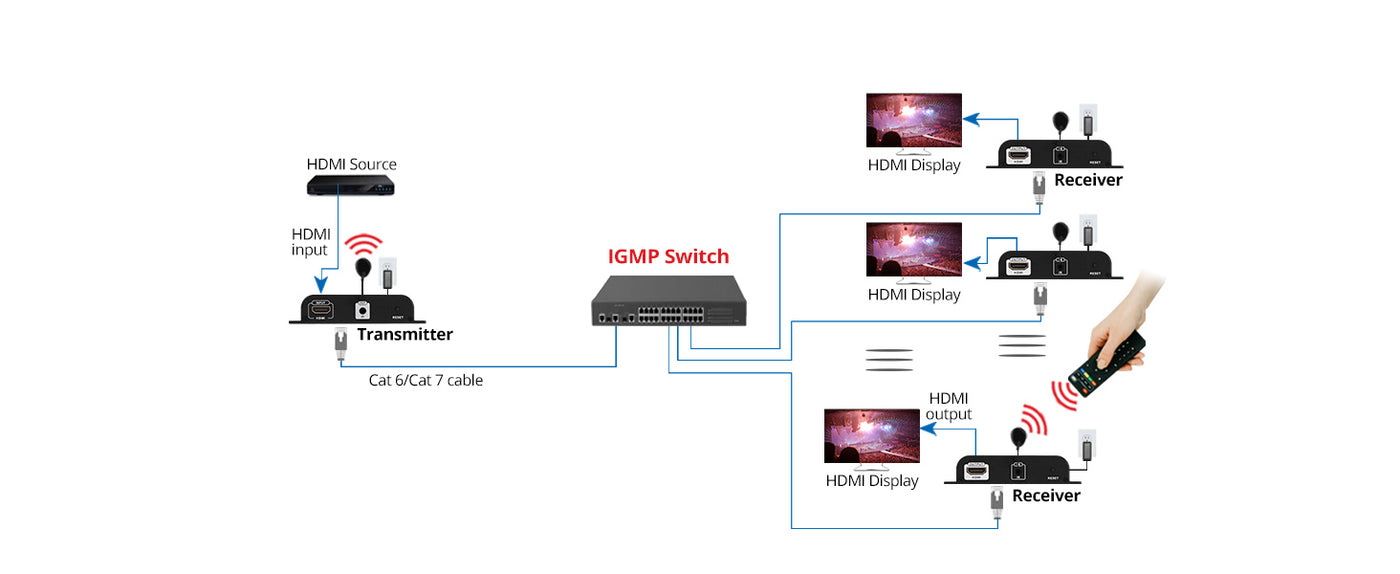

          Supports up to 256 total units (up to 255 RX units) with VLAN configuration for flexible one-to-many distribution. Additional receiver (CE-H25E11-S2) sold separately. IGMP Gigabit Switch recommended for optimal performance and reliability.

          What is HDbitT?

          Highly Scalable

          Works as a scalable TX/RX matrix over the dedicated IP network and extends/splits HDMI signals to multiple displays.

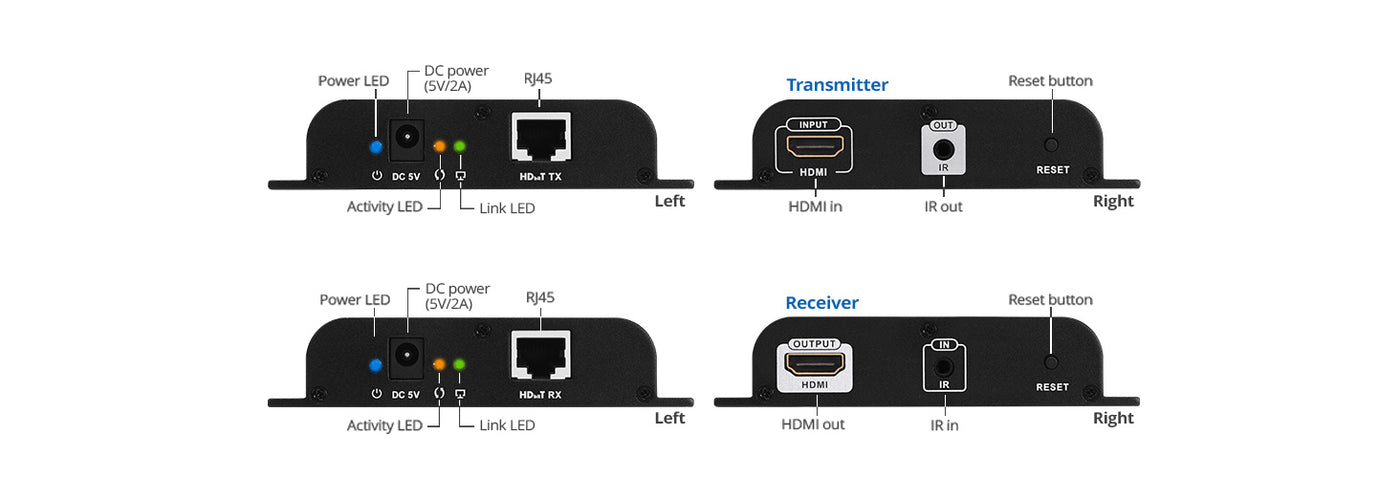

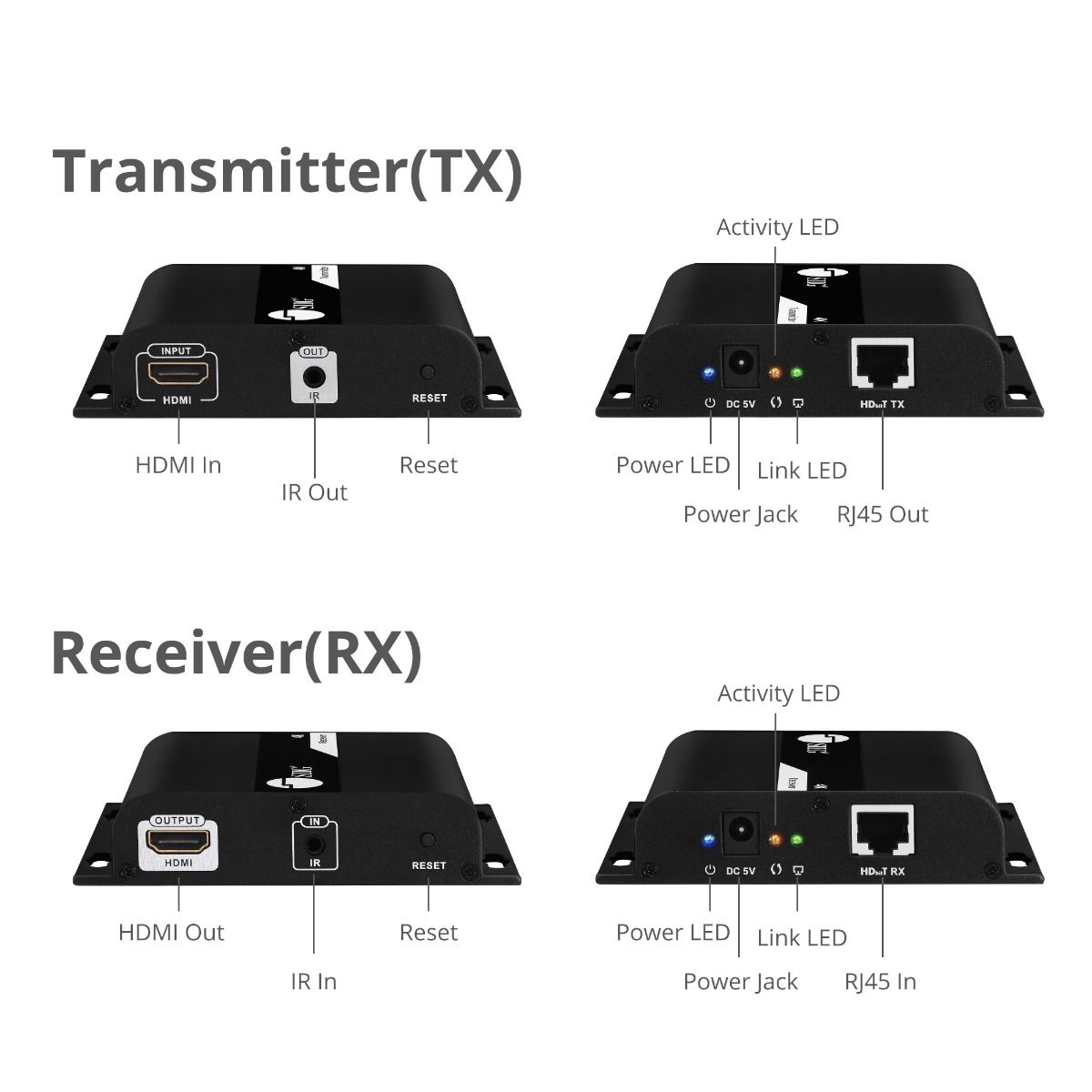

          Multiple Connectivity Ports

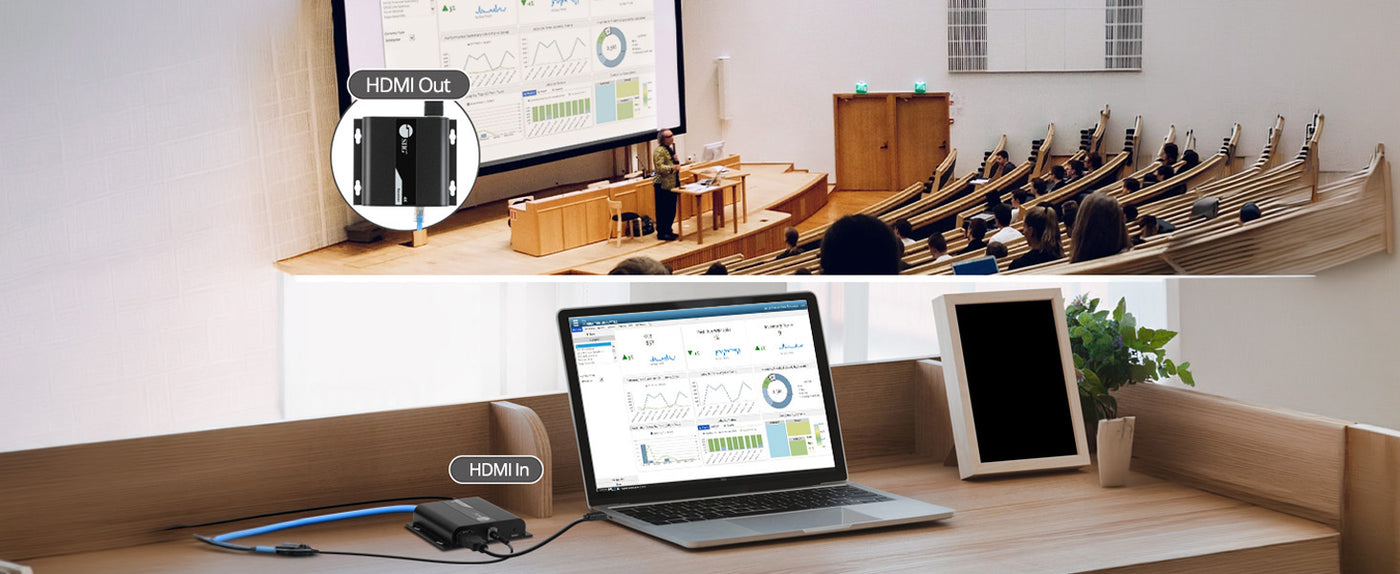

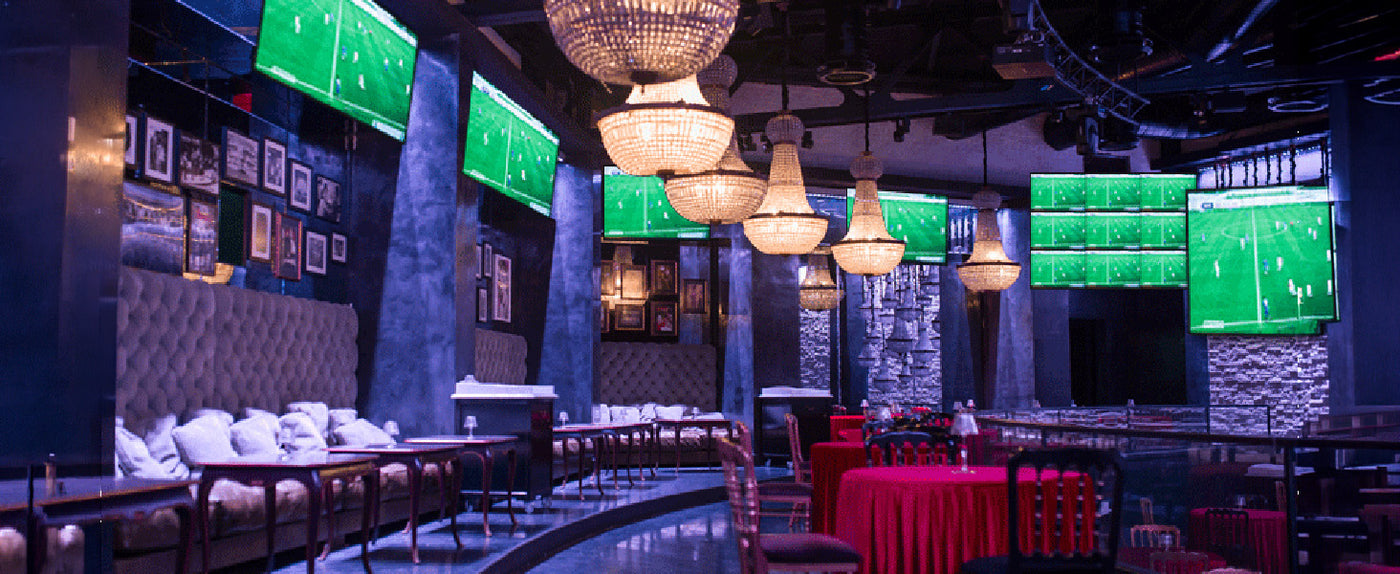

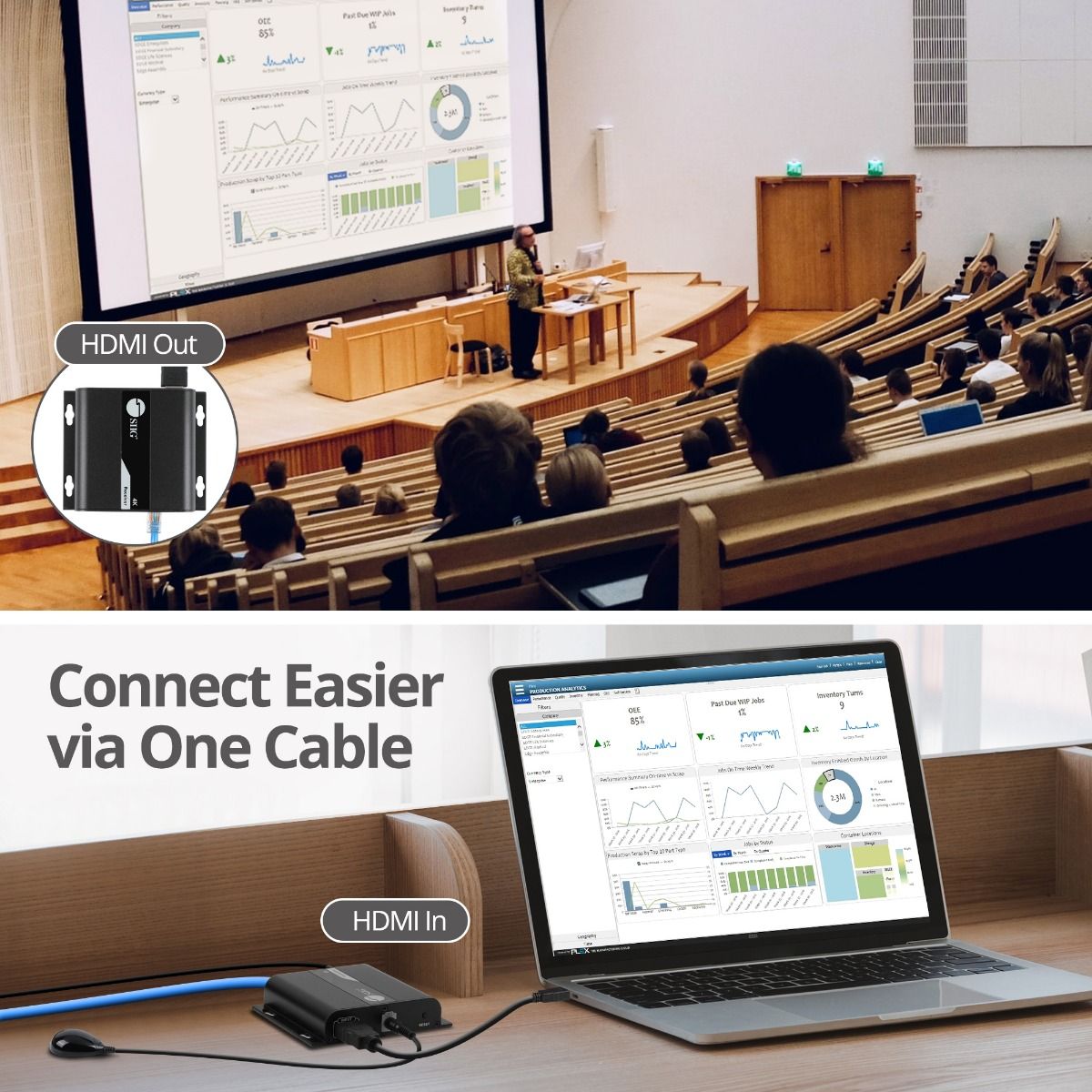

          Applications

          Comparison Table

          HDMI 4K30Hz HDbitT over IP Extender - 120m - Encode and Decode for One to One / One to Many / Many to Many - IR Control - Reset key
          View details
          HDMI 4K30Hz KVM Over IP Extender - 120m(394ft) - Over IP KVM Extender - One to Many - HDMI Loop-out - Downscaler - Low-latency
          View details
          HDMI HDbitT Over IP Extender with IR - 120m - One to One / One to Many - Reset key
          View details
          Full HD HDMI Over IP Extender Kit, Many to Many, RS-232 Serial and IR Control, 1080p 60Hz, 120m
          View details
          HDMI Over IP Extender with IR - 492ft (150m), 1080p @ 60Hz, IR Control, Audio Extraction, One-to-Many Support
          View details
          SKU
          SKU
          CE-H25D11-S2
          CE-H27R11-S1
          CE-H26T11-S1
          CE-H23A11-S2
          CE-H3IP01-S1
          Connection port
          Connection port
          2x HDMI, 2x 3.5mm, 2x RJ45, 2x Power Jack
          3x HDMI, 3x USB-A, 2x RJ45
          2x HDMI, 2x 3.5mm, 2x RJ45, 2x Power Jack
          2 x HDMI, 2 x RJ45, 2 x 3-pin RS-232, 2 x 3.5mm
          2x HDMI, 2x RJ45, 2x 3.5mm
          Data Transfer (Max)
          Data Transfer (Max)
          10.2Gbps
          10.2Gbps
          10.2Gbps
          4.95Gbps
          4.95Gbps
          Additional function
          Additional function
          IR, Reset, One to Many
          KVM, HDMI Loopout, One to many, Downscale
          IR, Reset, One to Many
          RS-232
          Audio extractor, IR
          Housing material
          Housing material
          Metal
          Metal
          Metal
          Metal
          Metal
          Color
          Color
          Black
          Black
          Black
          Black
          Black
          Dimensions
          Dimensions
          TX/RX:4.22” (W) x 0.93” (H) x 3.70" (D) (10.72 cm x 2.36 cm x 9.4 cm)
          TX/RX: 4.09" (W) x 0.91" (H) x 4.41" (D) (10.39 cm x 2.31 cm x 11.20 cm)
          TX/RX: 3.70” (W) x 0.93” (H) x 3.81" (D) (9.4 cm x 2.36 cm x 9.68 cm)
          9.45” (W) x 3.15” (H) x 6.93" (D) (24 cm x 8 cm x 17.6 cm)
          3.04" (W) x 0.87" (H) x 2.96" (D) (7.72 cm x 2.21 cm x 7.52 cm)
          Weight
          Weight
          TX/RX: 0.37 lbs
          TX/RX:0.47 lbs
          TX/RX: 0.33 lbs
          2.36 lbs
          0.26 lbs
          Mountable
          Mountable
          Yes
          -
          Yes
          -
          Yes
          Certification/ Standards
          Certification/ Standards
          FCC / CE / RoHS
          FCC / CE / RoHS
          FCC / CE / RoHS
          FCC / CE / RoHS
          FCC / CE / RoHS
          Warranty
          Warranty
          2 years
          2 years
          2 years
          2 years
          2 years
          Country of Origin
          Country of Origin
          China
          China
          China
          China
          China
          Resolution
          Resolution
          4K30Hz
          Up to 4K30Hz
          1080p 60Hz
          Up to 1080p 60Hz
          Up to 1080p 60Hz
          Audio spec
          Audio spec
          Stereo Audio
          -
          Stereo Audio
          2ch
          2ch
          IR function
          IR function
          -
          -
          -
          Yes
          Yes
          Remote control
          Remote control
          -
          -
          -
          Yes
          -
          EDID button
          Distance
          Distance
          Up to 120M
          -
          Up to 120M
          120m
          Up to 150M
          Antenna spec
          Reset key
          Reset key
          Yes
          -
          Yes
          Yes
          Yes
          Bandwidth
          Bandwidth
          10.2Gbps
          10.2Gbps
          10.2Gbps
          4.95Gbps
          4.95Gbps
          Power Output (Max)
          Power Indicator
          Power Indicator
          Yes
          Yes
          Yes
          Yes
          Yes
          Protection
          Protection
          ESD
          ESD
          ESD
          ESD
          ESD
          Protocol
          Protocol
          HDBitT
          TCP/IP
          HDBitT
          TCP/IP
          TCP/IP
          Power Adapter
          Power Adapter
          TX/RX: 5V/2A
          5V/1A
          TX/RX: 5V/1A
          5V/2A
          5V/1A
          Spec
          Spec
          HDMI 1.4, HDCP 1.4
          USB 1.1, HDMI 1.4, HDCP 1.4
          HDMI 1.3, HDCP 1.2
          HDMI 1.3
          HDMI 1.3, HDCP 1.2
