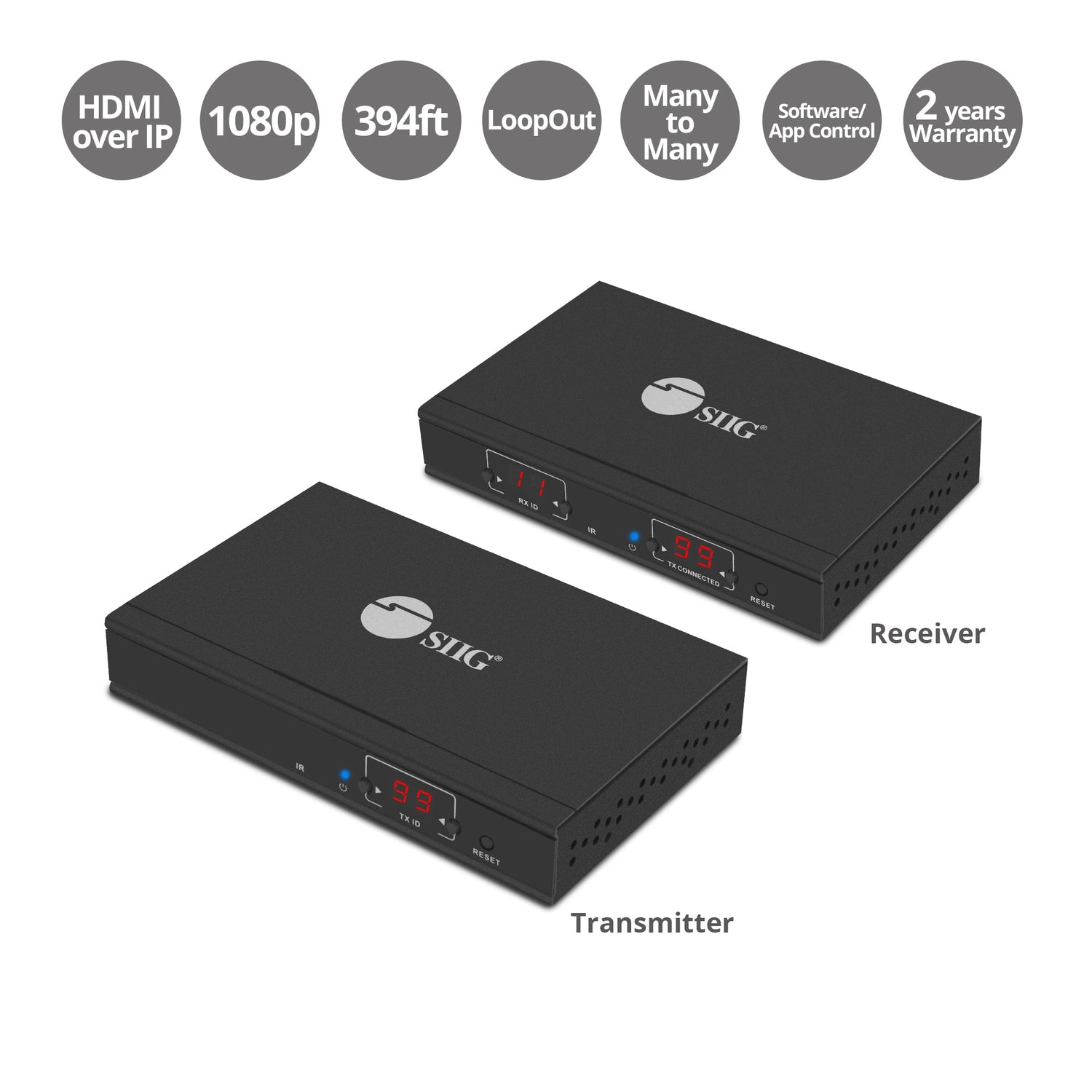

CE-H23A11-S2
HDMI® over IP Extender Kit, 395 ft, 1080p, Many-to-Many
HDMI® over HDbitT
IP Extender
394ft/120m
HDCP 1.4
1080p@60Hz
Regular price
$213.95
Unit price
/
Unavailable
Shipping calculated at checkout.
HDMI® over IP Extender Kit, 395 ft, 1080p, Many-to-Many is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
Flexible HDMI® Extender
Flexible HDMI® Extender
Scalable RX/TX Matrix
Scalable RX/TX Matrix
Different Switch Function
Different Switch Function
HD Video over IP
HD Video over IP
IR Extension & Remote Control
IR Extension & Remote Control

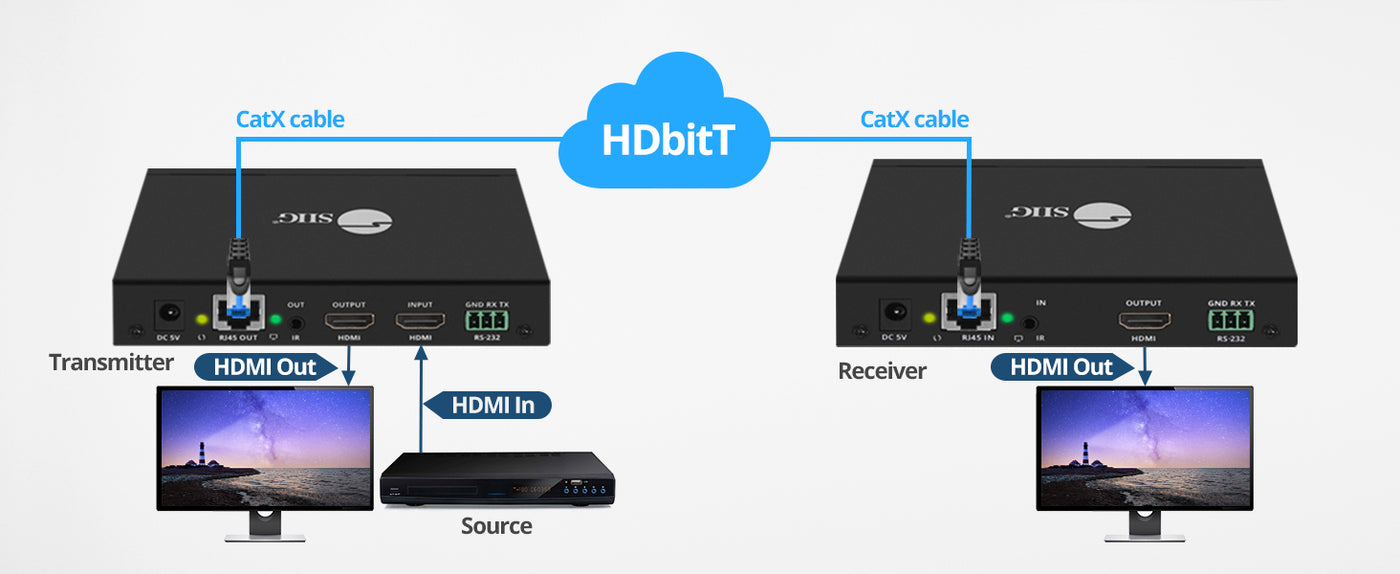

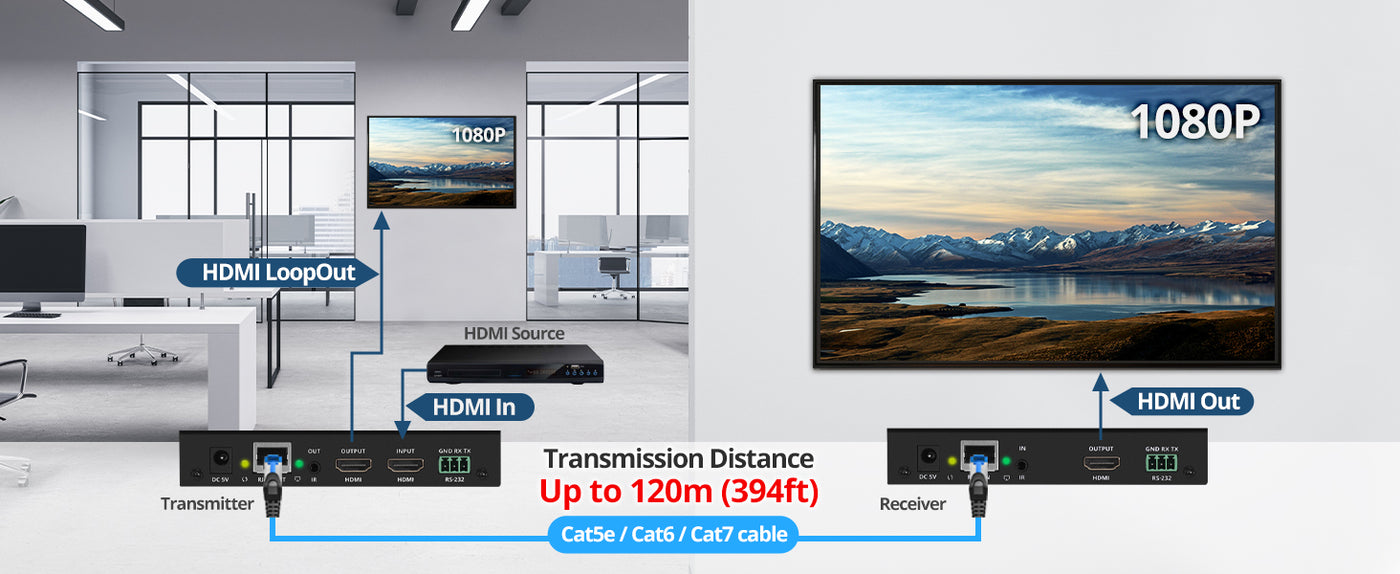

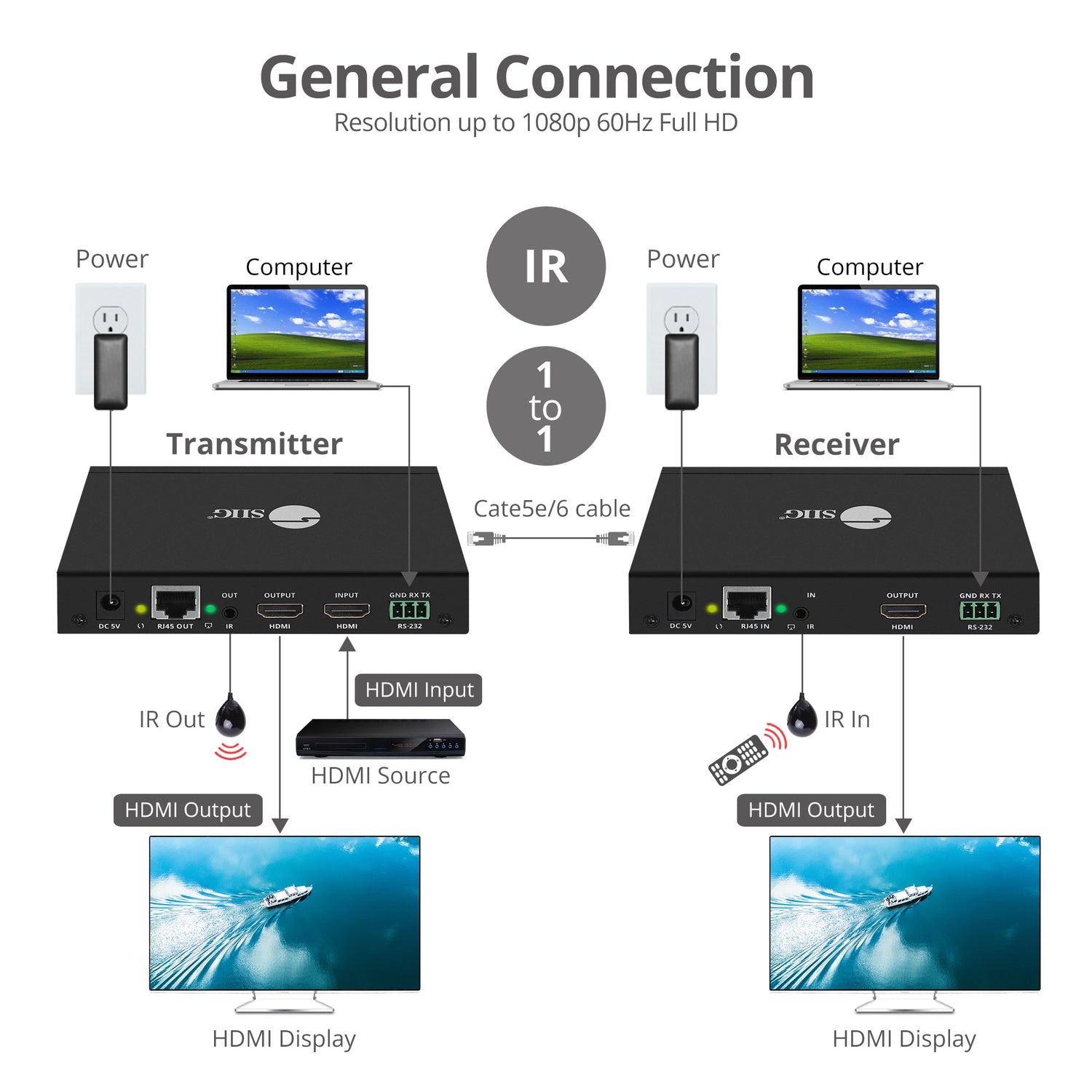

This powerful kit extends your HDMI signal up to 394 feet (120M) using a standard CAT 6/7 network cable


Connecting Ports
-

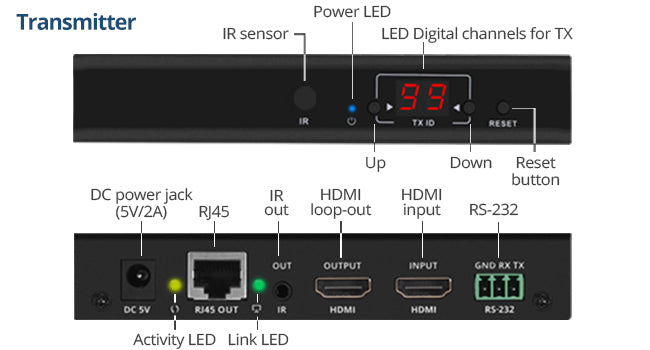

Connecting Ports on the Transmitter
- 1x HDMI, Female (input)/ 1x HDMI, loop-out, Female (output)
- 1x 3-pin, RS-232 terminal block, Female/ 1x 3.5mm infrared jack, IR emitter (output)
- 1x 8-pin, RJ45 (output)/ 2x Switch TX channel buttons, up/down
- 1x Reset button, - 1x DC power jack, 5V/2A -

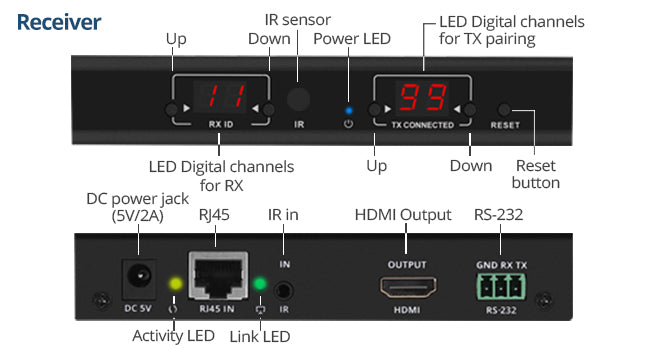

Connecting Ports on the Receiver
- 1x 19-pin, HDMI, Female (output)
- 1x 3-pin, RS-232 terminal block, Female/ 1x 3.5mm infrared jack, IR receiver (input)
- 1x 8-pin, RJ45 (input)/ 2x Switch RX channel buttons, up/down
- 2x TX channel buttons, up/down (for TX connection)
- 1x Reset button/ 1x DC power jack, 5V/2A
No picture quality loss - HDbitT technology ensures the best possible picture quality

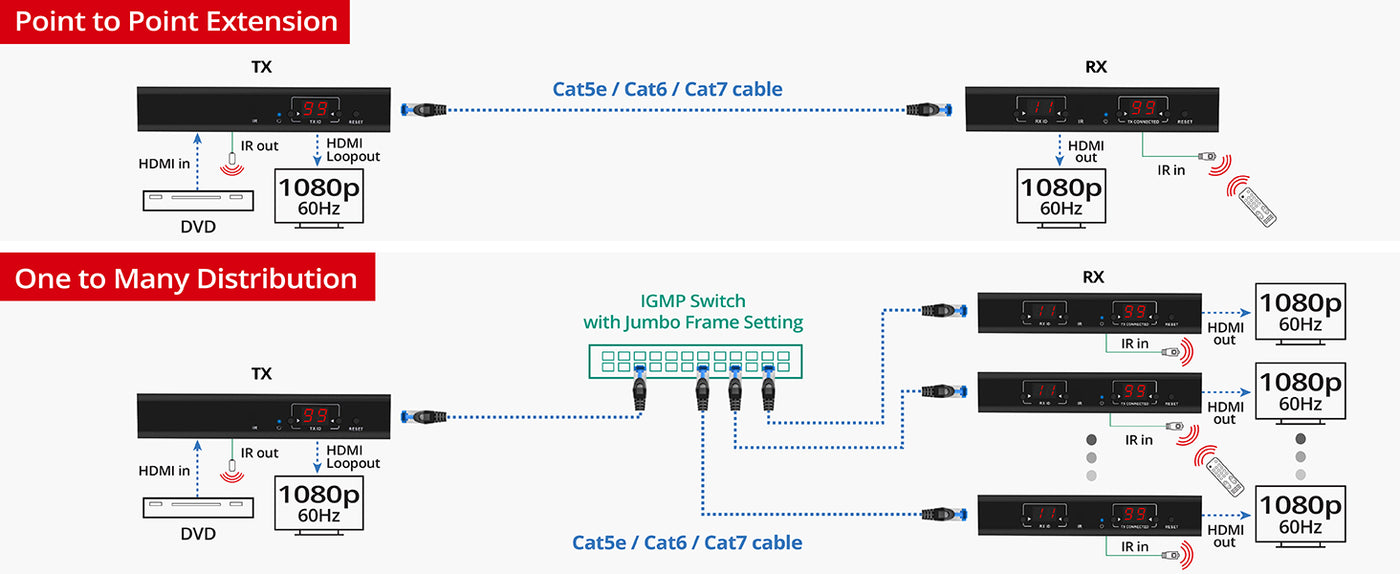

Point to Point/ One to Many Applications
Don't let distance or a lack of HDMI ports limit your viewing options

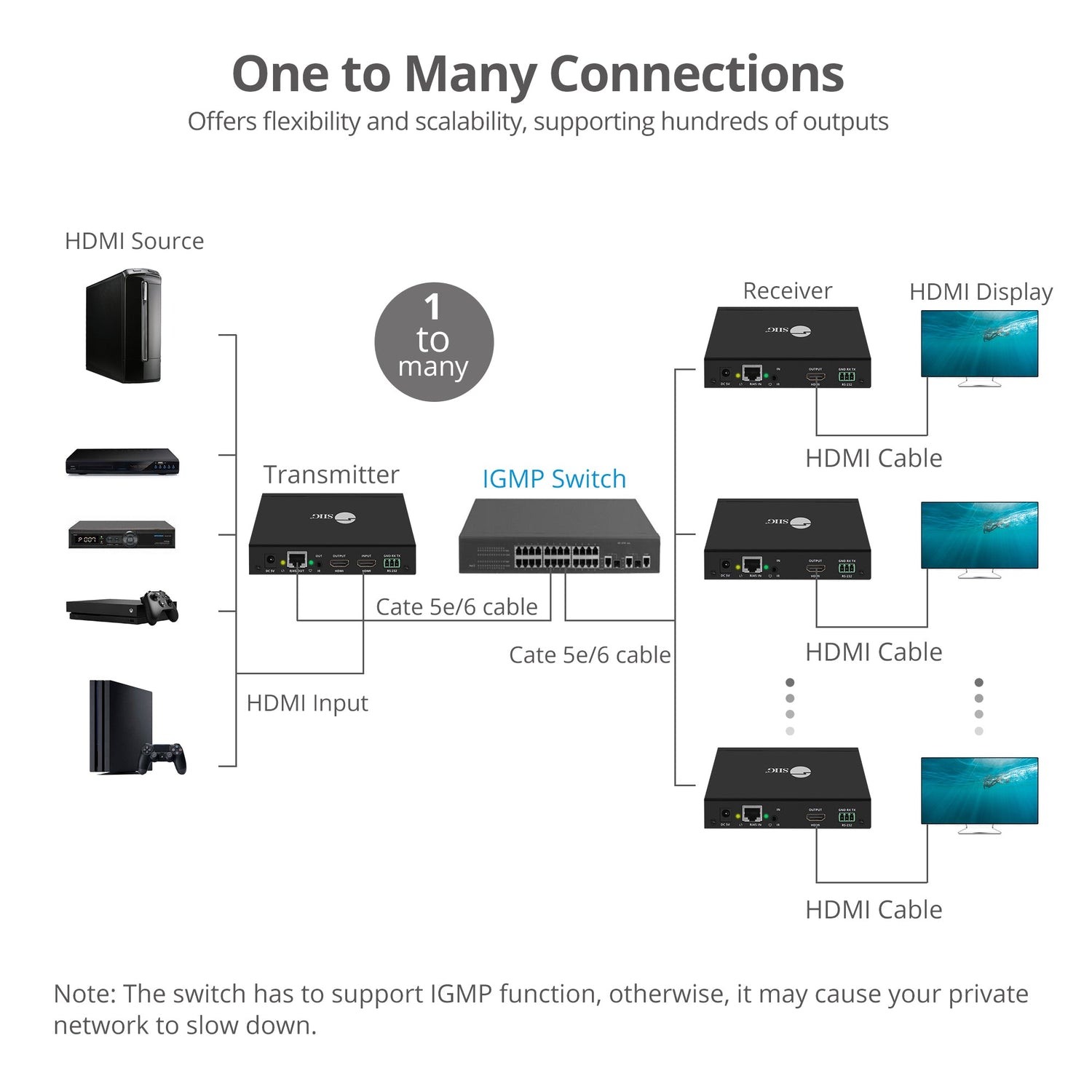

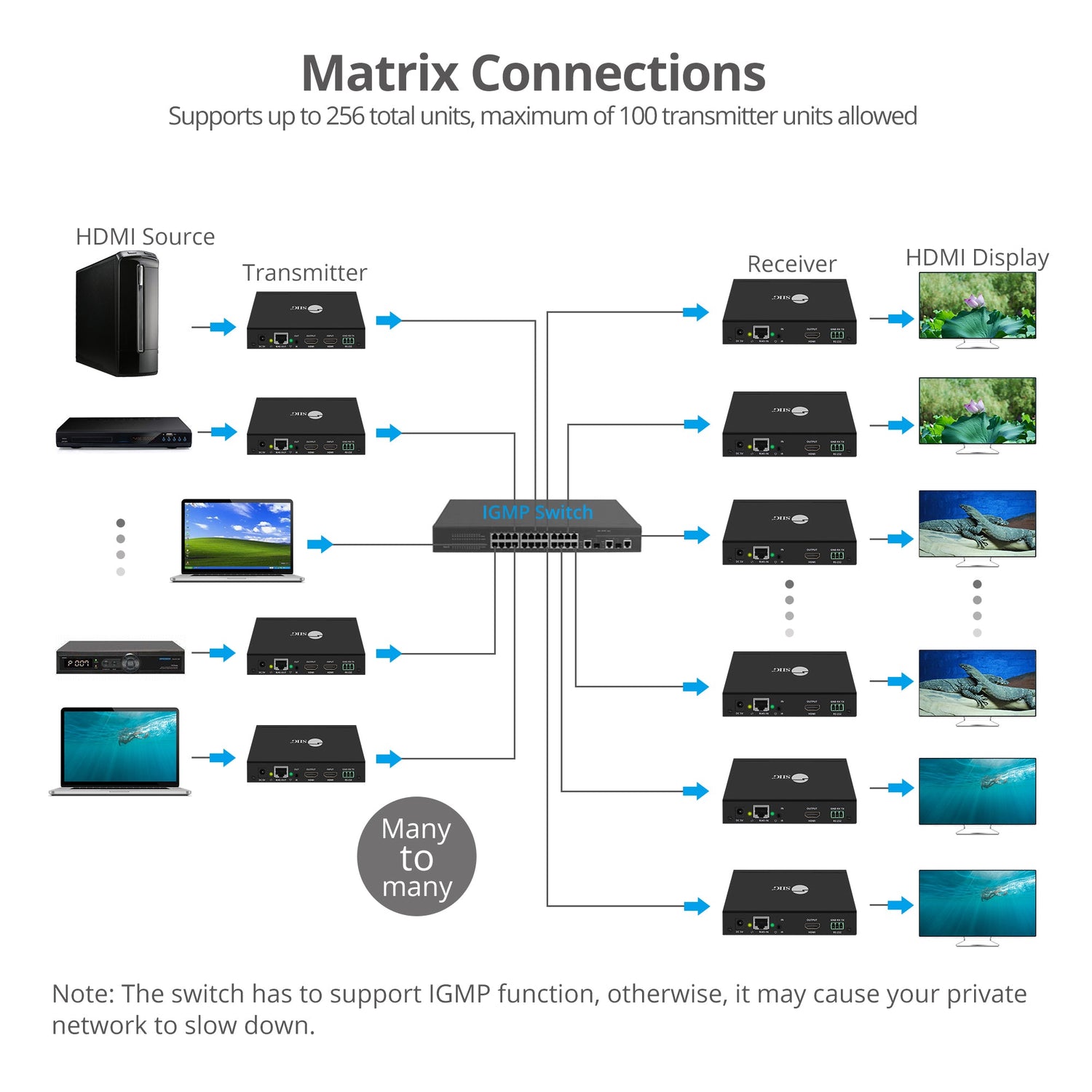

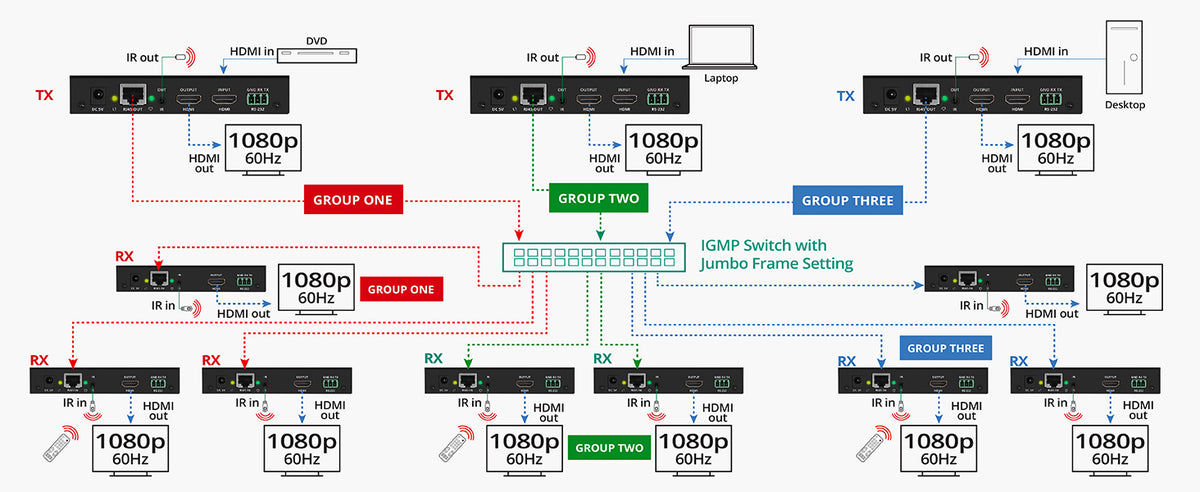

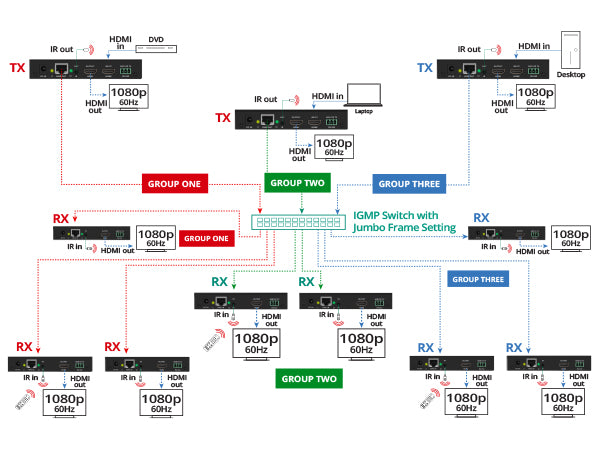

The device can be scaled up to 256 total units, with a limit of 100 units per transmitter. It works as a scalable TX/RX matrix over a dedicated IP network, extending/splitting HDMI signals to multiple displays.
| Transport Protocol | |
| HDbitT Protocol | Audio/video digital connection transmission protocol |
| Video | |
| HDMI | 1x input, 1x output, 1x loop-out |
| Standard | HDCP 1.4 compliant |
| Resolution | 1080p (1920x1080) / 1080i / 720p / 480p 60Hz |
| Audio | Stereo audio from HDMI, support 192Kbps bit rate |
| IR Pass-Through | - Allows remote control of the HDMI source device and playback function at the remote display - Full Frequency: 20KHz to 60KHz |
| RS-232 Control | Bi-direction function and pass-through connection to control RS-232 enables devices in either direction |
| Power Adapter | |
| Input | 100-240V/50-60Hz |
| Output | DC 5V/2A |
| UL Listed | E335801/Level: VI |
| Interface | |

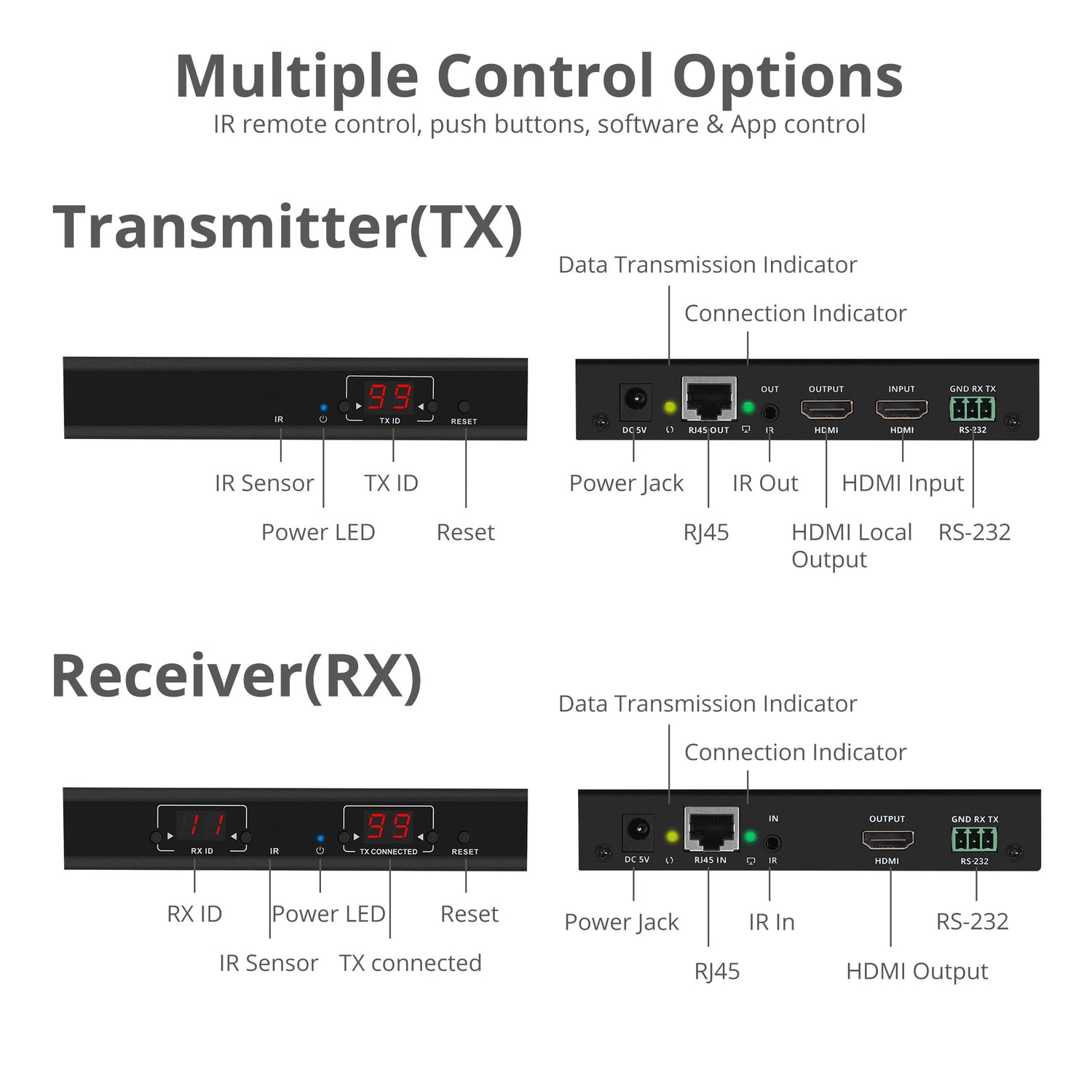

| Encoder Unit (TX) | 1x 19-pin, HDMI, female (input) 1x 19-pin, HDMI, loop-out, female (output) 1x 3-pin, RS-232 terminal block, female 1x 3.5mm infrared jack, IR emitter (output) 1x 8-pin, RJ45 (output) 2x Switch TX channel buttons, up/down 1x Reset button 1x DC power jack, 5V/2A |
| Decoder Unit (RX) | 1x 19-pin, HDMI, female (output) 1x 3-pin, RS-232 terminal block, female 1x 3.5mm infrared jack, IR receiver (input) 1x 8-pin, RJ45 (input) 2x Switch RX channel buttons, up/down 2x TX channel buttons, up/down (for TX connection) 1x Reset button 1x DC power jack, 5V/2A |

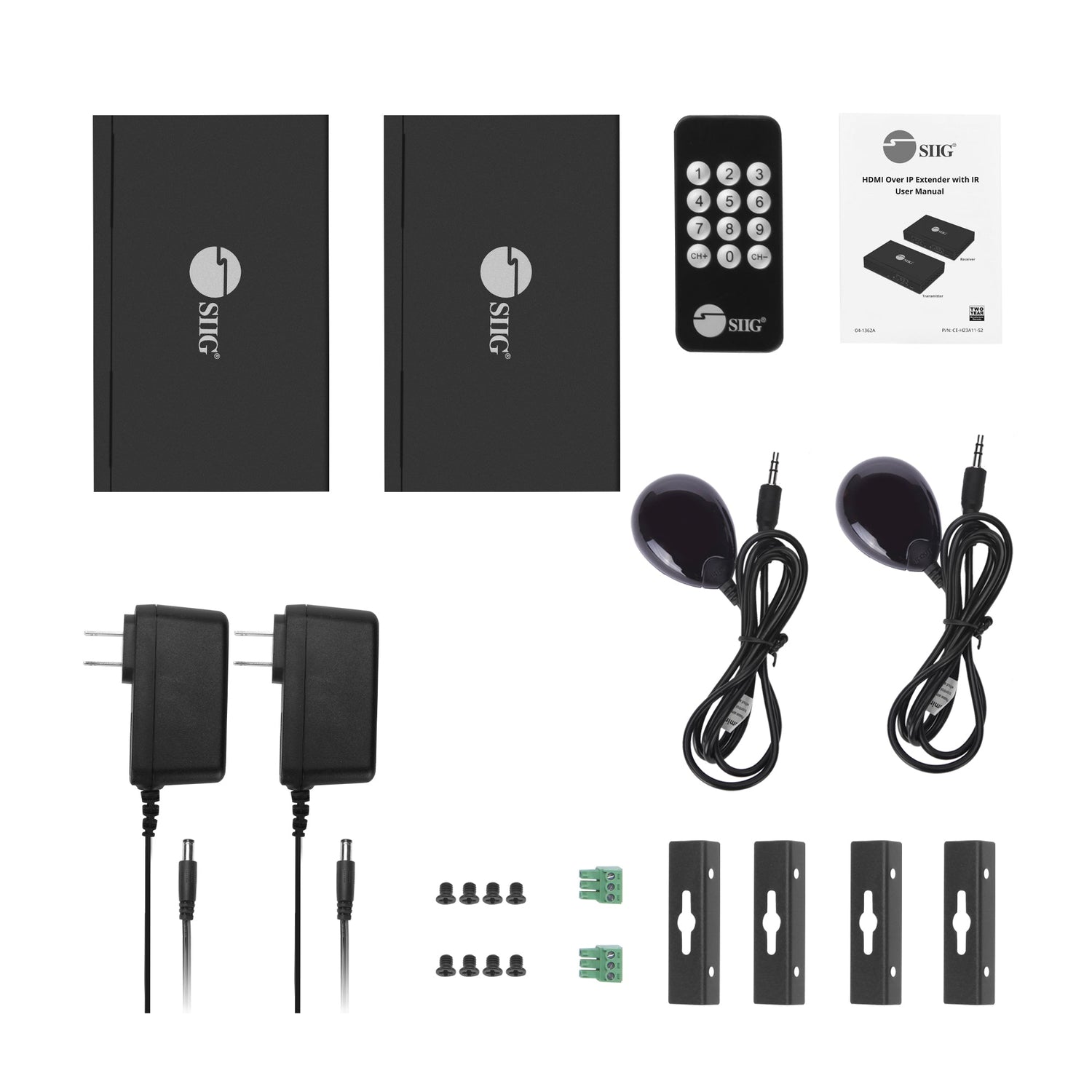

| Package Contents | 1x HDMI over IP Extender with IR- Kit 1x 3.5mm IR emitter extension cable 1x 3.5mm IR receiver extension cable 1x Remote control (for setting TX & RX channels) 2x 3-pin, RS-232 phoenix connectors 2x DC power adapter (5V/2A) 1x Installation kit 1x user reference guide |
| Product | |
| Transmitter (TX) | |

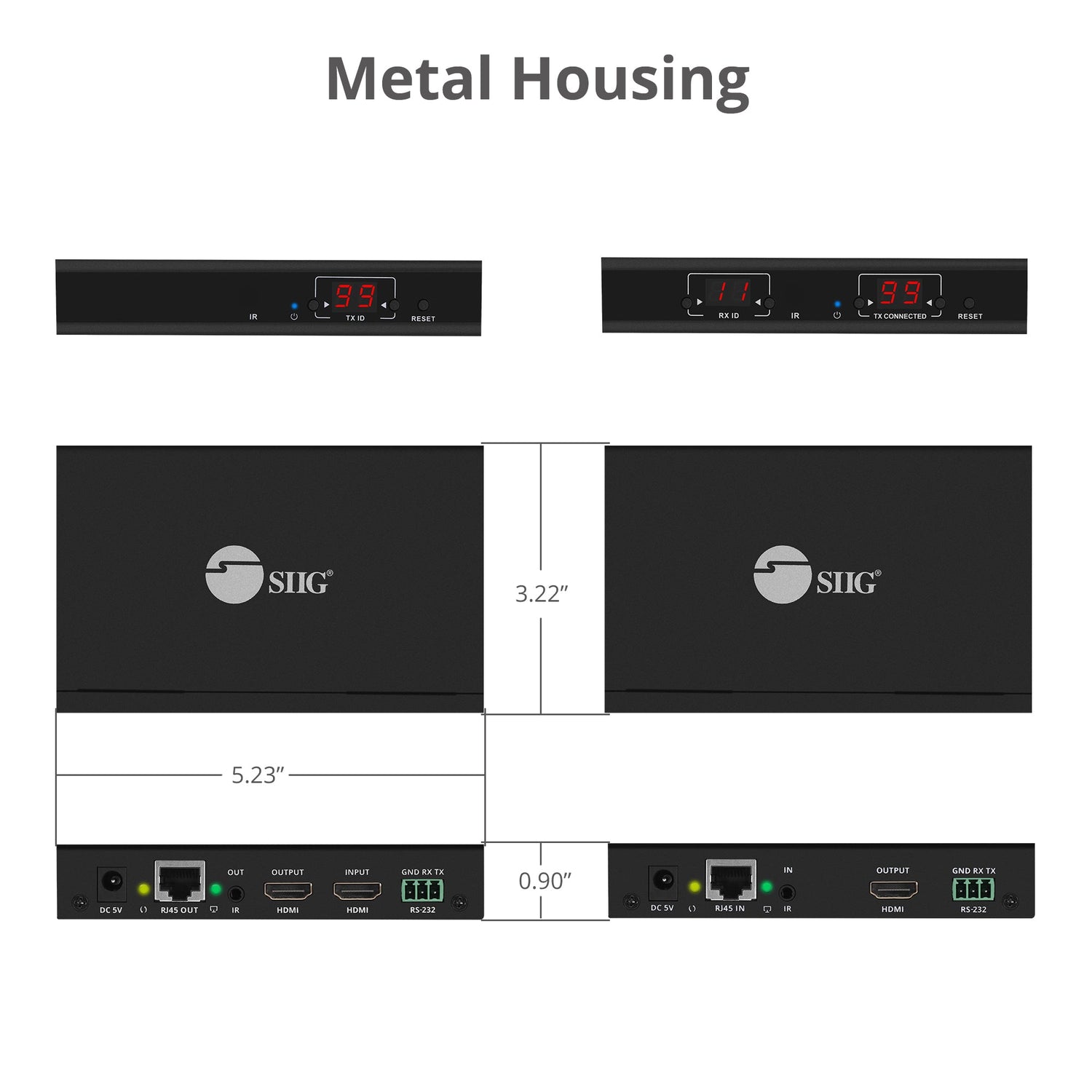

| Dimensions (L) x (H) x (W) | 5.27” x 0.94” x 3.30" 13.39 cm x 2.39 cm x 8.38 cm |
| Weight | 0.60 lbs (0.27 kg) |
| Color | Black |
| Housing Material | Metal |
| Receiver (RX) | |
| Dimensions (L) x (H) x (W) | 5.27” x 0.94” x 3.30" 13.39 cm x 2.39 cm x 8.38 cm |
| Weight | 0.60 lbs (0.27 kg) |
| Color | Black |
| Housing Material | Metal |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 9.45″ x 3.15″ x 6.93″ 24.00 cm x 8.00 cm x 17.60 cm |
| Weight | 2.36 lbs (1.07 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 14.96″ x 16.54″ x 10.63″ 38.00 cm x 42.01 cm x 27.00 cm |
| Weight | 24.92 lbs (11.30 kg) |
| Quantity | 10pcs/ctn |
| Environmental Conditions | |
| Operating Temperature | 32° to 122° F |
| Storage Temperature | 14° to 144° F |
| Relative Humidity | 0% to 90% RH (non-condensing) |
| Certifications/Standards | FCC, CE, RoHS, REACH |
| UPC Code | 662774-045092 |
| Warranty | 2 years limited |
| Country of Origin | China |
Q1: How to reset product to the default setting?
Q1: How to reset product to the default setting?
A1:
- Reset TX to default
Please press the both two buttons beside the "TX ID" display and keep 3 seconds to reset the product - Reset RX to default
Please press the both two buttons beside the "TX connected" display and keep 3 seconds to reset the product
Q2: Why the Over IP extender video can not cross the Router?
Q2: Why the Over IP extender video can not cross the Router?
A2: Over IP extenders use the Multicast Protocol. please check do the Switch and Router can support Multicast packet pass through.
