Switch |
SKU:
CE-H27Q11-S1

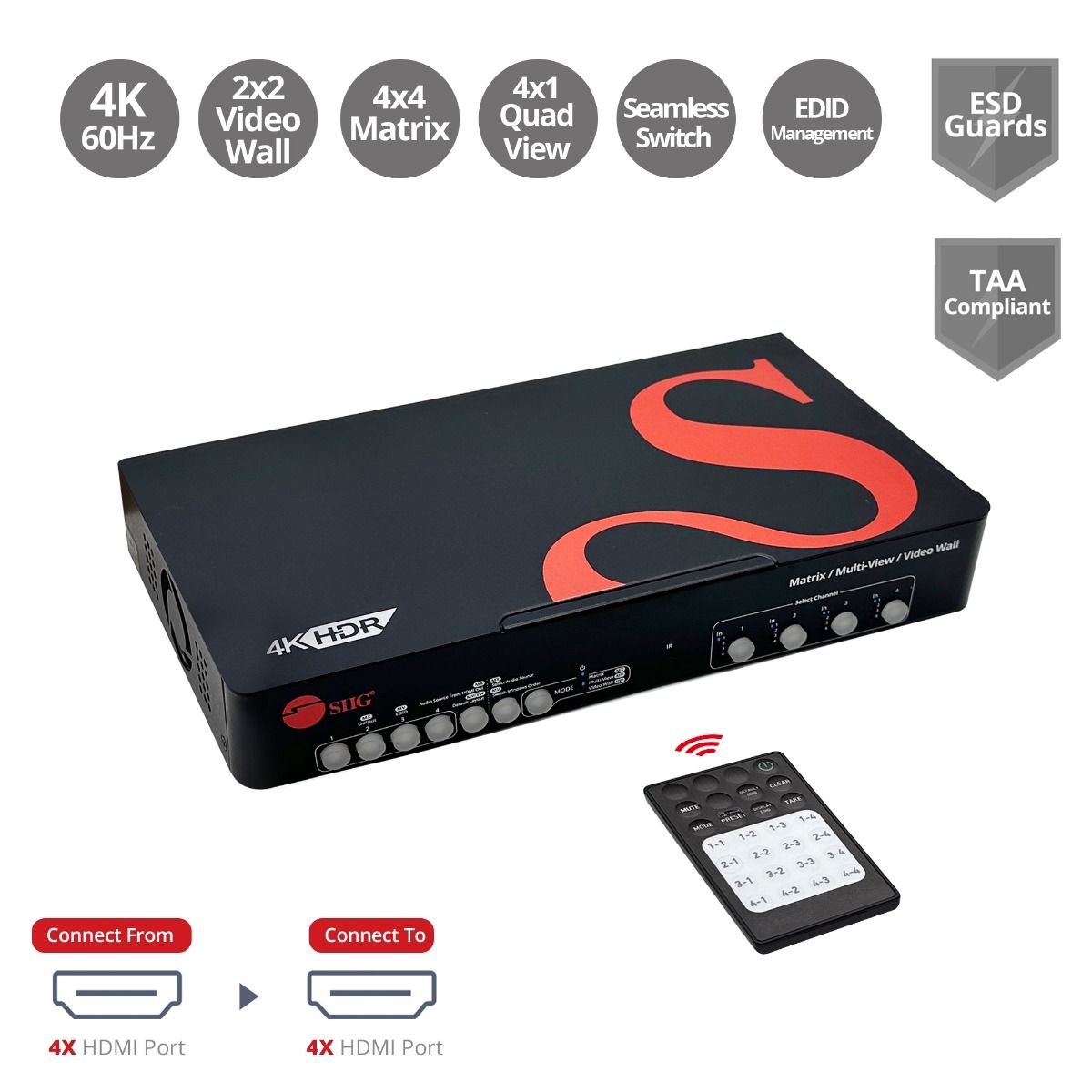

4x4 HDMI 4K60Hz Matrix with Quad-Viewer & Video Wall Controller, Seamless Switching, PIP, EDID Management, Push Buttons, IR Remote Control, Software Control, TAA Compliant
4x4 HDMI Matrix
4K60Hz HDR
Seamless Switching
EDID Management
Software Control
Regular price
$1,899.95
Unit price
/
Unavailable
Shipping calculated at checkout.
4x4 HDMI 4K60Hz Matrix with Quad-Viewer & Video Wall Controller, Seamless Switching, PIP, EDID Management, Push Buttons, IR Remote Control, Software Control, TAA Compliant is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
3-in-1 Multi-Function Design
3-in-1 Multi-Function Design
Flexible Matrix Switching
Flexible Matrix Switching
Real-Time Quad-Viewer Display
Real-Time Quad-Viewer Display
Advanced Video Wall & Combo Mode
Advanced Video Wall & Combo Mode
True 4K Performance & Audio Support
True 4K Performance & Audio Support
-
45 Days Free Return
-
2 Years Warranty
-
Lifetime Technical Support
SIIG 4x4 HDMI 4K60Hz Matrix with Quad-Viewer & Video Wall Controller

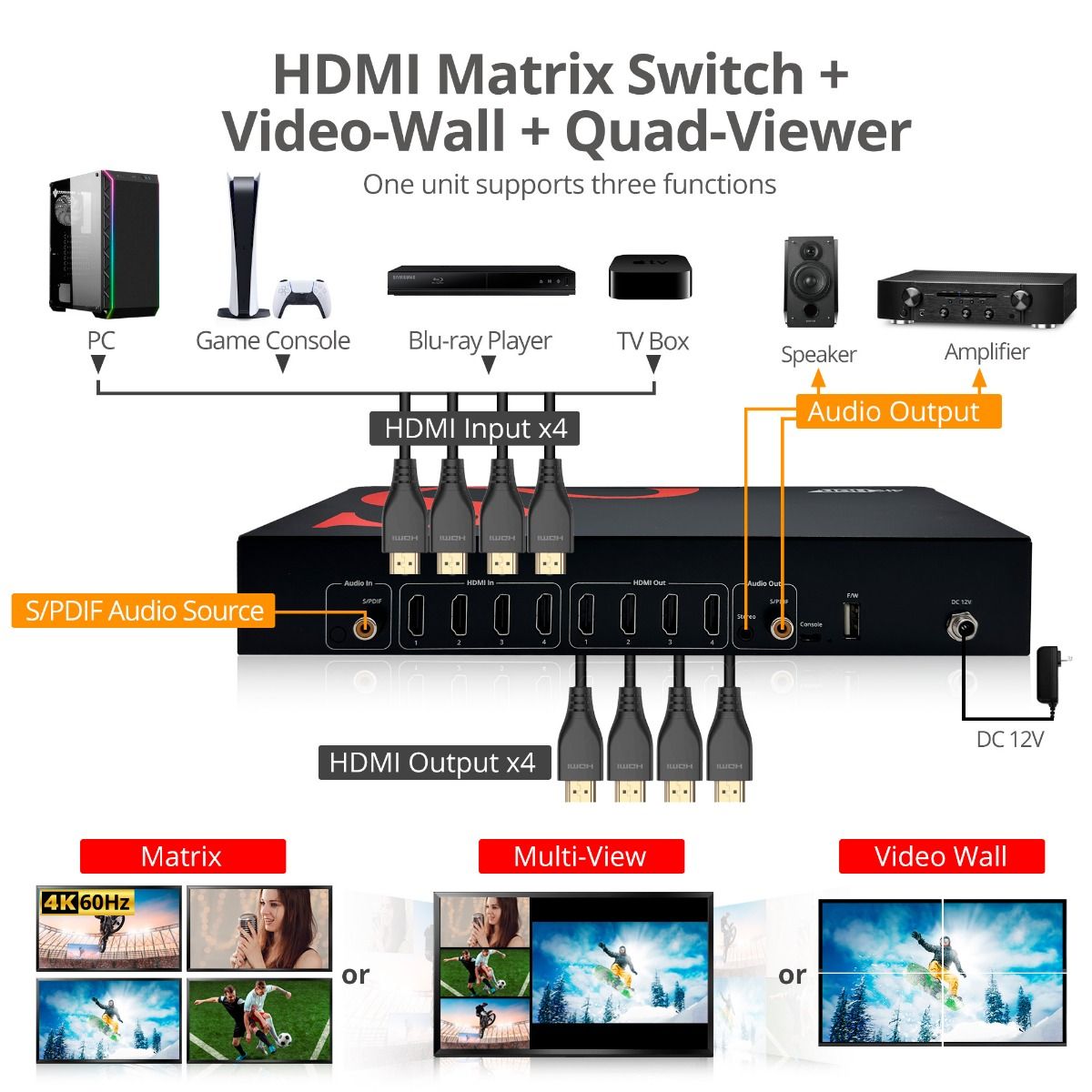

Combines seamless switching, quad-viewer, and video wall processing into one versatile solution. Supporting up to 4K@60Hz resolution with HDCP 2.2, it delivers crystal-clear video performance for professional AV environments.
Designed for maximum flexibility, it supports multiple video wall configurations including 1x2, 1x3, 1x4, 2x1, 2x2, 3x1, and 4x1 layouts, along with Picture-in-Picture (PIP) and five quad-view display modes for dynamic multi-source viewing. Advanced EDID management ensures optimal compatibility across connected devices.

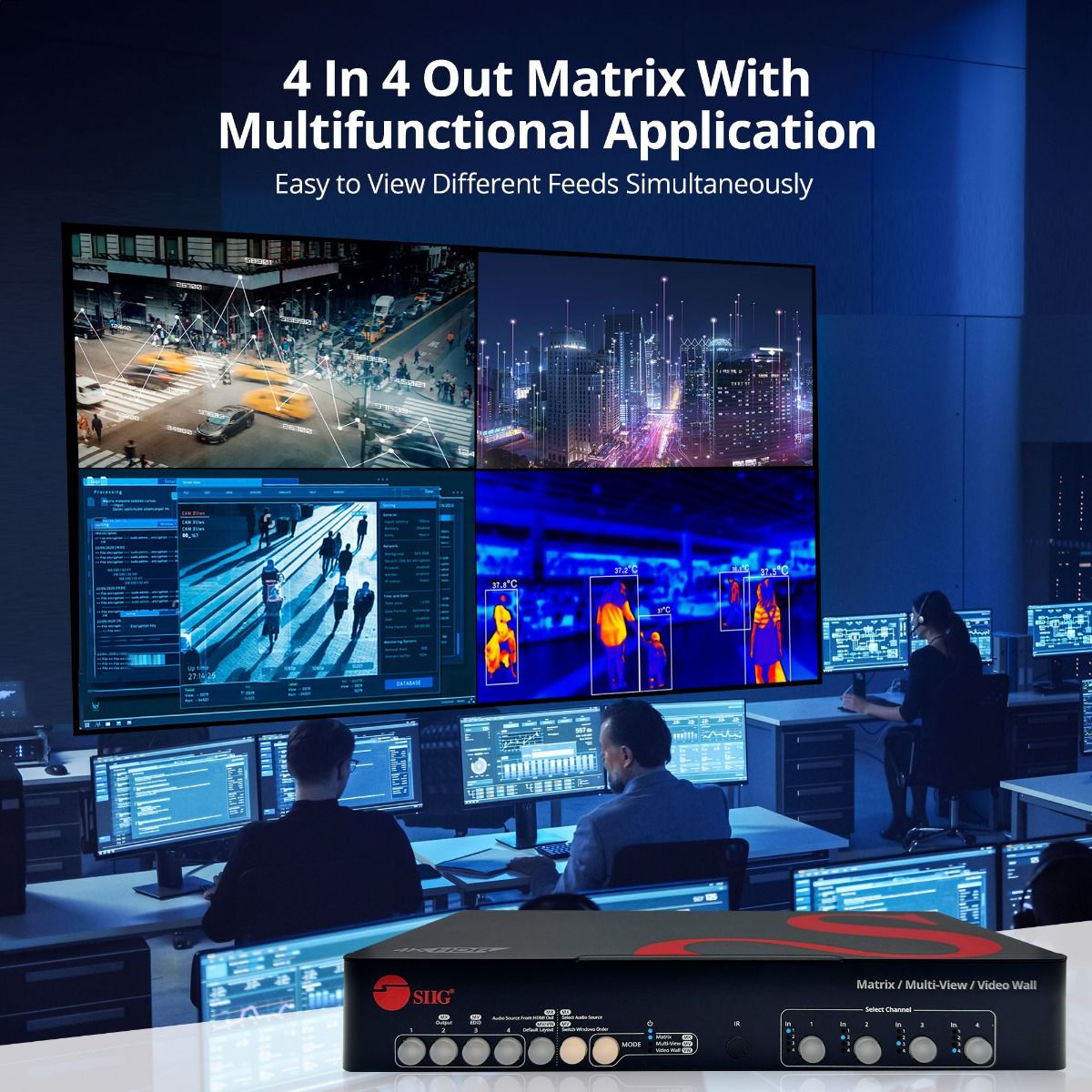

Control is simple and intuitive with front panel push buttons, IR remote, and software control options. Built for reliability and compliance, its TAA-compliant design makes it ideal for government, enterprise, control rooms, and digital signage applications.
Designed for maximum flexibility, it supports multiple video wall configurations including 1x2, 1x3, 1x4, 2x1, 2x2, 3x1, and 4x1 layouts, along with Picture-in-Picture (PIP) and five quad-view display modes for dynamic multi-source viewing. Advanced EDID management ensures optimal compatibility across connected devices.
Control is simple and intuitive with front panel push buttons, IR remote, and software control options. Built for reliability and compliance, its TAA-compliant design makes it ideal for government, enterprise, control rooms, and digital signage applications.
High Compatibility
| Facet |
4x4 HDMI 4K60Hz Matrix with Quad-Viewer & Video Wall Controller, Seamless Switching, PIP, EDID Management, Push Buttons, IR Remote Control, Software Control, TAA Compliant View details |
HDMI 4K60Hz 18Gbps over IP Matrix Kit - One-to-One / N to M Multi-casting - For Video Wall, KVM, Stereo, PoE, IR and RS-232 control, ESD Protection, TAA Compliant View details |
Full HD HDMI Over IP Extender Kit, Many to Many, RS-232 Serial and IR Control, 1080p 60Hz, 120m View details |

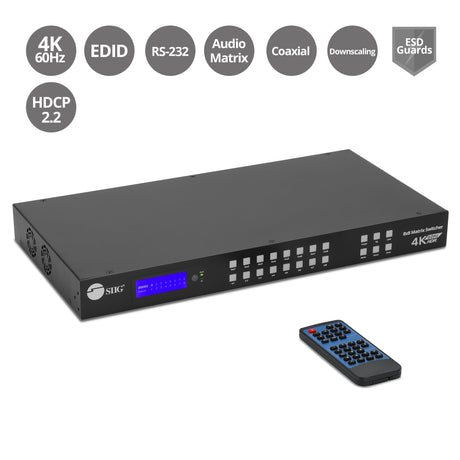

8x8 HDMI 4K60Hz Matrix Switcher with LCD, 18Gbps, HDCP 2.2, HDR 10, Downscaling, EDID Management, ARC, Audio Embedded, Audio Extraction View details |
|---|---|---|---|---|
| SKU | ||||
| SKU | ||||
| Connection port | ||||
| Connection port | ||||
| Data Transfer (Max) | ||||
| Data Transfer (Max) | ||||
| Additional function | ||||
| Additional function | ||||
| Housing material | ||||
| Housing material | ||||
| Color | ||||
| Color | ||||
| Dimensions | ||||
| Dimensions | ||||
| Weight | ||||
| Weight | ||||
| Mountable | ||||
| Mountable | - | - | ||
| Certification/ Standards | ||||
| Certification/ Standards | ||||
| Warranty | ||||
| Warranty | ||||
| Country of Origin | ||||
| Country of Origin | ||||
| Resolution | ||||
| Resolution | ||||
| Audio spec | ||||
| Audio spec | ||||
| IR function | ||||
| IR function | ||||
| Remote control | ||||
| Remote control | - | - | ||
| EDID button | ||||
| Distance | ||||
| Distance | - | - |
||
| Antenna spec | ||||
| Reset key | ||||
| Reset key | - | - | - |
|
| Bandwidth | ||||
| Bandwidth | ||||
| Power Output (Max) | ||||
| Power Indicator | ||||
| Power Indicator | ||||
| Protection | ||||
| Protection | ||||
| Protocol | ||||
| Protocol | - | - |
||
| Power Adapter | ||||
| Power Adapter | ||||
| Spec | ||||
| Spec | ||||
| Video | |
| Standard | HDCP 2.2/1.4 compliant |
| Bandwidth | Up to 18Gbps, Single-link 600MHz |
| Resolution | 480p 60Hz / 576P 50Hz / 720P 60Hz / 1080p 24Hz / 1080P 50Hz / 1080P 60Hz / 4K 30Hz / 4K 60Hz YUV4:2:0 HDR / 4K 60Hz YUV4:4:4 HDR |

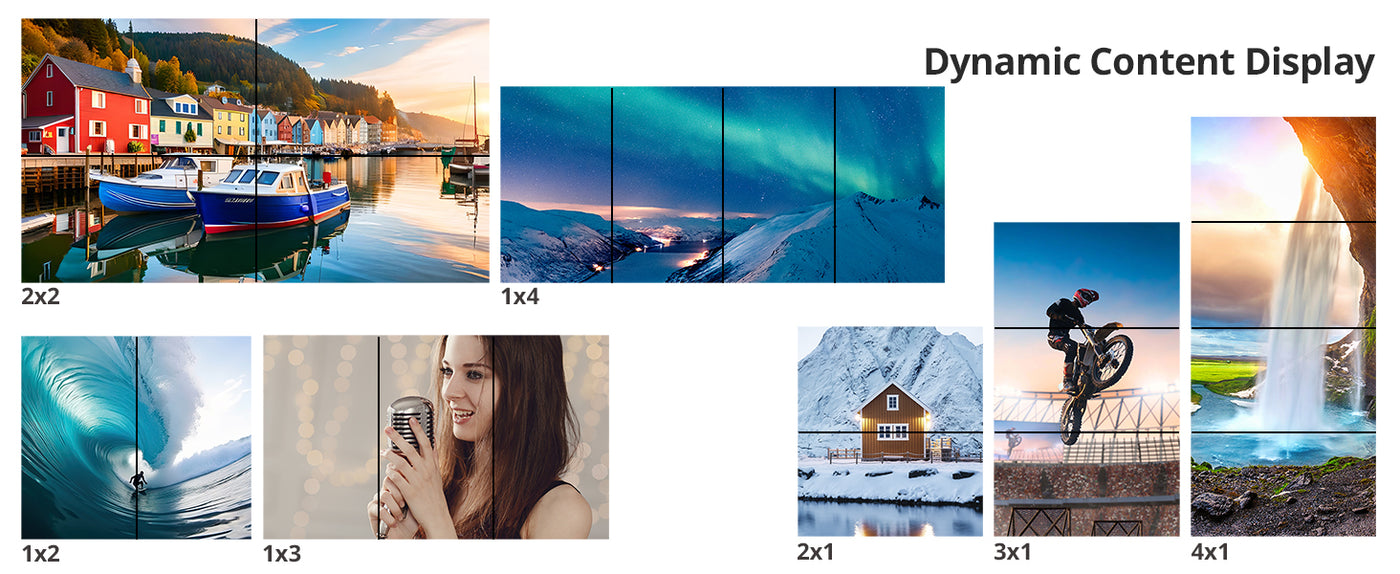

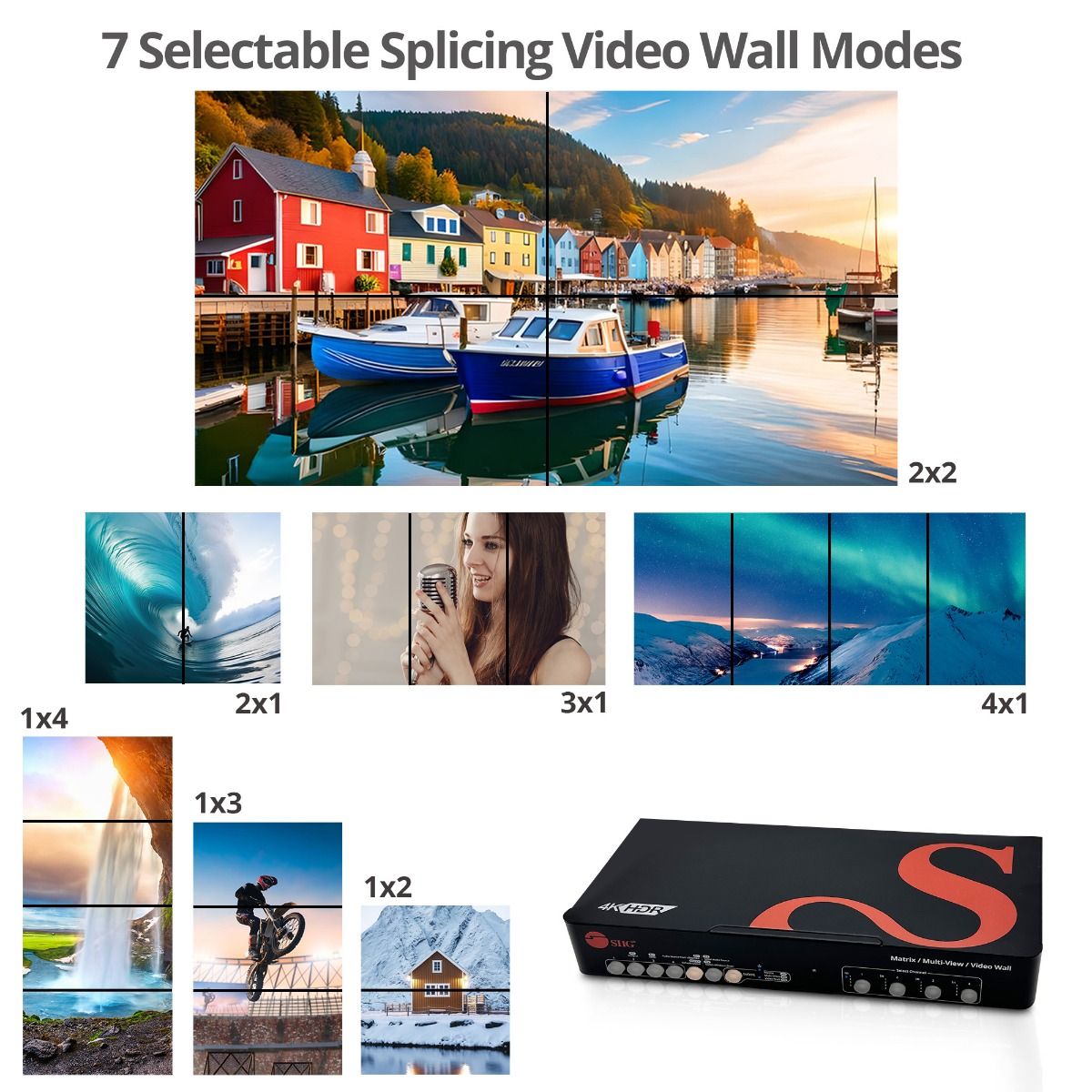

| Video Wall Splicing Modes | 1x2, 1x3, 1x4, 2x1, 2x2, 3x1 and 4x1 |

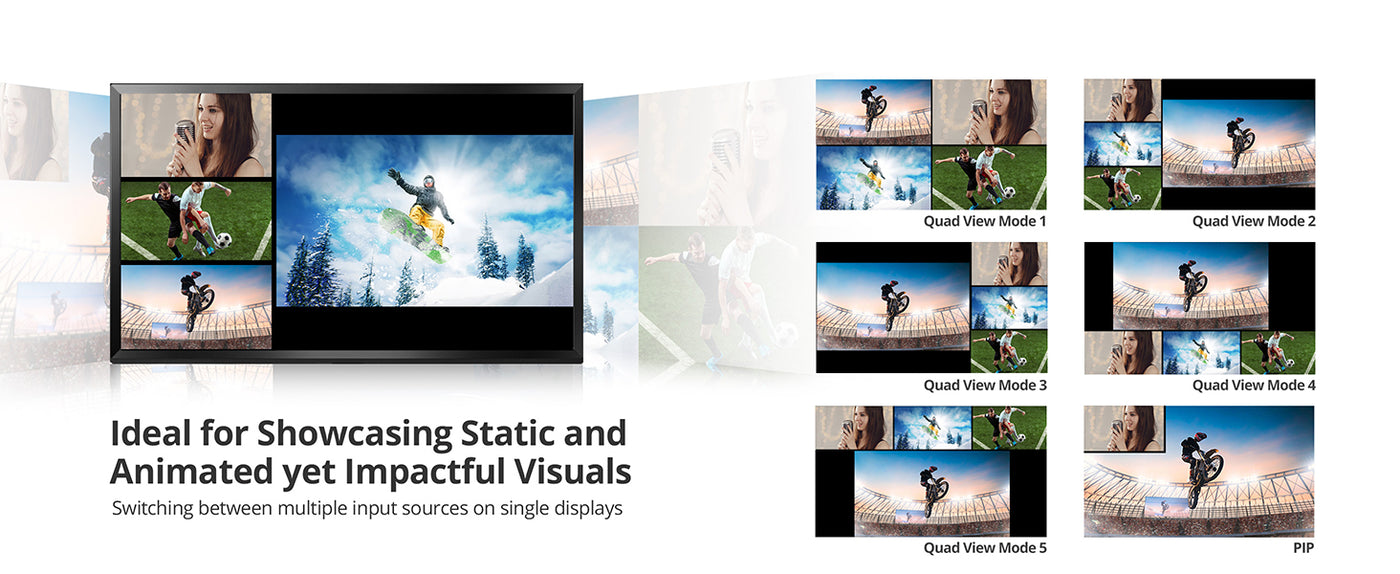

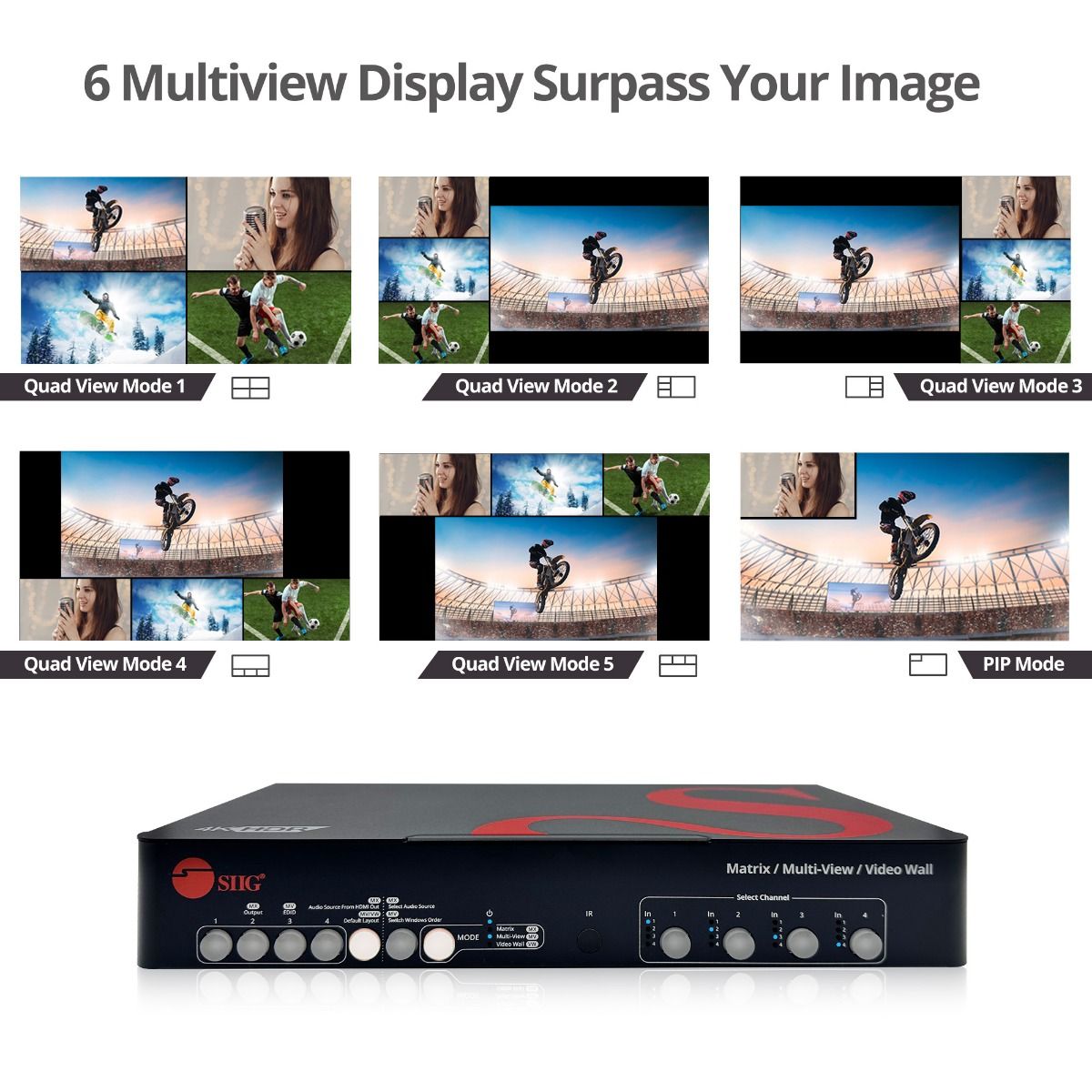

| Quad View Modes | Average of 4, 1 Big/3 Small 1, 1 Big/3 Small 2, 1 Big/3 Small 3, 1 Big/3 Small 4, PIP Mode |
| EDID | Support EDID management and default EDID includes 4K 60 2ch, 4K 30 7.1ch, 1080p60 2ch, 1080p60 7.1ch |
| Audio | |
| Audio Format | - 3.5mm Stereo Audio Format: Supports PCM 2.0 - SPDIF Audio Format: Supports PCM 2.0, Dolby Digital, DTS - HDMI Audio Format: Supports ncompressed 7.1ch & digital 7.1ch audio, Dolby / DTS / Dolby Atmos / DTS-HD |

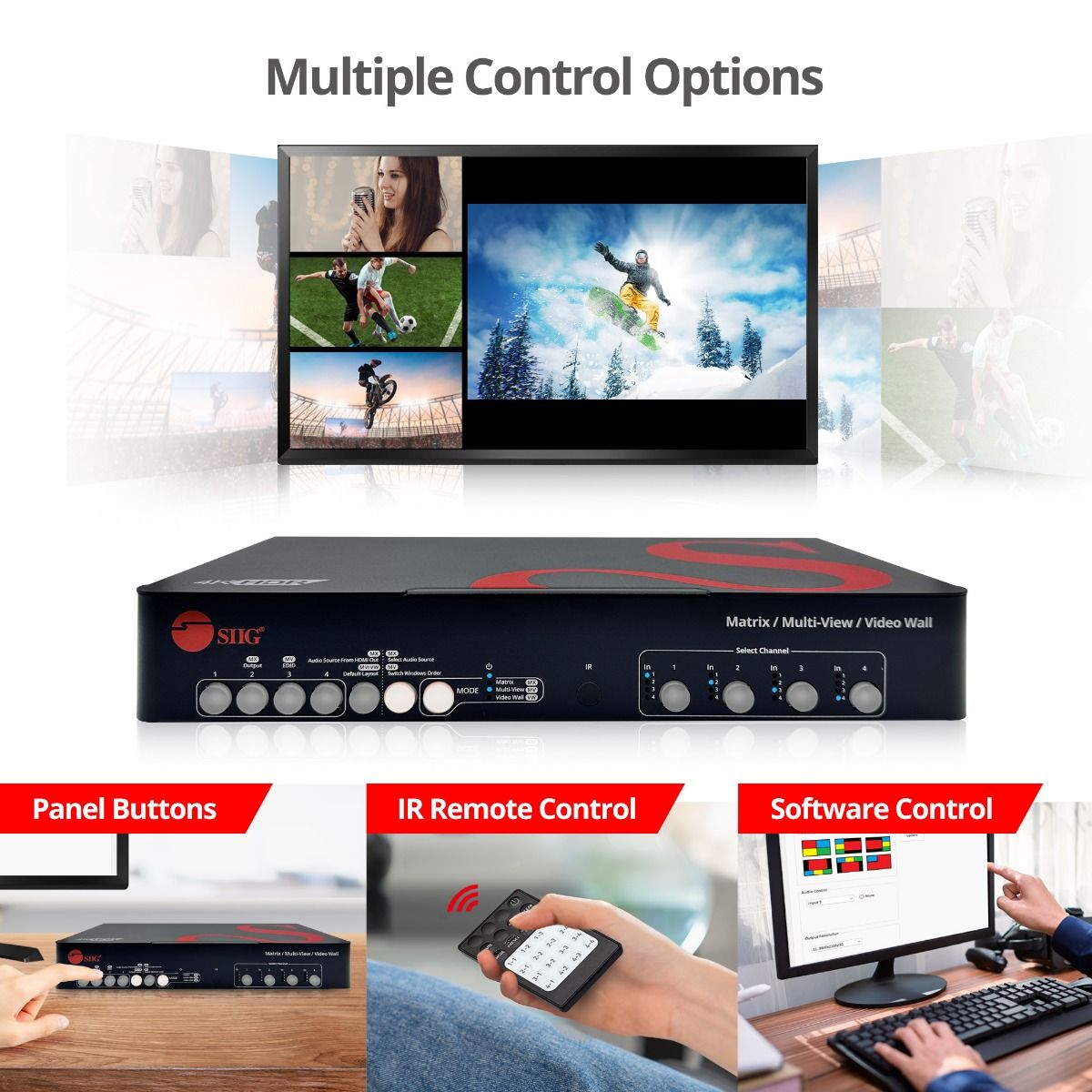

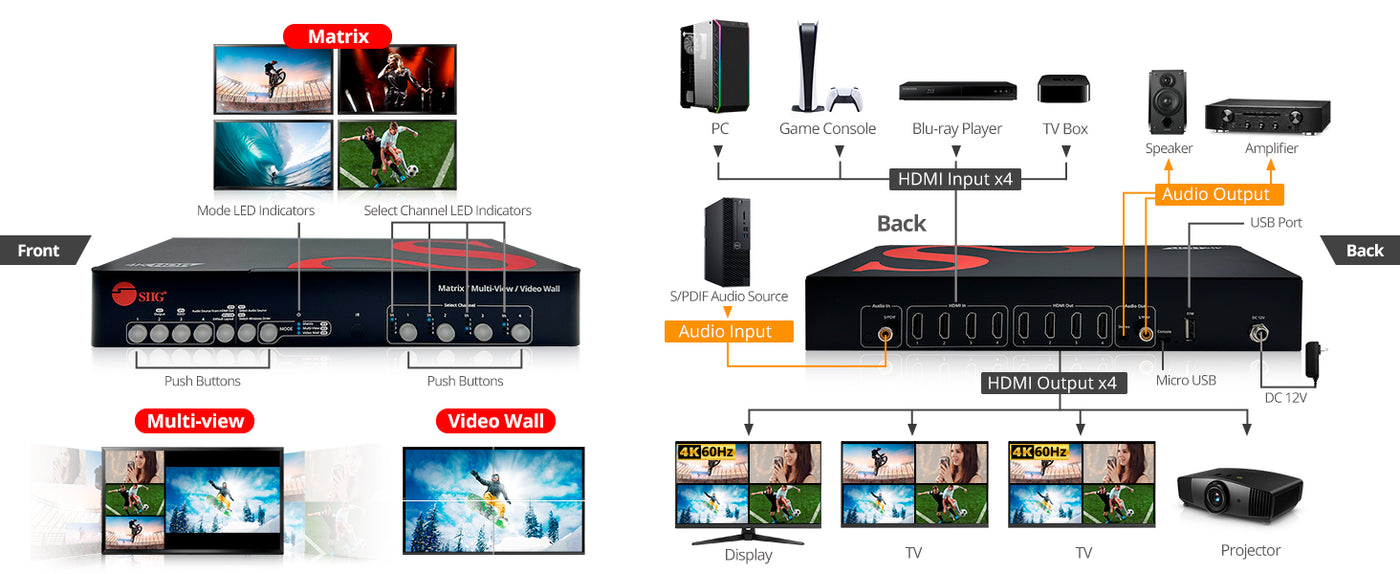

| Multiple Control | The matrix switcher can switch every output channels to any HDMI inputs by front-panel button, IR remote, software control |
| Firmware | Upgradable through USB drive |
| Power Adapter | |
| Input | 100-240V AC, 50/60 Hz |
| Output | DC 12V/3.33A |
| UL Listed | E161451 / Level: V |

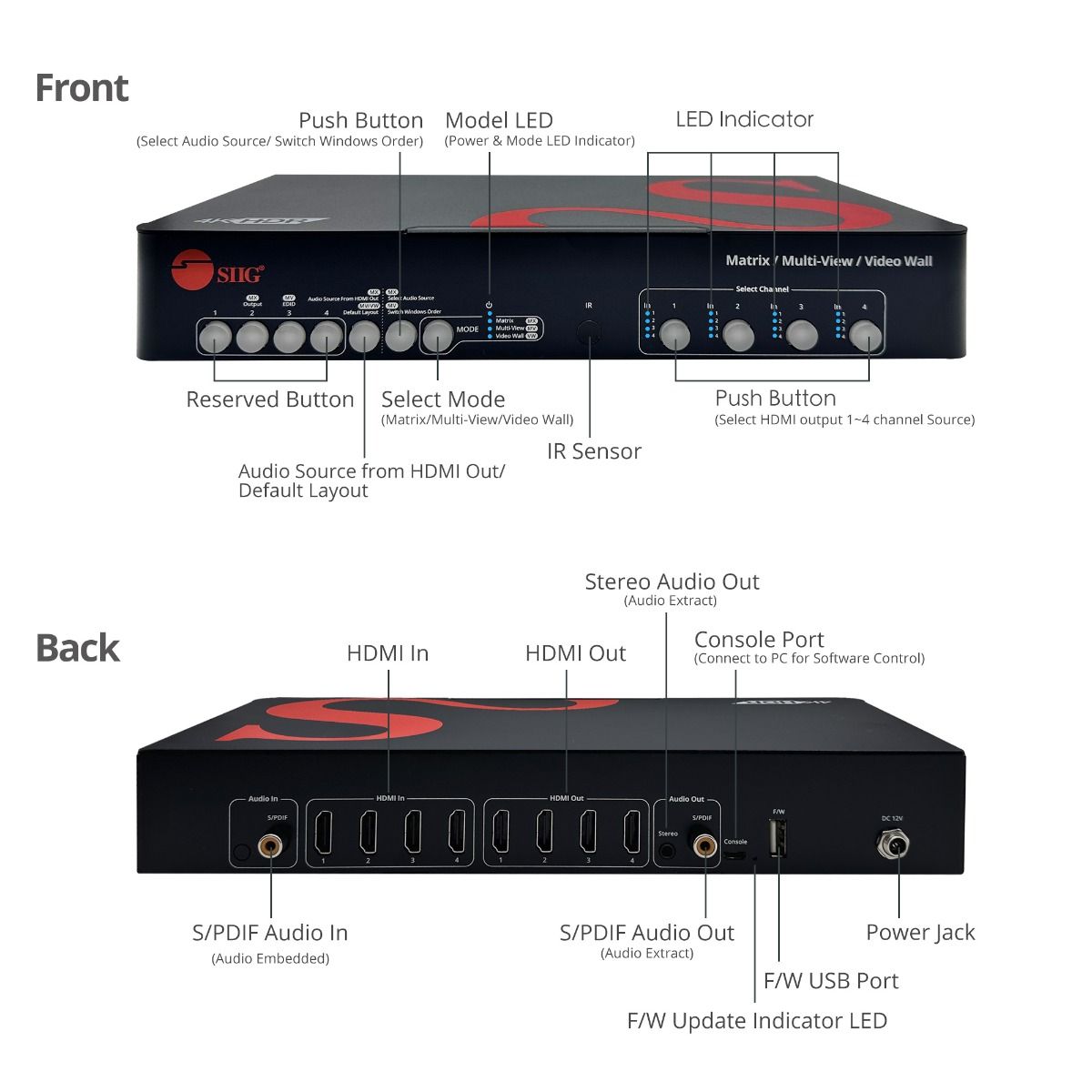

| Interface | 4x Push button, reserved 7x Push button, function control 4x 19-pin, HDMI, Type A, female, input 4x 19-pin, HDMI, Type A, female, output 1x S/PDIF (Coaxial) audio, female, input 1x S/PDIF (Coaxial) audio, female, output 1x 3.5mm Analog audio, female, output 1x 4-pin Micro USB, console port 1x 4-pin USB Type A 2.0, for F/W update 1x Power jack |
| Product | |

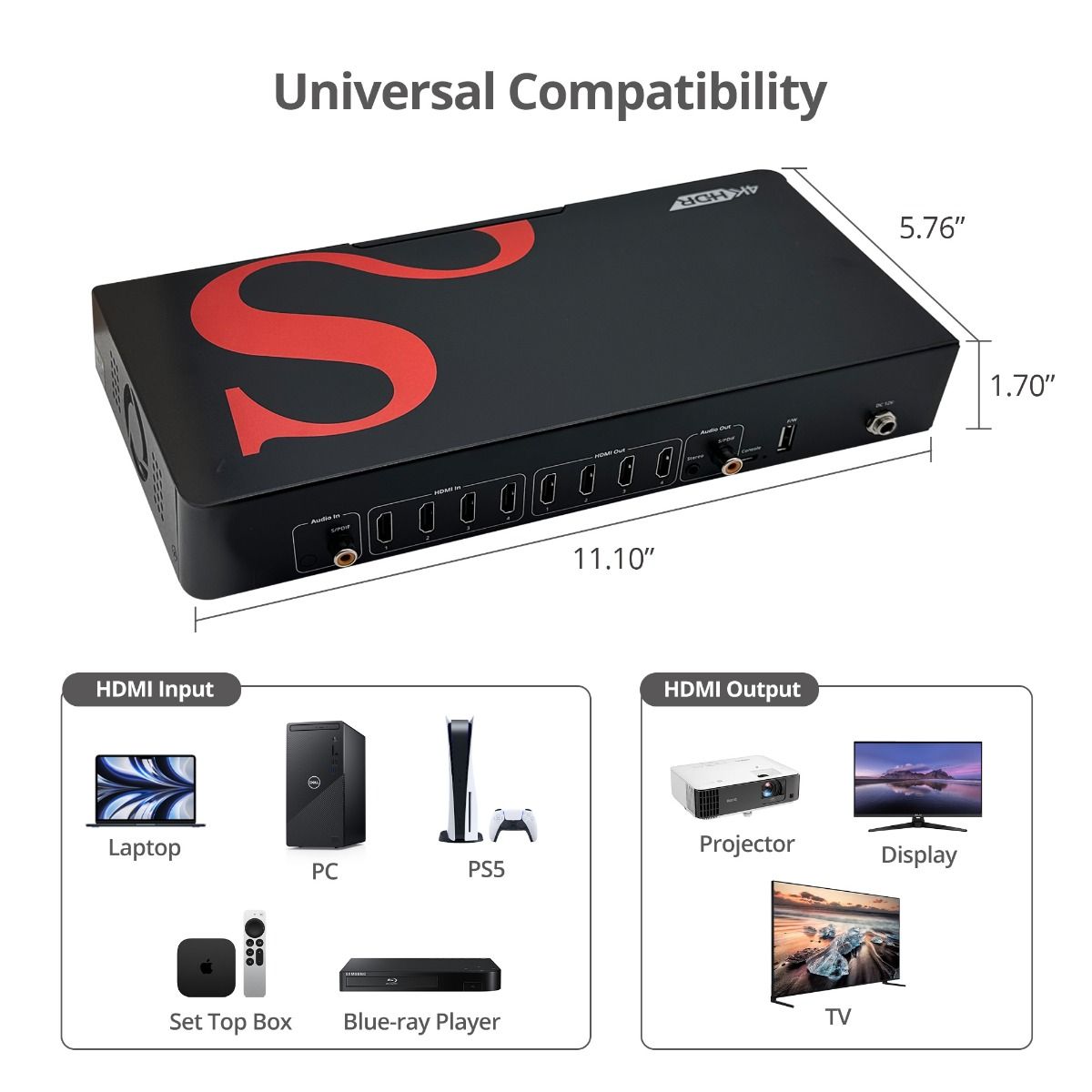

| Dimensions (L) x (H) x (W) | 11.10″ x 1.70″ x 5.76″ 28.19 cm x 4.31 cm x 14.63 cm |
| Weight | 2.40 lbs (1.09 kg) |
| Color | Black |
| Housing | Metal |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 14.80" x 4.41" x 9.45" 37.59 cm x 11.20 cm x 24.00 cm |
| Weight | 3.74 lbs (1.70 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 23.23″ x 15.95″ x 20.08″ 59.00 cm x 40.51 cm x 51.00 cm |
| Weight | 40.18 lbs (18.23 kg) |
| Quantity | 10 pcs/ctn |

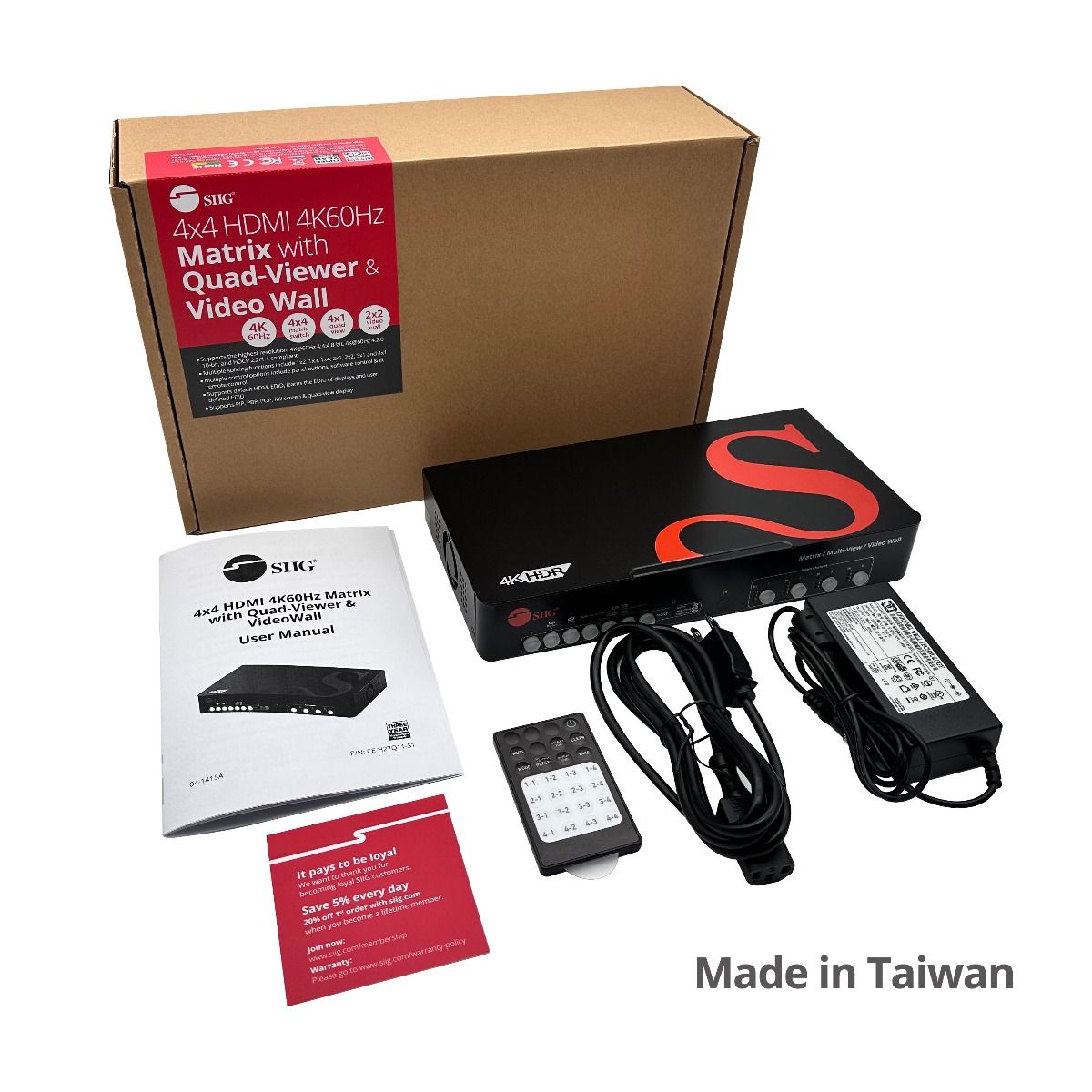

| Package Contents | 1x 4x4 HDMI 4K60Hz Matrix with Quad-Viewer & VideoWall 1x Power adapter DC 12V/3.33A 1x IR remote control 1x User manual |
| Environmental Conditions | |
| Operating Temperature | 32° to 104° F |
| Storage Temperature | 14° to 140° F |
| Relative Humidity | 20 to 90% RH (non-condensing) |
| Certifications/Standards | FCC, CE, RoHS, TAA compliant |
| UPC Code | 662774-046242 |
| Warranty | 3 years limited |
| Country of Origin | Taiwan |
