Splitter | SKU: CE-H26C11-S1

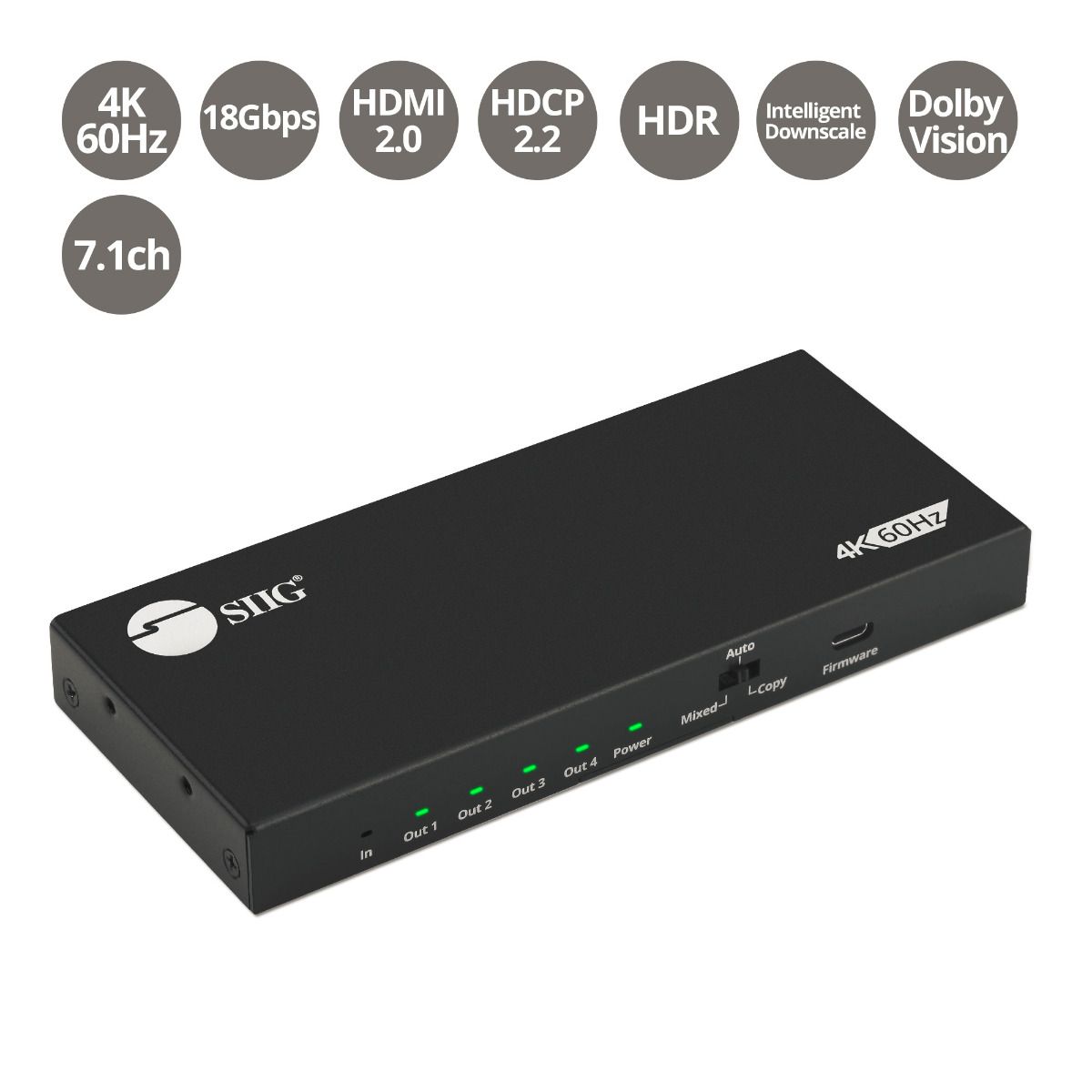

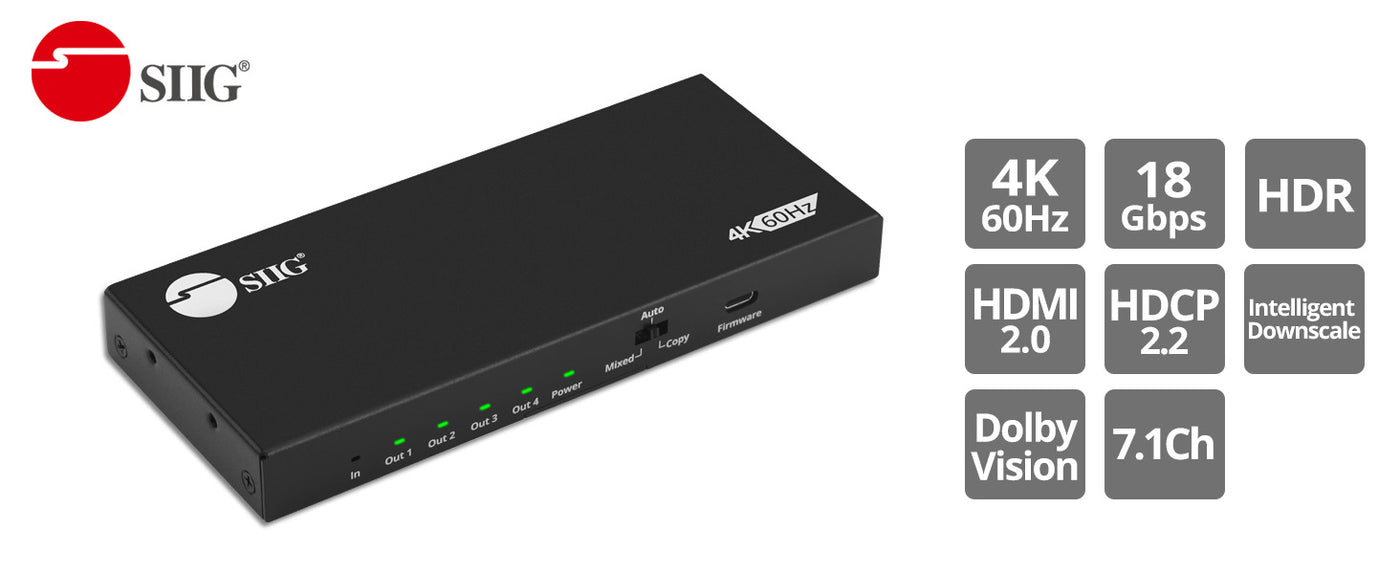

4 Port HDMI HDR Splitter with EDID and Downscaling - 4K 60Hz HDR Auto Video Scaling

4-Port HDMI Splitter
4K60Hz
EDID
Auto Downscaling
7.1ch
$119.99
Shipping calculated at checkout.
Product Features

4K HDMI 1x4 Splitter

Distributes one HDMI source to up to four displays simultaneously without signal loss. Compliant with HDMI 2.0a, HDCP 2.2/1.4 and supports full 18Gbps bandwidth.

Ultra HD Video & Immersive Audio

Supports 4K 60Hz (4:4:4 8-bit), 3D, HDR, and 36-bit Deep Color. Delivers LPCM 7.1, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio.

Smart Auto Video Scaling

Automatically adjusts resolution based on each connected display.

Ensures stable output, with 1080p 60Hz support for 4K 30Hz monitors.

Advanced Compatibility Support

Built-in EDID management enhances display compatibility. Firmware upgrade capability keeps performance optimized for future devices.

Durable & Installation-Friendly Design

Rugged metal housing ensures long-lasting stability and heat dissipation. LED indicators and wall-mount design allow quick setup and flexible installation.

  • 45 Days Free Return

  • 2 Years Warranty

  • Lifetime Technical Support

SIIG 4K60Hz 4 Port HDMI HDR Splitter with EDID and Downscaling

    Distributes 4K HDMI video/audio signals from one HDMI source to four HDMI displays with EDID management and video downscaling while maintaining signal quality.

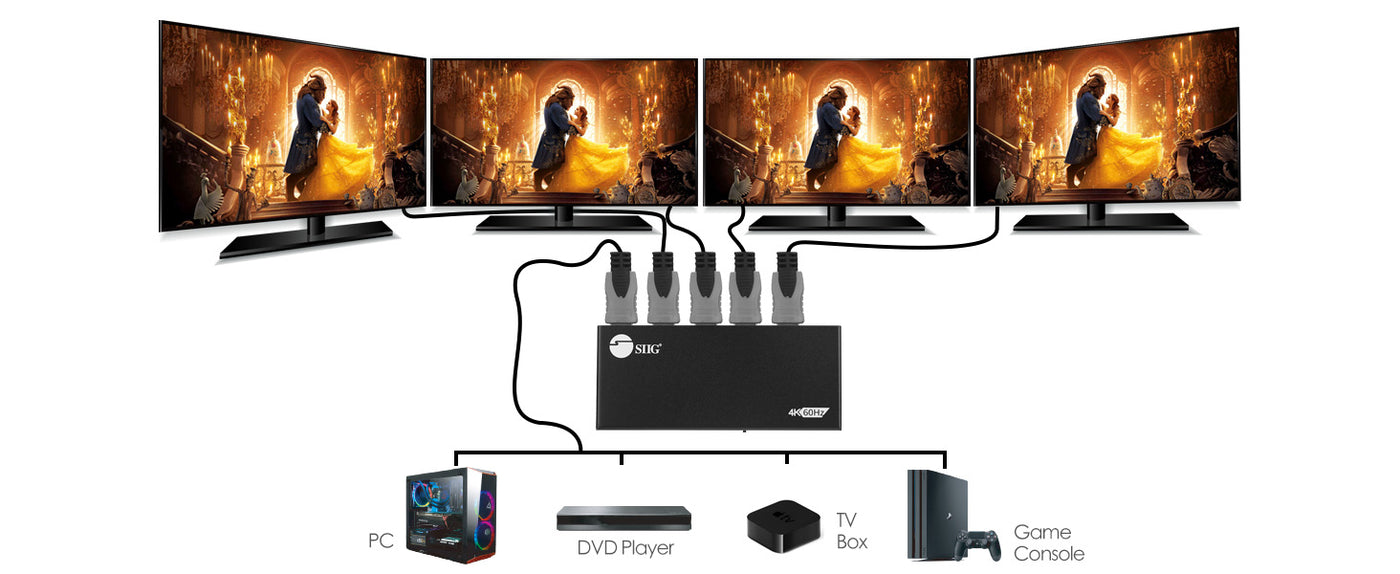

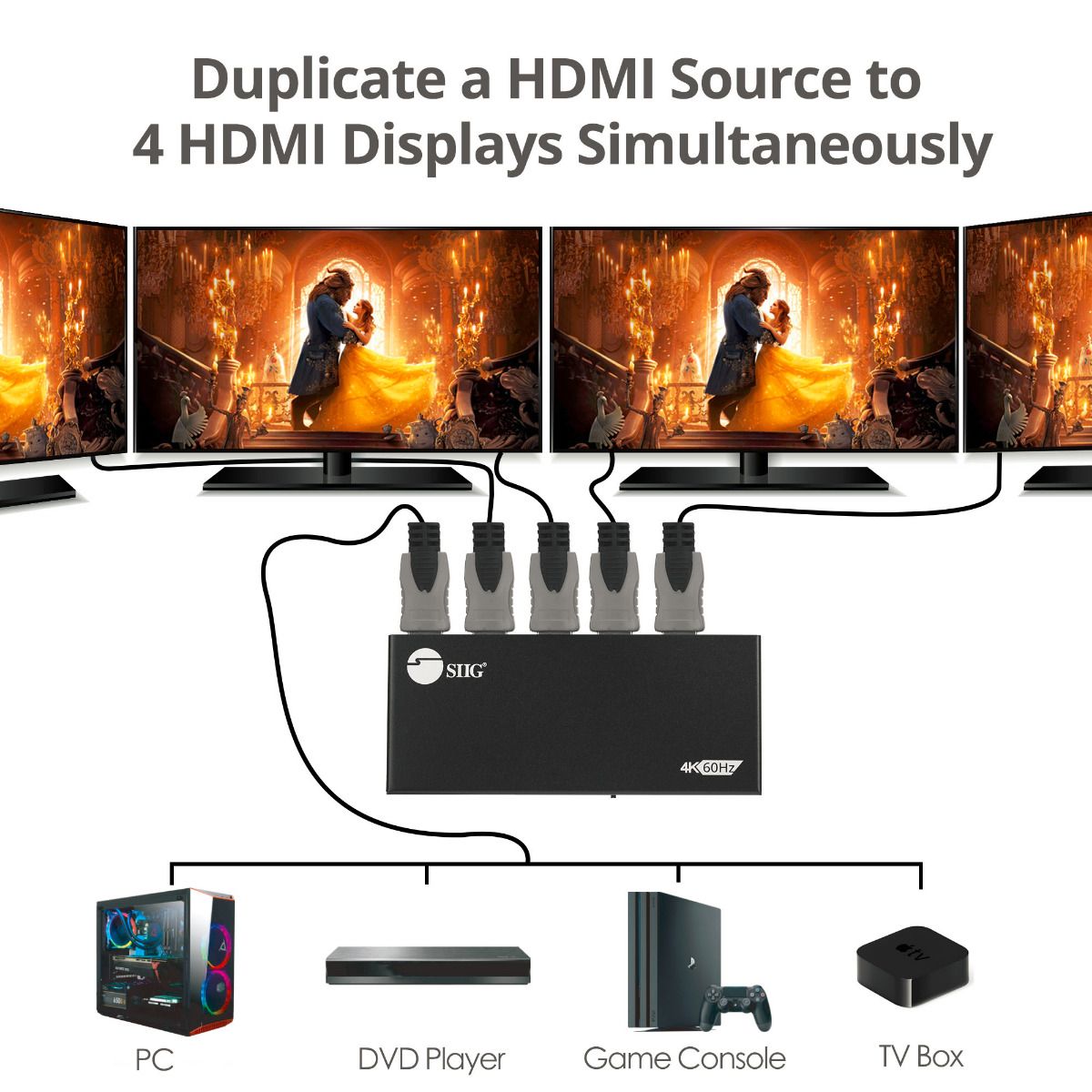

    1-to-4 HDMI Duplication

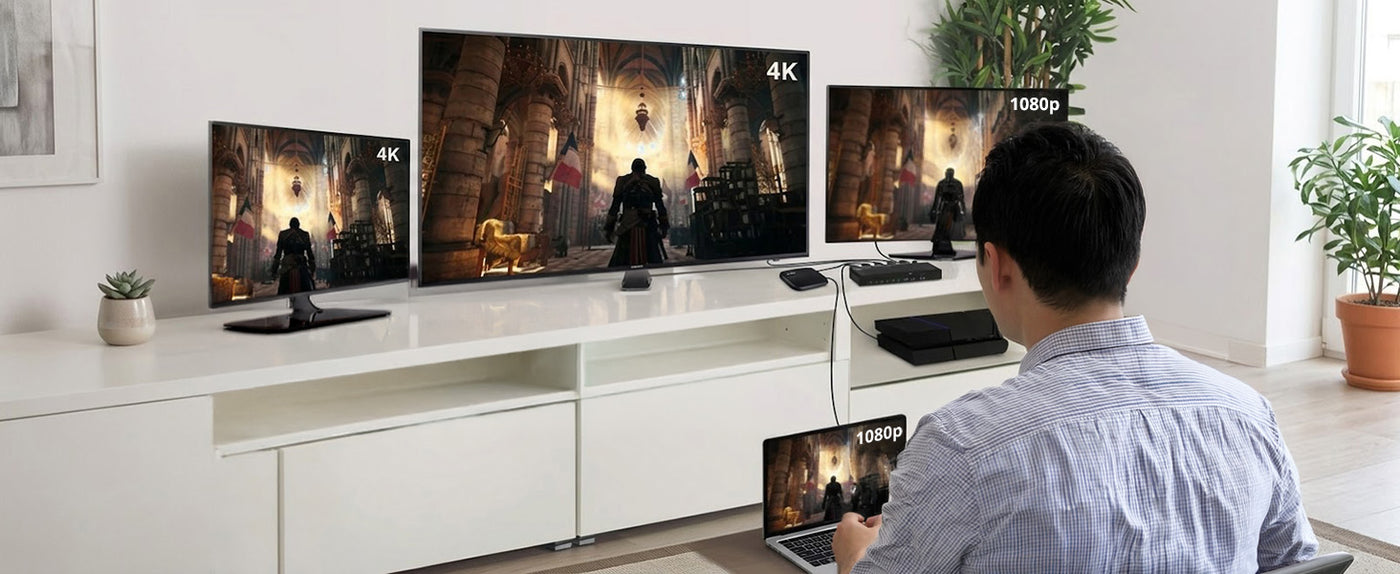

      Mirror one HDMI source to four displays with no signal loss. Supports mixed 4K and 1080p outputs, delivering 4K to UHD screens while downscaling to 1080p. Ideal for gaming—play in 4K while capturing in 1080p.

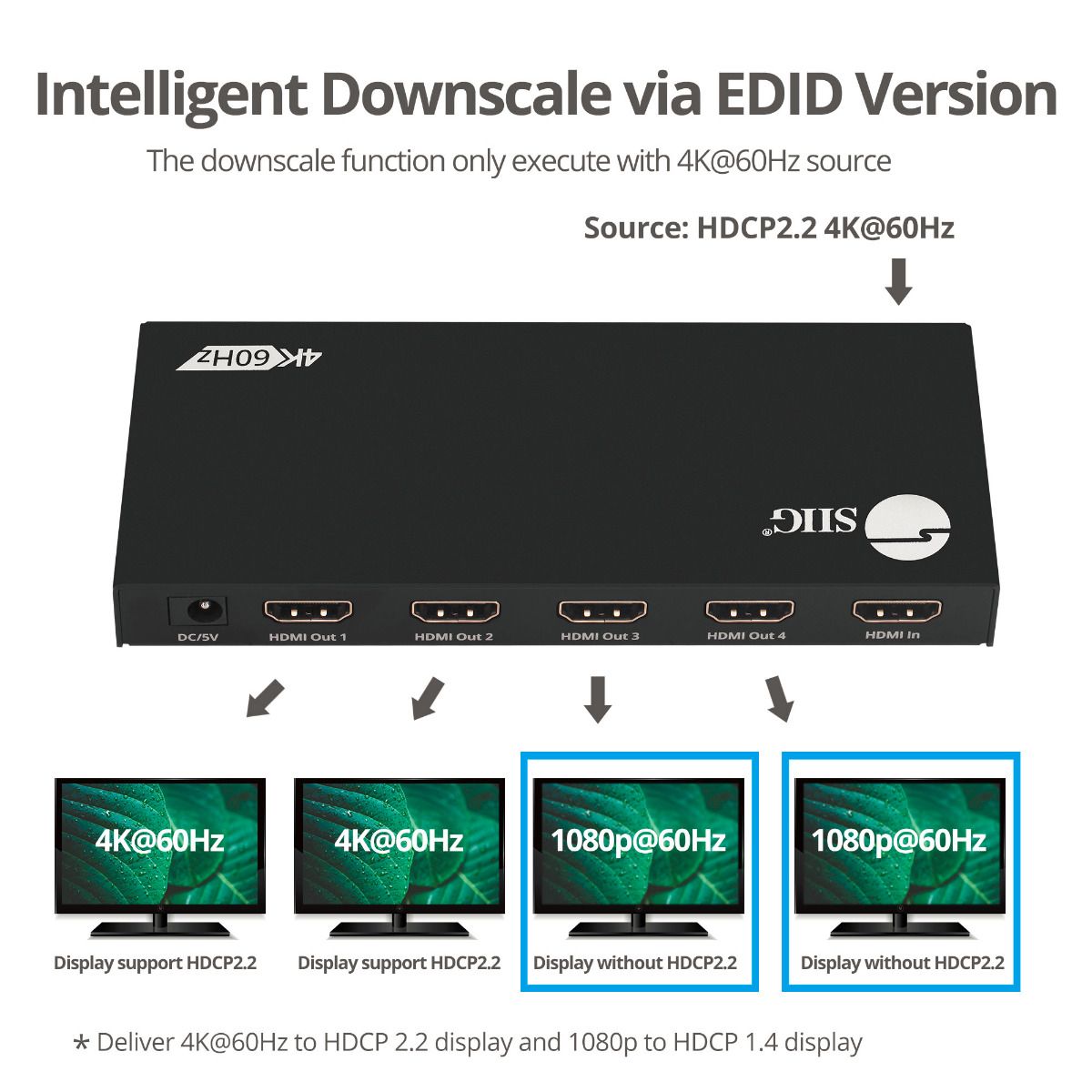

      Mixed Resolution Downscaling

        Seamlessly distribute 4K to one display and 1080p to another, making it easy to integrate newer and legacy displays in the same setup. Capture gameplay in 1080p using Elgato or other capture devices while enjoying true 4K gameplay, all without the need for costly 4K capture card upgrades.

        *Note:
        - ONLY downscales from 4K 60Hz 4:4:4 to 1080p.
        - Downscaling from 720p to 480p or 4K 60hz 4:2:2 to 1080p or 2K to 1080p NOT supported.
        - 4K HDR to 1080p makes the 1080p display look washed out (CE-H26911-S1 fixes). This splitter can bypass 4K HDR data content but cannot process it to make 4K HDR content fit 1080p proportionally.
        - Will not work correctly with AVRs using HDMI 1.4 and earlier (CE-H22X11-S1 / CE-H22Y11-S1 fixes this).
        - Frame rate conversion (e.g., 60Hz to 24Hz) is not supported.

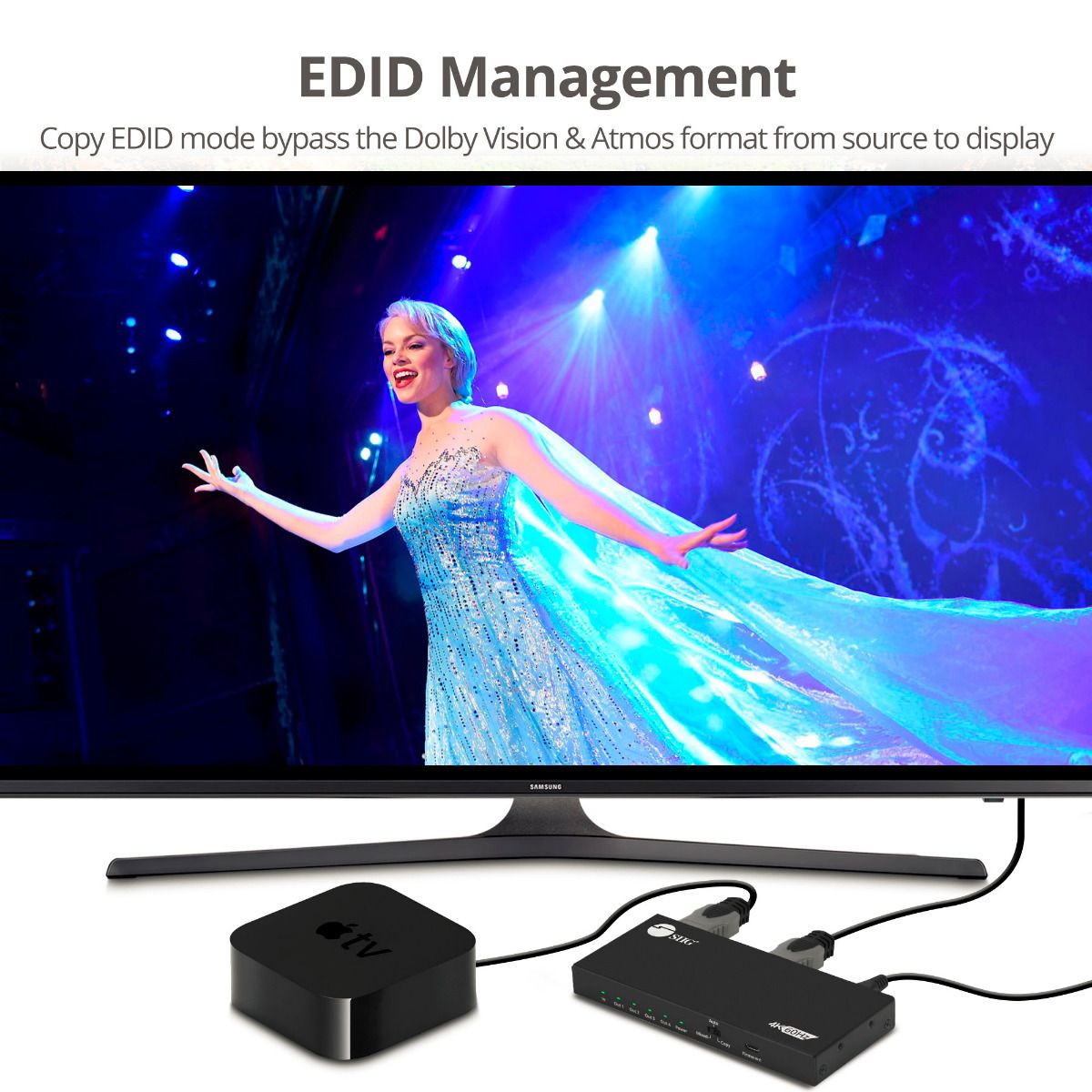

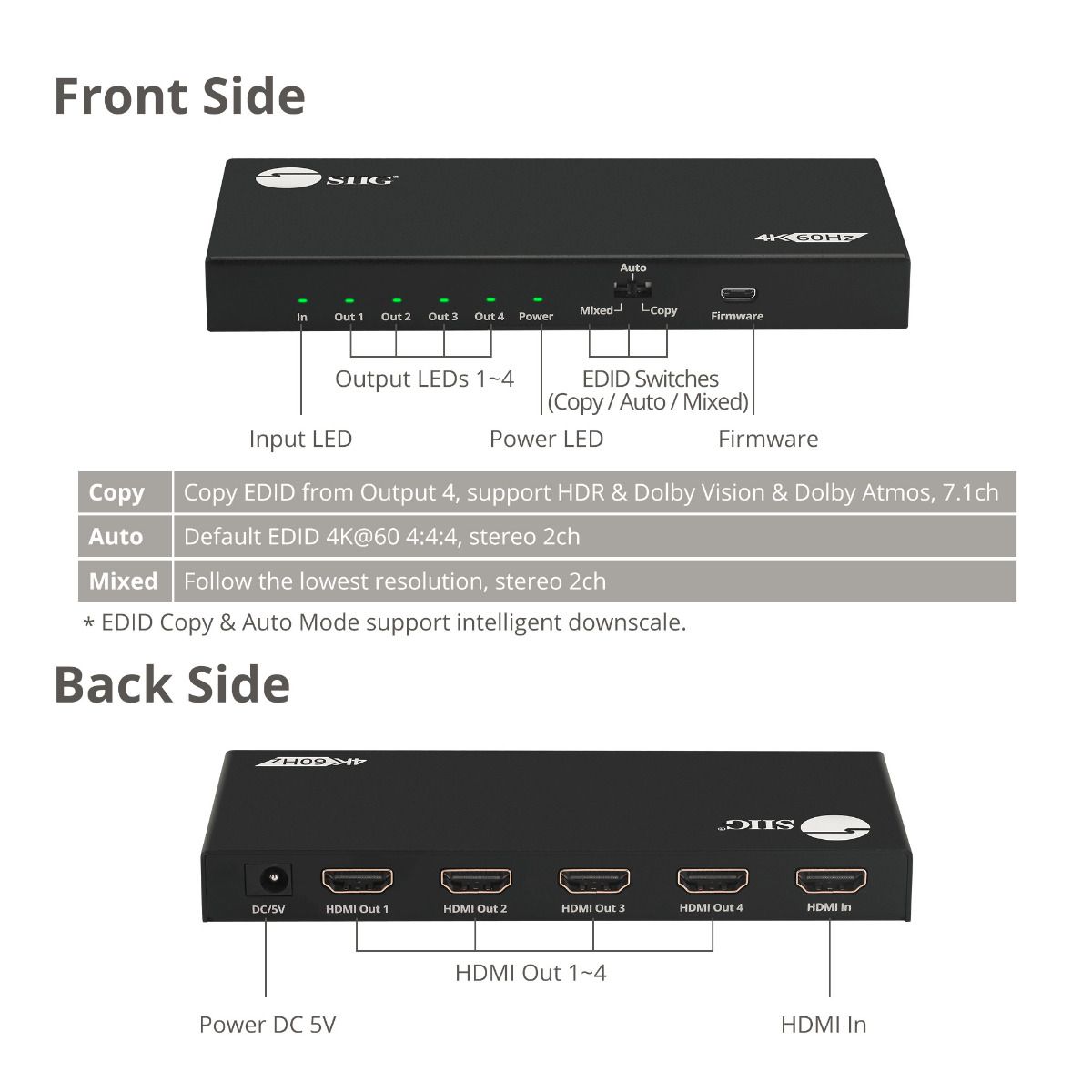

        Advanced EDID Management & Durable Metal Housing

          Built-in EDID management with firmware upgrade support via Mini USB enhances compatibility with a wide range of displays and future devices. The compact metal housing improves heat dissipation, reduces EMI/RFI interference, and delivers stable, reliable long-term performance.

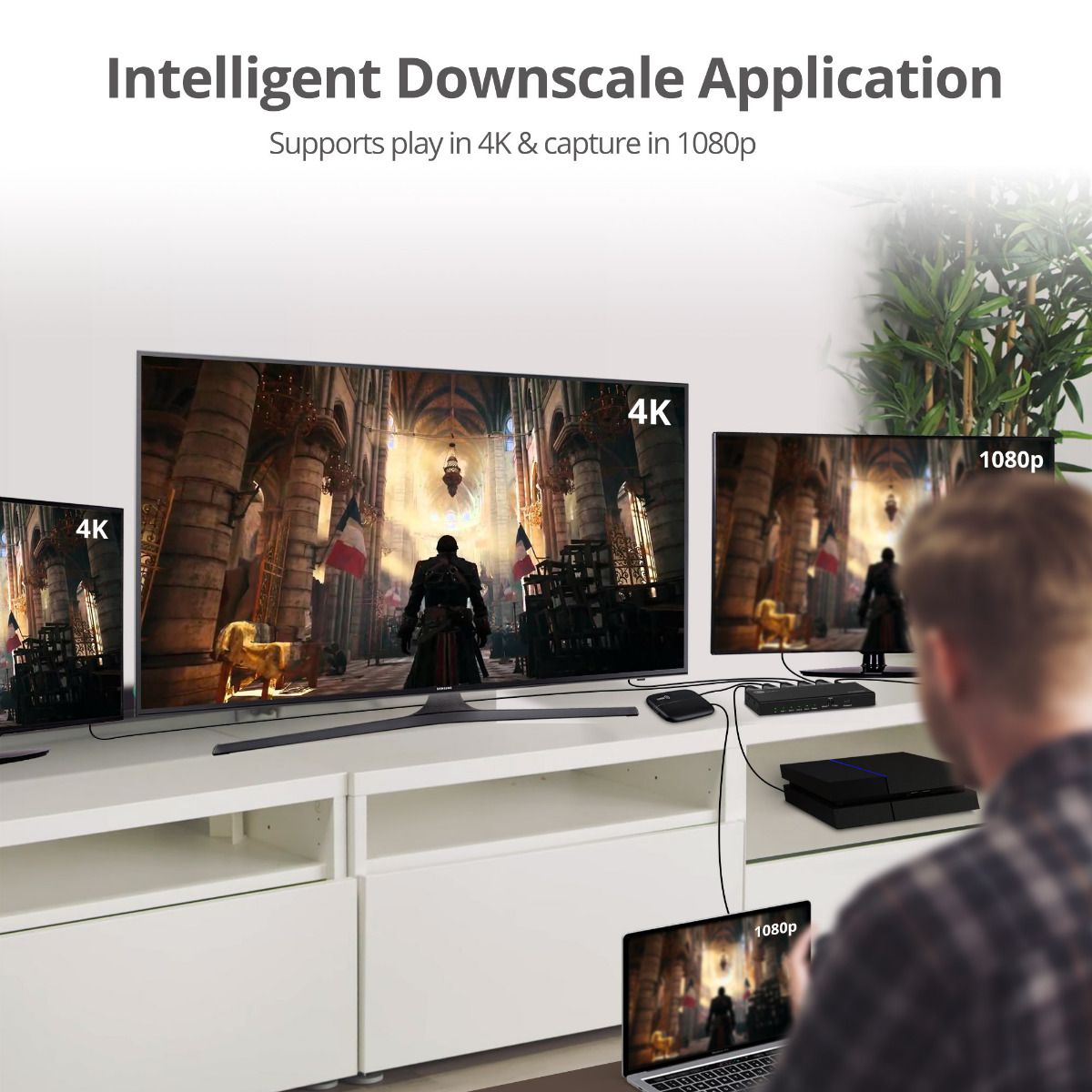

          Intelligent Downscale Application

          Automatically converts 4K input signals to 1080p for compatible displays, enabling smooth mixed-resolution integration.
          4 Port HDMI HDR Splitter with EDID and Downscaling - 4K 60Hz HDR Auto Video Scaling
          View details
          2 Port HDMI HDR Splitter with EDID and Downscaler
          View details
          SKU
          SKU
          CE-H26C11-S1
          CE-H26B11-S1
          Connection port
          Connection port
          5x HDMI, Micro USB, Power Jack
          3x HDMI, Micro USB
          Data Transfer (Max)
          Data Transfer (Max)
          18Gbps
          18Gbps
          Additional function
          Additional function
          EDID, Auto downscaler
          EDID, Auto downscaler
          Housing material
          Housing material
          Metal
          Metal
          Color
          Color
          Black
          Black
          Dimensions
          Dimensions

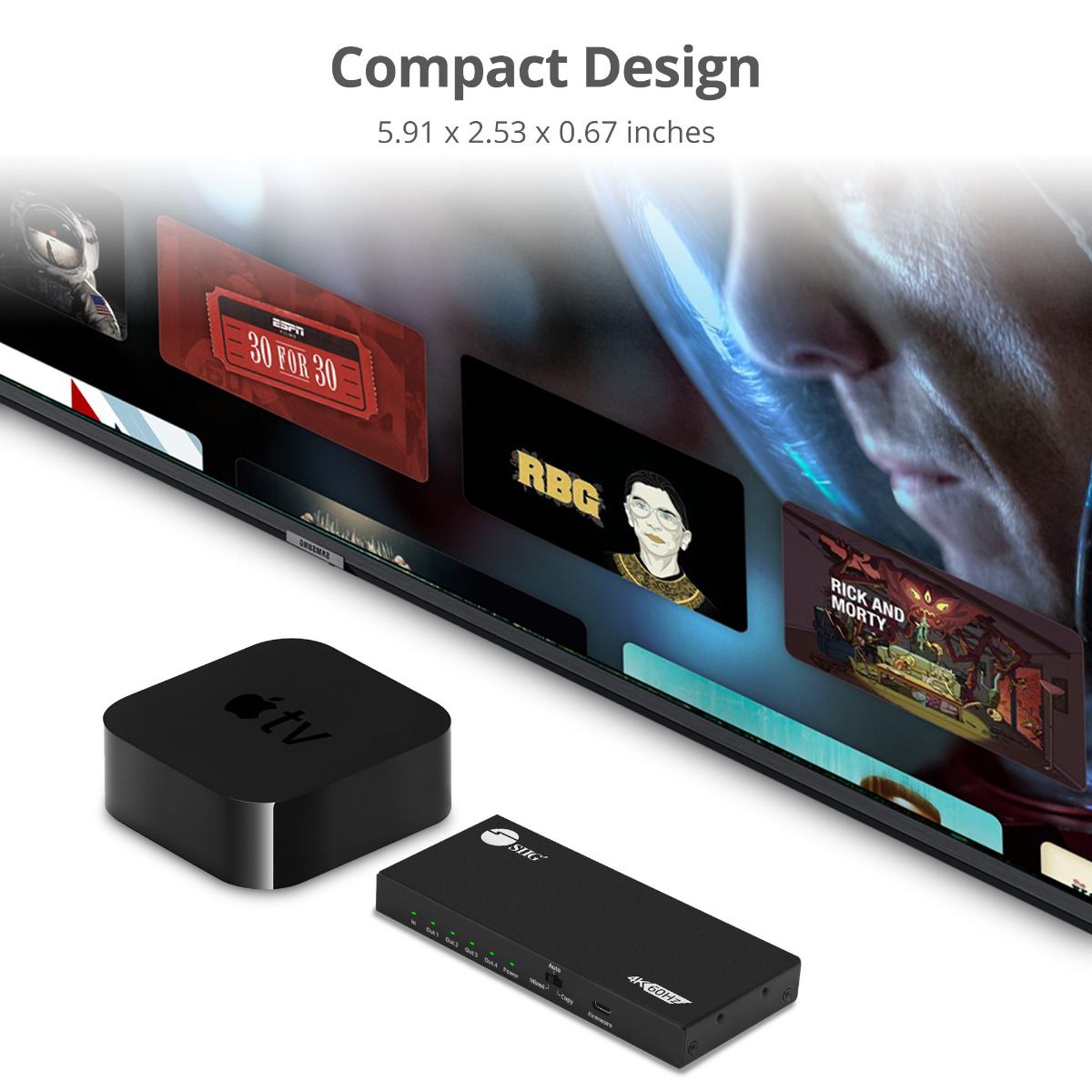

          5.91" (W) x 0.67" (H) x 2.53" (D) (15.01 cm x 1.7 cm x 6.43 cm)
          3.55" (W) x 0.70" (H) x 2.40" (D) (9.02 cm x 1.78 cm x 6.10 cm)
          Weight
          Weight
          0.26 lbs
          0.26 lbs
          Mountable
          Mountable
          Yes
          -
          Certification/ Standards
          Certification/ Standards
          FCC / CE / RoHS
          FCC / CE / RoHS
          Warranty
          Warranty
          2 years
          2 years
          Country of Origin
          Country of Origin
          China
          China
          Resolution
          Resolution
          Up to 4K60Hz
          Up to 4K60Hz
          Audio spec
          Audio spec
          LPCM 2.0, DTS-HD, Dolby True-HD, AC3, DTS, DSD
          LPCM 2.0, DTS-HD, Dolby True-HD, AC3, DTS, DSD
          IR function
          Remote control
          EDID button
          EDID button
          Yes
          -
          Distance
          Antenna spec
          Reset key
          Bandwidth
          Bandwidth
          18Gbps
          18Gbps
          Power Output (Max)
          Power Indicator
          Power Indicator
          Yes
          Yes
          Protection
          Protection
          ESD
          ESD
          Protocol
          Power Adapter
          Power Adapter
          5V/1A
          5V/1A
          Spec
          Spec
          HDMI 2.0, HDCP 2.2, HDCP 1.4
          HDMI 2.0, HDCP 2.2, HDCP 1.4
