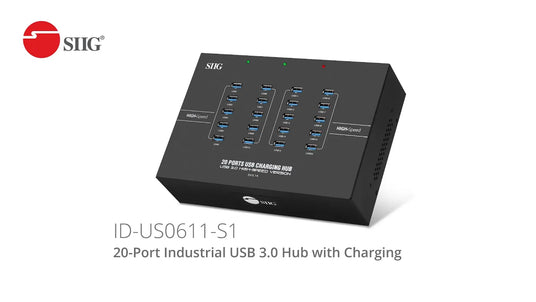

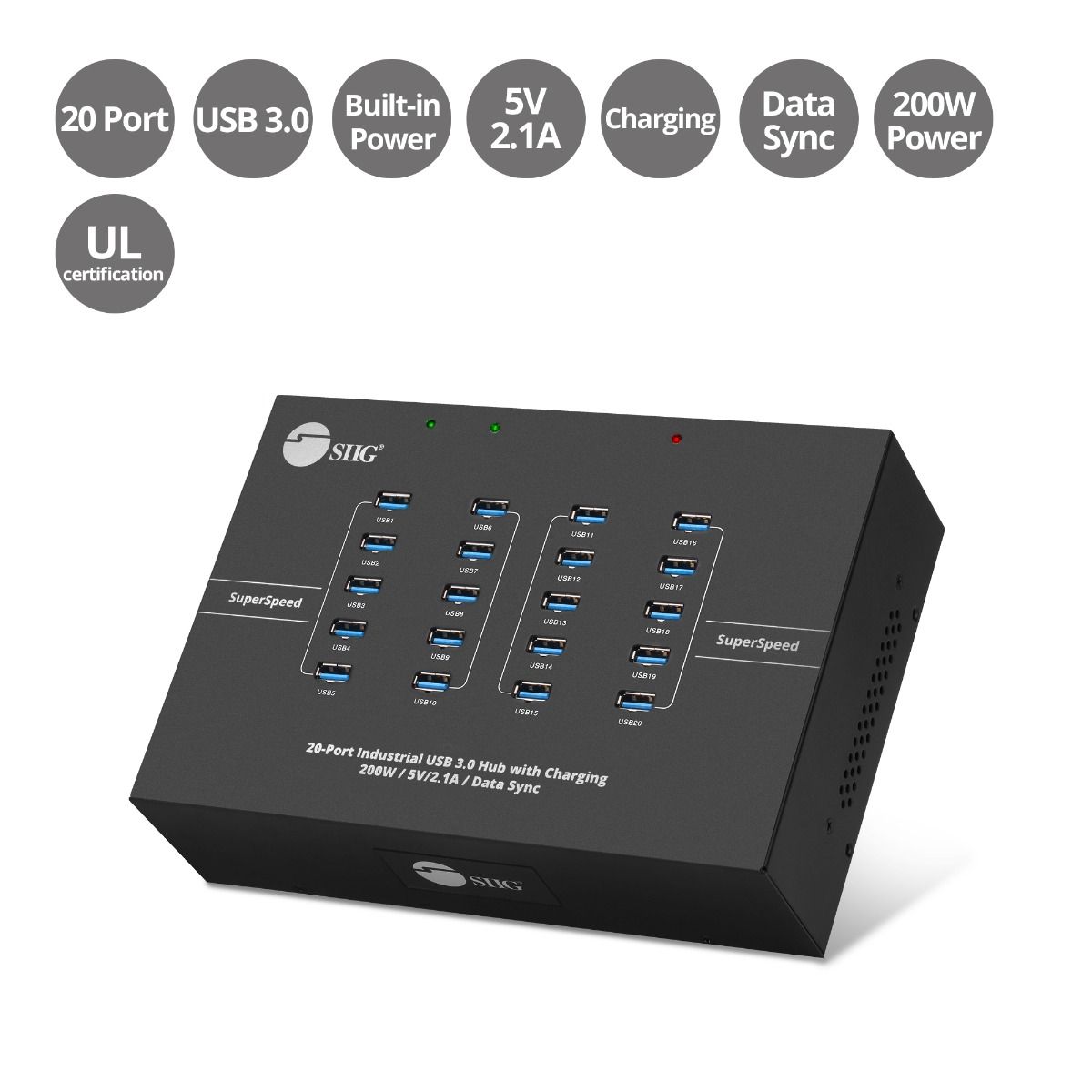

20-Port Industrial USB 3.0 Hub with Charging - 200W - 5Gbps with 5V/2.1A per port

Overview Specifications Q&A Downloads

•

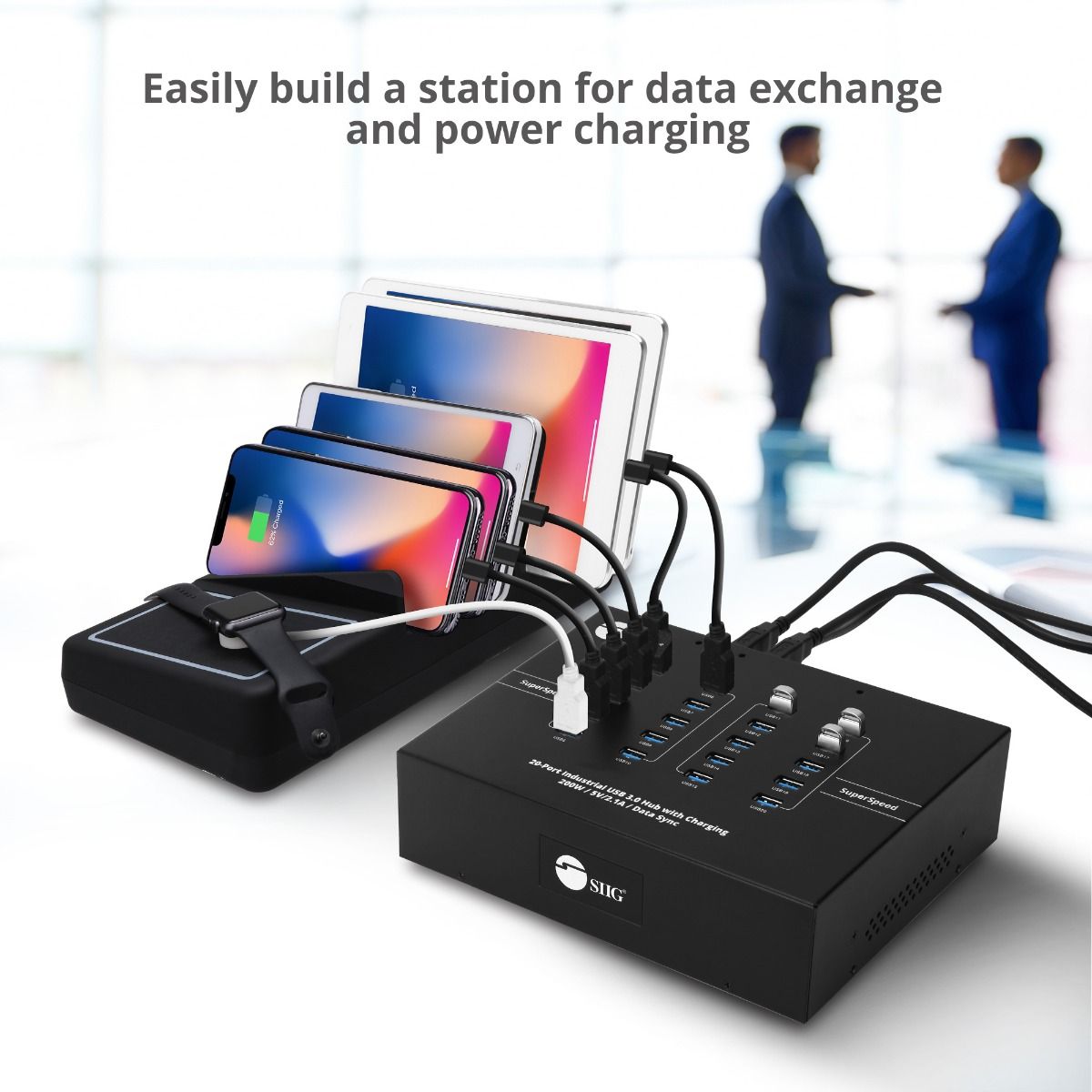

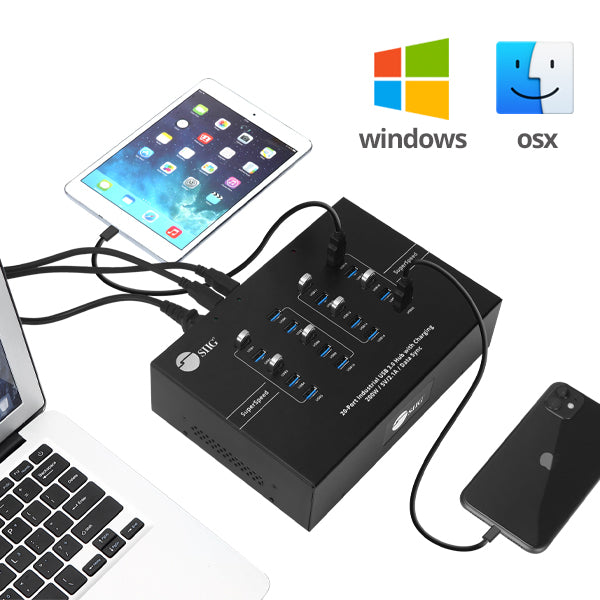

  Versatile USB Hub

  SIIG's 20-Port USB hub is capable of fast device charging and USB 3.0 data transfer. All 20 Type-A ports provide charging power up to 5V/ 2.1A, and the data transfer rate is up to 5Gbps. It supports almost all computer operating systems on the market from Windows (Win 11 included), macOS, Linux, and Ubuntu.
•

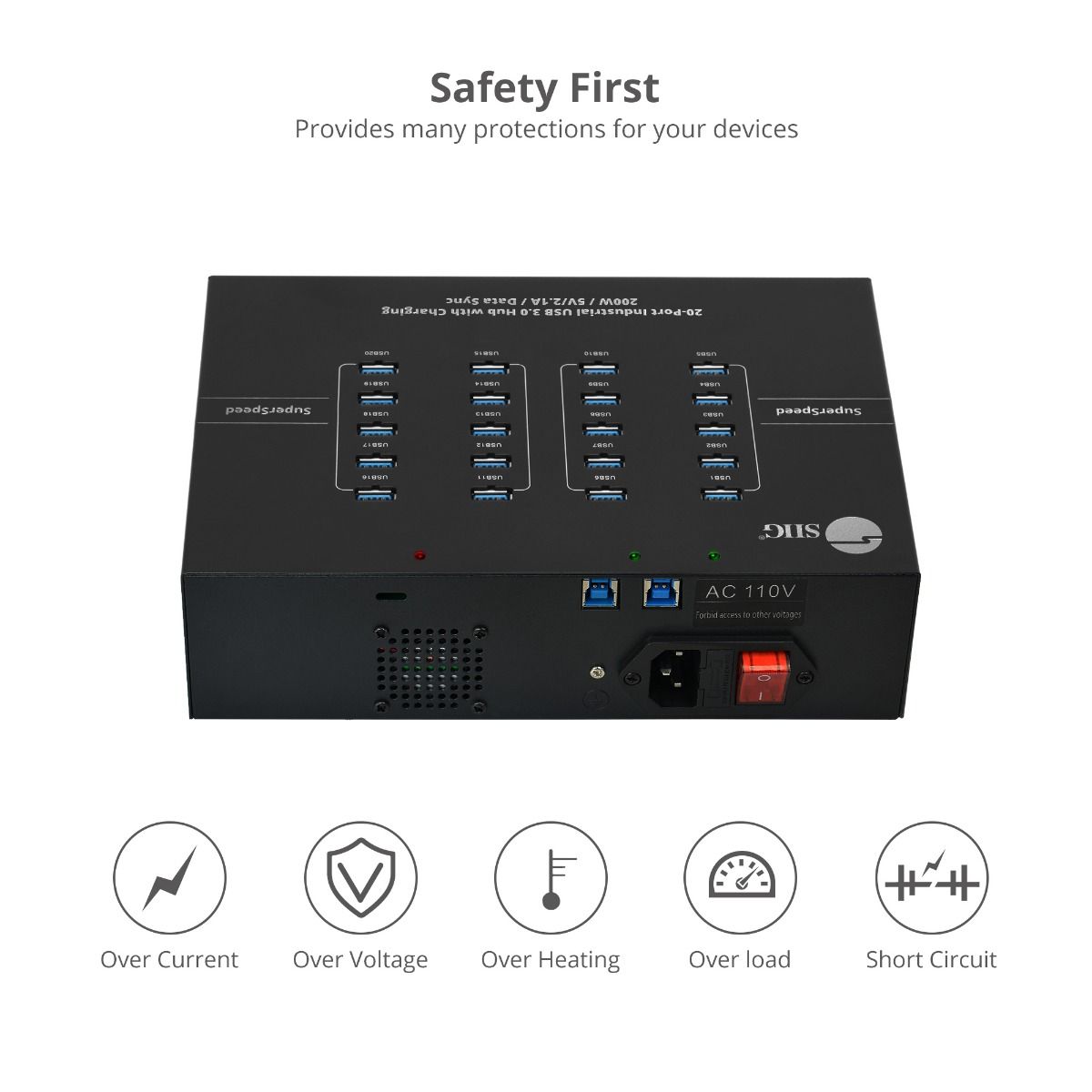

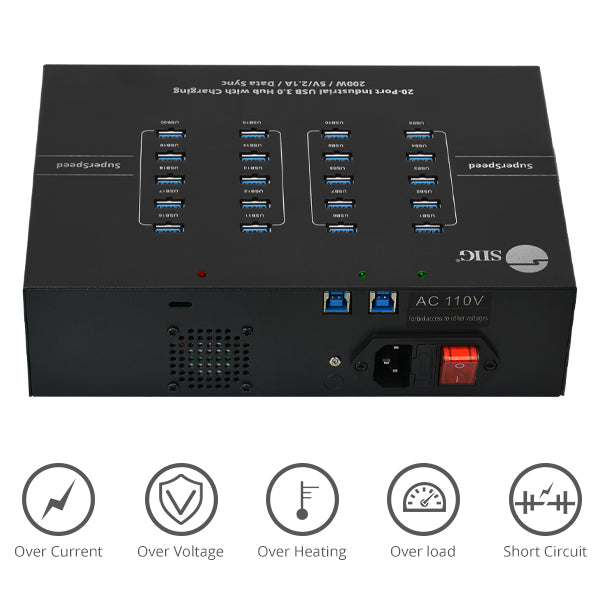

  Safety First

  This USB hub is designed with high standard protection against unforeseen power spikes or surges. An embedded temperature sensor would trigger the cooling fan to ensure reliable operation performance.
•

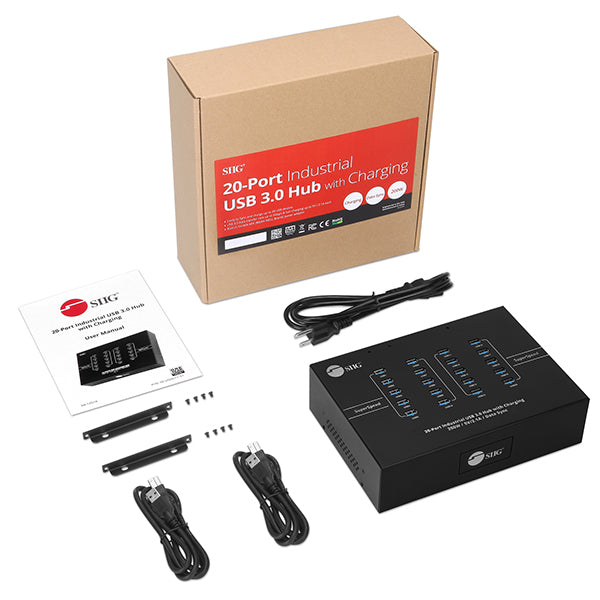

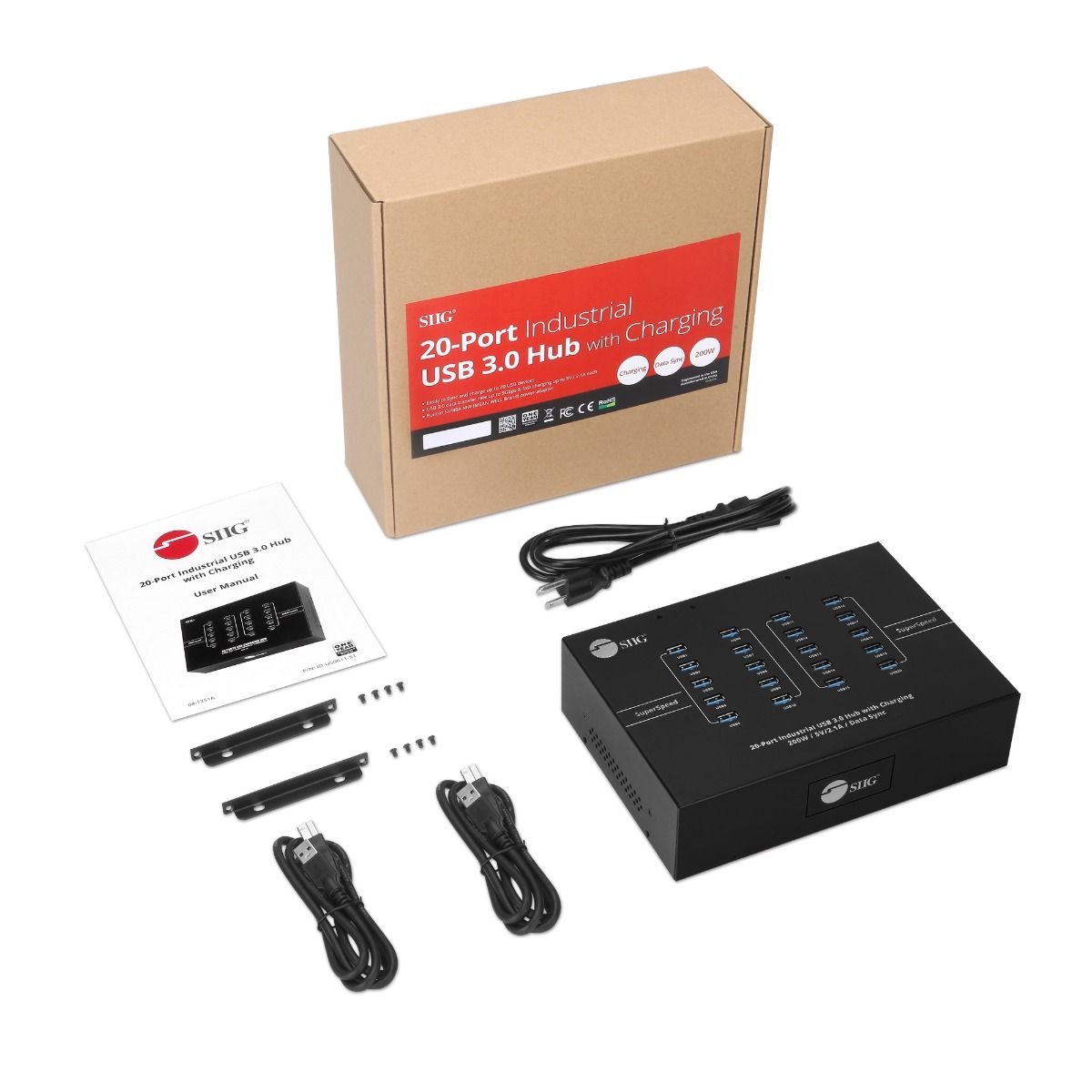

  What is in the Box?

  - 20-Port Industrial USB 3.0 Hub with Charging
  - 100-240V AC Universal power adapter (5V/12A output)
  - Power cord
  - USB 3.0 Type-A to Type-B cable (2 pcs)
  - Wall-mounting kit (2 Brackets, 8 screws)
  - User Manual

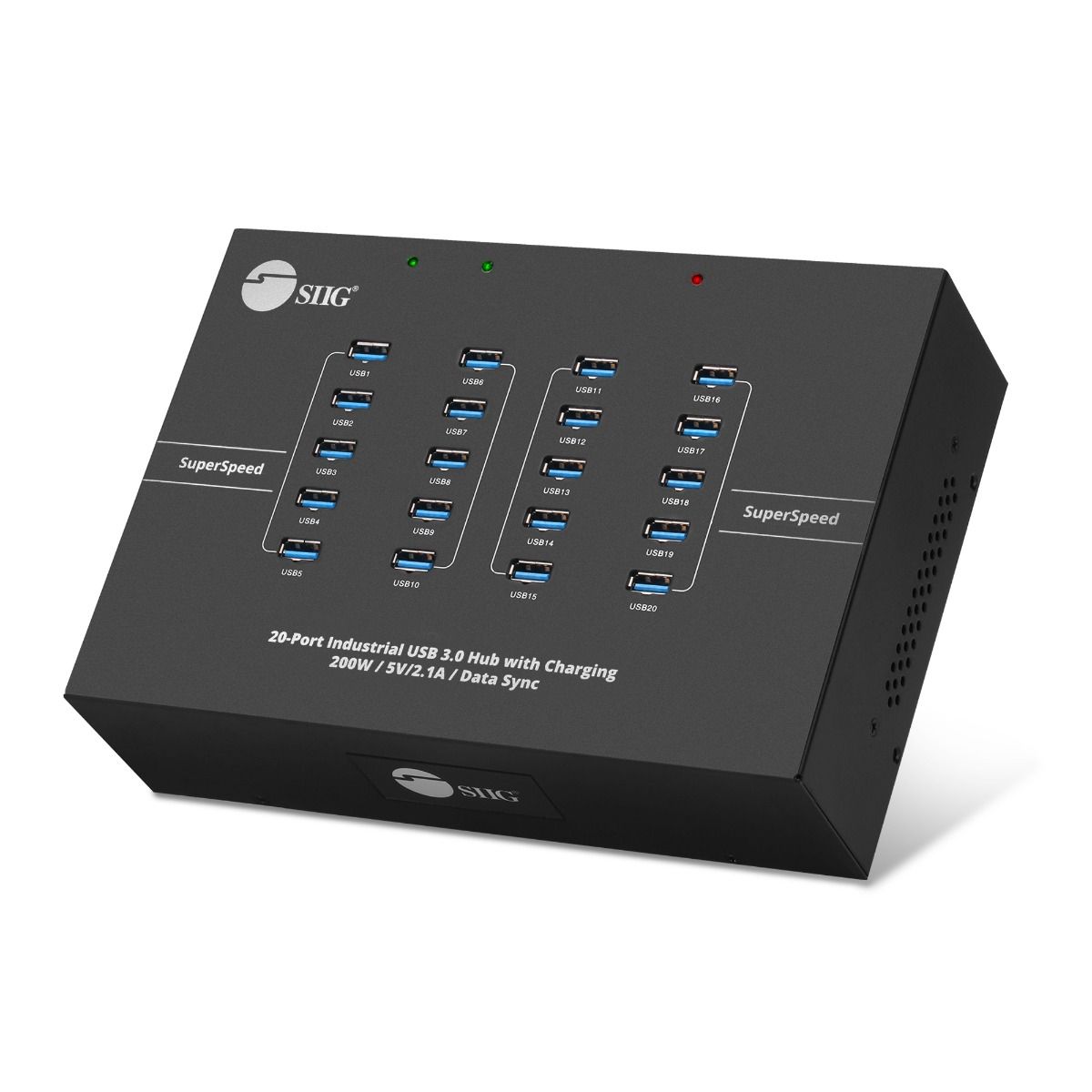

SIIG 200W 20-Port Industrial USB 3.0 Hub with Fast Charging

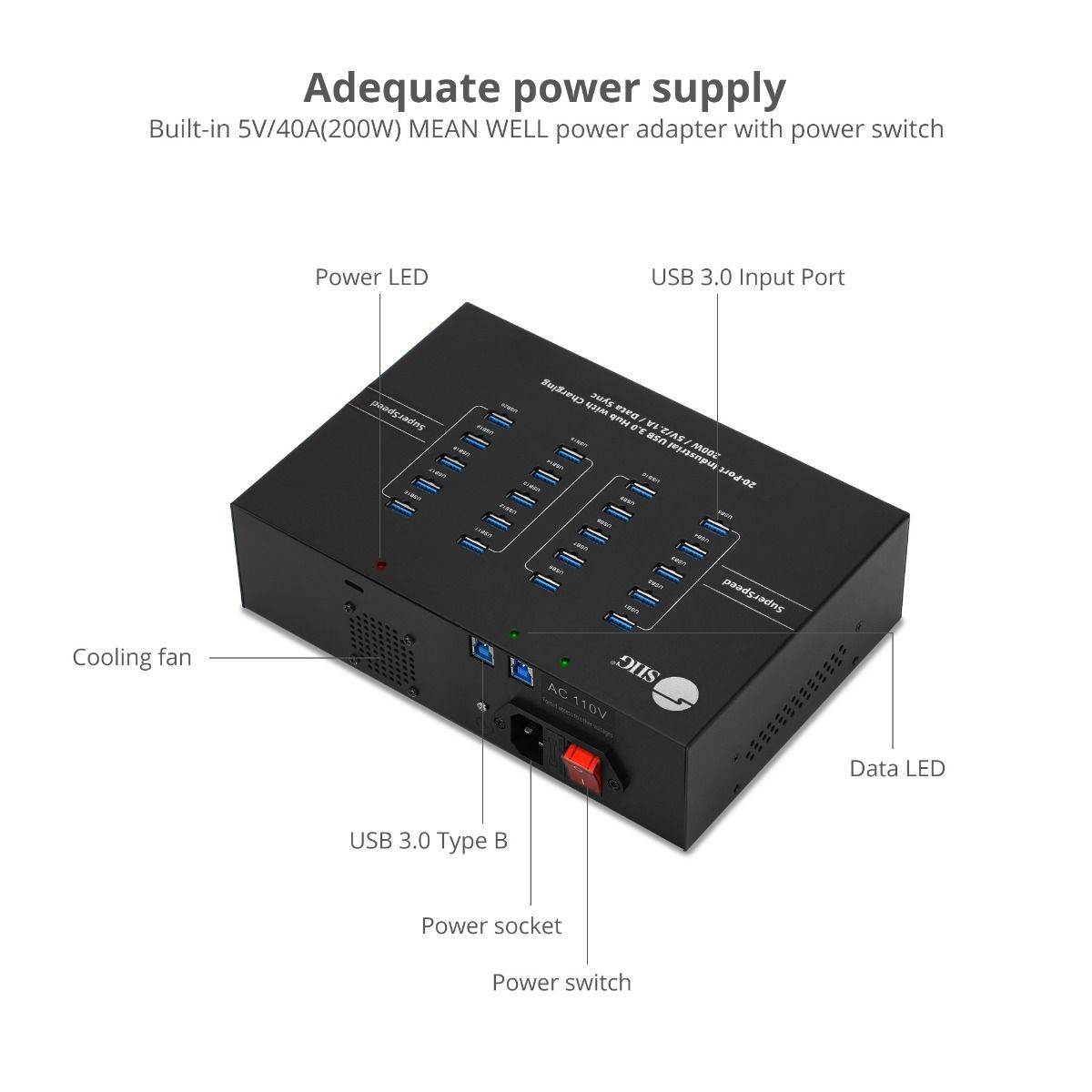

Delivers high-density connectivity and reliable power for demanding environments. Designed with a built-in power supply, it supports simultaneous data transfer and charging for up to 20 USB devices. Ideal for industrial, office, and professional applications, this hub ensures stable performance for high-bandwidth devices while simplifying multi-device management in one centralized solution.

Features

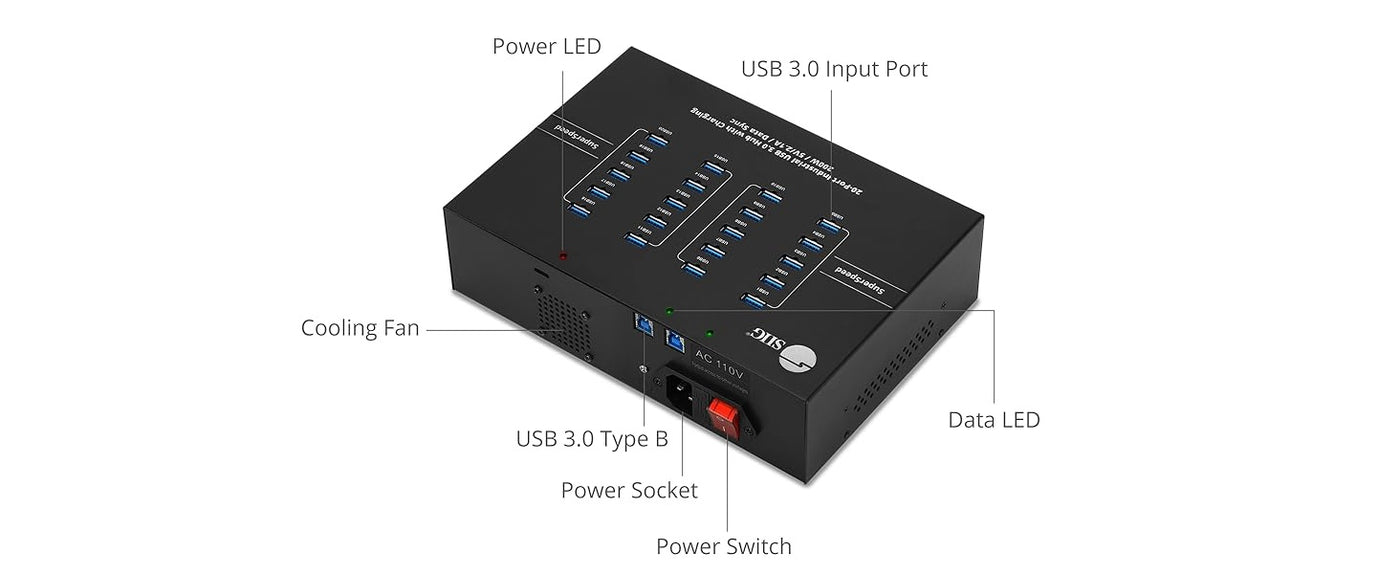

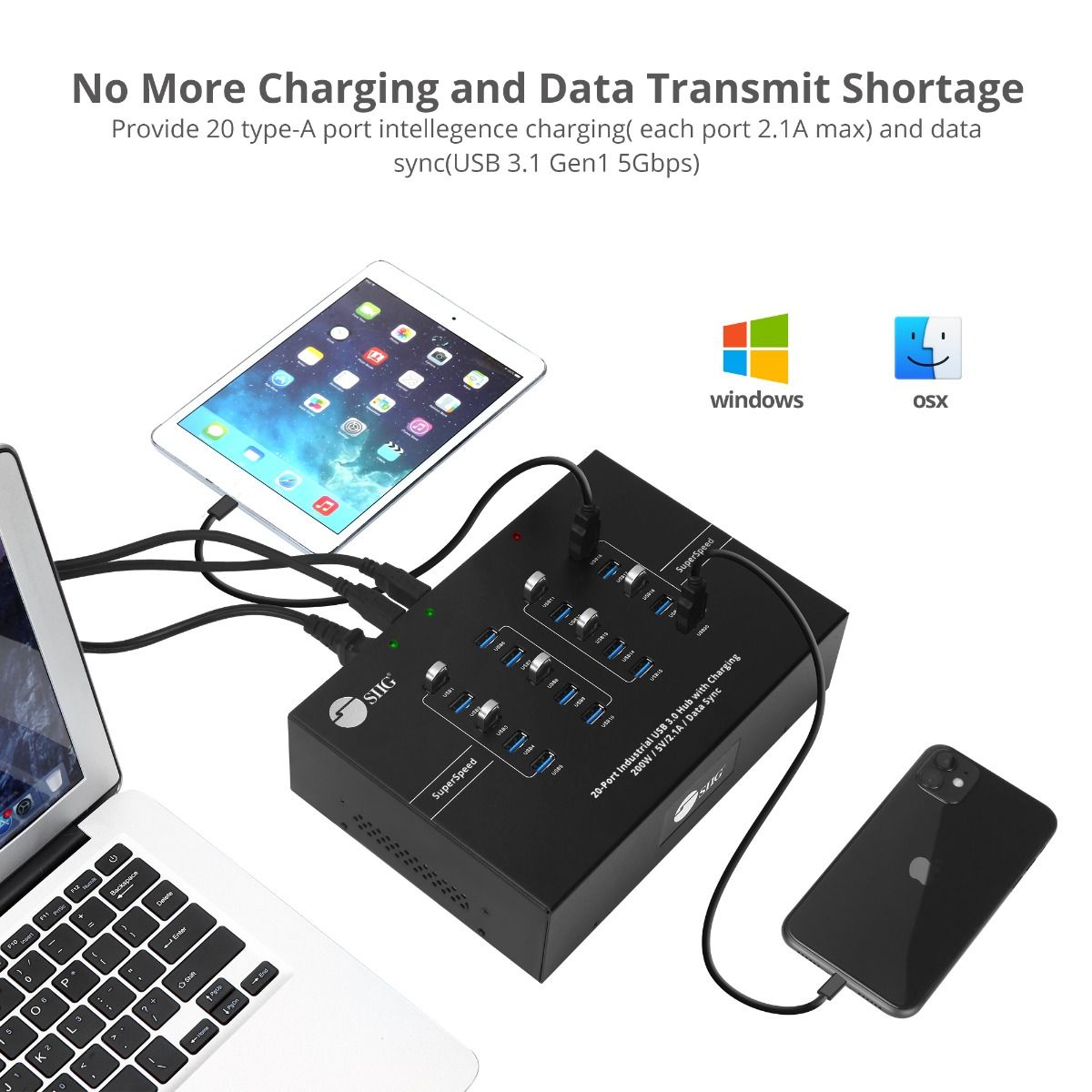

Supports up to 20 USB devices simultaneously with high-speed USB 3.0 data transfer up to 5Gbps and fast charging up to 5V/2.1A per port. Designed to handle high-bandwidth peripherals such as external hard drives, webcams, and surveillance systems, while the built-in power supply ensures stable and reliable performance. Includes an integrated power switch with LED indicator for easy control and energy efficiency, all housed in an industrial-grade design for long-lasting durability.

Multiple Connectivity Ports

A table comparing the facets of 5 products

Facet	20-Port Industrial USB 3.0 Hub with Charging - 200W - 5Gbps with 5V/2.1A per port View details	10-Port Industrial USB A&C 5Gbps Hub with Dual USB-C & Charging View details	8-Port Industrial USB-C PD Charging Station - 350W, Up to 45W per port, UL Certification View details	16-port Industrial 600W USB-C PD Charging Station with 5Gbps USB Hub - 2-port 100W & 14-port Charging up to 30W View details	16-Port Industrial USB-C PD Charging Station - 600W - 30W per port - UL Certification View details
SKU
SKU	ID-US0611-S1	ID-US0811-S1	ID-US0E11-S1	ID-US0B11-S3	ID-US0A11-S1
Connection port
Connection port	20x USB-A, 2x USB-B	8x USB-A, 2x USB-C	8x USB-C	16x USB-C	16x USB-C
Bandwidth
Bandwidth	5Gbps	5Gbps	-	-	-
Data Transfer (Max)
Power Output (Max)
Power Output (Max)	5V/2.1A	5V/2.4A	5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/2.25A	5V/3A, 9V/3A, 12V/2.5A	600W
Power Indicator
Power Indicator	Yes	Yes	Yes	Yes	-
Protection
Protection	Over-load, Over-Voltage, Over-Current, Over Heating, Short-Circuit, ESD	Over-load, Over-Voltage, Over-Current, Over Heating, Short-Circuit, ESD	Over-load, Over-Voltage, Over-Current, Over Heating, Short-Circuit, ESD	Over-load, Over-Voltage, Over-Current, Over Heating, Short-Circuit, ESD	Short Circuit/Over Voltage/Over Current/ Over Heating
Protocol
Protocol	USB	USB	-	-	-
Power Adapter
Power Adapter	115V/4A	100-240V/2A	115V/6.8A	115V/12A	-
Additional function
Additional function	Data, Hub, Charging, Mountable, Power Switch	Data Hub, Charging, DIN-rail Mount	Charging, Rack mount, Power Switch	Data, Hub, Charging, Rack mount, Power Switch	-
Housing material
Housing material	Metal	Metal	Metal	Metal	Metal
Color
Color	Black	Black	Black	Black	Black

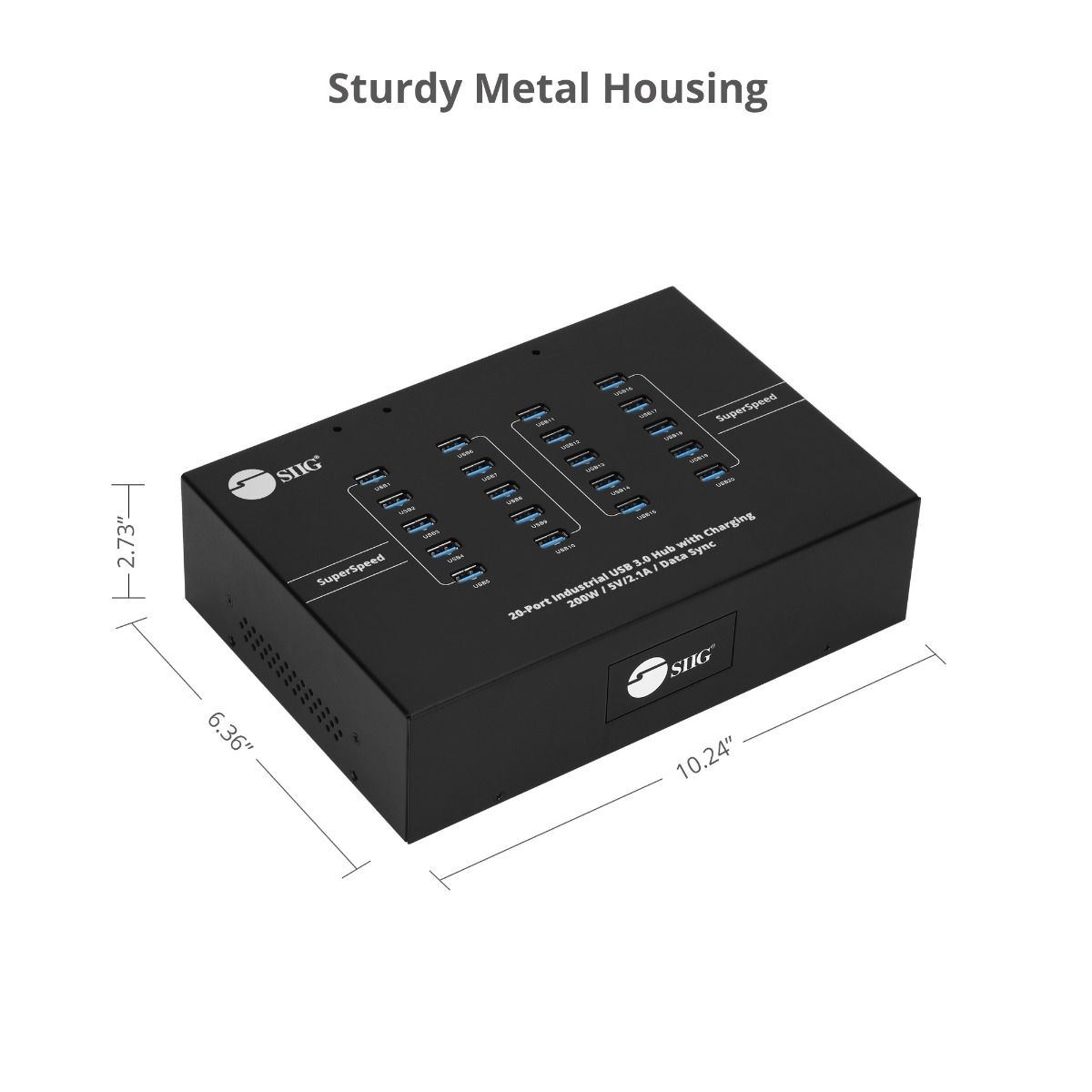

Dimensions
Dimensions	6.36" (W) x 2.73" (H) x 10.24" (D) (16.15 cm x 6.93 cm x 26.01 cm)	7.24" (W) x 0.96 " (H) x 2.64" (D) (18.39 cm x 2.44 cm x 6.71 cm)	13.35" (W) x 2.17" (H) x 7.68" (D) (33.91 cm x 5.51 cm x 19.51 cm)	17.32" (W) x 2.24" (H) x 9.06" (D) (43.99 cm x 5.69 cm x 23.01 cm)	17.32 in (43.99 cm) x 2.20 in (5.59 cm) x 9.06 in (23.01 cm)
Weight
Weight	4.63 lbs	0.83 lbs	4.63 lbs	6.38 lbs	6.26 lbs (2.84 kg)
Mountable
Mountable	Yes	Yes	Yes	Yes	Yes
Certification/ Standards
Certification/ Standards	FCC / CE / RoHS	FCC / CE / RoHS / UL	FCC / CE / RoHS / UL	RoHSFCC / CE / RoHS / UL	FCC / CE / RoHS / UL
Warranty
Warranty	2 years	2 years	2 years	2 years	2 year limited
Country of Origin
Country of Origin	China	China	China	China	China
