Industrial Charging Station |
SKU:
ID-US0811-S1
10-Port Industrial USB A&C 5Gbps Hub with Dual USB-C & Charging
Industrial USB Hub
8x USB-A / 2x USB-C
USB-C 5V/1.5A
USB-A/C 5Gbps
Mountable
Regular price
$162.99
Unit price
/
Unavailable
Shipping calculated at checkout.
10-Port Industrial USB A&C 5Gbps Hub with Dual USB-C & Charging is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
USB 3.1 Gen 1 Data Trasfer
USB 3.1 Gen 1 Data Trasfer
Multiple Connectivty Port
Multiple Connectivty Port
USB Fast Charging
USB Fast Charging
Uninterruptible 65W Power Supply
Uninterruptible 65W Power Supply
Maximum Compatibility with Safety Protection
Maximum Compatibility with Safety Protection
10-Port Industrial USB A&C 5Gbps Hub with Dual USB-C & Char...
Estimated shipping by May 25, 2026
Regular price
$162.99
Unit price
/
Unavailable
-
45 Days Free Return
-
2 Years Warranty
-
Lifetime Technical Support
SIIG 10-Port Industrial USB A&C 5Gbps Hub with Dual USB-C & Charging
Add 9 SuperSpeed USB A&C 5Gbps ports and a dedicated 5V/2.4A charging port to your system, 7A2C+1A(Charging only), Over Current, Over Voltage, Over Heating, Over load, Short Circuit, Metal Housing.

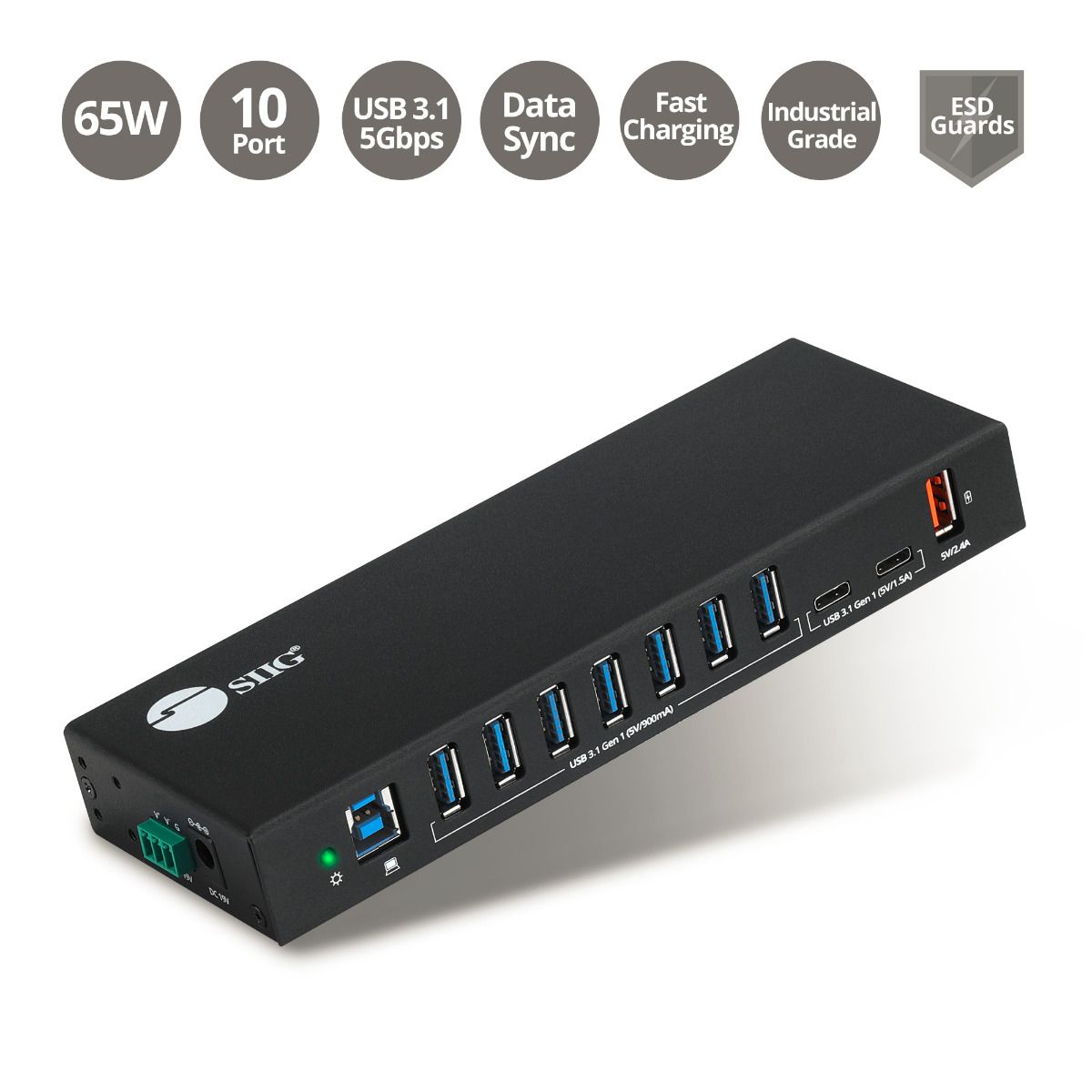

Industrial USB Hub with Multi-Port Expansion
Industrial-grade metal hub with safety protection to safeguard all of your connected devices and has a vertical and horizontal design suitable for the home or work environment. Easily expand 2x USB-C 5Gbps ports, 7x USB-A 5Gbps ports, and 1 USB Type-A fast charging port to connect devices simultaneously for the best performance.
USB 5Gbps Data & Fast Charging
Supports 7 USB-A and 2 USB-C devices with up to 5Gbps transfer speeds for stable performance. Includes a dedicated USB-A fast charging port with smart IC for optimal power delivery (5V/2.4A), backward compatible with USB 2.0/1.1.

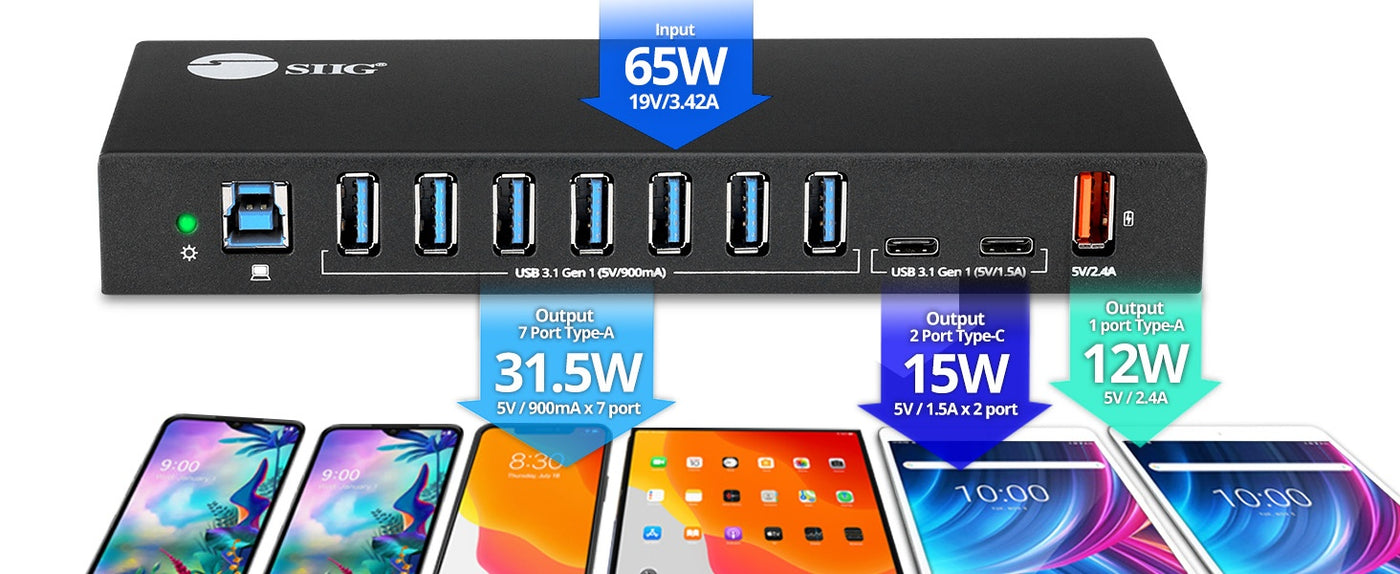

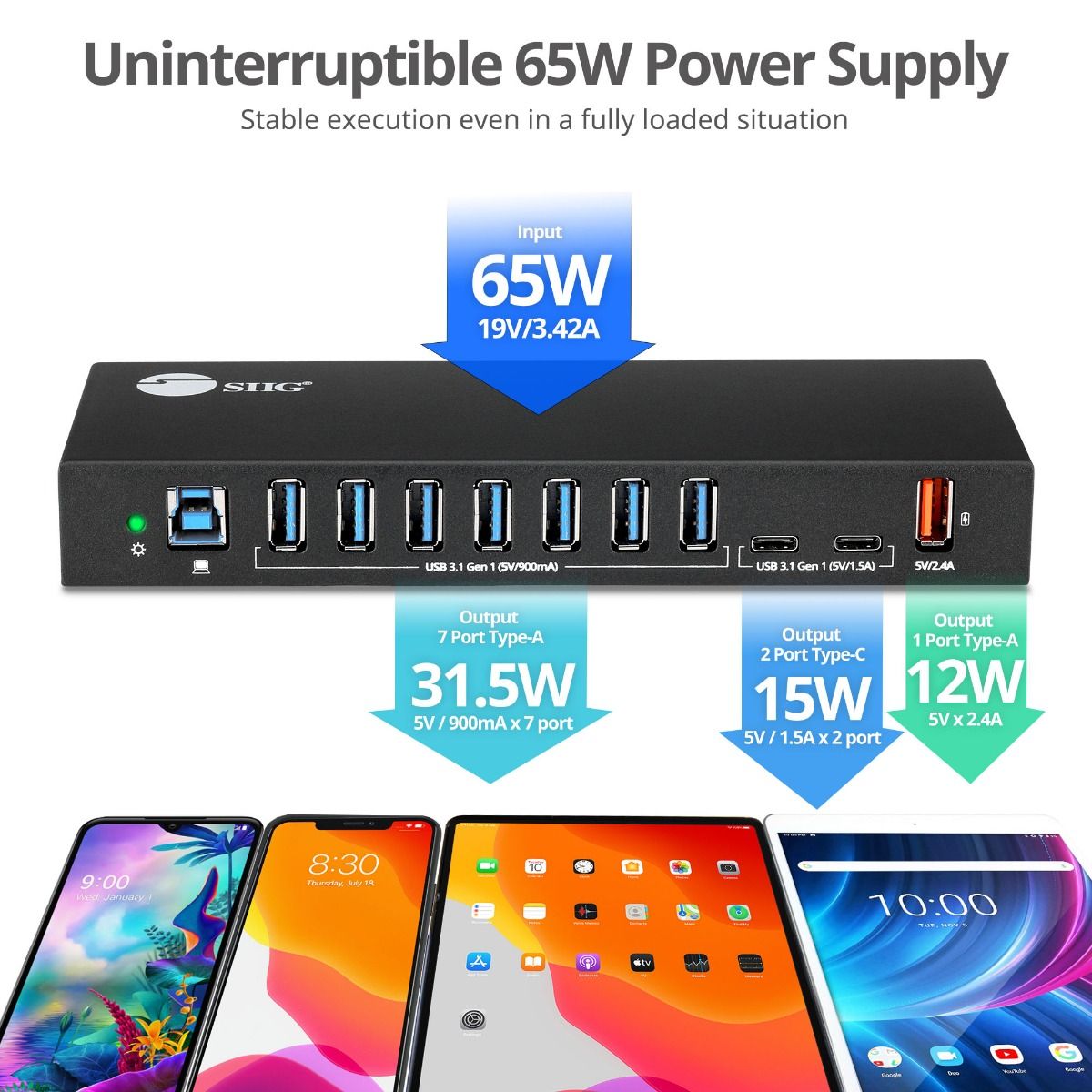

Uninterruptible 65W Power Supply
Includes a 65W (19V/3.42A) power adapter to provide enough power for the connected USB peripherals, such as laptop, notebook, tablet, and smartphone.

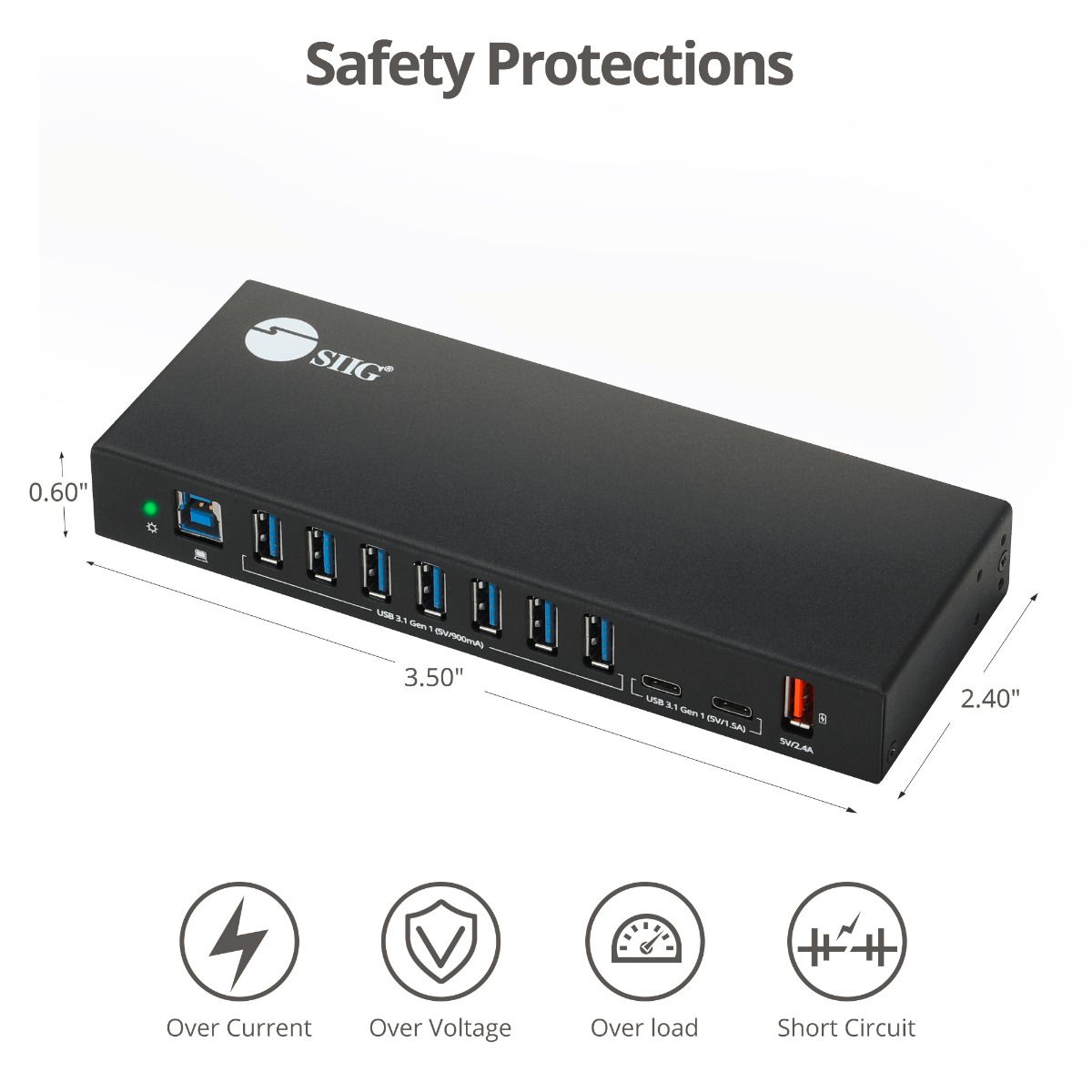

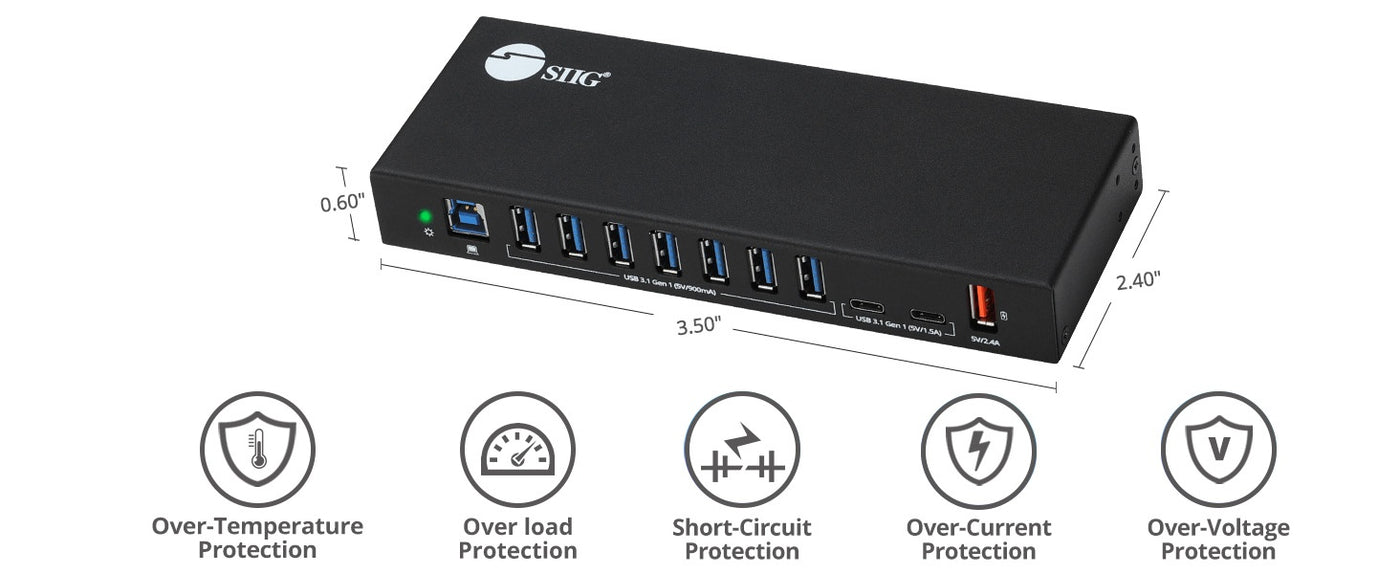

Safety Protection
This Industrial-grade USB hub features built-in Over Current, Over Voltage, Over Heating, Over Load and Short Circuit protection to ensures the safety of hub and the connected devices.

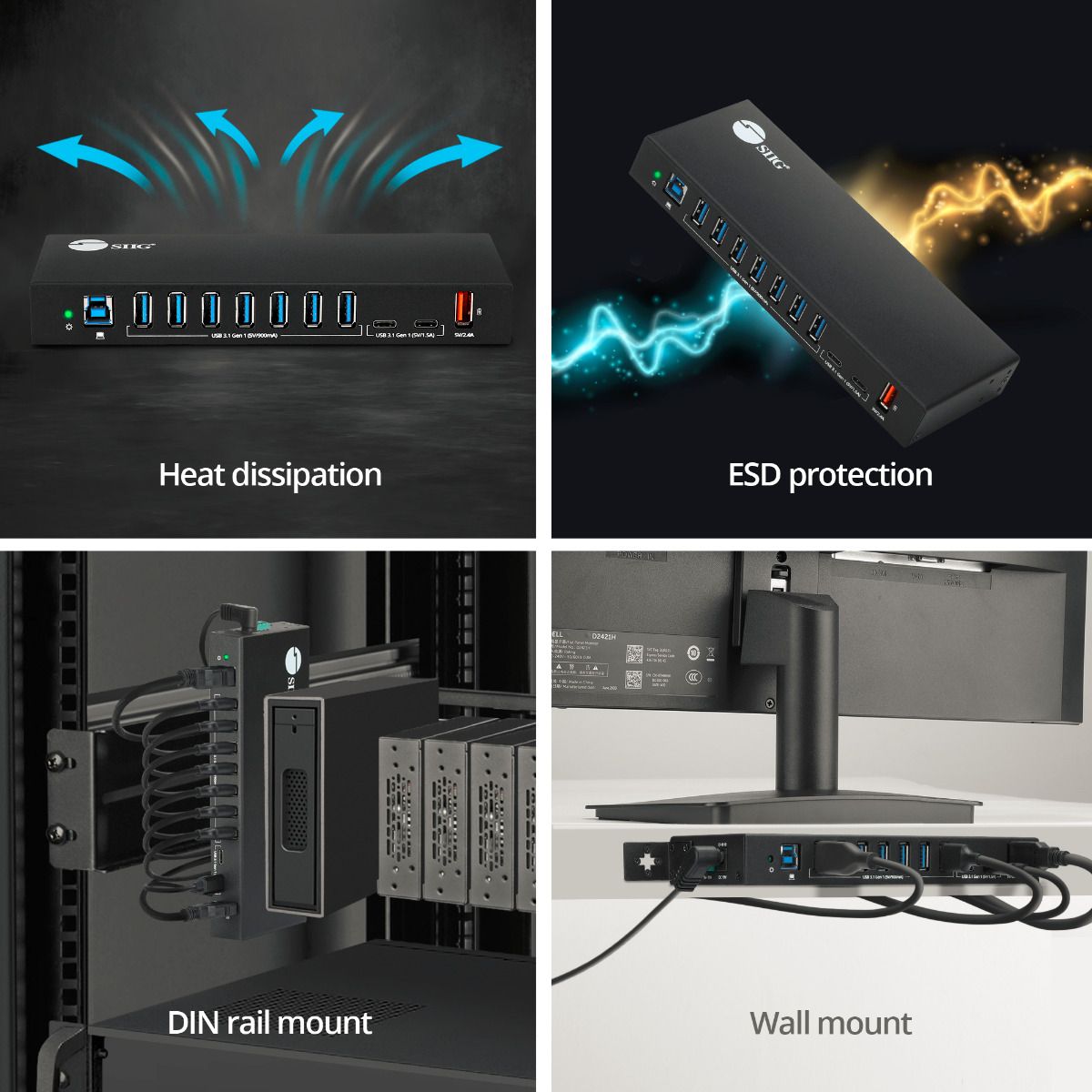

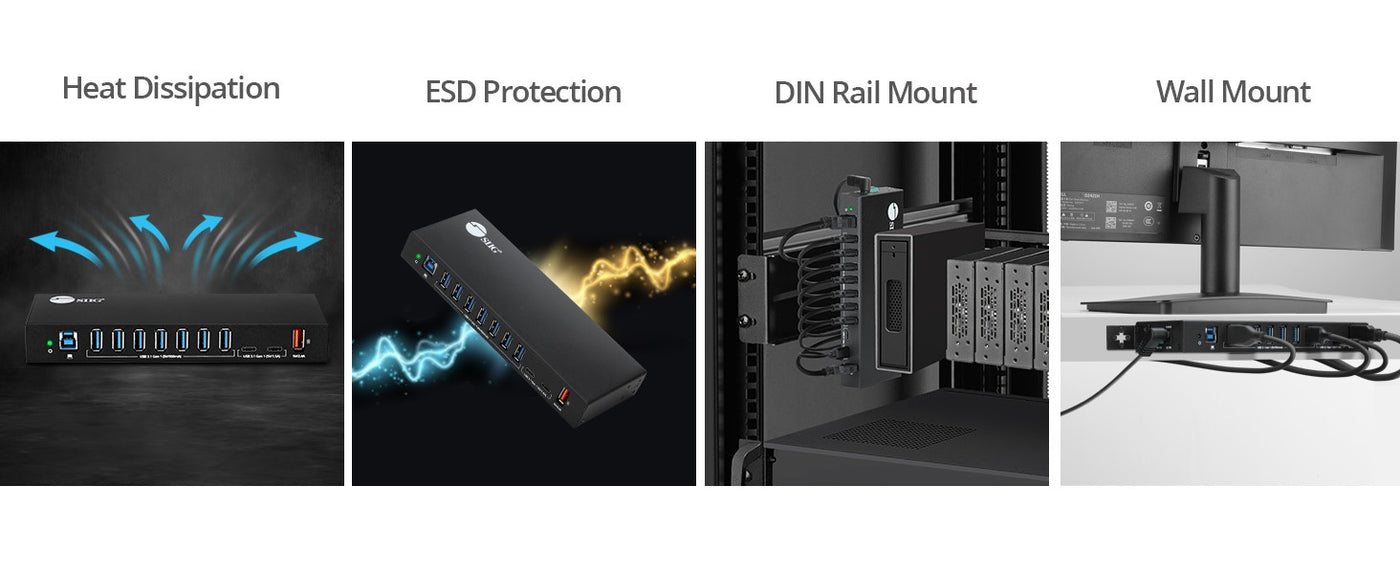

ESD Protection & Rugged Metal Housing

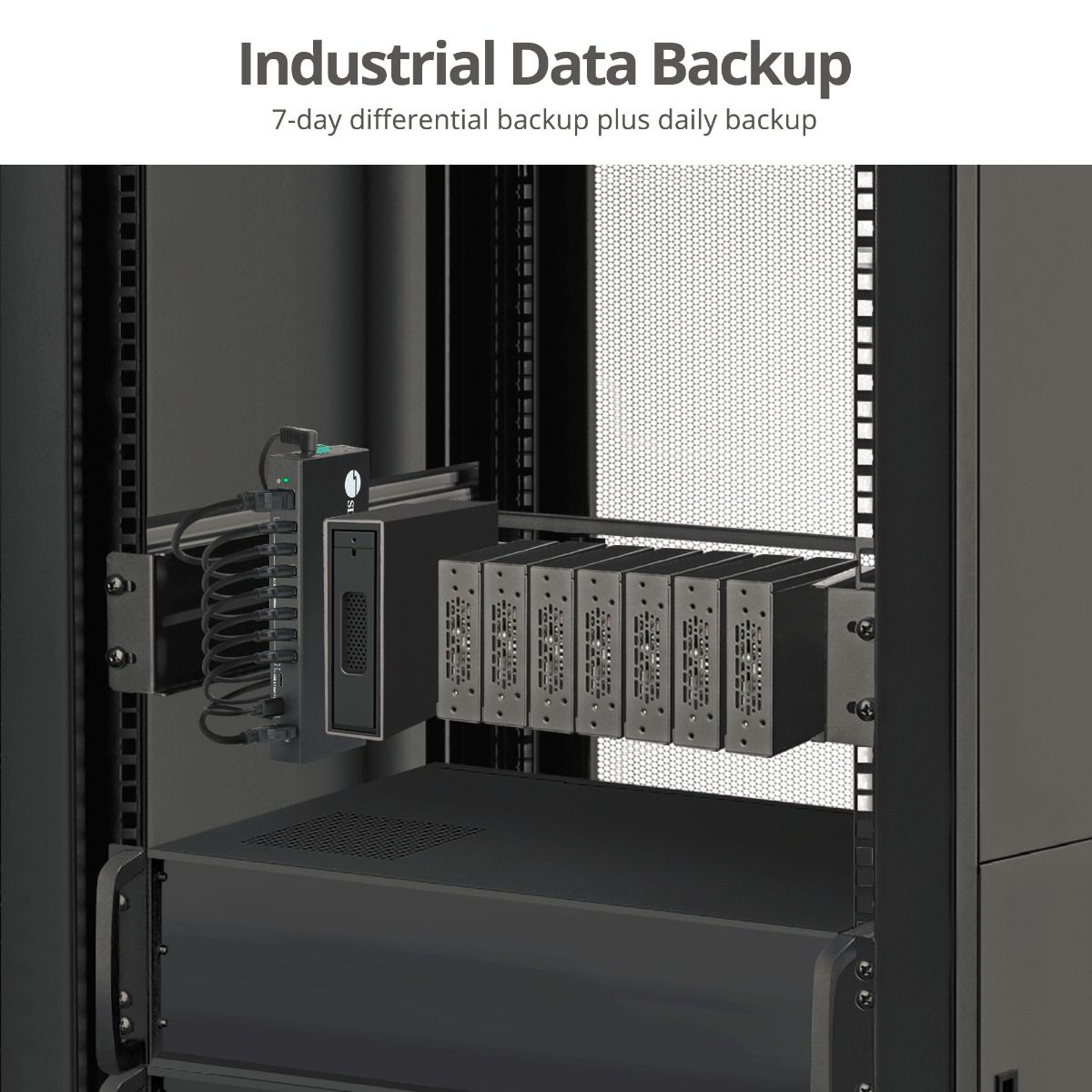

Protects against electrostatic discharge to prevent device damage while the industrial-grade metal enclosure ensures durability, efficient heat dissipation, and flexible mounting with wall and DIN rail options.
Maximum Compatibility
Supports UASP (USB Attached SCSI Protocol) function (with Windows 11/10/8 native USB 3.0 host drive only). Plug-n-Play, no driver installation required.
| Facet |

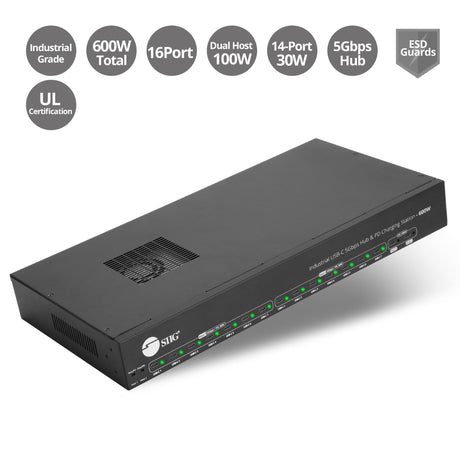

16-port Industrial 600W USB-C PD Charging Station with 5Gbps USB Hub - 2-port 100W & 14-port Charging up to 30W View details |

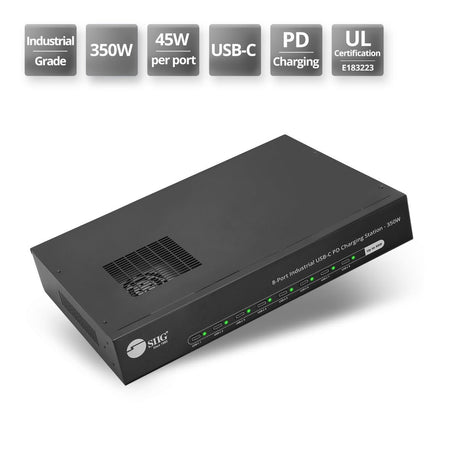

8-Port Industrial USB-C PD Charging Station - 350W, Up to 45W per port, UL Certification View details |

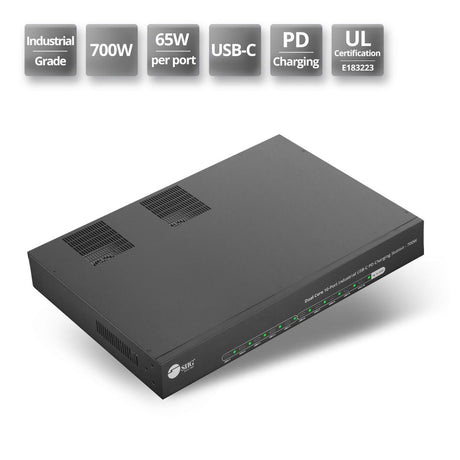

Dual Core 10-Port Industrial USB-C PD Charging Station - 700W, Up to 65W per port, Dual 350W power, UL certification View details | ||
|---|---|---|---|---|---|
| SKU | |||||
| SKU | |||||
| Connection port | |||||
| Connection port | |||||
| Bandwidth | |||||
| Bandwidth | - | - | - |
||
| Data Transfer (Max) | |||||
| Power Output (Max) | |||||
| Power Output (Max) | |||||
| Power Indicator | |||||
| Power Indicator | |||||
| Protection | |||||
| Protection | |||||
| Protocol | |||||
| Protocol | - | - | - |
||
| Power Adapter | |||||
| Power Adapter | |||||
| Additional function | |||||
| Additional function | |||||
| Housing material | |||||
| Housing material | |||||
| Color | |||||
| Color | |||||
| Dimensions | |||||
| Dimensions | |||||
| Weight | |||||
| Weight | |||||
| Mountable | |||||
| Mountable | |||||
| Certification/ Standards | |||||
| Certification/ Standards | |||||
| Warranty | |||||
| Warranty | |||||
| Country of Origin | |||||
| Country of Origin | |||||
| Chipset | VIA VL813 Q7 |
| OS Compatibility | Windows® 11, macOS® 10.6 or new |
| USB Data Transfer | |
| USB 3.1 Gen 1 Type-C | 2x USB-C, up to 5Gbps, 1500mA |
| USB 3.1 Gen 1 Type-A | 7x USB-A, up to 5Gbps, 900mA |
| Fast Charging Port | USB Type-A, up to 5V/2.4A |
| Power | |
| Power Adapter | Input: AC 100-240V / 50-60Hz, 2.0A (max.) Output: DC 19V/3.42A (max.) |
| Interface | |

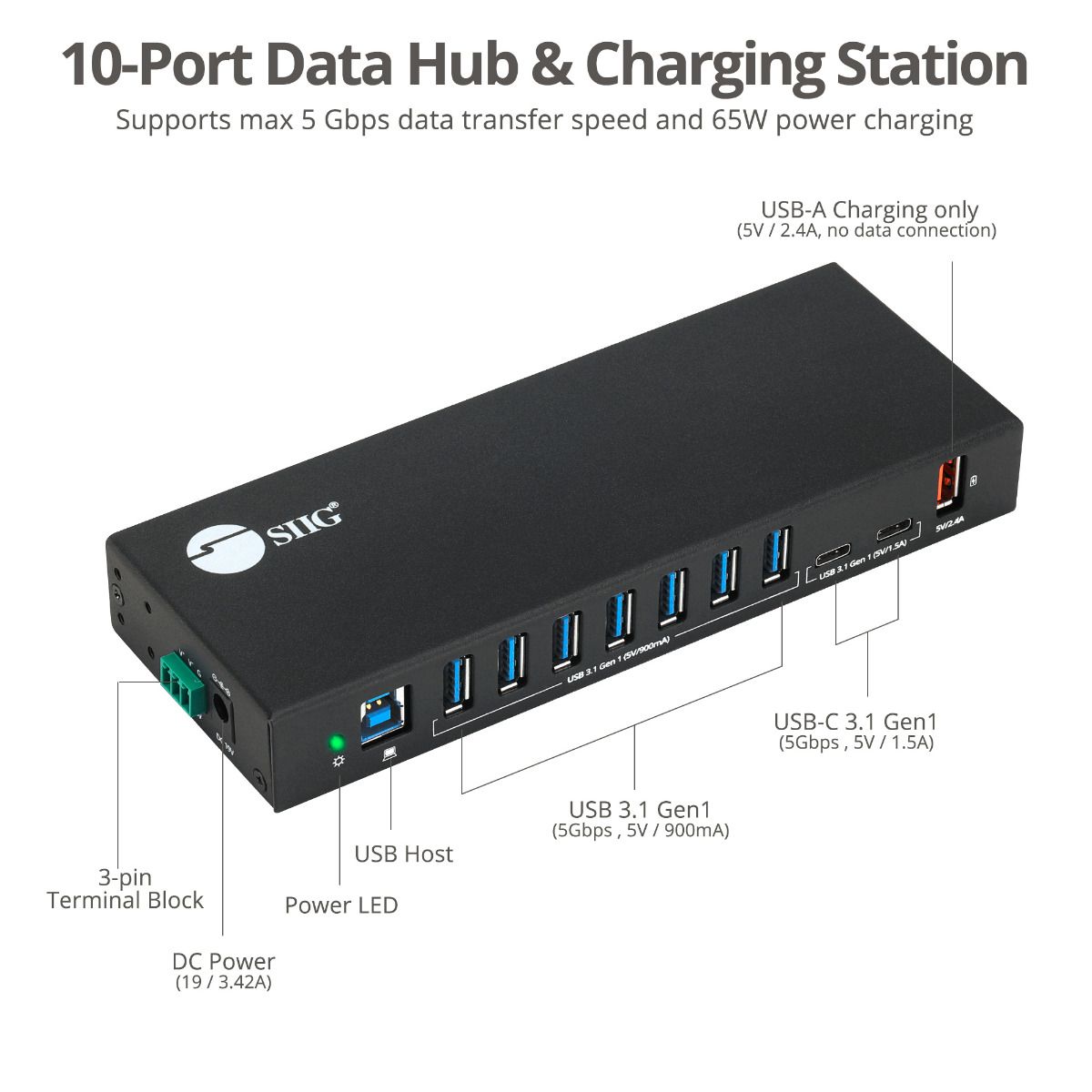

| Input | 1x 9-pin, USB Type-B, Female (Host) 1x 3-pin, Terminal Block (DC 5V to DV19V) 1x Power Jack, 19V/3.42A |
| Output | 2x 24-pin, USB 3.1 Gen 1 Type-C 7x 9-pin, USB 3.1 Gen 1 Type-A 1x 4-pin, USB Type-A, charging only |
| System Requirements | Desktop or Laptop with an available USB 3.1 Gen 1 Type-A port Windows® 11 / 10 mac OS® 10.6 or new |

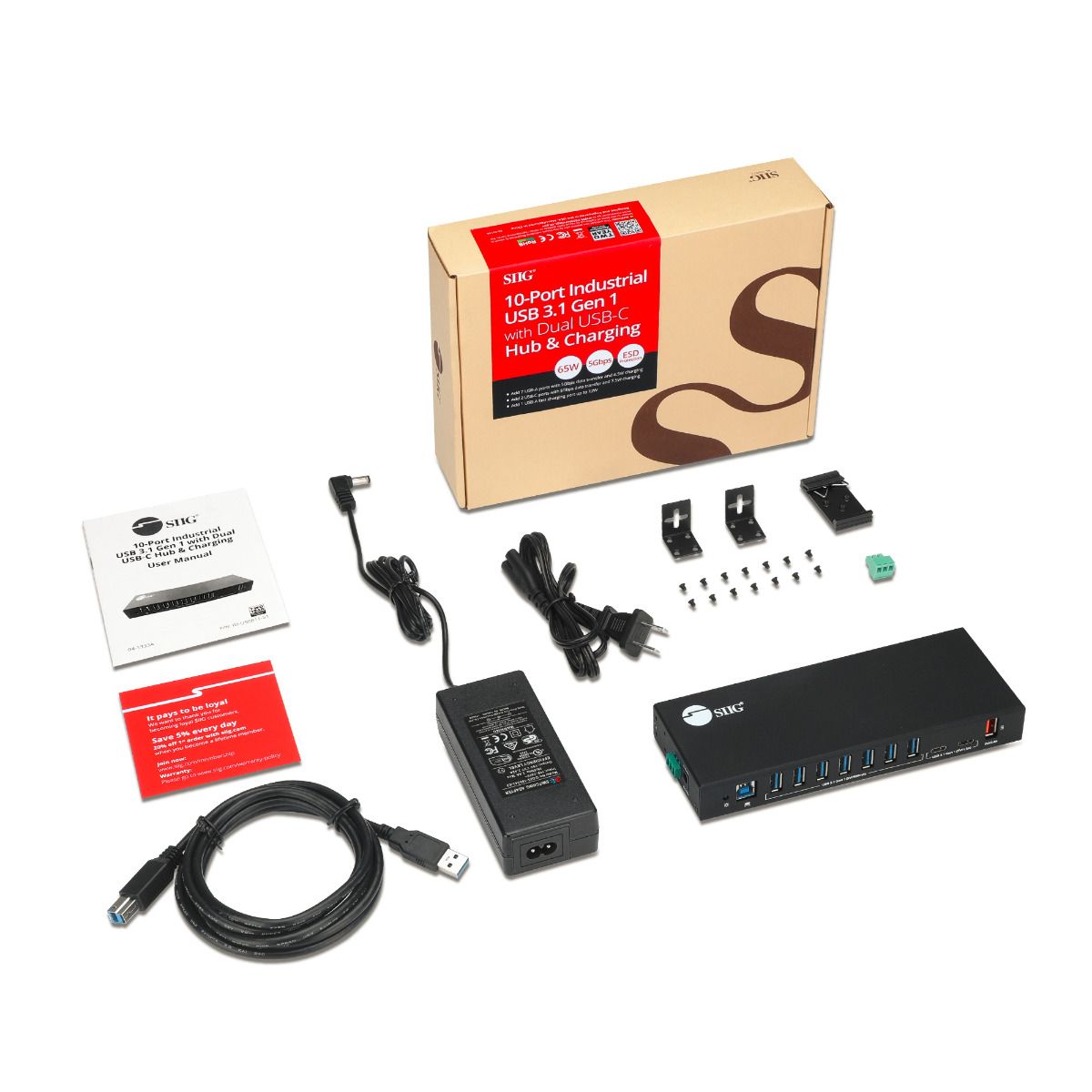

| Package contents | 1x 10-Port Industrial USB 3.1 Gen 1 Hub with Dual USB-C & Charging 1x Switching power adapter (19V/3.42A) & AC power cord 1x USB 3.1 Gen 1 Type-A to Type-B cable (2m) 1x DIN-Rail and wall mount kit 1x Terminal block (extra Power, DC 5V to DC 19V) 1x User reference guide |
| Product Info | |
| Dimensions (L) x (H) x (W) | 7.24" x 0.96" x 2.64" 18.39 cm x 2.44 cm x 6.71 cm |
| Weight | 0.83 lbs (0.38 kg) |
| Color | Black |
| Housing material | Metal |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 9.64" x 2.36" x 7.01" 24.49 cm x 5.99 cm x 17.81 cm |
| Weight | 2.06 lbs (0.93 kg) |
| Master carton | |
| Dimensions (L) x (H) x (W) | 22.24" x 7.87" x 19.69" 56.49 cm x 19.99 cm x 50.01 cm |
| Weight | 40.70 lbs (18.46 kg) |
| Quantity | 18pcs/ctn |
| Environmental conditions | |
| Operating Temperature | 32 to 122 degrees F |
| Storage Temperature | -4 to 158 degrees F |
| Relative Humidity | 5% to 90% RH (non-condensing) |
| Certifications/Standards | FCC, CE, RoHS |
| UPC code | 662774-044682 |
| Warranty | 2 years limited |
| Country of origin | China |
Q1: When I plugged in my USB 3.0 device, it became USB 2.0 because the device is incredibly fickle. How do I resolve the issue?
Q1: When I plugged in my USB 3.0 device, it became USB 2.0 because the device is incredibly fickle. How do I resolve the issue?
A1:
1. Try to replug your device.
2. Make sure you are connecting to a USB 3.0 host.
3. Double-check if the USB cable is well connected.
1. Try to replug your device.
2. Make sure you are connecting to a USB 3.0 host.
3. Double-check if the USB cable is well connected.
Q2: When I try to use the USB Hub I get an error "Too many USB Hubs are connected together. A USB hub will not function when it's connected more than 5 hubs away from the root port". The laptop is connected to the docking station and the hub is connected to the docking station.
Q2: When I try to use the USB Hub I get an error "Too many USB Hubs are connected together. A USB hub will not function when it's connected more than 5 hubs away from the root port". The laptop is connected to the docking station and the hub is connected to the docking station.
A2: Actually, the 10-Port USB Hub requires three USB Hub ICs, not just one. Similarly, the USB Dock also needs two or three USB Hub ICs to provide USB ports and features like ethernet or a card reader.
The ID-US0811-S1 uses three USB Hub ICs, while docking stations typically use at least two or three. Laptops typically use one as well. Connecting all these devices can lead to a combined usage of more than five Hub ICs.
Therefore, we recommend directly connecting the 10-Port USB Hub to your laptop for optimal performance.
The ID-US0811-S1 uses three USB Hub ICs, while docking stations typically use at least two or three. Laptops typically use one as well. Connecting all these devices can lead to a combined usage of more than five Hub ICs.
Therefore, we recommend directly connecting the 10-Port USB Hub to your laptop for optimal performance.
