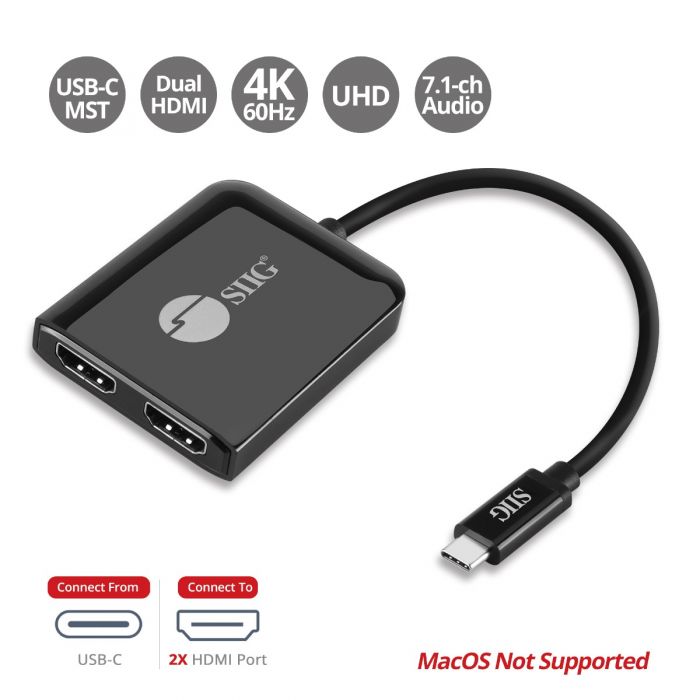

1x2 USB-C to HDMI 4K60 MST Hub Splitter
USB-C In
DP 1.4 Alt Mode
Dual View
4K60Hz
MST Splitter
Regular price
$89.99
Unit price
/
Unavailable
Shipping calculated at checkout.
1x2 USB-C to HDMI 4K60 MST Hub Splitter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
Important Notes
Important Notes
2 Port USB-C to HDMI Splitter MST Hub
2 Port USB-C to HDMI Splitter MST Hub
4K60Hz Resolution
4K60Hz Resolution
Wide Compatibility
Wide Compatibility
Compact Size Design
Compact Size Design
-
45 Days Free Return
-
2 Years Warranty
-
Lifetime Technical Support
Overview

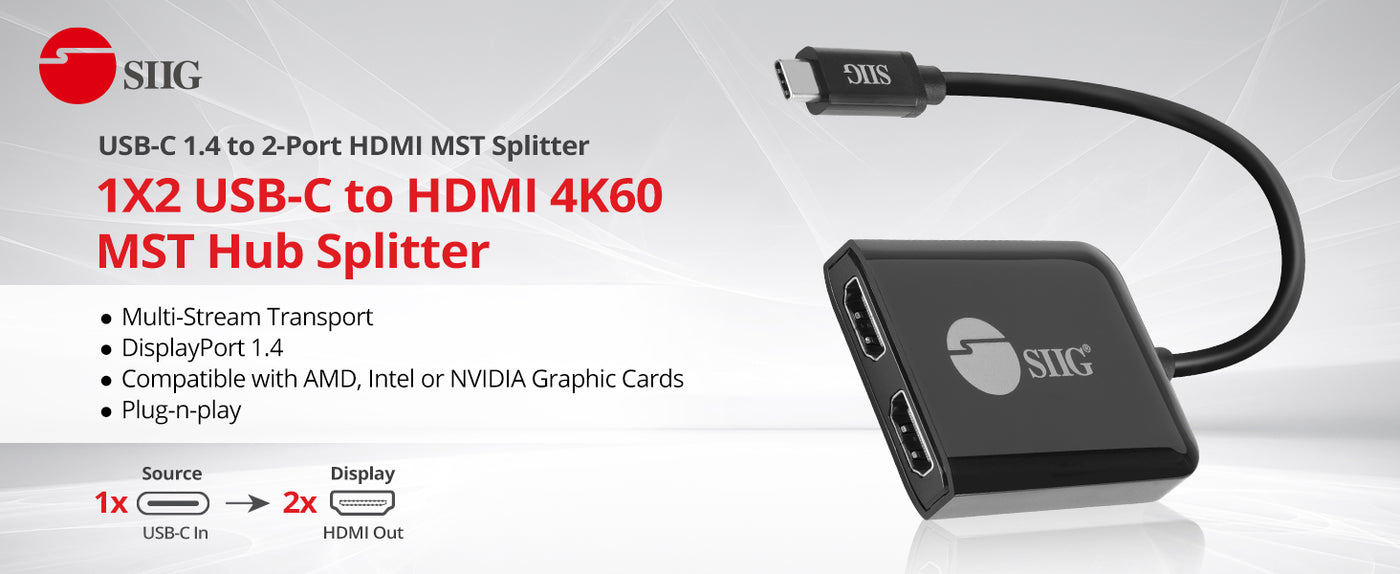

DP 1.4 USB-C to HDMI MST Video Splitter Hub, allows you to connect 2 HDMI monitors to a single USB-C port with Multi-Stream Transport (MST) technology, 2 HDMI, Dual 4K60Hz, no driver required, Windows PCs
What is Multi Stream Transport (MST)?
Enables the source system to send multiple independent Video Signals over a single DisplayPort 1.2 or Mini DisplayPort 1.2 output. An MST Splitter allows the use of three different modes for multi-monitor displays, such as Mirror mode same content on each display, Extended mode with individual content on each display, and Panoramic Video Wall mode which combines multiple monitors to use as one large display

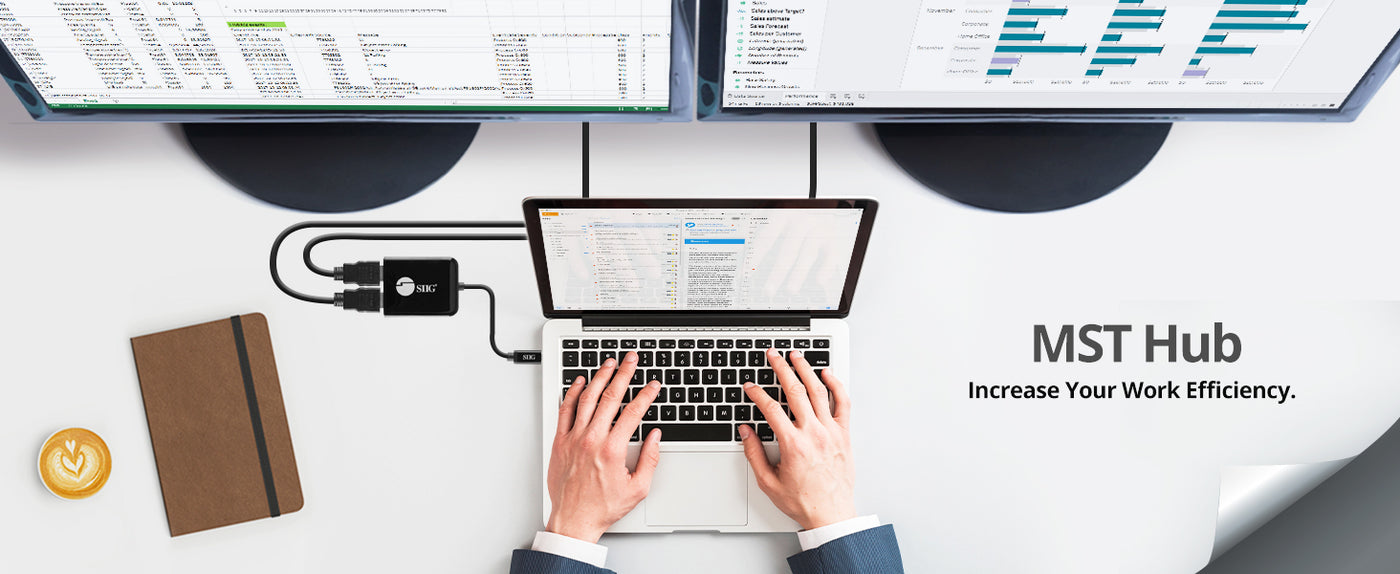

Supports Multi-Monitor Display Using Multi-Stream Transmission (MST) Technology

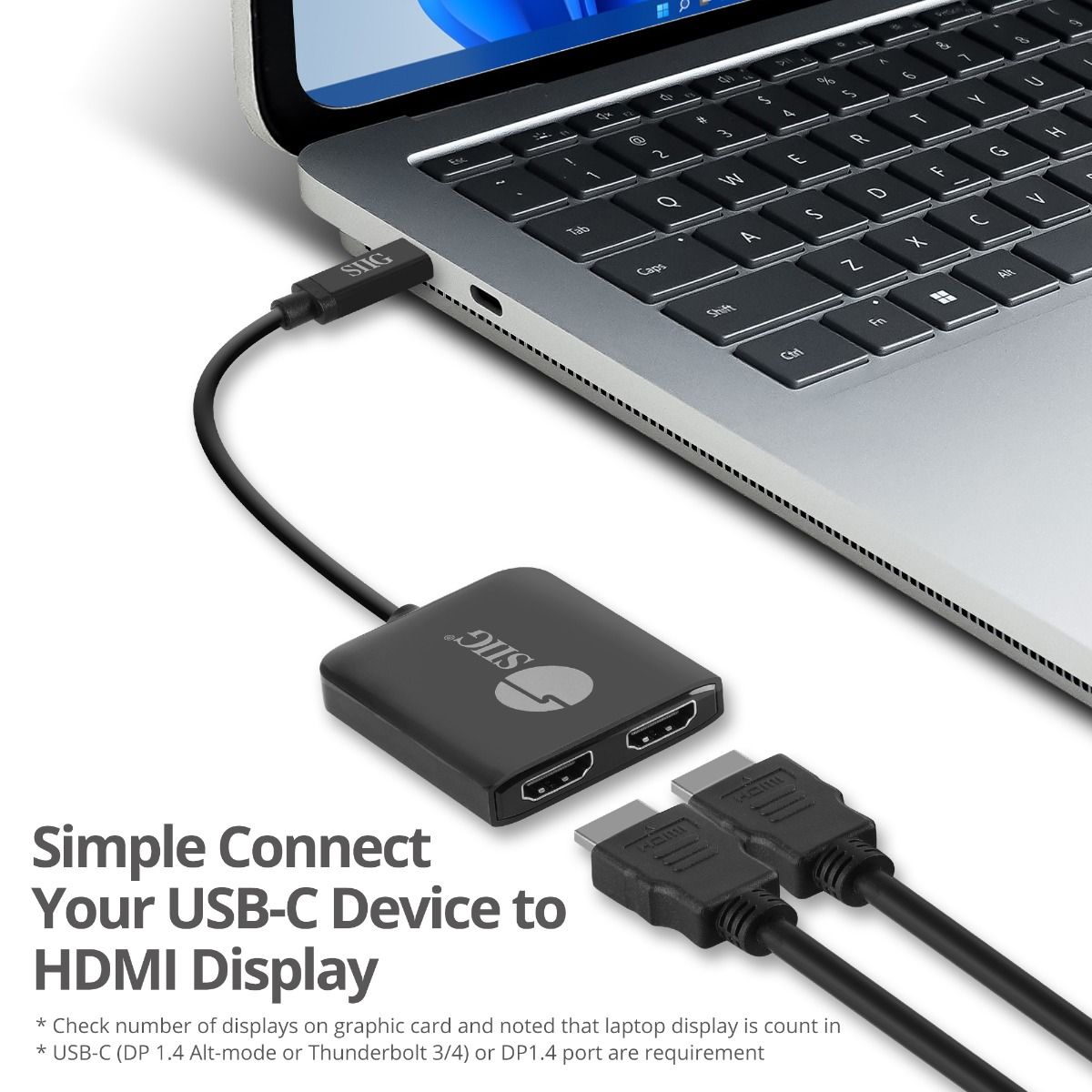

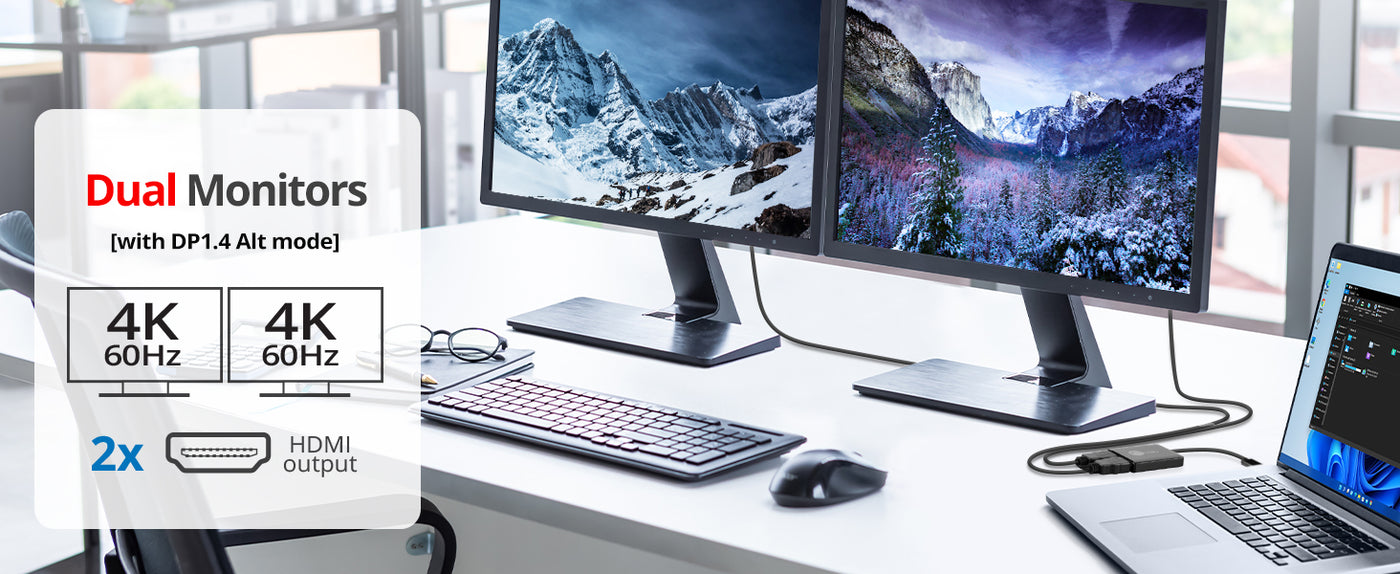

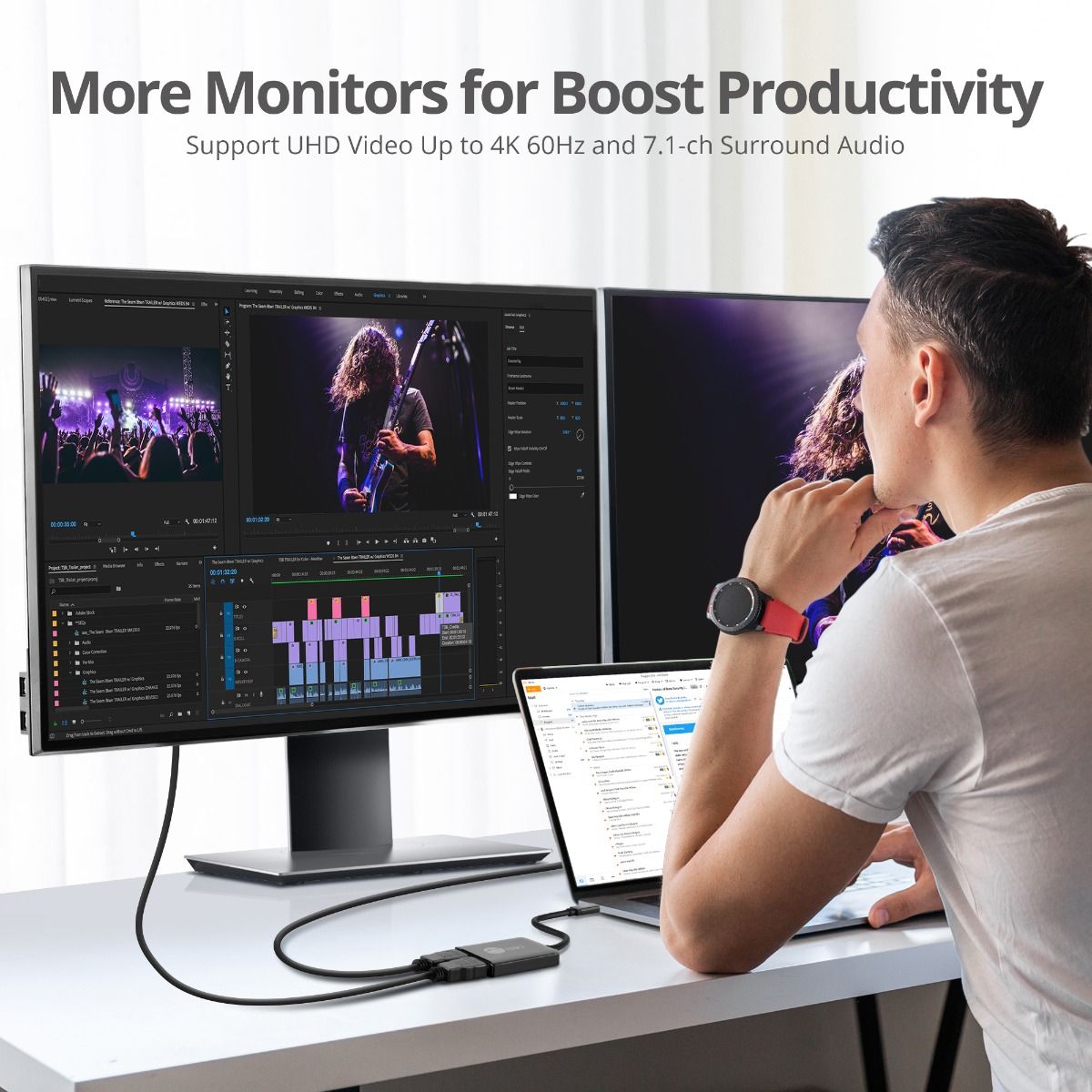

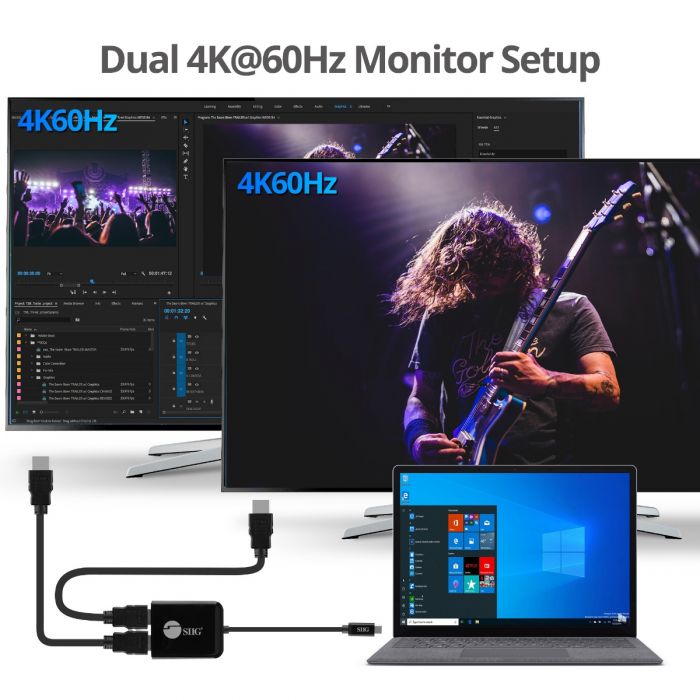

Splits a Single USB-C Output to 2 4K @60Hz HDMI Displays/Monitors with Multi-Stream Transport (MST) Technology to Boost Your Productivity

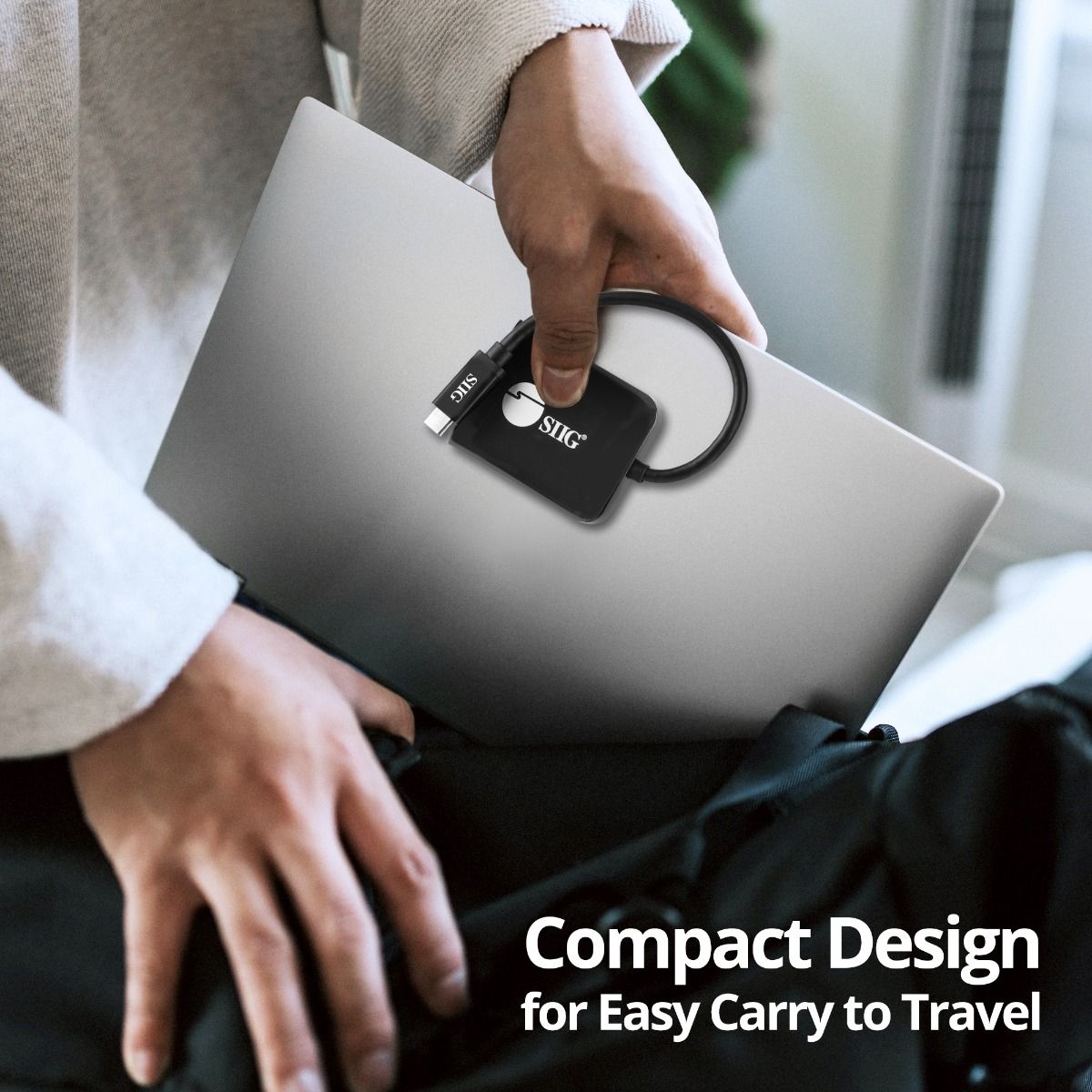

Easy to Carry On The Go or At the Workstation, Smooth ABS Housing with Heat Dissipation Design
| Facet | ||||
|---|---|---|---|---|
| SKU | ||||
| SKU | ||||
| Number of Displays | ||||
| Number of Displays | ||||
| Supported Resolution | ||||
| Supported Resolution | ||||
| SPEC | ||||
| SPEC | ||||
| Bandwidth | ||||
| Bandwidth | ||||
| Power | ||||
| Power | ||||
| Data Transfer Max | ||||
| Data Transfer Max | ||||
| Connection Port | ||||
| Connection Port | ||||
Read Before You Purchase
1.Make sure your device has a DisplayPort video output specification 1.2, and supports Multi Stream Transport (MST). If you are unsure, please check with the video card or system manufacture.
2.Install the latest drivers for your video card. Go directly to the system/video card manufacturer or chipset owner, such as AMD, Nvidia, or Intel, to find the latest driver. Driver update through Device Manager may not retrieve the latest driver available
3.Please check that you have HDMI ports on your 2 monitors and supports 4K@60Hz resolution. If you use a 4K monitor to display in 1080p, there is a possibility that the link still gets 4K bandwidth and reduces the overall bandwidth for the other displays
4.Adding additional displays to your system is simple with MST hub; however, they are mostly dependent on and tied to your Graphics Card's capability to operate properly and make sure your system requirements are met.
5.MST hub cannot increase the number of displays a video card supports. Regardless of the number of display connectors built into your graphics card, each graphics card has a limited number of displays it can support.
2.Install the latest drivers for your video card. Go directly to the system/video card manufacturer or chipset owner, such as AMD, Nvidia, or Intel, to find the latest driver. Driver update through Device Manager may not retrieve the latest driver available
3.Please check that you have HDMI ports on your 2 monitors and supports 4K@60Hz resolution. If you use a 4K monitor to display in 1080p, there is a possibility that the link still gets 4K bandwidth and reduces the overall bandwidth for the other displays
4.Adding additional displays to your system is simple with MST hub; however, they are mostly dependent on and tied to your Graphics Card's capability to operate properly and make sure your system requirements are met.
5.MST hub cannot increase the number of displays a video card supports. Regardless of the number of display connectors built into your graphics card, each graphics card has a limited number of displays it can support.
Adjust Screen Resolution Tutorial
Key Prerequisites for SIIG MST Hubs
| Chipset | RTD2142 + ITE6563 |
| Video | |
| HDMI | x2 |

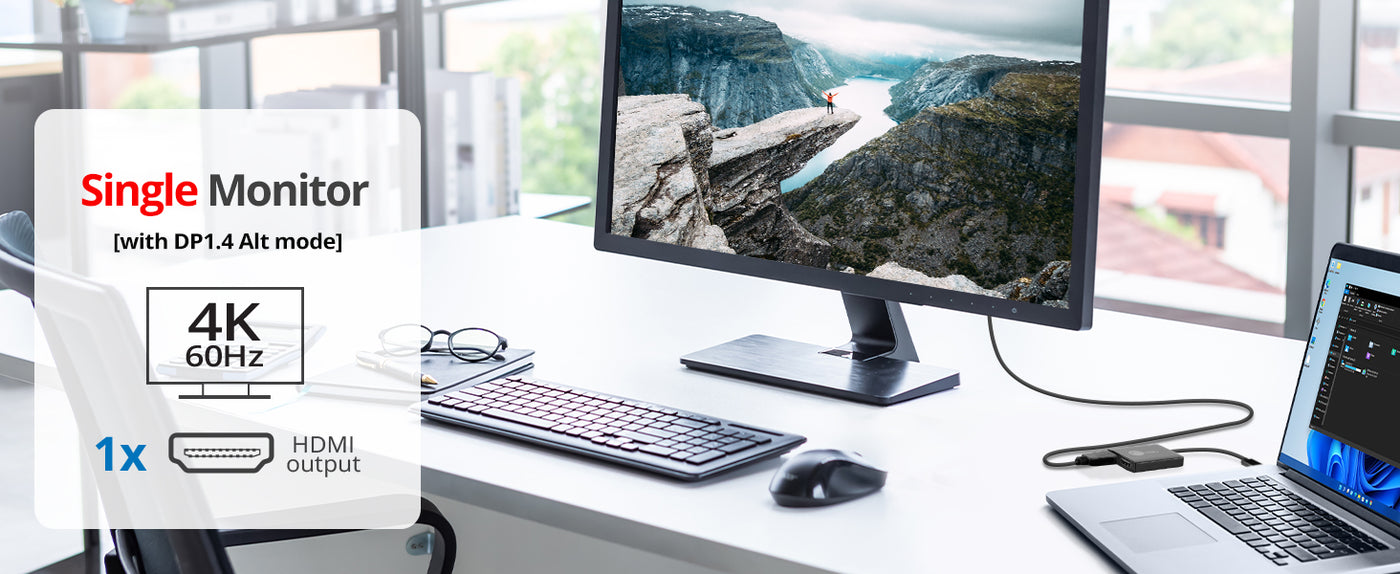

| Resolution | one screen and two screen up to 4K (3840x2160) @60Hz displays in DP 1.4 Alt mode *Note: DP 1.2 Alt mode: supports one screen up to 4K (3840x2160) @60Hz display and two screens up to 4K (3840x2160) @30Hz displays |

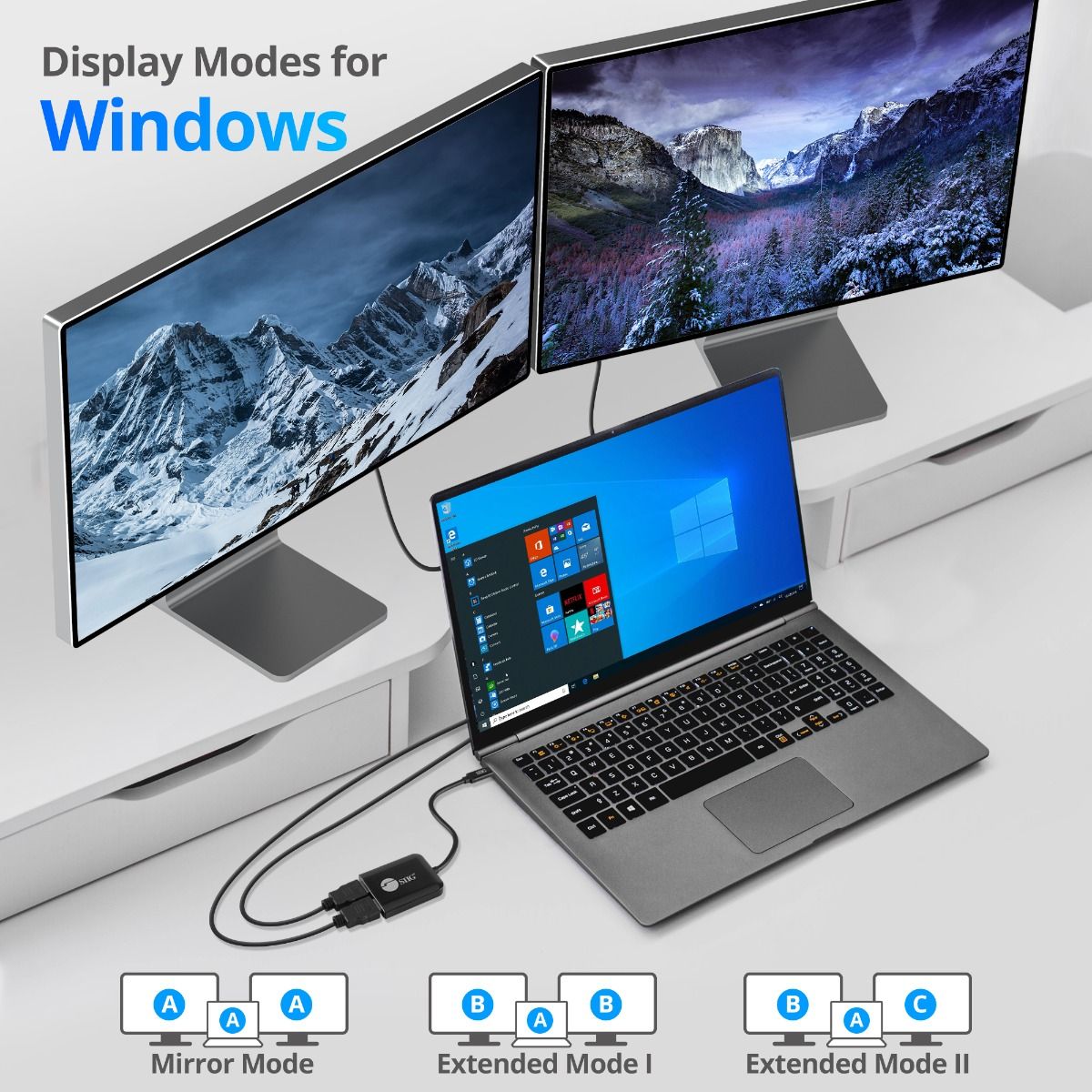

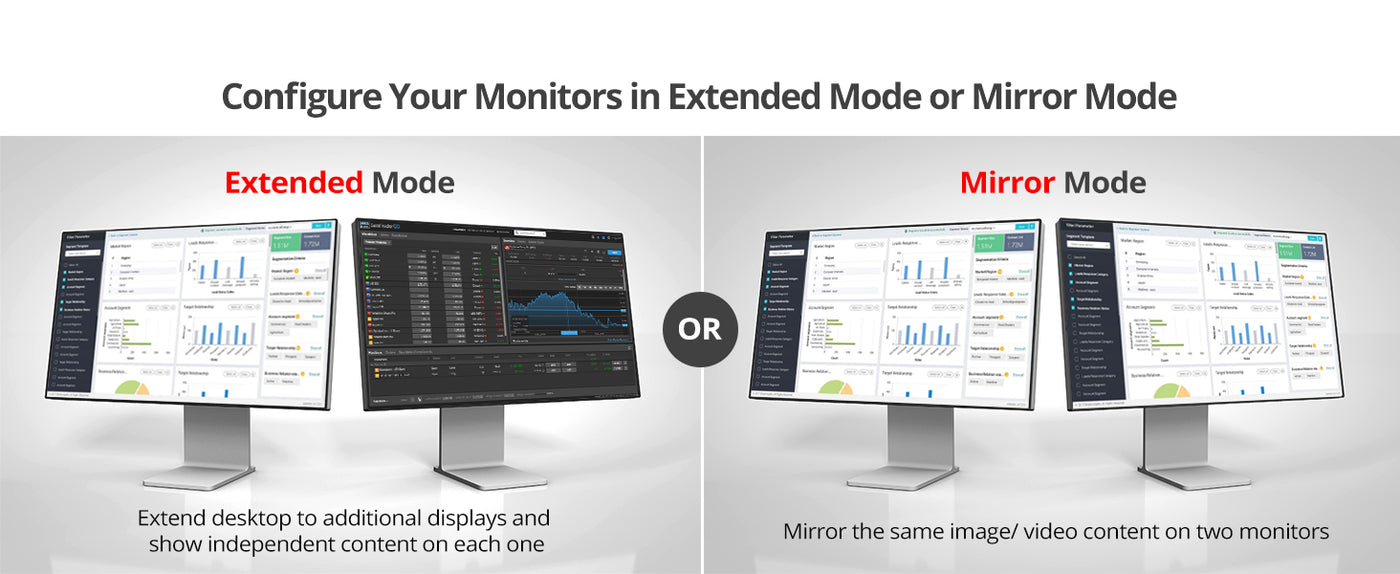

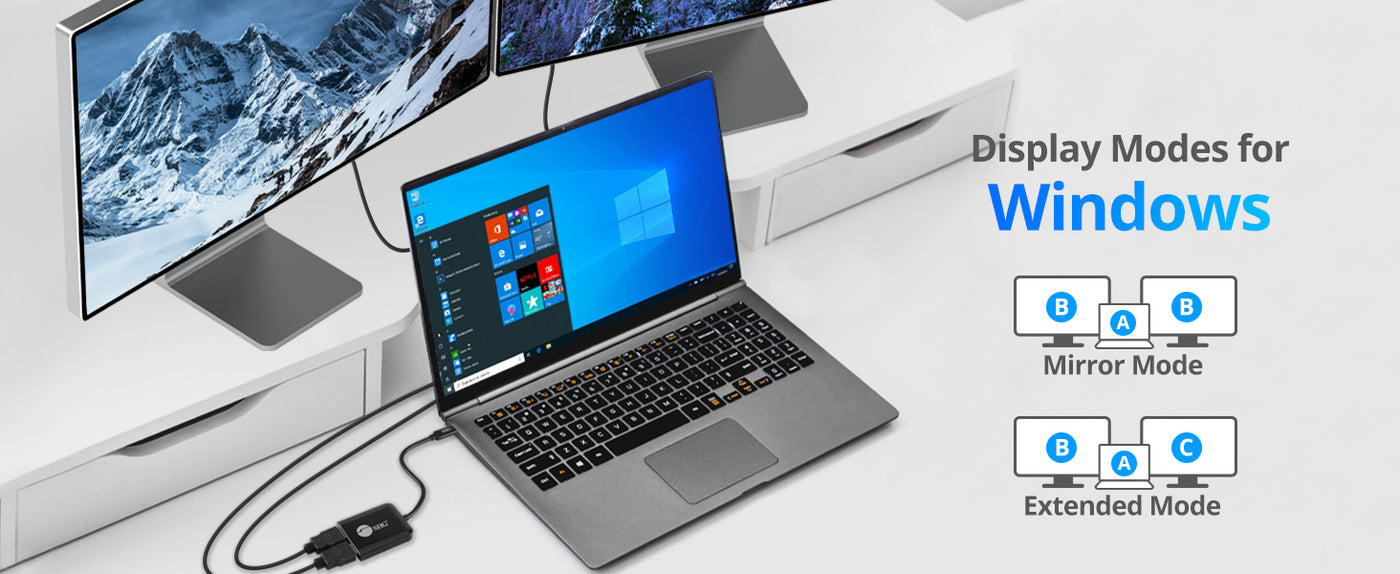

| Display Modes | 2 different display modes: Mirror mode and Extended mode |
| Audio | 7.1 channel surround sound supported from HDMI ports |
| Interface | |
| Input | 1x 24-pin, USB-C with DP 1.4 Alt mode, Male (Host) |
| Output | 2x 19-pin, HDMI, Female |
| Environmental Conditions | |
| Operating temperature | 32 to 122 degrees F |
| Storage temperature | 14 to 158 degrees F |
| Relative humidity | 5% to 90% RH (non-condensing) |
| System Requirements | - PC or Laptop with an available USB-C port that with DP 1.4 Alt mode or Thunderbolt 3/4 port - Windows® 11/10 |
| Product | |
| Dimensions (L) x (H) x (W) | 2.38" x 0.45" x 1.93" 6.05 cm x 1.14 cm x 4.90 cm |

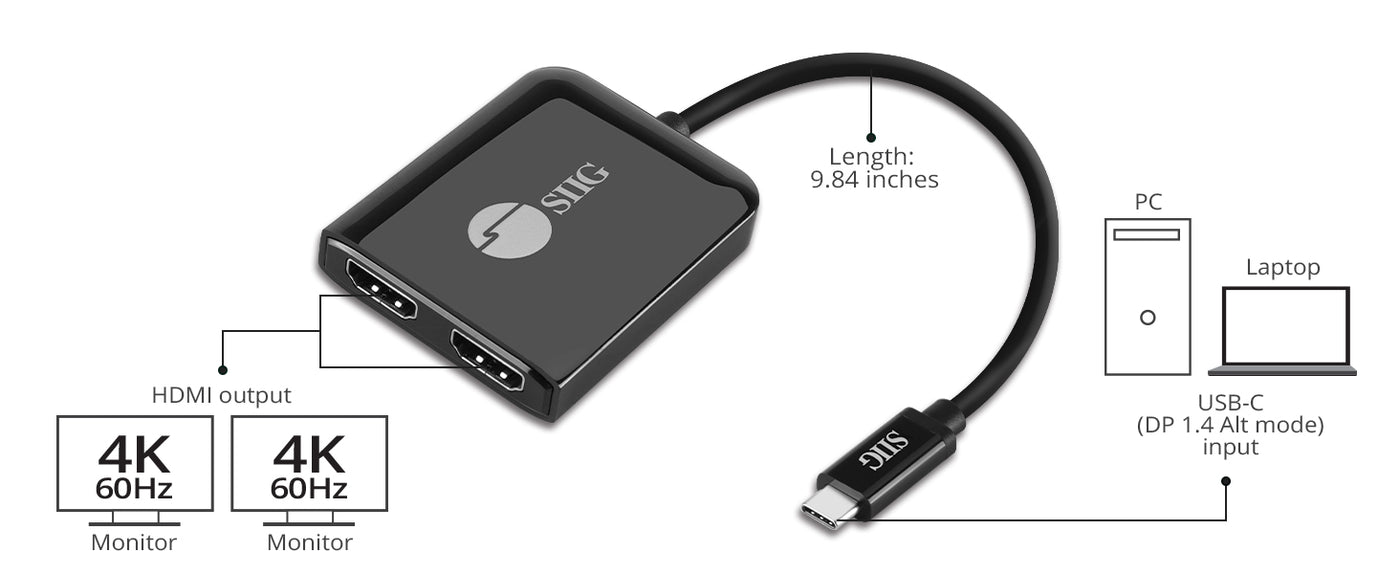

| USB-C cable (embedded) | 9.84 inches (250mm) |
| Weight | 0.11 lbs (0.05 kg) |
| Color | Black |
| Housing material | Plastic |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 6.30" x 0.45" x 9.37" 16.00 cm x 1.14 cm x 23.80 cm |
| Weight | 0.13 lbs (0.06 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 15.55" x 11.22" x 10.24" 39.50 cm x 28.50 cm x 26.00 cm |
| Weight | 14.82 lbs (6.72 kg) |
| Quantity | 100 pcs/ctn |
| Certifications/Standards | FCC, CE, RoHS 2.0, REACH |
| UPC Code | 662774-045467 |
| Warranty | 2 years limited |
| Country of Origin | China |

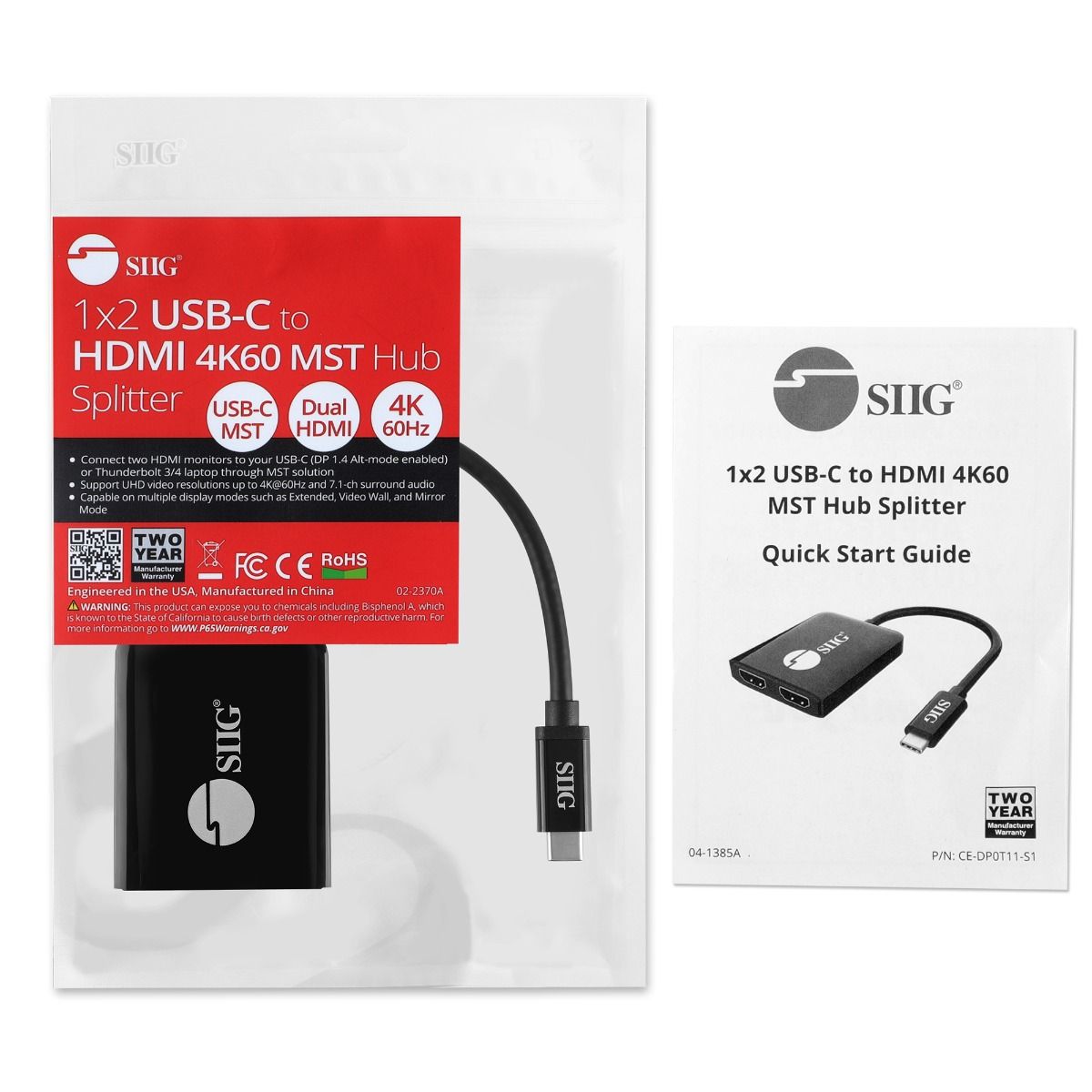

| Package Contents | 1x 1x2 USB-C to HDMI 4K60Hz MST Hub Splitter 1x User reference guide |
Q1: Does the MST Hub Splitter support 21:9 or 32:9 ultrawide resolution?
Q1: Does the MST Hub Splitter support 21:9 or 32:9 ultrawide resolution?
A1: All MST Hubs can support ultrawide resolutions like 21:9 or 32:9. However, our current examples use 16:9 resolution. It's important to note that 21:9 and 32:9 resolutions require a higher bandwidth compared to 16:9.
Since the total bandwidth of an MST Hub remains constant, the maximum supported resolution and number of connected monitors will vary depending on the bandwidth required by each monitor. For example, with a DP 1.2 connection, an MST Hub can support four 1080p monitors. if you use displays with a resolution of 2560x1080, the maximum number of supported monitors would decrease to three.
Upgrading to DP 1.4, which offers a higher bandwidth than DP 1.2, would allow the MST hub to support four monitors with a resolution of 2560x1080.
Since the total bandwidth of an MST Hub remains constant, the maximum supported resolution and number of connected monitors will vary depending on the bandwidth required by each monitor. For example, with a DP 1.2 connection, an MST Hub can support four 1080p monitors. if you use displays with a resolution of 2560x1080, the maximum number of supported monitors would decrease to three.
Upgrading to DP 1.4, which offers a higher bandwidth than DP 1.2, would allow the MST hub to support four monitors with a resolution of 2560x1080.
