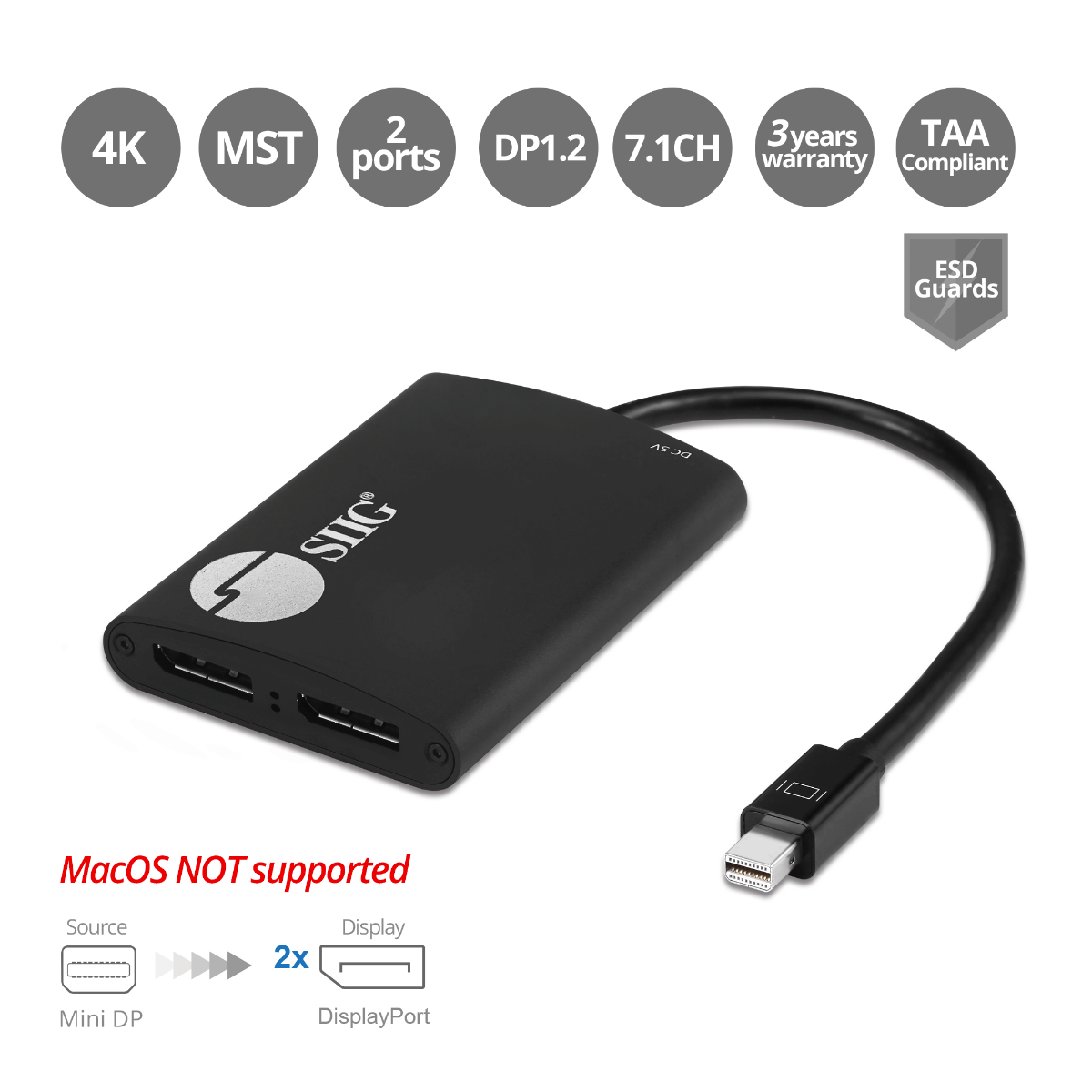

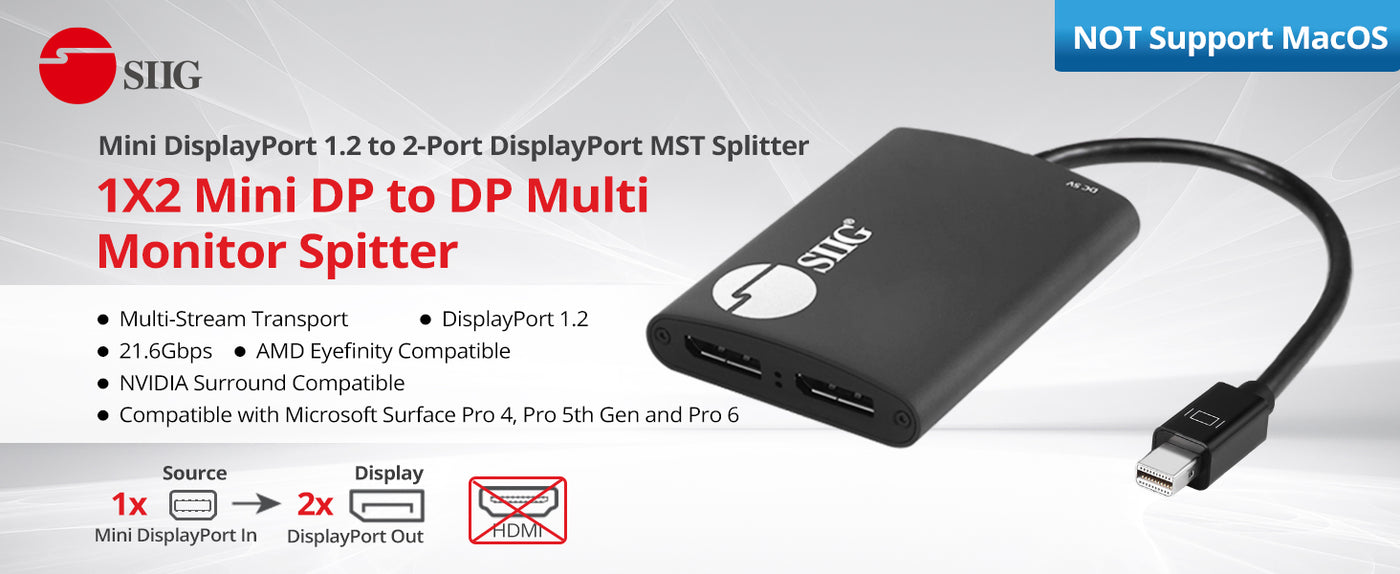

4K 1x2 Mini DisplayPort 1.2 to DisplayPort MST Splitter
Mini DP to DP
21.6Gbps
Dual Monitor
MST Splitter
TAA Compliant
Regular price
$89.99
Unit price
/
Unavailable
Shipping calculated at checkout.
4K 1x2 Mini DisplayPort 1.2 to DisplayPort MST Splitter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
2 DisplayPort Ports Not for HDMI
2 DisplayPort Ports Not for HDMI
Multiple Display Modes
Multiple Display Modes
High Performance
High Performance
Compatibility
Compatibility
4K 1x2 Mini DisplayPort 1.2 to DisplayPort MST Splitter
Estimated shipping by June 15, 2026
Regular price
$89.99
Unit price
/
Unavailable
-
45 Days Free Return
-
2 Years Warranty
-
Lifetime Technical Support
Overview

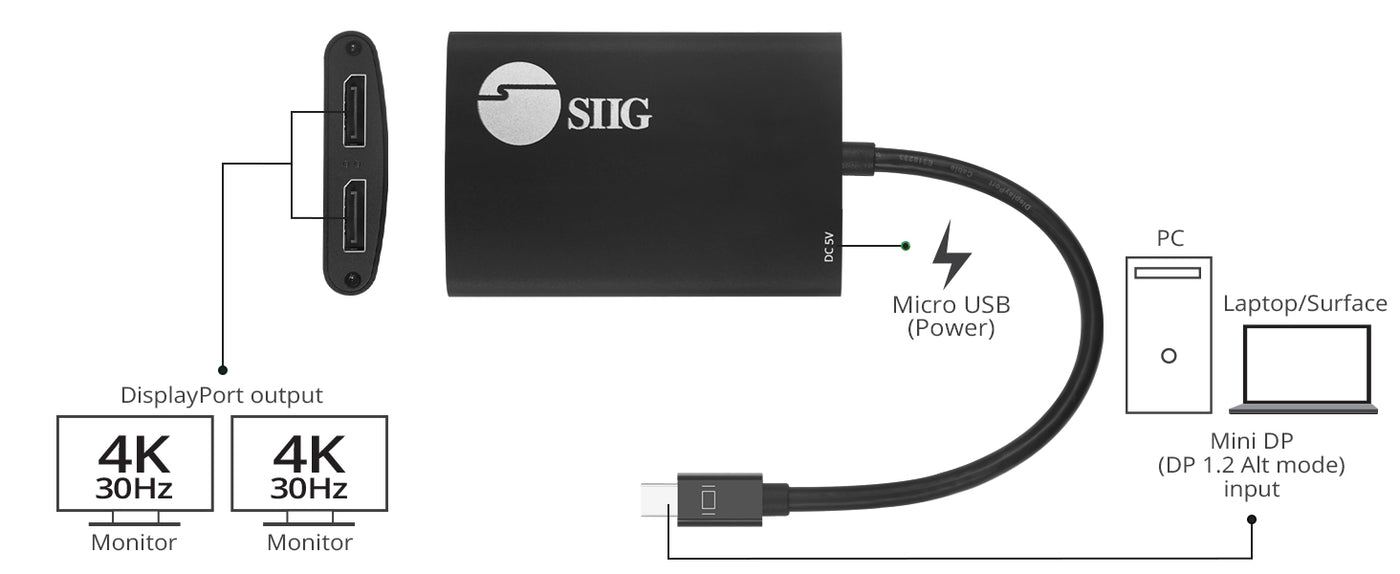

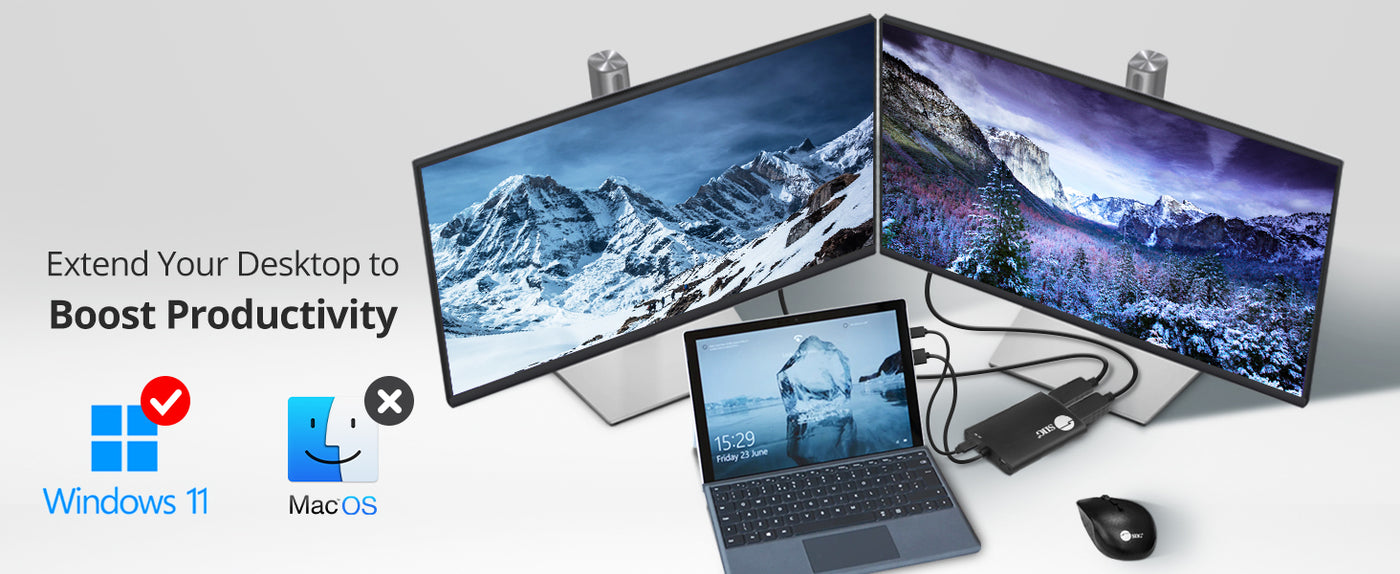

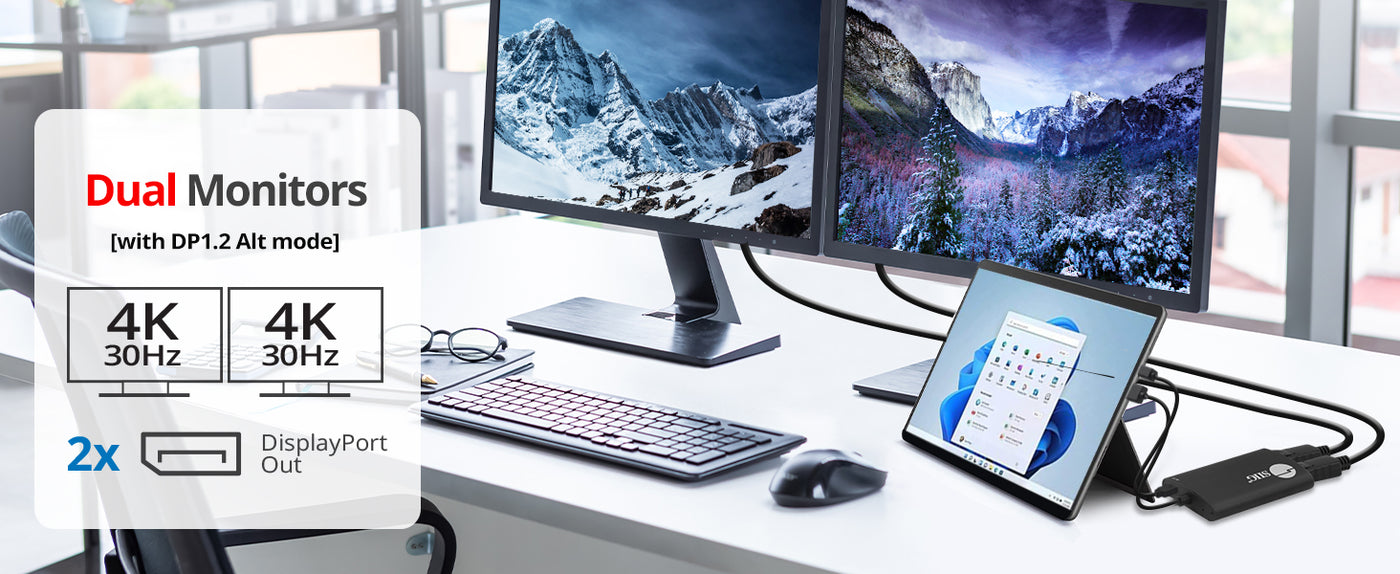

Allows you to connect 2 DisplayPort monitors to a single Mini DisplayPort 1.2 port with Multi-Stream Transport (MST) technology. Supports UHD video resolutions up to single 3840x2160 (4Kx2K) @60Hz display or Dual 3840x2160 (4Kx2K) @30Hz displays, TAA compliant
What is Multi Stream Transport (MST)?

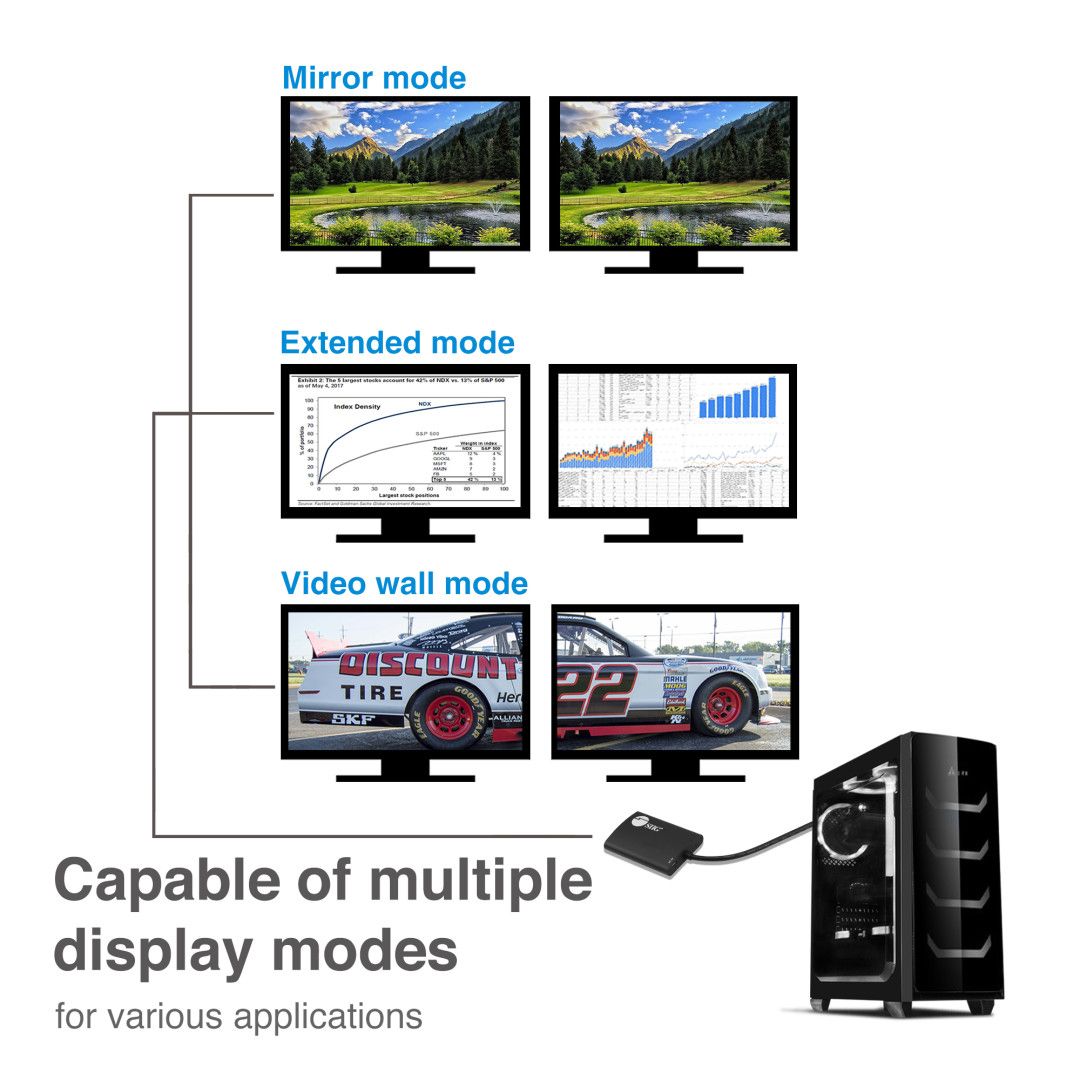

Enables the source system to send multiple independent Video Signals over a single DisplayPort 1.2 or Mini DisplayPort 1.2 output. An MST Splitter allows the use of three different modes for multi-monitor displays, such as Mirror mode same content on each display, Extended mode with individual content on each display, and Panoramic Video Wall mode which combines multiple monitors to use as one large display
1x2 Mini DP to DisplayPort Multi Monitor Splitter
Connect 2 Displays with 1 Mini DP Dable & Boost Productivity - no CPU Loss
| Facet | ||||
|---|---|---|---|---|
| SKU | ||||
| SKU | ||||
| Number of Displays | ||||
| Number of Displays | ||||
| Supported Resolution | ||||
| Supported Resolution | ||||
| SPEC | ||||
| SPEC | ||||
| Bandwidth | ||||
| Bandwidth | ||||
| Power | ||||
| Power | ||||
| Data Transfer Max | ||||
| Data Transfer Max | ||||
| Connection Port | ||||
| Connection Port | ||||
Key Prerequisites for SIIG MST Hubs
Adjust Screen Resolution Tutorial
Read Before You Purchase
1.Make sure your device has a DisplayPort video output specification 1.2, and supports MST. If you are unsure, please check with the video card or system manufacture.
* Note:
- Surface Pro 2, Surface Pro 3, Surface Pro 4 and Surface Book are compatible with our Mini DisplayPort 2-Port MST hub
- Surface products only support up to 3 displays total, including the Surface screen
- Microsoft Surface Dock is not compatible with the Mini DisplayPort MST Hub; connect the hub directly to the Surface device.
2.Install the latest drivers for your video card. Go directly to the system/video card manufacturer or chipset owner, such as AMD, Nvidia, or Intel, to find the latest driver. Driver update through Device Manager may not retrieve the latest driver available
3.If you use a 4K monitor to display in 1080p, there is a possibility that the link still gets 4K bandwidth and reduces the overall bandwidth for the other displays
4.Adding additional displays to your system is simple with MST hub; however, they are mostly dependent on and tied to your Graphics Card's capability to operate properly and make sure your system requirements are met.
5.MST hub doesn’t increase display count; limited by your GPU (AMD/NVIDIA up to 4, Intel up to 3).
* Note:
- Surface Pro 2, Surface Pro 3, Surface Pro 4 and Surface Book are compatible with our Mini DisplayPort 2-Port MST hub
- Surface products only support up to 3 displays total, including the Surface screen
- Microsoft Surface Dock is not compatible with the Mini DisplayPort MST Hub; connect the hub directly to the Surface device.
2.Install the latest drivers for your video card. Go directly to the system/video card manufacturer or chipset owner, such as AMD, Nvidia, or Intel, to find the latest driver. Driver update through Device Manager may not retrieve the latest driver available
3.If you use a 4K monitor to display in 1080p, there is a possibility that the link still gets 4K bandwidth and reduces the overall bandwidth for the other displays
4.Adding additional displays to your system is simple with MST hub; however, they are mostly dependent on and tied to your Graphics Card's capability to operate properly and make sure your system requirements are met.
5.MST hub doesn’t increase display count; limited by your GPU (AMD/NVIDIA up to 4, Intel up to 3).
| Chipset | STDP4320 |
| Video | |

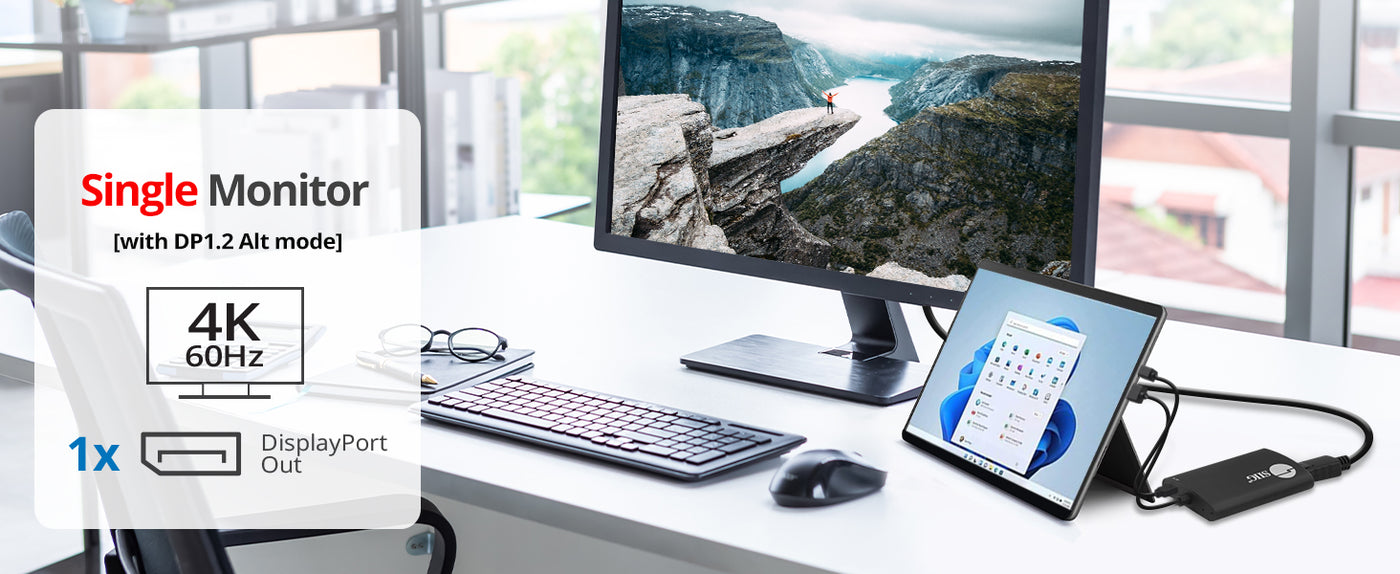

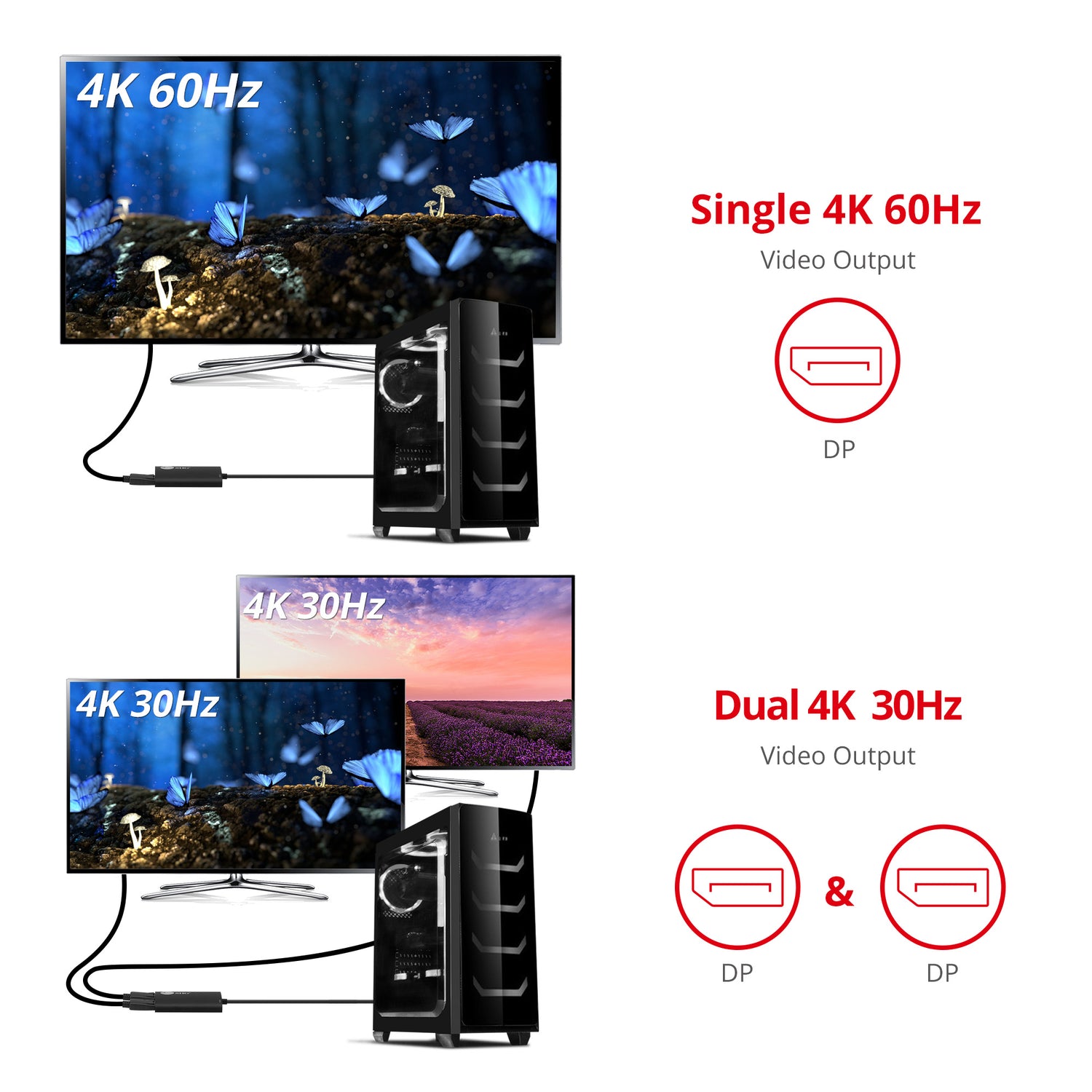

| Resolution | one screen up to 3840x2160@60Hz; two screens up to 3840x2160@30Hz |
| Bandwidth | Total available bandwidth 21.6Gbps for 3840x2160 @60Hz (100%), 3840x2160 @30Hz (40%), 2560x1600 @60Hz (38%), 2560x1440 @60Hz (35%), 1920x1200 @60Hz (30%), 1920x1080 @60Hz (22%) * Note: Make sure the total combined resolution bandwidth among all displays do NOT exceed 100% |

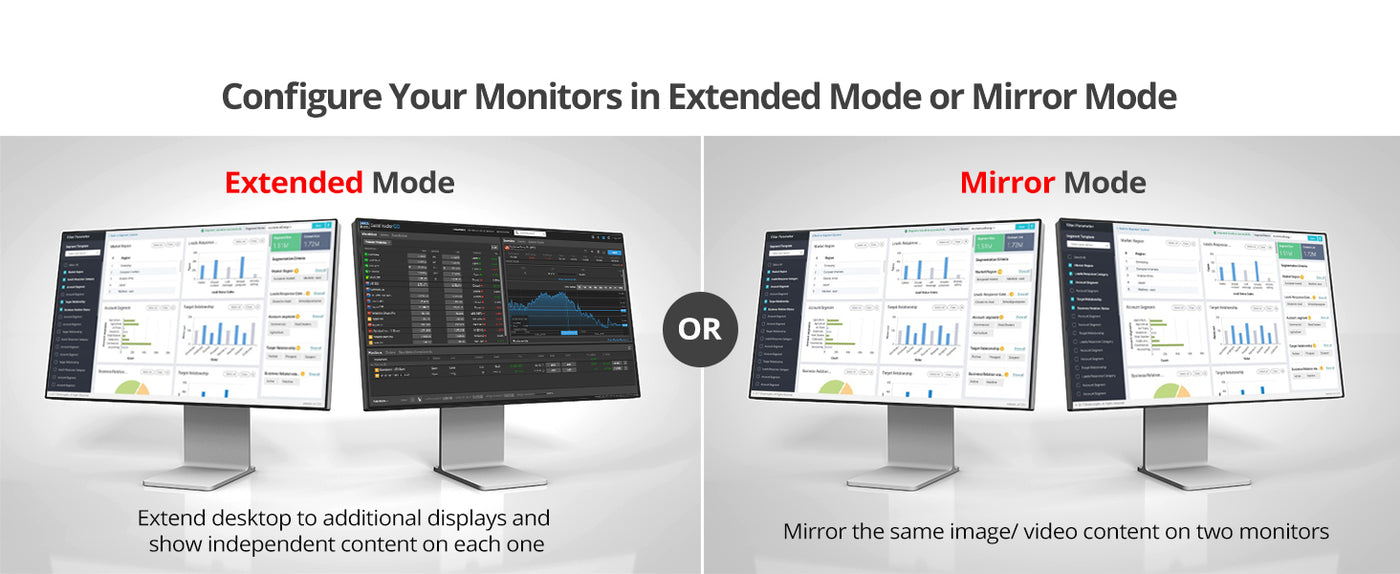

| Display Modes | 3 different display modes: Mirror mode, Extended mode, and Panoramic Video Wall mode * Note: AMD Eyefinity, NVIDIA Surround, or Intel Collage technology graphics adapter is required to support Panoramic Video Wall mode |
| Audio | 7.1 channel surround sound, up to 192KHz sampling rate |
| Environmental Conditions | |
| Operating temperature | 32 to 122 degrees F |
| Storage temperature | 14 to 158 degrees F |
| Relative humidity | 5% to 90% RH (non-condensing) |
| System Requirements | - Desktop or Laptop with available DisplayPort 1.2 port - Windows® 11 /10 - Note: Supports Surface Pro 2, Surface Pro 3, Surface Pro 4 and Surface Book - Note2: Surface products only support up to 3 displays total, including the Surface screen. |
| Product | |

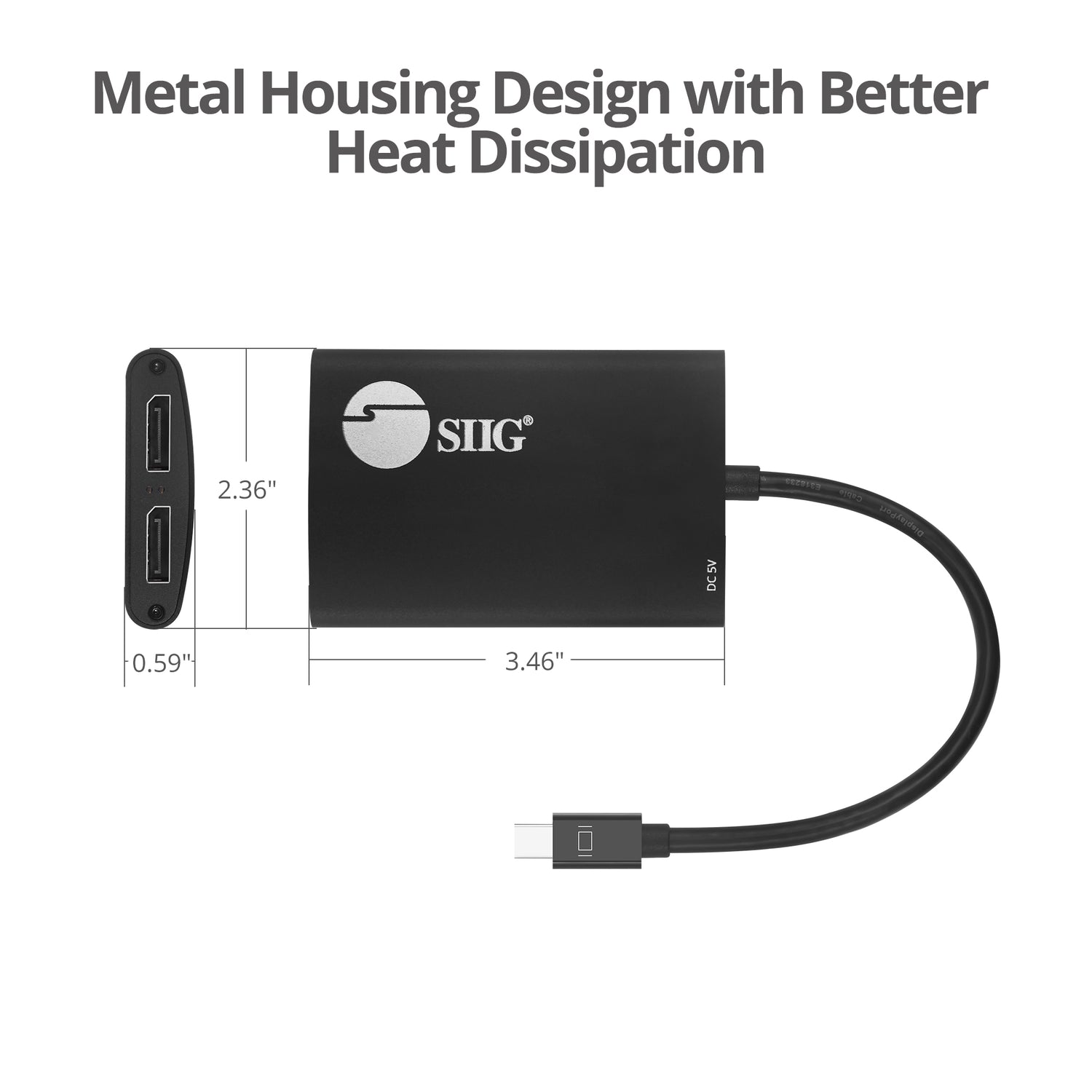

| Dimensions (L) x (H) x (W) | 3.46" x 0.59" x 2.36" 8.80 cm x 1.50 cm x 6.00 cm |
| DisplayPort cable (embedded) | 9.45 inches |
| Weight | 0.20 lbs (0.09 kg) |
| Housing | Aluminum |
| Color | Black |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 6.30" x 0.59" x 9.37" 16.00 cm x 1.50 cm x 23.80 cm |
| Weight | 0.26 lbs (0.12 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 21.06" x 12.60" x 19.49" 53.50 cm x 32.00 cm x 49.50 cm |
| Weight | 28.40 lbs (12.88 kg) |
| Quantity | 100 pcs/ctn |
| Certifications & Standards | FCC, CE, RoHS, TAA compliant |
| UPC Code | 662774-043296 |
| Warranty | 3 years limited |
| Country of Origin | Taiwan |

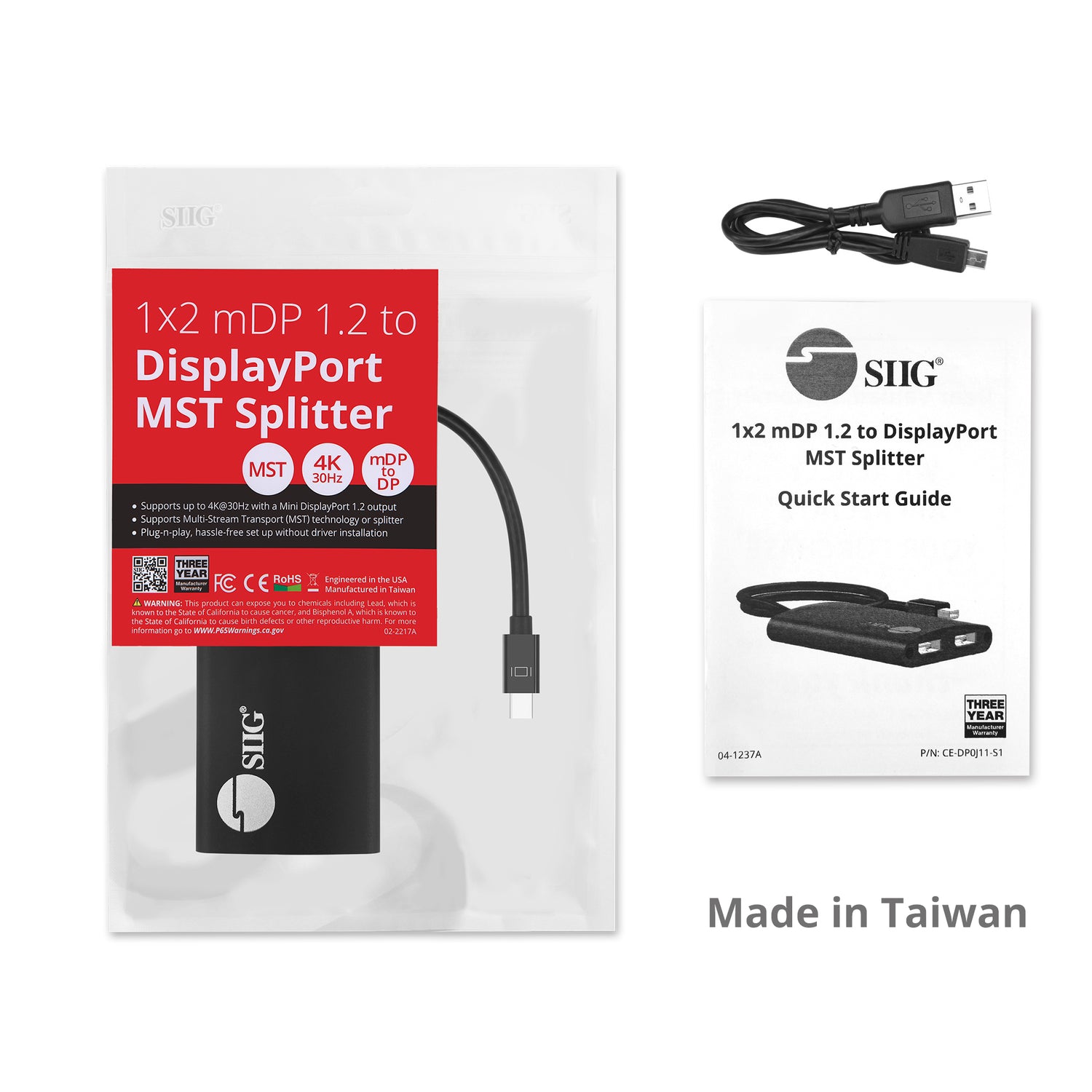

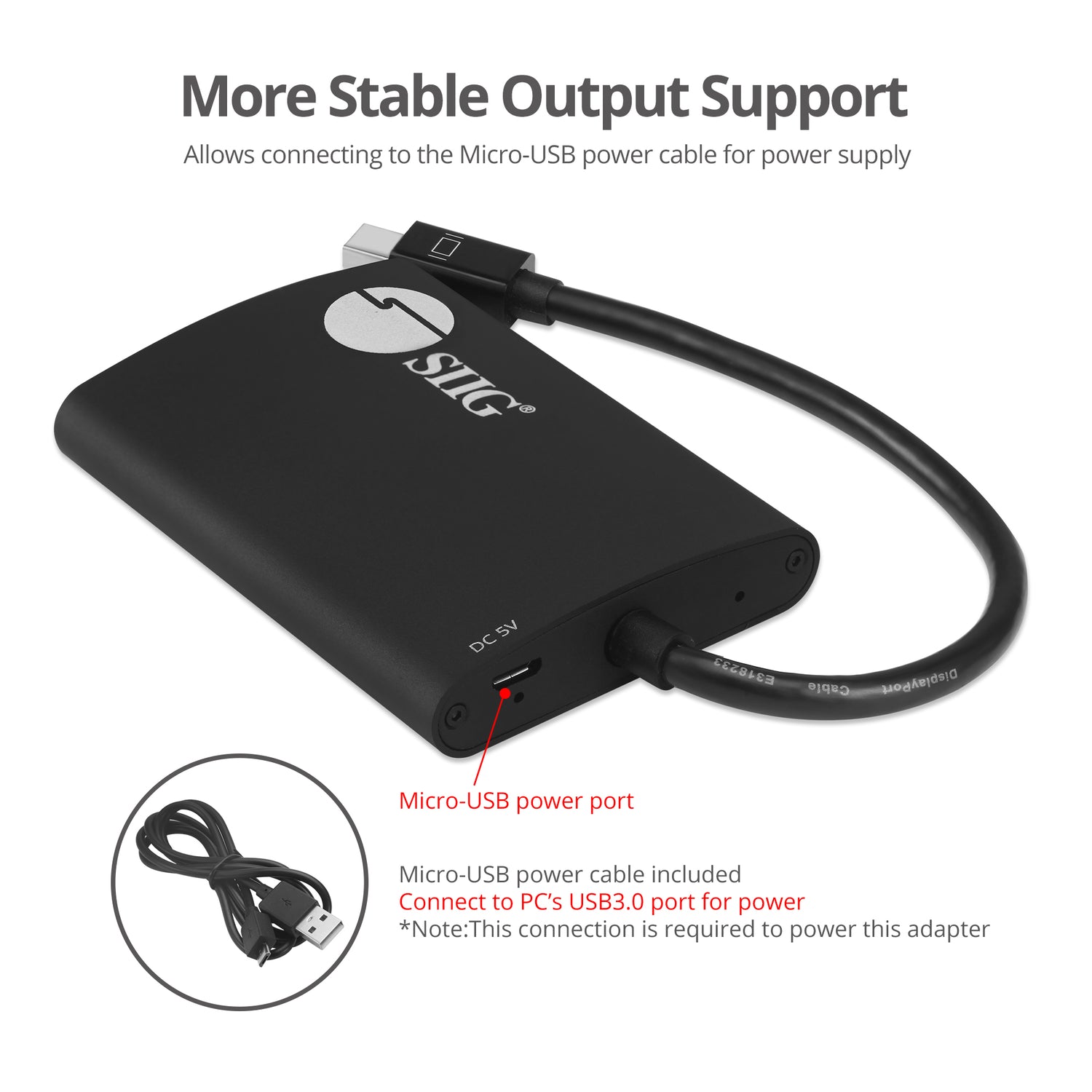

| Package Contents | 1x 1x2 mDP 1.2 to DisplayPort MST Splitter 1x Micro-USB Power Cable (19 inches) 1x User reference guide |
Q1: Can I use this to connect a 3rd monitor to my AIO (All-in-One PC)?
Q1: Can I use this to connect a 3rd monitor to my AIO (All-in-One PC)?
A1: Yes, it can connect to an All-in-one PC, but, please refer to our notes before buying, there are some limits need to know.
Q2: Does the MST Hub Splitter support 21:9 or 32:9 ultrawide resolution?
Q2: Does the MST Hub Splitter support 21:9 or 32:9 ultrawide resolution?
A2: All MST Hubs can support ultrawide resolutions like 21:9 or 32:9. However, our current examples use 16:9 resolution. It's important to note that 21:9 and 32:9 resolutions require a higher bandwidth compared to 16:9.
Since the total bandwidth of an MST Hub remains constant, the maximum supported resolution and number of connected monitors will vary depending on the bandwidth required by each monitor. For example, with a DP 1.2 connection, an MST Hub can support four 1080p monitors. if you use displays with a resolution of 2560x1080, the maximum number of supported monitors would decrease to three.
Upgrading to DP 1.4, which offers a higher bandwidth than DP 1.2, would allow the MST hub to support four monitors with a resolution of 2560x1080.
Since the total bandwidth of an MST Hub remains constant, the maximum supported resolution and number of connected monitors will vary depending on the bandwidth required by each monitor. For example, with a DP 1.2 connection, an MST Hub can support four 1080p monitors. if you use displays with a resolution of 2560x1080, the maximum number of supported monitors would decrease to three.
Upgrading to DP 1.4, which offers a higher bandwidth than DP 1.2, would allow the MST hub to support four monitors with a resolution of 2560x1080.
