AV over IP

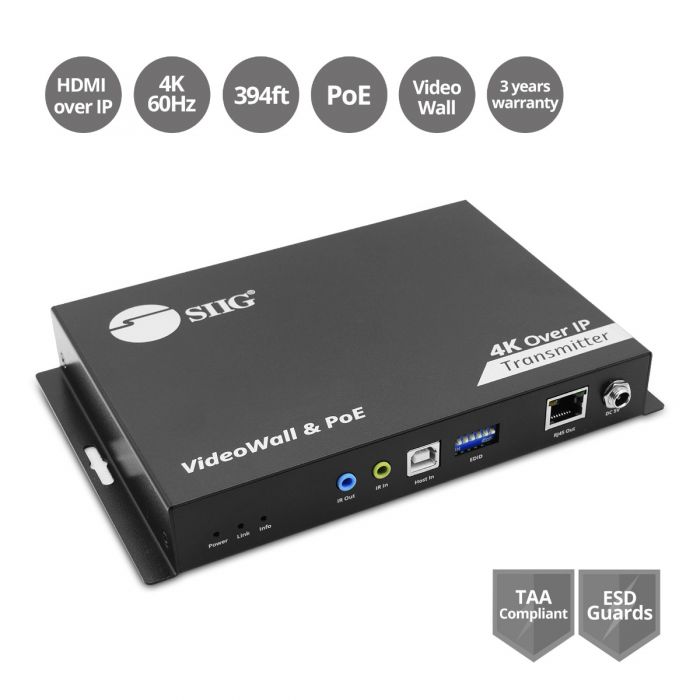

| Part No. | CE-H26411-S1 | CE-H26511-S1 | CE-H26T11-S1 | CE-H26U11-S1 | CE-H25D11-S2 | CE-H25E11-S2 | CE-H23A11-S2 | CE-H23B11-S2 | CE-H23C11-S2 | CE-H26W11-S1 | CE-H26V11-S1 | CE-H28A11-S1 | CE-H27F11-S1 | CE-H27G11-S1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |  |  |  |  |  |  |  |  |  |  |  |  |  |  |
| Input x Output | TX | RX | 1 x 1 | RX | 1 x 1 | RX | 1 x 1 | TX | RX | 1 x 8 | 1 x 4 | 1 x 1 | TX | RX |
| Product Protocol | Over IP | Over IP | HDbitT | HDbitT | HDbitT | HDbitT | HDbitT | HDbitT | HDbitT | HDbitT | HDbitT | AV Over IP | AV Over IP | AV Over IP |
| Transmission Range | 100m (330ft) 1080p@60Hz |
100m (330ft) 1080p@60Hz |
120m (394ft) 1080 @60Hz |
120m (394ft) 1080 @60Hz |
120m (394ft) 4K @30Hz |
120m (394ft) 4K @30Hz |
120m (394ft) 1080p @60Hz |
120m (394ft) 1080p @60Hz |
120m (394ft) 1080p @60Hz |
120m (394ft) 1080p@60Hz |
120m (394ft) 1080p@60Hz |
100m (330ft) 4K @60Hz |
100m (330ft) 4K @60Hz |
100m (330ft) 4K @60Hz |
| Resolution/HDR | 1080p @60Hz | 1080p @60Hz | 1080p @60Hz | 1080p @60Hz | 4K @30Hz | 4K @30Hz | 1080p @60Hz | 1080p @60Hz | 1080p @60Hz | 1080p @60Hz | 1080p @60Hz | 4K @60Hz HDR | 4K @60Hz HDR | 4K @60Hz HDR |
| HDMI/HDCP | 1.3 / 1.2 | 1.3 / 1.2 | 1.3 / 1.2 | 1.3 / 1.2 | 1.4 / 2.2 | 1.4 / 2.2 | 1.3 / 1.4 | 1.3 / 1.4 | 1.3 / 1.4 | 1.3 / 1.2 | 1.3 / 1.2 | 2.0 / 2.2 | 2.0 / 2.2 | 2.0 / 2.2 |
| HDMI Loopout | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✓ | ✓ | ✗ | ✓ | ✓ | ✗ | ✗ | ✗ |
| Power Over Cable (PoC) | PoE | PoE | - | - | - | - | - | - | - | - | - | PoE | PoE | PoE |
| RS-232 | ✓ | ✓ | ✗ | ✗ | ✗ | ✗ | ✓ | ✓ | ✓ | ✗ | ✗ | ✓ | ✓ | ✓ |
| USB | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✓ | ✓ | ✓ |
| EDID Management | - | - | - | - | - | - | - | - | - | - | - | Software | Software | Software |
| IR | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Part# | CE-H26411-S1 | CE-H26511-S1 | CE-H26T11-S1 | CE-H26U11-S1 | CE-H25D11-S1 | CE-H25E11-S1 | CE-H23A11-S2 | CE-H23B11-S2 | CE-H23C11-S2 | CE-H26W11-S1 | CE-H26V11-S1 | CE-H28A11-S1 | CE-H27F11-S1 | CE-H27G11-S1 |
| Cascade | Many to Many | Many to Many | 1 to Many | 1 to Many | 1 to Many | 1 to Many | Many to Many | Many to Many | Many to Many | 1 to Many | 1 to Many | Many to Many | Many to Many | Many to Many |
| Units | TX: up to 64 | RX: up to 255 | Total: 256 | Total: 256 RX: up to 255 |
RX: up to 255 | RX: up to 255 | Total: 256 RX: up to 100 |
TX: up to 100 | RX: up to 255 | RX: up to 255 | RX: up to 255 | Total: 65,536 TX: up to 1,023 |
Total: 65,536 TX: up to 1,023 |
Total: 65,536 TX: up to 1,023 |
| Audio extractor | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✓ | ✓ | ✓ |
| Support Network Switch | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| COO | Taiwan | Taiwan | China | China | China | China | China | China | China | China | China | Taiwan | Taiwan | Taiwan |
