SKU:
CE-H26P11-S1
Wireless USB-C Video Hub Extender 1080p
Wireless Extender
32ft (10m)
10.2Gbps
1080p 60Hz
SD / Micro SD Card Reader
Regular price
$219.99
Unit price
/
Unavailable
Shipping calculated at checkout.
Wireless USB-C Video Hub Extender 1080p is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features

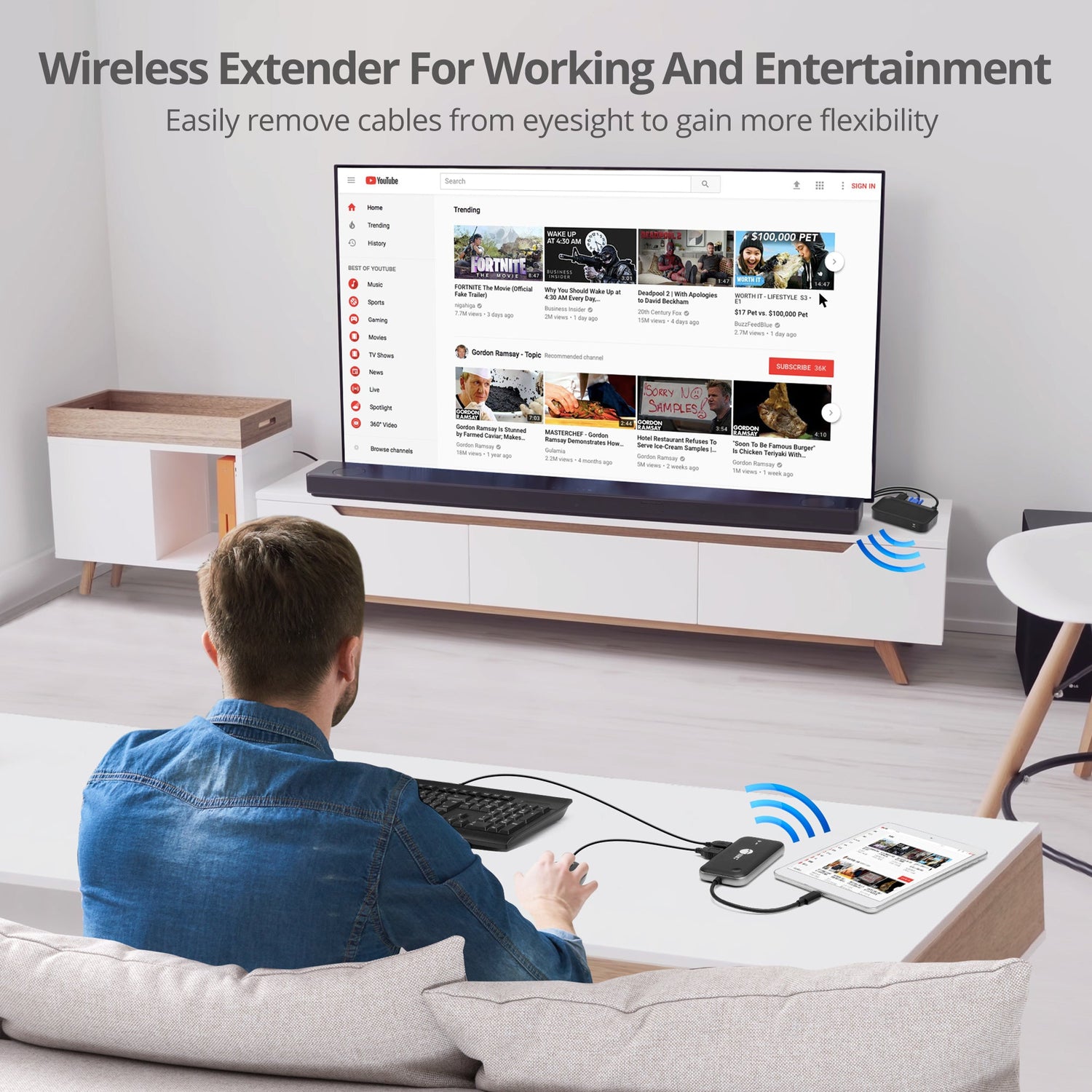

Wireless HDMI Transmission
Wireless HDMI Transmission

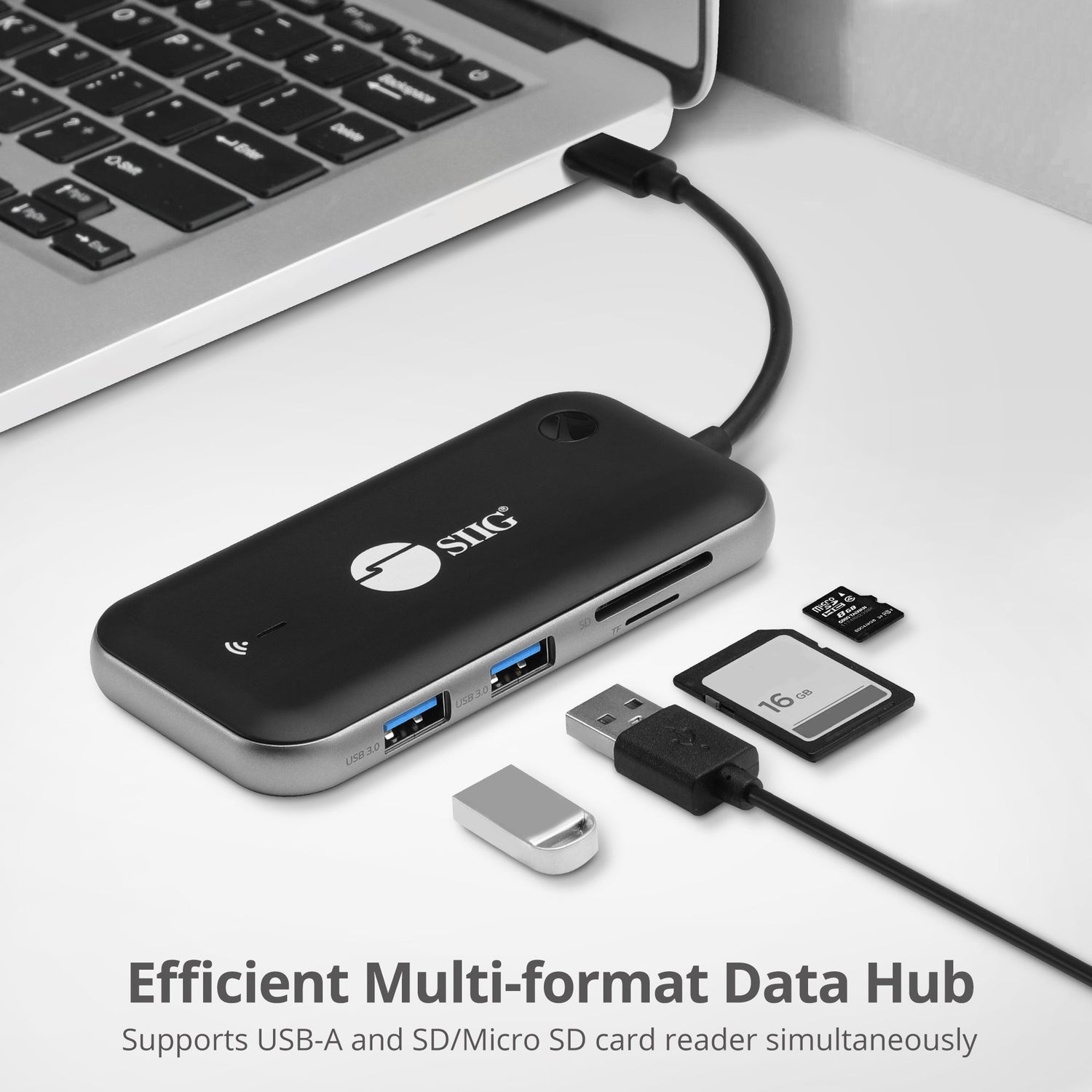

USB Ports Addition
USB Ports Addition
Video Signal Configuration
Video Signal Configuration
Compatibility
Compatibility
Video Output Requirements
Video Output Requirements
SIIG 1080p Wireless USB-C Video Hub Extender

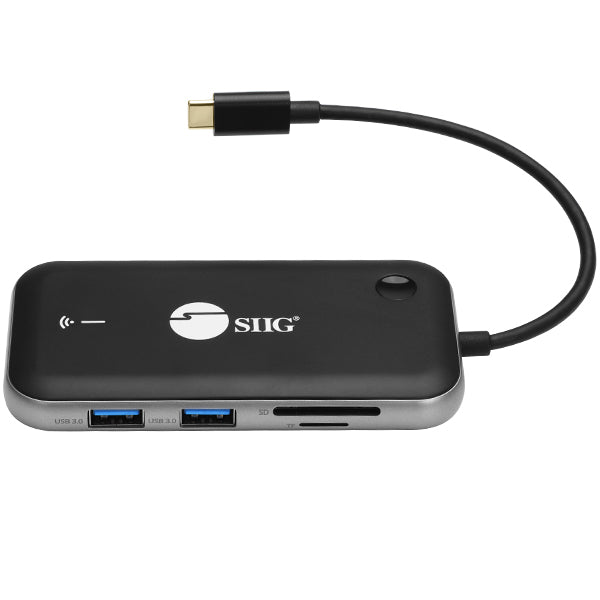

Transmitts HDMI/VGA signals wirelessly up to 32ft, adds 2 USB 3.1 ports, a SD and a MicroSD slot to USB-C DP Alt or Thunderbolt 3 technology enabled computers.
Wireless USB-C Multiport Docking Extension

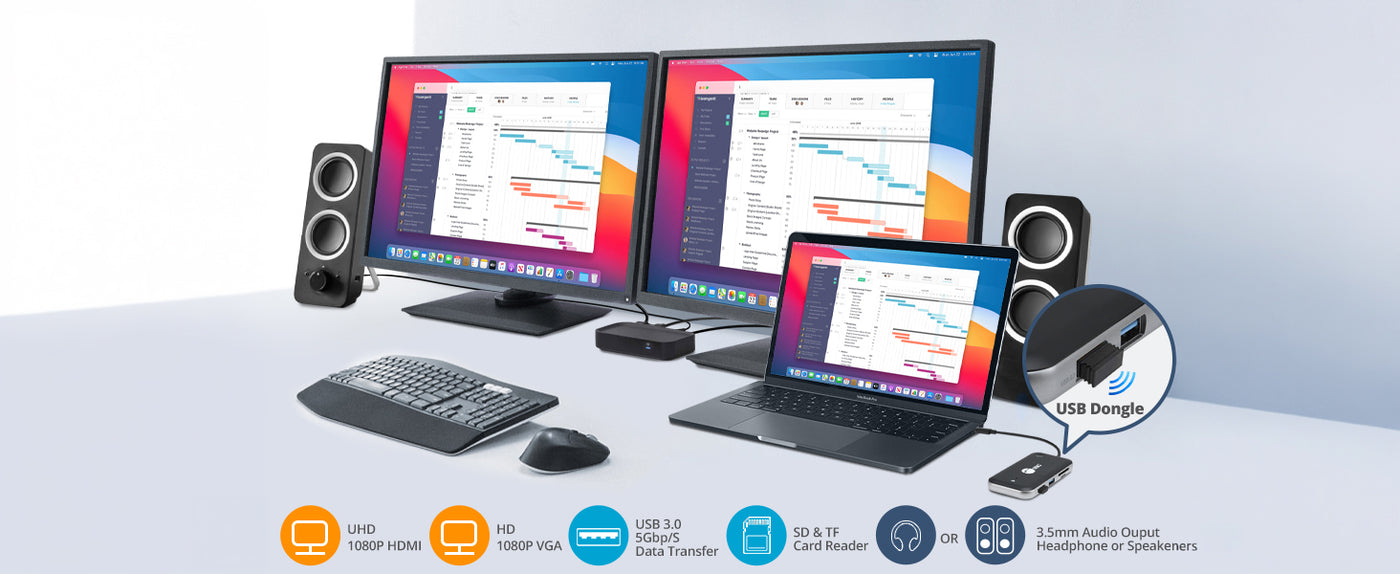

Reliably extend multiple connection ports (such as HDMI, VGA, USB 3.1, and SD/ Micro SD) to your USB-C computer (with DisplayPort Alt mode or Thunderbolt 3) through 20-second automatic pairing wireless technology, and the transmission distance is up to 32 feet (10M) full HD 1080p resolution. The idea for home, office, or on-the-go.
*Note: - Video signal auto-pairing for extended or mirrored screen configuration between the USB-C source device.
- The transmission distance will vary depending on building layout, electronic interference, walls and partitions, other environmental conditions, and may be much less than the maximum.
*Note: - Video signal auto-pairing for extended or mirrored screen configuration between the USB-C source device.
- The transmission distance will vary depending on building layout, electronic interference, walls and partitions, other environmental conditions, and may be much less than the maximum.
-

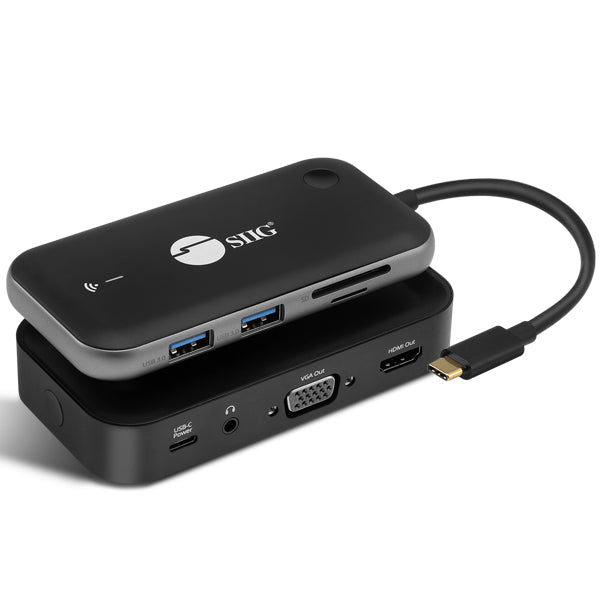

Unique Sleek Design
Unique design to match your desk setup beautifully. The stackable, magnetic receiver lets you dock the transmitter while on-the-go. -
Easy Setup One Five Ten
Super easy setup with the function key
- One click - Stop/ Resume video transmission
- Press 5 Secs - Enable pairing with the receiver
- Press 10 Secs - Reset default -

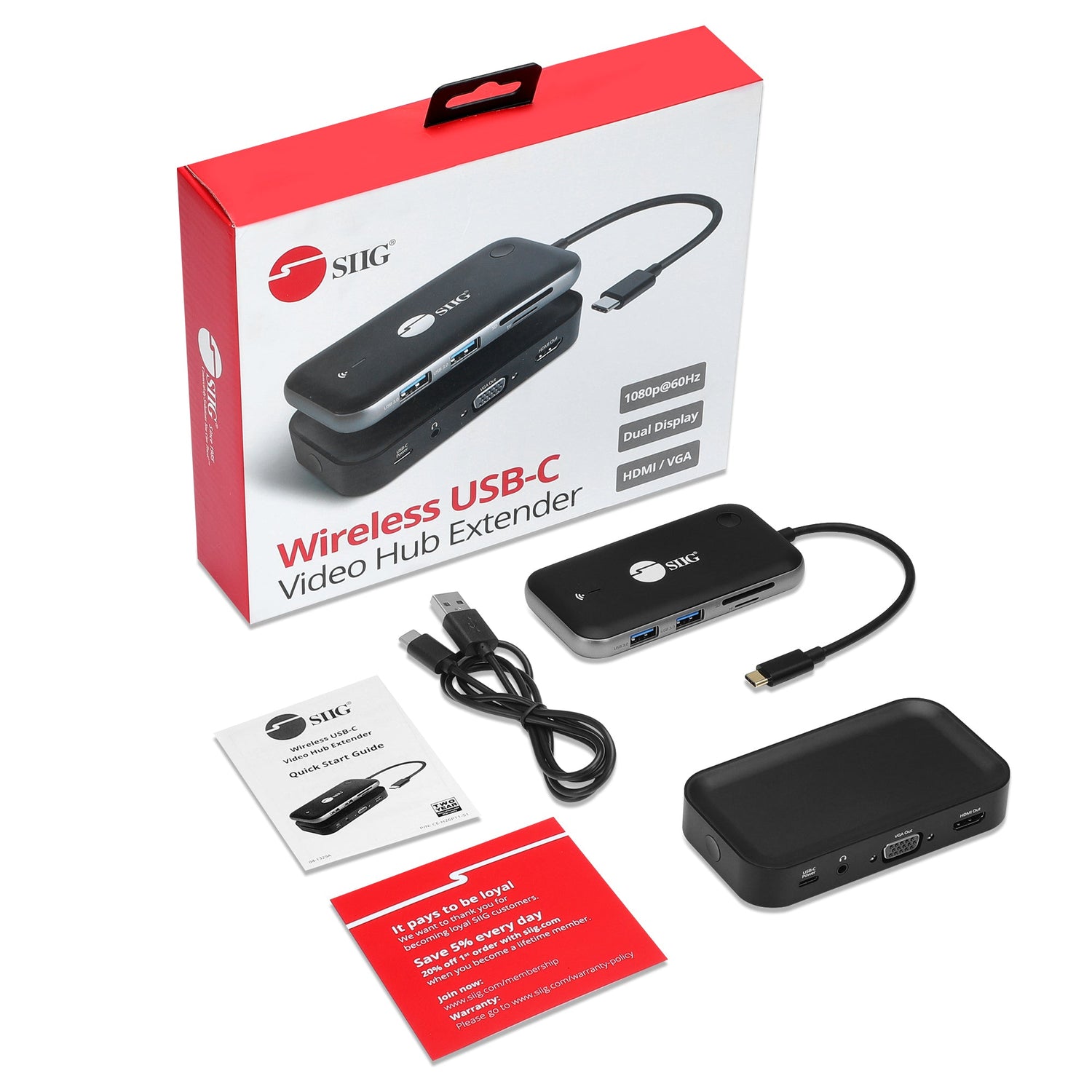

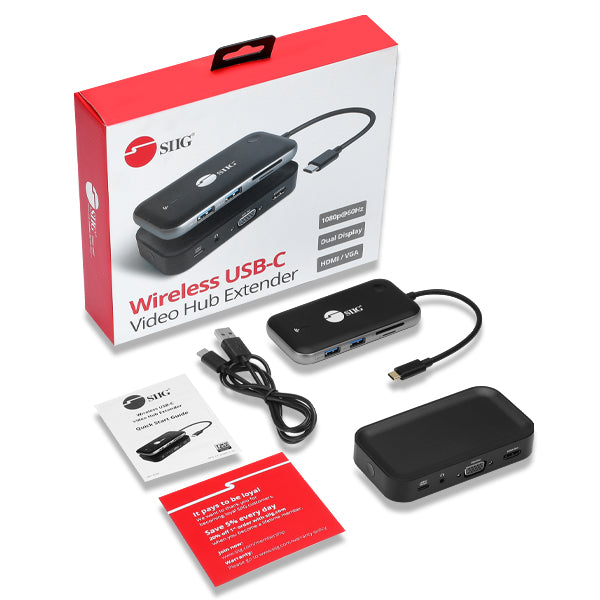

Package Contents
1x Transmitter
1x Receiver
1x USB power cable for the RX
1x User Manual
| Wireless | |
| Transmission | 32ft (10m) line-of-sight *Note: The transmission distance will vary depending on building layout, electronic interference, walls and partitions, other environmental conditions, and may be much less than the maximum |
| Video | |
| HDMI bandwidth | 10.2Gbps |
| Resolution | 1920x1080 60Hz (1080p / 1080i / 720p / 480p) |

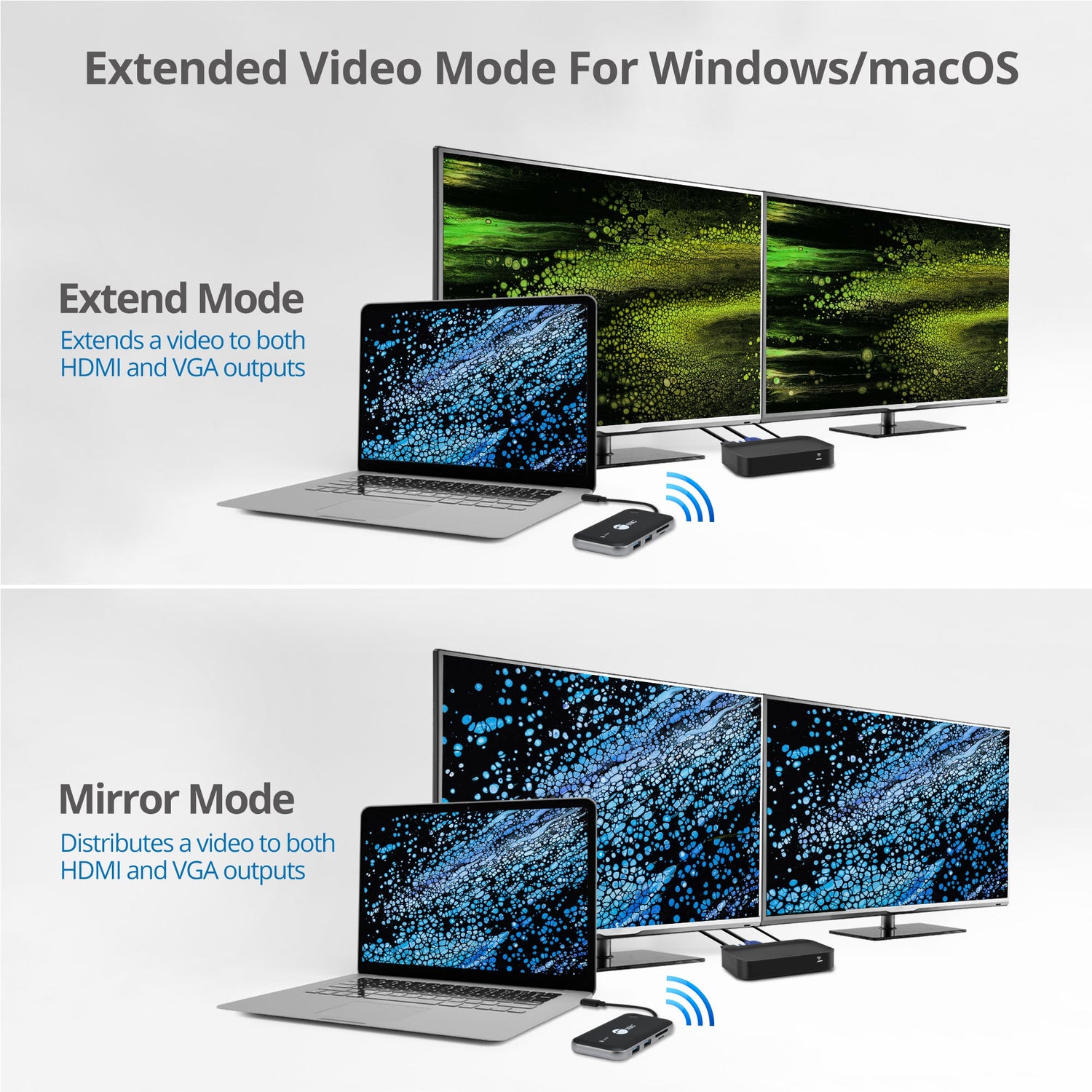

| Display Mode | Mirror and extended *Note: when HDMI & VGA are connected at the same time, only mirror mode is available |
| Interface | |

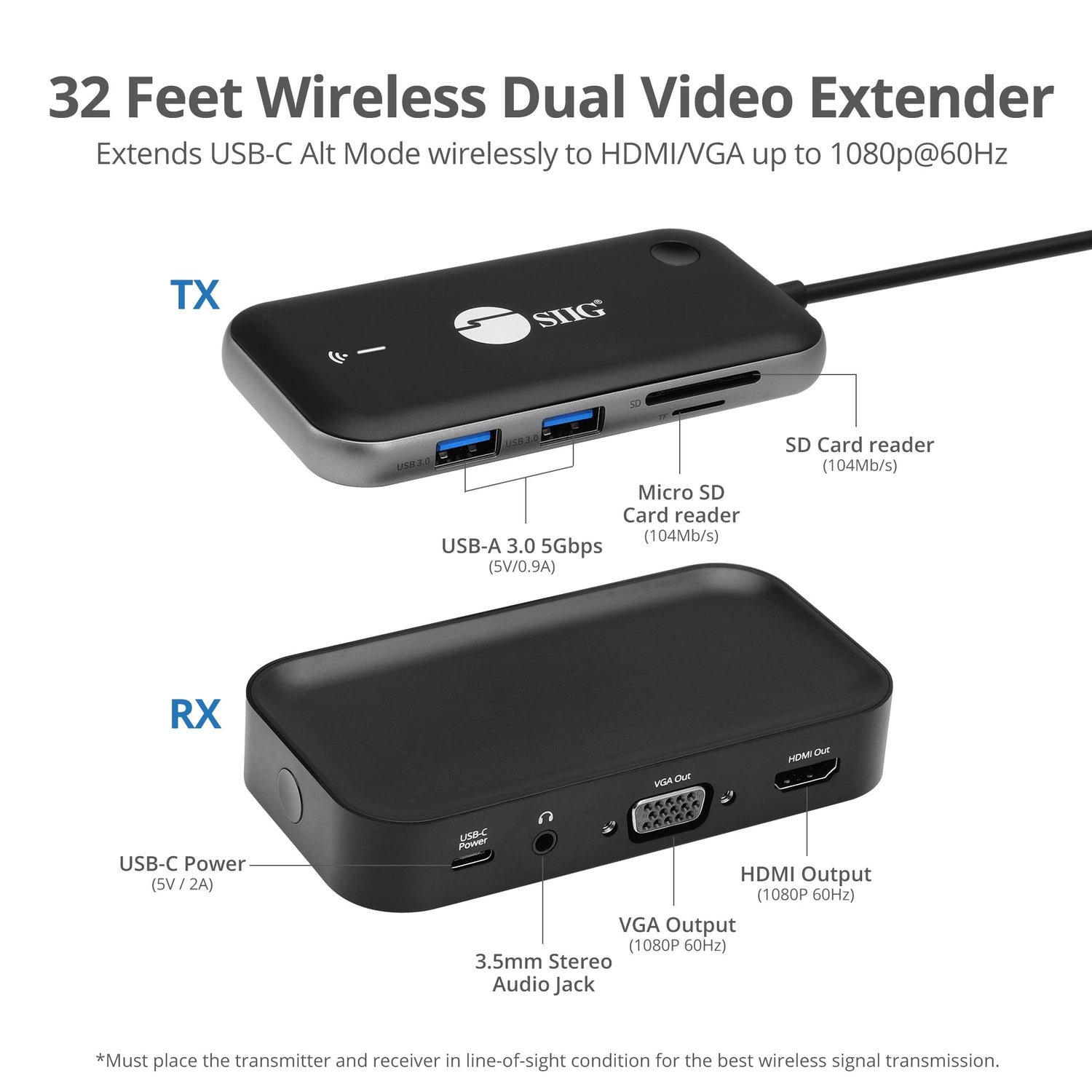

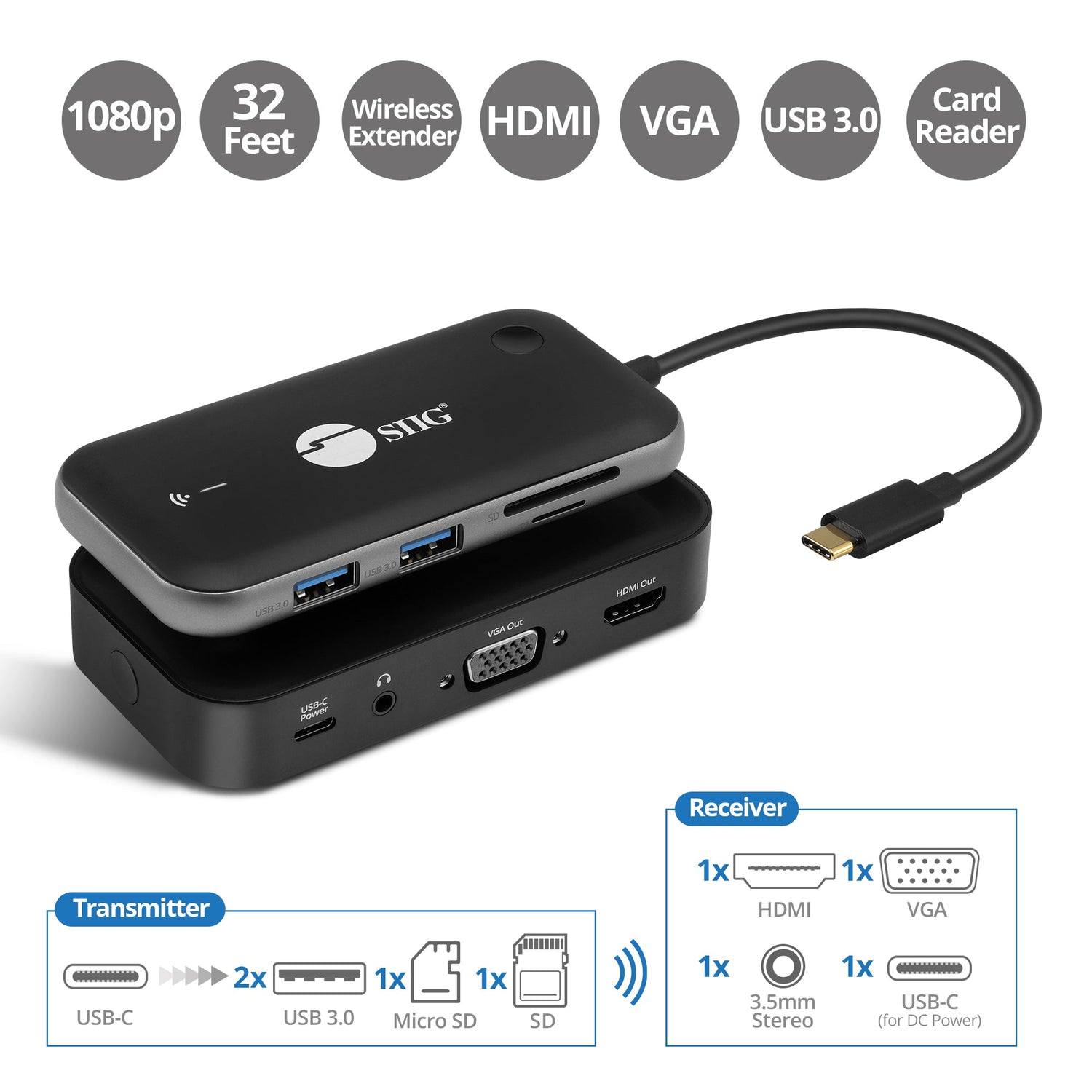

| Transmitter (TX) | 1x 24-pin, USB-C, male (Host), input 2x 9-pin, USB 3.0 Type-A, female, input 1x SD card reader slot 1x Micro SD (TF) card reader slot 1x device pairing button (restart / stop / pairing / reset) |
| Receiver (RX) | 1x 19-pin, HDMI 1.3, female, output 1x 15-pin, VGA (D-Sub), female, output 1x 3.5mm audio jack 1x 24-pin, USB-C power, female, DC 5V/2A 1x device pairing button |
| Package Contents | 1x Wireless USB-C Video Hub Extender (1 Transmitter + 1 Receiver) 1x USB 3.1 Type A to USB-C power cable 1x User reference guide |
| Certifications/Standards | FCC, CE, RoHS |
| UPC Code | 662774-044644 |
| Warranty | 2 years limited |
| Country of Origin | China |
| Product | |
| Transmitter (TX) | |

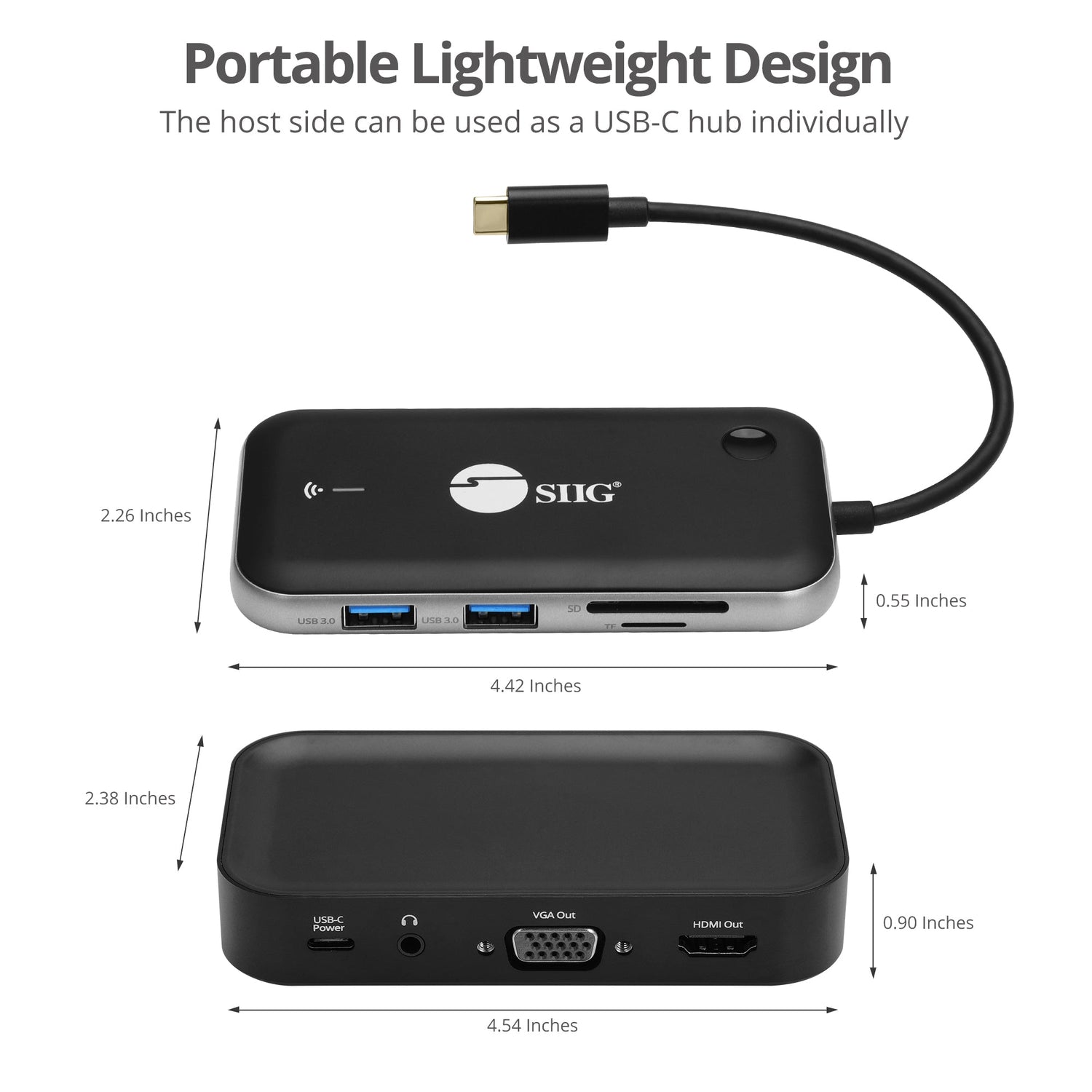

| Dimension (L) x (H) x (W) | 4.43” x 0.63” x 2.27” 11.25 cm x 1.60 cm x 5.77 cm |
| Weight | 0.17 lbs (0.08 kg) |
| Color | Black |
| Housing material | Plastic |
| Receiver (RX) | |
| Dimension (L) x (H) x (W) | 4.56” x 0.93” x 2.38” 11.58 cm x 2.36 cm x 6.05 cm |
| Weight | 0.24 lbs (0.11 kg) |
| Color | Black |
| Housing material | Plastic |
| Unit package | |
| Dimension (L) x (H) x (W) | 9.25” x 1.97” x 9.06” 23.50 cm x 5.00 cm x 23.01 cm |
| Weight | 0.74 lbs (0.34 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 20.87" x 9.65" x 19.09" 53.01 cm x 24.51 cm x 48.49 cm |
| Weight | 17.42 lbs (7.90 kg) |
| Quantity | 20 pcs/ctn |
| Environmental Conditions | |
| Operating Temperature | 32 to 122 degrees F |
| Storage Temperature | 14 to 140 degrees F |
| Relative Humidity | 5% to 90% RH (non-condensing) |
