Wireless |
SKU:
CE-H24711-S1
Wireless HDbitT HDMI 4K 60Hz - Receiver
Wireless
HDbitT
4K60Hz
Extender
656ft
Regular price
$429.99
Unit price
/
Unavailable
Shipping calculated at checkout.
Wireless HDbitT HDMI 4K 60Hz - Receiver is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
Wireless Transmission
Wireless Transmission
1x2 Configuration
1x2 Configuration
5GHz Dual Antenna
5GHz Dual Antenna
IR Extension
IR Extension
Premium Material
Premium Material
No content found
| Wireless Technology | 5GHz |
| Transmission Distance | Up to 200 meters (light of sight) *Note: Transmission distance will vary depending on building layout, electronic interference, walls, partitions, and other environmental conditions |
| Transmission Protocol | HDbitT |
| Video | |
| Standard | HDMI 2.0 and HDCP 2.2 compliant |
| Resolution | 480p / 720p / 1080i / 1080p 60Hz / 4Kx2K 30Hz / 4Kx2K 60Hz |
| HDMI Cable Length | Up to 3m (input & output) |
| Audio | 2 channel PCM stereo audio |

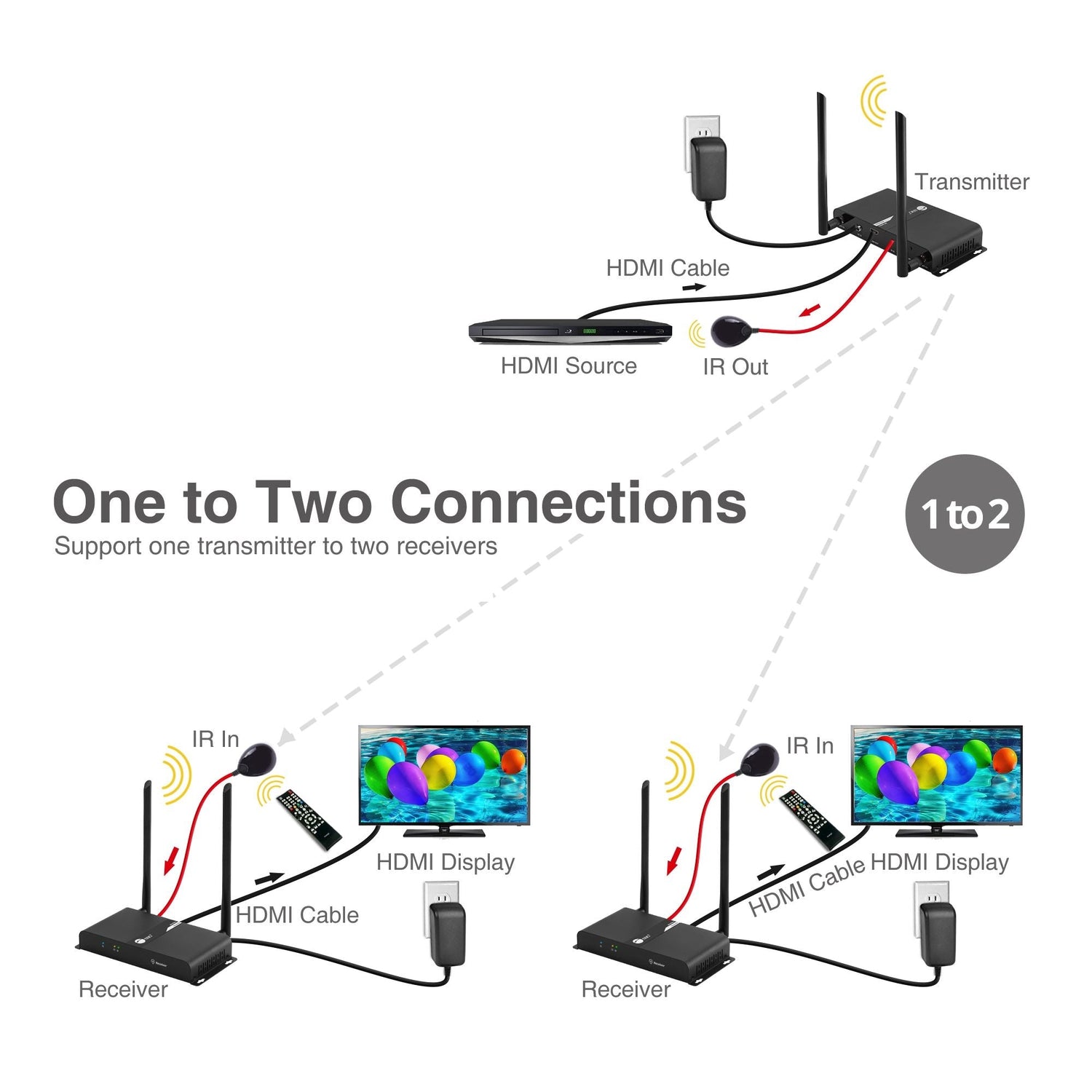

| Supported Topology | Splitter: 1 Transmitter (TX) to 2 Receivers (RX) Requires Wireless HDbitT HDMI 4K 60Hz Kit - Long Range (part # CE-H24611-S1), sold separately |
| IR Signal | Full Frequency: 20KHz to 60KHz |
| Power Adapter | |
| Input | 100-240V, 50 / 60Hz |
| Output | DC 5V / 3.1A |
| UL Listed | E335801 / Class VI |

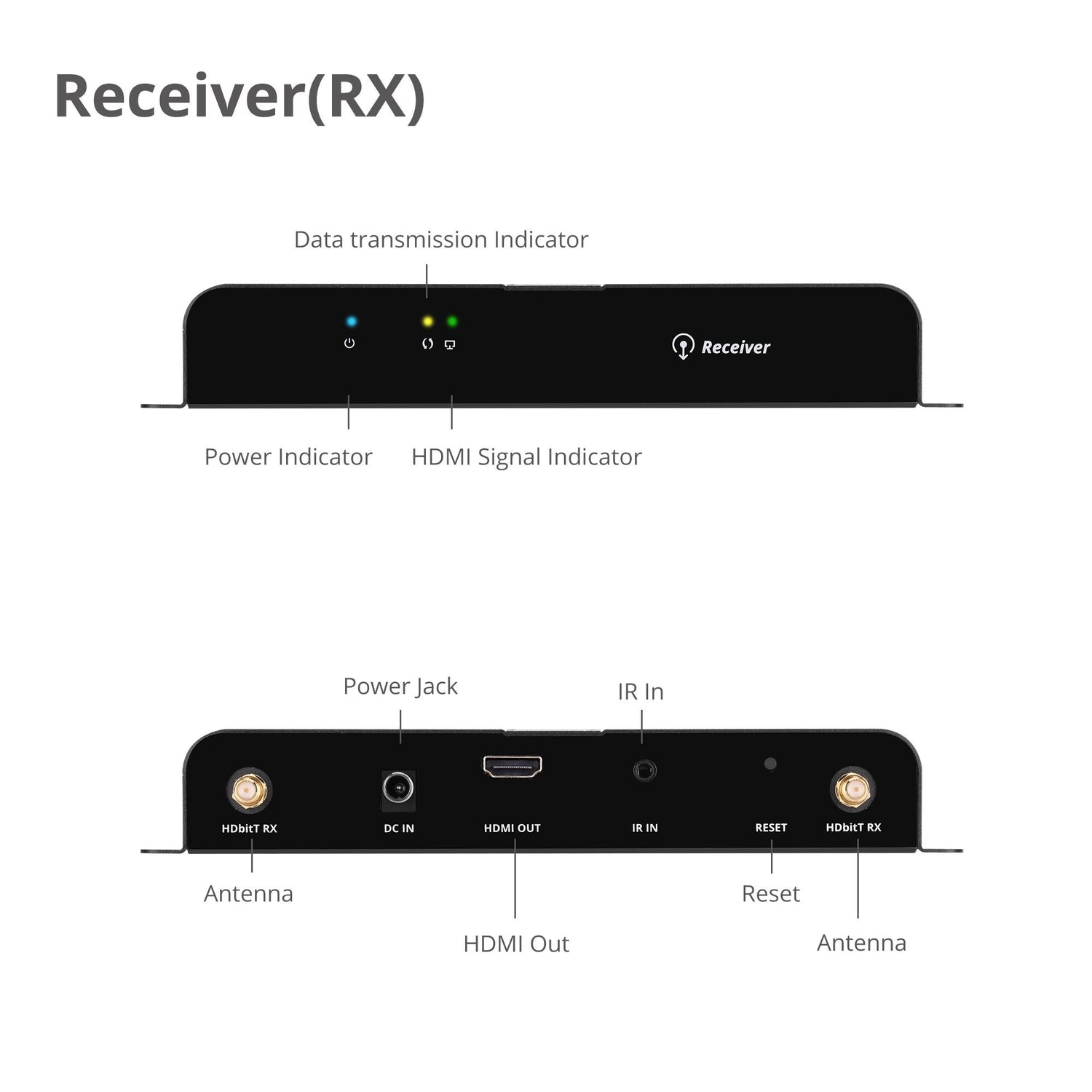

| Interface | 1x 19-pin HDMI, Type A, female, output 1x 3.5mm jack, IR receiver 2x Antenna 1x Power jack 1x Reset button |
| System Requirements | - HDMI source device (computers, game consoles, Blu-ray/DVD players, etc.) - HDMI displays, monitors, and HD TVs - HDMI cables |
| Product | |

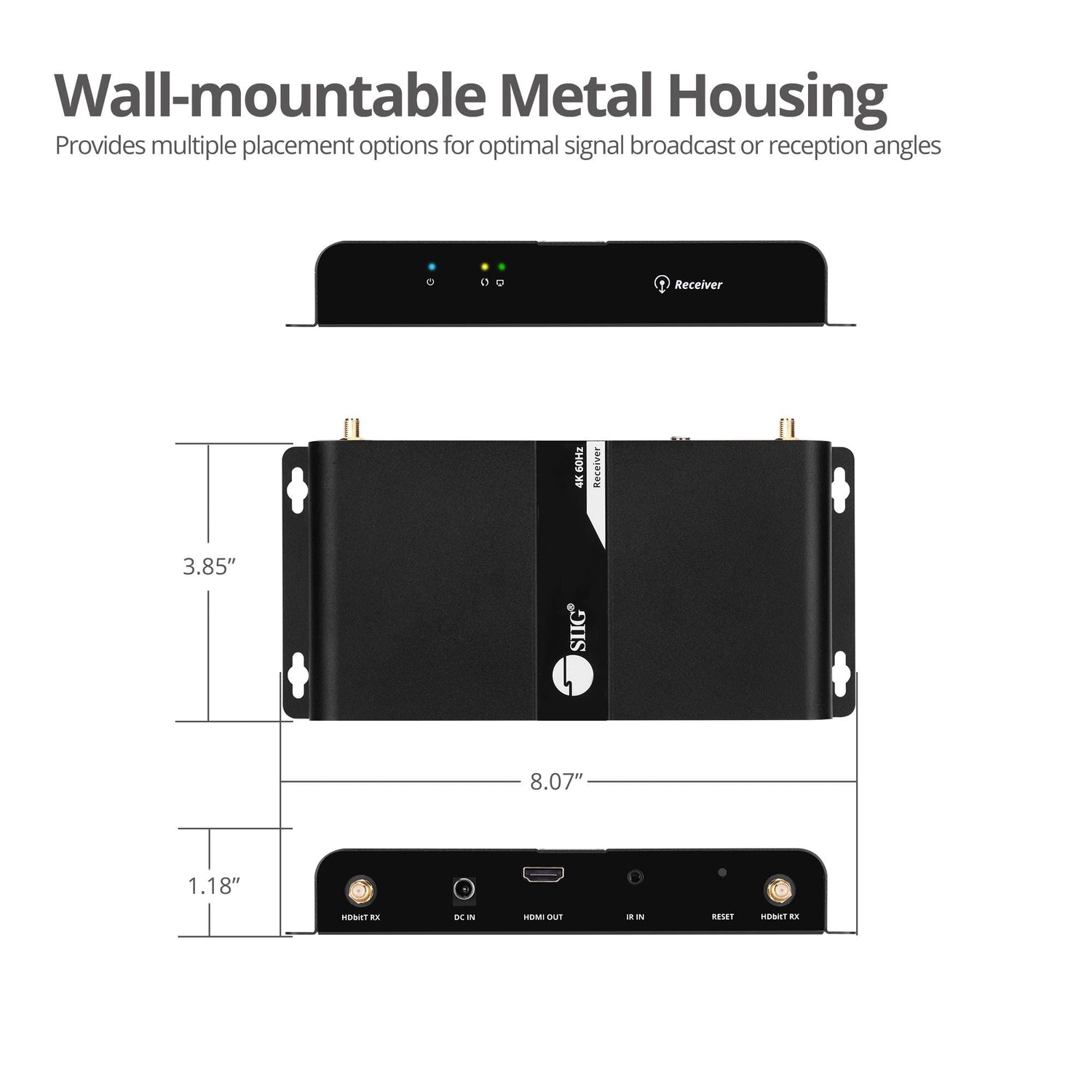

| Dimensions (L) x (H) x (W) | 8.15" x 3.86" x 1.22" |
| Weight | 1.37 lbs |
| Color | Black |
| Housing Material | Metal |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 14.06″ x 3.35″ x 6.02″ |
| Weight | 2.43 lbs |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 18.70″ x 12.60″ x 14.57″ |
| Weight | 24.69 lbs |
| Quantity | 10 pcs/ctn |

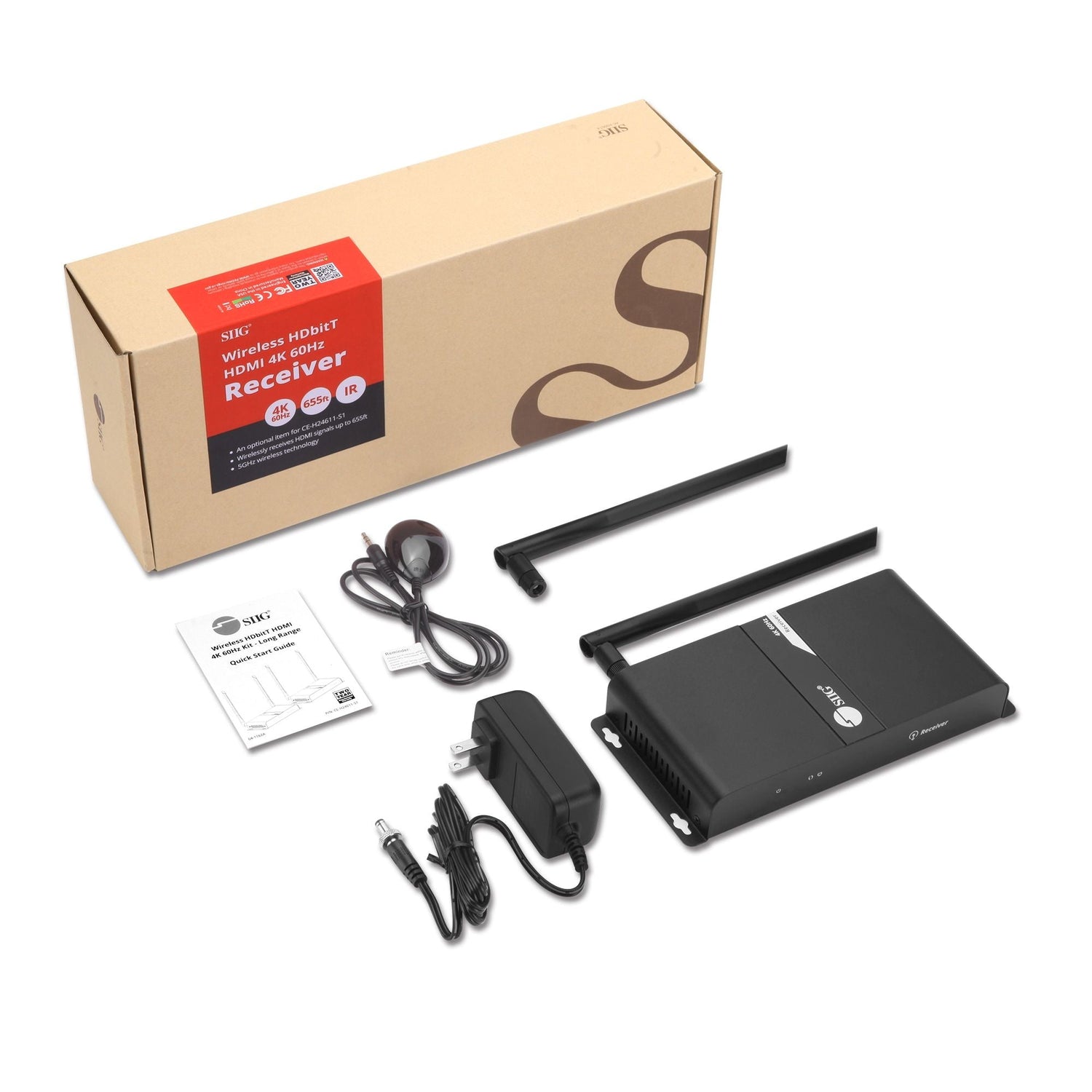

| Package Contents | 1x Wireless HDbitT HDMI 4K 60Hz - Receiver 1x Power adapter 2x Antenna 1x IR Receiver extension cable 1x User reference guide |
| Environmental Conditions | |
| Operating temperature | 32° to 122° F |
| Storage temperature | 14° to 158° F |
| Relative humidity | 0% to 90% RH (non-condensing) |
| Certifications/Standards | FCC, CE, RoHS |
| UPC Code | 662774-042084 |
| Warranty | 2 years limited |
| Country of Origin | China |
