Wireless HDbitT HDMI 4K 60Hz Kit - Long Range
HDMI Wireless Extender
656ft (200m)
4K60Hz
IR extension
1 to 2
Regular price
$849.99
Unit price
/
Unavailable
Shipping calculated at checkout.
Wireless HDbitT HDMI 4K 60Hz Kit - Long Range is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
Wirelessly Receives 4K HDMI Signals
Wirelessly Receives 4K HDMI Signals
Supports up to 2
Supports up to 2
5GHz Dual Antenna
5GHz Dual Antenna
IR Extension
IR Extension
Premium and Durable
Premium and Durable
No content found
| Wireless Technology | 5GHz |
| Transport Protocol | HDbitT |
| Wireless transmission distance | Up to 200 meters (light-of-sight maximum) *Note: The transmission distance will vary depending on building layout, electronic interference, walls and partitions, other environmental conditions, and may be much less than the maximum |
| Latency | < 200ms |
| Video | |
| HDMI | 1x input, 1x output |
| Standard | HDMI 2.0, HDCP 2.2 compliant |
| Resolution | 480p / 720p / 1080i / 1080p 60Hz / 4Kx2K 30Hz / 4Kx2K 60Hz |
| HDMI Cable Length | Up to 3 meters (input & output) |
| Audio | 2-Ch PCM stereo audio |
| IR Signal | Full frequency 20KHz - 60KHz |

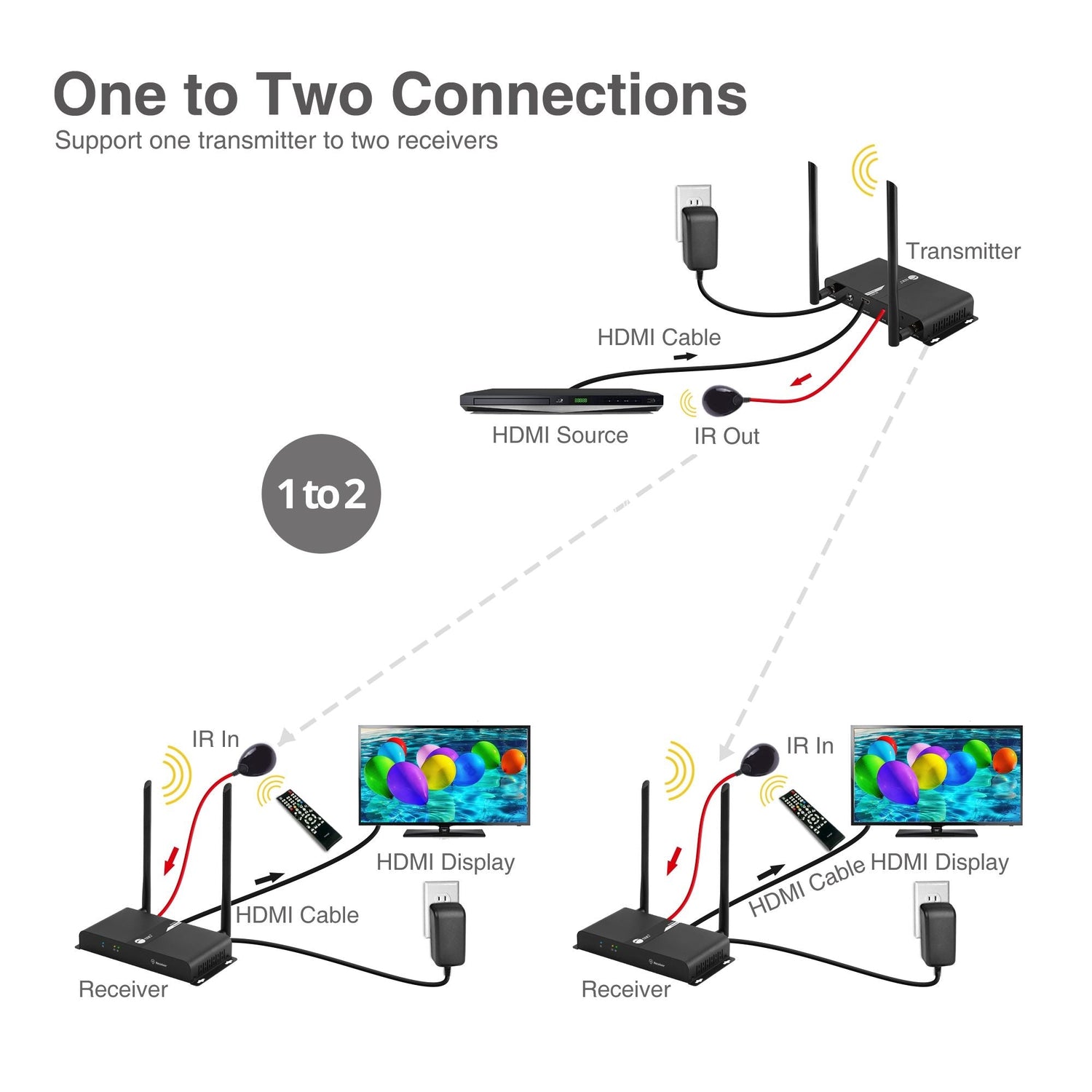

| Supported Topology | Extender: 1 Transmitter (TX) to 1 Receiver (RX) Splitter: 1 Transmitter (TX) to 2 Receivers (RX) Additional Receiver unit, part # CE-H24711-S1, sold separately |
| Power Adapter | |
| Input | 100-240V, 50 / 60Hz |
| Output | DC 5V / 3.1A |
| UL Listed | E335801 / Class VI |
| Interface | |

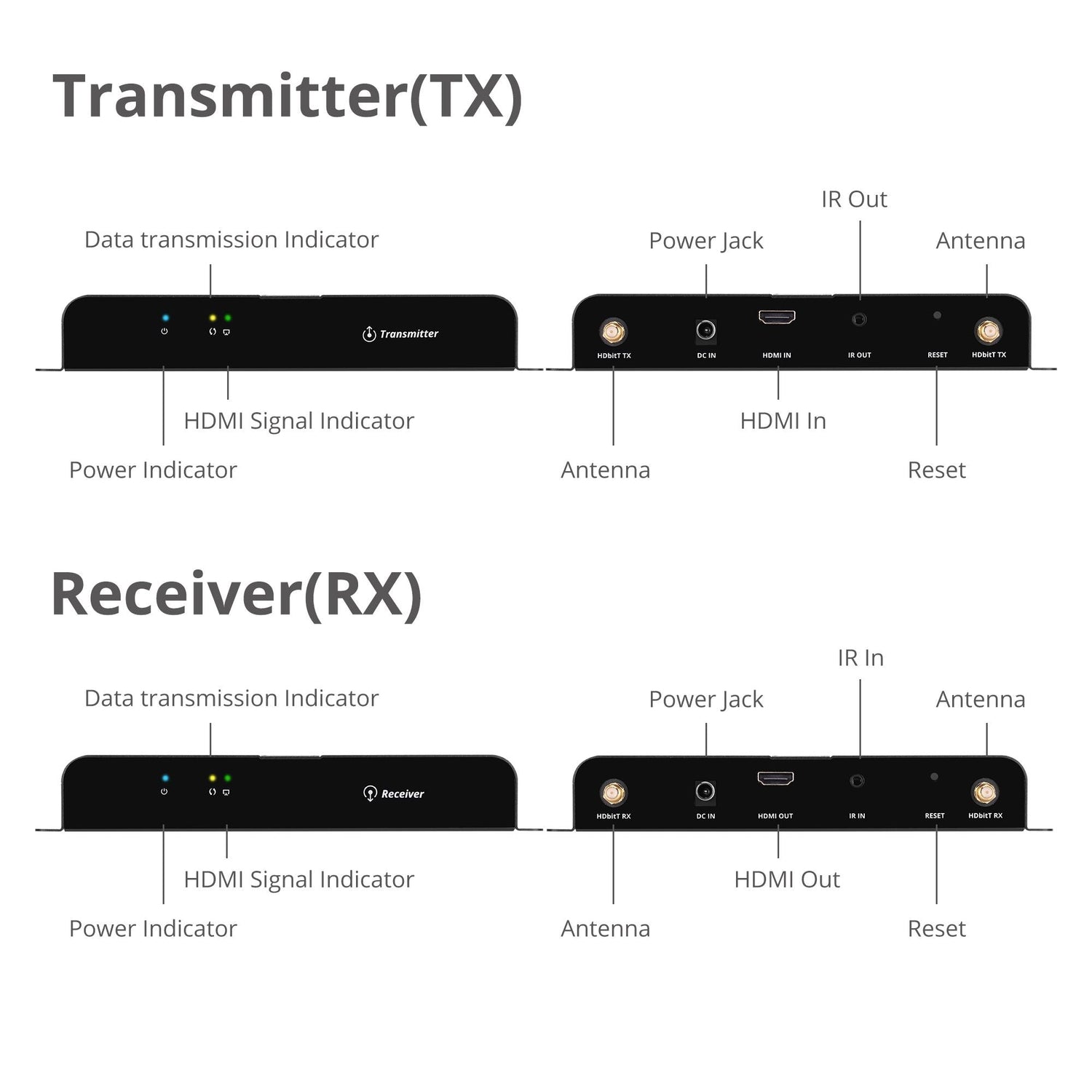

| Transmitting Unit (TX) | 1x 19-pin HDMI, Type A, female, input 1x 3.5mm jack, IR blaster 2x Antenna 1x Power jack 1x Reset button |
| Receiver Unit (RX) | 1x 19-pin HDMI, Type A, female, output 1x 3.5mm jack, IR receiver 2x Antenna 1x Power jack 1x Reset button |
| System Requirements | - HDMI source device, such as computers, Blu-ray/DVD players, and media players - HDMI displays, monitors, and HD TVs - HDMI cables - Wireless HDbitT HDMI 4K 60Hz - Receiver, part# CE-H24711-S1 (for splitter connection) |

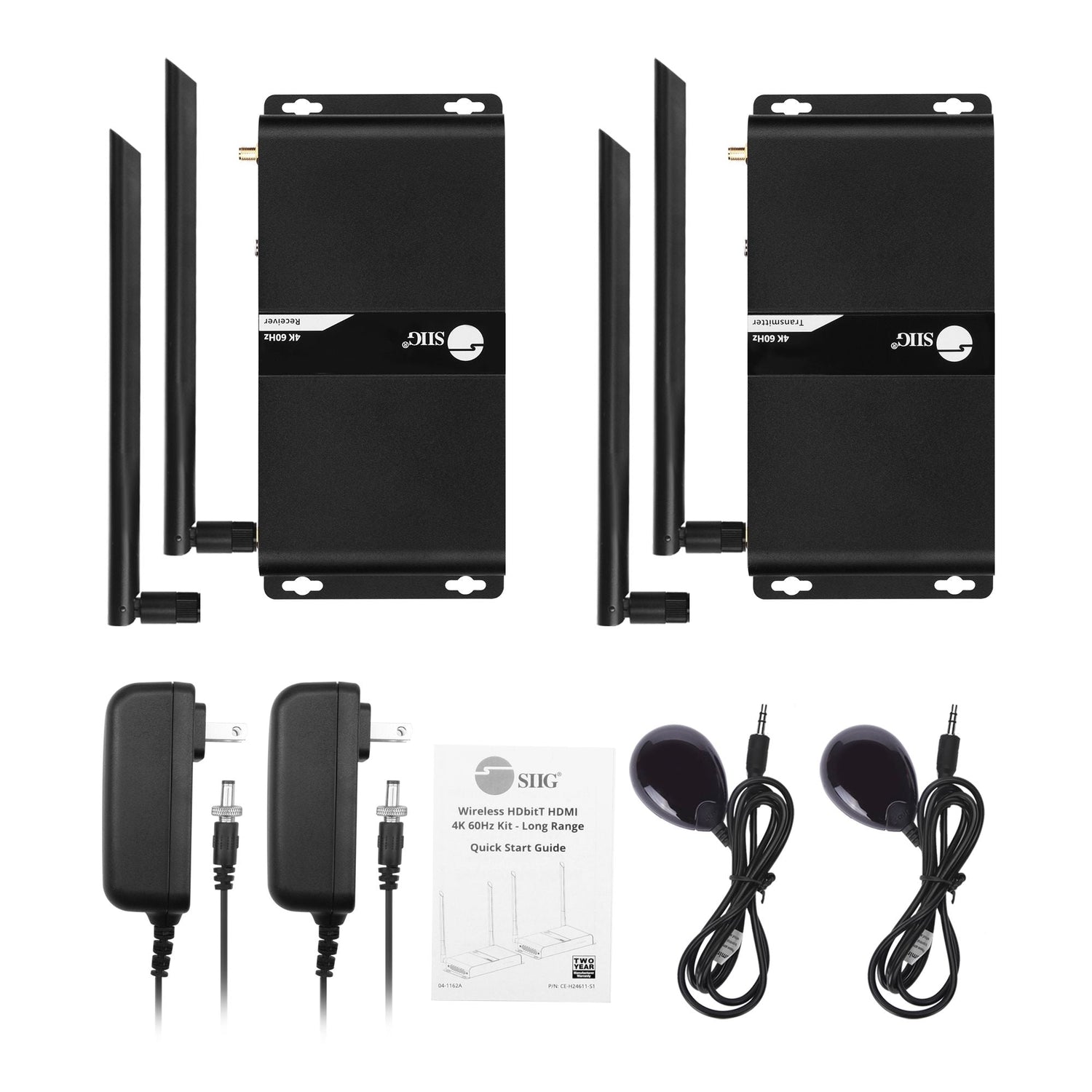

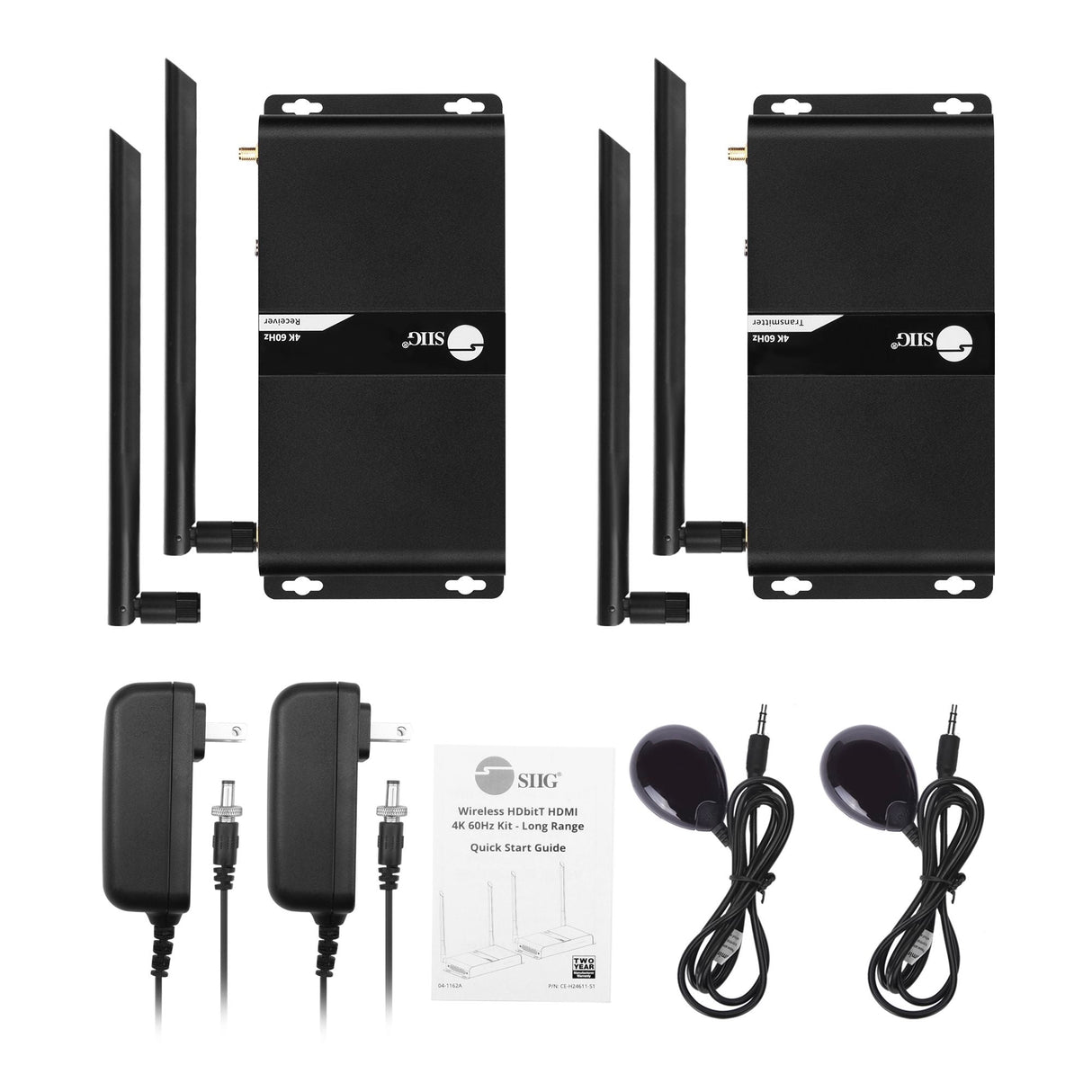

| Package Contents | 1x Wireless HDbitT HDMI 4K 60Hz Kit - Long Range (1 Wireless transmitter unit & 1 Wireless receiver unit) 2x Power adapter 4x Antenna 1x IR blaster extension cable 1x IR receiver extension cable 1x User reference guide |
| Product | |
| Transmitting Unit (TX) | |

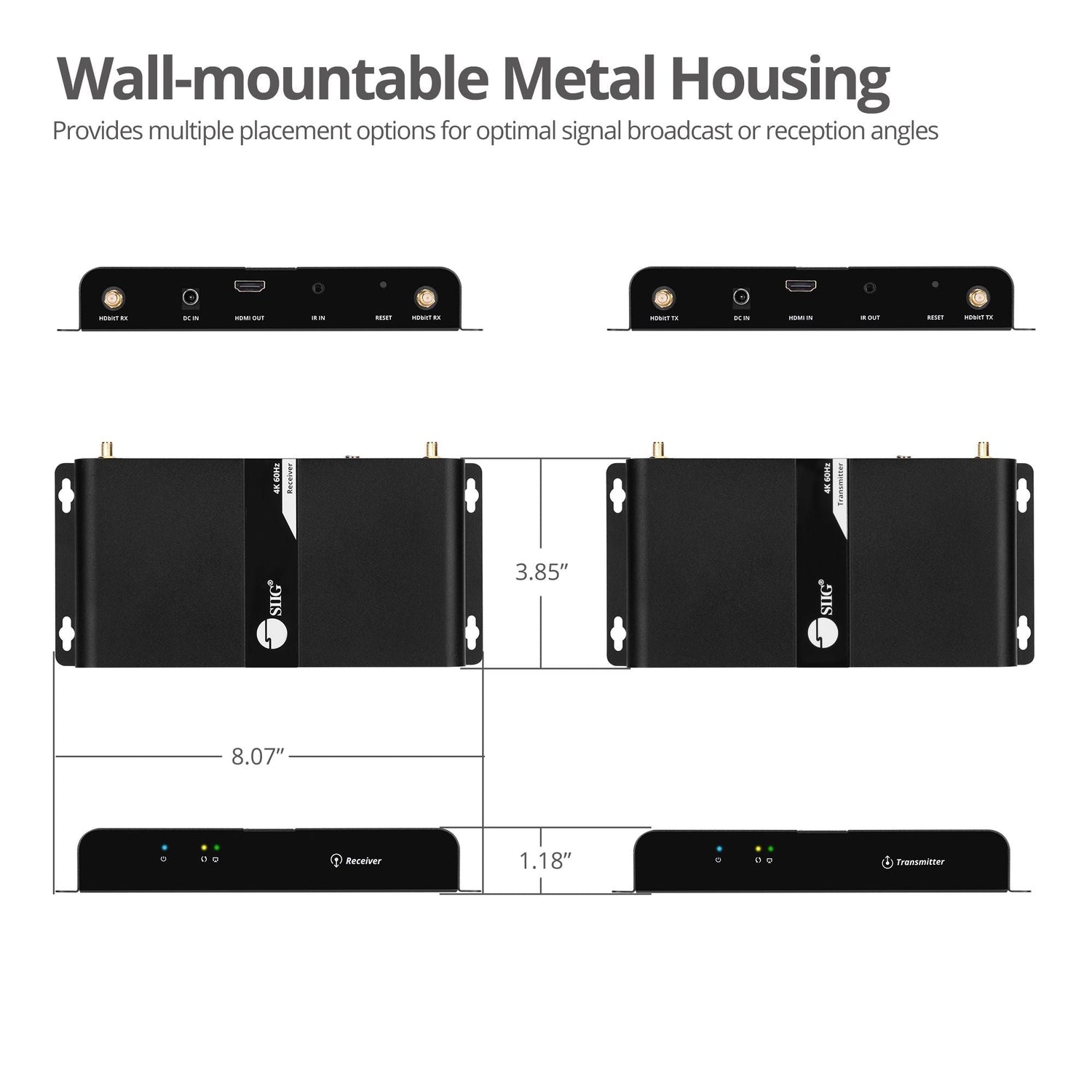

| Dimensions | 8.15" (W) x 1.22" (H) x 3.86" (D) 20.70 cm x 3.10 cm x 9.80 cm |
| Weight | 1.36 lbs (0.62 kg) |
| Receiver Unit (RX) | |
| Dimensions | 8.15" (W) x 1.22" (H) x 3.86" (D) 20.70 cm x 3.10 cm x 9.80 cm |
| Weight | 1.37 lbs (0.62 kg) |
| Color | Black |
| Housing | Metal |
| Unit Package | |
| Dimensions | 17.40″ (W) x 2.36″ (H) x 9.92″ (D) 44.20 cm x 5.99 cm x 25.20 cm |
| Weight | 4.63 lbs (2.10 kg) |
| Master Carton | |
| Dimensions | 20.67″ (W) x 12.72″ (H) x 18.11″ (D) 52.50 cm x 32.31 cm x 46.00 cm |
| Weight | 48.41 lbs (21.96 kg) |
| Quantity | 10 pcs/ctn |
| Environmental Conditions | |
| Operating Temperature | 32° to 122° F |
| Storage Temperature | 14° to 158° F |
| Relative Humidity | 0% to 90% RH (non-condensing) |
| Certifications/Standards | FCC, CE, RoHS |
| UPC Code | 662774-042077 |
| Warranty | 2 years limited |
| Country of Origin | China |
