Wireless |
SKU:
CE-H22G12-S1

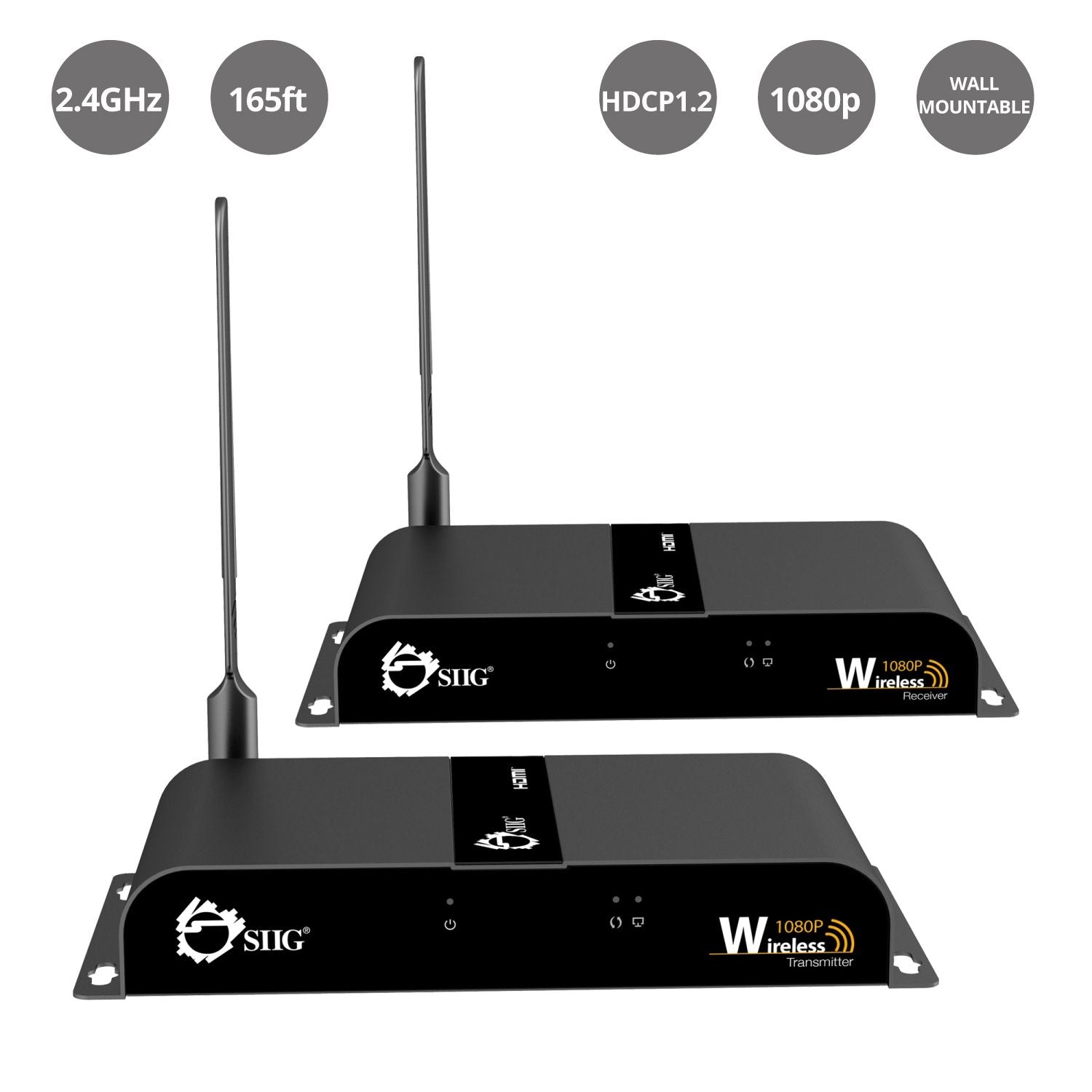

Wireless 1080P HDMI Video Kit - Mid-Range
HDMI Wireless Extender
165ft (50m)
1080p 60Hz
IR extension
2.4GHz
Regular price
$329.99
Unit price
/
Unavailable
Shipping calculated at checkout.
Wireless 1080P HDMI Video Kit - Mid-Range is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features

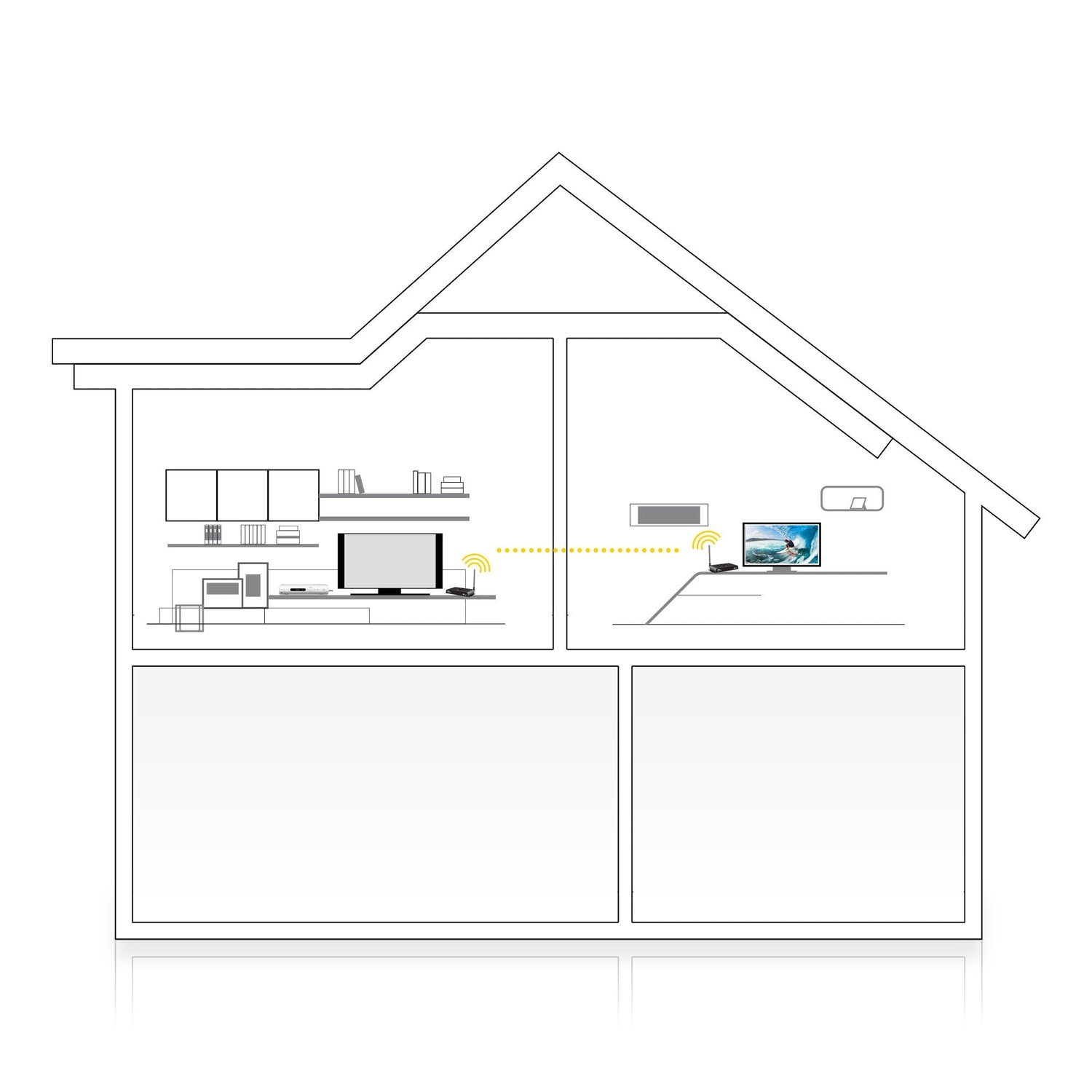

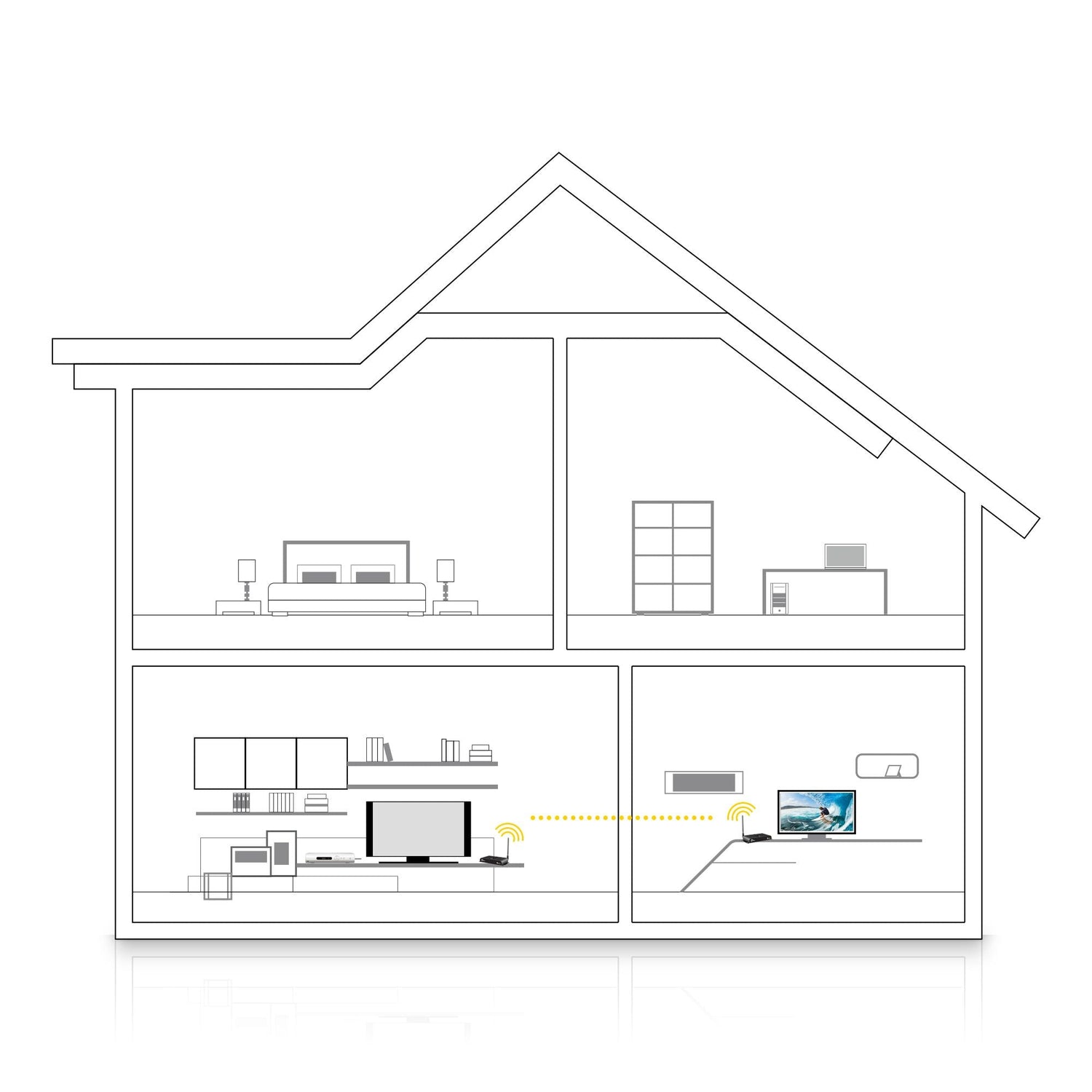

Increase Your Viewing Range
Increase Your Viewing Range
Uncompromised Video Quality
Uncompromised Video Quality
Easy to Use
Easy to Use
Built-In IR Remote Control
Built-In IR Remote Control
Updated Hardware
Updated Hardware
No content found
| Transport Protocol | HDbitT |
| Video | |
| HDMI | 1x input, 1x output |
| Standard | HDMI 1.3, HDCP 1.2 compliant |
| Resolutions | 1080p / 1080i / 720p / 576p / 576i / 480p / 480i |
| Transmission Distance | Up to 50m (165ft) line-of-sight |
| HDMI Cable Distance | Up to 2m (input & output) |
| Audio | R/L stereo audio, 2-ch |
| IR Signal | Full Frequency: 20Hz to 60Hz |
| Power Adapter | |
| Input | AC 100-240V, 50 / 60Hz |
| Output | DC 5V / 3A |
| Power Plug Dimensions | 5.5mm (outer) x 2.1mm (inner) x 9.0mm (length) |
| Interface | |

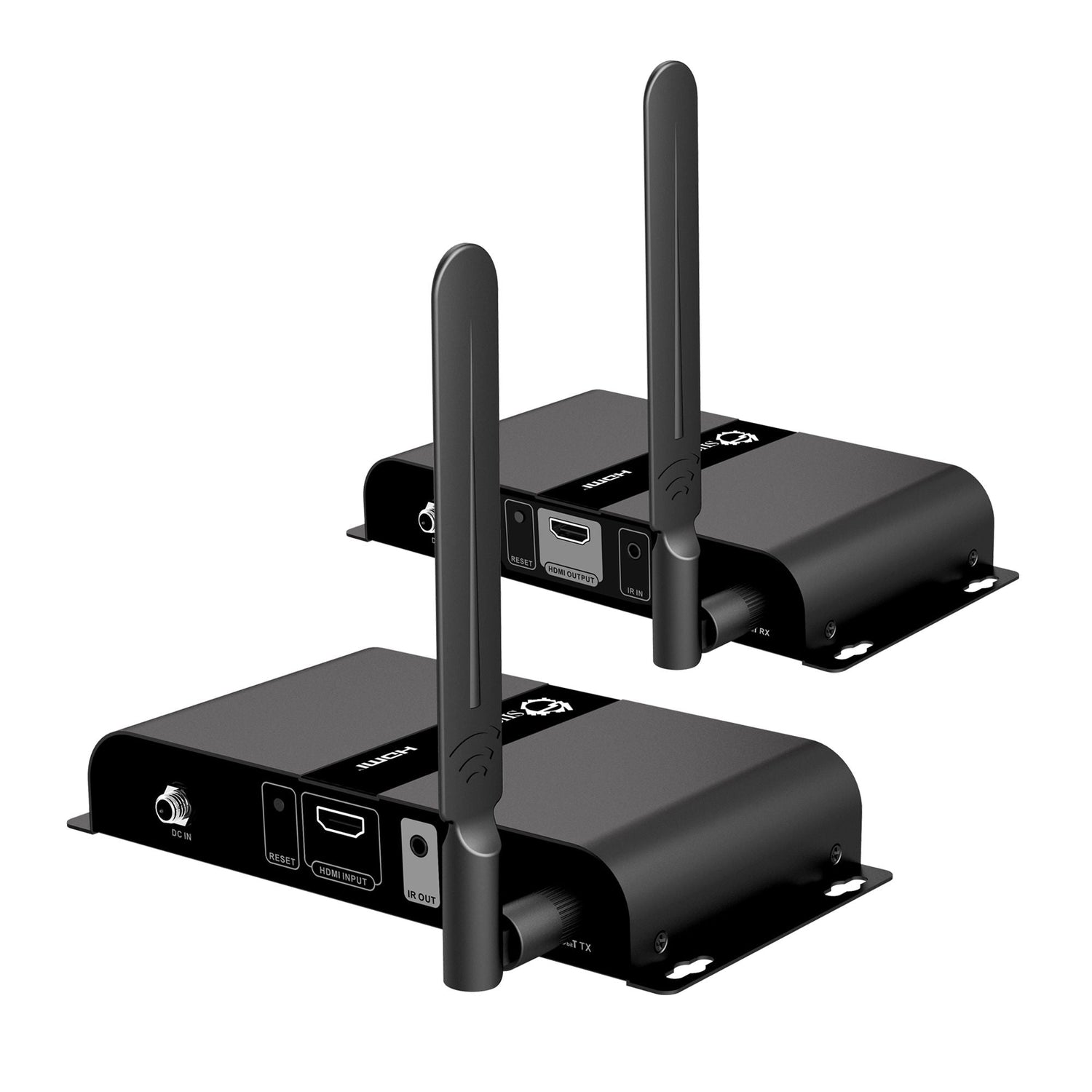

| Transmitter Unit (Tx) | 1x 19-pin HDMI, female, input 1x 3.5mm jack, IR blaster 1x Antenna port |
| Receiver Unit (Rx) | 1x 19-pin HDMI, female, output 1x 3.5mm jack, IR receiver 1x Antenna port |

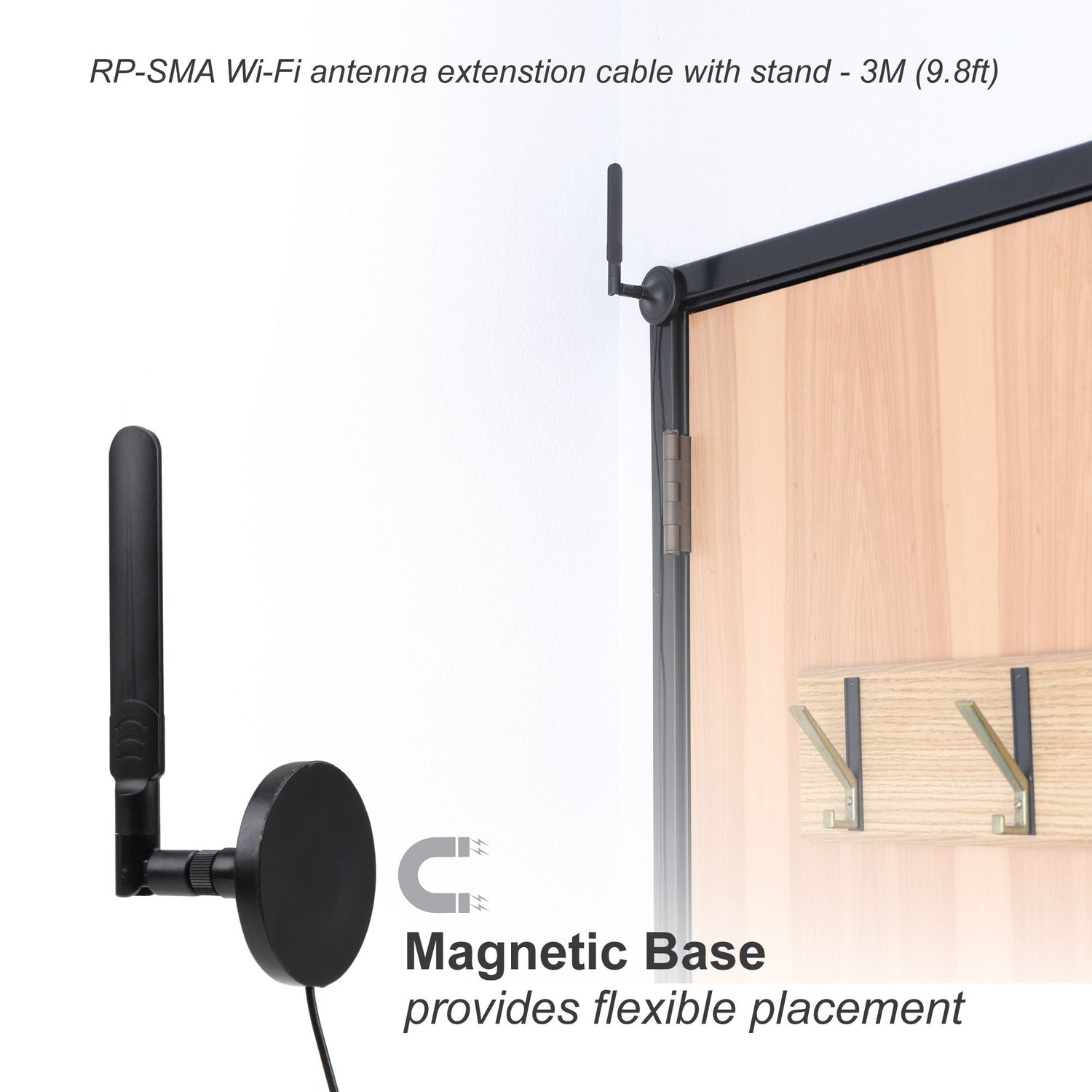

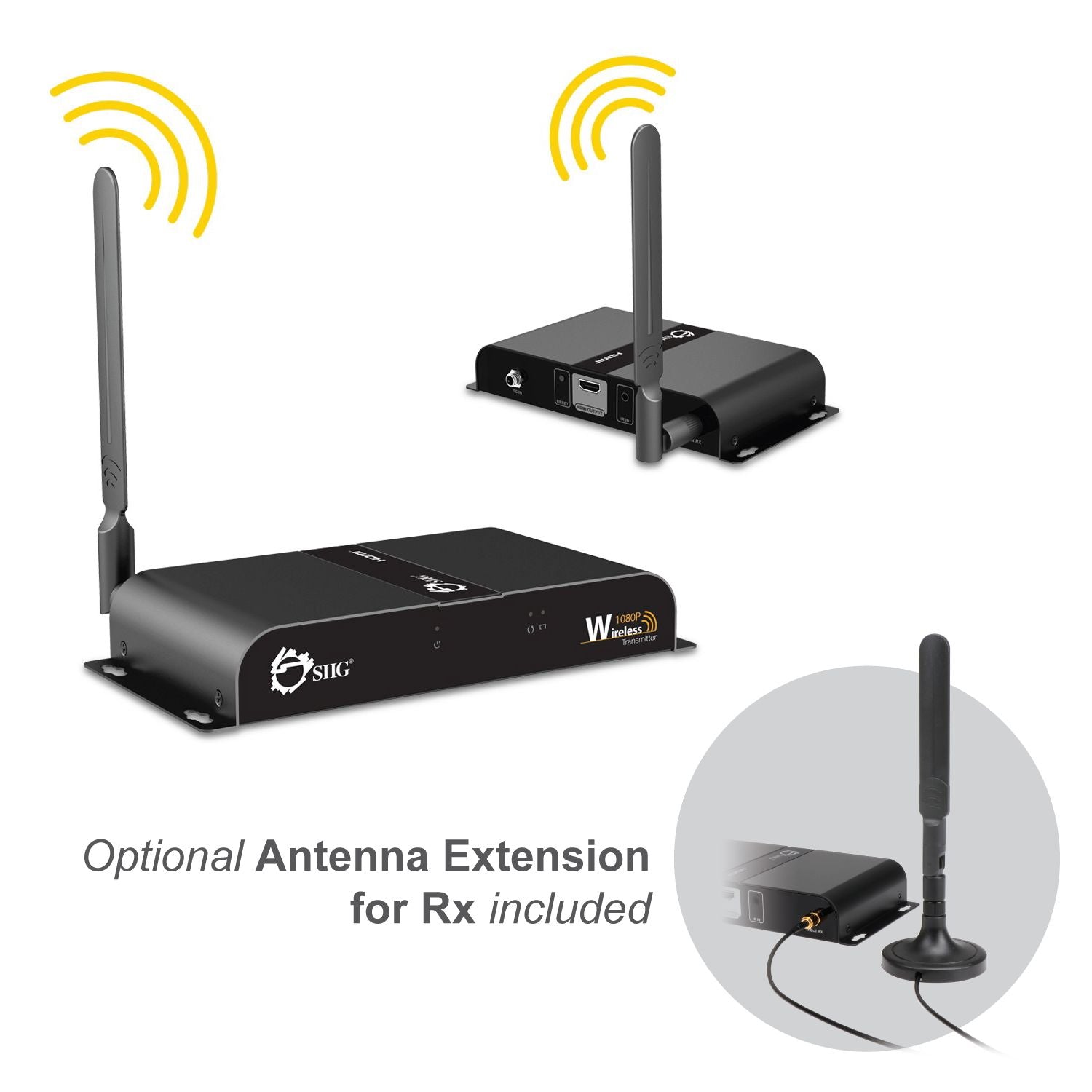

| RP-SMA WiFi Antenna Extension Cable with Stand | |
| Stand: Magnetic base | - RP-SMA (male), stand connector - RP-SMA (female), cable end - Base diameter: 2.36 inches |
| Cable length | 3 meters |
| Input impedance | 50 Ohms |

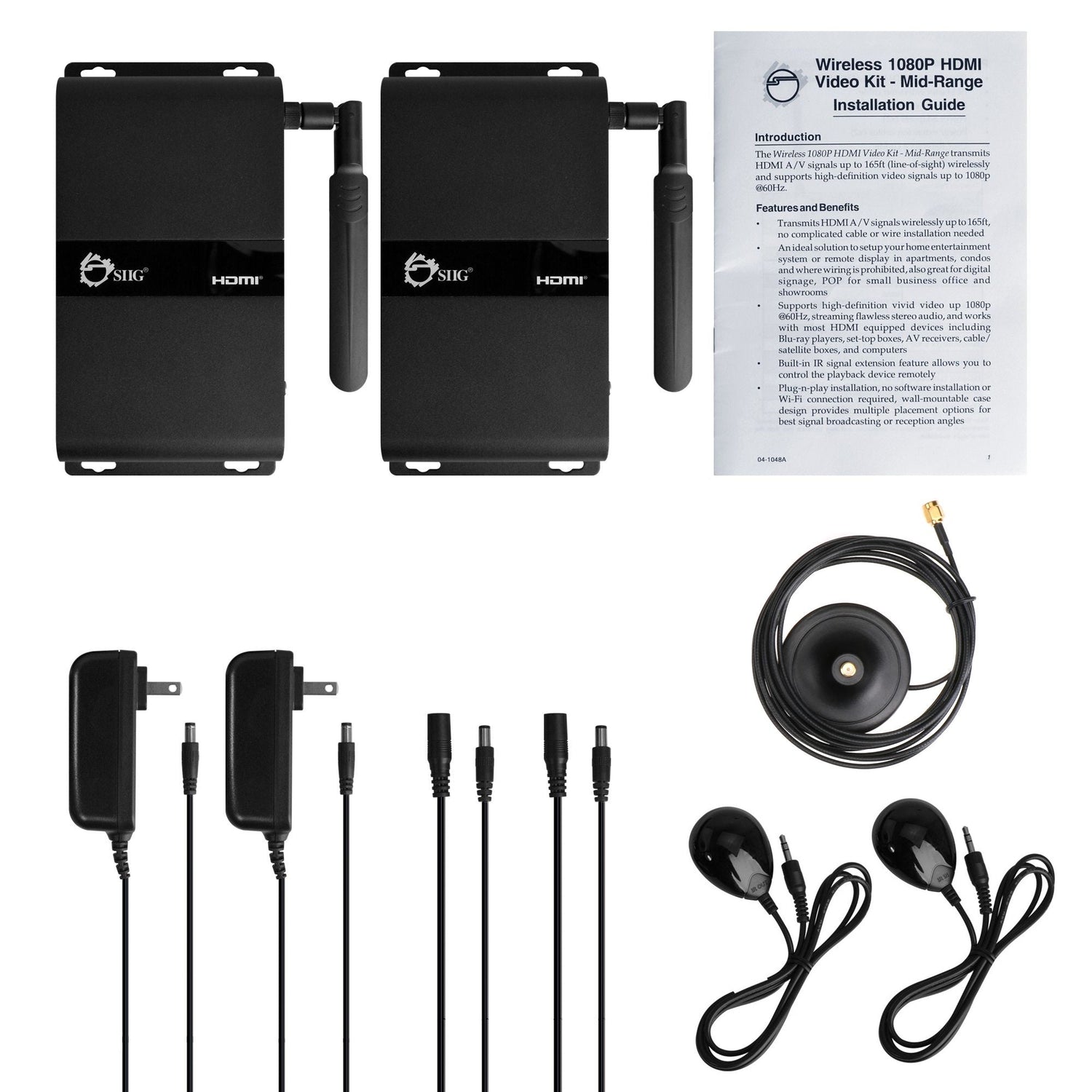

| Package Contents | 1x Wireless 1080P HDMI Video Kit - Mid-Range (Tx and Rx units) 1x IR blaster extension cable 1x IR receiver extension cable 2x Power adapters 2x Power extension cables 1x RP-SMA Wi-Fi antenna extension cable with stand - 3m 1x User reference guide |
| Product | |

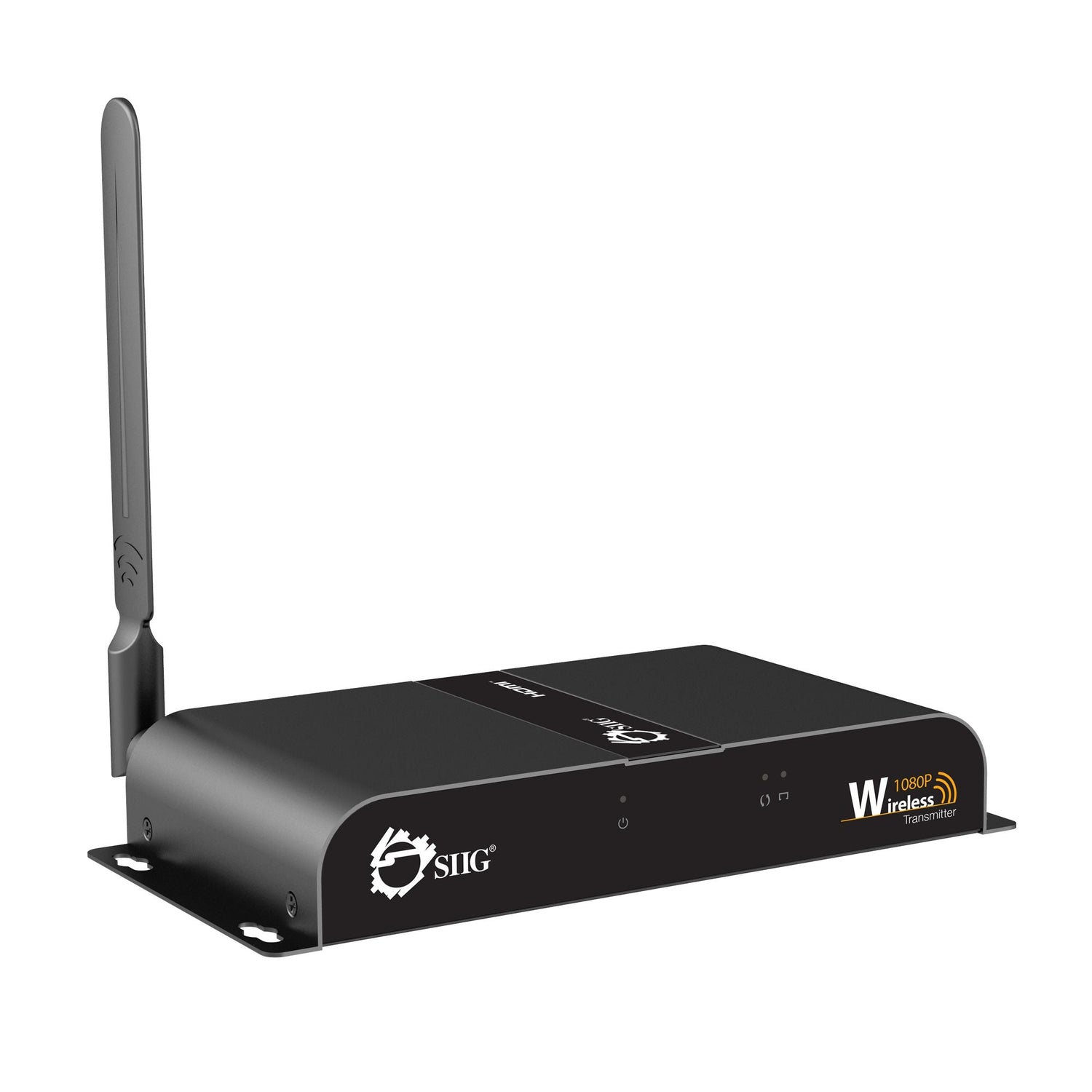

| Transmitter Unit (Tx) | |
| Dimensions (L) x (H) x (W) | 7.69" x 5.41" x 1.21" 19.53 cm x 13.74 cm x 3.07 cm |
| Weight | 1.17 lbs (0.53 kg) |
| Color | Black |
| Housing Material | Metal |

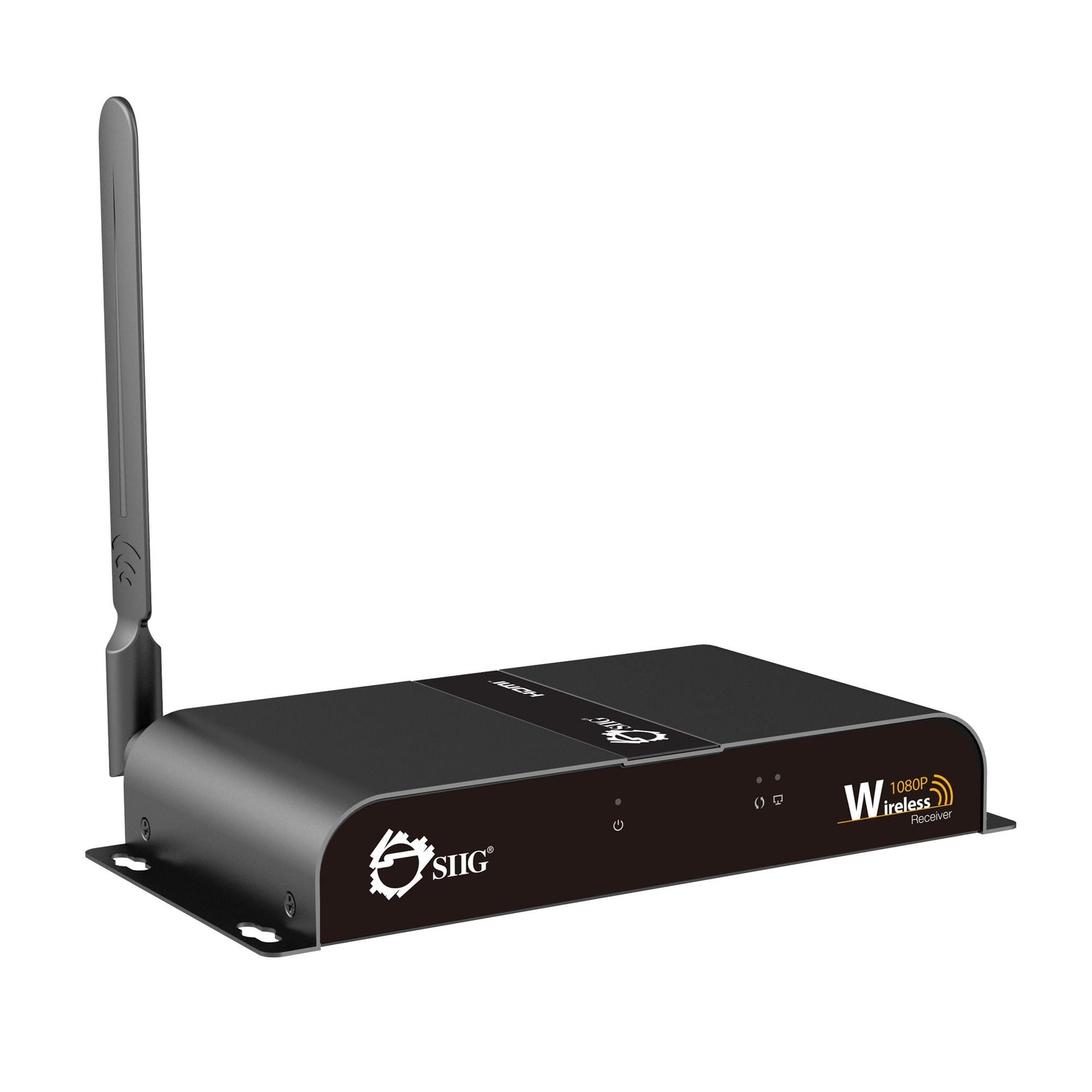

| Receiver Unit (Rx) | |
| Dimensions (L) x (H) x (W) | 7.69" x 5.41" x 1.21" 19.53 cm x 13.74 cm x 3.07 cm |
| Weight | 1.16 lbs (0.53 kg) |
| Color | Black |
| Housing Material | Metal |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 17.40″ x 9.92″ x 2.36″ 44.20 cm x 25.20 cm x 5.99 cm |
| Weight | 4.53 lbs (2.05 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 20.67″ x 18.11" x 12.72″ 52.50 cm x 46.00 cm x 32.31 cm |
| Weight | 46.91 lbs (21.28 kg) |
| Quantity | 10 pcs/ctn |
| Environmental Conditions | |
| Operating Temperature | 32° to 104° F |
| Storage Temperature | -4° to 158° F |
| Storage Humidity | 0% - 95% RH (non-condensing) |
| Certifications/Standards | FCC, CE, RoHS |
| UPC Code | 662774-027241 |
| Warranty | 2 years limited |
| Country of Origin | China |
