Extender |
SKU:
CE-H23Y11-S1

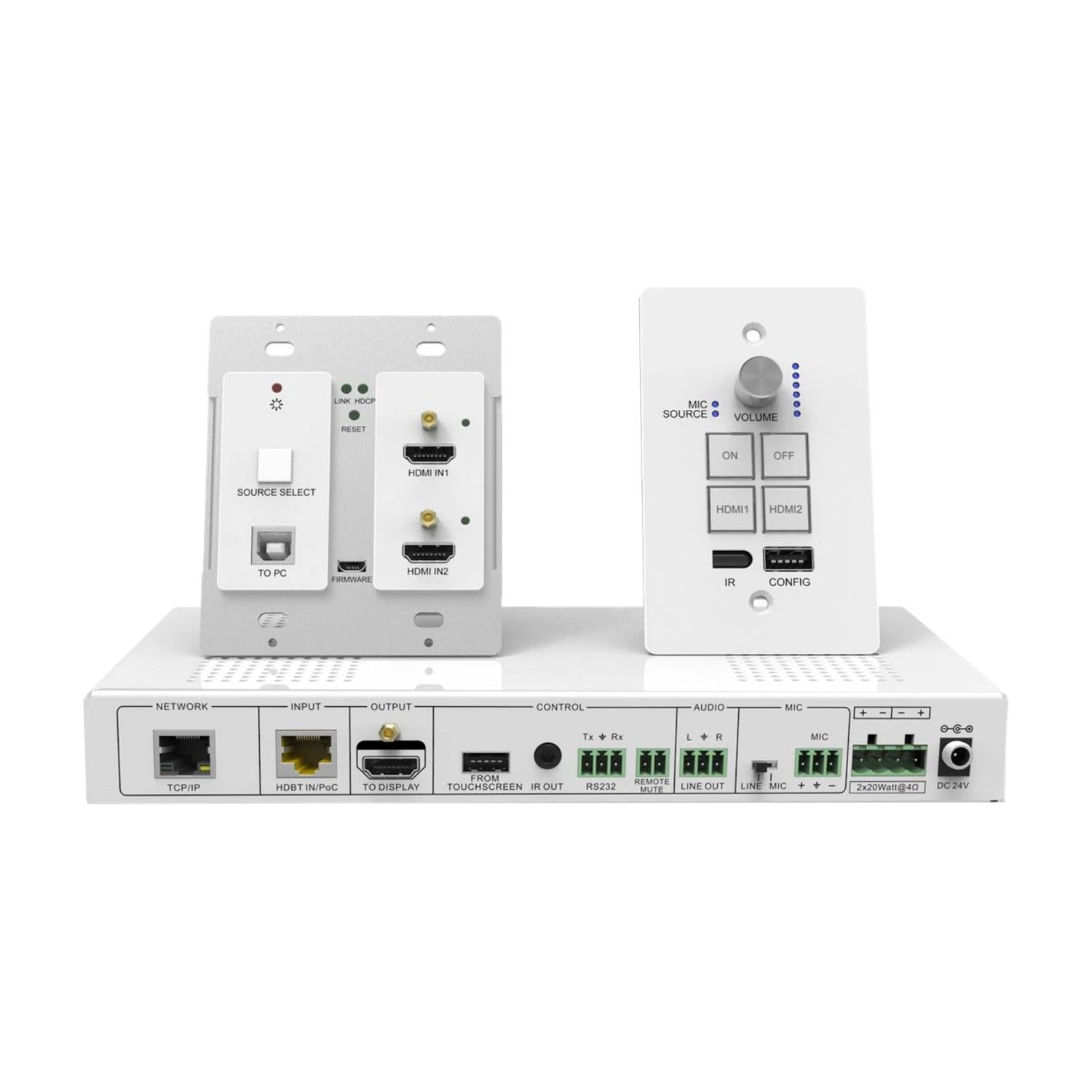

Wallplate 1080p HDMI HDBaseT Kit
HDMI Wallplate Extender
1080p 60Hz
RS-232
Up to 30m
Audio Extractor
Regular price
$899.99
Unit price
/
Unavailable
Shipping calculated at checkout.
Wallplate 1080p HDMI HDBaseT Kit is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
HDMI Extender
HDMI Extender
Video Resolution
Video Resolution
Control Methods
Control Methods
PoC Support
PoC Support
IR Learning
IR Learning
-
45 Days Free Return
-
2 Years Warranty
-
Lifetime Technical Support
No content found
| Transmission Protocol | HDBaseT technology |
| Video | |
| HDMI | 2x input, 1x output |
| Standard | HDCP 1.4 compliant |
| Bandwidth | Up to 10.2Gbps (340MHz per channel) |
| Resolution | Up to 1920x1200 60Hz |
| Transmission Distance | Up to 98 ft (30m) for 1080p 60Hz |
| Interface | |
| Transmitting Unit (TX) | 2x 19-pin HDMI, Type A, female, input 1x 8-pin, RJ45, HDBaseT/PoC output 1x 8-pin, RJ45, connect to control panel power/RS-232 1x Blue-Backlight button, source select 1x 4-pin USB Type-B, female, connect to PC 1x 5-pin Micro USB, Firmware update 1x Reset button |
| Receiving Unit (RX) | 1x 19-pin HDMI, Type A, female, output 1x 8-pin, RJ45, HDBaseT/PoC input 1x 8-pin, RJ45, TCP/IP network 1x 4-pin USB, touchscreen 1x 3.5mm jack, IR out 1x 3-pin, RS-232, Phoenix connector 1x 2-pin, remote mute, Phoenix connector 1x 3-pin, audio line out, Phoenix connector 1x 3-pin, MIC input, Phoenix connector 1x 4-pin, 2x 20Watt @4ohms, power connector 1x Power jack, DC 24V input |
| Control Panel | 1x 4-pin USB Type-A, U-disk configuration data 1x 8-pin, RJ45, connect to transmitter power/RS-232 1x Volume knob, volume control 4x Blue-backlight button, ON / HDMI1 / HDMI 2 / OFF control 1x IR sensor, receive IR signal 1x 3-Pin, RS-232, Phoenix connector 1x 5-pin, Micro USB, Firmware update |
| Power Adapter | |
| Input | 100-240V, 50 / 60Hz |
| Output | DC 24V / 2.71A |
| Package Contents | 1x Wallplate HDMI HDBaseT Kit 1x IR emitter cable 1x USB-A to USB-B cable 1x Power Adapter 1x RS-232 Cable 2x Mount ears kit 4x Screw Kit 4x Rubber Pads 1x White face plate 1x User manual |
| Product | |
| Transmitter Unit (TX) | |
| Dimensions (L) x (H) x (W) | 4.14″ x 3.50″ x 1.74″ |
| Weight | 0.53 lb |
| Color | White |
| Receiver Unit (RX) | |
| Dimensions (L) x (H) x (W) | 9.84″ x 1.22″ x 5.12″ |
| Weight | 3.31 lb |
| Color | White |
| Control Panel | |
| Dimensions (L) x (H) x (W) | 4.49″ x 2.76″ x 1.34″ |
| Weight | 0.31 lb |
| Color | White |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 15.35″ x 2.76″ x 11.41″ |
| Weight | 4.63 lbs |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 24.01″ x 16.56″ x 20.08″ |
| Weight | 83.77 lbs |
| Quantity | 16 pcs/ctn |
| Environmental Conditions | |
| Operating Temperature | 32° to 122° F |
| Storage Temperature | 14° to 158° F |
| Relative Humidity | 10% to 90% RH (non-condensing) |
| Certifications/Standards | FCC, CE, RoHS |
| UPC Code | 662774-041988 |
| Warranty | 3 years limited |
| Country of Origin | China |
