VGA & Audio to HDMI Scaler Converter
VGA & Audio to HDMI Scaler Converter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
VGA to HDMI Converter
VGA to HDMI Converter

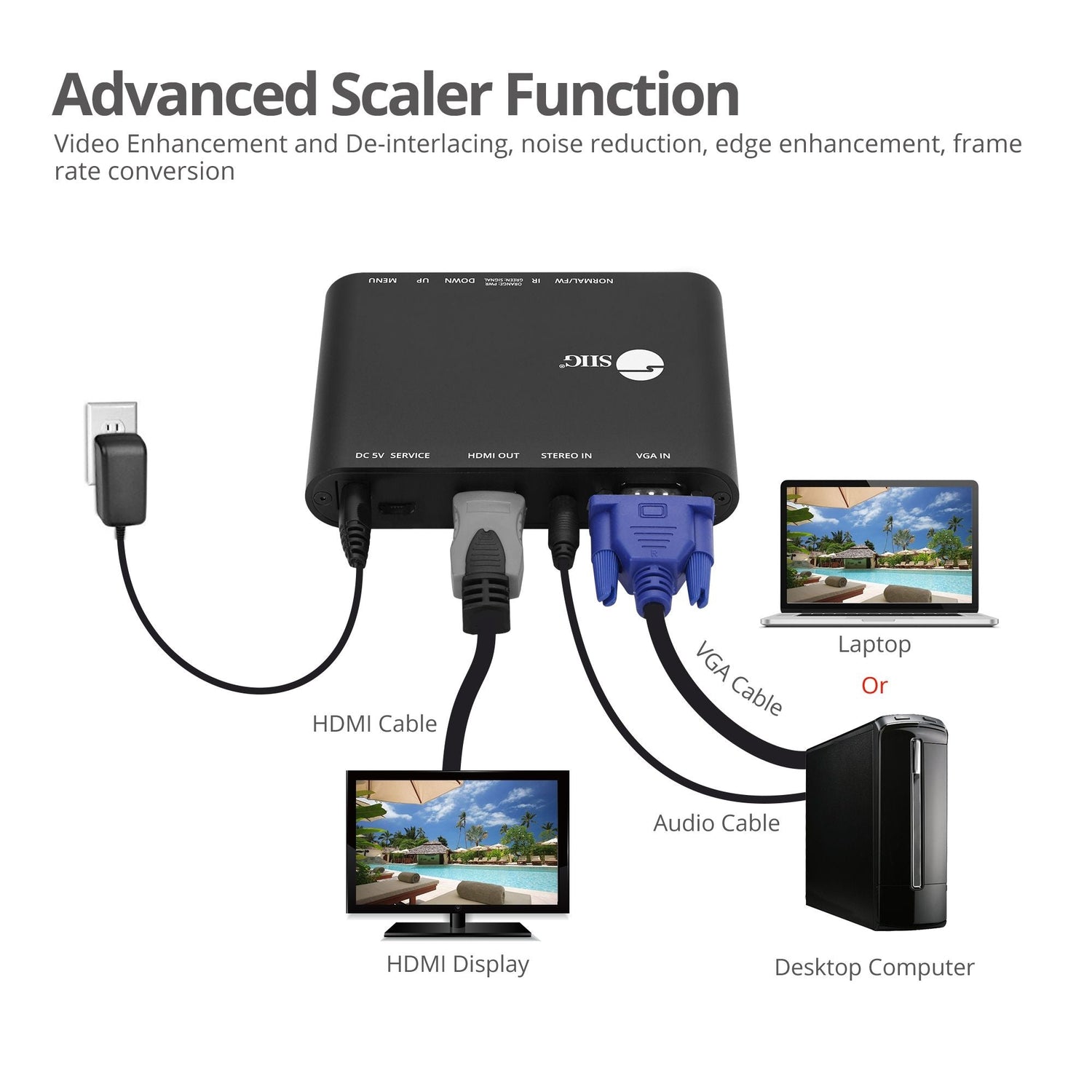

Advanced Scaler
Advanced Scaler
Control Methods
Control Methods
Firmware Upgradable
Firmware Upgradable
Surface-mounting
Surface-mounting
-
45 Days Free Return
-
2 Years Warranty
-
Lifetime Technical Support
| Video | |
| VGA | 1x input |
| HDMI | 1x output |
| Resolution | UXGA (1600 x 1200) and WUXGA (1920 x 1200) PC graphic output Supports HDTV (1080p / 720p) video output |
| Audio | Stereo PCM (48KHz) |
| Pixel Rate | 165MHz (Max) |
| IR Remote Control | Full frequency: 20KHz to 60KHz |
| ESD Protection | ±19kV Air & ±12kV Contact |

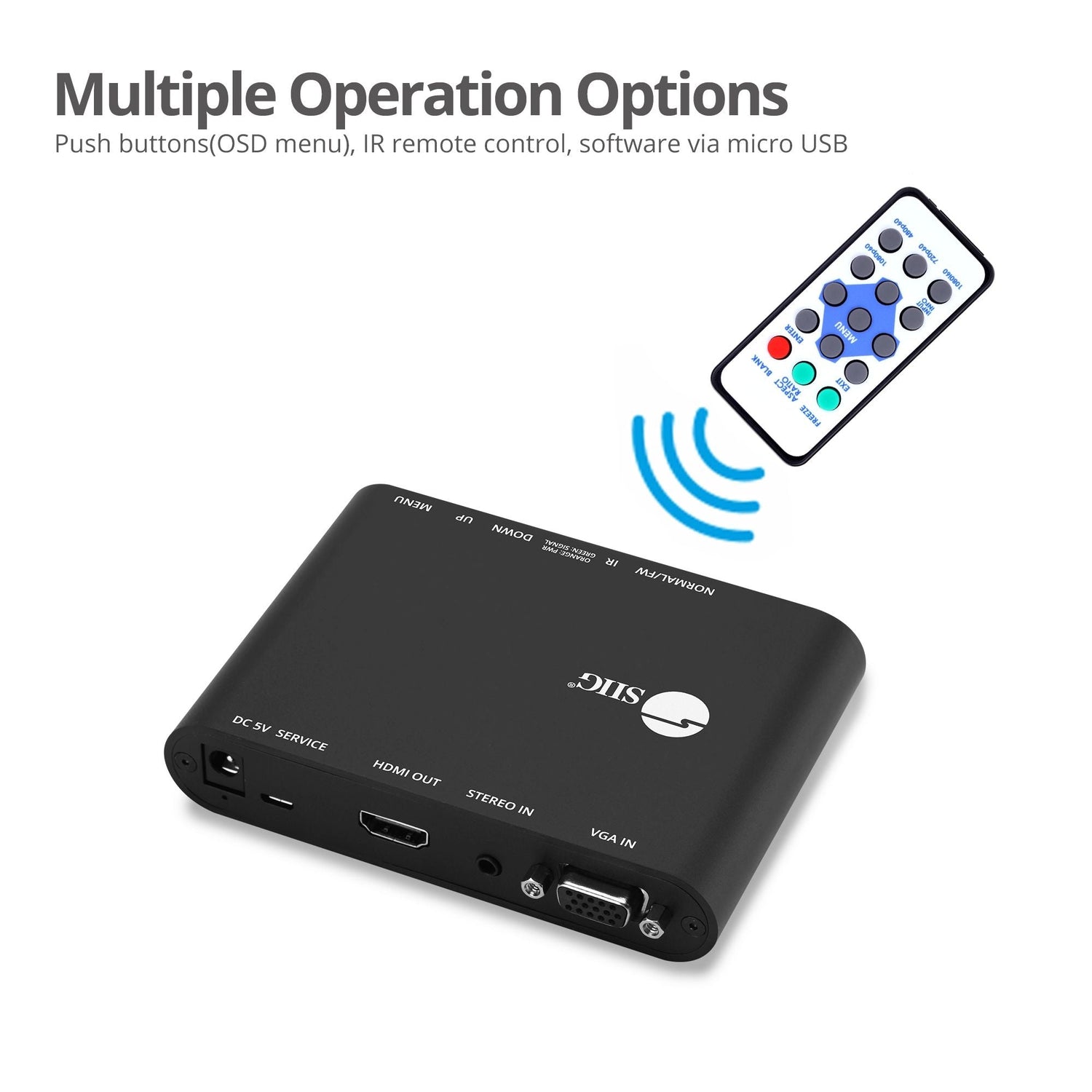

| Device Control | Software control via Micro-USB port Push button (OSD) IR remote control (included) |

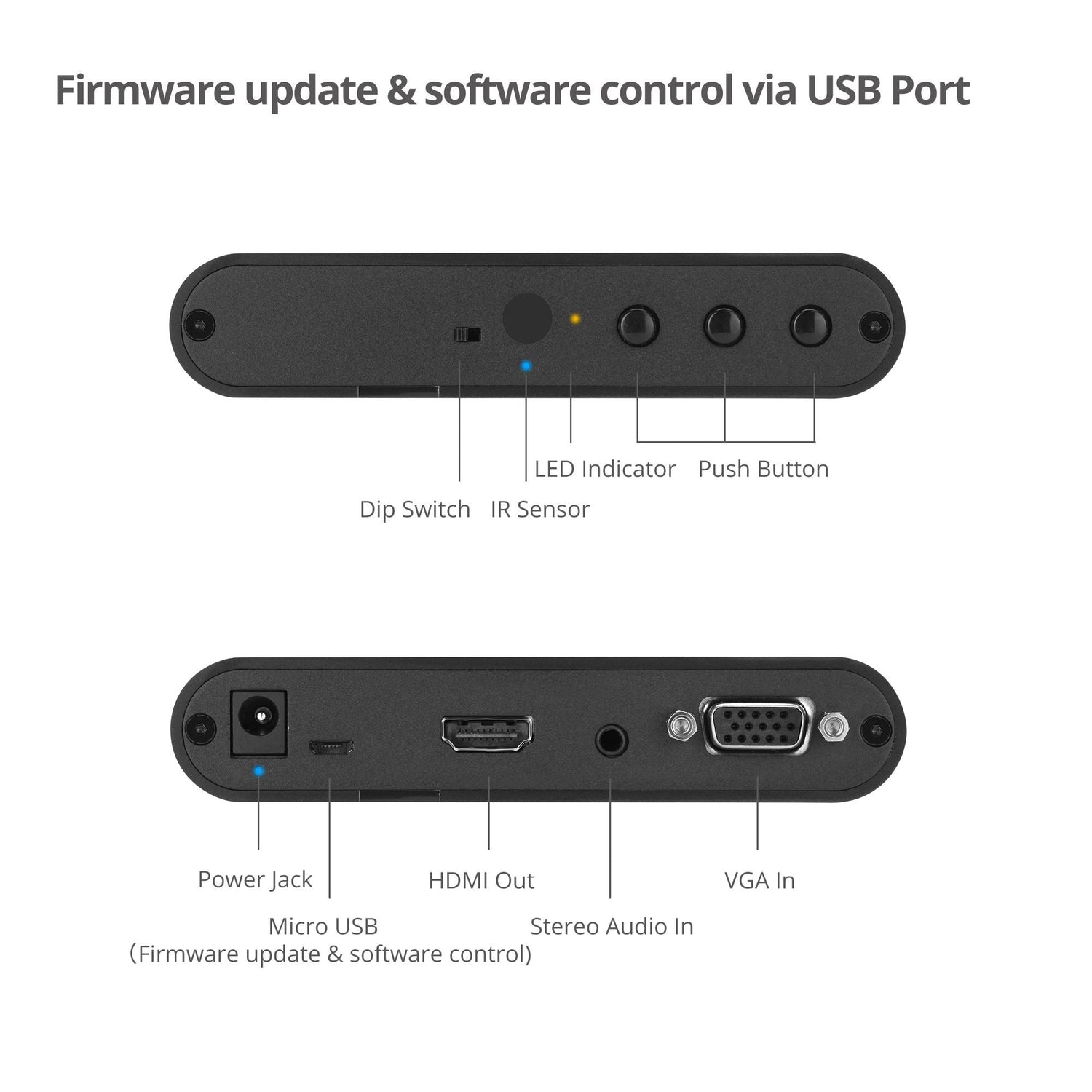

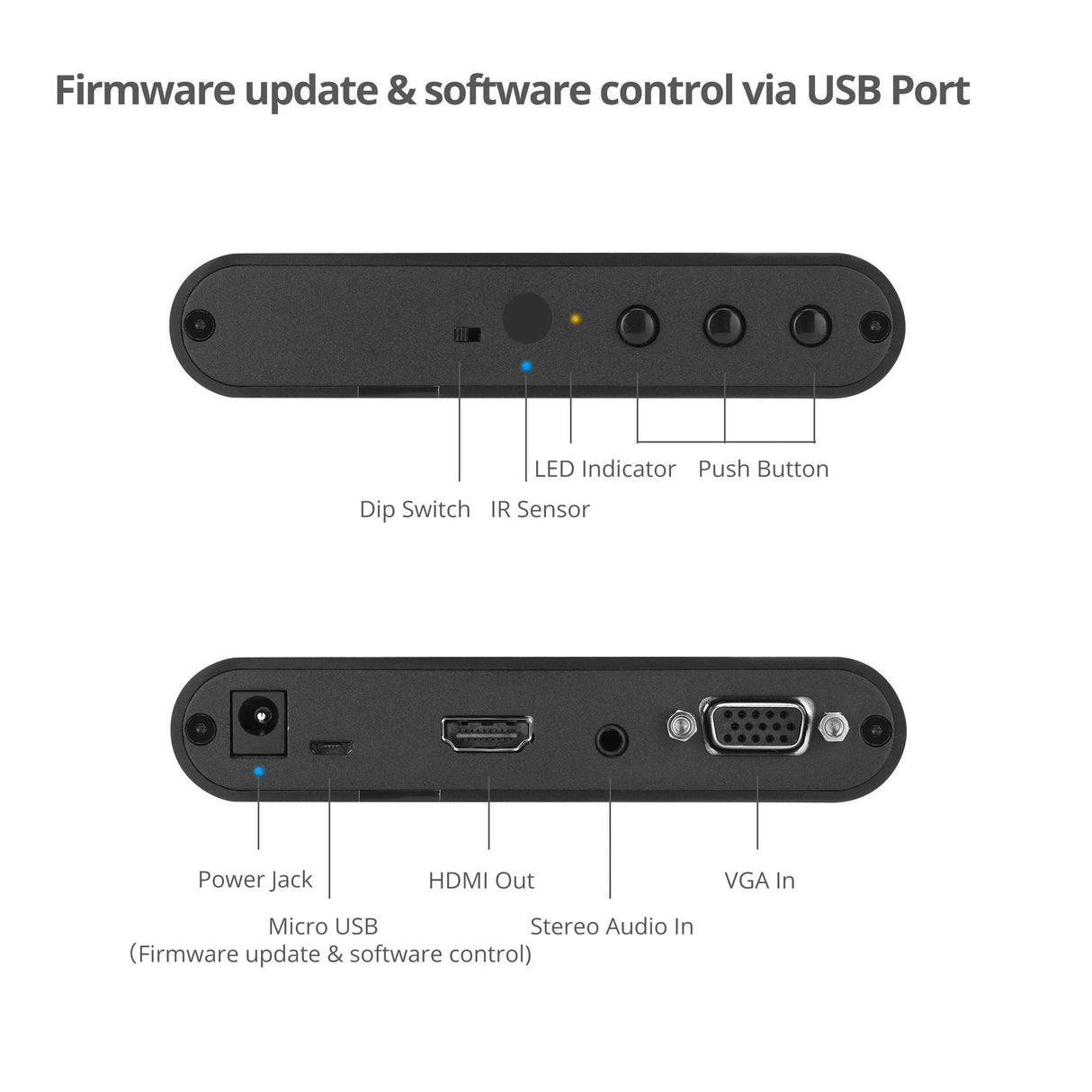

| Interface | 1x 15-Pin D-Sub (VGA), female, input 1x 19-Pin HDMI, Type A, female, output 1x 3.5mm, stereo audio, input 1x 5-Pin Micro USB, Firmware upgrade/software control 1x 2-Pin DIP switch, operating mode 1x Power jack, Power input |
| Power Adapter | |
| Input | 100-240VAC, 50/60Hz |
| Output | DC 5V/2A |
| UL | E135856 / Class VI |

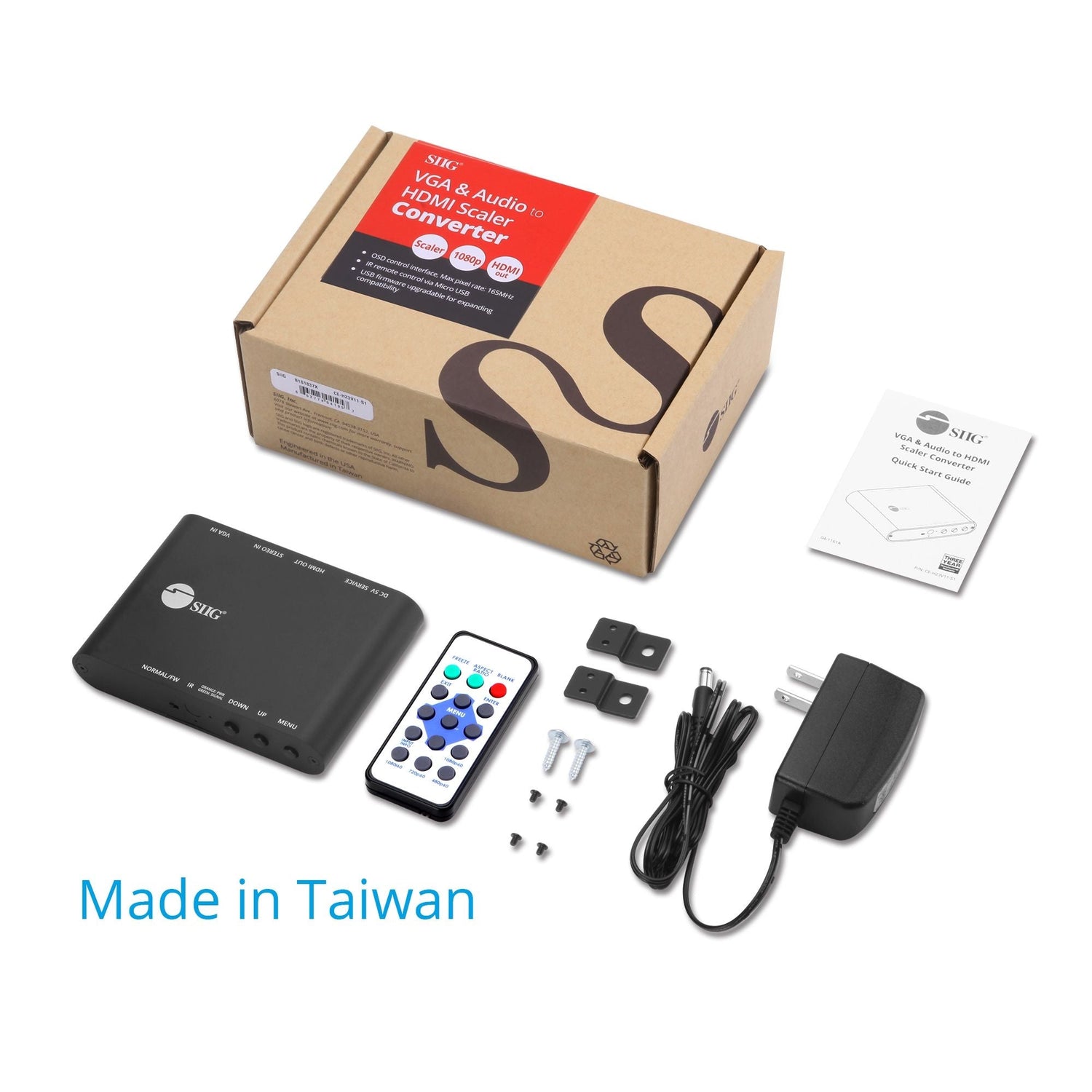

| Package Contents | 1x VGA & Audio to HDMI Scaler Converter 1x Power adapter 5V/2A 1x IR remote control 1x Mounting kit (2x ear mount, 4+2 Screw) 1x Installation guide |
| Product | |

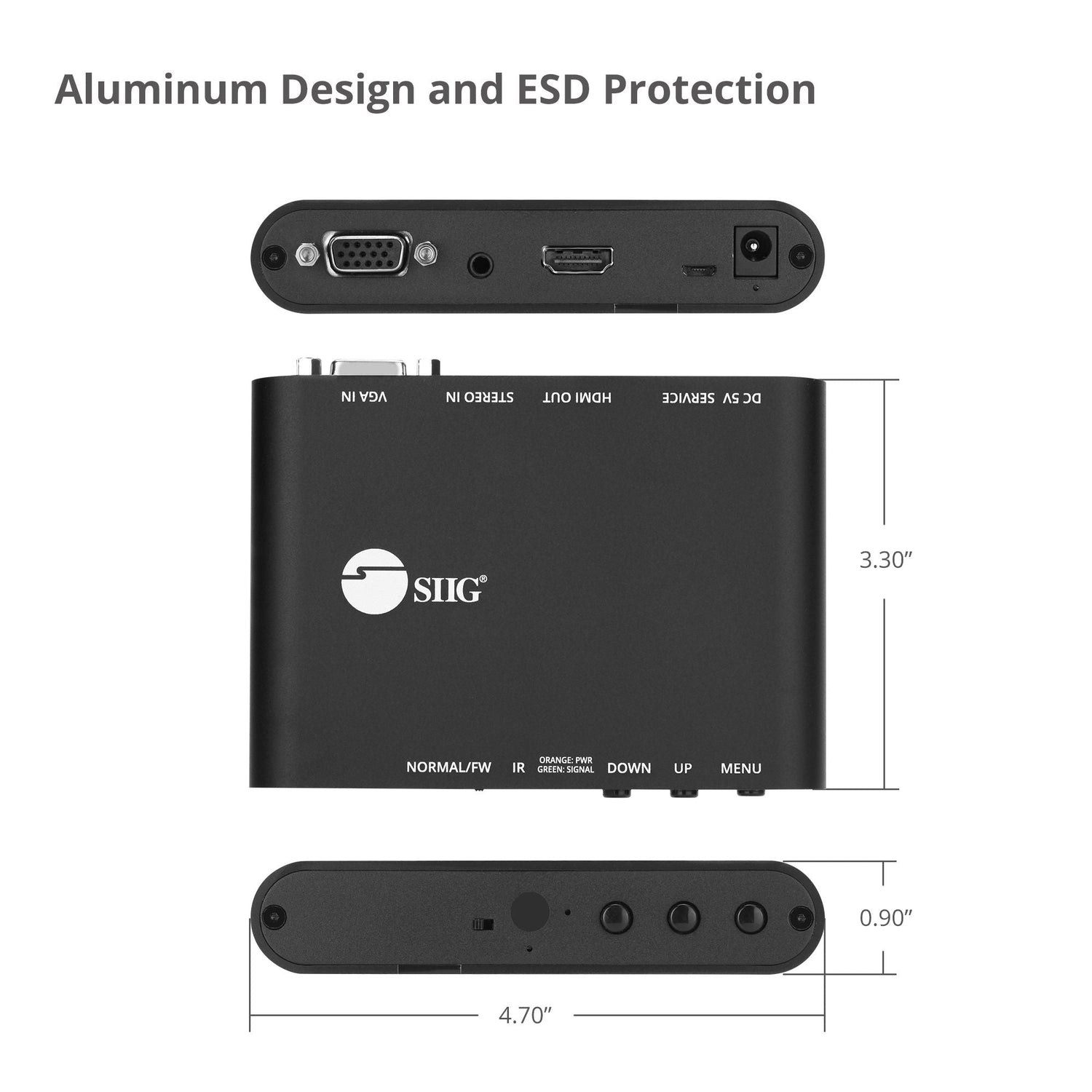

| Dimensions (L) x (H) x (W) | 3.31″ x 0.94″ x 4.72″ 8.41 cm x 2.39 cm x 11.99 cm |
| Weight | 0.46 lb (0.21 kg) |
| Color | Black |
| Housing | Metal, wall mountable |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 5.63″ x 2.95″ x 7.87″ 14.30 cm x 7.49 cm x 19.99 cm |
| Weight | 1.04 lbs (0.47 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 15.75″ x 11.81″ x 16.54″ 40.00 cm x 30.00 cm x 42.01 cm |
| Weight | 22.77 lbs (10.33 kg) |
| Quantity | 20 pcs/ctn |
| Environmental Conditions | |
| Operating Temperature | 32° to 104° F |
| Storage Temperature | -4° to 140° F |
| Relative Humidity | 20 to 90% RH (non-condensing) |
| Certifications/Standards | FCC, CE, RoHS, TAA Compliant |
| UPC Code | 662774-041957 |
| Warranty | 3 years limited |
| Country of Origin | Taiwan |
