IT-Converter/Adapter |
SKU:
CB-TC0811-S1

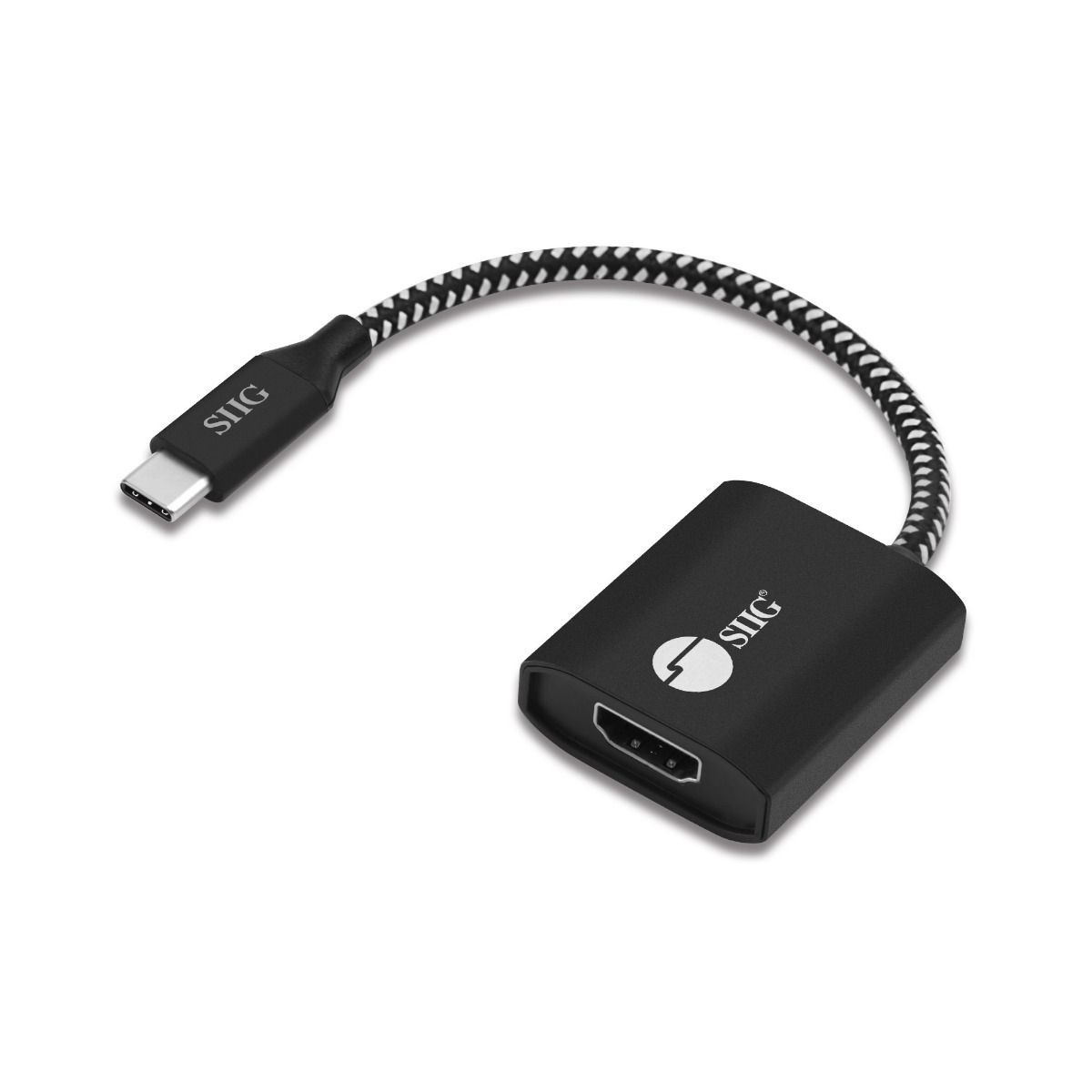

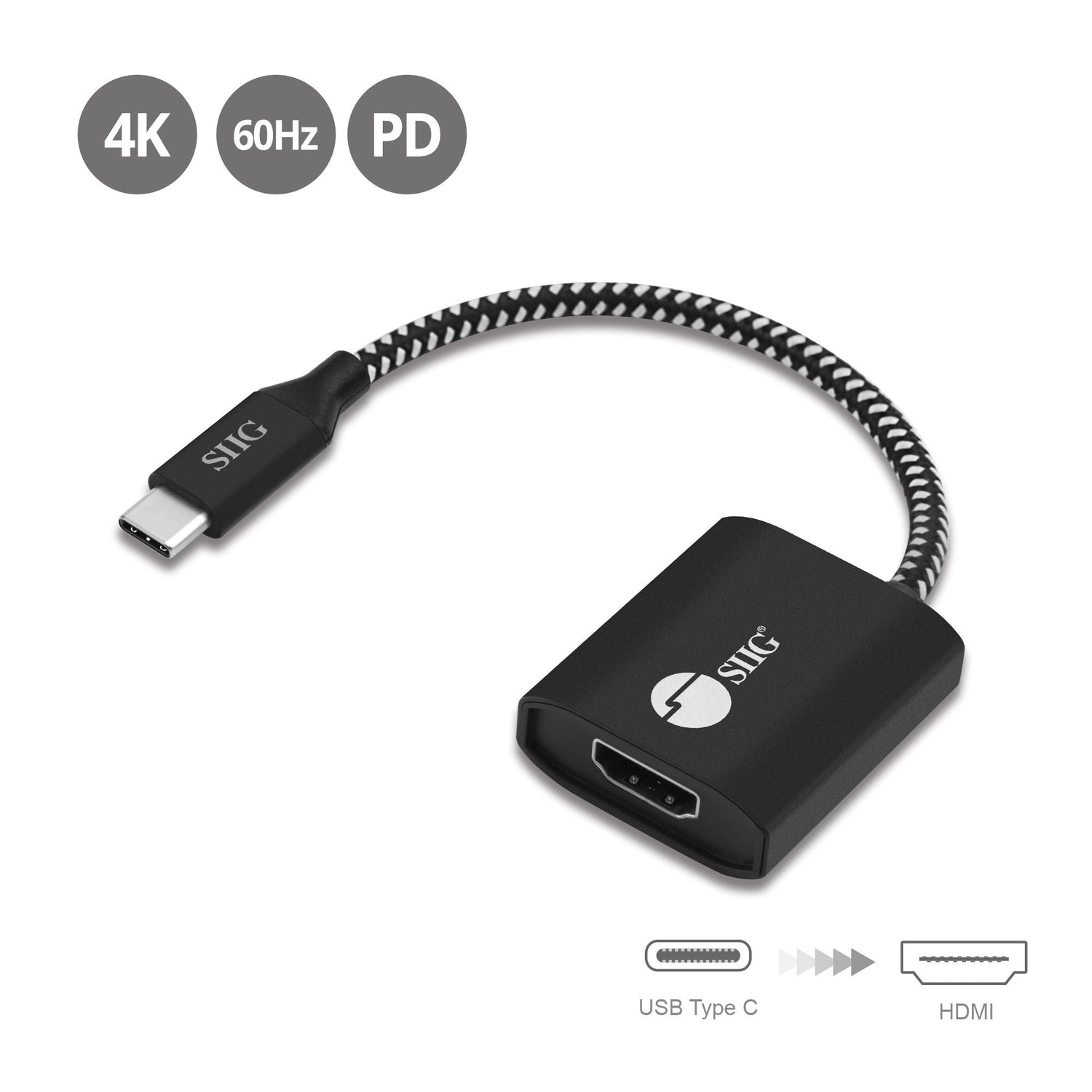

USB Type-C to HDMI Video Cable Adapter with PD Charging
USB-C Video Adapter
USB-C to HDMI
DP Alt Mode
4K60Hz
PD Passthrough type_1
Regular price
$49.99
Unit price
/
Unavailable
Shipping calculated at checkout.
USB Type-C to HDMI Video Cable Adapter with PD Charging is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
Get Connected
Get Connected
UHD 4K Resolution
UHD 4K Resolution
60W PD Charging
60W PD Charging
Easy Plug in
Easy Plug in
Compatibility
Compatibility
No content found
| Chipset | VL100Q4+PS176 |
| Connectors | 1x USB Type-C, Male 1x 19-pin, HDMI Type-A, Female 1x 24-pin, USB-C, Female, Power Delivery, 60W Nickel plated |
| Compliance | DisplayPort Standard Version 1.2 |

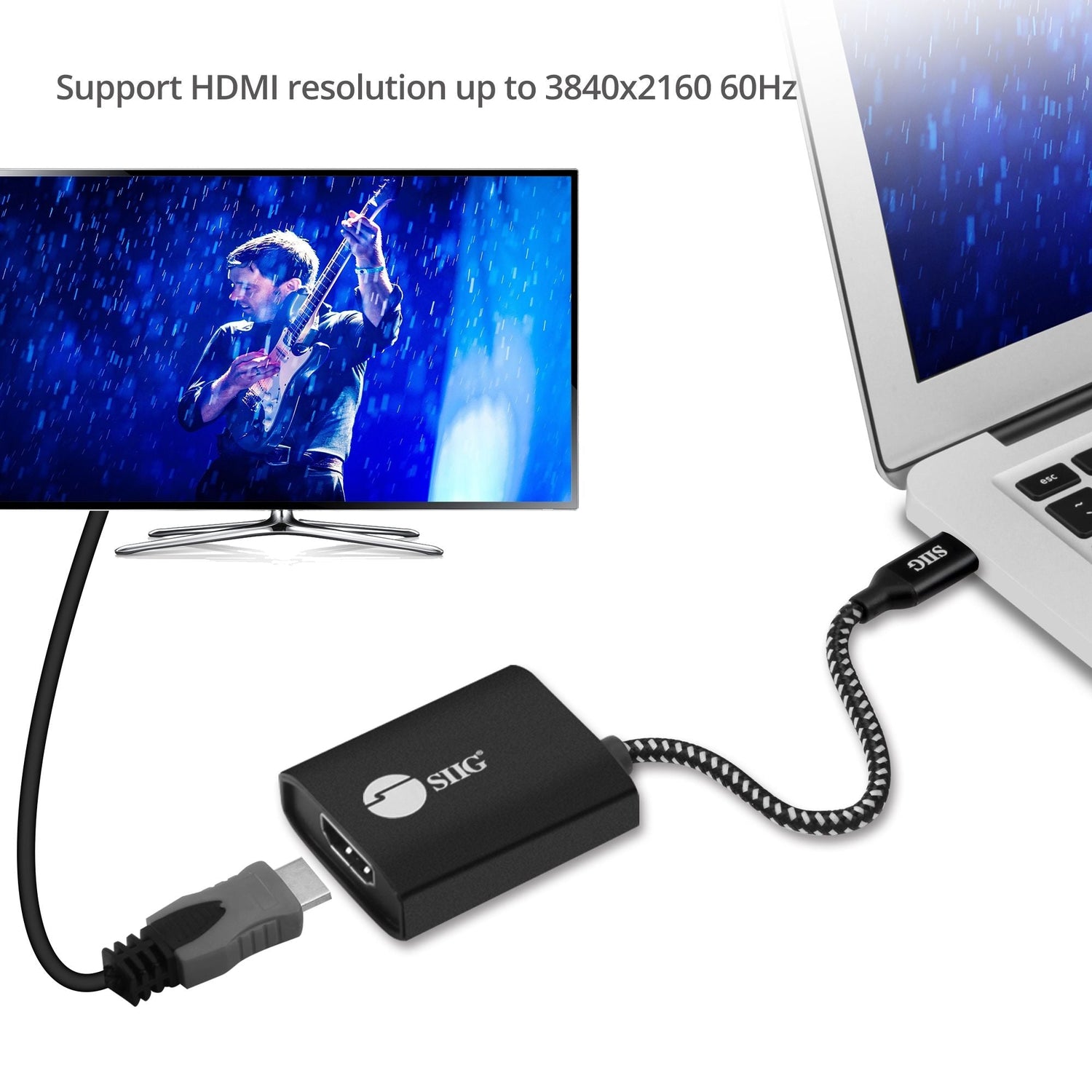

| Video Resolution | 720p, 1080p and up to 3840x2160@60Hz (4K UHD) |
| HDMI Cable Transmission Distance | Up to 16ft (5m) |

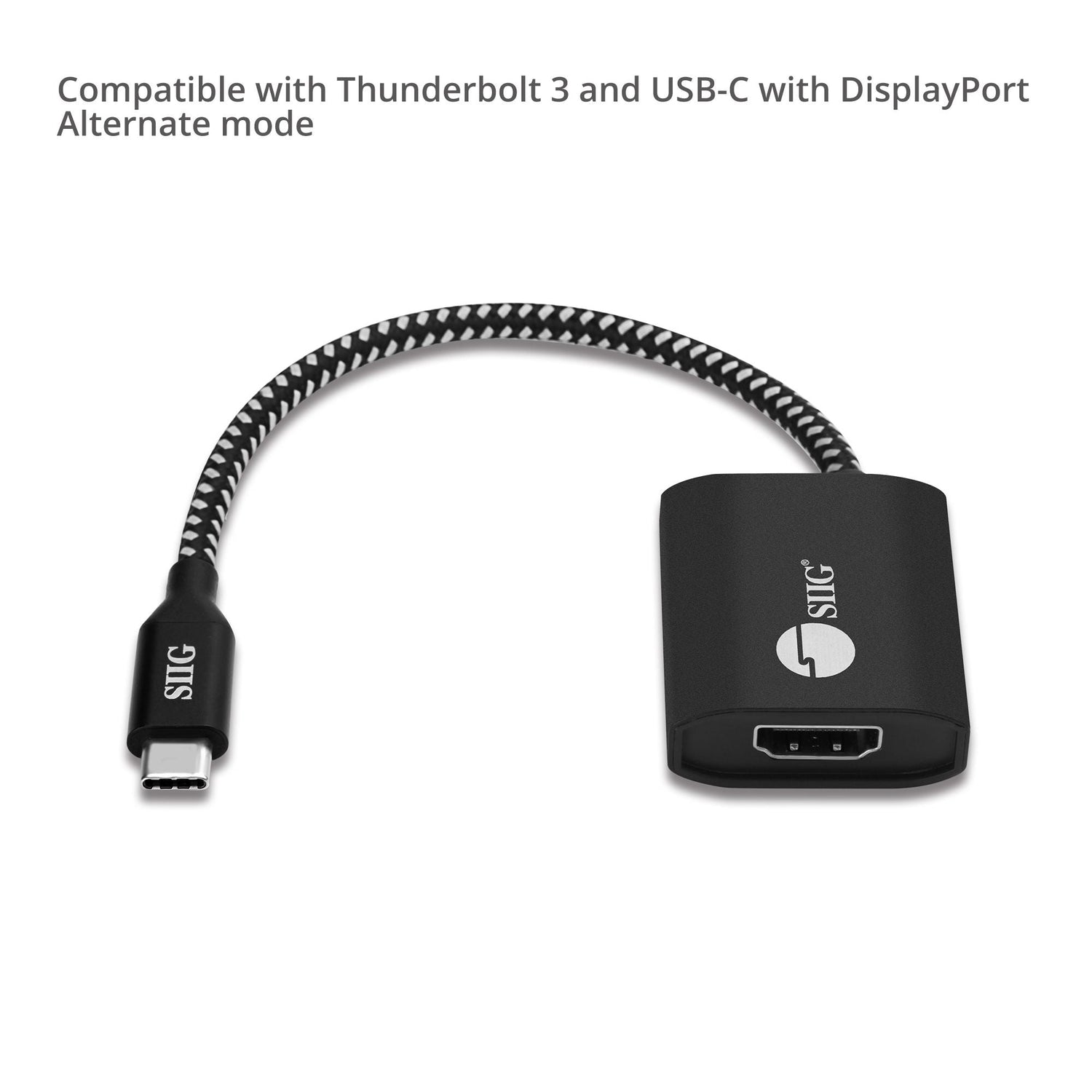

| System Interface | USB Type-C DisplayPort Alt Power Delivery Thunderbolt 3™ technology |

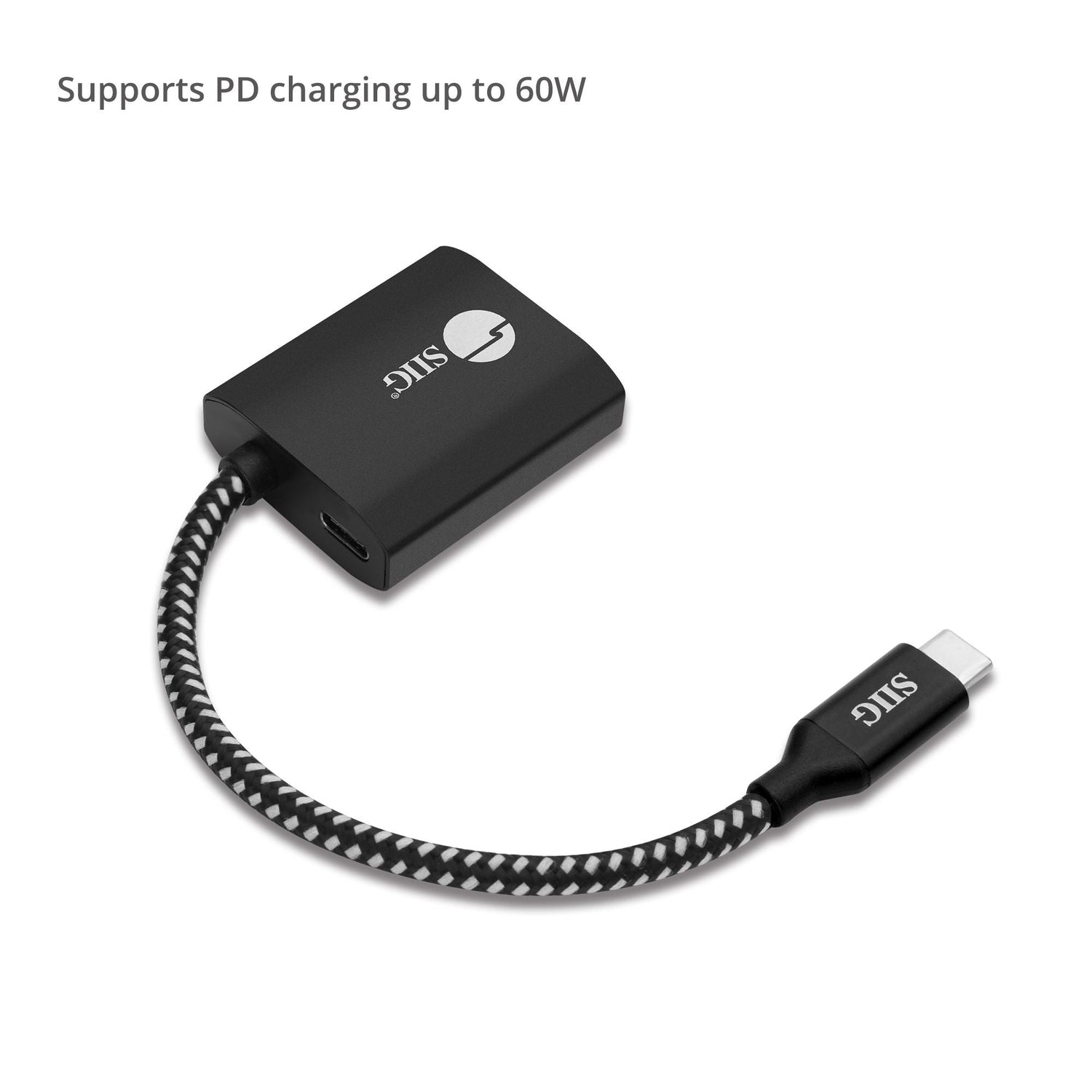

| Power Delivery (PD) | Total power output: 60 Watts (Max) Supports 5V/2A; 12V/1.5A; 12V/3A; 12V/5A; 20V/3A |
| System Requirements | System with an available Thunderbolt 3 or DisplayPort Alternate (DP Alt) and Power Delivery enabled USB-C port* HDMI display Compliant with Windows® and macOS® system *Note: The USB-C source connection must support DisplayPort Alternate Mode (DP Alt) in order for the adapter's HDMI connector to pass video and audio signal |
| Product | |

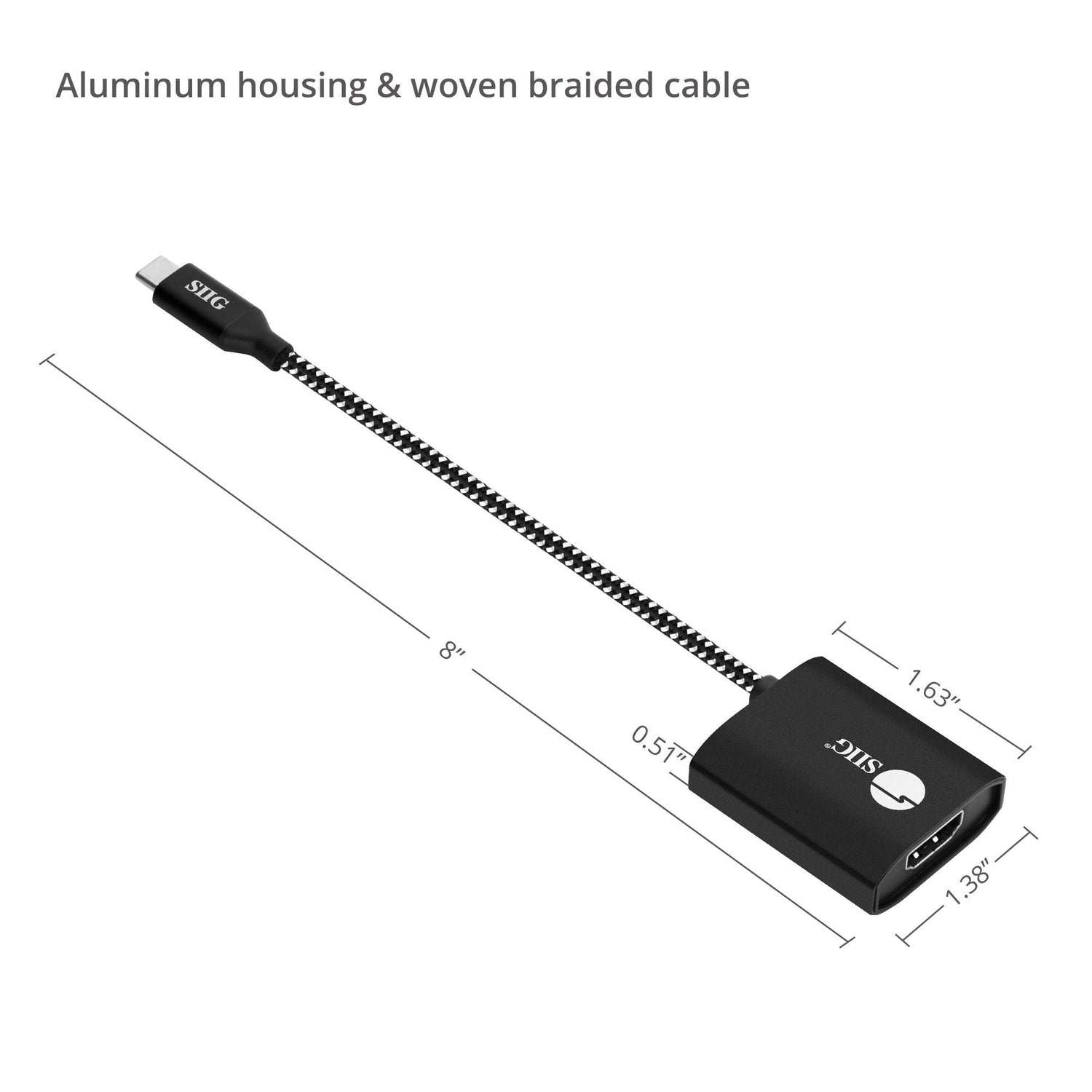

| Product Dimensions | 1.63″(W) x 0.51″(H) x 1.38″(D) |
| Product Weight | 0.06 lbs |
| Unit Package | |
| Unit Package Dimensions | 6.30″ (W) x 9.37″(H) x 1.00” (D) |
| Unit Package Weight | 0.08 lbs |
| Master Carton | |
| Master Carton Dimensions | 19.29″(W) x 9.10″(H) x 15.16″(D) |
| Master Carton Weight | 13.23 lbs |
| Master Carton Quantity | 150pcs/ctn |

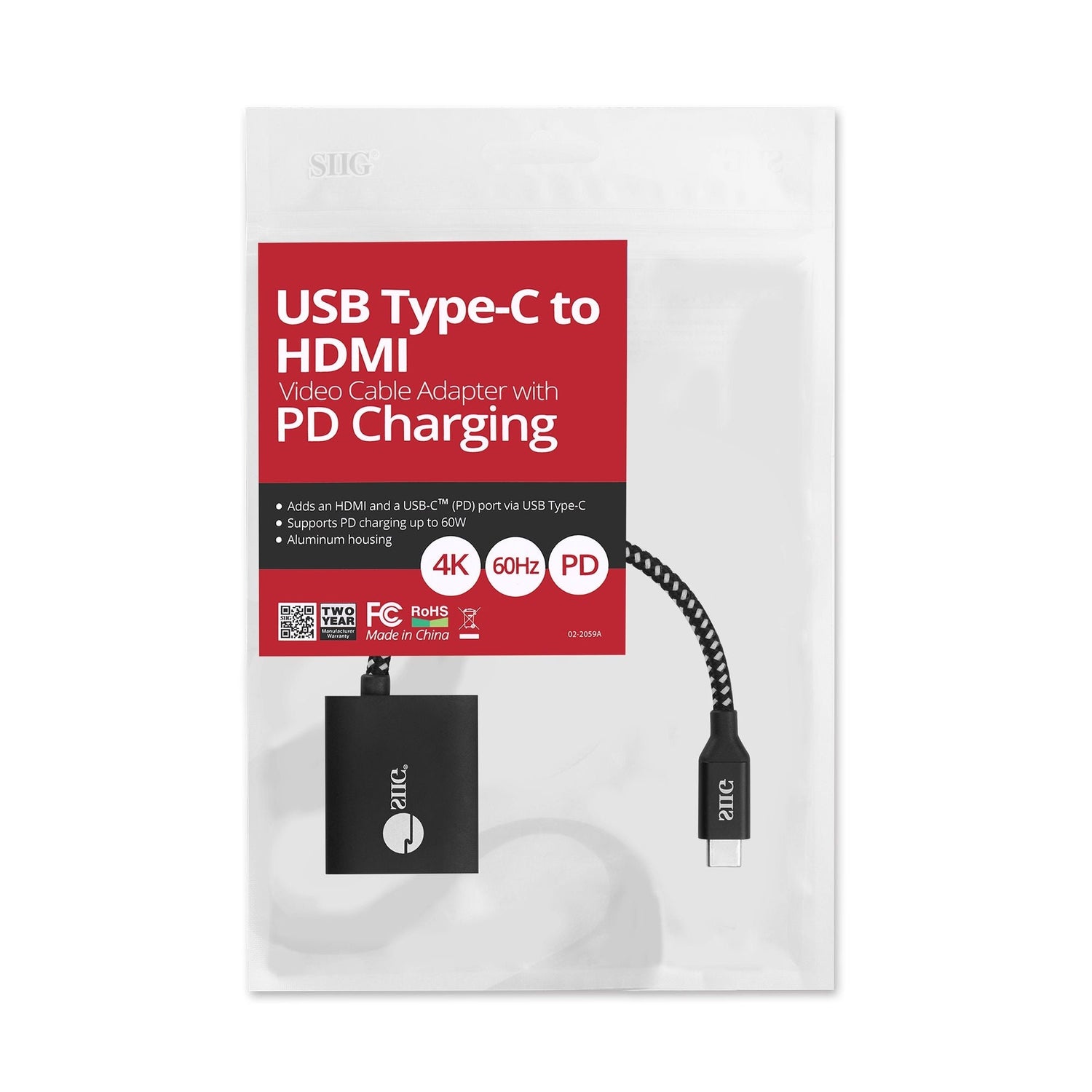

| Package Contents | USB Type-C to HDMI Video Cable Adapter with PD Charging |
| Environmental Conditions | Operating temperature: 32 to 140 degrees F Storage temperature: 14 to 158 degrees F Relative humidity: 10 to 90% RH (non-condensing) |
| Housing Material | Aluminum |
| Color | Black |
| Certifications/Standards | FCC CE RoHS |
| [[Warranty | 2 years limited |
| Country of Origin | China |
