SKU:
JU-CS0311-S1

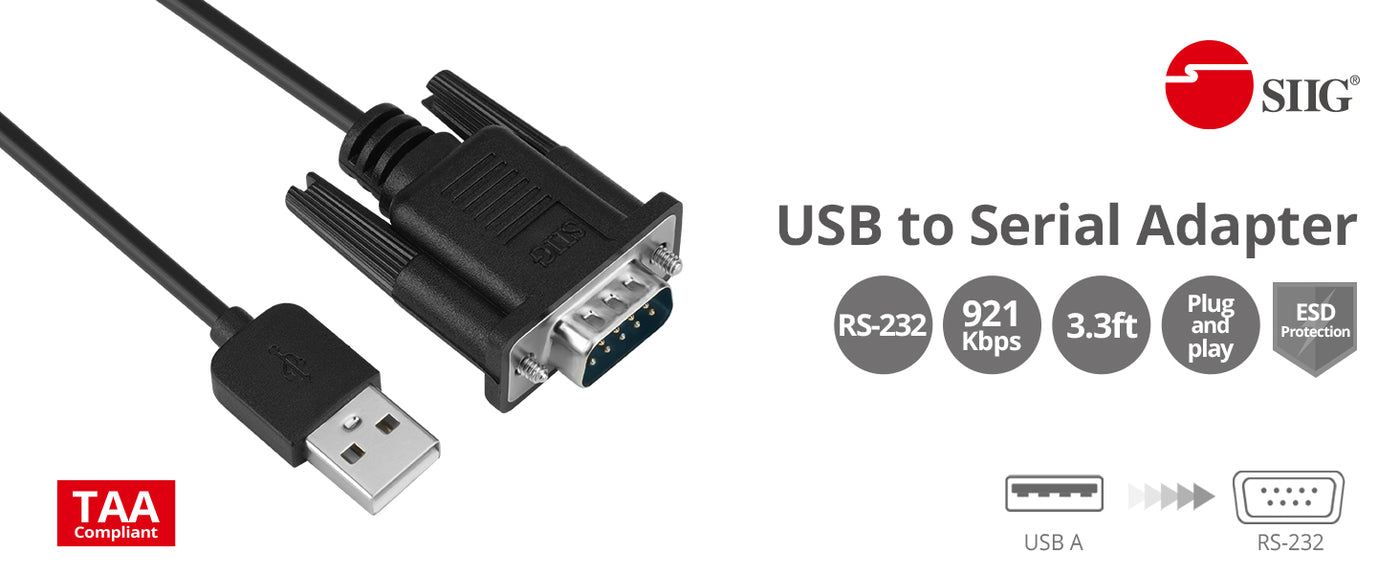

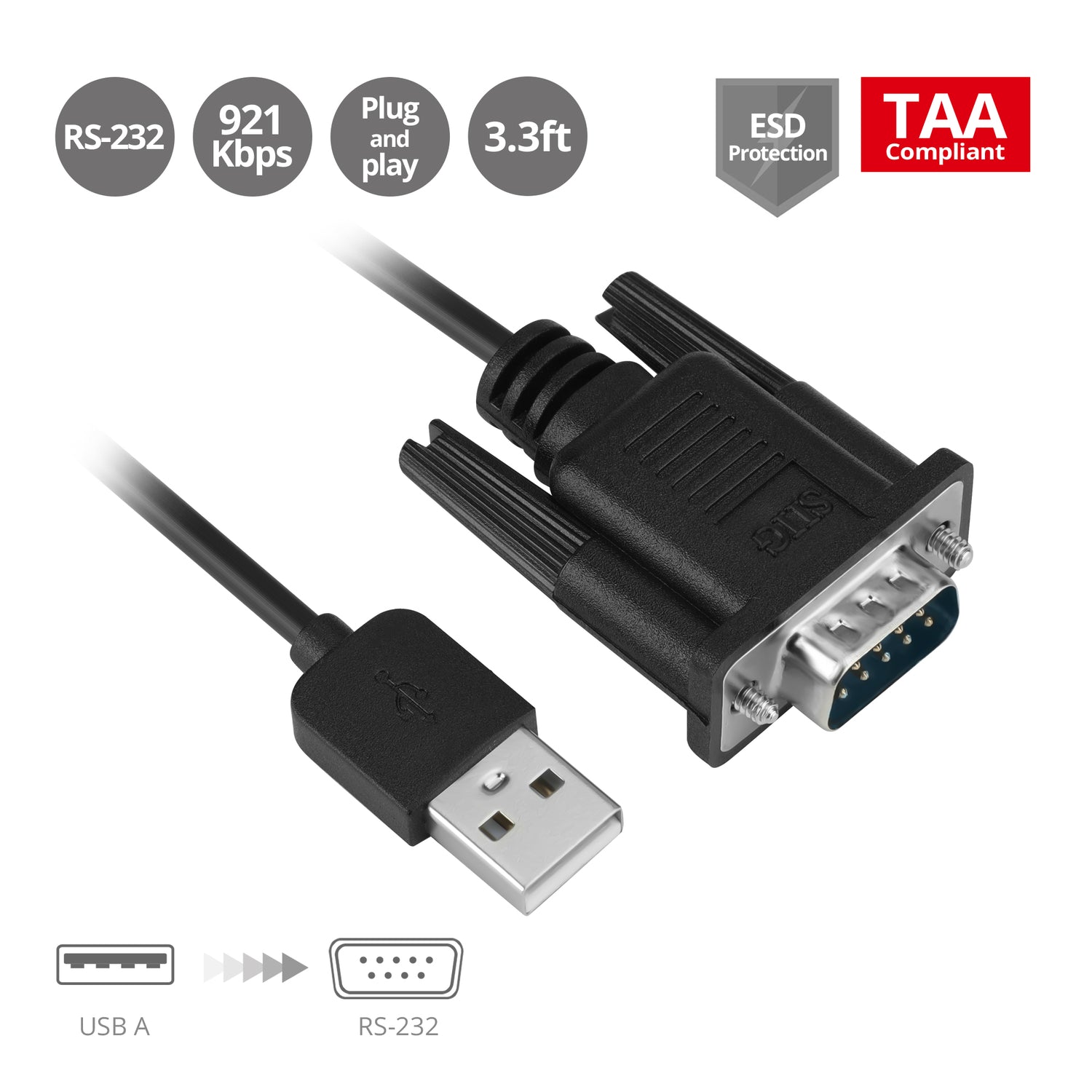

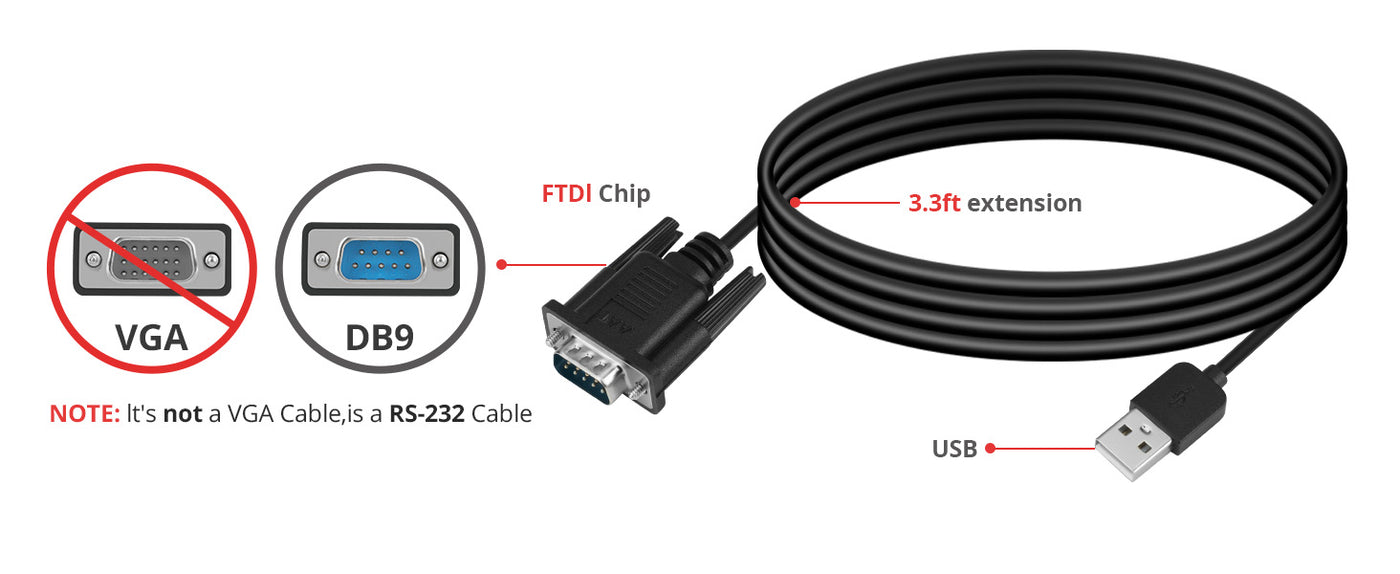

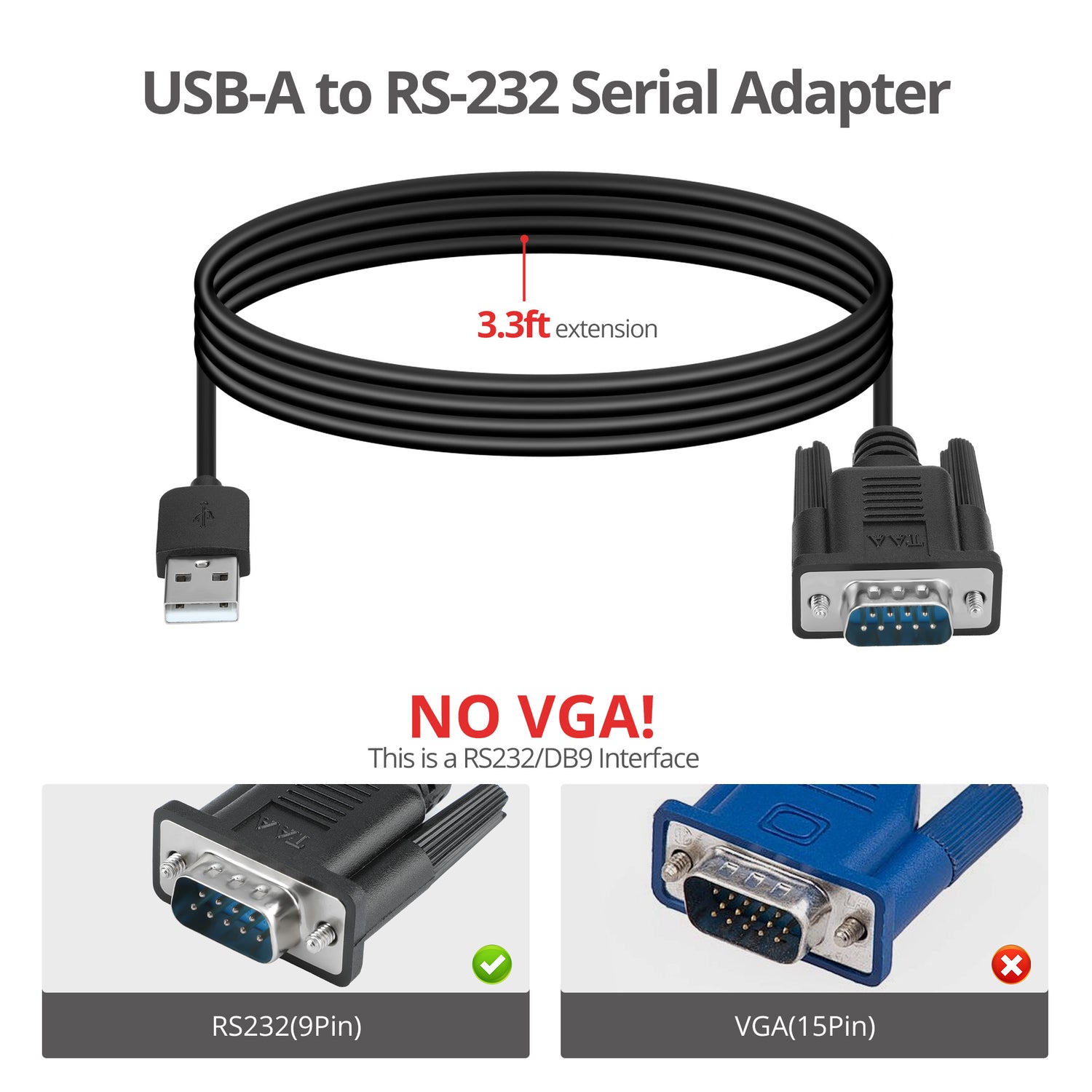

USB to RS-232 Serial Adapter - FTDI - 3.3ft - 921Kbps - ESD - TAA compliant
RS-232
Up to 921Kbps
3.3ft (1m)
ESD Protection
TAA Compliant
Regular price
$47.99
Unit price
/
Unavailable
Shipping calculated at checkout.
USB to RS-232 Serial Adapter - FTDI - 3.3ft - 921Kbps - ESD - TAA compliant is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
Expanded Device Connectivity
Expanded Device Connectivity
High-Speed Data Transfer
High-Speed Data Transfer
Wide Compatibility
Wide Compatibility
High-Performance Chipset
High-Performance Chipset
Robust Protection
Robust Protection
Easily Adds One RS-232 Serial Port to Computers with a USB Port, Providing Seamless Connectivity
FT232 Chipset for Reliable Performance and Wide Compatibility

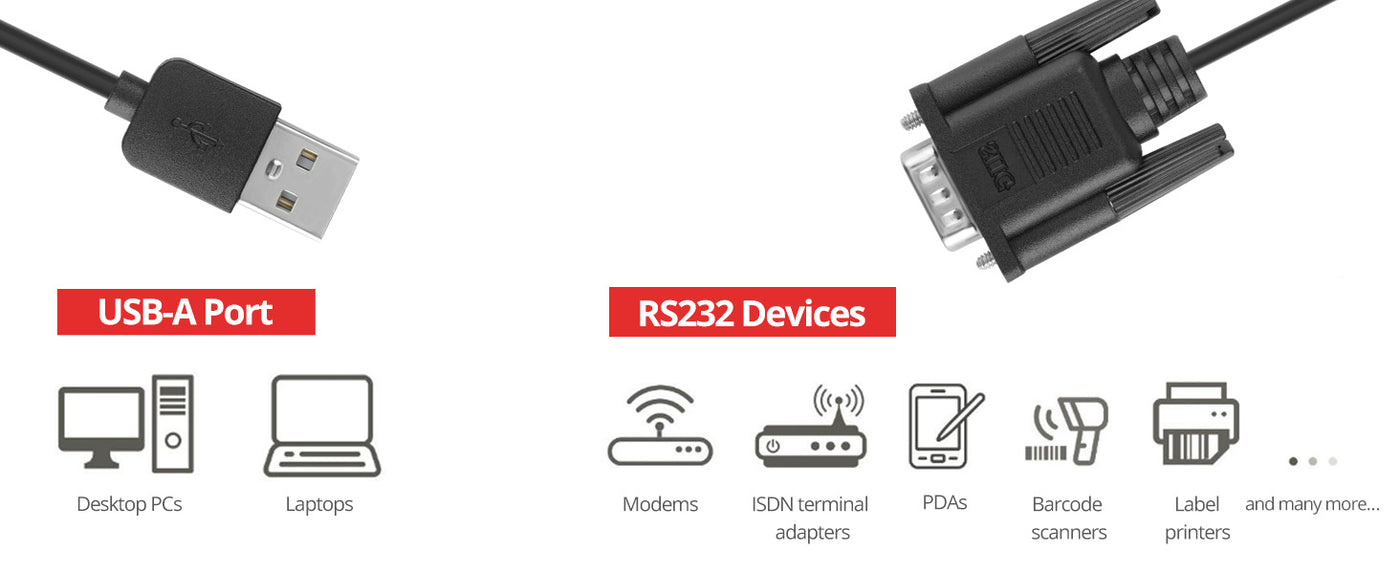

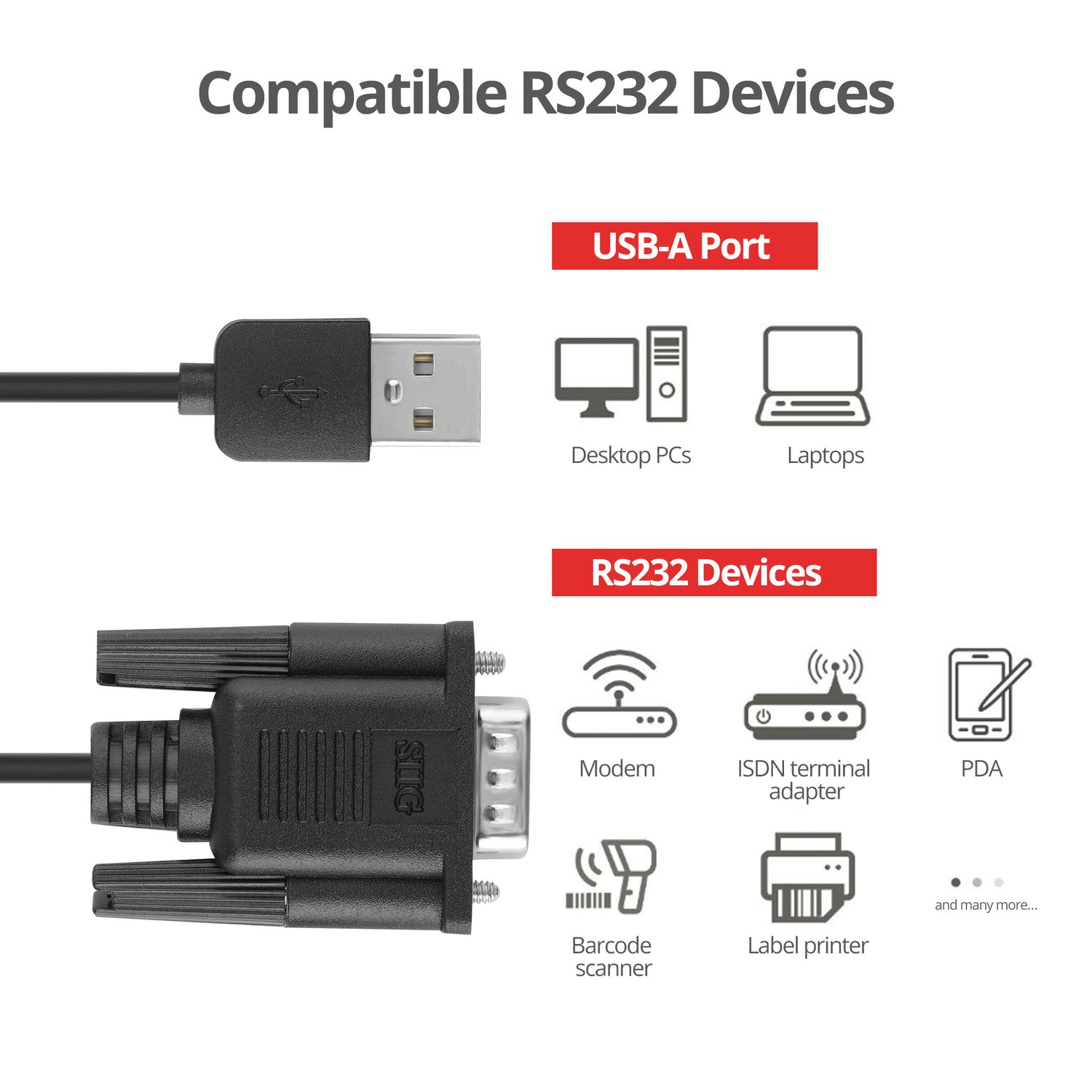

Ideal for Interfacing with Legacy RS-232 Devices
No Power or Drivers Needed for Quick and Effortless Setup
| Chipset | FT232 |
| Compliance | Compliant with USB 1.1 and 2.0 specification |
| Advanced Buffer Technology | 128-byte receive buffer and 256-byte transmit buffer |
| ESD Protection | 15KV Human Body Model |
| RS232 Transfer Rate | Up to 921Kbps |

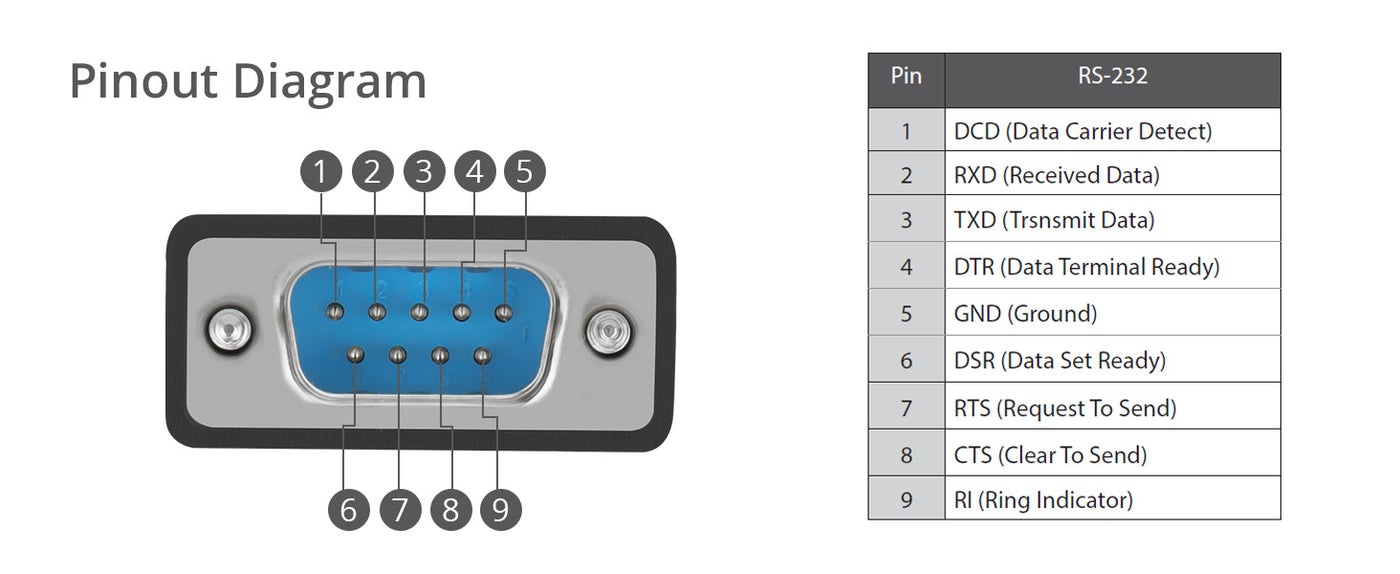

| Connectors | 1x 4-pin, USB Type-A, Male 1x 9-pin, RS-232 Serial, Male |
| Environmental Conditions | |
| Operating temperature | 32 to 122 degrees F |
| Storage temperature | 14 to 158 degrees F |
| Relative humidity | <85% RH (non-condensing) |
| Certifications/Standards | FCC, CE, RoHS, TAA Compliant |
| UPC Code | 662774-043654 |
| Warranty | 2 year limited |
| Country of Origin | Taiwan |

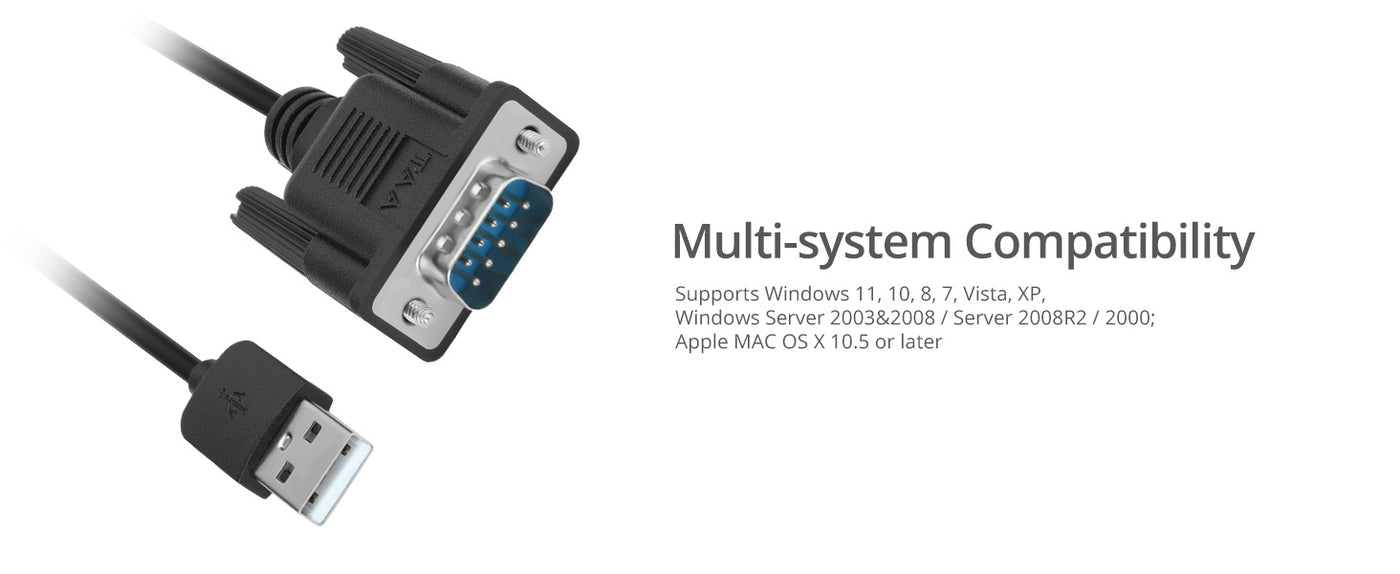

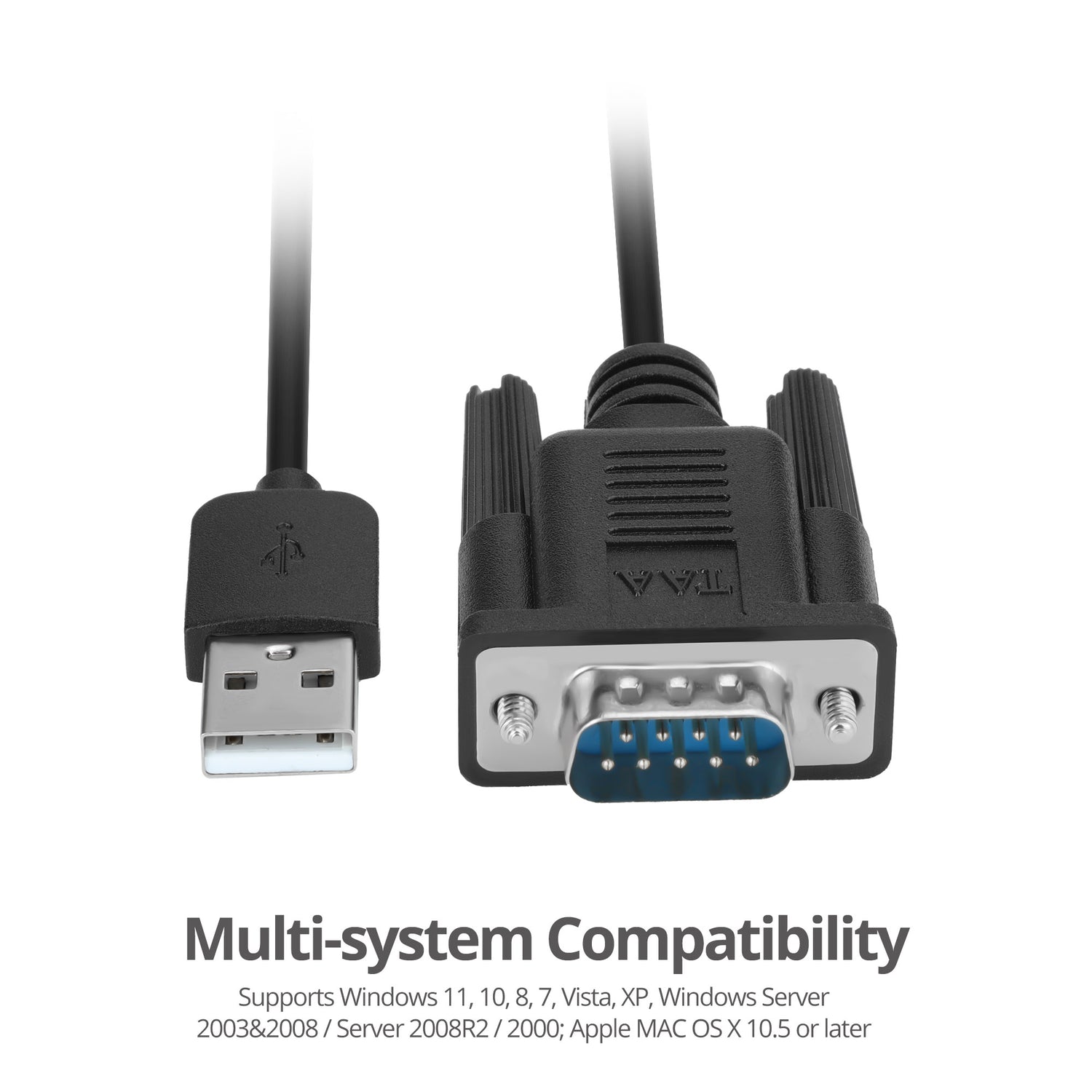

| System Requirements | - Desktop or notebook PC with an available USB 2.0 port - Windows® 11 (64-bit) / 10 (32-/64-bit) / 8 (32-/64-bit) / 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-/64-bit) - Windows® Server 2003 & 2008 (32-/64-bit) / Server 2008 R2 / 2000 - macOS® 10.5 or later |
| Product | |
| Dimensions (L) x (H) x (W) | 2.12" x 0.59" x 1.29" 5.38 cm x 1.50 cm x 3.28 cm |
| Serial cable length | 1000mm (max) |
| Weight | 0.14 lbs (0.06 kg) |
| Color | Black |
| Housing material | Plastic |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 6.30" x 0.59" x 9.37" 16.00 cm x 1.50 cm x 8.33 cm |
| Weight | 0.17 lbs (0.08 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 21.06" x 19.49" x 12.60" 53.50cm x 49.50 cm x 32.00 cm |
| Weight | 19.85 lbs (9.00 kg) |
| Quantity | 100pcs/ctn |

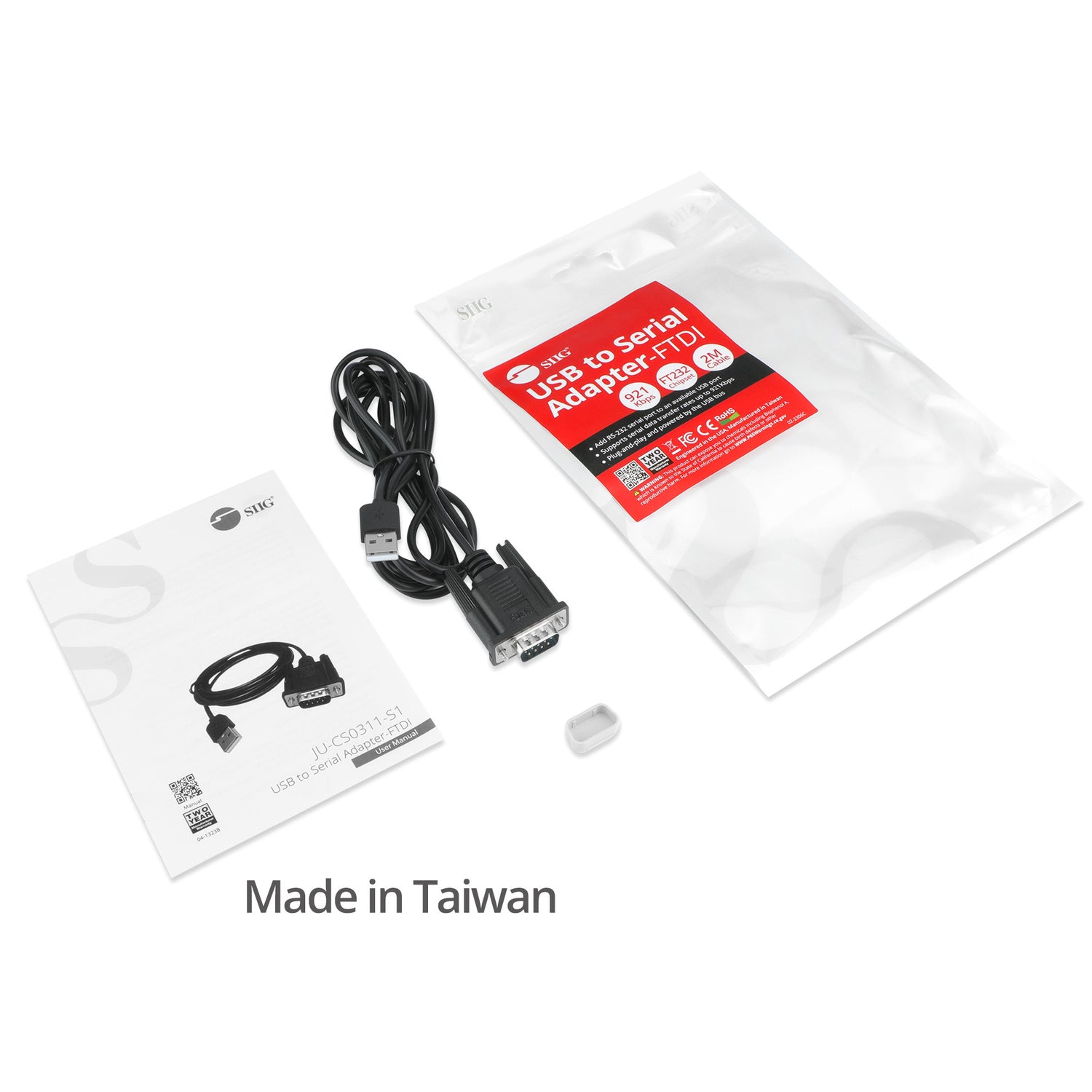

| Package Contents | 1x USB to Serial Adapter 1x User manual |
No content found
Manuals
Drivers (Hardware Version: 1)
- Windows 10 (32-/64-bit) / 8.x (32-/64-bit) / 7 (32-/64-bit) / 2012 R2 / 2008 R2 / 2016Driver version: v2.12.28 (Inf)
- Mac OS 10.9 to 11Driver version: v2.4.4
- Mac OS 10.8 to 10.5Driver version: v2.2.18
- Windows 11 / Windows 10 (32-/64-bit) / 8.x (32-/64-bit) / 7 (32-/64-bit) / 2012 R2 / 2008 R2 / 2016Driver version: v2.12.36.4 (setup executable)
