Docking Station |
SKU:
JU-DK0D11-S1

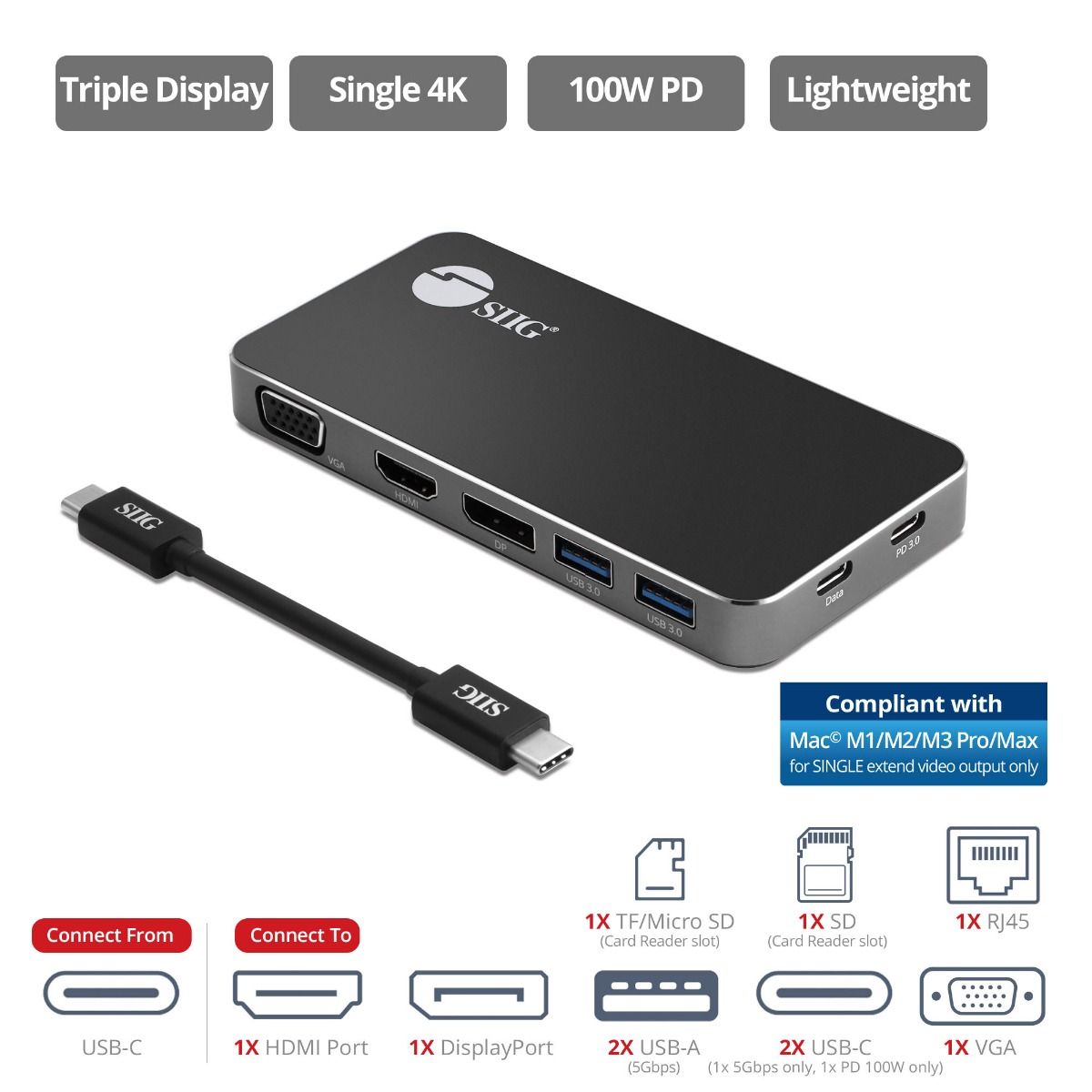

USB-C MST Video Travel Docking with PD Pass Through
USB-C MST Travel Docking
Triple Video
Single 4K
PD Passthrough
Cable Detachable Design
Regular price
$179.99
Unit price
/
Unavailable
Shipping calculated at checkout.
USB-C MST Video Travel Docking with PD Pass Through is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
Extreme Versatility
Extreme Versatility

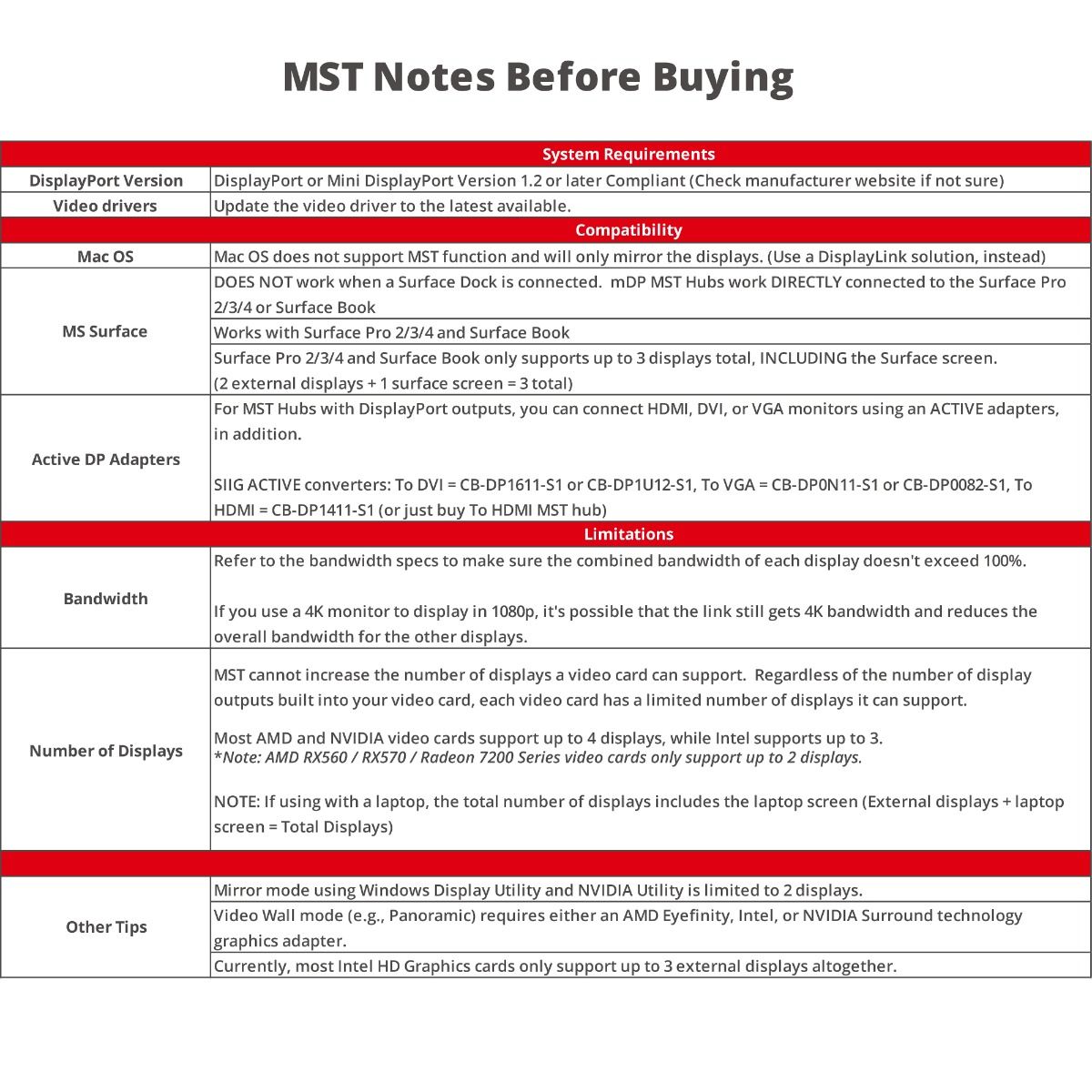

Multi Stream Transport Technology
Multi Stream Transport Technology
Wide Compatibility
Wide Compatibility
Super Speed
Super Speed
Aluminum Highlights Trim & Lightweight
Aluminum Highlights Trim & Lightweight
No content found
| Hardware | |
| Chipset | VL817 + VL103R |
| Software | |
| OS Compatibility | Windows® 11, macOS® 10.12 or newer Note: Compliant with macOS® M1, M2, M3 Pro, & Max systems for single extend video output and Mirror mode only |
| Video | |
| Input | 1x USB-C DP Alt mode |
| Output | 1x DisplayPort 1.2 with MST technology 1x HDMI with MST technology 1x VGA |
| Single view | DP / HDMI: up to 4K (3840x2160@30Hz) resolution, DP cable up to 3M / HDMI cable up to 5M VGA: up to 1080p (1920x1080@60Hz) resolution |
| Dual view | DP + HDMI / DP + VGA / HDMI + VGA: up to 1080p (1920x1080@60Hz) resolution, DP cable up to 3M / HDMI cable up to 5M |

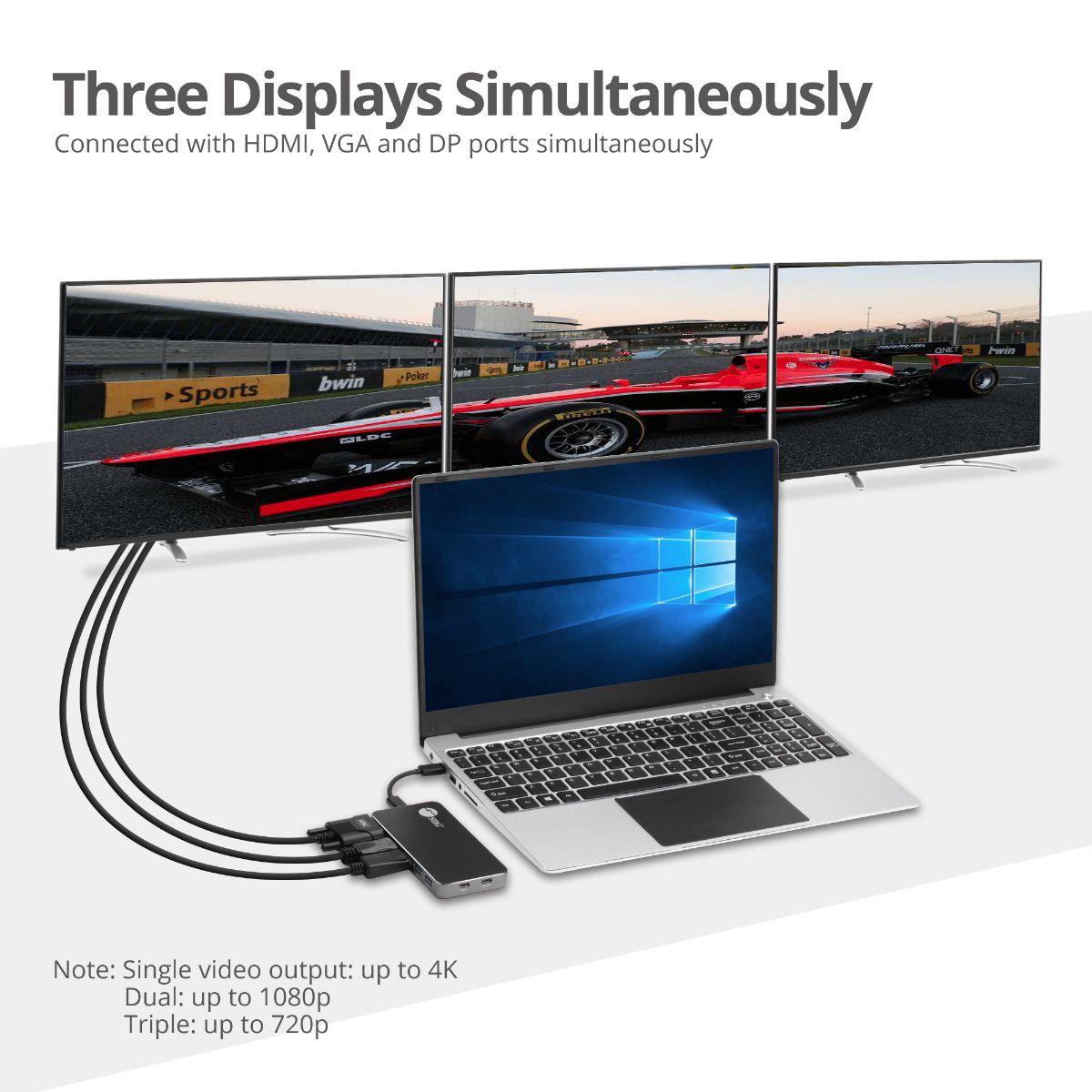

| Triple view | DP + HDMI + VGA: up to 720p (1280x720@60Hz) resolution for each, DP cable up to 3M / HDMI cable up to 10M |
| USB | |
| USB-C Host | DP Alt Mode & PD |
| USB-C Data | data transfer rate up to 5Gbps |
| USB-C PD | PD 3.0 pass through only |
| USB-A | x2, data transfer rate up to 5Gbps |
| Audio | |
| Display Modes | |
| Power | |

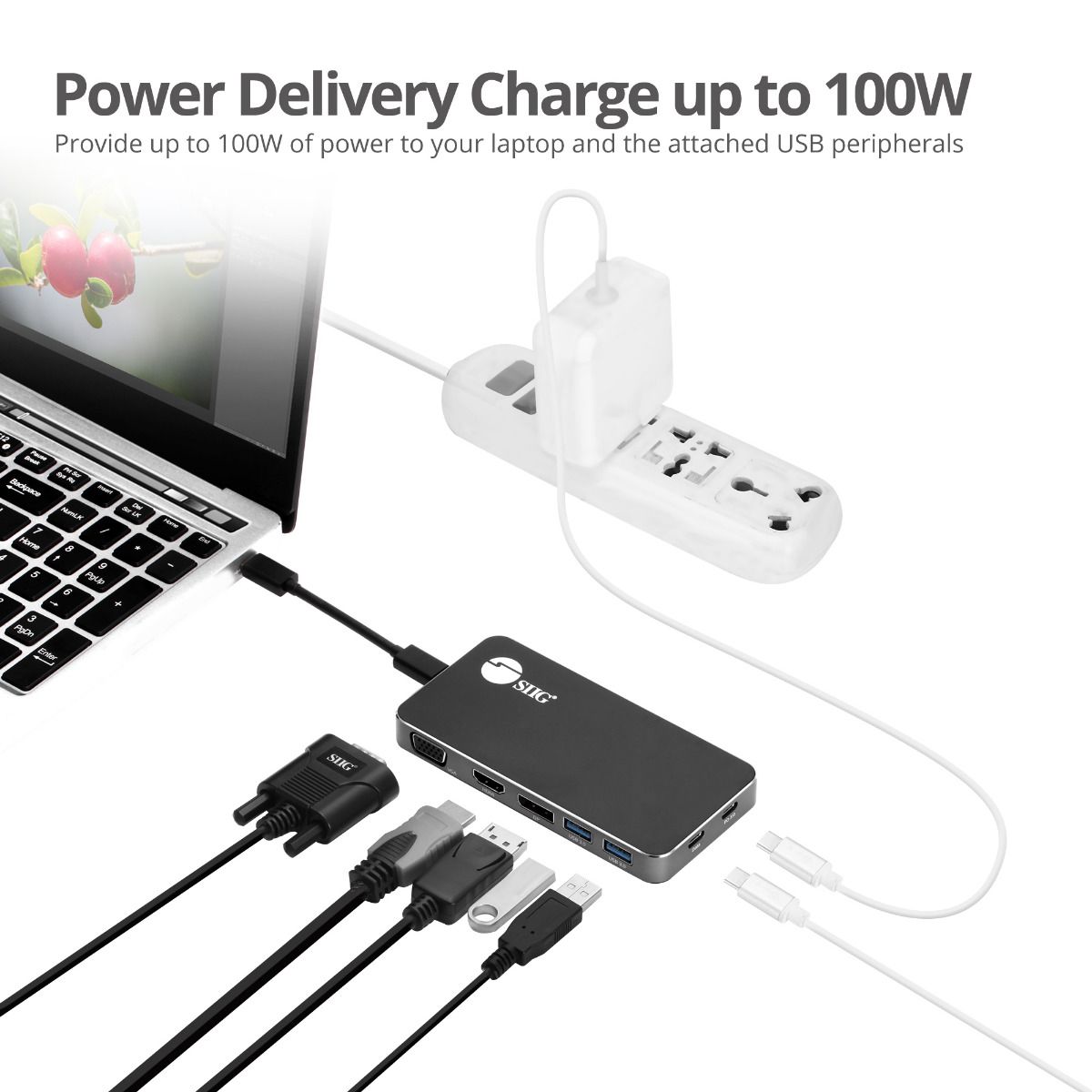

| USB Power Delivery 3.0 | 1x USB-C port for charging laptop, up to 100W |
| Interface | |

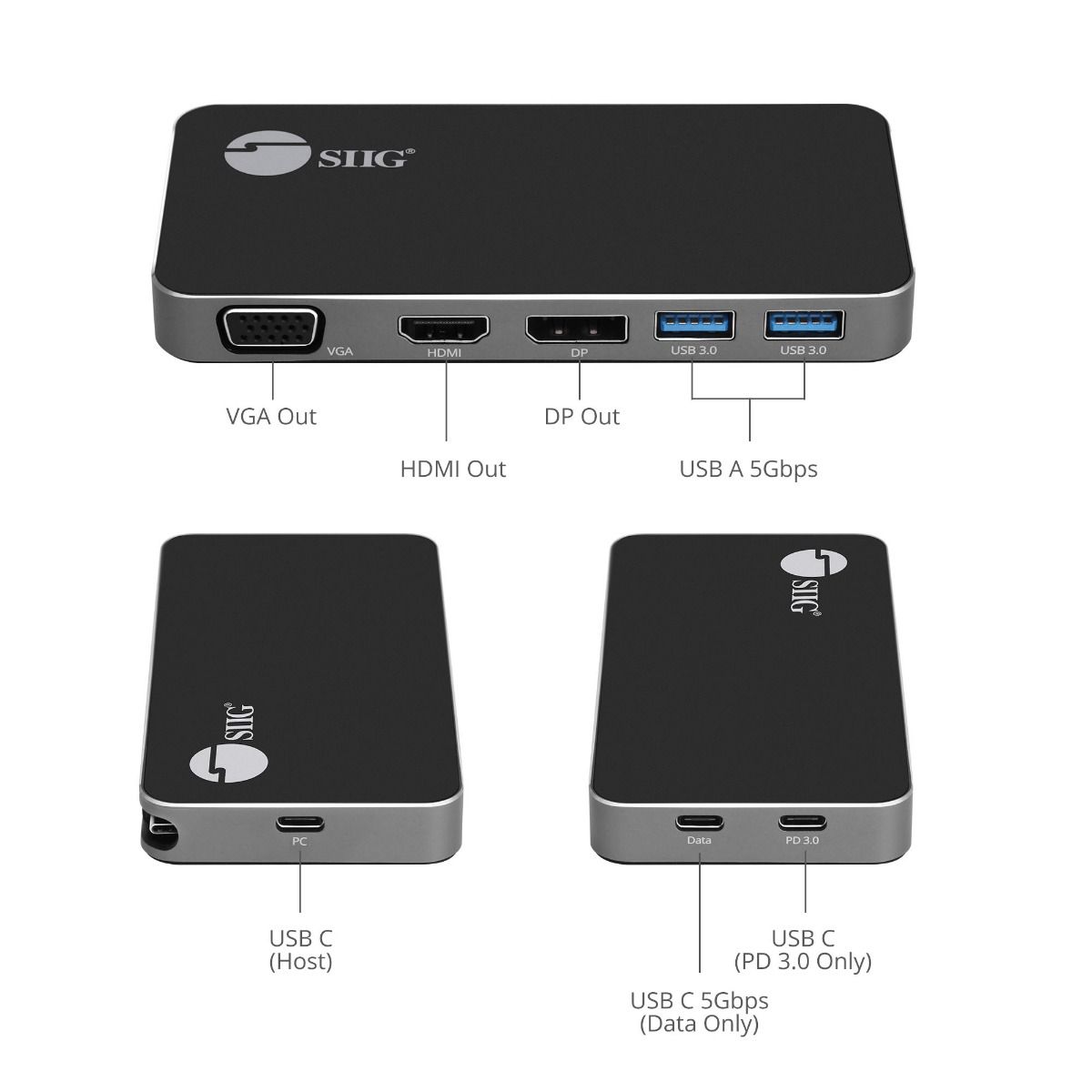

| Input | 1x 24-pin, USB-C with DP Alt mode, Female (Host) 1x 24-pin, USB-C for power only, PD 3.0 pass through 1x 24-pin, USB-C 5Gbps for data only, Female |
| Output | 1x 19-pin, HDMI with MST, Female 1x 20-pin, DisplayPort with MST, Female 1x 15-pin, VGA, D-sub, Female 2x 9-pin, USB-A 5Gbps, Female |
| System Requirements |
| Product Info | |

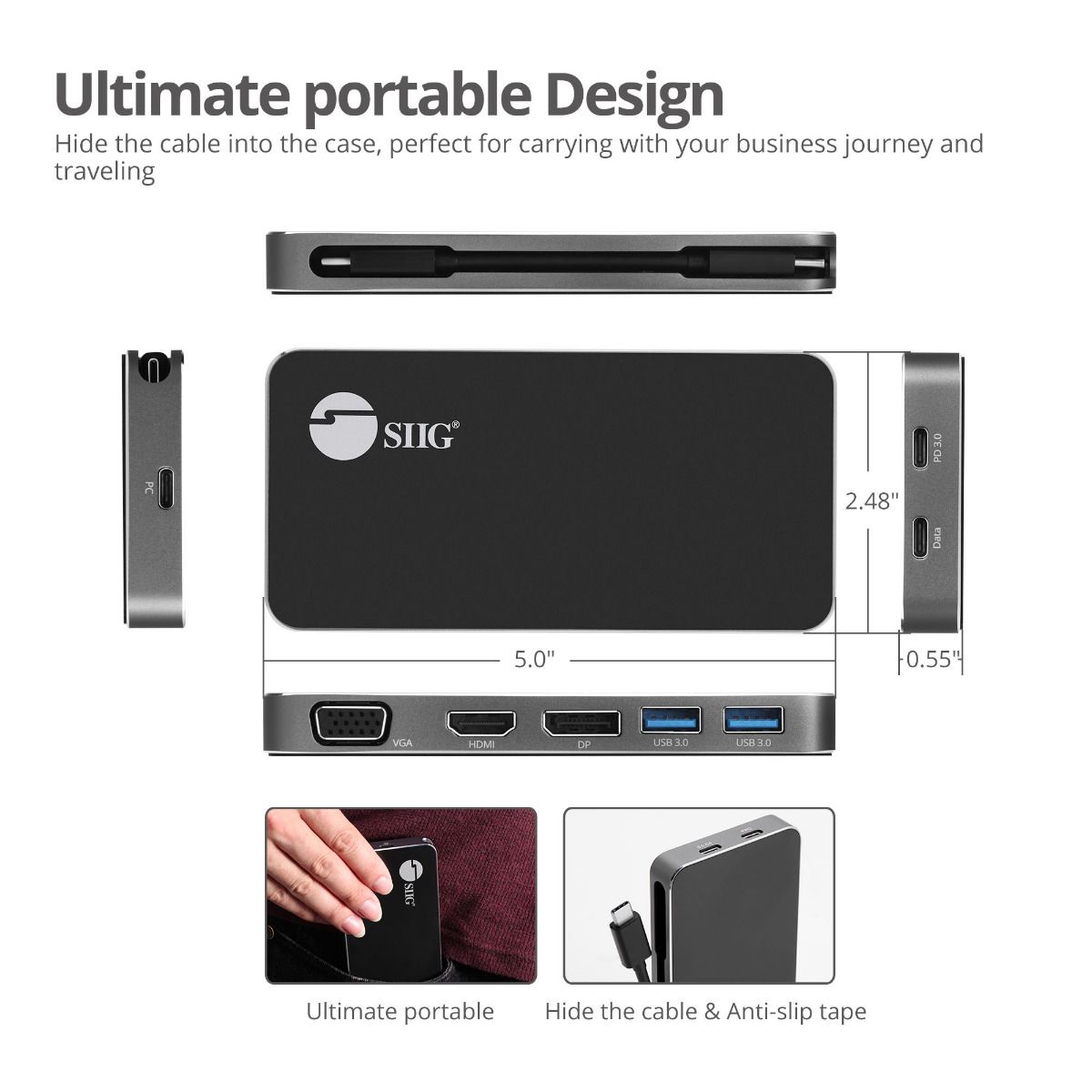

| Dimensions | 5.00" (L) x 0.57" (H) x 2.48" (W) |
| Weight | 0.21 lbs. |
| Color | Iron gray with black |
| Housing material | Aluminum |
| Detachable cable length | 120mm (USB-C to USB-C) |
| Unit Package | |
| Dimensions | 7.28" (L) x 1.18" (H) x 5.31" (W) |
| Weight | 0.37 lbs. |
| Master carton | |
| Dimensions | 15.35″(W) x 13.19″(H) x 11.42″(D) |
| Quality | 40 pcs/ctn |
| Weight | 16.32 lbs |
| Environmental conditions | |
| Operating temperature | 32 to 104 degrees F |
| Storage temperature | 14 to 158 degrees F |
| Relative humidity | <5% to 90% RH (non-condensing) |

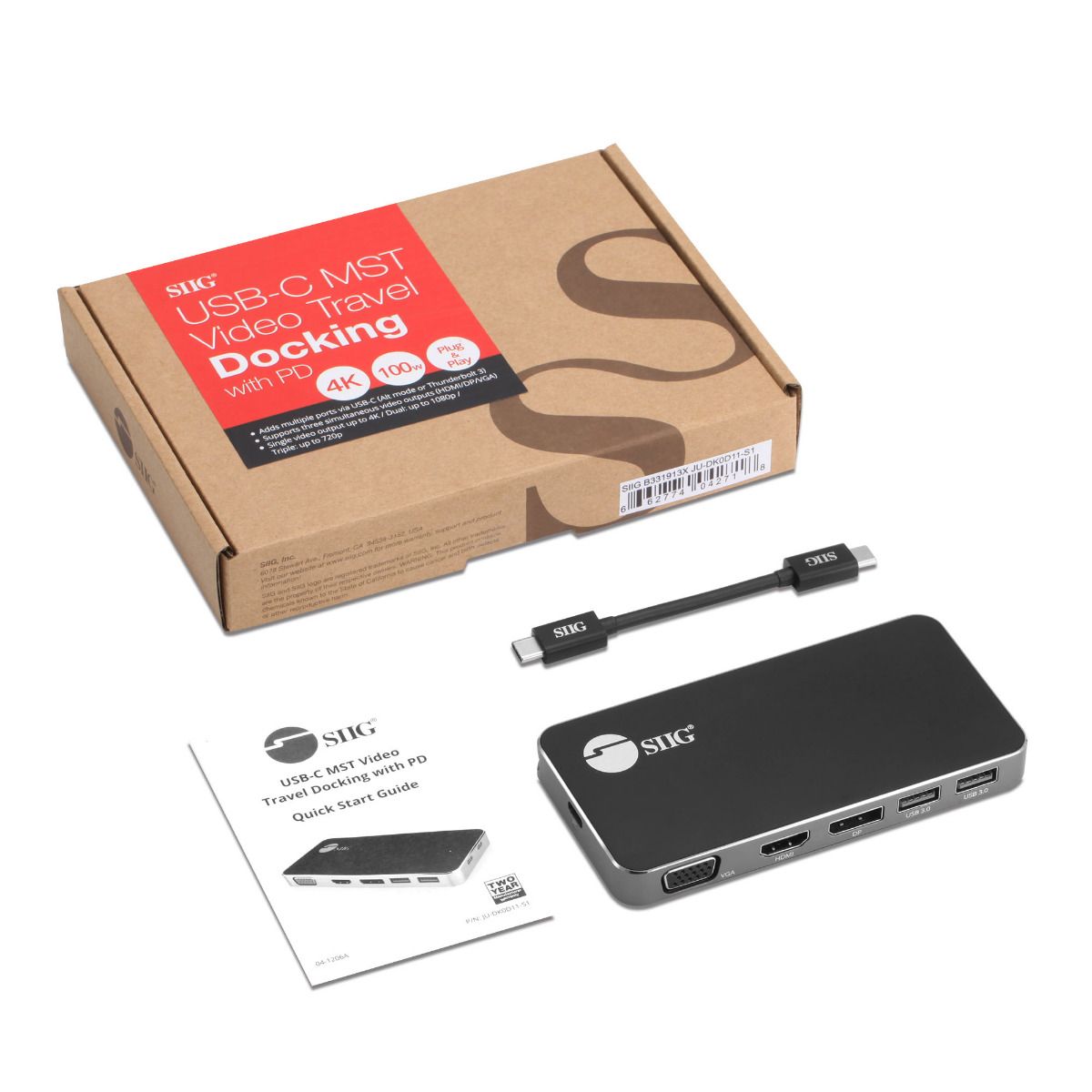

| Package contents | |
| Certifications/Standards | |
| Certifications | FCC, CE, RoHS 2.0, REACH |
| UPC Code | 662774 04711 0 |
| Warranty | 2 years limited |
| Country of origin | China |
