Docking Station |
SKU:
JU-DK0411-S1

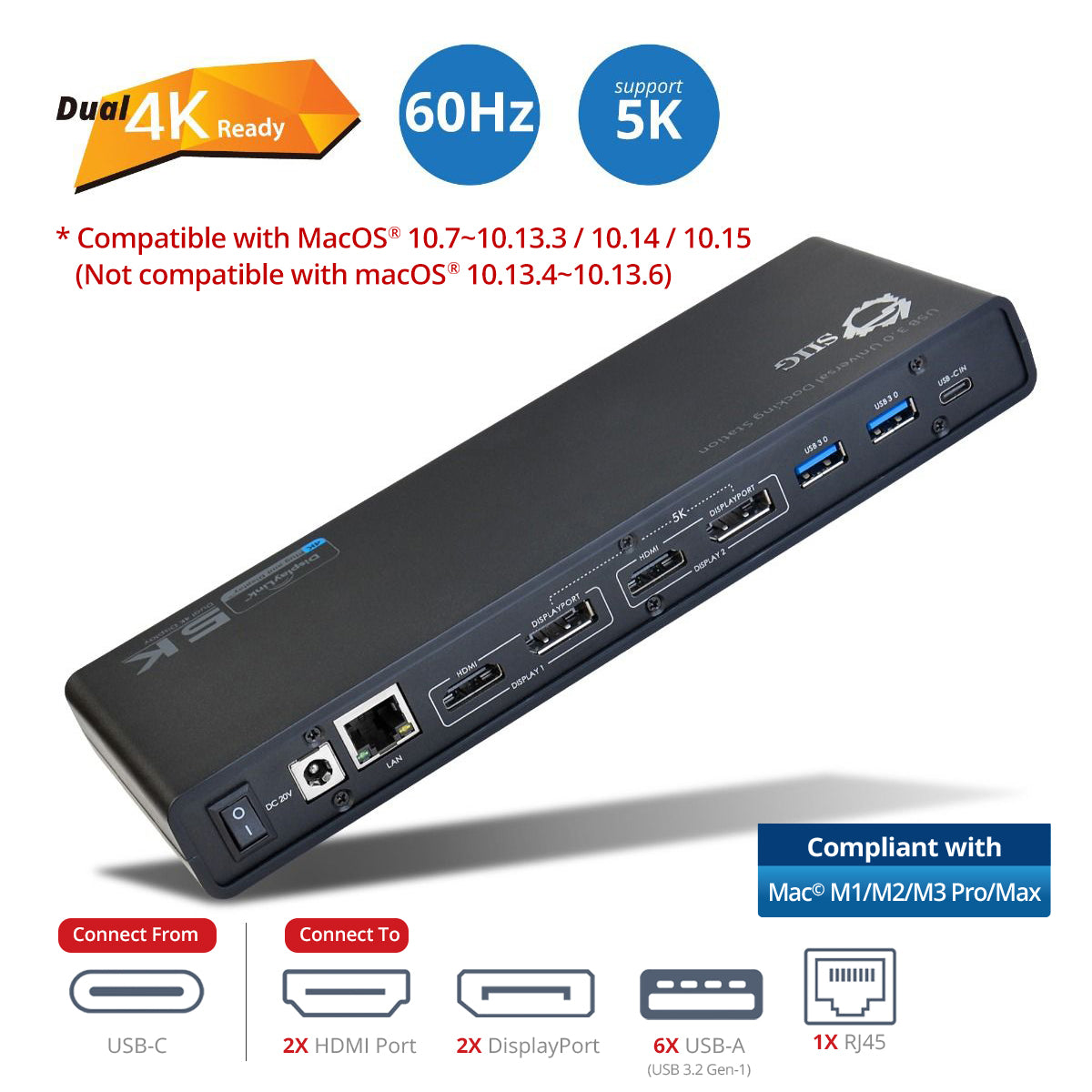

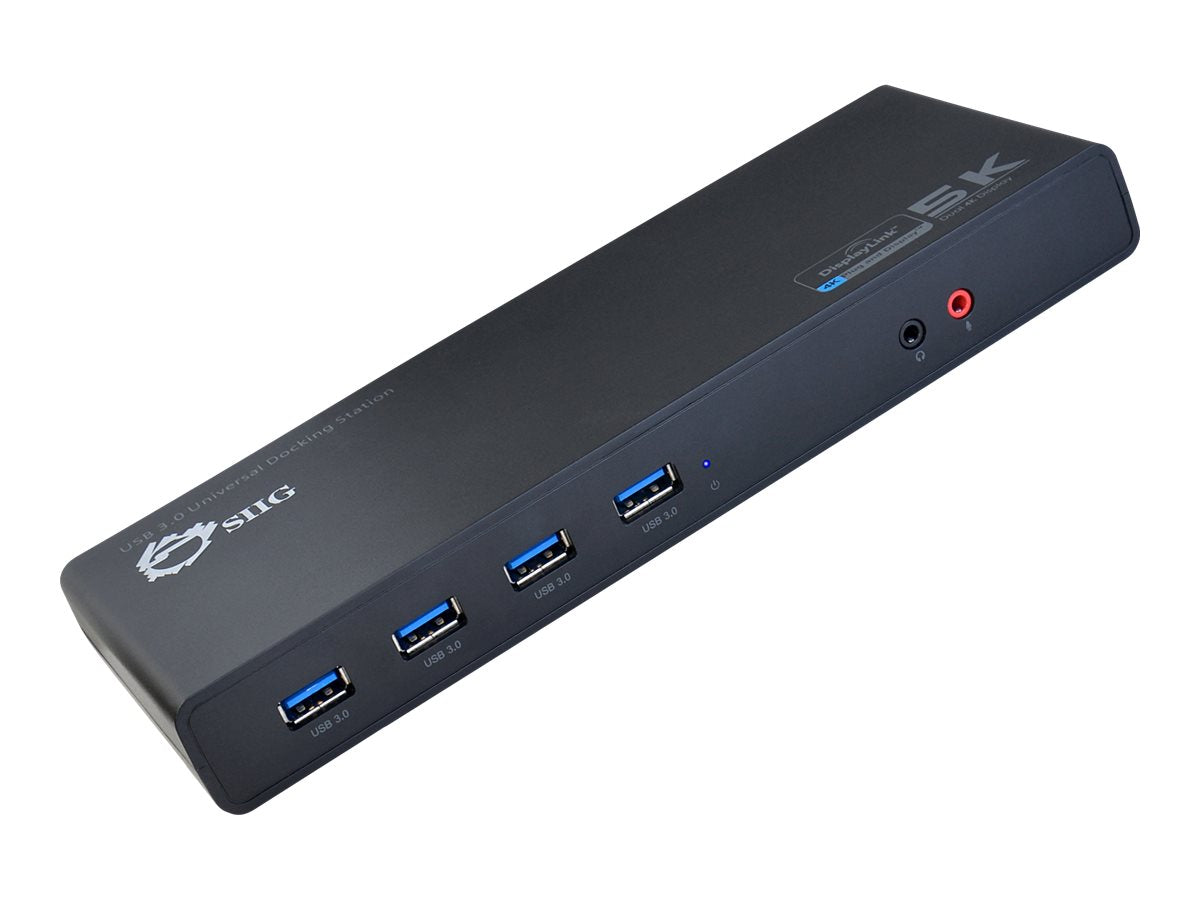

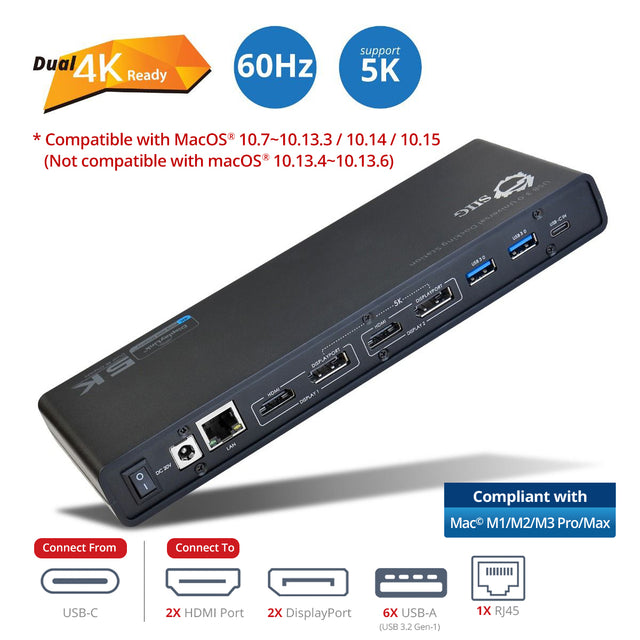

USB 3.0 4K Dual Video Docking Station - USB-C
USB-C or USB-A Input
Dual View
4K60Hz
Hybrid HDMI/DisplayPort
DisplayLink IC
Regular price
$249.99
Unit price
/
Unavailable
Shipping calculated at checkout.
USB 3.0 4K Dual Video Docking Station - USB-C is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
4K60 Dual Monitor Docking Station
4K60 Dual Monitor Docking Station
Extended Display
Extended Display
High Performance DisplayLink
High Performance DisplayLink
Multiple Ports
Multiple Ports
Space-saving design
Space-saving design
No content found
| Hardware | |
| Chipset | DisplayLink DL-6950 |
| Software | |
| OS Compatibility | Windows® 11 & mac OS® 12 or newer |
| Video | |
| HDMI | x2, 4K @60Hz, Cable up to 5M |
| DisplayPort | x2, 4K @60Hz, Cable up to 3M |
| Resolution | 2160p / 1080p / 1080i / 720p / 480p |
| Display Mode | Mirror / Extended / Primary video modes |
| Audio | 5.1 channel surround sound from HDMI output 2 channel stereo audio from 3.5mm audio jack |
| USB Performance | |
| USB-A (High Speed) | x 6, data transfer rate up to 5Gbps and compatible with USB 2.0 specification |
| Ethernet Performance | |
| Data Transfer Rate | Up to 1G (1000Mbps), Backward compatible with 10/100Mbps |
| Network Support | IEEE 802.3x Full Duplex flow operation Crossover detection & auto-correction Compatible with IEEE 802.3 802.3u |
| Enterprise Features | Wake on LAN and PXE boot Note: Mac address pass-through not supported |

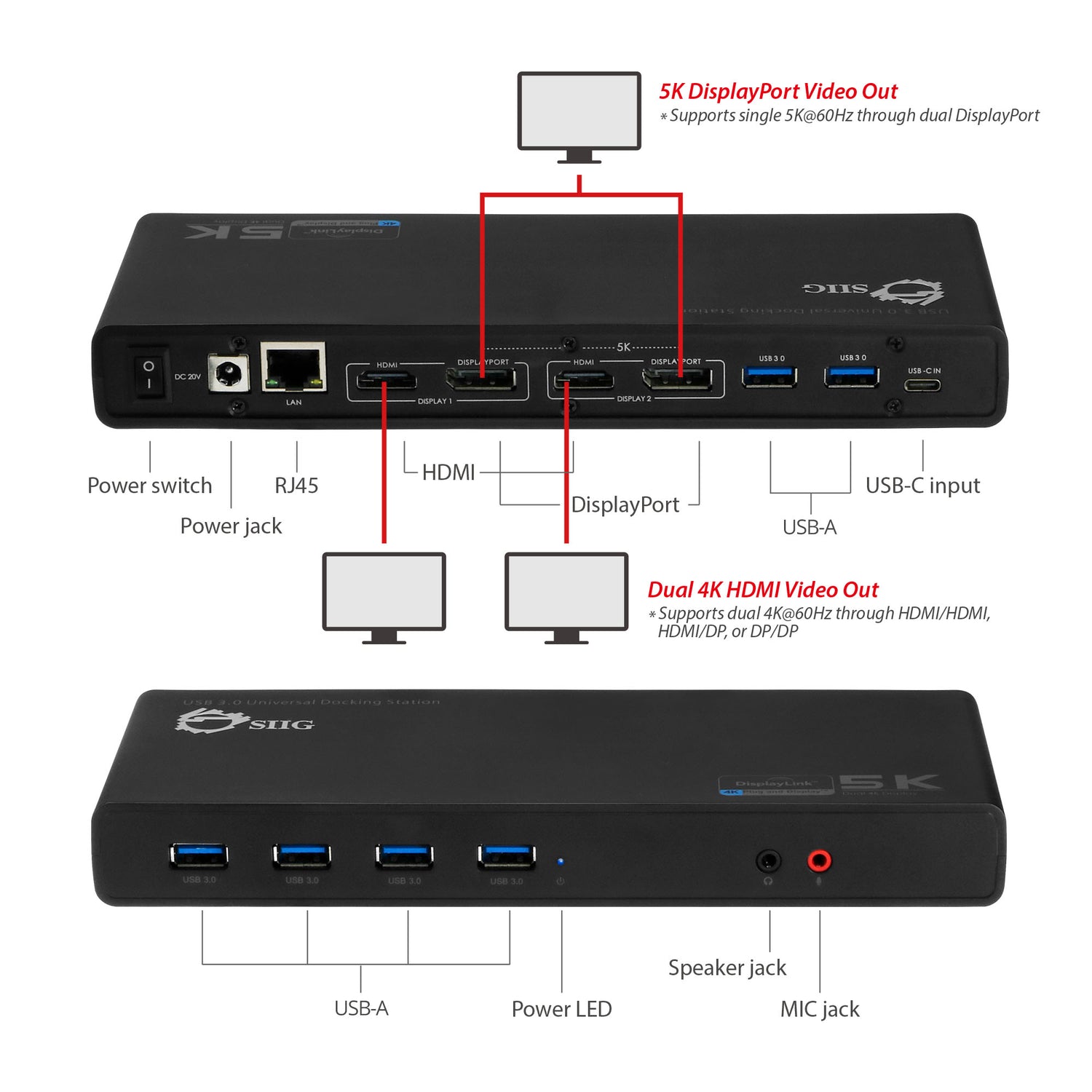

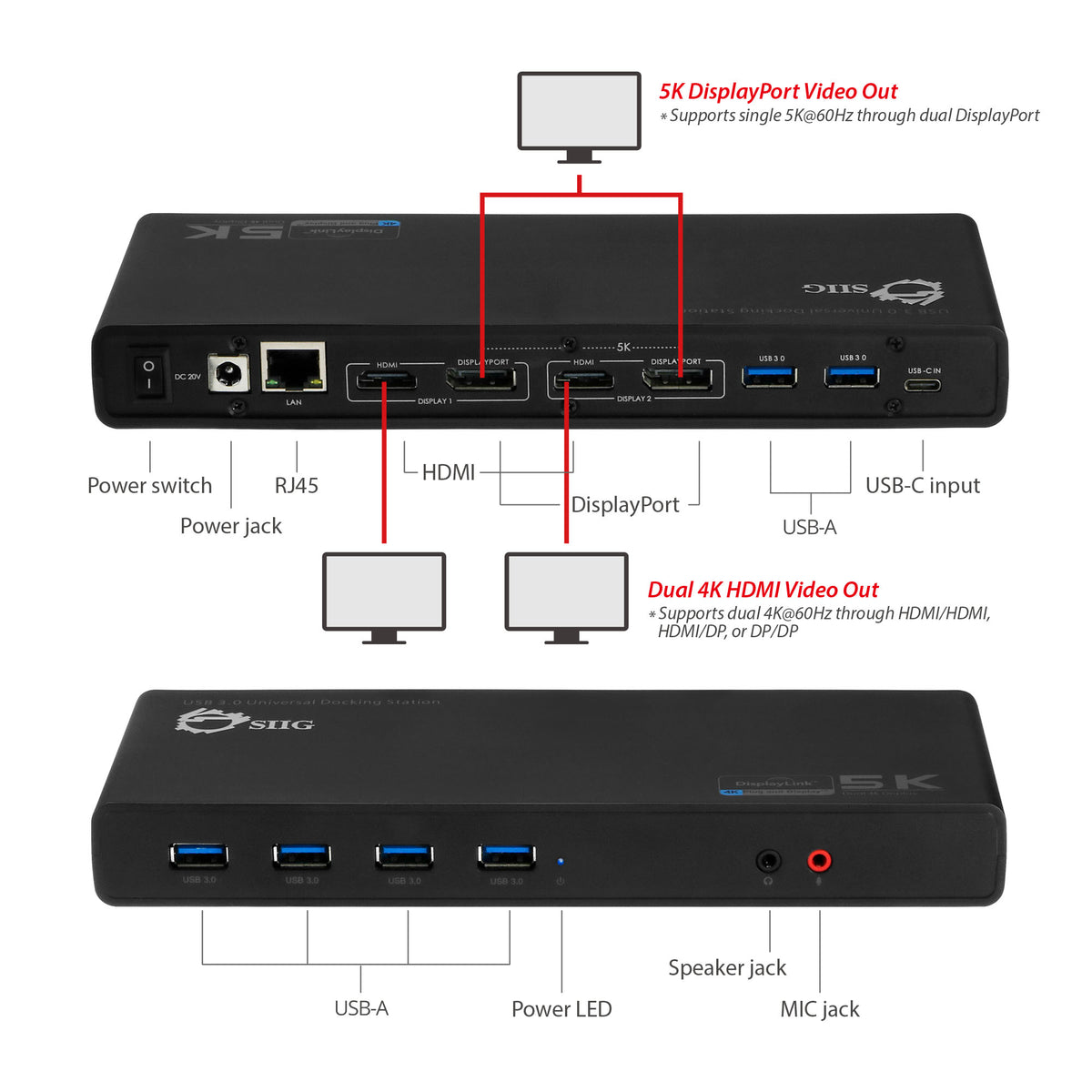

| Ports & Connectors | |
| Input: | 1x 24-pin, USB-C, Female (PC Input) 1x DC power Jack |
| Output: | 2x 19-pin, HDMI, Female 2x 20-pin, DisplayPort, Female 6x 9-pin, USB-A, 5Gbps, Female 1x 8-pin, RJ45, Gigabit Ethernet, Female 1x 3.5mm Audio Jack 1x 3.5mm MIC Jack |
| Power Adapter | |
| Input | AC 100-240V / 50-60Hz |
| Output | DC 20V/2A |
| UL Listed | E355343 / Level: VI |
| Product | |

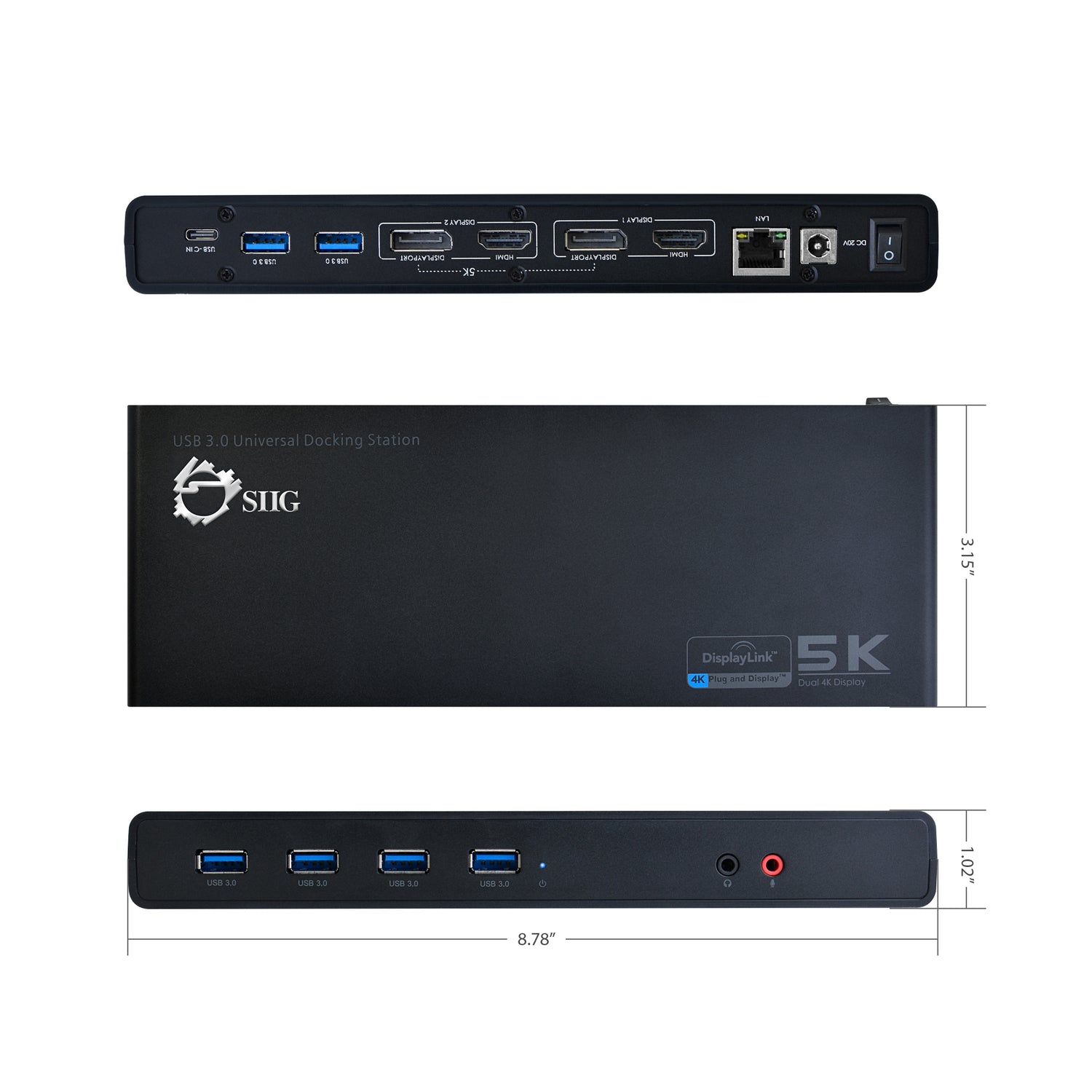

| Dimensions (W x H x D) | 8.78" x 1.02" x 3.15" |
| Weight | 0.75 lbs |
| Color | Black |
| Housing material | ABS |
| Unit Package | |
| Dimensions (W x H x D) | 12.56" x 2.44" x 6.02" |
| Weight | 1.98 lbs |
| Master Carton | |
| Dimensions (W x H x D) | 13.19" x 12.99" x 6.89" |
| Weight | 11.03 lbs |
| Quantity | 5 pcs/ctn |
| Environmental Conditions | |
| Operating temperature | 32 to 104 degrees F |
| Storage temperature | 14 to 158 degrees F |
| Relative humidity | 10% to 90% RH (non-condensing) |
| Certifications & Warranty | |
| Certifications/Standards | FCC, CE, RoHS |
| UPC Code | 662774_040547 |
| Warranty | 2 years limited |
| Country of origin | China |
| System Requirements | - Desktop or laptop computer with an available USB 3.0 Type-A port - Compliant with mac® system for M1, M2, M3 Pro, & Max - Windows® 11 (64-bit) / 10 (32-/64-bit) / 8.1 (32-/64-bit) / 8 (32-/64-bit) / 7 (32-/64-bit) - macOS® 12 to 10.10* *Note: Our adapter is not compatible with 10.13.4 to 10.13.6 |

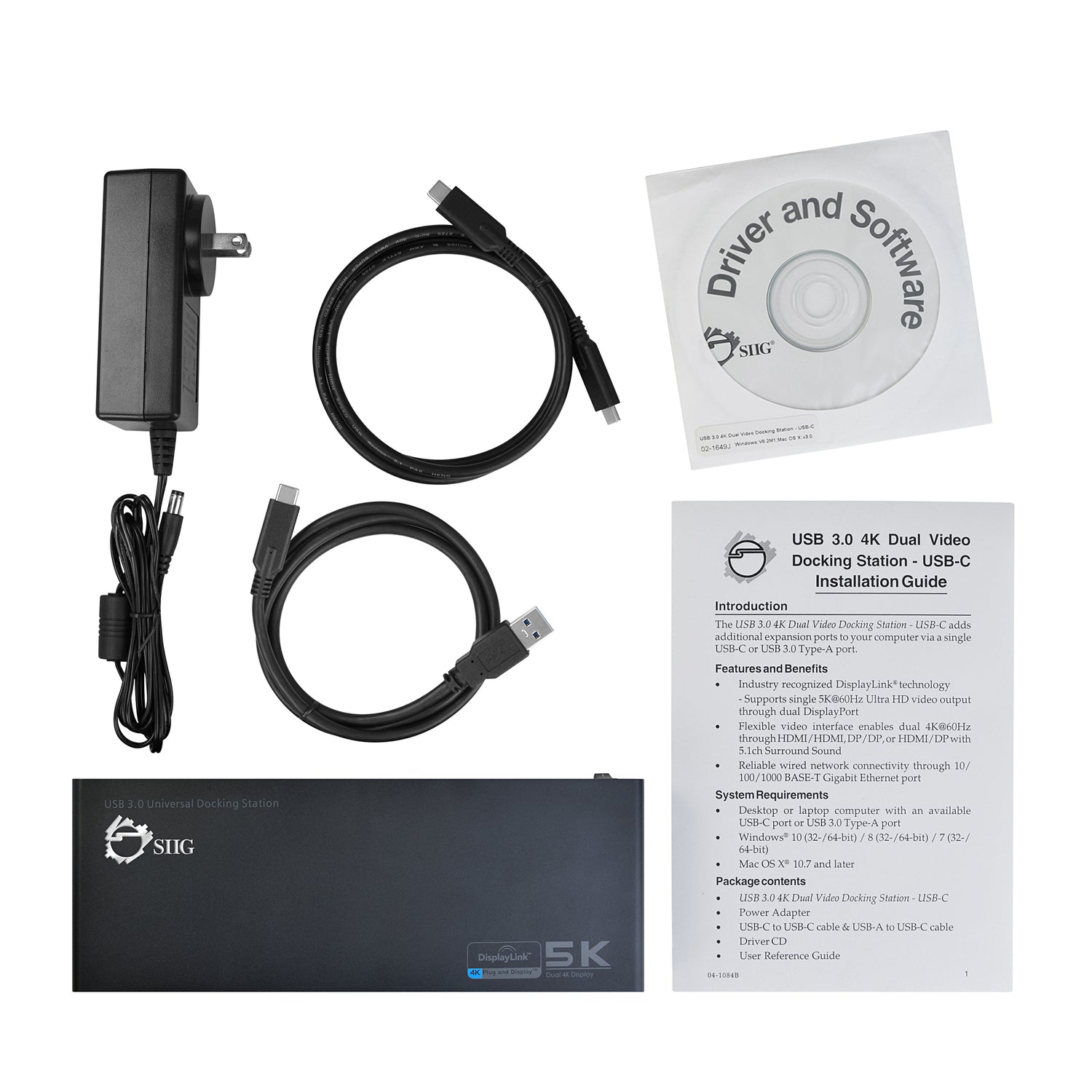

| Package contents | - USB 3.0 4K Dual Video Docking Station - USB-C - Power Adapter 20V/2A - USB-C to USB-C cable - USB-C to USB-A Cable - Driver CD - User manual |
Can I enable Clamshell mode or lid closed mode on my Macbook Pro?
Can I enable Clamshell mode or lid closed mode on my Macbook Pro?
Clamshell mode (lid closed) is supported on computers using Apple M1 silicon with external power connected (e.g. Apple MacBook power adapter or docking station with charging capability) on macOS Big Sur version 11.1 and later. Clamshell mode on Intel-based MacBooks was introduced in macOS 12 Monterey.
Need help?
Contact usManuals
Drivers (Hardware Version: 1)
- macOS 15 / 14 / 13: Download v13.1
- Windows 11 / 10: Download v11.7 M4
- macOS 12 / 11: Download Manager 1.9
- Windows 8 (32-/64-bit): Download v9.3 M1
- macOS X 10.10: Download v3.1
- macOS X 10.11.5 to 10.11: Download v4.1
- macOS X 10.13 to 10.13.3* / 10.12 / 10.11.6: Download v4.3.1
- macOS 10.14.x: Download v5.2.6
- macOS Catalina 10.15.x: Download Manager 1.5
