USB | SKU: JU-VG0211-S1

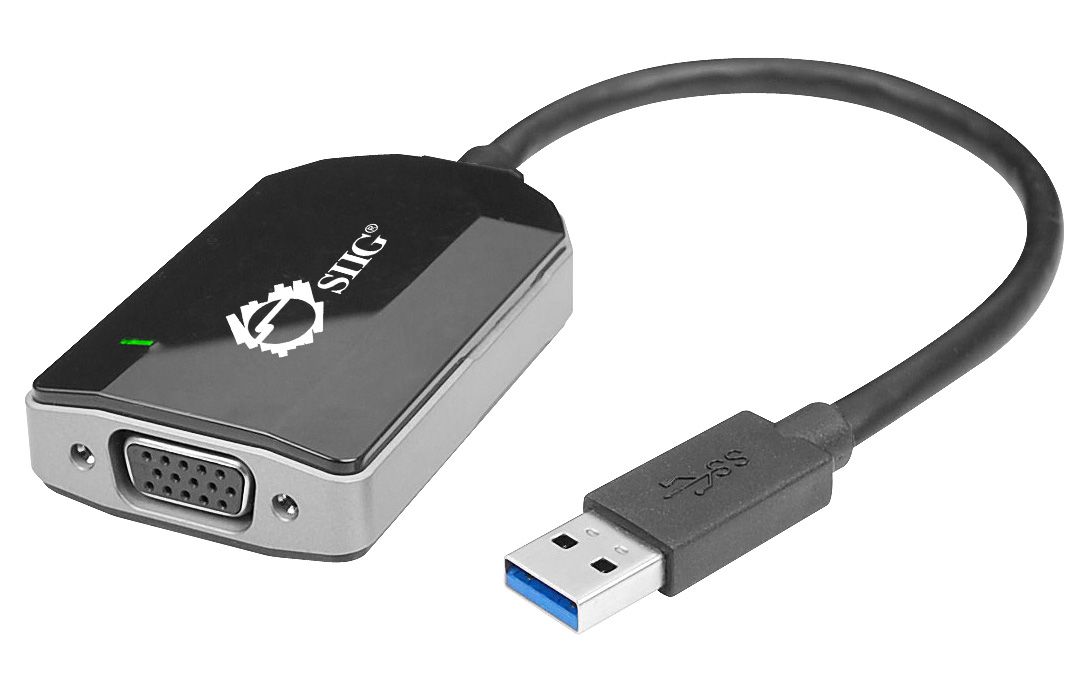

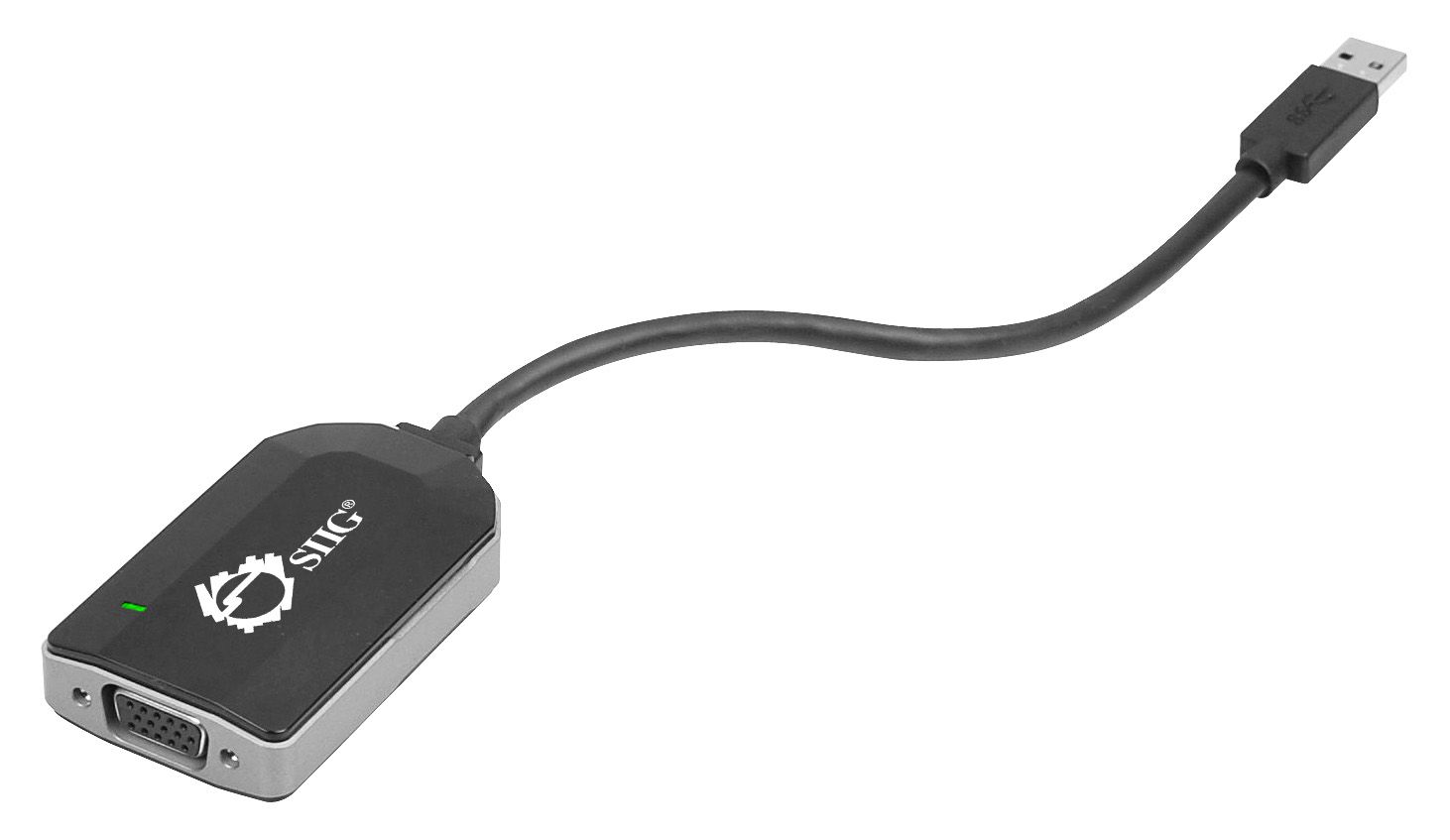

USB 3.0 to VGA Multi Monitor Video Adapter

Name: USB 3.0 to VGA Multi Monitor Video Adapter
Brand: SIIG INC
SKU: JU-VG0211-S1
Price: 129.99 USD
Availability: InStock

USB to VGA Adapter

Up to 6 Adapter Per System

Up to 2048x1152

USB 5Gbps

TAA Compliant

$129.99

Shipping calculated at checkout.

VGA Adapter via USB

Connects an extra VGA display to your Windows laptop or desktop PC via a SuperSpeed USB 3.0 port

SuperSpeed USB 3.0 5Gb/s data transfer rate delivering smooth, high resolution and high bandwidth videos/images

Expandable for up to 6 monitors connect to your PC at resolutions up to 2048x1152

Hot pluggable and powered from the USB bus, no external power adapter is needed

Supports Windows 8 / 7 / XP and fully backwards compatible to USB 2.0 specification

No content found

Chipset	MCT Trigger T5-301
Aspect Ratio Support	Supports standard and widescreen (16:9 & 16:10)
Scalability	Connects up to 6 adapters per system
Standard	Compliant with USB 3.0 and backwards compatible with USB 2.0
Resolutions	Supports 32-bit color depth at 1920 x 1200 (16:10), 2048 x 1152 (16:9), and 1600 x 1200 (4:3)
Display Features	Rotation (0°, 90°, 180°, and 270°) Modes (Primary, Extend, Mirror)
LED
Green	USB 3.0 connection
Red	USB 2.0 connection
Note	Connecting to USB 2.0 port may cause clipping when dragging windows from one display to another display
Power	USB bus powered and hot-pluggable
System Requirements	Desktop or notebook with available USB 2.0/3.0 port (USB 3.0 recommended Windows® 11 (32-/64-bit) / 10 (32-/64-bit) / 8.x (32-/64-bit) / 7 (32-/64-bit) / XP (32-/64-bit) Windows® Server 2003 & 2008 (32-/64-bit) / 2008 R2 macOS X® 10.15 / 10.14 / 10.13.3 - 10.13* / 10.12 / 10.11 / 10.10 / 10.9 / 10.8 / 10.7 / 10.6
*Note (5-2-2019)	Our adapter DOES NOT work with Mac OS 10.13.4 - 13.6 update. Apple discontinued support for Video over USB on the update. It's recommended to update to 10.15 or stay with 10.13.3 or earlier
Connectors
VGA Output	1x 15-pin, VGA, Output, Female
USB Input	1x 9-pin, USB 3.0, Type A, Input, Male

Product
Dimensions	2.98″ (W) x1.67″ (H) x 0.61″ (D)
Weight	0.11 lbs
Color	Black
Unit Package
Dimensions	5.12″ (W) x 5.12″ (H) x 1.18″ (D)
Weight	0.23 lbs
Master Carton
Dimensions	13.54 ″(W) x 10.94″ (H) x 11.26″ (D)*; 40pcs/ctn
Weight	11.22 lbs
Package contents	USB 3.0 to VGA Multi Monitor Video Adapter Driver CD Installation guide
Certifications	FCC, CE, RoHS
Warranty	5 years limited
Country of origin	Taiwan
Note (5/10/18)	Our adapter DOES NOT work with the latest Mac OS 10.13.4 - 10.13.6 update. Apple discontinued support for Video over USB on the new update. Apple has not said if they will provide updates to fix this issue. It's recommended to update to 10.15 or stay with 10.13.3 or earlier.
