SKU:
JU-DV0112-S3

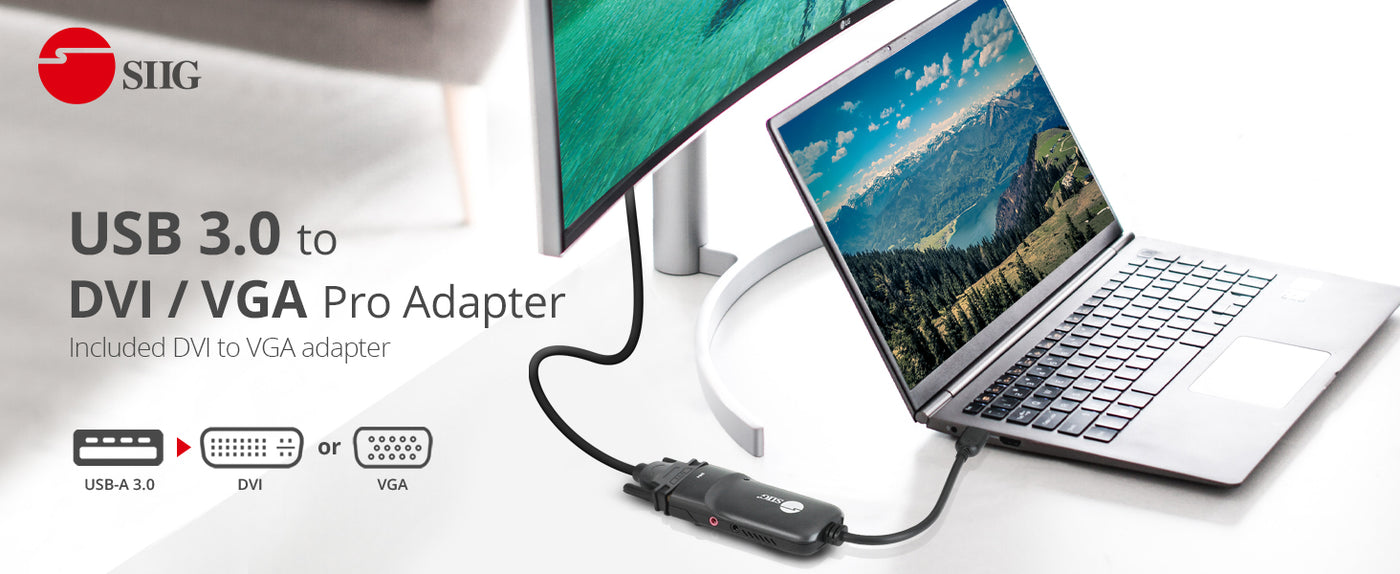

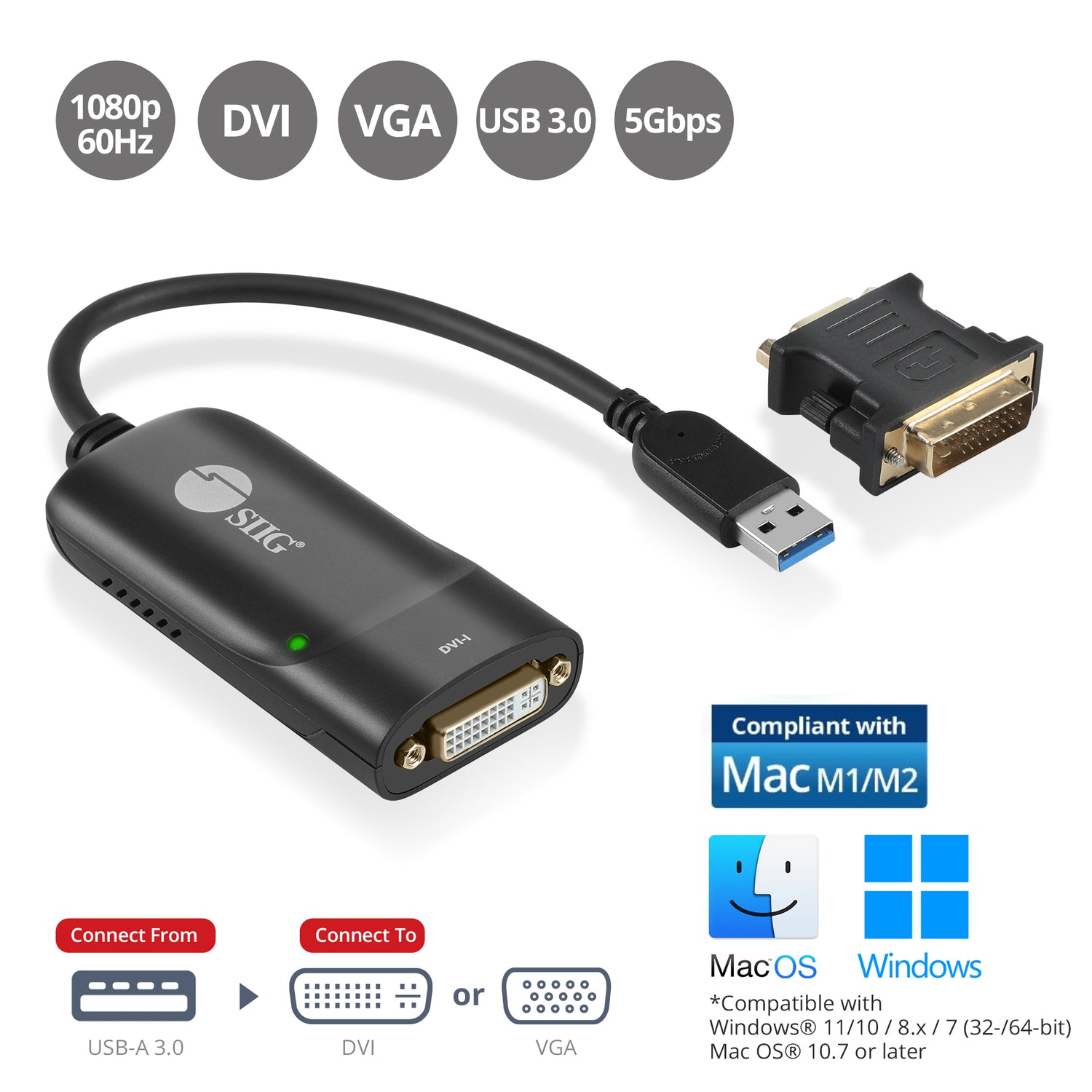

USB 3.0 to DVI/VGA Pro adapter, 1080p, USB 3.0 5 Gbps, included DVI to VGA adapter
USB to Video
USB-A 5Gbps

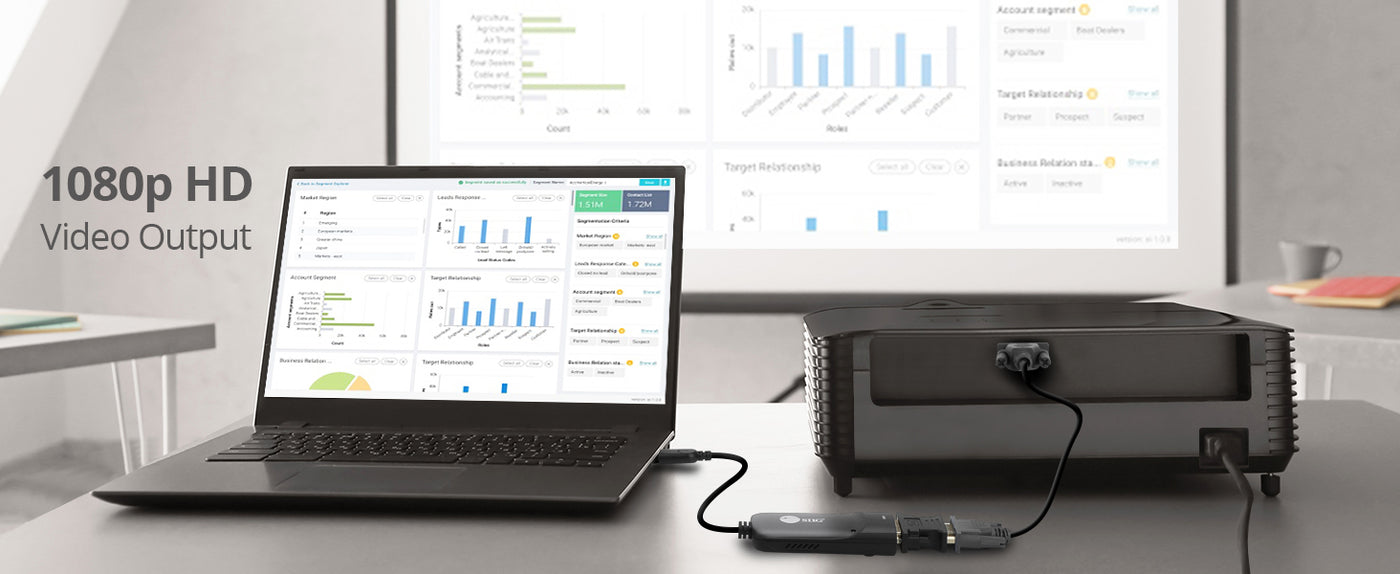

1080p 60Hz
Included DVI / VGA Adapter
2ch Audio
Regular price
$99.99
Unit price
/
Unavailable
Shipping calculated at checkout.
USB 3.0 to DVI/VGA Pro adapter, 1080p, USB 3.0 5 Gbps, included DVI to VGA adapter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
USB 3.0 to DVI External Graphics Adapter
USB 3.0 to DVI External Graphics Adapter

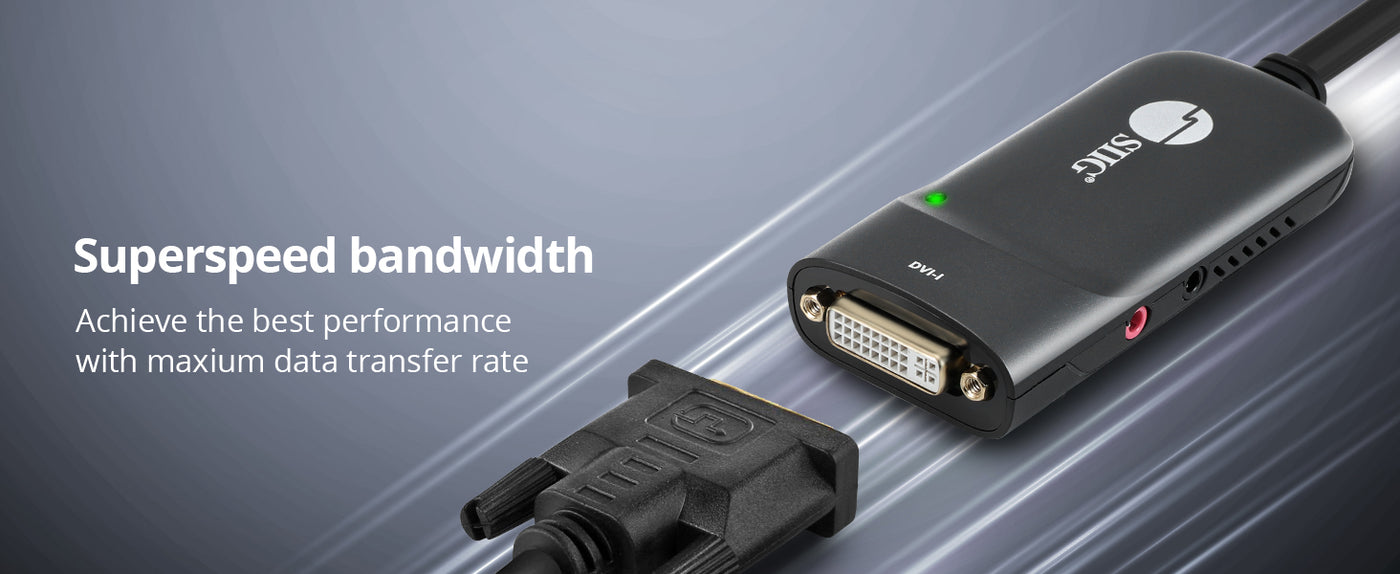

SuperSpeed 5Gbps Performance
SuperSpeed 5Gbps Performance
DVI & VGA Display Support
DVI & VGA Display Support

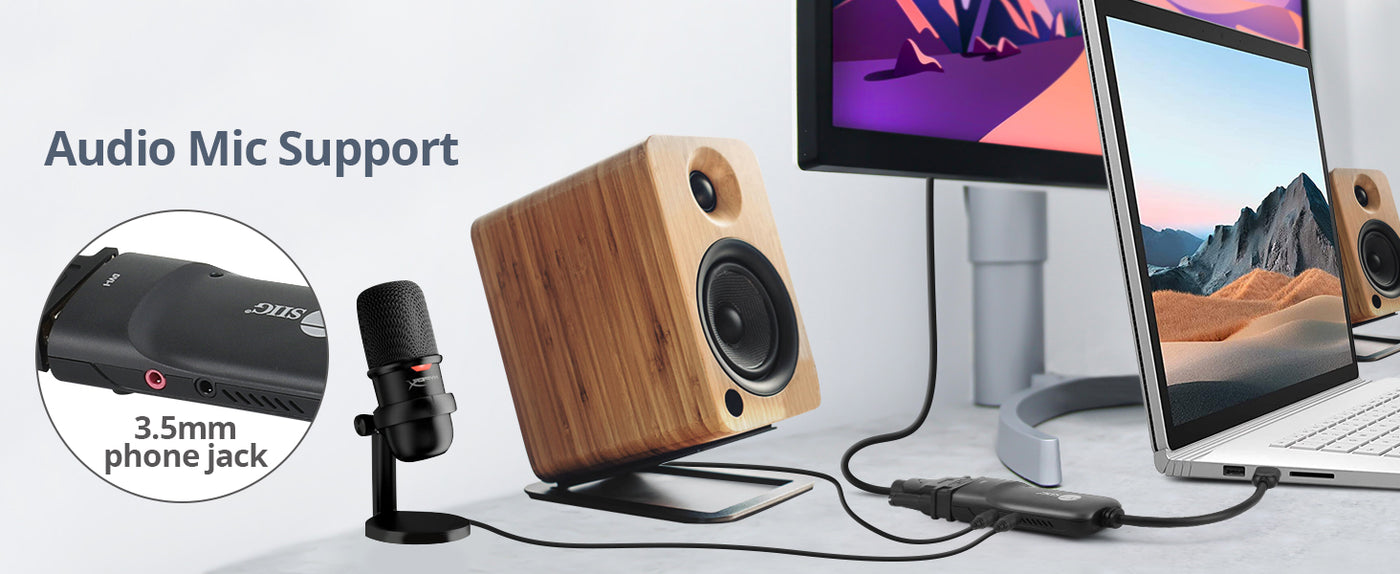

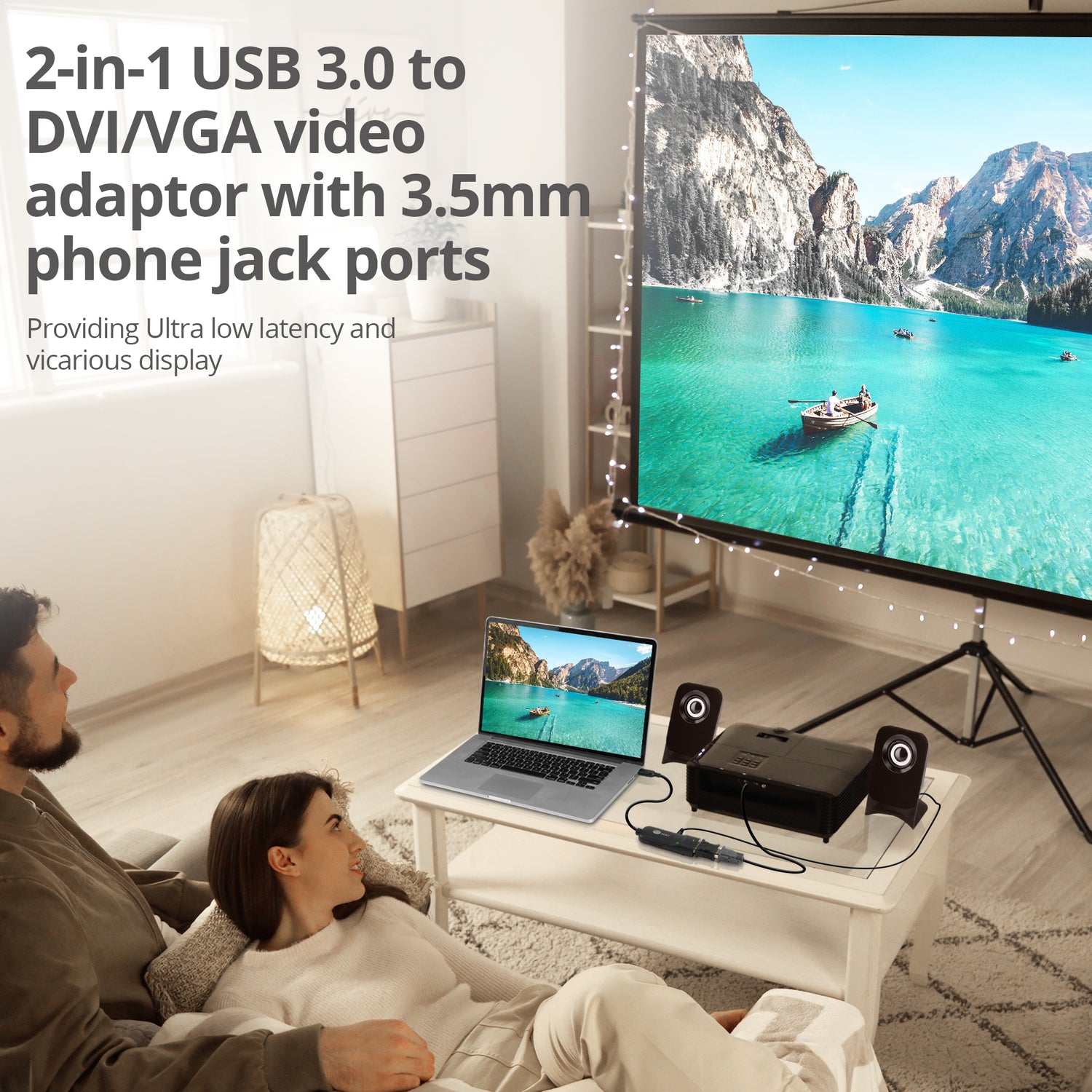

Audio Support & USB Powered Design
Audio Support & USB Powered Design
Flexible Multi-Monitor Expansion
Flexible Multi-Monitor Expansion





1080p, USB 3.0 5 Gbps, included DVI to VGA adapter

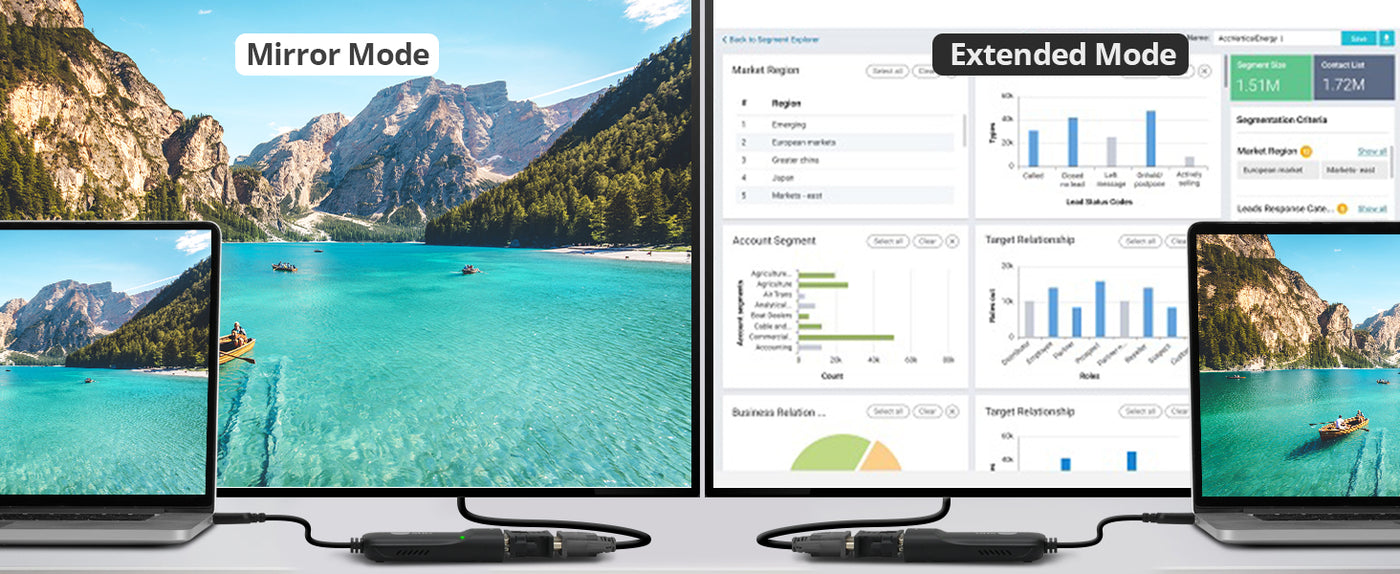

Dual Display Mode Supported
Help Worker to Accomplish Multiple-tasks at Same Time

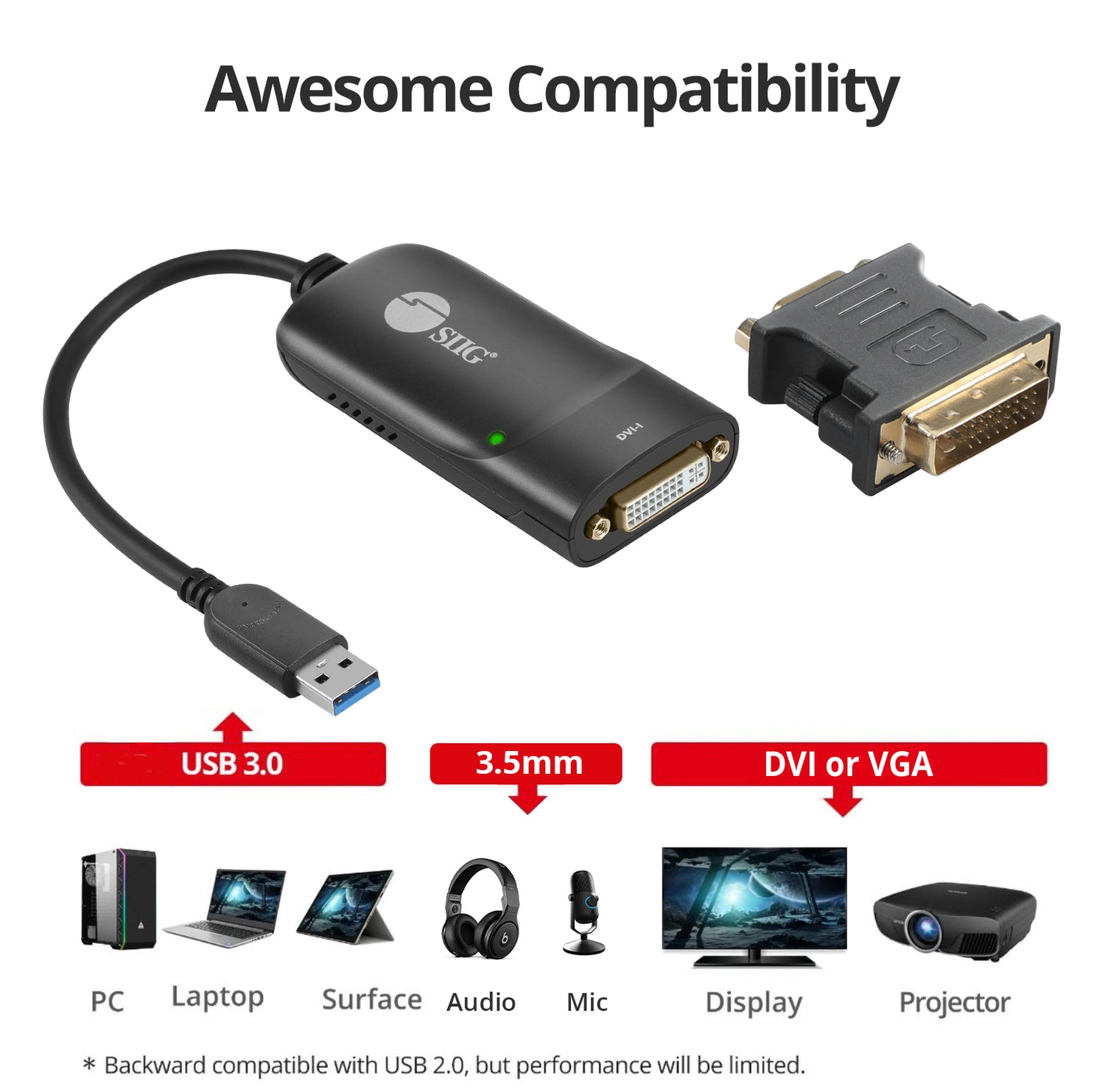

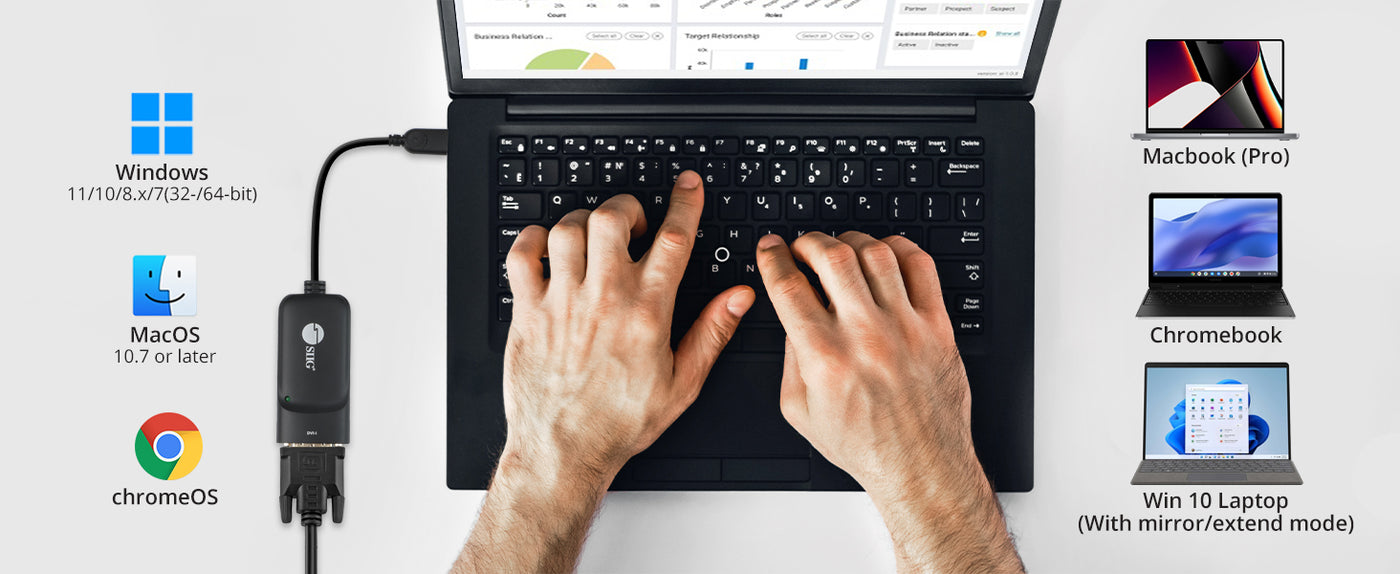

Universal Compatibility
| Chipset | DisplayLink DL-3500-N |
| USB Data Transfer Rate | Up to 5Gbps |

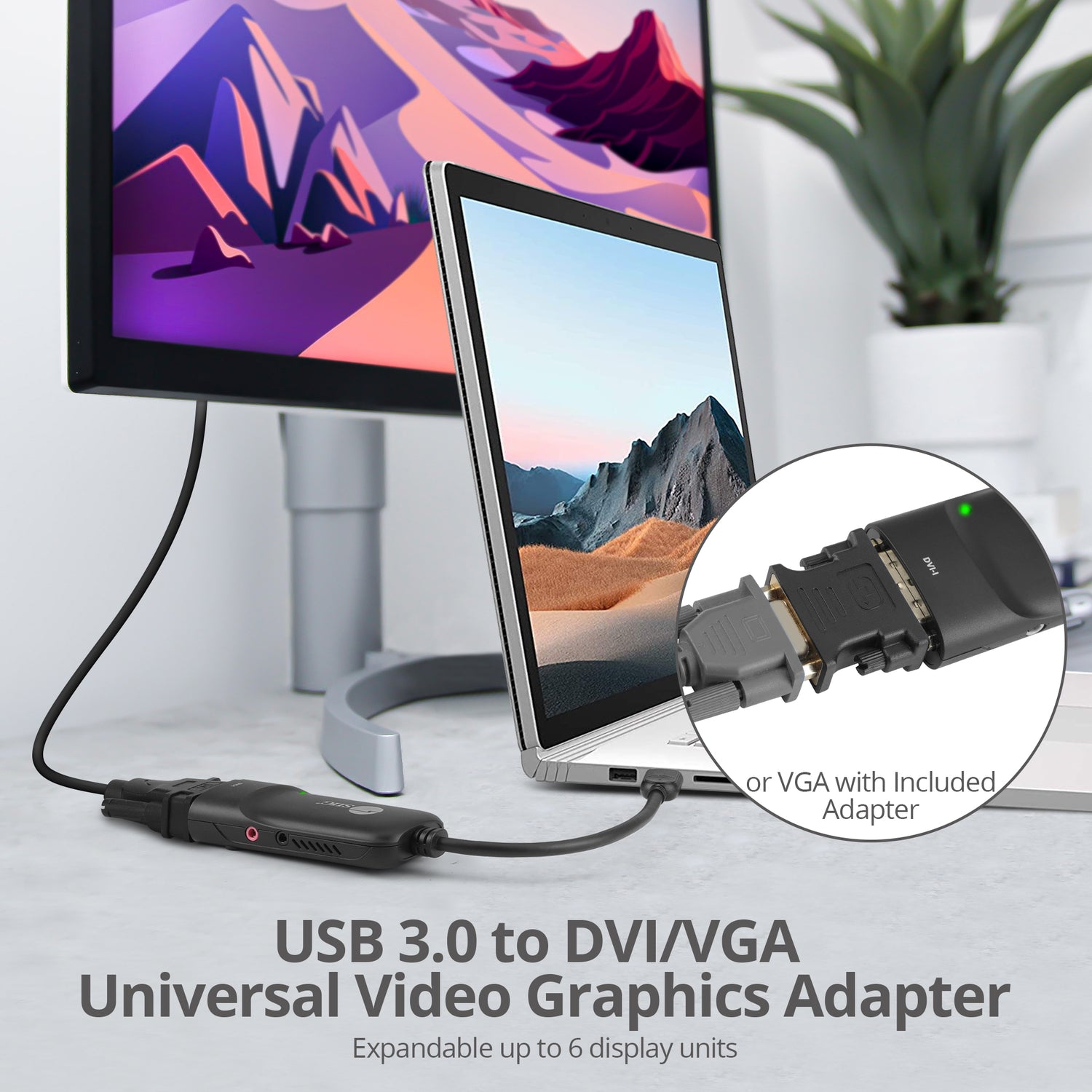

| Expansion Display | Connects up to 6 adapters per system |
| Standard | Compliant USB 3.0 and backwards compatible with USB 2.0 specification & DVI v1.0 |
| Supports Resolution | |

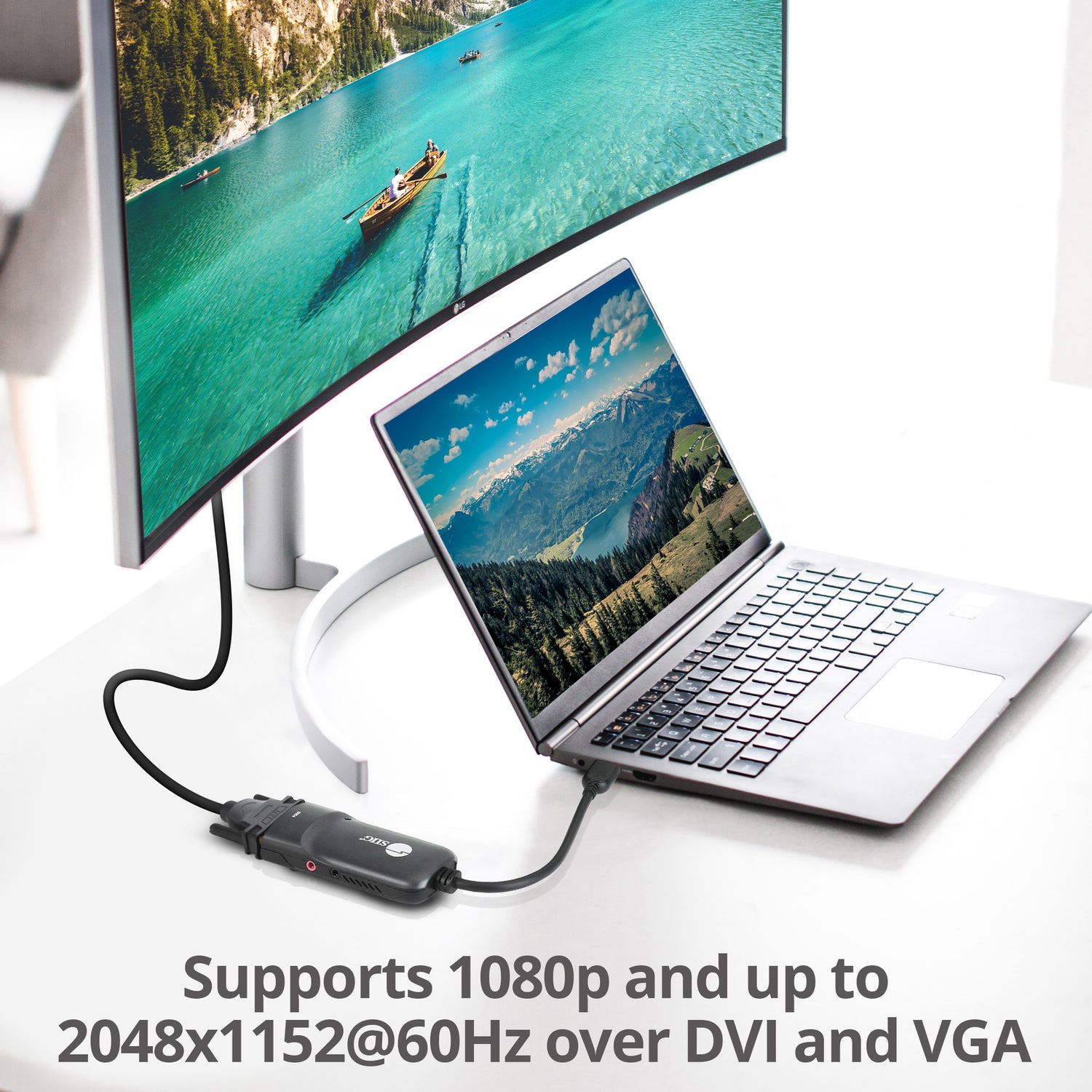

| DVI | Up to 2048x1152@60Hz & 1920x1080@60Hz |
| VGA | Up to 2048x1152@60Hz & 1920x1080@60Hz |
| Display Modes | Primary, Extend and Mirror |
| Audio | 2 Ch stereo |
| Power Source | USB bus powered and hot-pluggable |
| Connectors | 1x 9-pin, USB 3.0, Type A, Male, Input 1x 29-pin, DVI-I, Female, Output 1x 3.5mm phone jack, stereo audio, output 1x 3.5mm phone jack, Microphone, input |
| System Requirements | - Desktop or laptop computer with an available USB 2.0/3.0 port (USB 3.0 recommended) - 2.0 GHz Dual Core CPU or faster - Windows® 11 (32-/64-bit) / 10 (32-/64-bit) / 8.x (32-/64-bit) / 7 (32-/64-bit) - Mac OS X® 10.7 to 10.13.3/ 10.14/ 10.15/ Big Sur 11/ Monterey 12 |
| macOS compatibility | - Our adapter DOES NOT work with macOS 10.13.4 - 13.6 update. It's recommended to upgrade to 10.14 or later or stay with 10.13.3 or earlier - macOS 10.15 or later: Uninstall any legacy DisplayLink driver (v5.2.5 or earlier) and install the latest driver on SIIG's website - MacBook 2018 models (based on the Intel Coffee Lake chipset) running Mac OS 10.14 or 10.14.1 can experience black extended display(s) with only mouse cursor. This problem is fixed by the Mac OS 10.14.2 update |
| macOS limitations | Does Not support movie/video playback via iTunes and HDCP protected content via Safari web browser (Netflix, Amazon Prime, Hulu, HBO Go, etc.) |
| Product | |

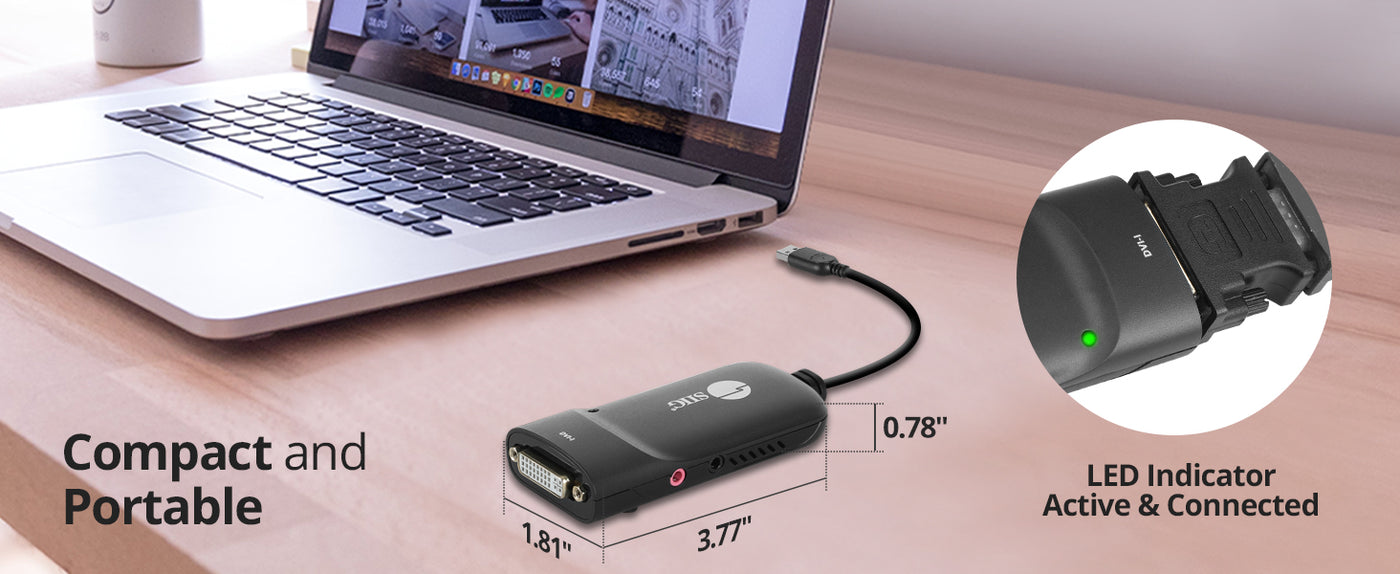

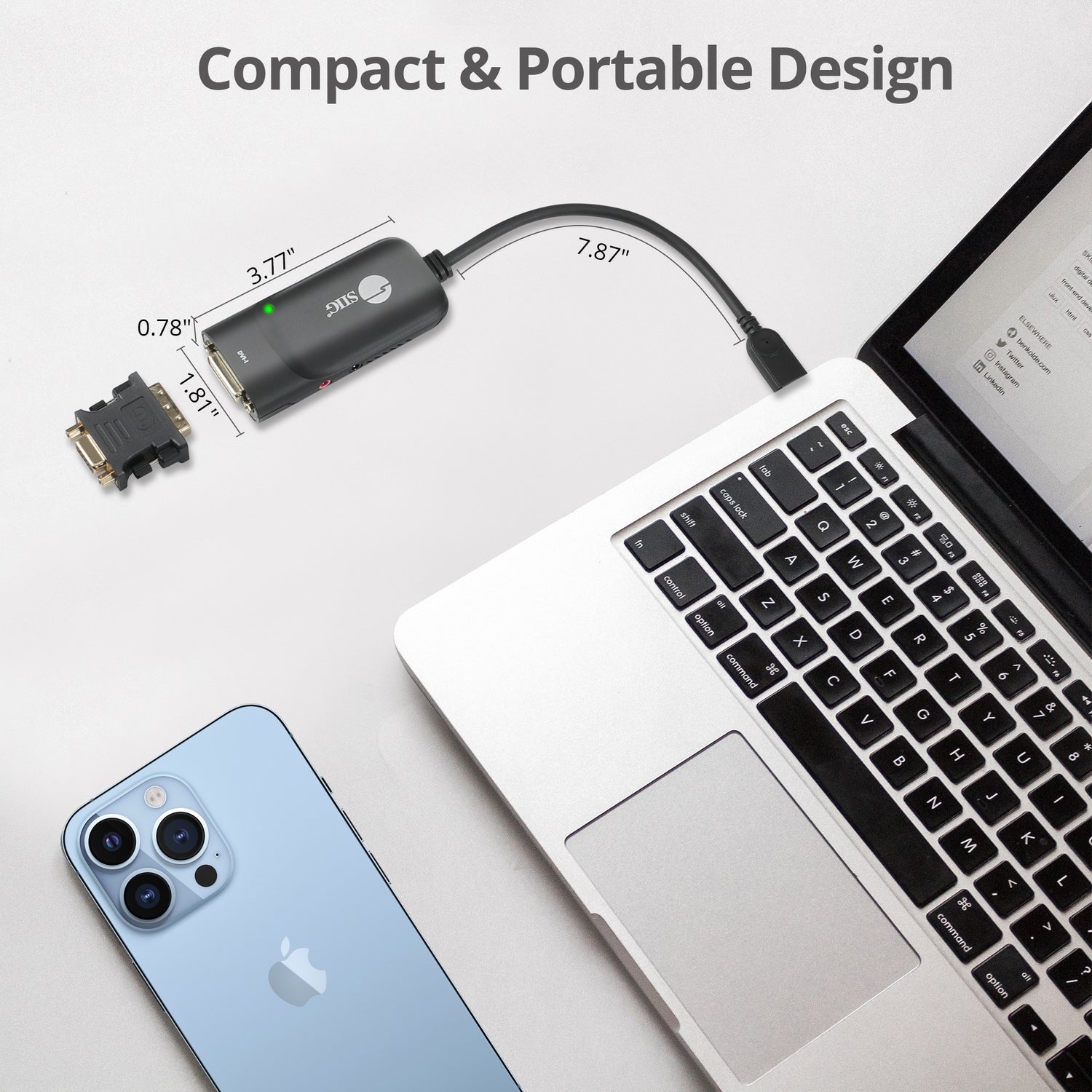

| Dimensions (L) x (H) x (W) | 3.86" x 0.79" x 1.77" 9.80 cm x 2.00 cm x 4.50 cm |
| Weight | 0.14 lbs (0.06 kg) |
| Color | Black |
| Housing Material | Plastic |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 8.15" x 1.93" x 5.39" 20.70 cm x 4.90 cm x 13.70 cm |
| Weight | 0.43 lbs (0.20 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 16.93" x 10.83" x 17.13" 43.00 cm x 27.50 cm x 43.50 cm |
| Weight | 14.55 lbs (6.60 kg) |
| Quantity | 30 pcs/ctn |
| Environmental Conditions | |
| Operating temperature | 50 to 104 degrees F |
| Storage temperature | 14 to 158 degrees F |
| Relative humidity | <85% RH (non-condensing) |
| Certifications/Standards | FCC, CE, RoHS |
| UPC Code | 662774-045818 |
| Warranty | 2 years limited |
| Country of Origin | China |

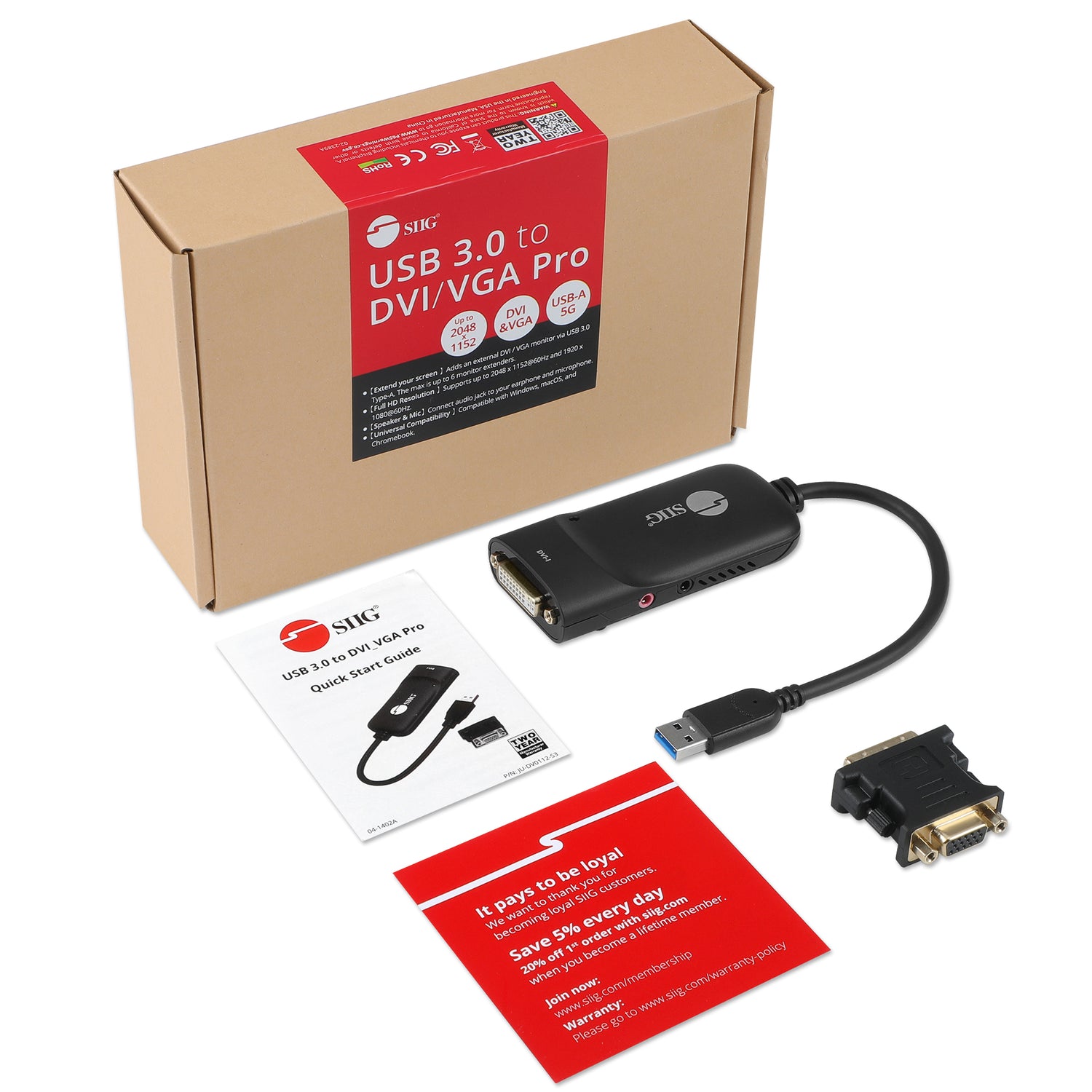

| Package Contents | 1x USB 3.0 to DVI/VGA Pro 1x DVI to VGA adapter 1x Quick Start guide |
No content found
Manuals
Drivers (Hardware Version: 3)
-
Windows 11 / 10 (32-/64-bit) / 8.1 (32-/64-bit) / 7 (32-/64-bit)Download Manager Graphics Connectivity 1.8
For the latest driver please visit, https://www.synaptics.com/products/displaylink-graphics/downloads -
macOS Ventura 13 / Monterey 12 / Big Sur 11Download USB Graphics Software 10.3 M0
For the latest driver please visit, https://www.synaptics.com/products/displaylink-graphics/downloads
