USB |
SKU:
JU-MR0A11-S1

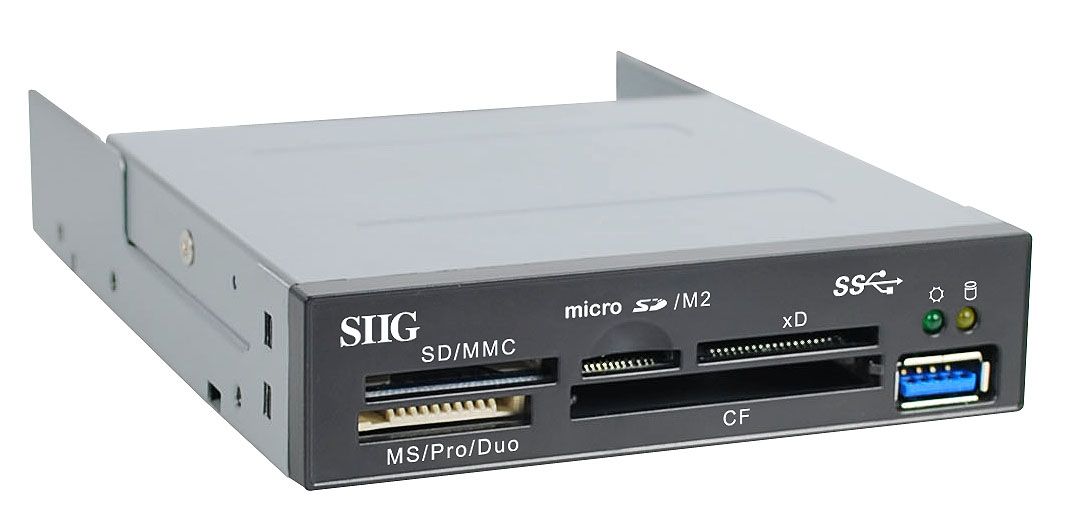

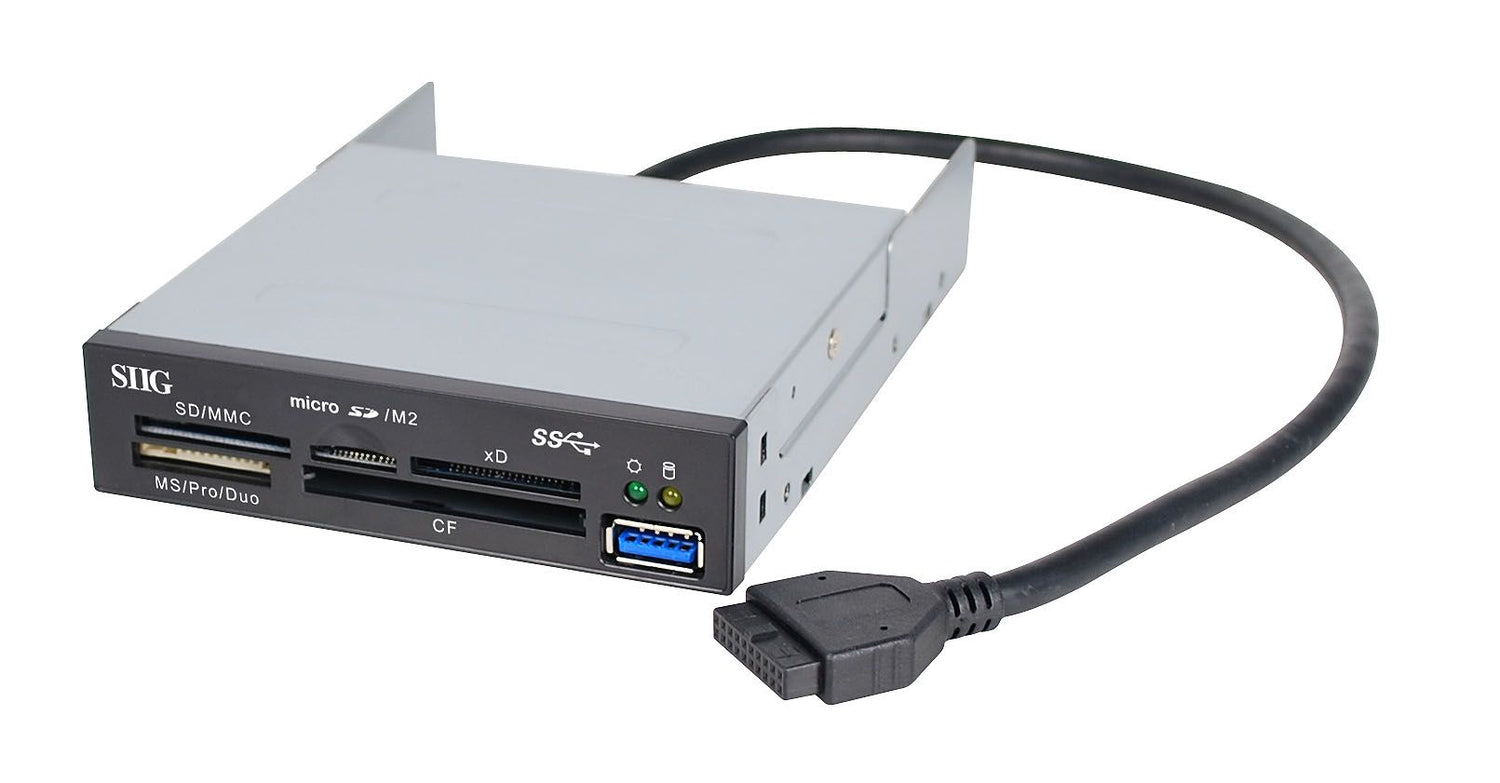

USB 3.0 Internal Bay Multi Card Reader
USB 3.5 Drive Bay Card Reader
USB 5Gbps
SD/MMC/MS/xD/CF
Up to 2TB
Power / Activity LED
Regular price
$39.99
Unit price
/
Unavailable
Shipping calculated at checkout.
USB 3.0 Internal Bay Multi Card Reader is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
Front Access Multi-Card Reader
Front Access Multi-Card Reader
Built-in USB 3.0 Port
Built-in USB 3.0 Port
Fits Standard 3.5" Drive Bay
Fits Standard 3.5" Drive Bay
Wide Compatibility & Large Capacity
Wide Compatibility & Large Capacity
User-Friendly & Reliable Design
User-Friendly & Reliable Design
No content found
| Hardware | Genesys GL3220 |
| Standard | Compliant with Universal Serial Bus 3.0 Specification |
| Speed rate | Supports USB 3.0 data transfer rate up to 5Gbps |
| Connector | |
| Input | 1x 20-pin header, USB 3.0 function |
| Output | 1x 9-pin, USB-A, Female SD, SDHC, SDXC Mini SD, Micro SD (T-Flash) : Up to 2TB (Max) MMC, RS-MMC, MMC micro, MMC mobile : Capacity: Up to 128MB (Max) MS, MS Duo, MS Pro, MS Pro Duo, MS Pro-HG, MS Pro Micro, MS XC : Capacity: Up to 32MB (Max) xD picture card (Type M/M+, Type H) : Capacity: Up to 2GB (Max) CF, CF II : Capacity: PIO Mode 6 / UDMA mode 7 / LBA48 - Up to 144PB (Max) Insert the CF card with the pins facing forward and top label facing DOWN |
| LED | Power / Activity |
| System Requirements | An available internal USB 3.0 20-pin header An available 3.5" drive bay Windows® 8 (32-/64-bit) / 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-/64-bit) / Server 2003 & 2008 (32-/64-bit) / Server 2008 R2 |
| Product | |
| Dimensions | 3.94″ (W) x 1″ (H) x 5.32″ (D) |
| Cable length | 23.63″ (L) |
| Weight | 0.56 lbs |
| Unit package | |
| Dimensions | 6.5″ (W) 4.6″ (H) 1.77″ (D) |
| Weight | 0.60 lbs |
| Master carton | |
| Dimensions | 22.05″ (W) 15.75″ (H) 6.97″ (D) |
| Weight | 28.71 lbs |
| Quantity | 40 pcs/ctn |
| Certifications/Standards | FCC, CE, RoHS |
| UPC code | 662774014036 |
| Warranty | 2 years limited |
| Country of origin | Engineered in USA , Manufactured in China |
| Package contents | USB 3.0 Internal Bay Multi Card Reader Drive bay mounting screws (4) Installation Guide |
What is the maximum memory card capacity for each memory card?
What is the maximum memory card capacity for each memory card?
[Capacity up to 2TB]: SD, SDHC, SDXC, Mini SD, Micro SD (T-Flash); [Capacity up to 128GB]: MMC, MMC micro; [Capacity up to 2GB]: RS-MMC, MMC mobile; [Capacity up to 32GB]: MS, MS Duo, MS Pro, MS Pro Duo, MS Pro-HG, MS Pro Micro, MS XC; [Capacity up to 2GB]: xD picture card- Type M/M+, Type H; [Capacity up to 144PB]: CF, CF II- CompactFlashTMv6.0 with PIO mode 6 / Ultra DMA mode 7and LBA48
