IT-Cables |
SKU:
CB-US0U11-S1

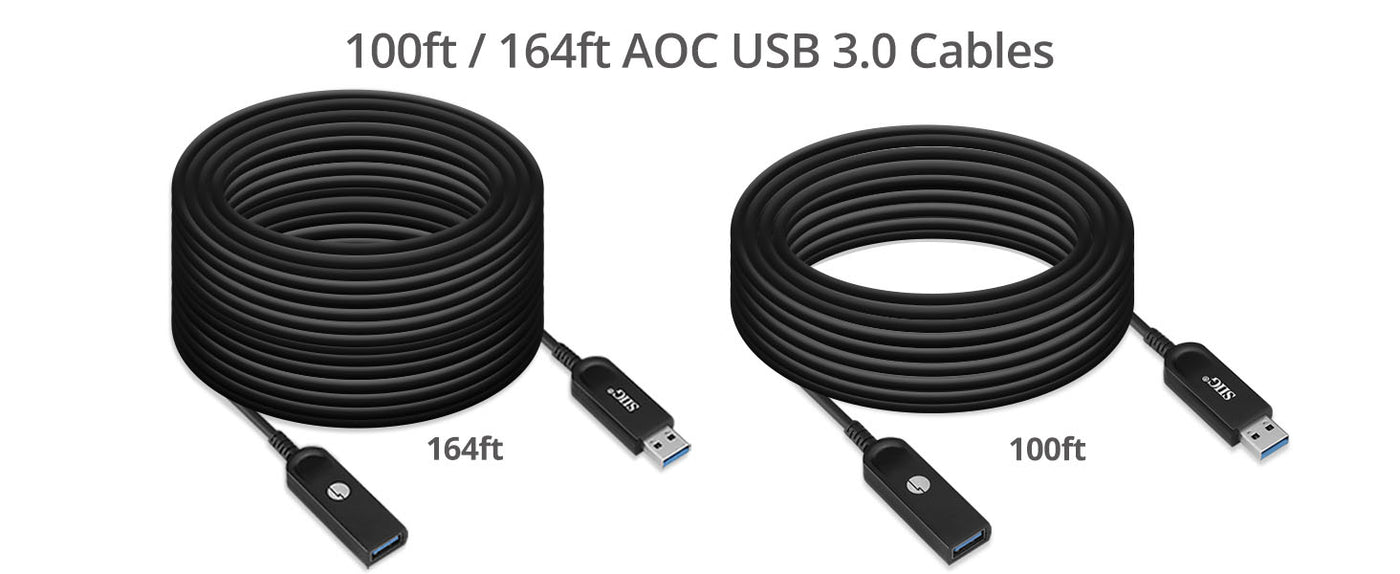

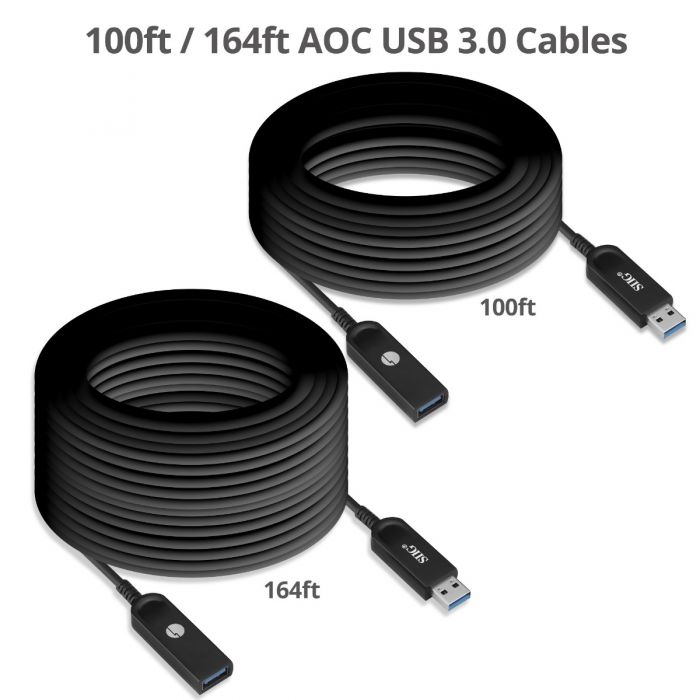

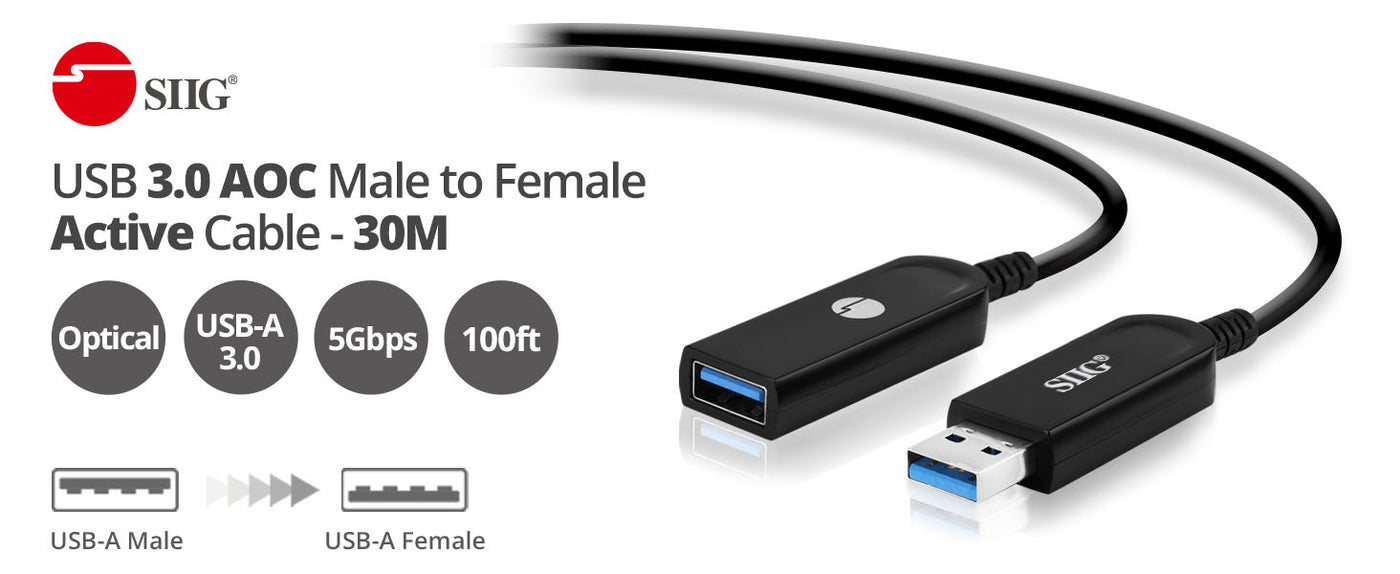

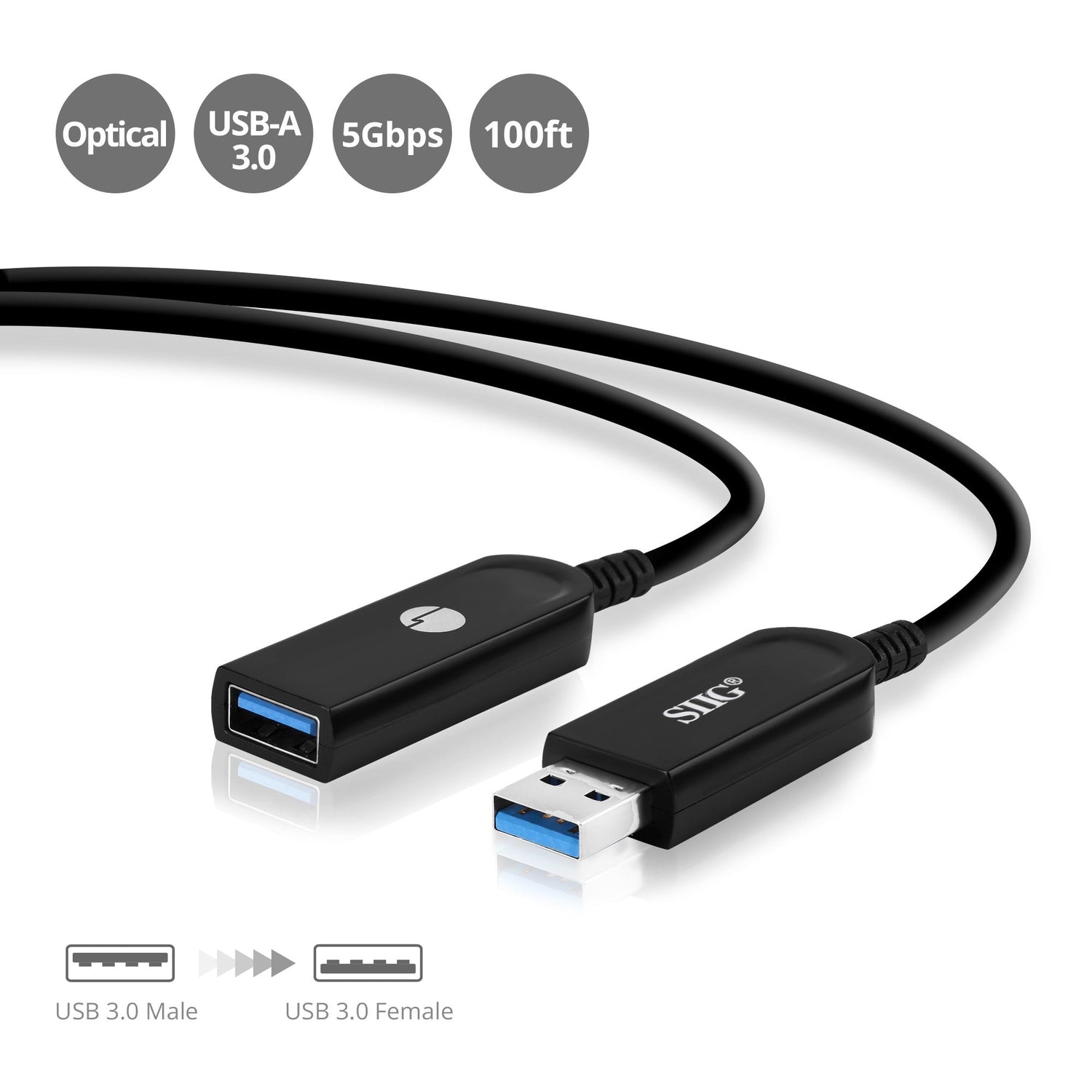

USB 3.0 AOC Male to Female Active Cable - 30M
USB Active Cable
100ft (30m)
USB-A 5Gbps
Active Optical Cable
Zinc Alloy
Regular price
$329.99
Unit price
/
Unavailable
Shipping calculated at checkout.
USB 3.0 AOC Male to Female Active Cable - 30M is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
Extended USB 3.0 Signal Transmission
Extended USB 3.0 Signal Transmission

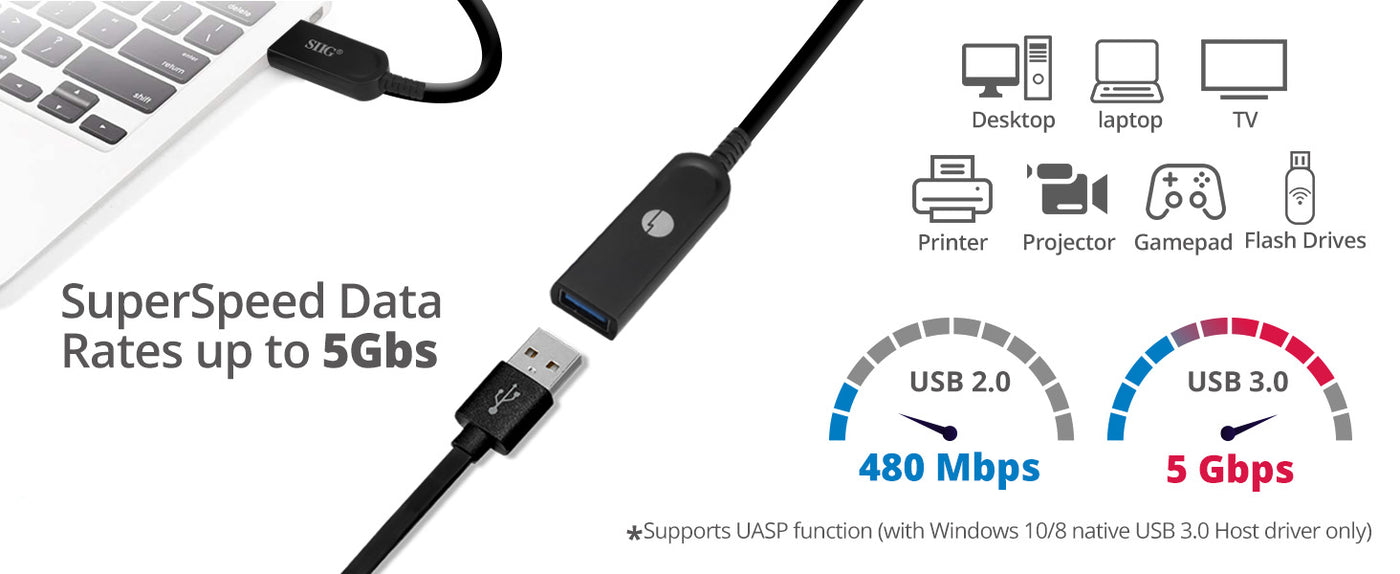

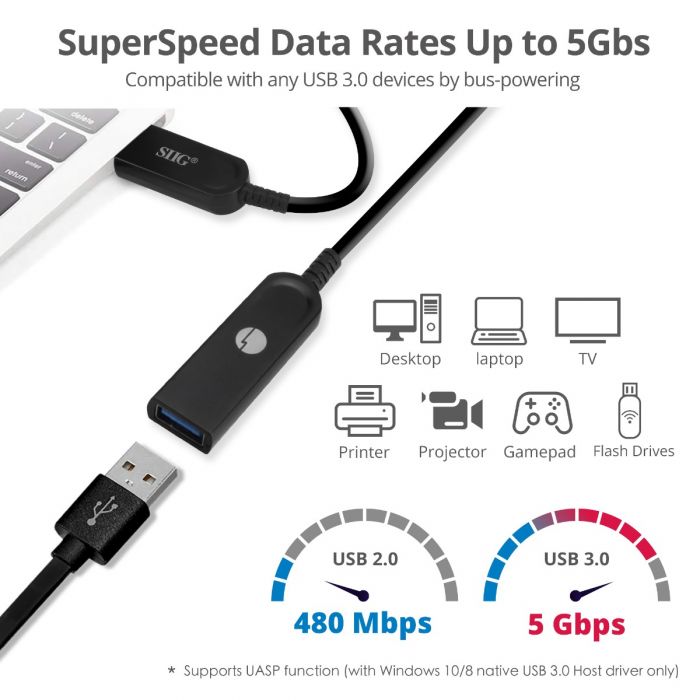

High-Speed Data Rates
High-Speed Data Rates
Ideal for Long-Distance Video Transmission
Ideal for Long-Distance Video Transmission
Fiber-Optic Noise Immunity
Fiber-Optic Noise Immunity
Support for UASP Function
Support for UASP Function
Ideal for Extending USB 3.0 Signals over Long Distances Without Signal Loss
Perfect for Long-distance, High-performance Setups in Conference Rooms, Lecture Halls, or Medical Imaging environment
Supports Data Transfer Speeds up to 5Gbps, Up to 100ft(30M)
The Durable Fiber-optic Design Resists Electromagnetic Interference (EMI), Delivering a Stable, Noise-free Connection
Fully Compatible with Windows 10/8 Native USB 3.0 Host Drivers. Simply Plug & Play for a Smooth, Hassle-free Setup

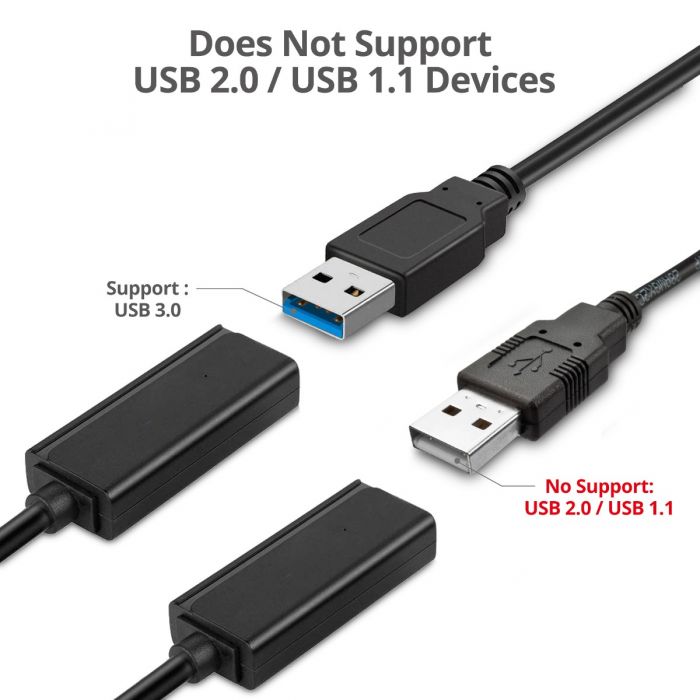

| Compliant With | USB 3.0 specification Note: Not compatible with USB 2.0 or USB 1.1 devices |
| Chipset | Silicon line 86051 |
| Bandwidth | USB 3.0 up to 5Gbps |
| Power | Bus power and require no external power supply Note: For high power consuming USB devices, use the device's included power adapter for reliable power |
| Cable Shielding | Triple shielded (Fiber / Copper Hybrid) |
| Shielding 1 | Twisted-pair copper: polyethylene |
| Shielding 2 | Kevlar |
| Shielding 3 | Aluminum Mylar |
| Cable Conductors | Copper: AGW 28 / Fiber: OM3 |
| Outer Material | PVC Jacket |
| Outer Diameter | 4.5mm |
| Data Transfer Rate | Up to 5Gbps |
| Power Output | 5V/800mA |
| Power Consumption | 50mA (Max) |
| Connectors | 1x 9-pin USB 3.0 Type-A, Male 1x 9-pin USB 3.0 Type-A, Female |
| Connector Dimensions | Type-A (Male): 40mm (L) x 9mm (H) x 18mm (D) Type-A (Female): 52.5mm (L) x 9mm (H) x 18mm (D) |
| Package Contents | 1x USB 3.0 AOC Male to Female Active Cable - 30M 1x Quick start guide |
| Product | |
| Length | 30m (100ft) |
| Weight | 2.86 lbs (1.30 kg) |
| Color | Black |
| Housing Material | Die Cast Zinc Alloy |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 9.25" x 2.91" x 8.82" 23.50 cm x 7.39 cm x 22.40 cm |
| Weight | 3.15 lbs (1.43 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 18.50" x 10.04" x 15.16" 47.00 cm x 25.50 cm x 38.50 cm |
| Weight | 34.18 lbs (15.50 kg) |
| Quantity | 10 pcs/ctn |
| Environmental Conditions | |
| Operating temperature | 32 to 149 degrees F |
| Storage temperature | 14 to 158 degrees F |
| Humidity | < 10% to 85% (non-condensing) |
| Certifications/Standards | CE, FCC, RoHS, REACH |
| UPC Code | 662774-044309 |
| Warranty | 2 years limited |
| Country of Origin | China |
