IT-Cables |
SKU:
JU-CB0811-S1

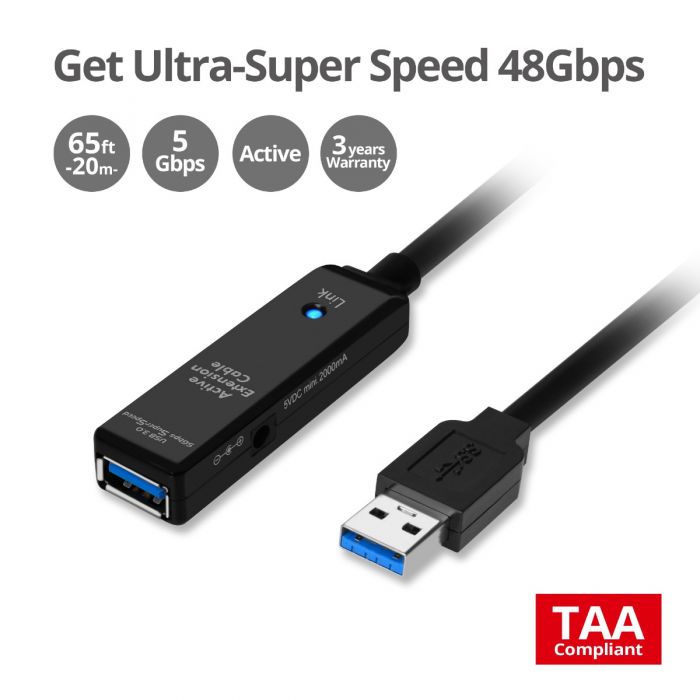

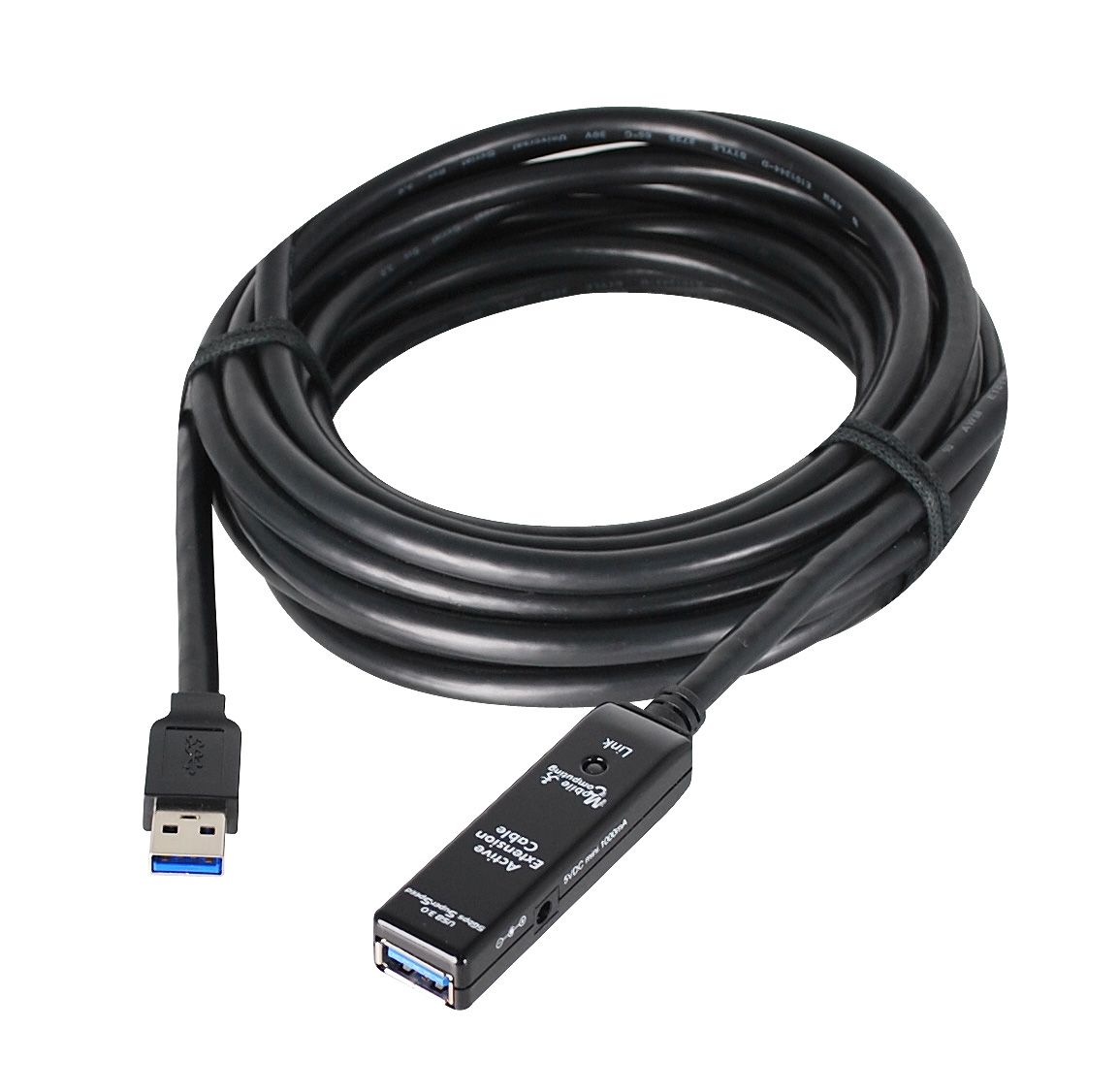

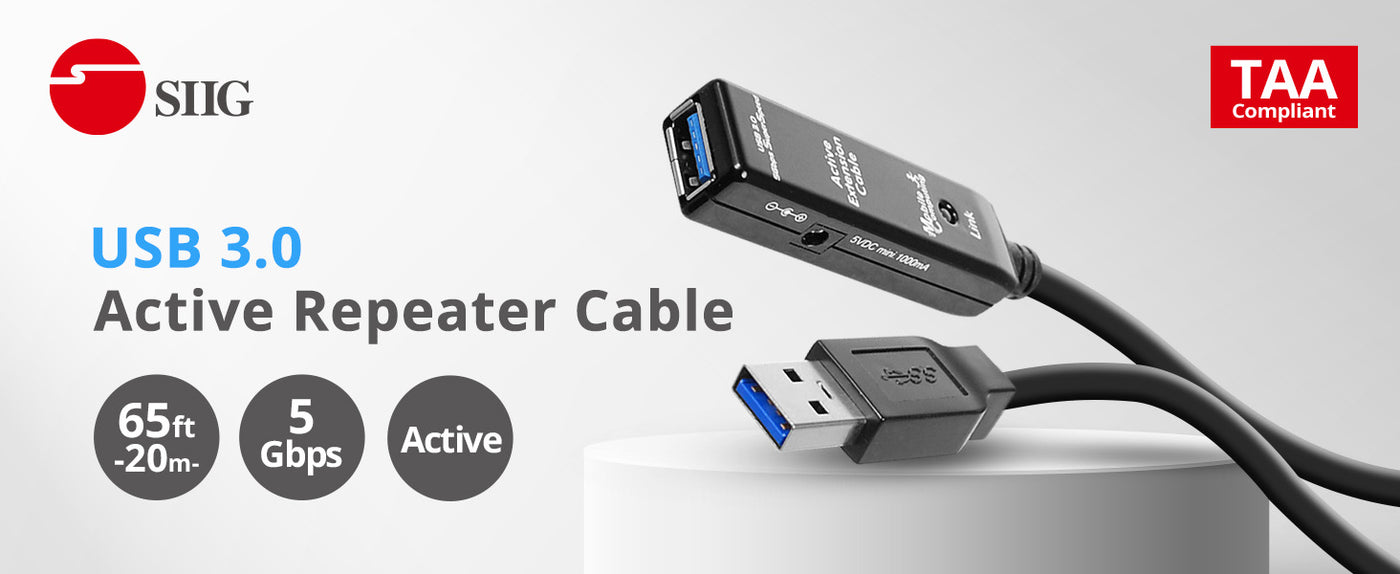

USB 3.0 Active Repeater Cable - 20M - 5Gbps
USB Repeater Cable
65ft (20m)
USB-A up to 5Gbps
UASP
TAA Compliant
Regular price
$265.99
Unit price
/
Unavailable
Shipping calculated at checkout.
USB 3.0 Active Repeater Cable - 20M - 5Gbps is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
Extended USB 3.0 Range up to 65ft(20m)
Extended USB 3.0 Range up to 65ft(20m)
High-Speed Data Transfer up to 5Gbps
High-Speed Data Transfer up to 5Gbps
Built-in Active Chipset for Stable Signal
Built-in Active Chipset for Stable Signal
External Power Support for Demanding Devices
External Power Support for Demanding Devices
Plug & Play with Premium Protection Design
Plug & Play with Premium Protection Design
USB 3.0 Active Repeater Cable - 20M - 5Gbps
Estimated shipping by May 24, 2026
Regular price
$265.99
Unit price
/
Unavailable
-
45 Days Free Return
-
2 Years Warranty
-
Lifetime Technical Support

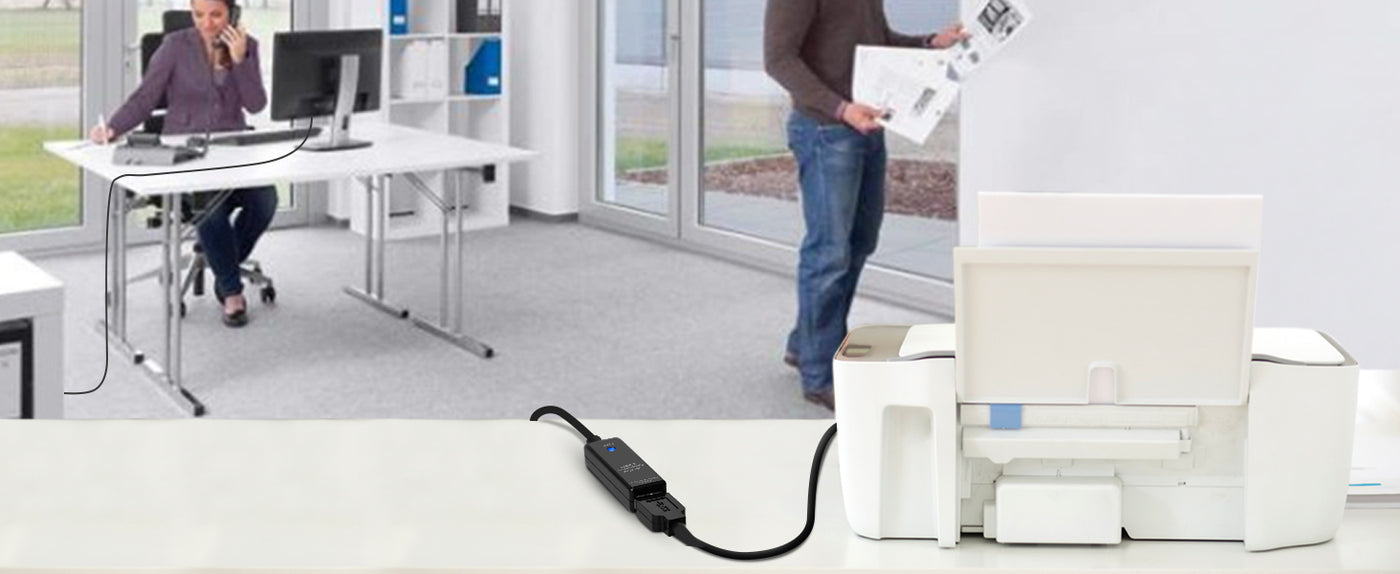

Ideal for Extending USB Devices Beyond Standard Range while Maintaining High-Speed Performance and Reliable Data Transmission
-

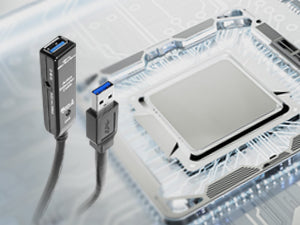

Active Chipset
Bulit-in singal booster chipsets to ensure long distance speed transmission -
5V AC Power Adapter
The power supply comes included in a pack with longer cables -
Plug & Play
Plug & play no driver needed
Extended USB Signal up to 65ft(20m), Data Transfer Rates up to 5Gbps

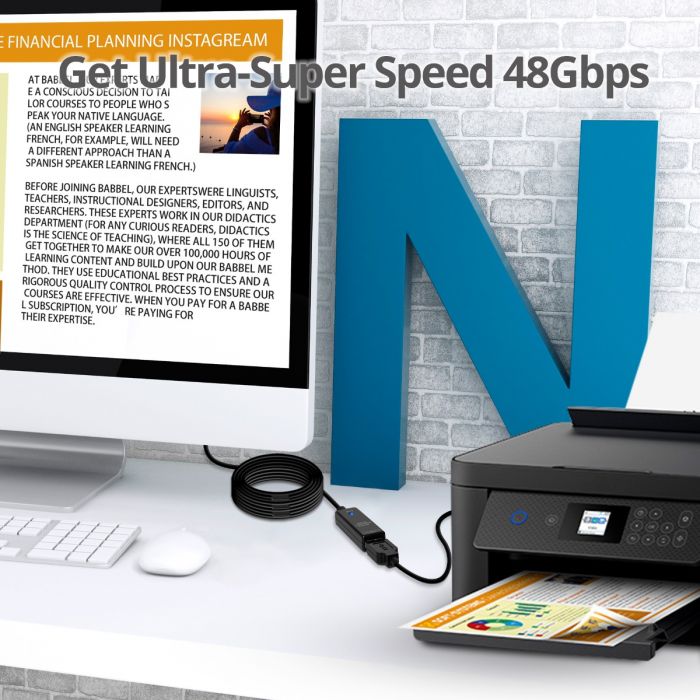

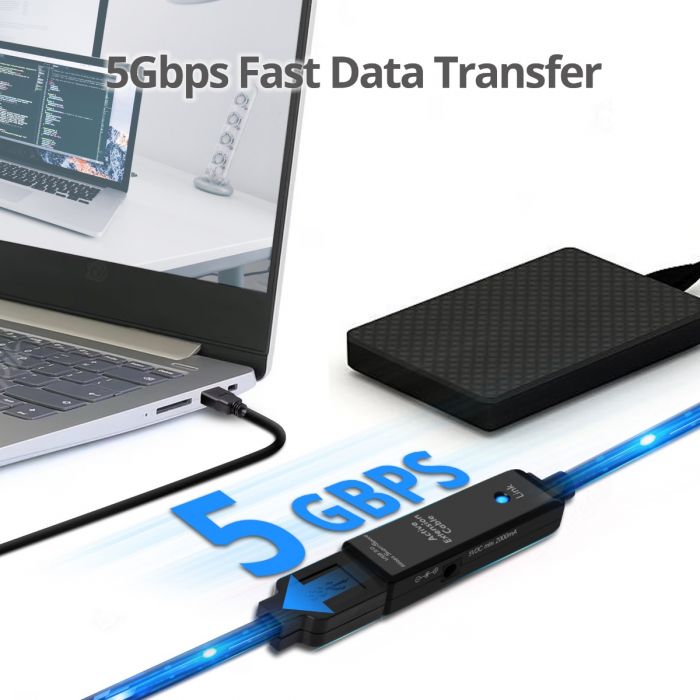

Ultra-Fast 5Gbps Data Transfer – Supports high-speed performance for external hard drives, webcams, printers, and other USB 3.0 peripherals
| Chipset | Via VL811 + B2 |
| Supports | UASP function (with Windows 10/8 native USB 3.0 Host driver only) |
| Connectors | 9-pin, USB 3.0, Type A, Male 9-pin, USB 3.0, Type A, Female Power adapter jack: 3.3mm (OD) x 1.3mm (ID) x 9mm (L) |
| Power Adapter | |
| Input | 100-240VAC, 0.5A |
| Output | 5VDC, 2.0A |
| Power plug | 3.3mm (OD) x 1.3mm (ID) x 9mm (L) |
| Environmental Conditions | |
| Operating temperature | 32 to 122 degrees F (0 to 50 C) |
| Storage temperature | -40 to 131 degrees F (-40 to 55 C) |
| Operating humidity | 20% to 93% RH |
| Storage humidity | 15% to 95% RH |
| Certifications/Standards | FCC, CE, RoHS, TAA compliant |
| UPC Code | 662774-013480 |
| Warranty | 3 years limited |
| Country of Origin | Taiwan |
| Product | |
| Length | 65.6 ft (20 m) |
| Weight | 3.31 lbs (1.5 kg) |
| Color | Black |
| Housing material | Plastic |
| Unit package | |
| Dimensions (L) x (H) x (W) | 12.81" x 3.63" x 7.81" 32.54 cm x 9.22 cm x 19.84 cm |
| Weight | 4.08 lbs (1.85 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 15.87" x 15.75" x 13.86" 40.30 cm x 40.00 cm x 35.2 cm |
| Weight | 24.25 lbs (11.00 kg) |
| Quantity | 8 pcs/ctn |
| System Requirements | Desktop or notebook computer with an available USB port Windows®11 (32-/64-bit) /10 (32-/64-bit) / 8.x (32-/64-bit) / 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-/64-bit) Mac OS®10.12 to 10.15 |

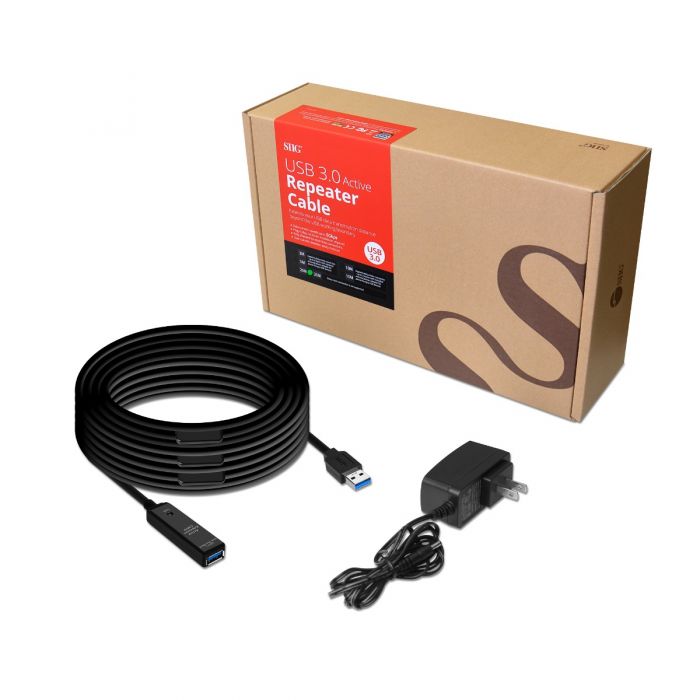

| Package Contents | 1x USB 3.0 Active Repeater Cable – 20M 1x Power adapter |
Q1: Is this a plenum rated cable?
Q1: Is this a plenum rated cable?
A1: Applies to the Following Products:
- USB 3.0 Active Repeater Cable - 20M (JU-CB0811-S1)
- USB 3.0 Active Repeater Cable – 10M (JU-CB0611-S1)
- USB 3.0 Active Repeater Cable – 15M (JU-CB0711-S1)
- USB 3.0 Active Repeater Cable – 3M (JU-CB0411-S1)
- USB 3.0 Active Repeater Cable – 5M (JU-CB0511-S1)
Solution:
No, it is not.
- USB 3.0 Active Repeater Cable - 20M (JU-CB0811-S1)
- USB 3.0 Active Repeater Cable – 10M (JU-CB0611-S1)
- USB 3.0 Active Repeater Cable – 15M (JU-CB0711-S1)
- USB 3.0 Active Repeater Cable – 3M (JU-CB0411-S1)
- USB 3.0 Active Repeater Cable – 5M (JU-CB0511-S1)
Solution:
No, it is not.
Q2: Does it support daisy chain?
Q2: Does it support daisy chain?
A2: Applies to the Following Product:
USB 3.0 Active Repeater Cable - 20M (JU-CB0811-S1).
Solution:
Unfortunately, it is not supported due to the limitation of the chipset on this product.
USB 3.0 Active Repeater Cable - 20M (JU-CB0811-S1).
Solution:
Unfortunately, it is not supported due to the limitation of the chipset on this product.
