IT-Cables |
SKU:
JU-CB0611-S1

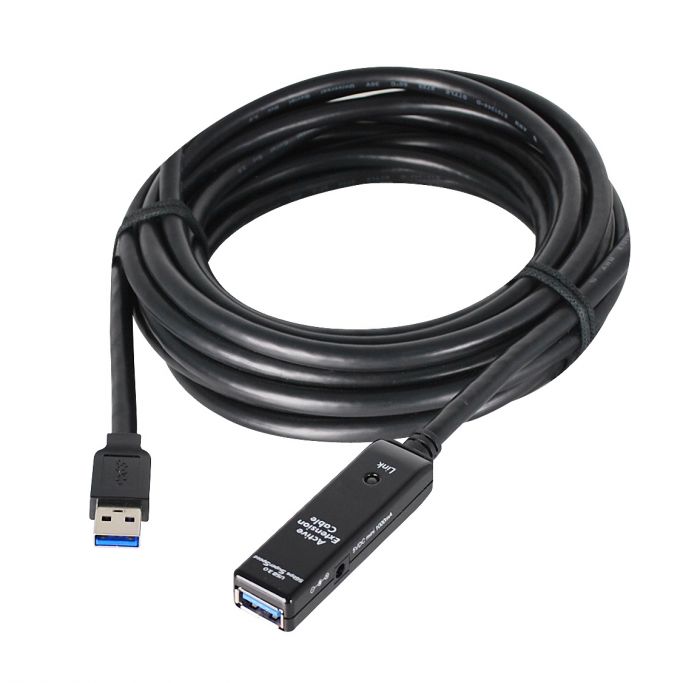

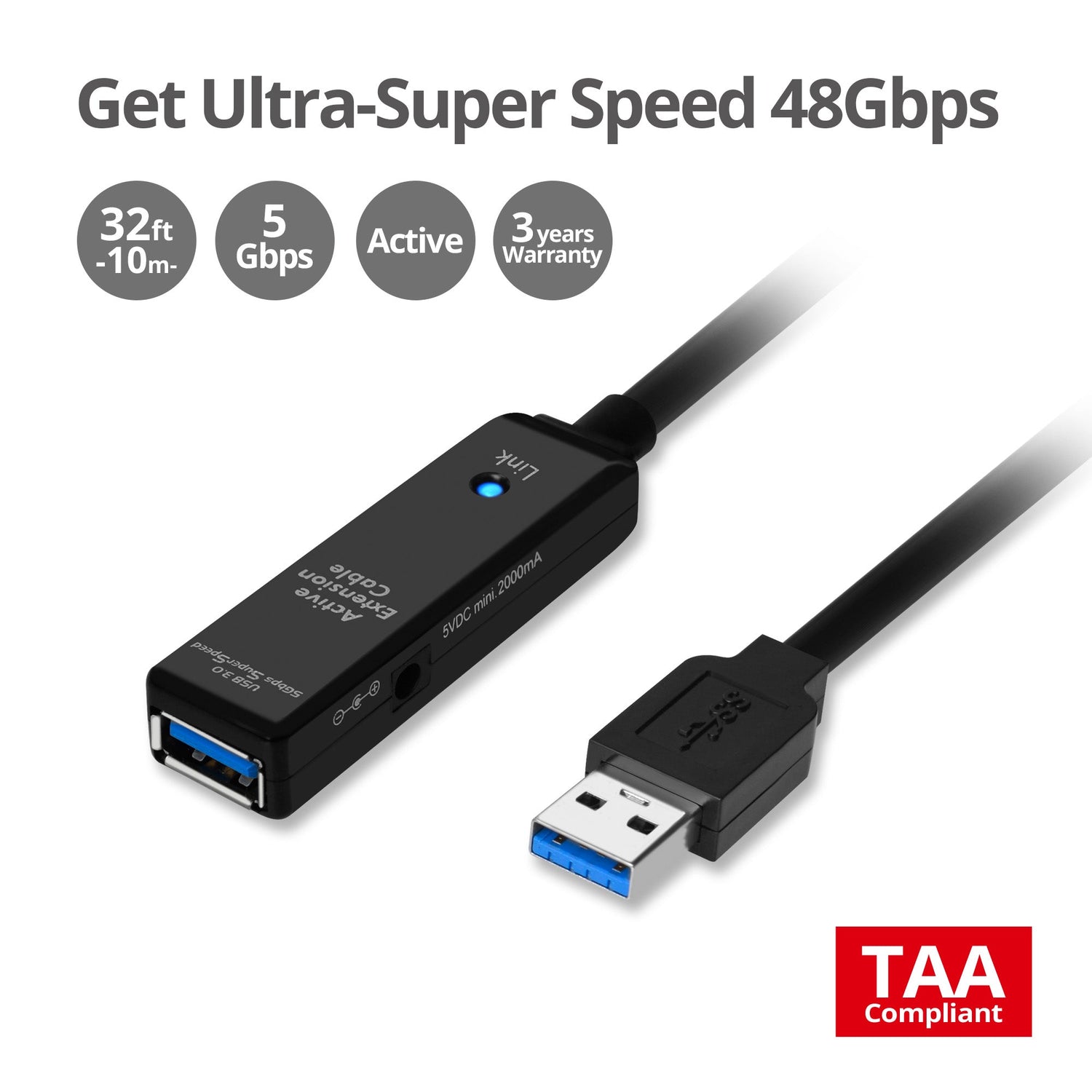

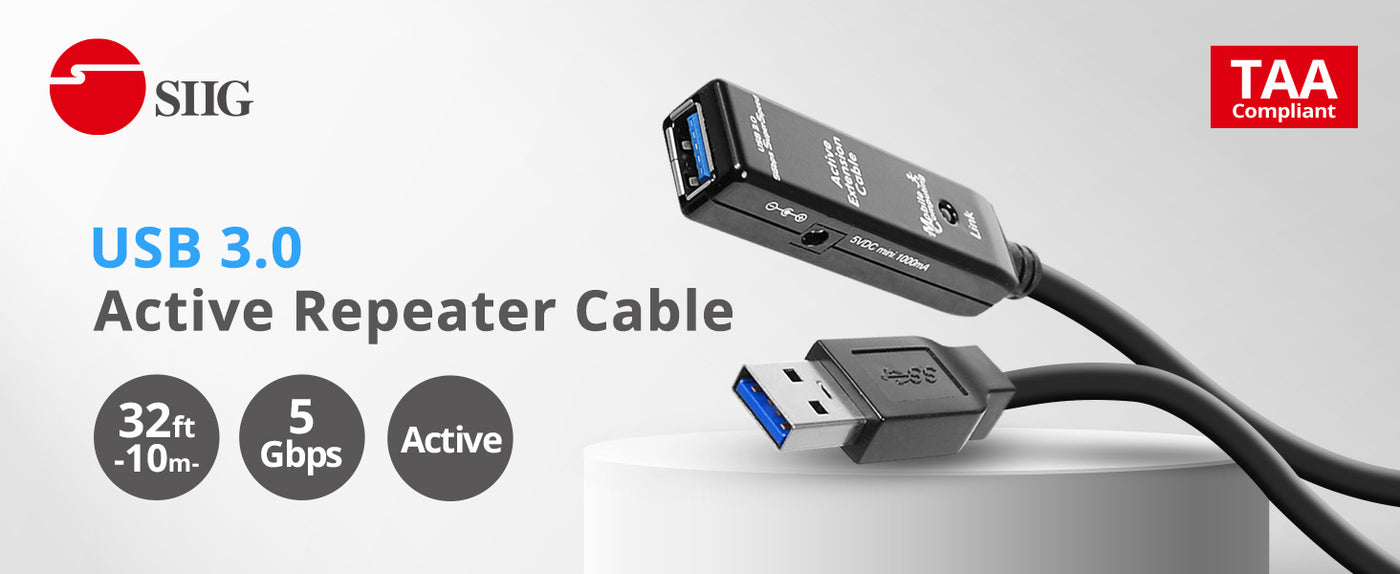

USB 3.0 Active Repeater Cable - 10M - 5Gbps
USB Repeater Cable
32ft (10m)
USB-A up to 5Gbps
Daisy-Chain
TAA Compliant
Regular price
$162.99
Unit price
/
Unavailable
Shipping calculated at checkout.
USB 3.0 Active Repeater Cable - 10M - 5Gbps is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
Extended USB 3.0 Range up to 32ft(10m)
Extended USB 3.0 Range up to 32ft(10m)
High-Speed Data Transfer up to 5Gbps
High-Speed Data Transfer up to 5Gbps
Active Signal Booster with External Power Support
Active Signal Booster with External Power Support
Shielded & Safe with Daisy Chain Support
Shielded & Safe with Daisy Chain Support

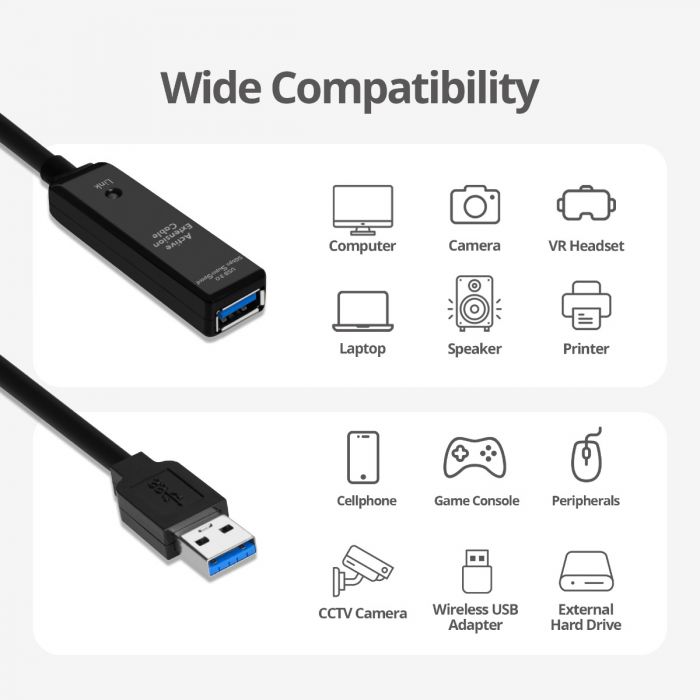

Plug & Play Wide Compatibility
Plug & Play Wide Compatibility
Ideal for Extending USB Devices Beyond Standard Range while Maintaining High-Speed Performance and Reliable Data Transmission



-

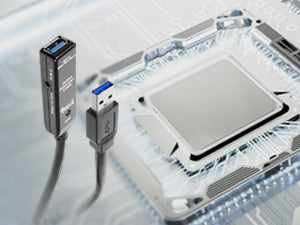

Active Chipset
Bulit-in singal booster chipsets to ensure long distance speed transmission -
5V AC Power Adapter
The power supply comes included in a pack with longer cables -

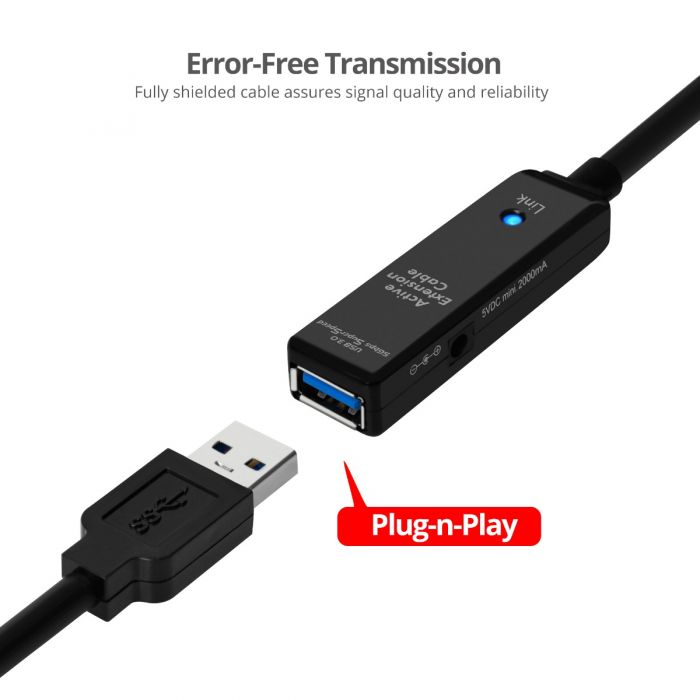

Plug & Play
Plug & play no driver needed -
Daisy chain
Supports daisy chain connection – up to 2 cables
Note: The external power adapter is required When using daisy chain feature
Extended USB Signal up to 32ft(10m), Data Transfer Rates up to 5Gbps
Ultra-Fast 5Gbps Data Transfer – Supports high-speed performance for external hard drives, webcams, printers, and other USB 3.0 peripherals
| Chipset | Via VL811 + B2 |
| Supports | UASP function (with Windows 10/8 native USB 3.0 Host driver only) |
| Max Daisy Chain Distance* | 20m (2 cables) *Note: When daisy chaining, the external power adapter is required for supplying sufficient power to the connected device. |
| Connectors | 1x 9-pin, USB 3.0, Type A, Male 1x 9-pin, USB 3.0, Type A, Female 1x Power adapter jack: 3.3mm (OD) x 1.3mm (ID) x 9mm (L) |
| Power Adapter | |
| Input | 100-240VAC, 0.5A |
| Output | 5VDC, 2.0A |
| Power plug | 3.3mm (OD) x 1.3mm (ID) x 9mm (L) |
| Environmental Conditions | |
| Operating temperature | 32 to 122 degrees F (0 to 50 C) |
| Storage temperature | -40 to 131 degrees F (-40 to 55 C) |
| Operating humidity | 20% to 93% RH |
| Storage humidity | 15% to 95% RH |
| Certifications/Standards | FCC, CE, RoHS, TAA compliant |
| UPC Code | 662774-013466 |
| Warranty | 3 years limited |
| Country of Origin | Taiwan |
| Product | |
| Length | 32.8 ft (10 m) |
| Weight | 1.71 lbs (0.78 kg) |
| Color | Black |
| Housing material | Plastic |
| Unit package | |
| Dimensions (L) x (H) x (W) | 10.38" x 3.06" x 6.88" 26.37 cm x 7.77 cm x 17.48 cm |
| Weight | 2.54 lbs (1.15 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 15.75" x 14.21" x 11.26" 40.00 cm x 36.09 cm x 28.60 cm |
| Weight | 18.04 lbs (8.18 kg) |
| Quantity | 10 pcs/ctn |
| System Requirements | Desktop or notebook computer with an available USB port Windows®11 (32-/64-bit) /10 (32-/64-bit) / 8.x (32-/64-bit) / 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-/64-bit) Mac OS®10.12 to 10.15 |

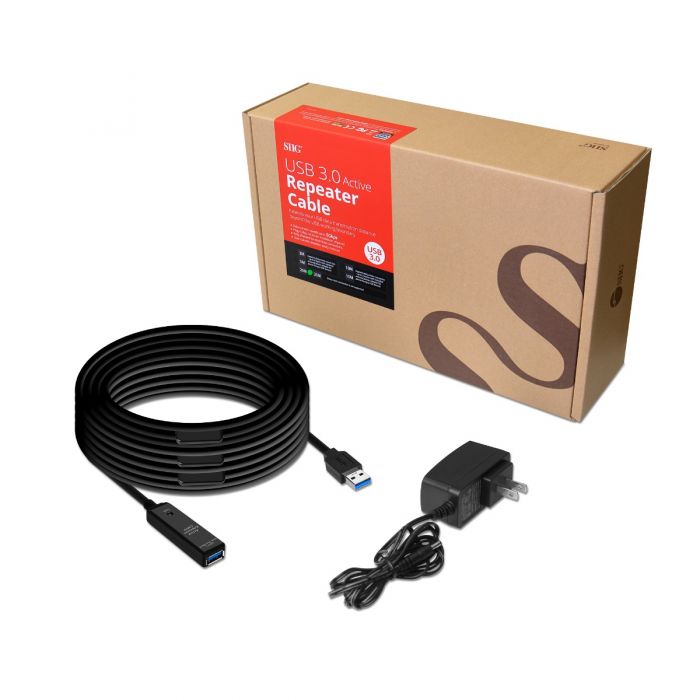

| Package contents | 1x USB 3.0 Active Repeater Cable – 10M 1x Power adapter |
Q1: Is this a plenum rated cable?
Q1: Is this a plenum rated cable?
A1: Applies to the Following Products:
- USB 3.0 Active Repeater Cable - 20M (JU-CB0811-S1)
- USB 3.0 Active Repeater Cable – 10M (JU-CB0611-S1)
- USB 3.0 Active Repeater Cable – 15M (JU-CB0711-S1)
- USB 3.0 Active Repeater Cable – 3M (JU-CB0411-S1)
- USB 3.0 Active Repeater Cable – 5M (JU-CB0511-S1)
Solution:
No, it is not.
- USB 3.0 Active Repeater Cable - 20M (JU-CB0811-S1)
- USB 3.0 Active Repeater Cable – 10M (JU-CB0611-S1)
- USB 3.0 Active Repeater Cable – 15M (JU-CB0711-S1)
- USB 3.0 Active Repeater Cable – 3M (JU-CB0411-S1)
- USB 3.0 Active Repeater Cable – 5M (JU-CB0511-S1)
Solution:
No, it is not.
