I/O |
SKU:
JU-P70211-S1

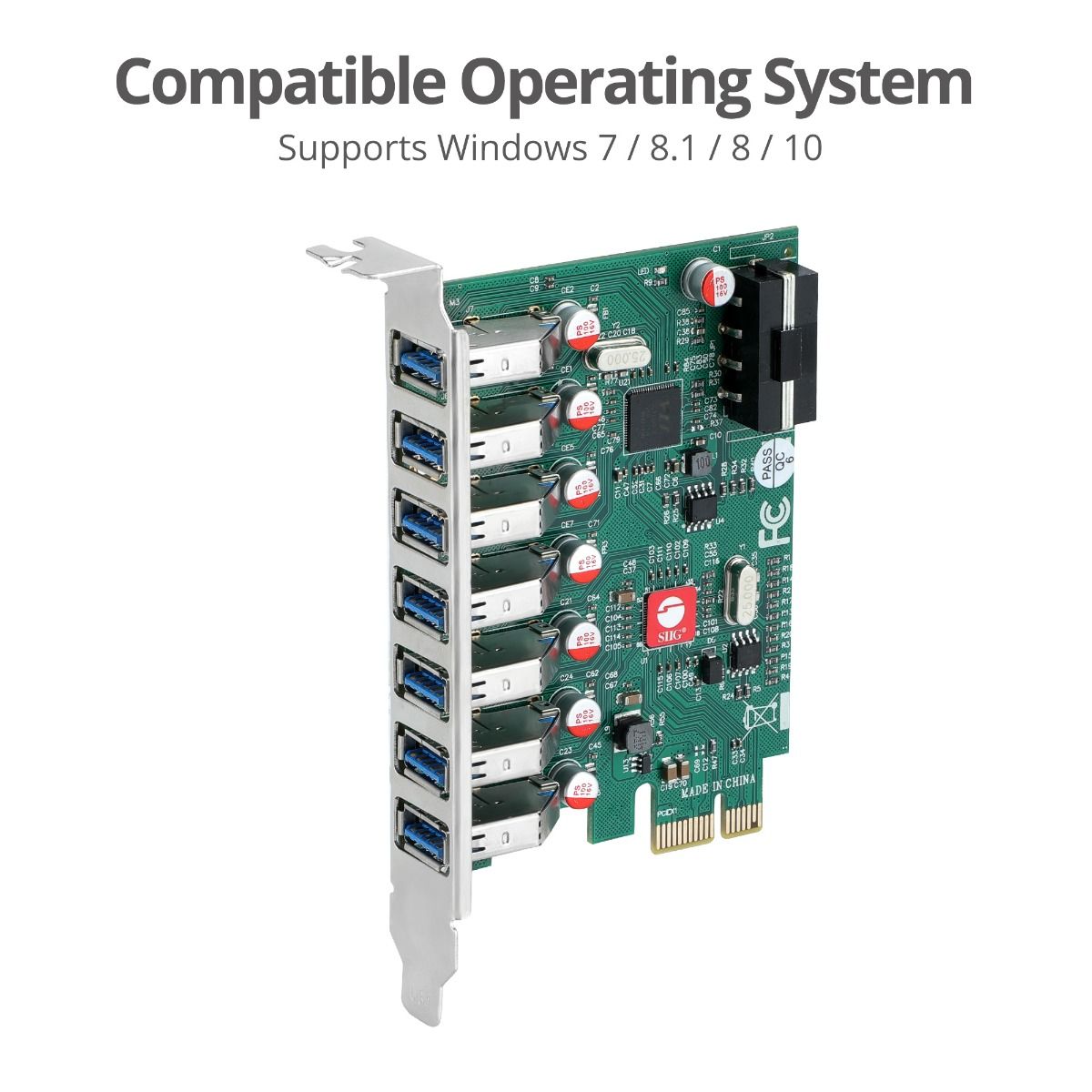

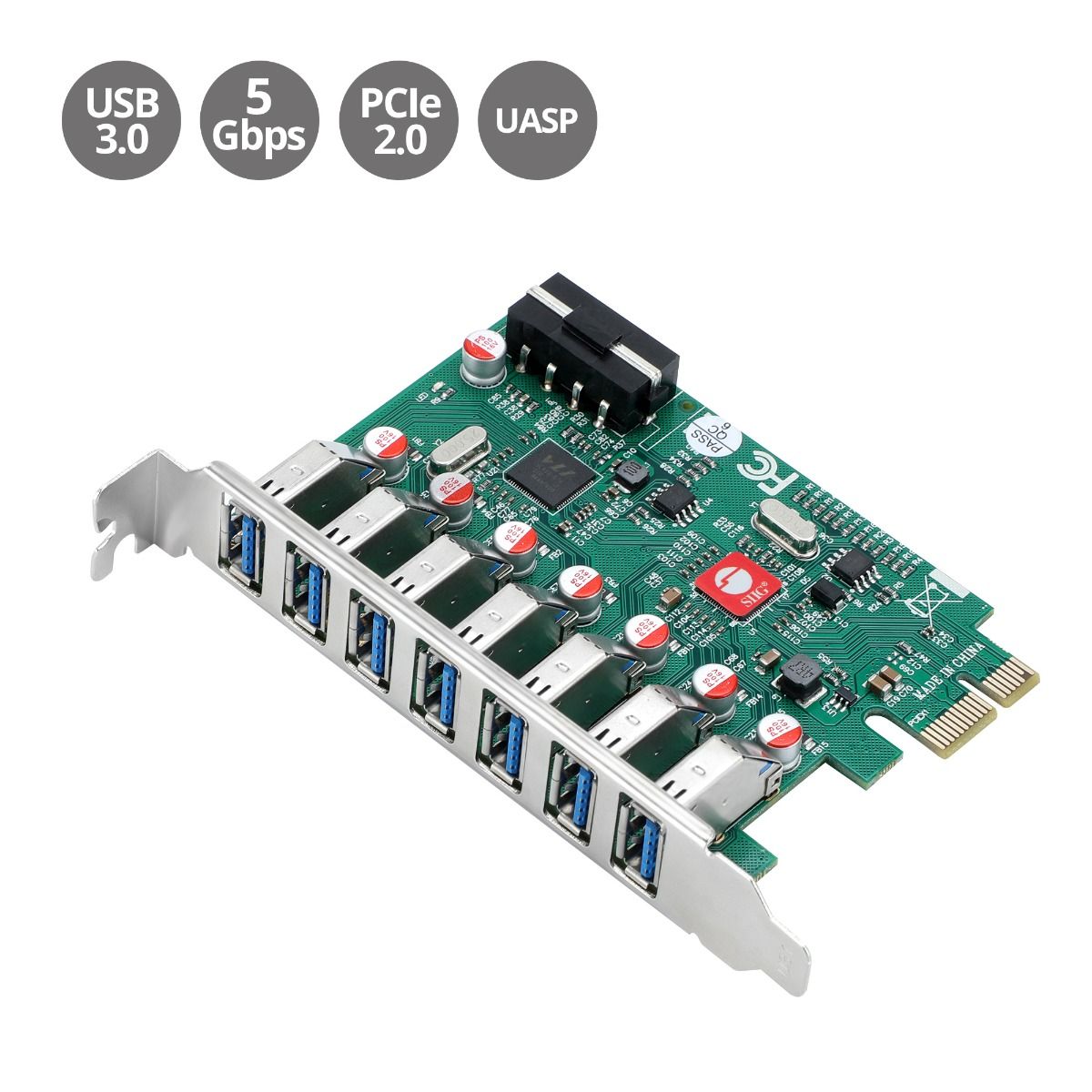

USB 3.0 7-Port PCIe Host Card
USB PCIe Card
7-Port USB-A
5Gbps
5V/900mA
UASP
Regular price
$89.99
Unit price
/
Unavailable
Shipping calculated at checkout.
USB 3.0 7-Port PCIe Host Card is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
USB 3.0 PCIe Expansion
USB 3.0 PCIe Expansion
SuperSpeed 5Gbps Performance
SuperSpeed 5Gbps Performance
UASP Enhanced Storage Speed
UASP Enhanced Storage Speed
Reliable Power & Protection
Reliable Power & Protection
Advanced PCIe Compatibility
Advanced PCIe Compatibility
No content found
| Chipset | VIA VL805+VL812 |

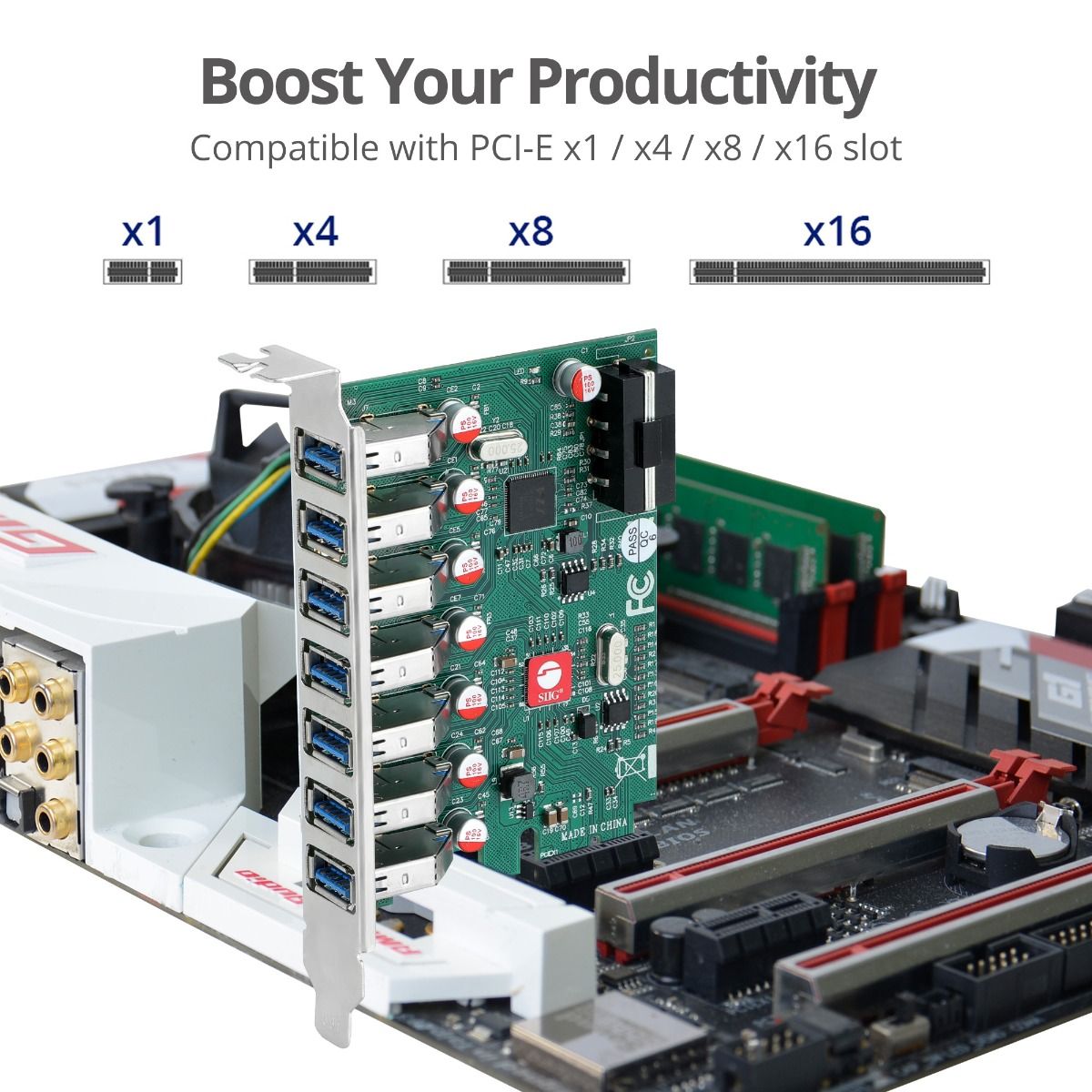

| Bus Connector | One Lane (x1) PCI Express |
| PCIe Card Type | Full Profile |
| Version | PCI Express 2.0 |
| USB Data Transfer Rate | 5Gbps / 480Mbps / 12Mbps / 1.5Mbps |

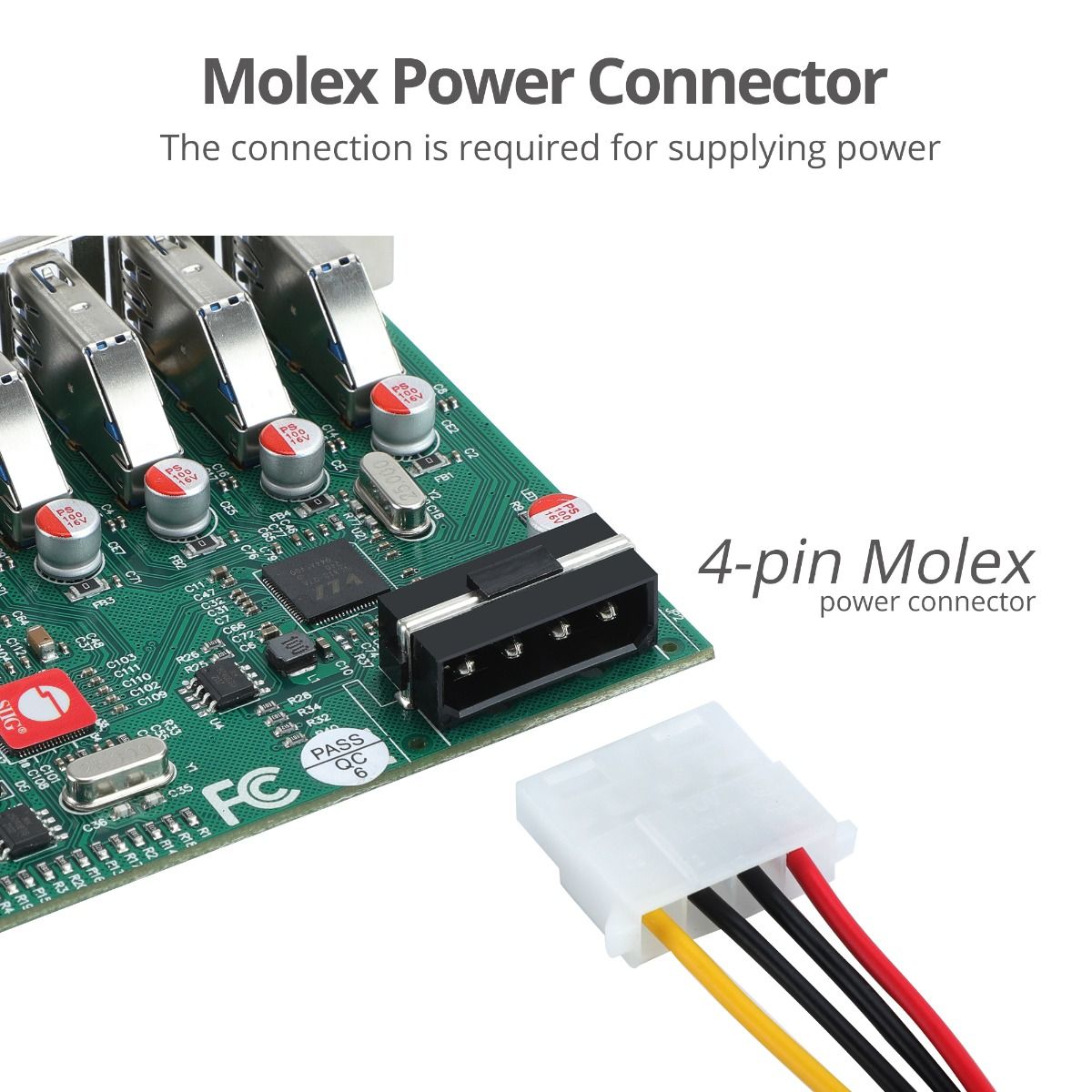

| USB Power Output | Up to 900mA per each (Molex power connection is required) |
| Power Consumption | 3W (Max.) |
| Connectors | 7x 9-pin USB 3.0 Type-A, Female |
| Interface | |
| Input | 7x 9-pin, USB 3.0 Type-A, Female 1x Molex port for Power input, Female |
| System Requirements | Desktop PC with an available PCI Express slot (one lane/x1) Windows® 11 (64-bit) /10 (32-/64-bit) / 8.1 (32-/64-bit) / 8 (32-/64-bit) / 7 (32-/64-bit) Windows® Server 2016 / 2012 R2 / 2012 / 2008 R2 / 2008 (32-/64-bit) |
| Product | |
| Dimensions | 4.72" (W) x 0.83" (H) x 3.31" (D) |
| Weight | 0.15lbs |
| Color | Black |
| Unit Package | |
| Dimensions | 6.89" (W) x 1.18" (H) x 4.92" (D) |
| Weight | 0.29lbs |
| Master Carton | |
| Dimensions | 19.29" (W) x 13.58" (H) x 14.96" (D) |
| Weight | 20.94 lbs |
| Quantity | 60 pcs/ctn |

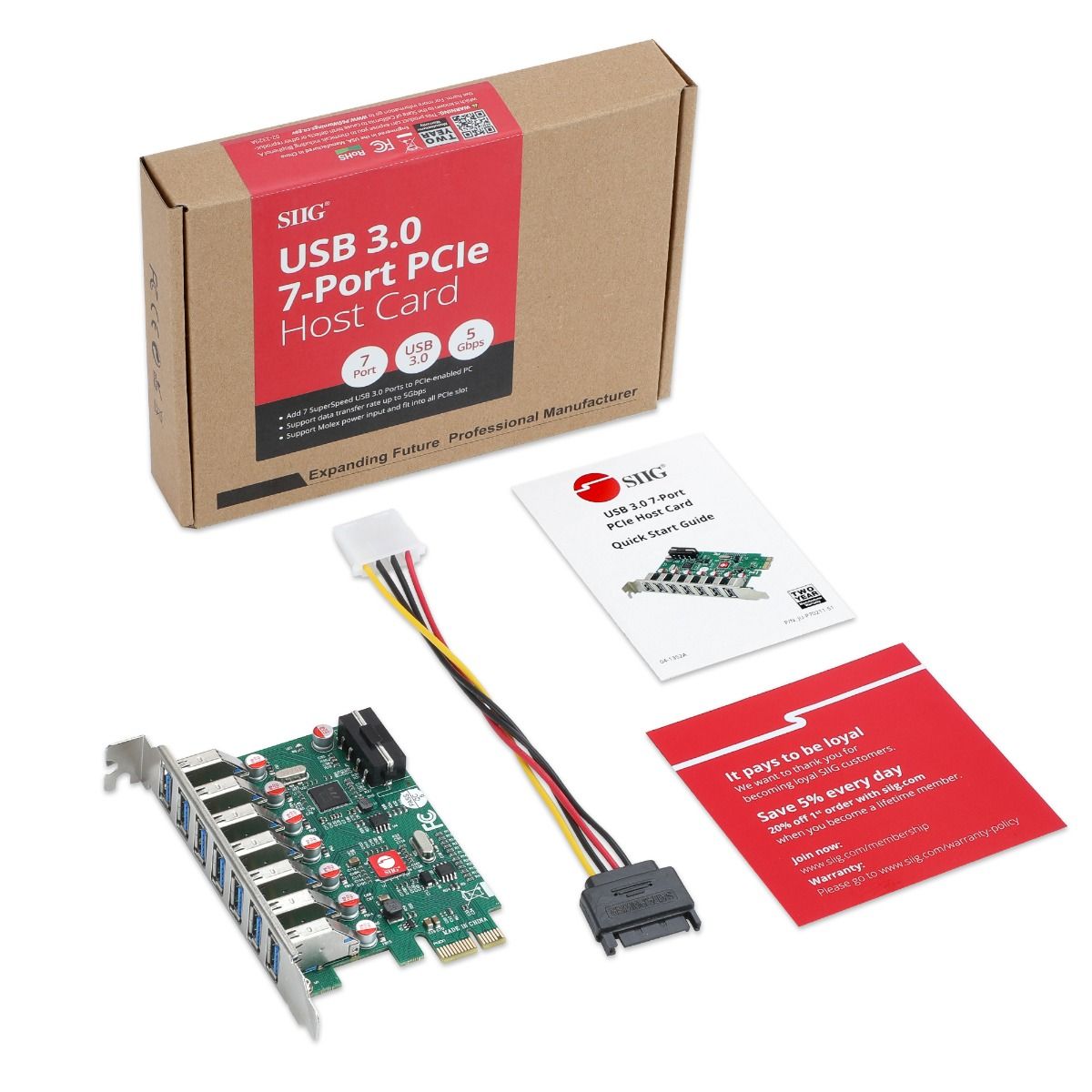

| Package Contents | 1x USB 3.0 7-Port PCIe Host Card 1x Molex power cable 1x User reference guide |
| Environmental Conditions | |
| Operating Temperature | 32 to 140 degrees F |
| Storage Temperature | 14 to 158 degrees F |
| Relative Humidity | 5% to 90% RH (non-condensing) |
| Certifications/Standards | FCC, CE, RoHS |
| UPC Code | 662774-044453 |
| Warranty | 2 years limited |
| Country of Origin | China |
