I/O |
SKU:
LB-US0214-S1

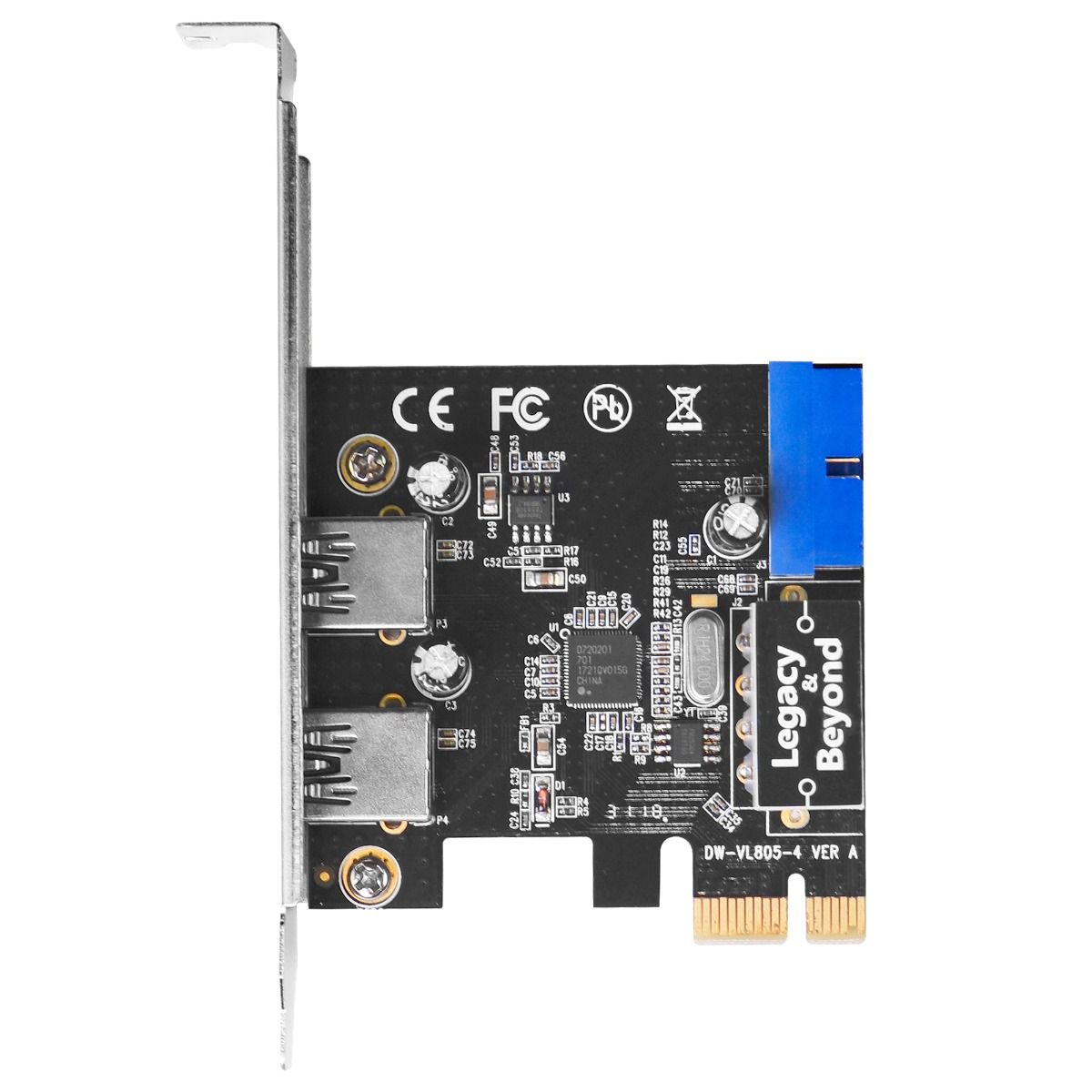

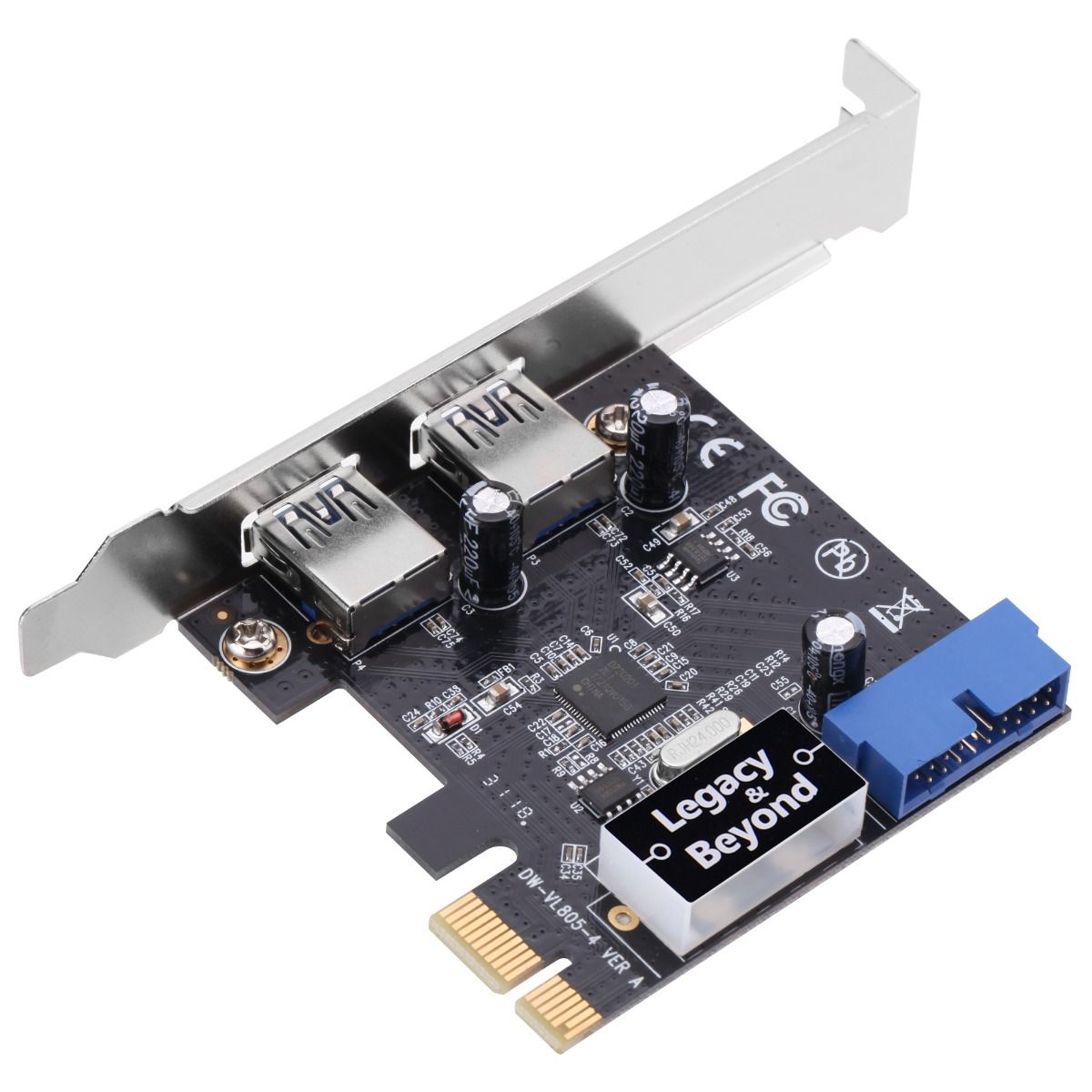

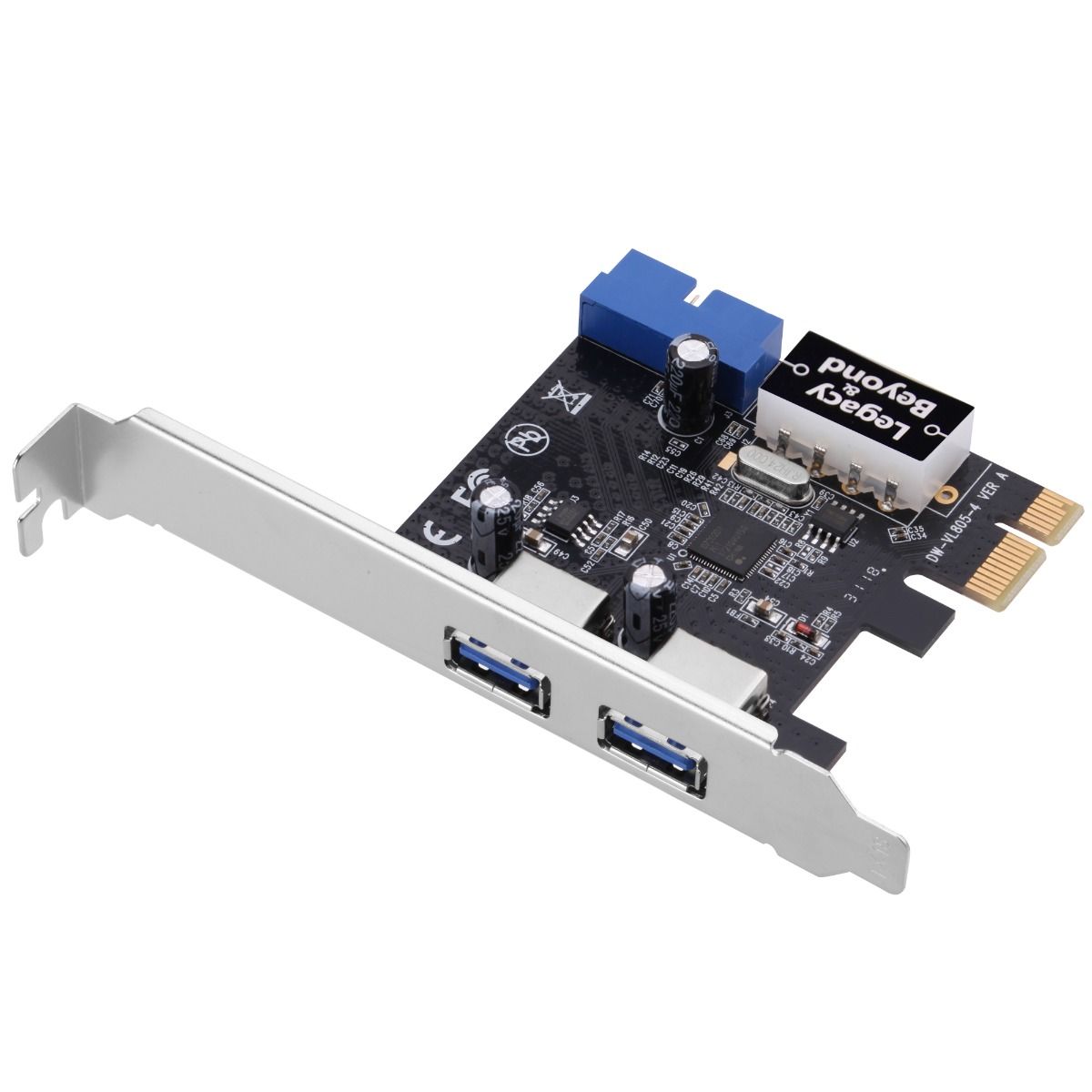

USB 3.0 4-Port (2-Ext plus19-pin header) PCIe Host Card
USB PCIe Card
2-Port USB-A / 2-Ext plus 19-pin Header
5Gbps
5V/900mA
UASP
Regular price
$41.99
Unit price
/
Unavailable
Shipping calculated at checkout.
USB 3.0 4-Port (2-Ext plus19-pin header) PCIe Host Card is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
Adds 4 USB 3.0 Ports
Adds 4 USB 3.0 Ports
High-Speed Data Transfer
High-Speed Data Transfer
UASP Enhanced Storage Speed
UASP Enhanced Storage Speed
Powered Ports with Protection
Powered Ports with Protection
19-pin Header & Flexible System Installation
19-pin Header & Flexible System Installation
No content found
| Chipset | Renesas uPD720201 |
| Bus Connector | PCI Express x1 |
| Version | PCI Express 2.0 |
| Data Transfer Rate | Up to 5Gbps |
| USB Power Output | Up to 900mA |
| Connectors | |
| External | 2 x 9-pin USB 3.0 Type A, Female |
| Internal | 1 x 4-pin Molex power connector 1 x 19-pin USB 3.0 header |
| Environmental Conditions | |
| Operating Temperature | 32 to 140 degrees F |
| Storage Temperature | 14 to 158 degrees F |
| Relative Humidity | 5% to 90% RH (non-condensing) |
| Certifications/Standards | FCC, CE, RoHS |
| UPC Code | 662774-040172 |
| Warranty | 1 year limited |
| Country of Origin | China |
| Package Contents | 1x USB 3.0 4-Port (2-Ext plus 19-pin header) PCIe Host Card 1x Spare Low profile Bracket 1x Driver CD 1x Installation guide |
| Product | |
| Dimensions (L) x (H) x (W) | 3.54" x 4.72" x 0.79" 9.00 cm x 12.00 cm x 2.00 cm |
| Weight | 0.10 lbs (0.05 kg) |
| Color | Black |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 7.29" x 5.52" x 1.30" 18.52 cm x 14.02 cm x 3.30 cm |
| Weight | 0.28 lbs (0.13 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 22.44" x 17.70" x 12.21" 57.00 cm x 44.96 cm x 31.00 cm |
| Weight | 16.12 lbs (7.30 kg) |
| Quantity | 50pcs/ctn |
| System Requirements | - Desktop PC with one available PCI Express (PCIe) slot - Windows® 11 (64-bit) / 10 (32-/64-bit) / 8.x (32-/64-bit) / 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-/64-bit) - Windows® Server 2016 (32-/64-bit) / 2012 R2 / 2012 (32-/64-bit) / 2008 R2 / 2008 & 2003 (32-/64-bit) Note: Molex power connection is required |
No content found
Manuals
Drivers (Hardware Version: 2)
