Convenient Power Charging |
SKU:
AC-PW1012-S1
20% off

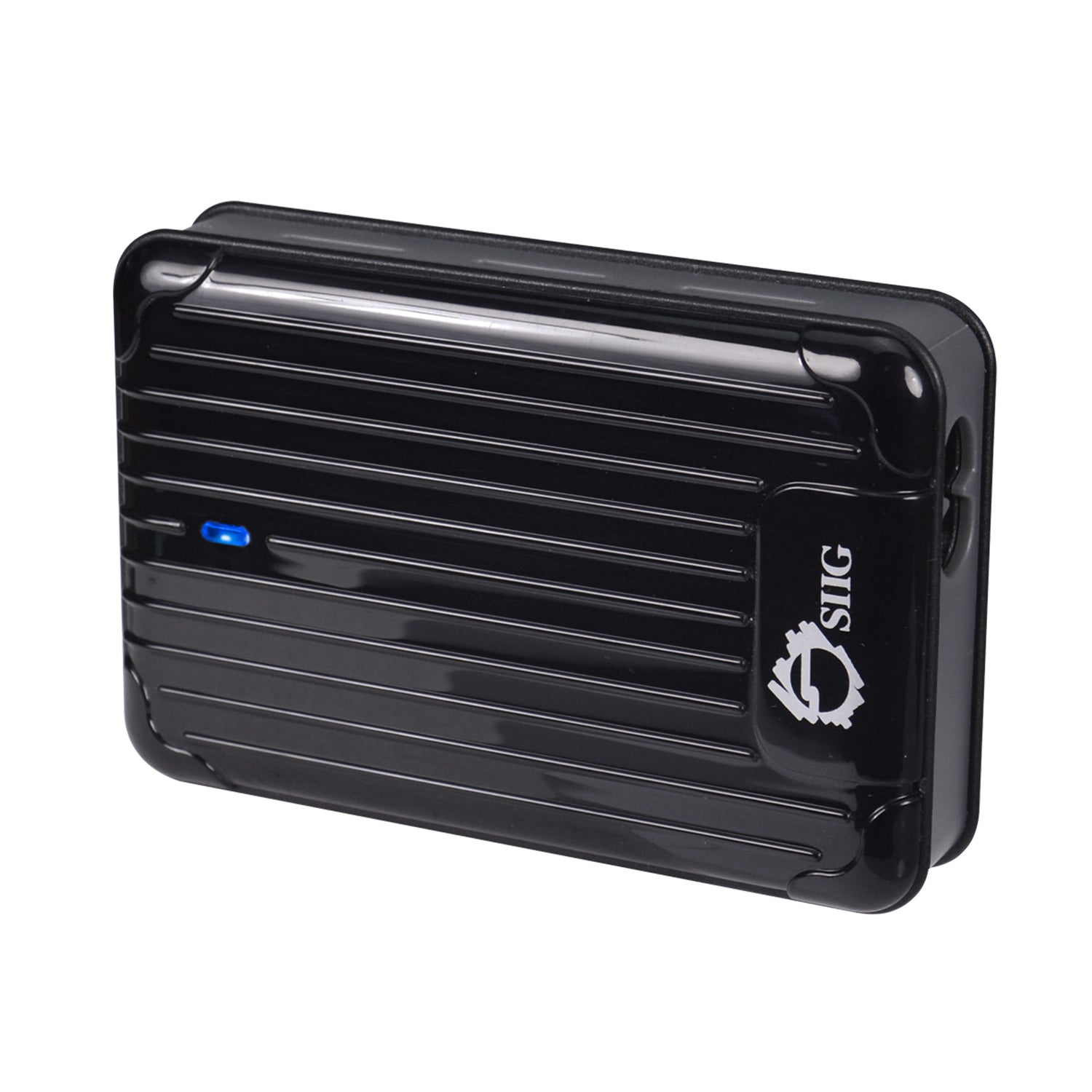

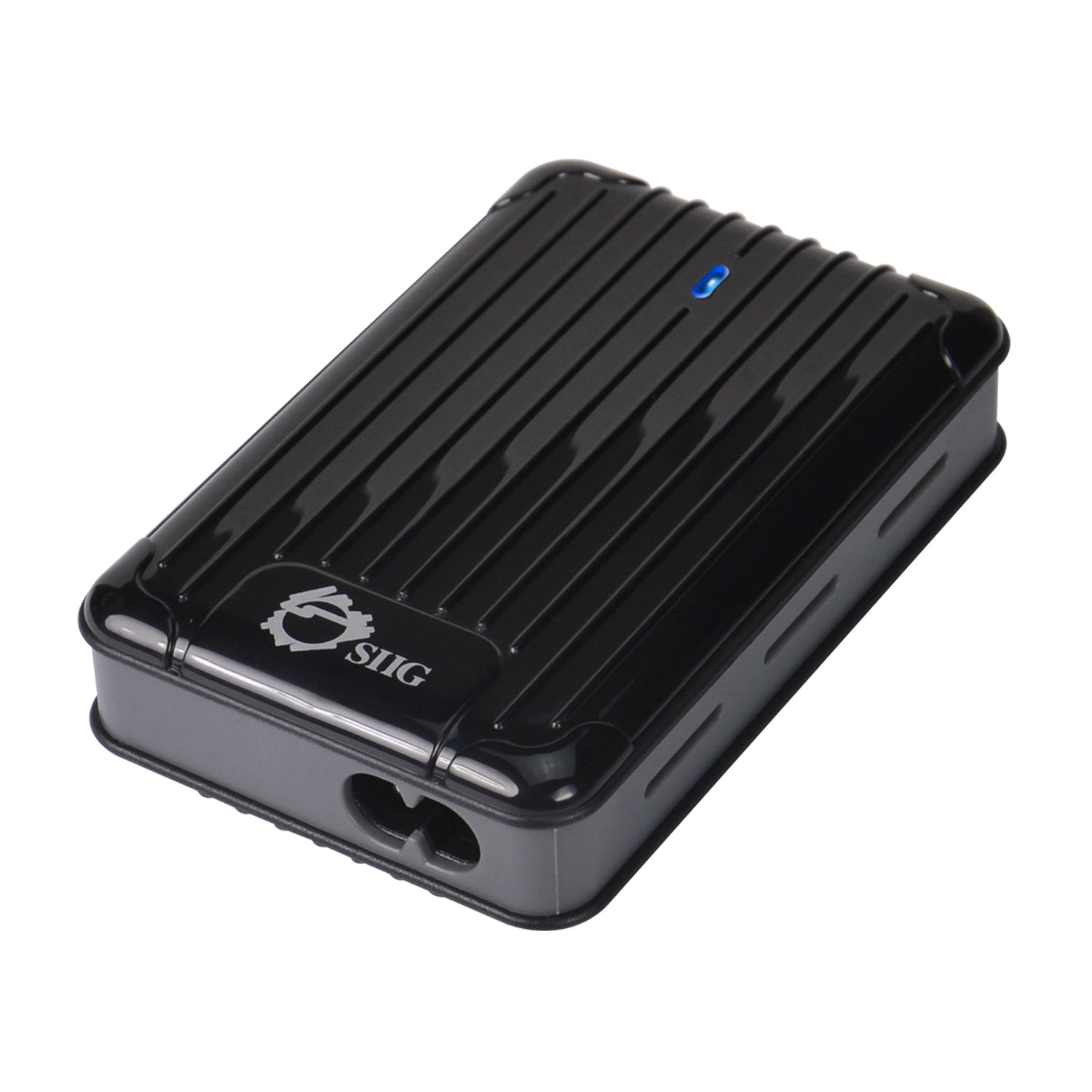

Ultra-Compact Universal Laptop Power Adapter - 45W
Laptop Power Adapter
Sale price
$31.88
Regular price
$39.99
Unit price
/
Unavailable
Shipping calculated at checkout.
Ultra-Compact Universal Laptop Power Adapter - 45W is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
High Efficiency
High Efficiency
Compatibility
Compatibility

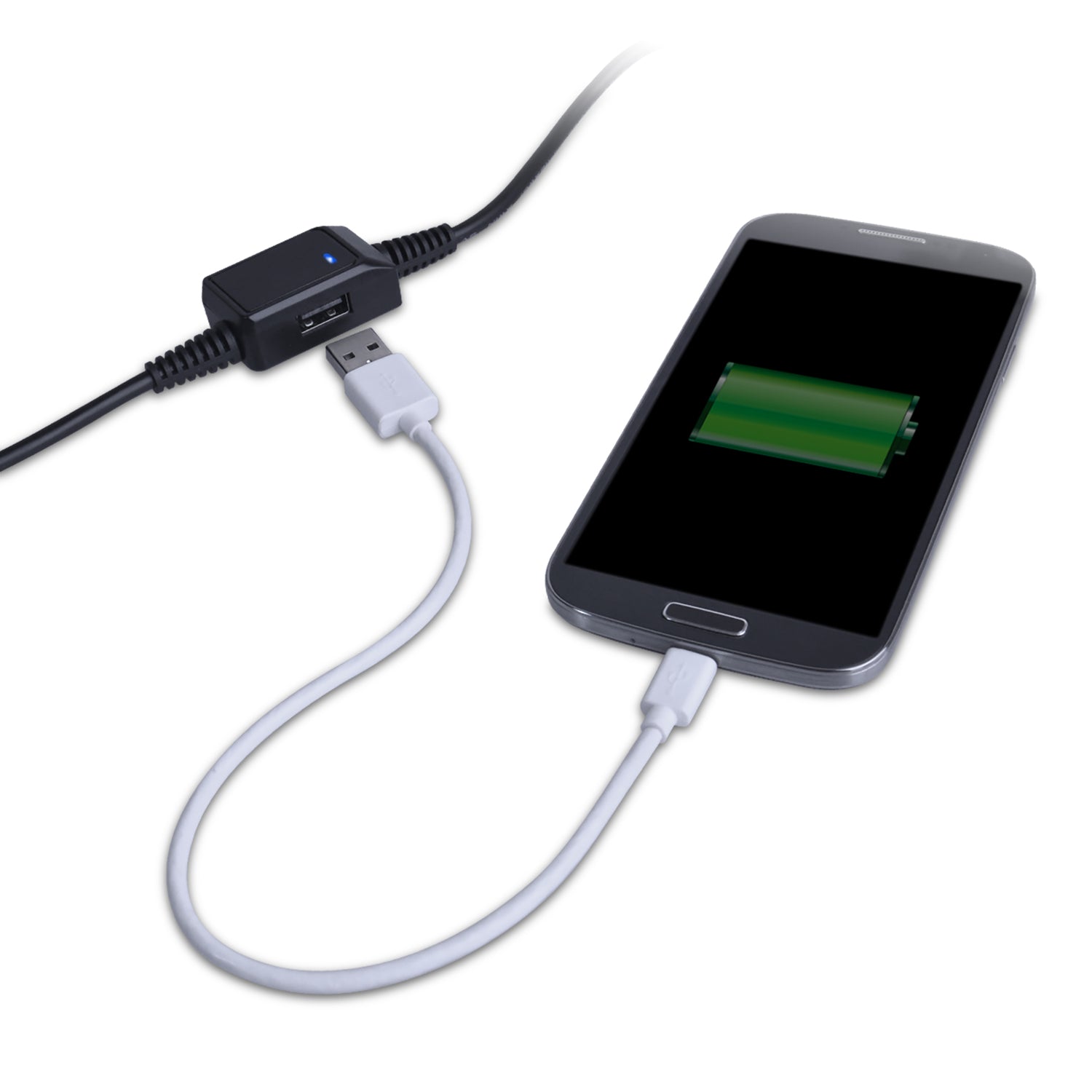

USB Charging
USB Charging
Portability
Portability
Safety & Protection
Safety & Protection
No content found
| Input | AC 100-240V (50-60Hz) |
| Output | |
| Watts | 45W (Max) |
| DC | 9.5V-20V |
| AMPS | 9.5V: 3.75A (Max) 12V: 3.50A (Max) 19V: 3.50A (Max) 19.5V: 2.30A (Max) 20V: 2.25A (Max) |

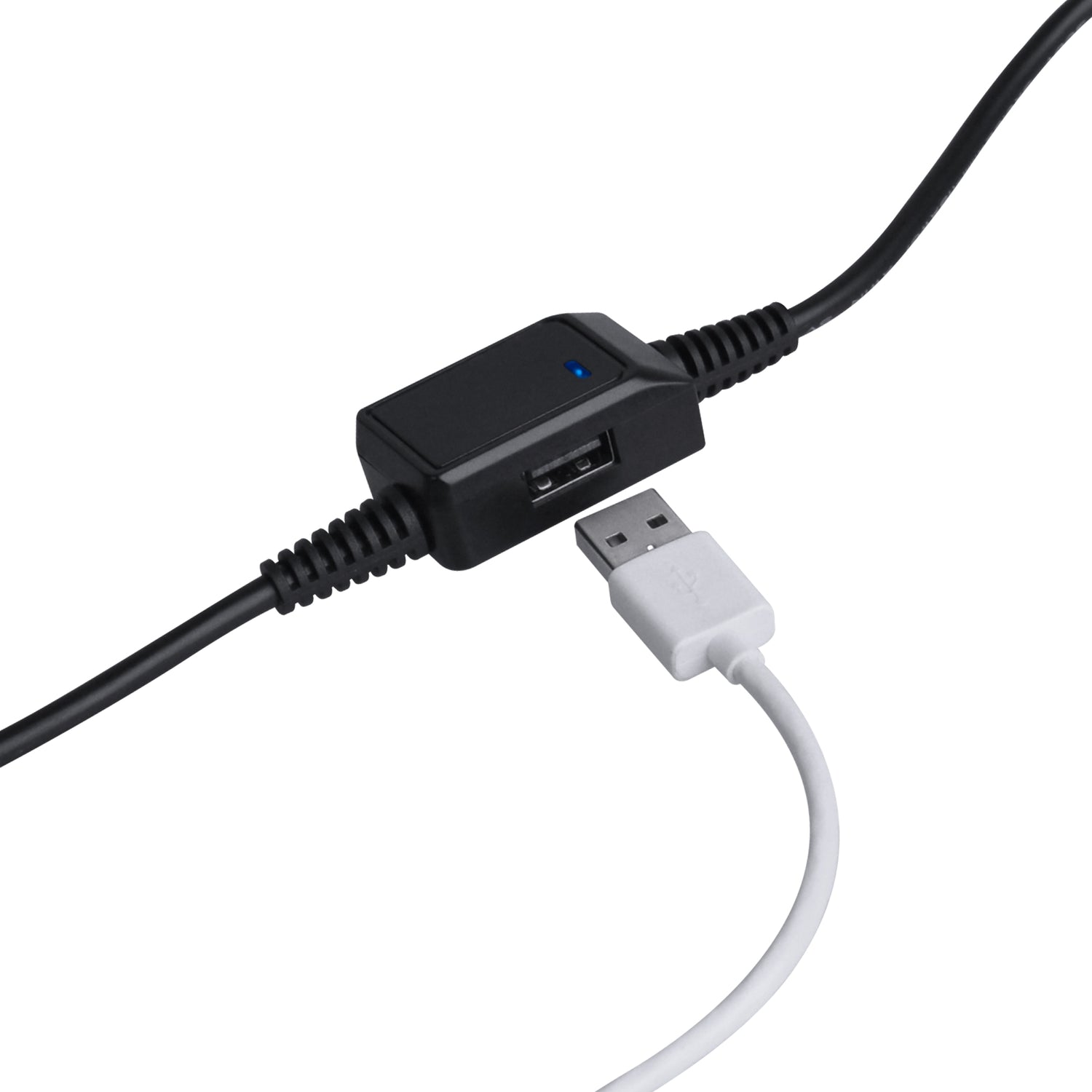

| USB Port | DC 5V / 2A (Max) |
| Adapter Tip Compatibility List | |
| Detail | List inside the User Reference Guide |
| A1 | Output: 9.5V Connector tip: 4.8mm (OD) x 1.7mm (ID) Model: ASUS |
| A2 | Output: 12V Connector tip: 4.8mm (OD) x 1.7mm (ID) Model: ASUS |
| A3 | Output: 19V Connector tip: 4.8mm (OD) x 1.7mm (ID) Models: ASUS / ACER / HP |
| A5 | Output: 20V Connector tip: 5.5mm (OD) x 2.5mm (ID) Models: Lenovo / MSI / Fujitsu |
| A13 | Output: 19.5V Connector tip: 4.5mm (OD) x 3mm (ID) Model: HP |
| A14 | Output: 19.5V Connector tip: 7.4mm (OD) x 5.0mm (ID) Model: Dell |
| *Note | The included adapter tips (A series, 45W) are unique to this model laptop power adapter and not compatible with AC-PW1112-S1 (65W), AC-PW1212-S1 (90W) or other models sold by SIIG or other brand laptop power adapters. |
| Product | |

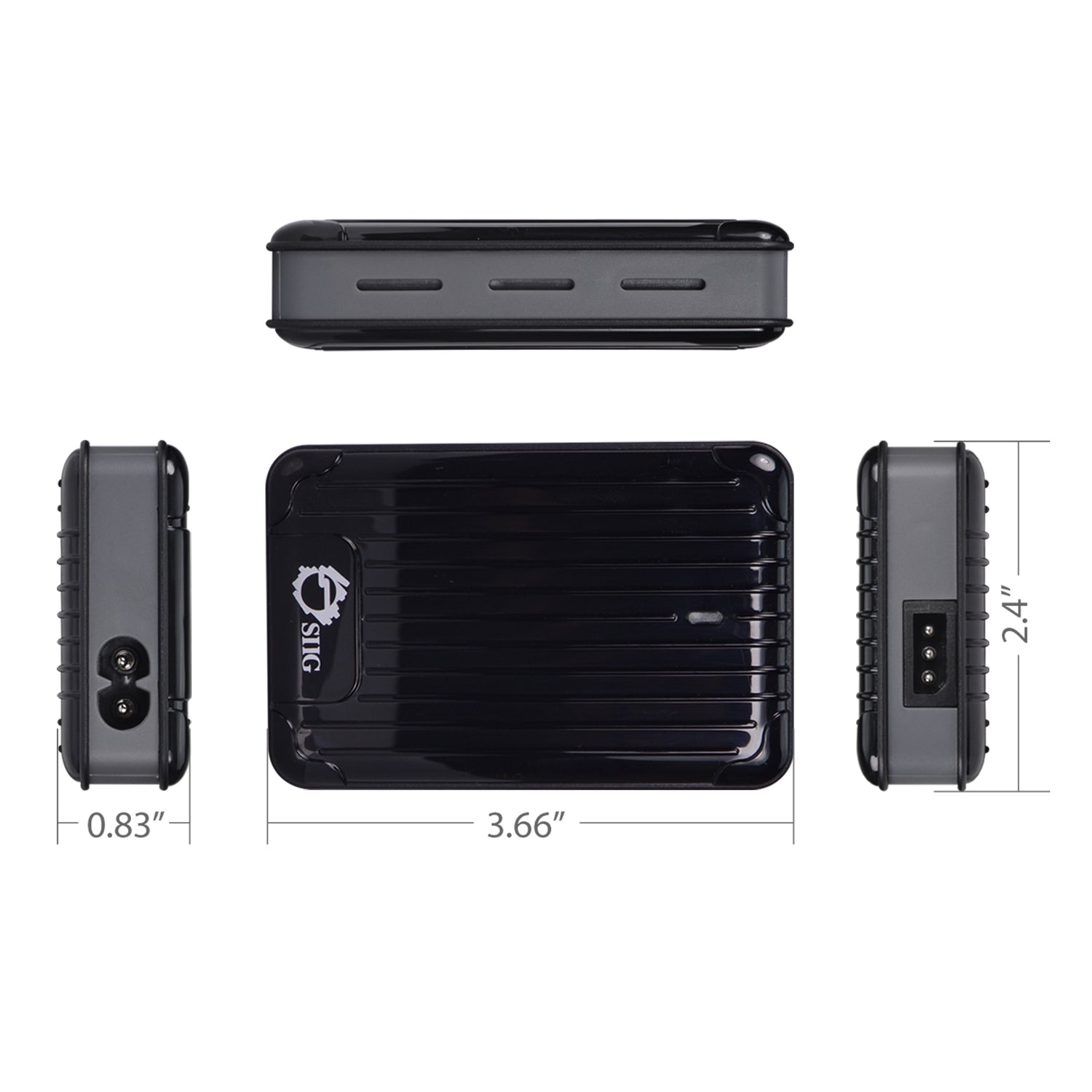

| Dimensions (L) x (H) x (W) | 3.66" x 2.40" x 0.83" 9.30 cm x 6.10 cm x 2.11 cm |
| Weight | 0.22 lbs (0.10 kg) |
| Color | Black |
| Power Cable Length | DC adapter cable: 45" 2-Prong AC power cord: 45" |
| Unit package | |
| Dimensions (L) x (H) x (W) | 8.27" x 4.96" x 1.38" 21.01 cm x 12.60 cm x 3.51 cm |
| Weight | 0.7 lbs (0.32 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 22.05″ x 15.75" x 9.06″ 56.01 cm x 40.01 cm x 23.01 cm |
| Weight | 24.70 lbs (11.20 kg) |
| Quantity | 30pcs/ctn |
| Environmental | |
| Operating Temperature | 32° F to 104° F (0° to 40° C) |
| Storage Temperature | 4° F to 150° F (-20° to 65° C) |
| Operating Humidity | 20% to 80% RH |
| Storage Humidity | 10% to 95% RH |

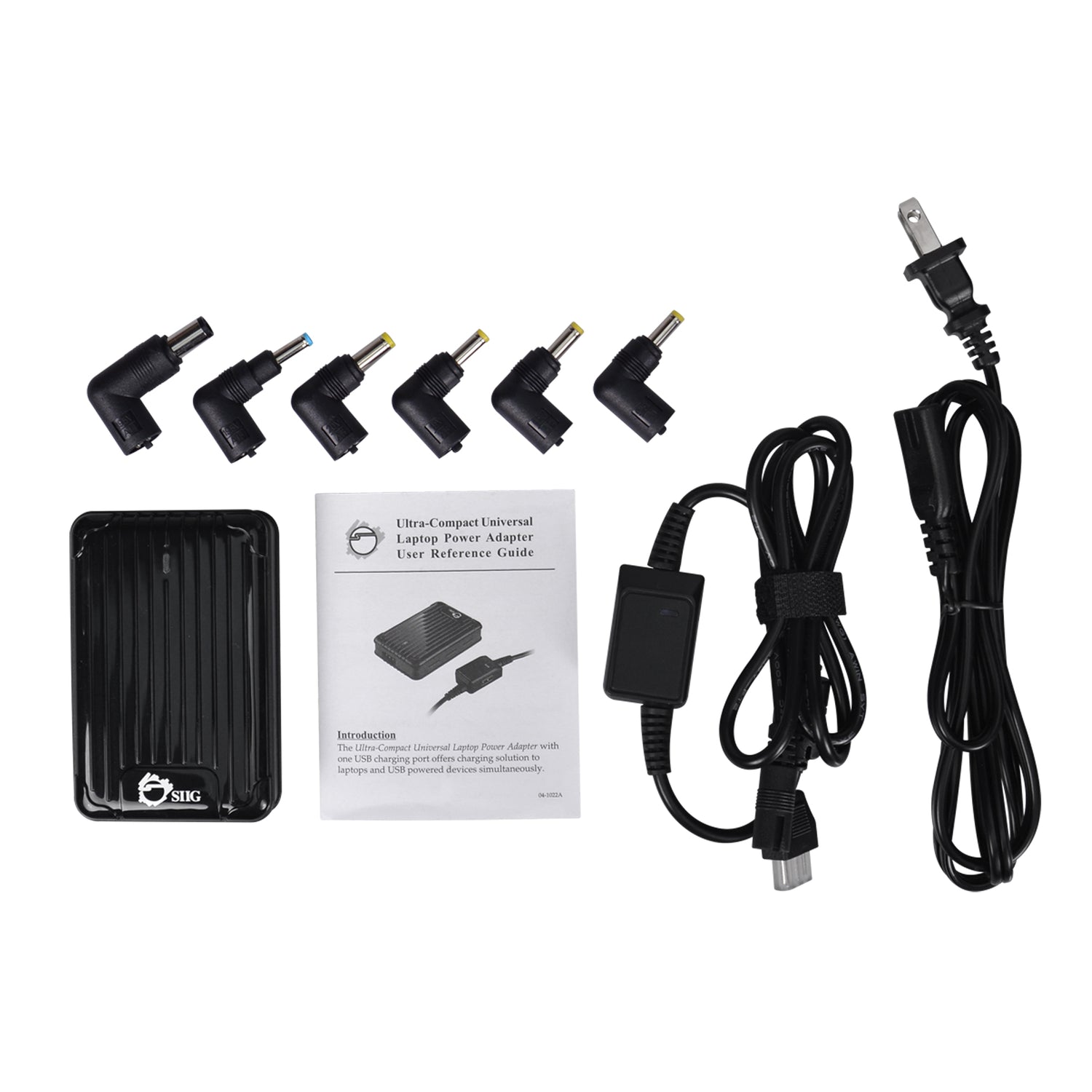

| Package Contents | 1x Ultra-Compact Universal Laptop Power Adapter - 45W 1x DC Adapter Cable 1x 2-Prong AC Power Cord 1x DC Charging Tips (6pcs) 1x User reference guide |
| Certifications/Standards | FCC, CE, RoHS |
| Warranty | 1 year limited |
| Country of origin | China |
