MST |
SKU:
CE-DP0Q11-S1

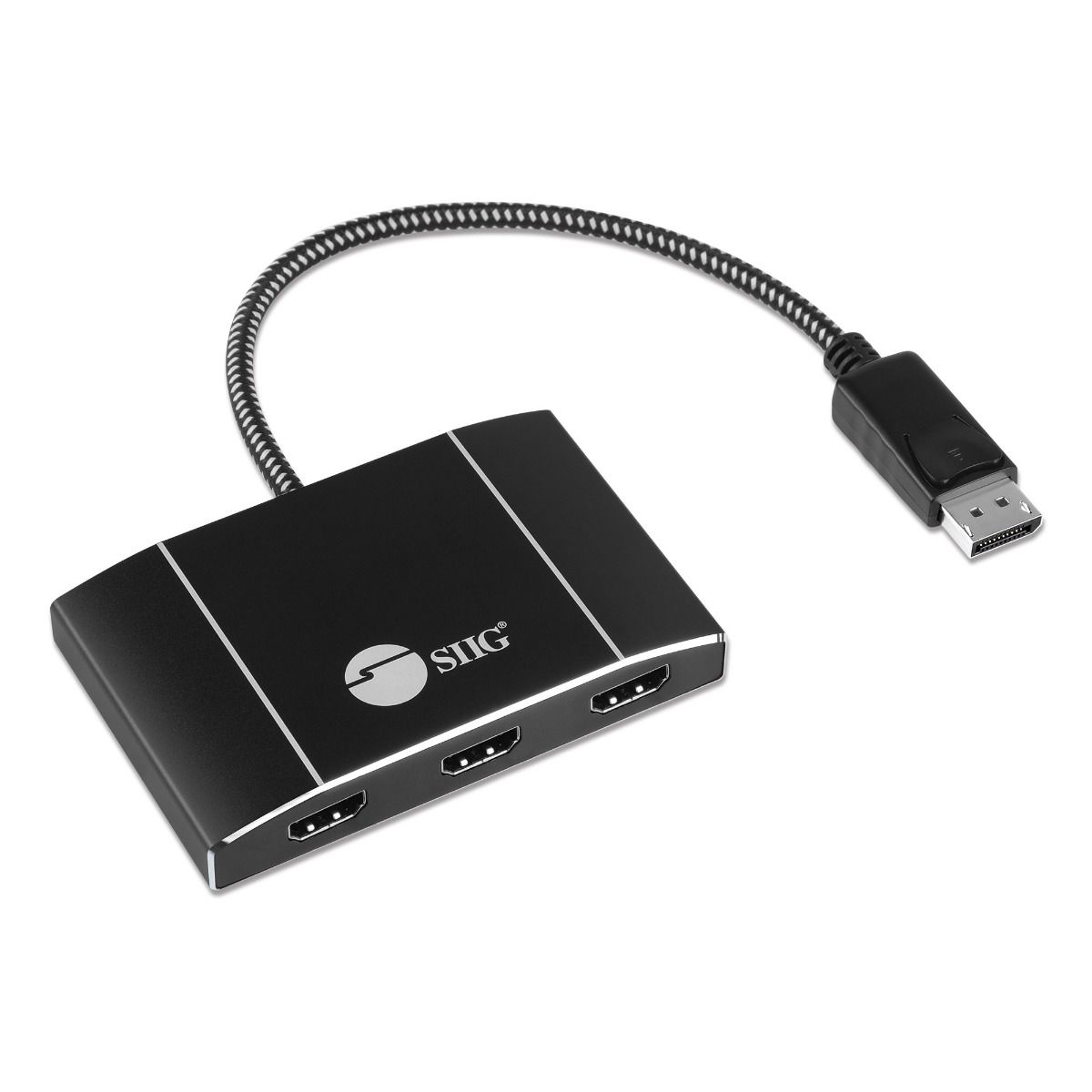

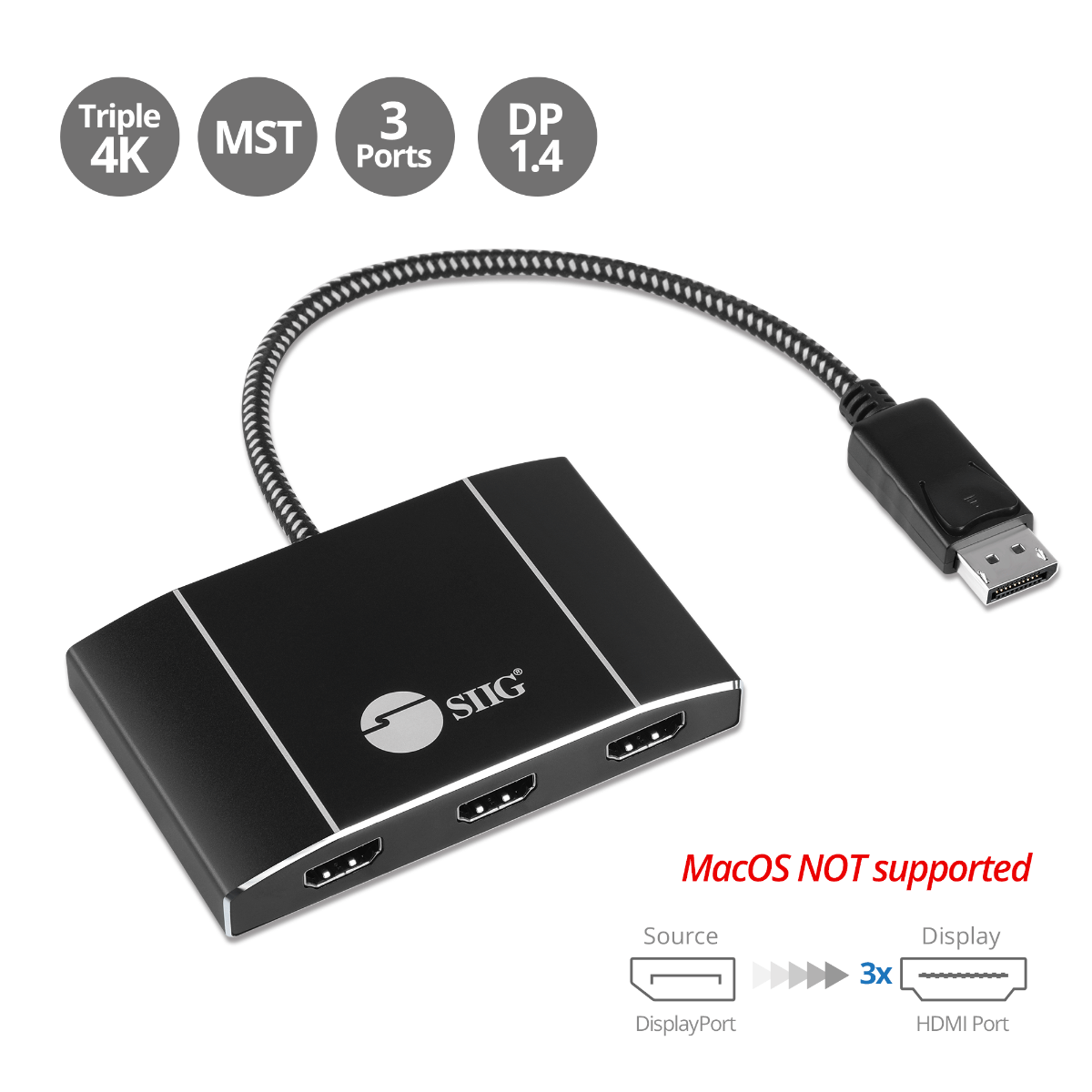

8K 1x3 DisplayPort 1.4 to HDMI MST Hub Splitter
1x3 MST Splitter
DisplayPort In / 3x HDMI Out
Triple 4K30Hz

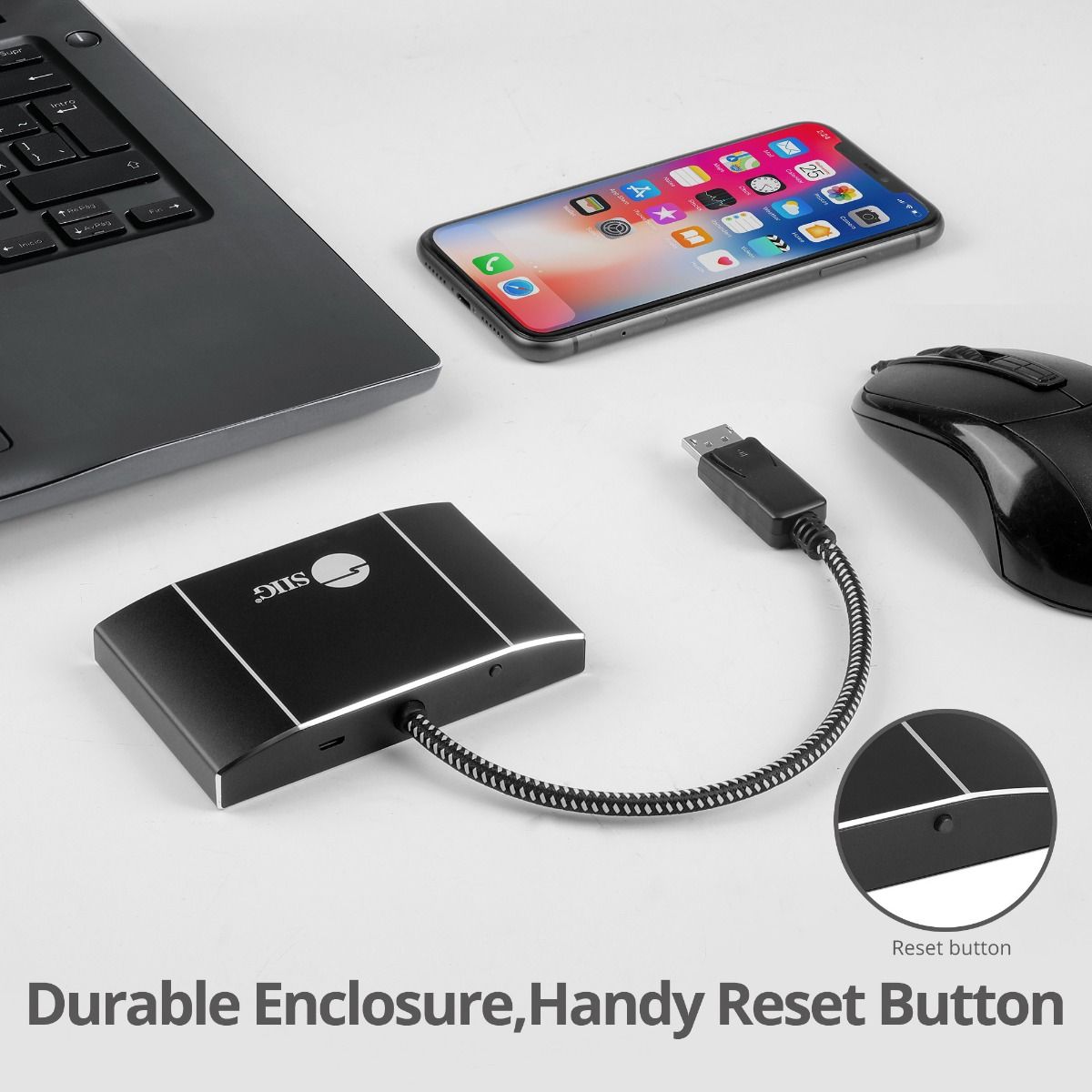

Reset Button
Micro USB Power
Regular price
$179.99
Unit price
/
Unavailable
Shipping calculated at checkout.
8K 1x3 DisplayPort 1.4 to HDMI MST Hub Splitter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
Display Modes
Display Modes
3-Port Displayport to HDMI Splitter MST Hub
3-Port Displayport to HDMI Splitter MST Hub
High Performance
High Performance
Maximum Compatibility
Maximum Compatibility
Aluminum Housing Design
Aluminum Housing Design
8K 1x3 DisplayPort 1.4 to HDMI MST Hub Splitter
Estimated shipping by June 19, 2026
Regular price
$179.99
Unit price
/
Unavailable
-
45 Days Free Return
-
2 Years Warranty
-
Lifetime Technical Support

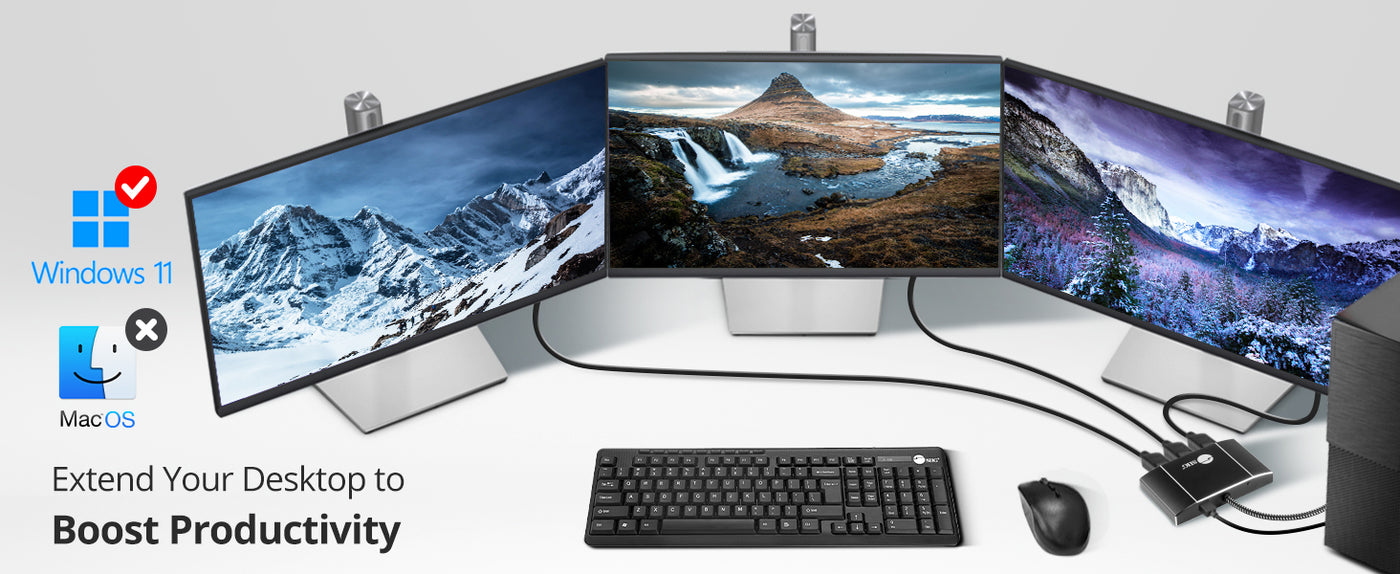

Triple 4K DisplayPort 1.4 to 3 HDMI MST Hub Splitter Extends Files or Videos to 3 independent Monitors that Making your Work More Efficient
MST Technology is One of the Common Ways to Achieve Multi-display From a Single Computer System to Multiple Monitors, TVs, or Projectors

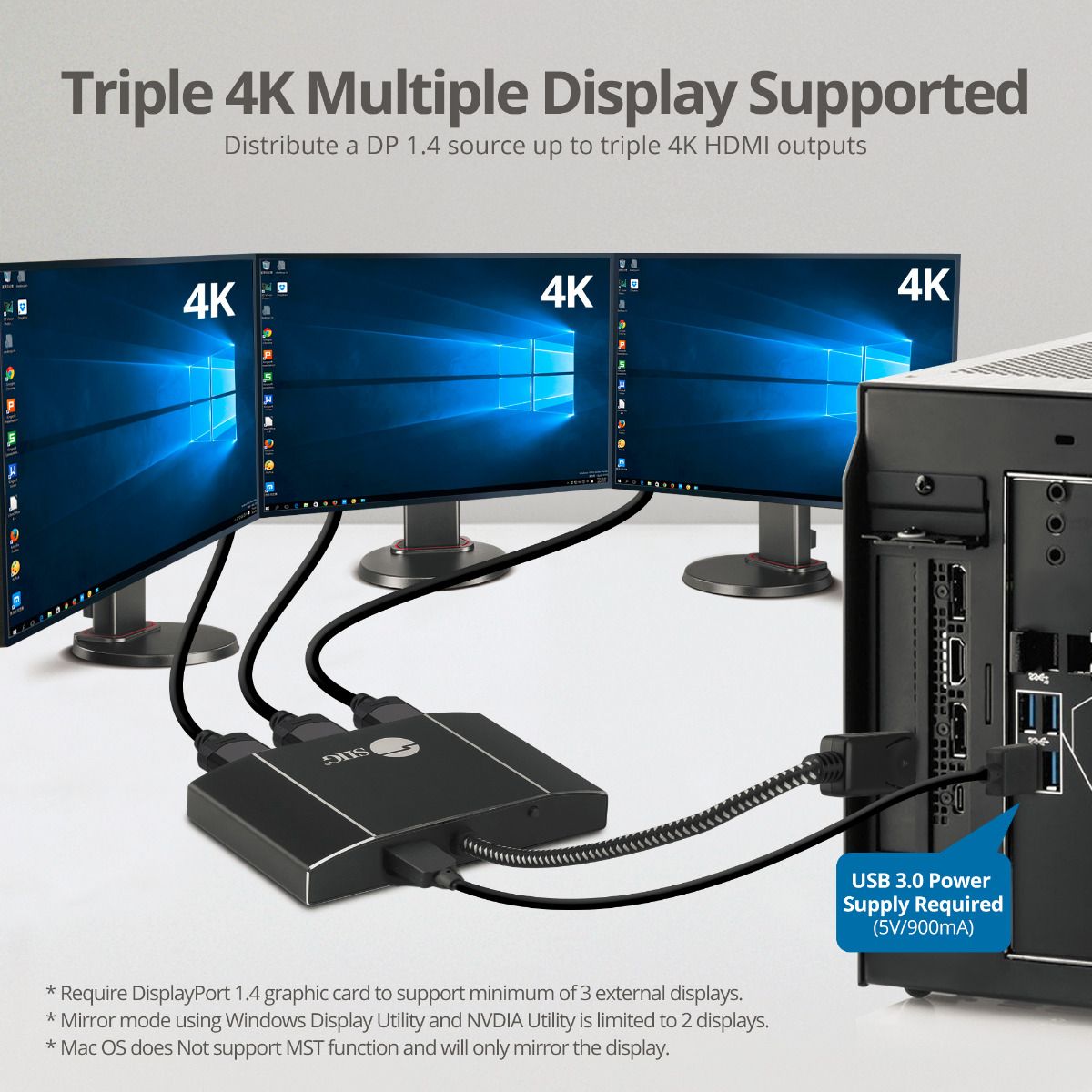

Distribute a DP 1.4 Source up to Triple 4K HDMI Output

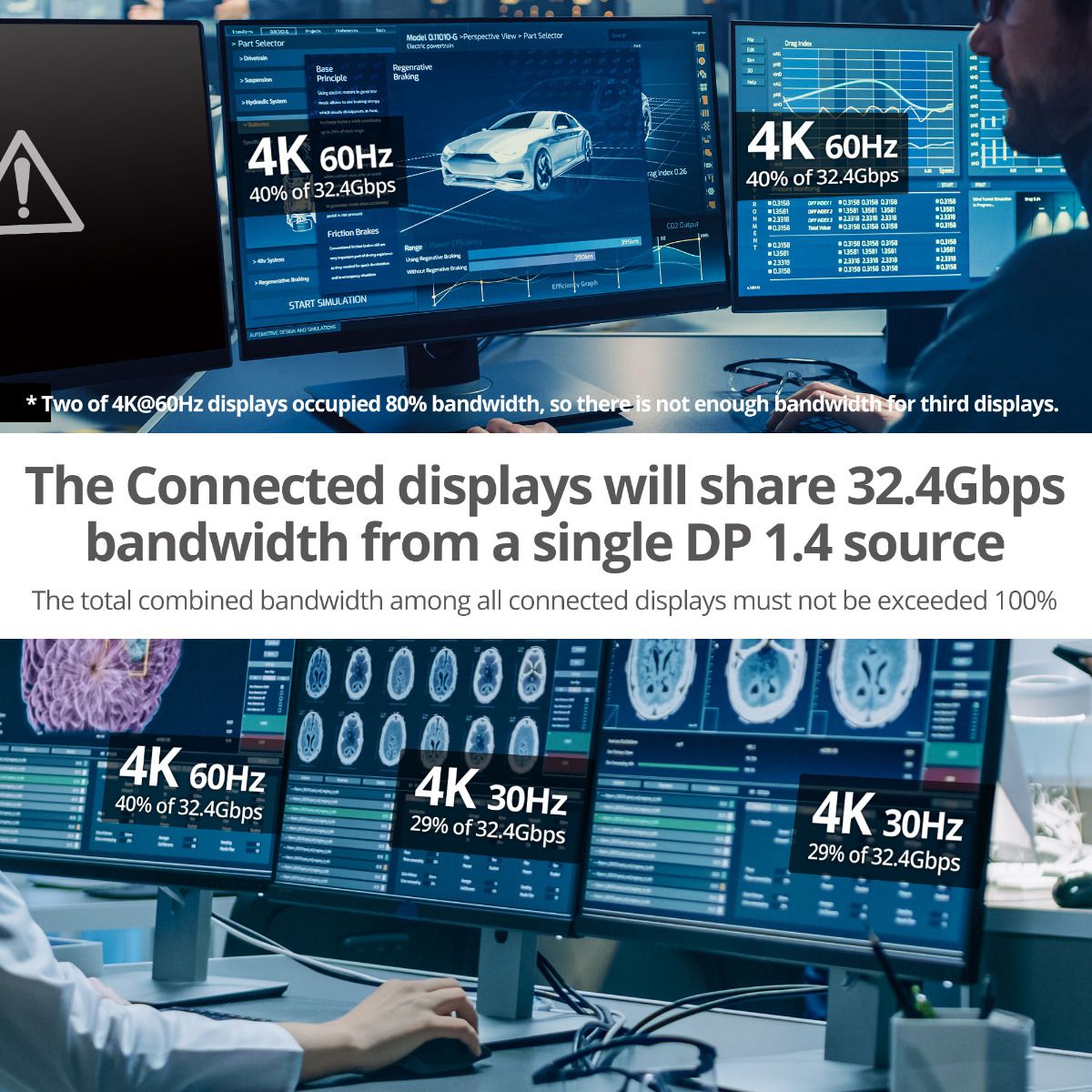

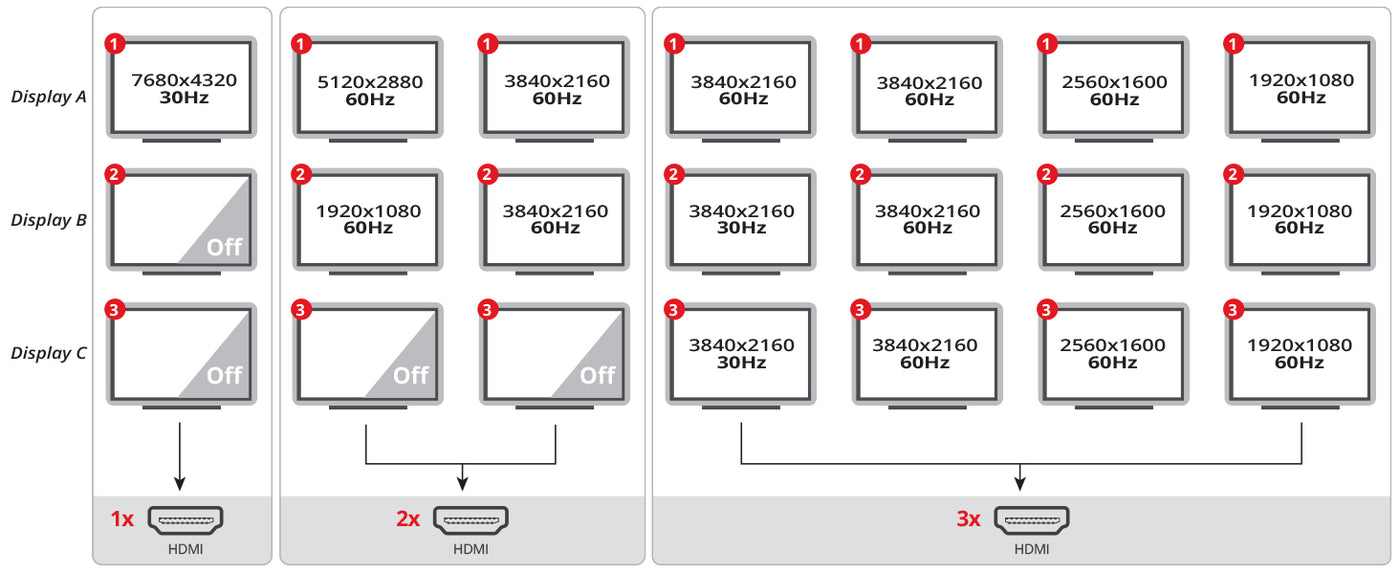

Bandwidth and Limitations - Refer to the Table Above to Make Sure Additional Displays Can be Accommodated

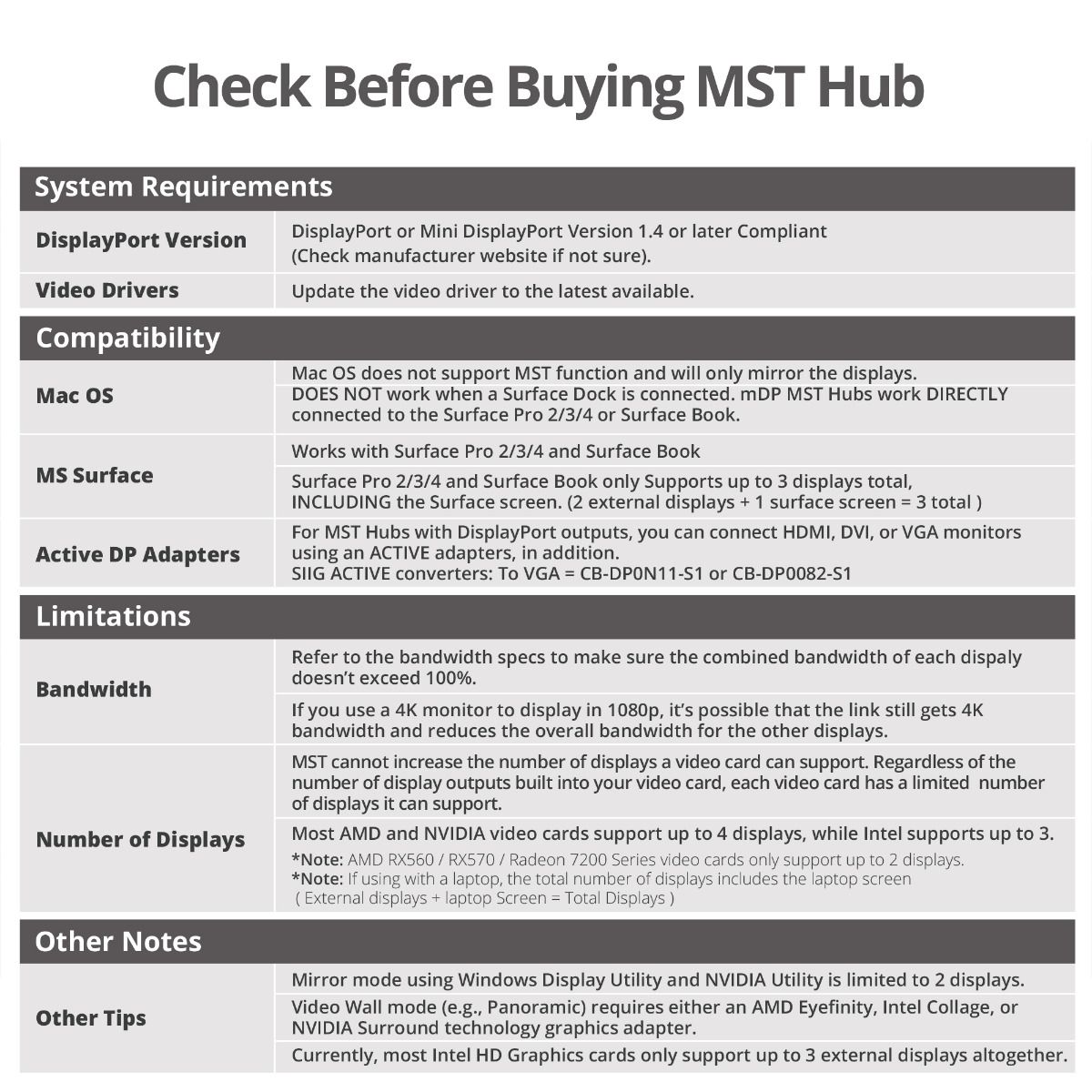

Need to Know Before Buying, Key Prerequisites for SIIG MST Hubs
Adjust Screen Resolution Tutorial
Read Before You Purchase
1.Make sure your system requirement has a DisplayPort video output specification 1.4 and supports Multi Stream Transport (MST). If you are not sure, please check with the video card or system manufacture.
2.Install the latest drivers for your video card. Go directly to the system/video card manufacturer or chipset owner, such as AMD, Nvidia, or Intel, to find the latest driver. Driver update through Device Manager may not retrieve the latest driver available.
3.Please check your monitors resolution meet your need. If you use a 4K monitor to display in 1080p, there is a possibility that the link still gets 4K bandwidth and reduces the overall bandwidth for the other displays.
4.Adding additional displays to your system is simple with MST hub; however, they are mostly dependent on and tied to your Graphics Card's capability to operate properly and make sure your system requirements are met. Check number of displays on graphics card and notes that laptop display is count in.
5.MST hub cannot increase the number of displays a graphics card supports. Regardless of the number of display connectors built into your graphics card, each graphics card has a limited number of displays it can support. From our experience at the current time, AMD and NVIDIA video cards support up to 4 displays, while Intel supports up to 3 displays. If you are unsure, check with the video card or system manufacturer.
2.Install the latest drivers for your video card. Go directly to the system/video card manufacturer or chipset owner, such as AMD, Nvidia, or Intel, to find the latest driver. Driver update through Device Manager may not retrieve the latest driver available.
3.Please check your monitors resolution meet your need. If you use a 4K monitor to display in 1080p, there is a possibility that the link still gets 4K bandwidth and reduces the overall bandwidth for the other displays.
4.Adding additional displays to your system is simple with MST hub; however, they are mostly dependent on and tied to your Graphics Card's capability to operate properly and make sure your system requirements are met. Check number of displays on graphics card and notes that laptop display is count in.
5.MST hub cannot increase the number of displays a graphics card supports. Regardless of the number of display connectors built into your graphics card, each graphics card has a limited number of displays it can support. From our experience at the current time, AMD and NVIDIA video cards support up to 4 displays, while Intel supports up to 3 displays. If you are unsure, check with the video card or system manufacturer.
| Chipset | VMM5310+ITE6563 |
| Video | |
| Bandwidth | 32.4Gbps |
| DisplayPort | 1x DisplayPort 1.4 |
| HDMI | 3x HDMI |

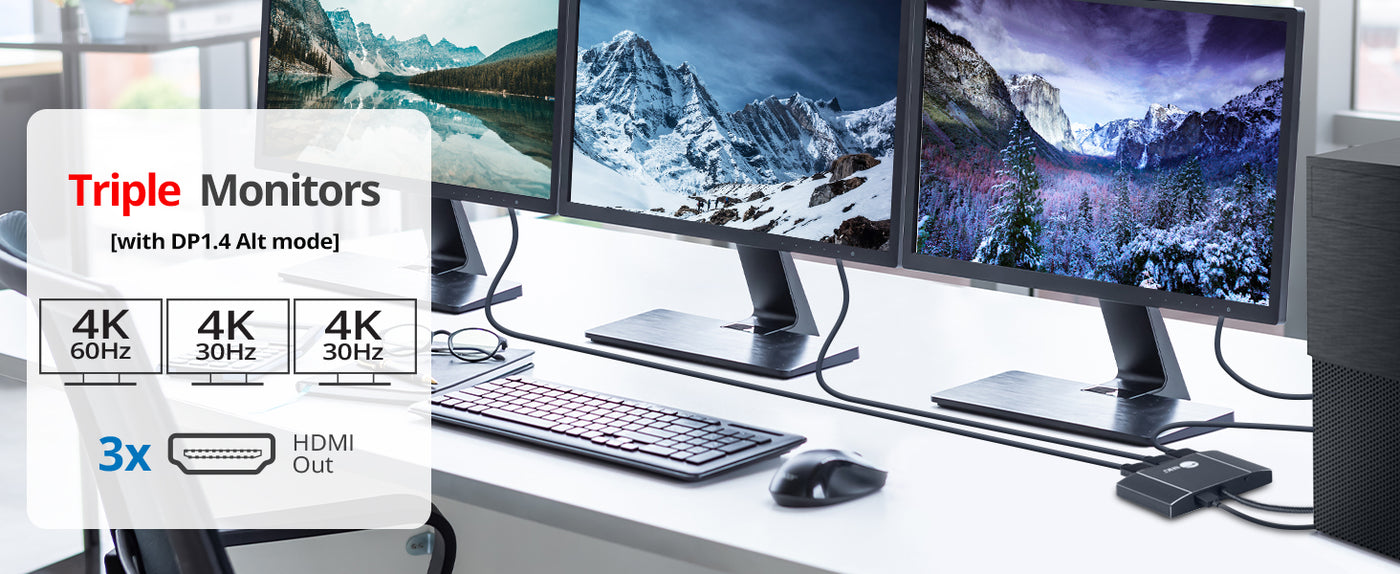

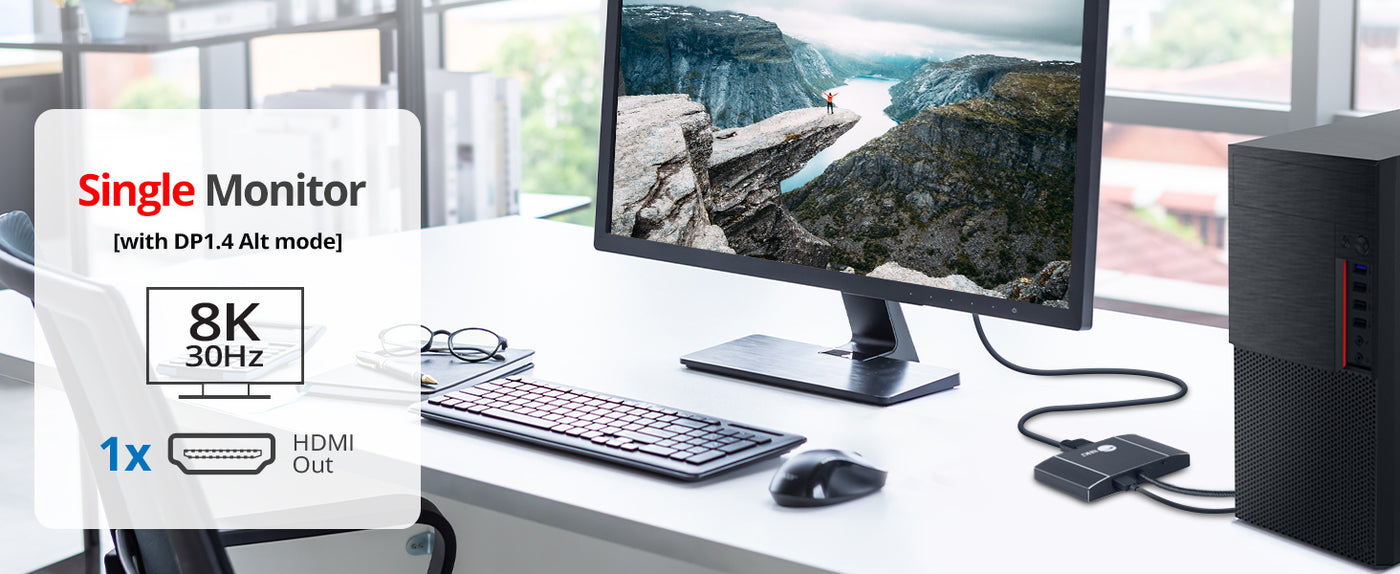

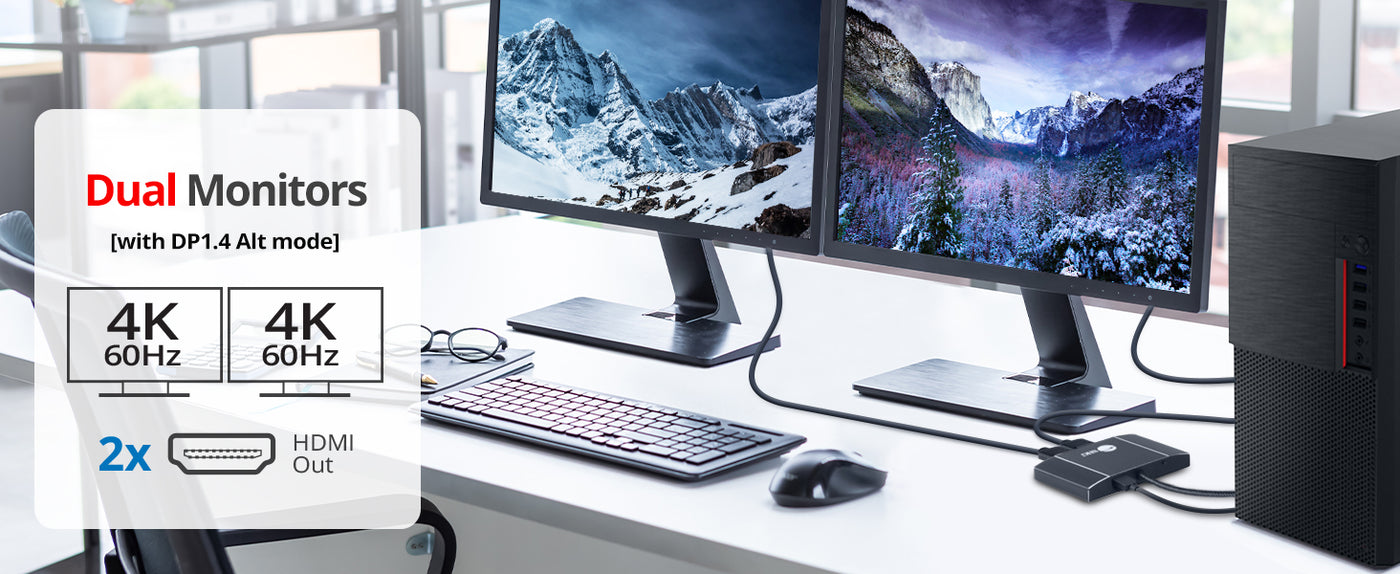

| Resolution | One screen up to 8K (7680x4320) @30Hz with HDR Two screens up to 4K (3840x2160) @60Hz with HDR Three screens up to 4K (3840x2160) @30Hz |
| 3 Display Modes | Mirror mode Extended mode Panoramic Video Wall mode Note: AMD Eyefinity, NVIDIA Surround, or Intel Collage technology graphics adapter is required to support Panoramic Video Wall mode |
| Audio Support | 7.1 channel surround sound via HDMI port, up to 192KHz sampling rated |

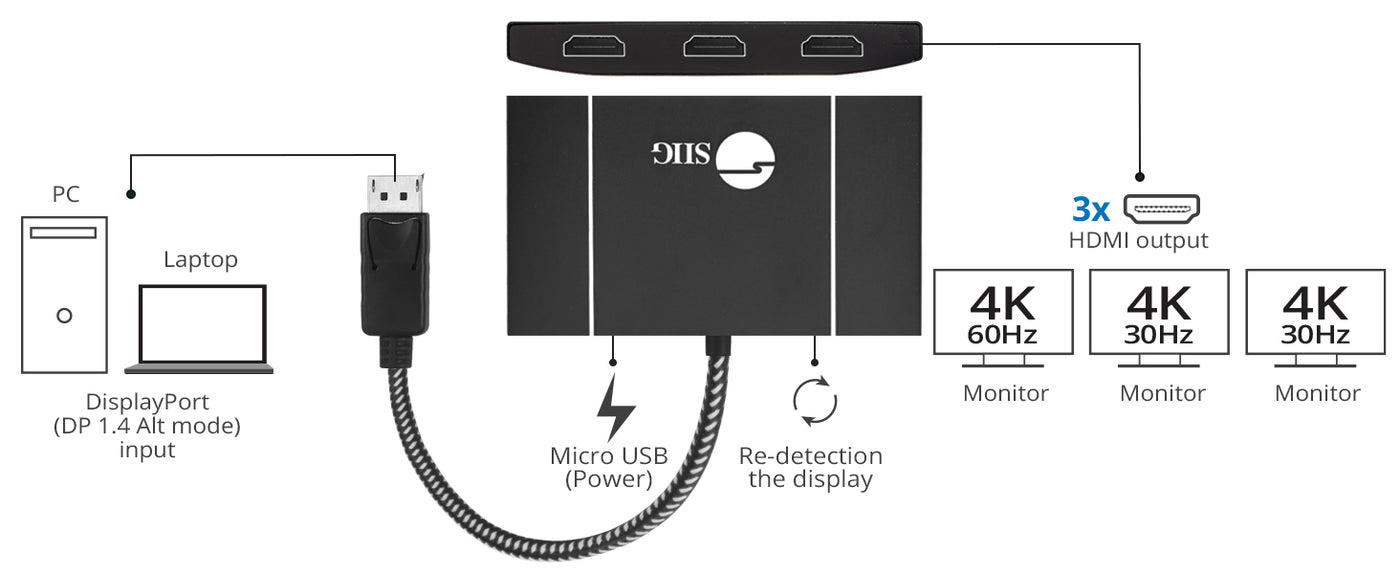

| Connectors | 1x 20-pin, DisplayPort 1.4, Female (for Host) 1x 5-pin, Micro USB, Power Input only (at least 5V/500mA), Female 1x Reset button 3x 19-pin, HDMI, Female |
| System Requirements | - Desktop or laptop with an available DisplayPort 1.4 port - Windows® 11 / 10 *Note: macOS does not support MST function and only mirror displays (SST) |
| Product | |
| Dimensions (L) x (H) x (W) | 4.14" x 0.67" x 2.64" 10.52 cm x 1.70 cm x 6.71 cm |
| DisplayPort cable (embedded) | 10.24" |
| Weight | 0.28 lbs (0.13 kg) |
| Color | Black |
| Housing Material | Aluminum |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 17.32" x 15.75" x 16.34" 44.00 cm x 40.00 cm x 41.50 cm |
| Weight | 28.88 lbs (13.10 kg) |
| Quantity | 60 pcs/ctn |
| Environmental | |
| Operating temperature | 32 to 104 degrees F |
| Storage temperature | -4 to 158 degrees F |
| Relative humidity | 5% to 90% RH (non-condensing) |
| Certifications/Standards | FCC, CE, RoHS 2.0, REACH |
| UPC Code | 662774-043951 |
| Warranty | 2 years limited |
| Country of Origin | China |

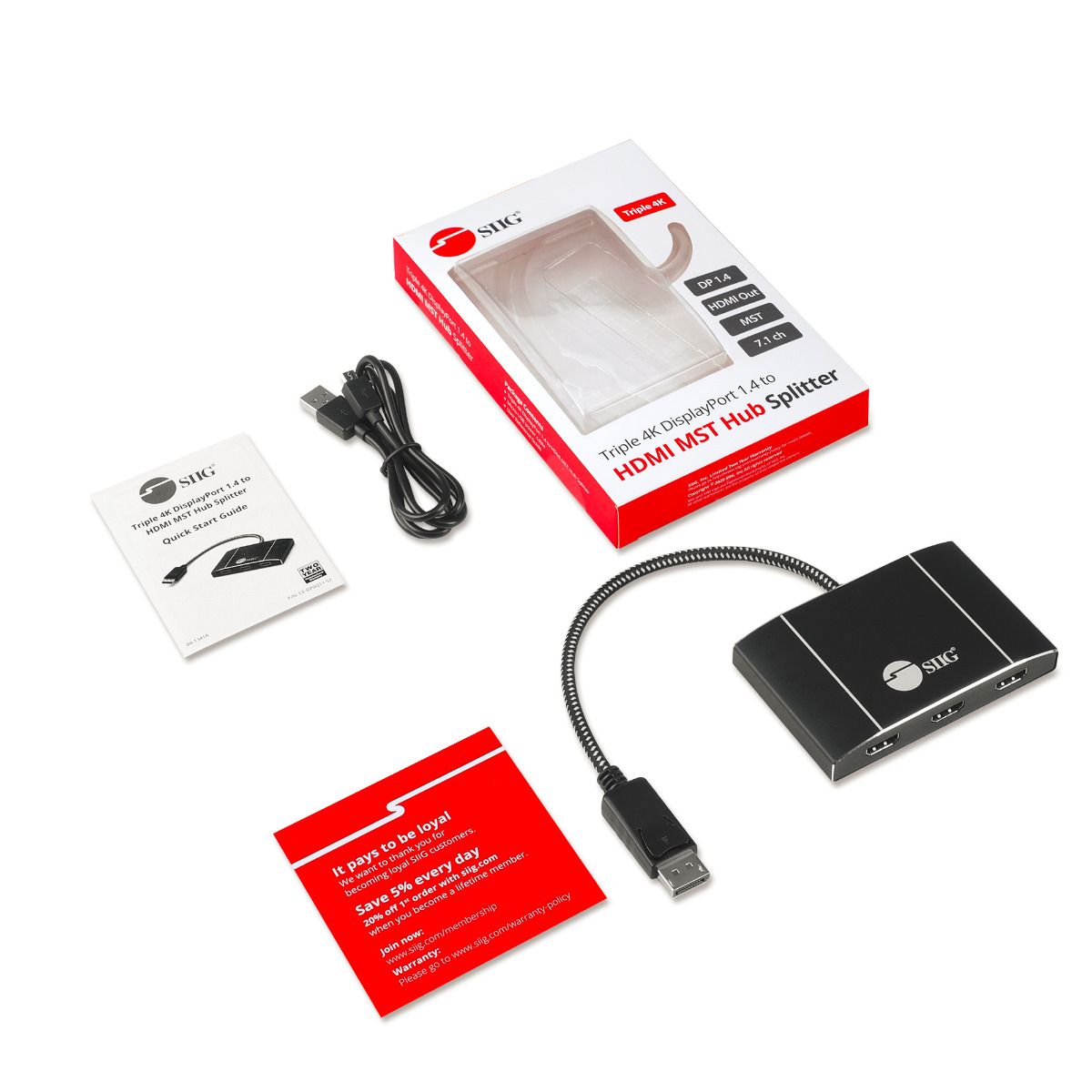

| Package Contents | 1x 8K 1x3 4K DisplayPort 1.4 to HDMI MST Hub Splitter 1x Micro USB to USB-A power cable, male to male, 50cm (1.64ft) 1x User reference guide |
Q1: I have a PC with a DP 1.2 DisplayPort. Is that compatible with the DP 1.4 to 3x HDMI?
Q1: I have a PC with a DP 1.2 DisplayPort. Is that compatible with the DP 1.4 to 3x HDMI?
A1: Yes, it is compatible. The DP 1.2 DisplayPort still can use the DP 1.4 to 3x HDMI. But, the DP 1.2 bandwidth is lower than DP 1.4, max output resolution will be lower than DP 1.4 spec, not the same as DP 1.4
Q2: Can I use this to connect a 3rd monitor to my AIO (All-in-One PC)?
Q2: Can I use this to connect a 3rd monitor to my AIO (All-in-One PC)?
A2: Yes, it can connect to an All-in-one PC, but, please refer to our notes before buying, there are some limits need to know.
Q3: Does the MST Hub Splitter support 21:9 or 32:9 ultrawide resolution?
Q3: Does the MST Hub Splitter support 21:9 or 32:9 ultrawide resolution?
A3: All MST Hubs can support ultrawide resolutions like 21:9 or 32:9. However, our current examples use 16:9 resolution. It's important to note that 21:9 and 32:9 resolutions require a higher bandwidth compared to 16:9.
Since the total bandwidth of an MST Hub remains constant, the maximum supported resolution and number of connected monitors will vary depending on the bandwidth required by each monitor. For example, with a DP 1.2 connection, an MST Hub can support four 1080p monitors. if you use displays with a resolution of 2560x1080, the maximum number of supported monitors would decrease to three.
Upgrading to DP 1.4, which offers a higher bandwidth than DP 1.2, would allow the MST hub to support four monitors with a resolution of 2560x1080.
Since the total bandwidth of an MST Hub remains constant, the maximum supported resolution and number of connected monitors will vary depending on the bandwidth required by each monitor. For example, with a DP 1.2 connection, an MST Hub can support four 1080p monitors. if you use displays with a resolution of 2560x1080, the maximum number of supported monitors would decrease to three.
Upgrading to DP 1.4, which offers a higher bandwidth than DP 1.2, would allow the MST hub to support four monitors with a resolution of 2560x1080.
